DURAVIT XSquare XS 7114 User manual

4x
8x
16x
2x 100
4x 5,5x50
4x S8
B
75 75
A
150
70
2050
74 74
160
150
800
640
Mounting instructions
Instructions for use
We reserve the right to make technical improvements and design modifications to the products illustrated.
The bathroom furniture range complies with the standards and guidelines applicable at the time of delivery and is designed for use in bathrooms.
Direct contact with water should be avoided, for example, when showering.
Distance from the sensor to the reflecting surfaces = > 75 mm.
A power supply of 110 V – 230 V must be available on site.
A
mm
B
mm
1200 902
MAL_XSquare_XS7114/22.04.3
XSquare # XS 7114

1
2
Ø 8 mm
230 V
4x S8 4x 5,5x50
4x 8x
16x
1
2
Order no. XS7114/22.04.3
MAL_XSquare_XS7114/22.04.3
Duravit AG, Werderstr. 36, 78132 Hornberg, Germany, Phone [phone], Fax [phone], inf[email protected], www.duravit.de
1 2 3 4
5 6 7 8
9 10 12
13 14 15 16
17 18 19 20
11

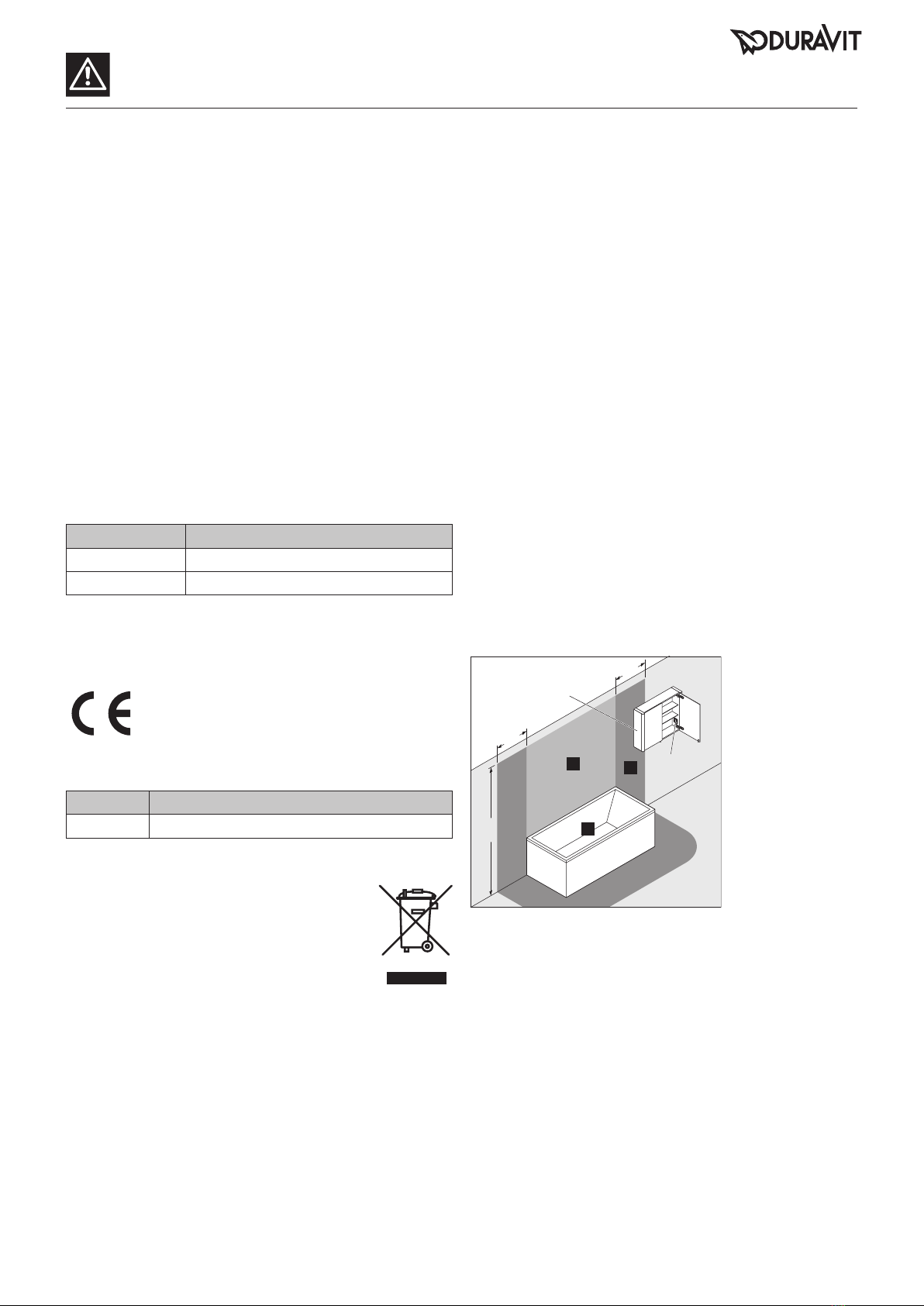

Mounting instructions for bathroom furniture with a power supply
Safety 2
Electrical installation 3

Intended use
The mounting instructions come as part of the Duravit
product and are aimed at people who carry out the
electrical installation for the product. You must read
through the mounting instructions carefully and they must
be available at all times.
Target readership and qualifications
The electrical installation may only be carried out by
qualified electricians.
Protection rating of Duravit products
The protection rating of Duravit products with a power
supply complies with the IP 44 standard as a minimum.
Protection class of wall lights
Protection class Connecting cable
I H05VV-F, 3x 1.5 mm2
II H03VV-F, 2x 0.75 mm2
Standards and directives
Duravit products comply with the CE marking
directives:
Icons and symbols
Symbol Meaning
> Action required
Disposal
• Do not dispose of the product in household
waste. Products with this symbol must be
disposed of in accordance with the WEEE
Directive through local collection points for
waste electrical equipment.
Safety instructions
Danger to life
Contact with electricity may lead to an electric shock.
>Carry out the electrical installation in accordance with
the national, European and international directives and
standards.
>Observe protection zones for wet rooms in accordance
with country-specific standards, local regulations and
low voltage guidelines.
>Connect the electrics using a ground fault circuit
interrupter (GFCI) in wet rooms or other specially
equipped rooms.
>Disconnect electrical components from the power supply
before the installation.
>Check that all components are de-energised.
>Prevent the power supply from being switched on
accidentally.
Penetration of foreign bodies and water
Foreign bodies or water in equipment lead to a short circuit
that may cause damage to the product.
>Observe the protection zones for Duravit products.
Protection zones
600 600
2250
0
12
A
B
AA mirror cabinet with an IP 44 rating may protrude into zone 2.
BA socket in a mirror cabinet must be mounted outside the zones.
Energy efficiency class
• This product contains an energy efficiency class D light
source.
2MAL_51240/22.04.5
Safety

Electrical installation for protection class I
Electrical connection Optional connection of an external button
LNLNL'
Electrical installation for protection class II
Electrical connection Optional connection of an external button
LNLNL'
LN
MAL_51240/22.04.5 3
Electrical installation

Order no. 51240/22.04.5 We reserve the right to make technical improvments and design modifications to the products illustrated.
