Durite 0-776-06 User manual

720p Dome Colour CCTV Camera
Normal Image
Part 0-776-06
0-776-06-LEAF
www.durite.co.uk
WARNINGS
Before using this unit please read these instructions carefully.Take special care to follow
the warnings and safety suggestions listed below. Keep these instructions for future refer-
ence.
There are no user-serviceable parts within the unit, refer servicing to qualied service
personnel.
PRECAUTIONS
• Please ensure you are familiar and comply with local trafc and driving regulations.
•Connection -The camera should only be connected to a Durite cctv system.
•Heat - Do not install the camera near heat sources.
•Mounting - Ensure the camera is facing the desired direction before xing the camera
base. If xing to isolated return chassis the camera bracket should be isolated from the
vehicle chassis.
•Service -The user should not attempt to service these units beyond that described in these
instructions. All other servicing should be referred to an authorised service technician.
GENERAL
The camera has a CMOS image sensor which gives a high quality picture and its solid state
circuitry provides extremely long life. Compact size and single connection make it easy
to install. Automatic gain control (AGC) provides a clear image in both strong sunlight
and low light conditions, if lighting conditions fall below a set level the Infra-red LEDs will
illuminate.It is recommended that all camera lead connections are additionally sealed by ei-
ther wrapping with a suitable tape or application of heat shrink sleeving. It is recommend to
connect the system and test before xing to ensure the correct eld of view is displayed.

0-776-06-LEAF
www.durite.co.uk
SPECIFICATION
ProductType.................................Dome Camera
ImageSensor...............................1/3 inch Sony CMOS
Resolution (TVline).................... 720p
EffectivePixels............................PAL 1280 (H) x 720 (V)
View Angle...................................150°
TVSystem....................................PAL
Waterproofrating........................IP69K
AGC..............................................Auto
Image Lens..................................2.1mm
Minillumination.........................0.1 Lux (0 Lux with iR)
Electronic Shutter...................... 1/50,000 Seconds
Current consumption.................Max.220mA
Video output...............................1.0vp-p, 75ohm
Powervoltage.............................DC 12V
S/NRatio.....................................Better than 48db( AGC-OFF)
Connector type...........................4 PIN aviation
Audio...........................................No
Operating Temp..........................-20°C~70°C,RH95% MAX
StorageTemp..............................-30°C~80°C,RH95% MAX
Certicates...................................E Marked

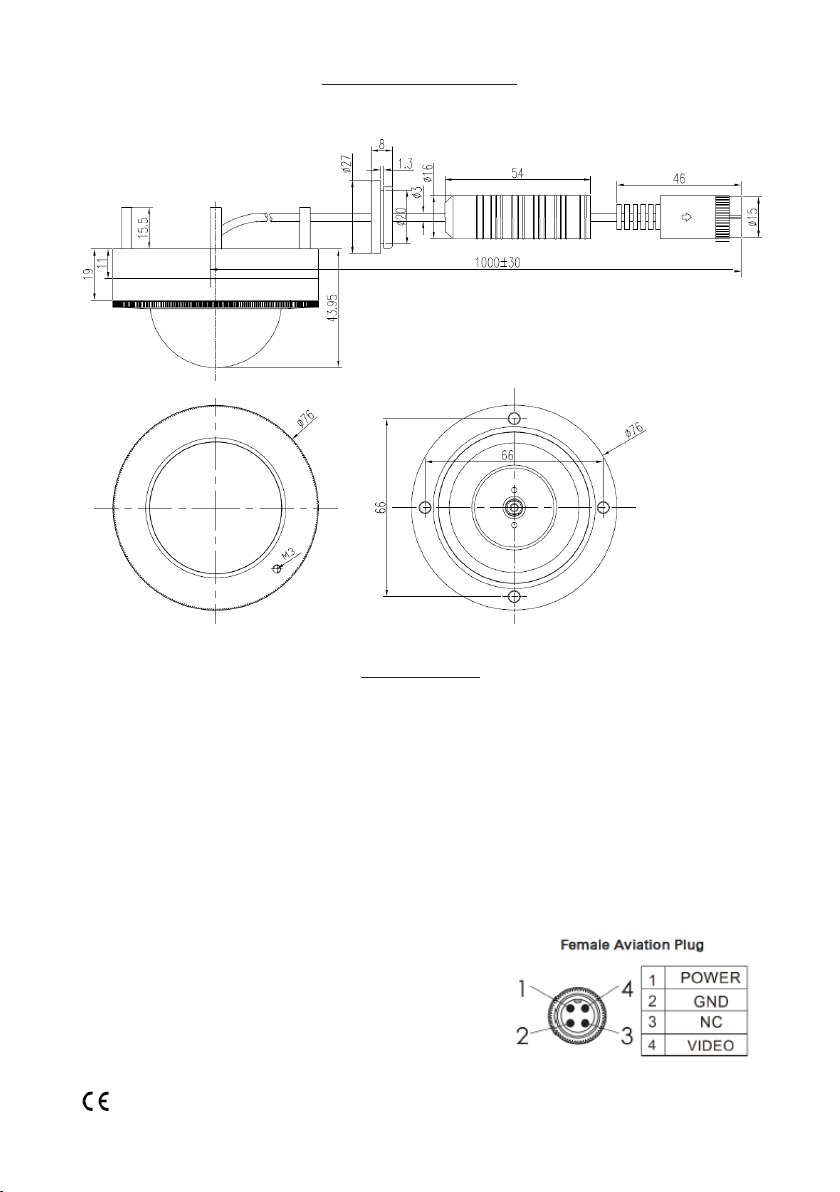

DIMENSIONAL DRAWING
