Anderson Powerpole®Connectors
DXE-PP30 30 Amp
DXE-PP45 45 Amp
DXE-PP-INS Rev 1
Features
10 Sets per package - 10 Red housings, 10 Black housings, 20 contacts 30 Amp
Flat wiping contact system
Interchangeable Genderless design
Colored, Modular housings 45 Amp
Polarized housings
Wide product range - From 30 amps through 45 amps
UL94 V-0 housing material
Benefits
Allows for minimal contact resistance at high current, wiping action cleans contact surface during disconnection.
Simplifies assembly requirements.
Allows customized multi-pole configurations with visual color coding to match wires.
Prevents damage to connectors from being mated incorrectly.
Allows versatility to choose product best suited to design requirements.
Provides security in knowledge that the connector chosen meets strict UL flammability ratings.
The difference between the 30 Amp and 45 Amp connectors is the contact type used. The
housings are the same size. The 30 Amp connector is made for wires ranging from 16-12
AWG and the 45 Amp contact is for 14-10 AWG wire.
1. Strip the wires 5/16".
2. Ensure sure the contacts are aligned properly. Crimp the contacts using a Powerpole®crimp tool. When using
the crimp tool, do not deform the contacts. Soldering is optional.
3. The housings have built-in interlocking tabs so you can connect them together. Interlock one red housing and
one black housing as shown. Note how the ends of the housings are in the same direction as shown.
4. Insert the contacts into the housings (red or positive to red, black or ground to black) as shown. Make sure the
contacts are facing the proper way. Push them in all the way. When you hear the 'click', the contact is fully
seated in the housing.
Top View Top View Bottom view

- 2 -

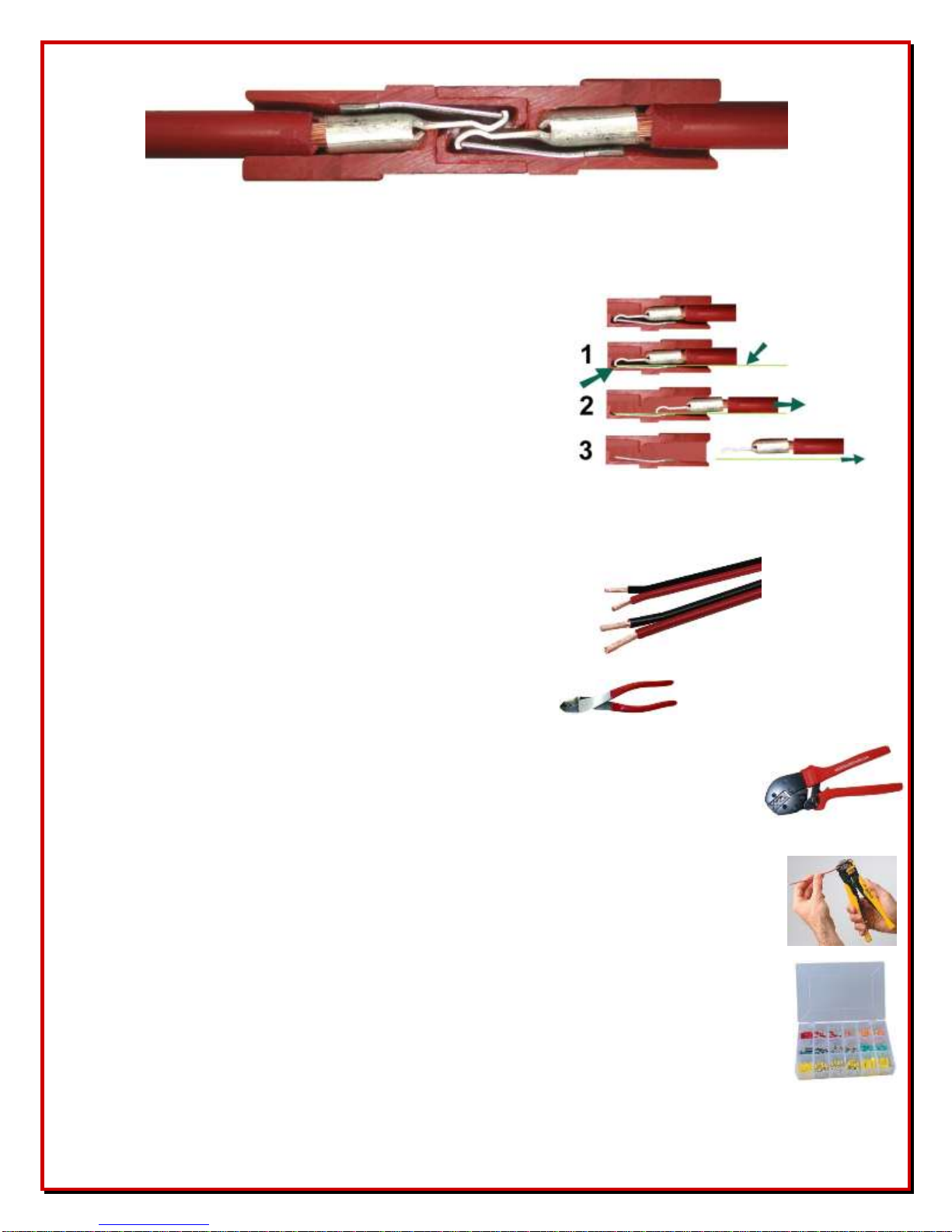

The above cut away view shows two Powerpole®housings connected to each other. This view shows how the
contacts face each other and the locking tabs that are internal to the housings.
Removing a contact
See diagram to right
1. Insert thin screwdriver to force locking tab down as shown
2. Gently pull contact and wire out
3. Remove thin screwdriver
Available Accessories for Anderson Powerpole®Connectors
DXE-PW-12 Red and Black, PVC Insulation, Two Conductor Zip Wire
- 12 AWG (65 strands of 30 AWG wire)
DXE-PW-10 Red and Black, PVC Insulation, Two Conductor Zip Wire
- 10 AWG (105 strands of 30 AWG wire)
MFJ-7602 -MFJ Anderson Connector Crimping Tool
The MFJ-7602 is a tool for crimping Anderson Powerpole®connectors
WMT-PWR-TOOL - West Mountain Powerpole®Connector Crimping Tool
The West Mountain Powerpole®connector crimping tool makes crimps easy. The PWR crimp tool is built
with aerospace-quality construction and are more reliable, offers lower resistance, and is much easier than
soldering. This steel crimper features a ratcheted mechanism, a contact positioner, and long high-leverage
handles with comfortable rubber grips to ensure correct contact and a proper crimp every time.
SUM-900031 - Automatic Wire Stripper/Crimper/Cutter, 24-10 Ga.
Our wire stripper uses a spring-loaded design to make quick work of wires ranging from 24 to 10 gauge. Just
insert the wire, squeeze the handle, and listen for the click. That’s the sound of another perfect wire stripping
job performed in about 2 seconds- a fraction of the time it takes your pocket knife to do the same job. An
adjustable wire length guide helps you make uniform strips, and a built-in wire cutter and crimper helps you
complete your wiring job. Spring-loaded design, Strips wires ranging from 24 to 10 gauge, Built-in wire cutter and crimper
SUM-890093 - Crimp on Terminal Kit, Assorted 180-Piece, High Quality - Nylon Insulted, w/Box
Everything you need for secure electrical connections. Don't risk the integrity of your electrical system by using cheap
electrical connectors. Our DX Engineering nylon terminals are tougher than typical vinyl connectors, keeping your
electrical connections secure, better insulated, and corrosion free. They come with connectors from 22-18 gauge to 12-10
gauge--everything you need for your current (and future) wiring job. Kit includes: Connectors from 22-18 gauge to 12-10
gauge , Assorted 180-Piece, High Quality, Nylon Insulated, with Case
