Dyna-Glo DGH474CRN User manual

Français p.
Español p.
112721
5-BURNER NATURAL GAS
GRILL WITH SEARPLUS™
BURNER AND SIDE BURNER
Model #DGH474CRN/DGH474CRN-D
Questions, problems, missing parts?
Before returning to your retailer,
call our customer service
department at 1-877-447-4768,
8:00 a.m. – 4:30 p.m., CST,
Monday – Friday or e-mail us at
[email protected]
Français p. 29
Español p. 57

2
Table Of Contents
Assembler/Installer: This manual contains important information necessary for the proper
assembly and safe use of this appliance. Read and follow all warnings and instructions before
assembling and using this appliance. Leave these instructions with the consumer.
Consumer/User: Follow all warnings and instructions when using this appliance.
Retain these instructions for future reference.
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from
the appliance and immediately call your
local fire department.
1. Do not store or use gasoline or other
flammable liquids or vapors in the
vicinity of this or any other appliance.
2. An LP (liquid propane) cylinder not
connected for use shall not be stored
in the vicinity of this or any other
appliance.
3. This grill is for outdoor use only and
shall not be used in a building, garage,
under overhangs or any other enclosed
area.
4. Do not leave a lit grill unattended.
Keep children and pets away from the
grill at all times.
DANGER WARNING
Safety Information...............................................................................................................................3
Package Contents...............................................................................................................................5
Hardware Contents.............................................................................................................................6
Preparation...........................................................................................................................................6
Assembly Instructions........................................................................................................................7
Operation Instructions......................................................................................................................16
Care and Maintenance......................................................................................................................20
Troubleshooting ................................................................................................................................23
Limited Warranty ...............................................................................................................................24
Replacement Parts List ....................................................................................................................25

3
Please read and understand this entire manual before attempting to assemble, operate or install the
product. If you have any questions regarding the product, please call customer service at: 1-877-447-
4768, 8:00 a.m. – 4:30 p.m., CST, Monday – Friday.
DANGER
CAUTION
Safety Information
t%POPUVTFJOBOFYQMPTJWFBUNPTQIFSF,FFQHSJMMBSFBDMFBSBOEGSFFGSPNDPNCVTUJCMF
materials, gasoline and other ammable vapors and liquids.
WARNING: THIS PRODUCT AND THE FUELS USED TO OPERATE
THIS PRODUCT (NATURAL GAS), AND THE PRODUCTS
OF COMBUSTION OF SUCH FUELS, CAN EXPOSE YOU TO
CHEMICALS INCLUDING BENZENE, WHICH IS KNOWN TO THE
STATE OF CALIFORNIA TO CAUSE CANCER AND REPRODUCTIVE
HARM.
For more information go to: www.P65Warnings.ca.gov.
t Never use charcoal or lighter uid with the grill.
t Do not use gasoline, kerosene or alcohol for lighting.
t This grill is not intended to be used in or installed on recreational vehicles and/or boats.
t Never attempt to operate this grill using propane.
t Always employ a qualied service agency to install all necessary natural gas supply plumbing,
manual shutoff valve, and quick-connect ttings.
t Always open grill lid slowly and carefully as heat and steam trapped within the grill can burn
you severely.

4
t%POPUQMBDFUIFHSJMMVOEFSPWFSIFBE
combustible construction or awnings.
Minimum clearance from sides and back
of unit to combustible construction, 36
inches (914.4mm) from sides and back.
NOTE: The installation must conform with
local codes or, in the absence of local
codes, with either the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, Natural
Gas and Propane Installation Code, CSA
B149.1, or Propane Storage and Handling
Code, B149.2.
t Do not store or use gasoline or other ammable liquids or vapors in the vicinity of this or any
other appliance.
t An LP cylinder shall not be stored in the vicinity of this or any other appliance.
t This grill is for use with natural gas only.
t Never attempt to attach this grill to the self-contained propane system of a boat, camper
trailer, motor home or house.
t Do not attempt to move the grill while it is lit or when it is hot. The casters should be locked
when not moving the grill.
t Do not use the grill unless it is completely assembled and all parts are securely fastened and
tightened.
t ,FFQBMMDPNCVTUJCMFJUFNTBOETVSGBDFTBUMFBTUJODIFTDNBXBZGSPNUIFHSJMMBUBMMUJNFT
t Do not touch metal parts of grill until it has completely cooled (about 45 minutes) to avoid
burns, unless you are wearing protective gear (pot holders, gloves, BBQ mittens, etc.).
t Do not alter this grill in any manner.
t Clean and inspect the hose before each use. If there is evidence of abrasion, wear, cuts, or
leaks, the hose must be replaced prior to operating the appliance. The replacement hose
assembly will be that which is specied by the manufacturer.
t Move gas hoses as far away as possible from hot surfaces and dripping hot grease.
t ,FFQUIFHSJMMTWBMWFDPNQBSUNFOUCVSOFSTBOEDJSDVMBUJOHBJSQBTTBHFTDMFBO*OTQFDUUIFHSJMM
before each use. Do not obstruct the ow of gas or ventilation air.
t 5IFVTFPGBMDPIPMQSFTDSJQUJPOPSOPOQSFTDSJQUJPOESVHTNBZJNQBJSUIFPQFSBUPSTBCJMJUZUP
properly assemble or safely operate the grill.
t Do not leave a lit grill unattended. Keep children and pets away from the grill at all times.
t Do not place this grill on any type of tabletop surface. The grill should be placed on a at and
level surface.
t Do not use the grill in high winds.
36in
914.4mm
36in
914.4mm
WARNING
Safety Information
CAUTION
36in
914.4mm
36in
914.4mm

5
Package Contents
PART DESCRIPTION QTY.
A Hood Handle 1
B Temperature Gauge 1
C Temperature Gauge Bezel 1
D Grill Body Assembly 1
E$POUSPM,OPC 5
F Grease Pan 1
G Grease Cup 1
H Warming Rack 1
I Cooking Grate For Main Burner 2
J Heat Tent For Main Burner 4
,Left Side Table 1
L Cooking Grate For Sear Burner 1
M Heat Tent For Sear Burner 1
N Right Side Burner Body 1
O Left Leg Assembly 1
PART DESCRIPTION QTY.
P Leg End Cap 2
Q4NPLFS#PY'SPOU4VQQPSU 1
R4NPLFS#PY3FBS4VQQPSU 1
S Cart Rear Support 1
T Cart Front Panel - Upper 1
U4NPLFS#PY"TTFNCMZ 1
V Cart Front Panel - Lower 1
W"YMF 1
X Wheel 2
Y Right Leg Assembly 1
Z Condiment Tray 1
A1 $POUSPM,OPCGPS4FBS#VSOFS 1
B1 Side Burner Grate 1
C1 Side Burner 1
D1 4JEF#VSOFS$POUSPM,OPC#F[FM 1
E1 Quick disconnect coupling 1
J
IC
B
D
E
K
L
MN
Q
G
H
O
R
Z
F
P
T
S
U
A1
X
Y
W
V
D1
C1
B1
E
E1
A

6
THIS UNIT IS HEAVY. Two people required for safe assembly.
Two people required for safe assembly. Some parts may contain sharp edges.
Wear protective gloves if necessary. Read and follow all safety statements,
warnings, assembly instructions and use and care instructions before attempting
to assemble and use.
Hardware Contents
Preparation
CC
AA BB DD
.Y
Screw
M10 Nut
2X 26X 2X
2X
2X
2X
M6 Wing
Nut M6 Plain Washer
FF GG
M6 Spring
Washer
EE
M10
Wrench
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list on previous page and hardware contents above. If any part is missing or damaged, do not
attempt to assemble the product. Contact customer service for replacement parts.
Estimated Assembly Time: 50 minutes with 2 people.
Tools Required for Assembly and Leak Testing (not included): Phillips screwdriver, Spray bottle
CAUTION
.Y
Screw
10X
HH
2X

7
1
2

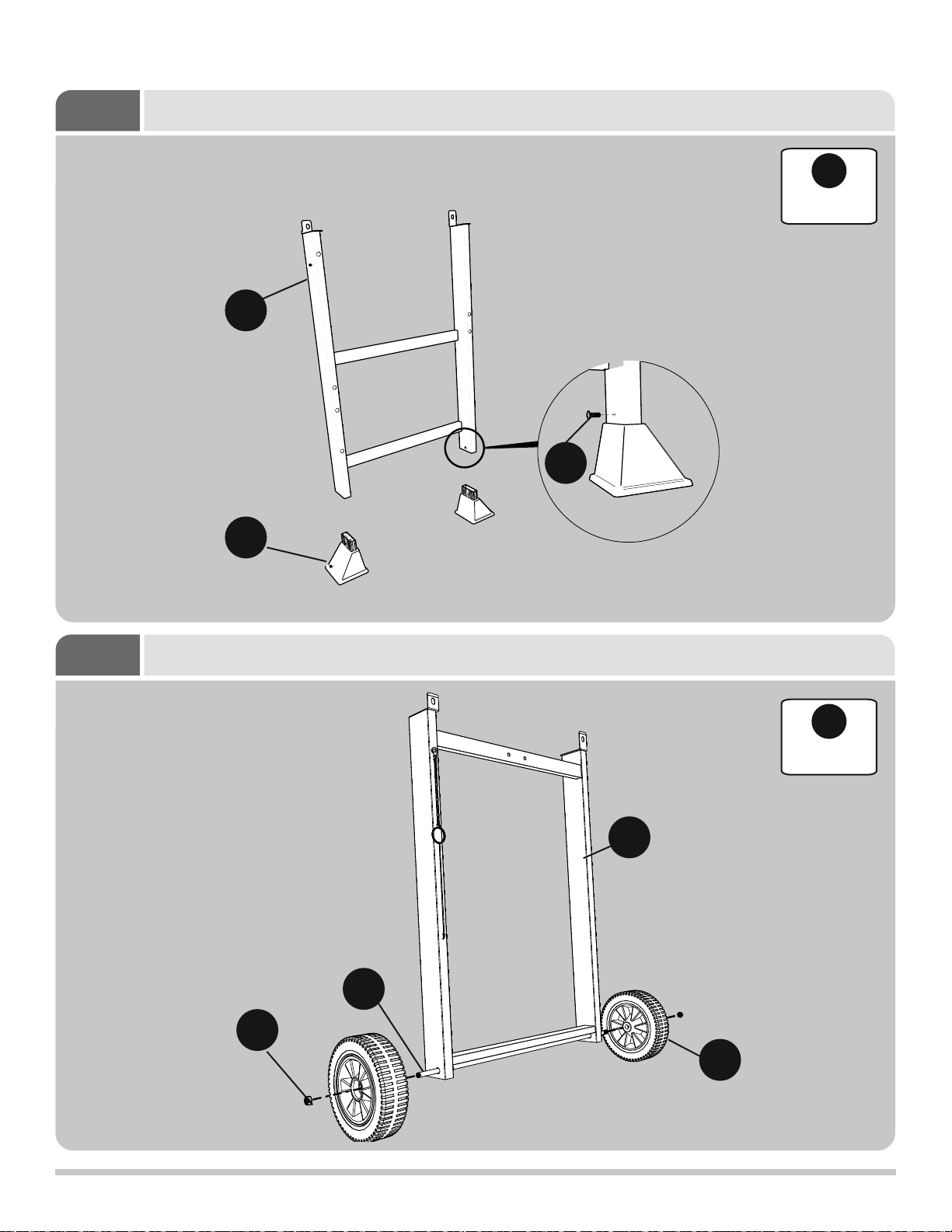

Assembly – Left Leg
Assembly – Right Leg
Assembly Instructions
AA
2X
BB
2X
O
P
AA
W
BB
Y
X

8
3
4

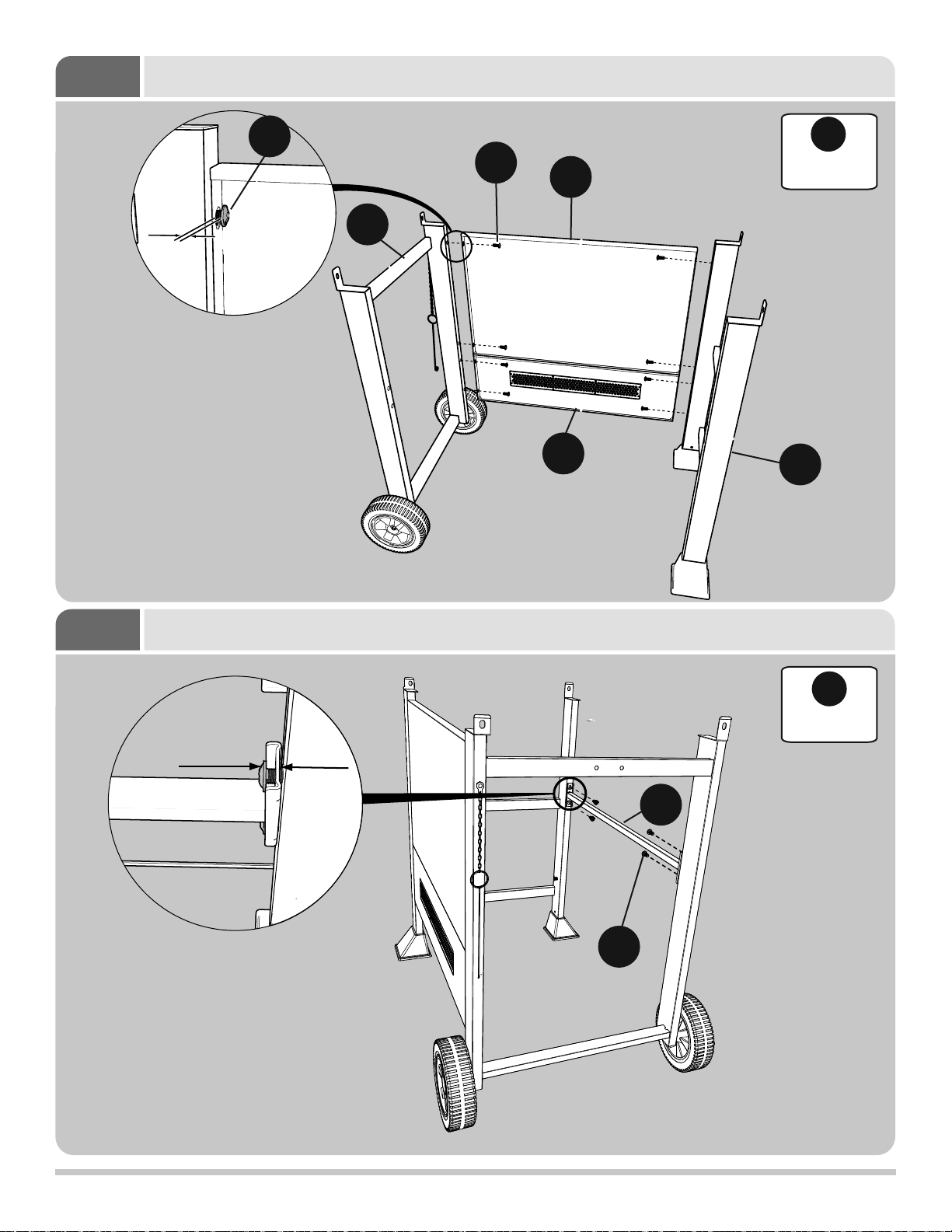

Assembly – Cart Front Panels
Assembly – Back Exclusion Bar and Cart Rear Support
DD
8X
DD
4X
Y
DD
VO
T
5 Threads
DD
DD
5 Threads
S

9
5
6
Assembly – Handle, Knobs, and Temperature Gauge
EE
2X
FF
2X
GG
2X
D
GG
A1
EE
FF
C
B
A
E
Assembly – Grill Body to Base
CAUTION:
2 people required
for safe assembly.
NOTE: Fully tighten all nuts from front
panel and back brace screws at this time.
O
DD
Y
DD
DD
4X

10
7
A
B
C

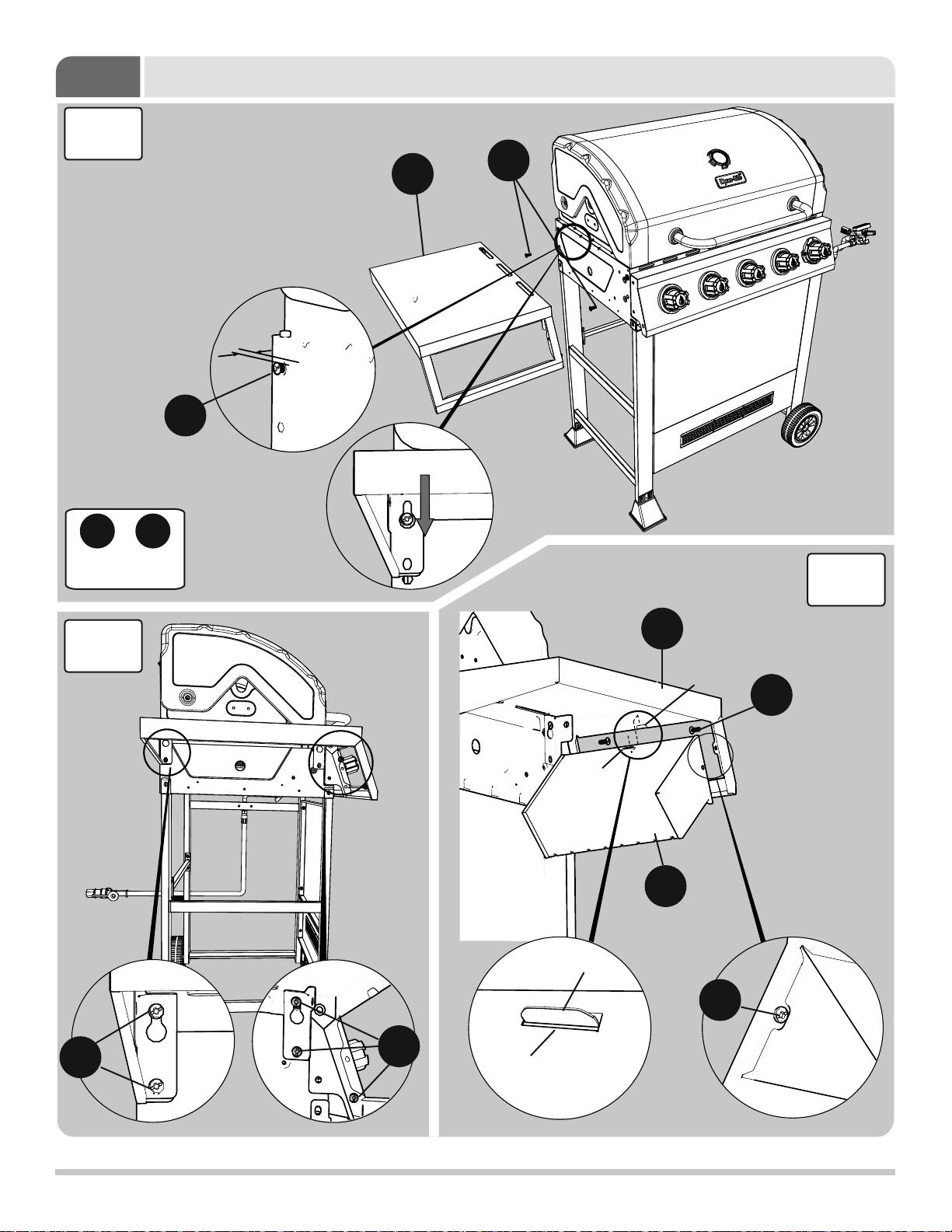

Assembly – Left Side Table and Condiment Tray
DD
5X
HH
2X
DD
DD
DD DD
HH
HH
5 Threads
Rear shown,
same for front
Rear shown,
same for front
Same for
other side
K
K
Z
Tab
Slot
Tab
Slot

11
C
A
B
Rear shown,
same for front
D1
N
E
Engage slots and
tighten screws
8Assembly – Right Side Shelf
N
5 Threads
1
2
3
DD
DD
DD
DD
DD
5X
HH
2X
HH

12
A
B
C
C1
N
C1
9Assembly – Side Burner
Use preinstalled screws

13
11 Assembly – Optional Smoker Box
RHH
4X
U
Q
Smoker Box Placement

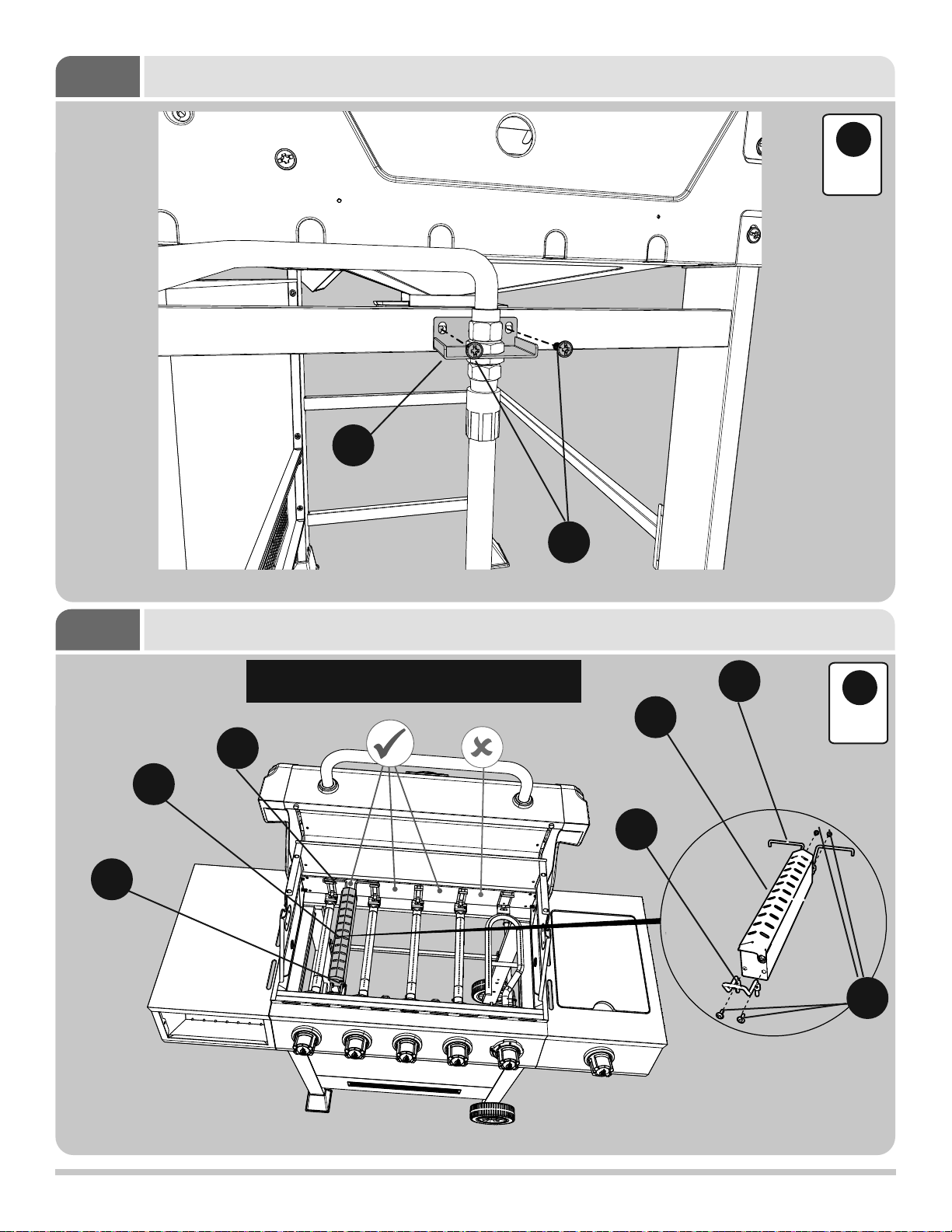

10 Assembly – Hose Fitting
HH
2X
HH
D
R
U
Q
HH

14
12
13
Assembly – Heat Tents
JM
Assembly – Rack and Cooking Grates
H
IL

15
14
B1
Assembly – Side Burner Grate
15 Assembly – Grease Pan and Grease Cup
F
G

16
CONNECTING THE GRILL TO THE NATURAL GAS SUPPLY:
t The quick disconnect socket (E1) and supply gas line must be installed by a qualied service
agency. The supply connection must be made in accordance with local codes or, in the absence
of local codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, in the USA, of the
Natural Gas and Propane Installation Code, CSA B149.1, in Canada.
t A properly sized manual shut-off valve must be installed between the frill and the gas supply piping.
t The grill and its individual shut-off valve must be disconnected from the gas supply piping system
EVSJOHBOZQSFTTVSFUFTUJOHPGUIBUTZTUFNBUUFTUQSFTTVSFTJOFYDFTTPG14*L1B
t The grill must be isolated from the gas supply piping system by closing its individual manual shutoff
valve during any pressure testing of the gas supply piping system at test pressures equal to or less
than 0.5 PSI (3.5 kPa).
t "MXBZTDPOOFDUUIFþFYJCMFHBTTVQQMZIPTFUPUIFHBTTVQQMZCFGPSFPQFOJOHUIFNBOVBMTIVUPGG
valve.
To Connect:
1. Ensure that the natural gas shut-off valve is closed.
2. Remove the protective rubber caps from the plug and
sleeve ends of the quick disconnect ttings. Check that
the ttings are clean.
3. Retract the sleeve on the coupling as illustrated.
4. Insert the plug and release the sleeve as illustrated.
5. Push the plug into the sleeve until the sleeve snaps
forward to lock the plug in the coupling.
6. Open the natural gas shut-off valve.
To Disconnect:
1. Close natural gas supply at shut-off valve.
2. Push the sleeve back and gently pull out the plug.
3. Replace the protective rubber caps on the plug and sleeve
ends of the quick disconnect couplings.
WARNING
In the connection process, make sure:
t5IFHBTTVQQMZIPTFEPFTOPUDPNFJODPOUBDUPSSFNBJOJODPOUBDUXJUIUIFmSFCPY
Operation Instructions
Retract sleeve
Release sleeve
E1

17
Operation Instructions
CHECKING FOR LEAKS
After all connections are made, check all connections and ttings on the natural gas quick connector,
gas hose and manifold for leaks with a water and soap solution.
5PQSFWFOUýSFPSFYQMPTJPOXIJMFUFTUJOHGPSBMFBL
t Always perform leak test prior to lighting the grill.
t Do not smoke while testing for a leak.
t Always perform leak tests outdoors in a well-ventilated area.
t Do not use any source of ame while testing for leaks.
t Do not use the grill until any and all leaks are corrected.
t If you are unable to correct a leak, disconnect the propane supply and call a gas appliance service
dealer.
PERFORM LEAK TEST
t Prepare leak test solution by 50/50 ratio of liquid dish soap and water. Total solution required is
BQQSPYJNBUFMZPVODFTNM1VUMFBLUFTUTPMVUJPOJOBTQSBZCPUUMF
t Ensure all control knobs are in the O OFF position.
t Connect the gas hose to the gas supply.
t Open the gas shut-off valve.
t Spray leak test solution on all gas carrying connections and ttings. Presence of bubbles at areas
of applied test solution indicates a gas leak. If leaks are detected or you smell or hear gas, shut off
the gas supply valve immediately and repair or replace the defective part. Do not use the grill until
all leaks are corrected.
WARNING
ALL INSTRUCTIONS AND SAFEGUARDS ON THIS PAGE MUST BE FOLLOWED TO
PREVENT FIRE, DAMAGE AND/OR INJURY.
CAUTION
ONLY USE THE HOSE ASSEMBLY PROVIDED! IF A REPLACEMENT IS NECESSARY,
PLEASE CALL OUR CUSTOMER SERVICE CENTER. DO NOT USE REPLACEMENT PARTS
THAT ARE NOT INTENDED FOR THIS GRILL.

18

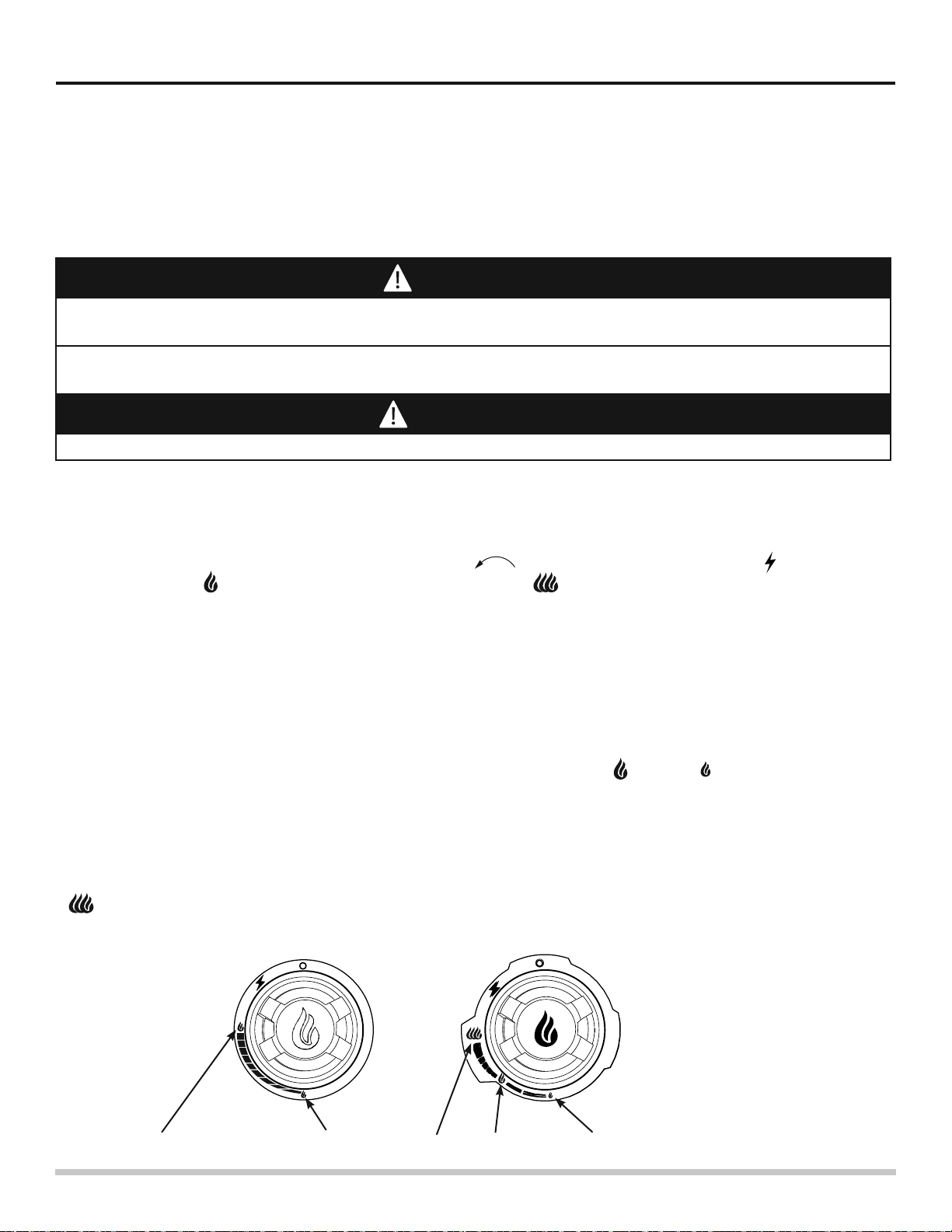

Operation Instructions
Lighting The Grill
Before first use:
Remove all hangings or plastic straps, if present. Before you cook on your new gas grill, it is important
UPDMFBOZPVSHSJMMXJUIIFBU5PEPUIJTPQFSBUFUIFHSJMMGPSBQQSPYJNBUFMZNJOVUFTXJUIUIFMJEDMPTFE
and the control knobs in the highest position. This will clean the internal parts by burning off any residue
and odor from the manufacturing process.
1. Check that the control knobs are in the OOFF position.
2. Open natural gas supply at shut-off valve.
3. Open lid during lighting.
4. Depress and turn control knob counterclockwise from OOFF position, past the ignite
position, to the high position for the main burners and for the SearPLUS™ burner. You may
need to repeat several times to ignite the burner.
If ignition does not occur in 5 seconds, turn the control knobs to OOFF position, wait 5 minutes, and
repeat the lighting procedure.
If the burner still does not light, check that there is gas in the cylinder and follow the match lighting
instructions on the following page.
Cooking:
After lighting, adjust burner, including SearPLUS™ burner, from high ( ) to low ( ) position for desired
cooking temperature.
Searing Food with the SearPLUS™ Burner:
To sear food, use the SearPLUS™ burner with the red control knob, which has a higher temperature
range than the other burners. After lighting, adjust SearPLUS™ burner control knob to Sear Position
( ) and place food to be seared on the sear grate directly over the SearPLUS™ burner.
Regular Control Knob SearPLUS™ Control Knob
Sear Normal High Normal LowNormal High Normal Low
CAUTION
If the flame extinguishes accidentally during ignition or operation, immediately TURN OFF
the natural gas shut-off valve and then TURN OFF the control knob.
ALL INSTRUCTIONS AND SAFEGUARDS ON THIS PAGE MUST BE FOLLOWED TO PREVENT
FIRE, DAMAGE AND/OR INJURY.
WARNING
Do not lean over grill when lighting. Read instructions before lighting.

19

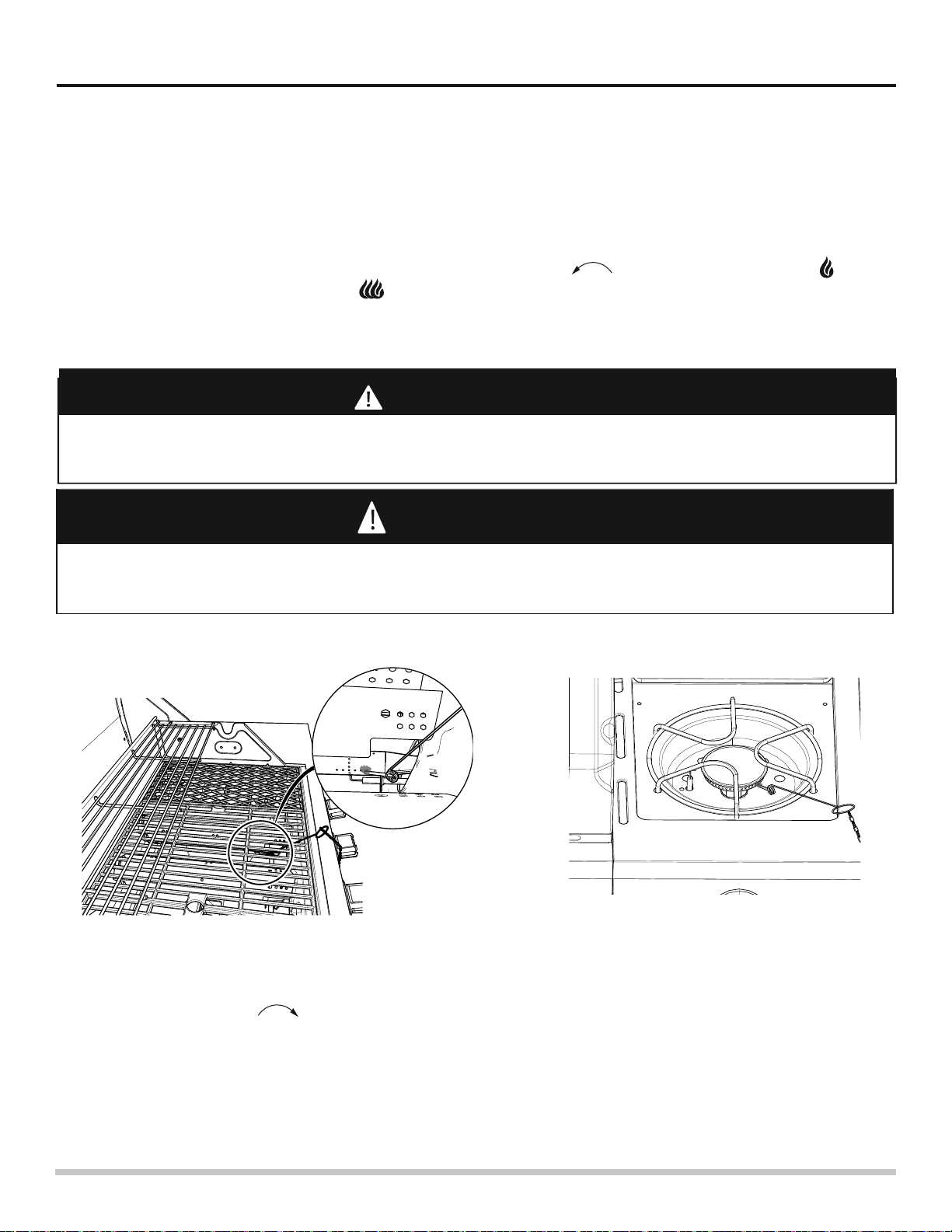

Operation Instructions
LIGHTING THE GRILL WITH A MATCH
1. Open the lid.
2. Insert a match in the end of the match holder that is installed on the inside of the cabinet door.
3. Light the match.
4. Immediately place the lit match through the spaces in the grill grates near the ports of the burner
between the heat tents as shown. Make sure the lit match is close to the burner ports.
5. Press in the control knob that operates the burner and rotate counter-clockwise to the high
position for the main burners, and for the SearPLUS™ burner which should light immediately.
6. Repeat steps 2~5 to light additional burners.
7. Adjust burners to desired cooking settings.
CAUTION
Make sure all burner controls are off except for the burner being lit and the
burners that have been lit.
Match Lighting
If ignition does not occur in 5 seconds, turn the burner control(s) OFF O. Wait 5 minutes,
and repeat the lighting procedure.
WARNING
lighting with match
SHUTDOWN INSTRUCTIONS
1. Turn all control knobs clockwise to the OOFF position.
2. Close natural gas shut-off valve.
3. Close lid.
Turn off natural gas shut-off valve when appliance is not in use.
Side Burner Match Lighting

20
Care and Maintenance
Cooking Grates
5IFCFTUUJNFUPiCVSOPGGwUIFDPPLJOHHSBUFTJTBGUFSFWFSZVTFBQQSPYNJOVUFT5IFHSJMMJTBMSFBEZ
hot from cooking, thus requiring less fuel to reach the necessary temperature for “burn-off.”
To “burn off” or heat-clean your grill, turn the burners to highest position and run for 15 minutes with the
MJEDMPTFE5IFOUVSOPGGUIFCVSOFSTBOEVTFBXJSFCSVTIUPDMFBOFYDFTTGPPESFTJEVFGSPNUIFHSBUFT
The porcelain grates have an enamel nish (similar to glass) and should be handled with care to help
prevent chipping.
CAUTION
Ensure the grill is cool and gas supply is turned off at the natural gas shut-off before cleaning
and conducting maintenance.
Recommended Cleaning Supplies
Mild liquid dish soap, warm water, nylon cleaning pad, wire brush
DO NOT use cleaners that contain acid, mineral spirits or any abrasive substance.
Outside Surfaces
It is recommended to use only mild dish soap and hot water to clean grill and grill parts.
Rinse with warm water.
Inside Bottom Pan of Grill Body
5PBWPJEþBSFVQTDMFBOUIFCPUUPNQBOPGUIFDPPLJOHCPYSFHVMBSMZ
To clean, remove residue using a brush, scraper and/or cleaning pad. Wash with mild dish soap and
warm water. Rinse with warm water. Avoid water splashing into venturi tubes of burners.
Heat Tents
Clean residue with wire brush and wash with mild dish soap
and warm water. Rinse with warm water.
Grease Cup
Empty the grease cup and clean with mild dish soap and warm
water on a regular basis.

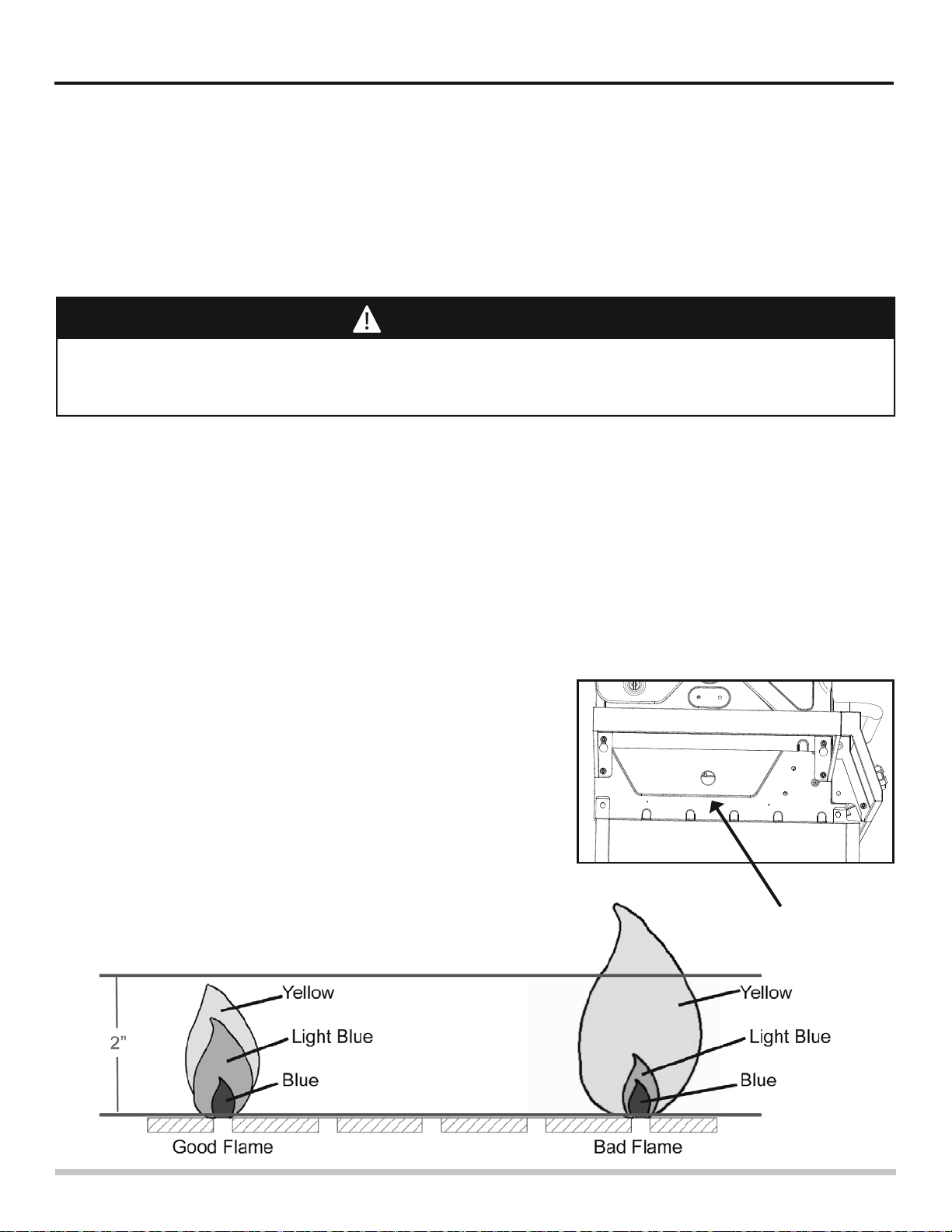

Checking The Flame
'PSNBYJNVNGVFMFGýDJFODZBOEDPPLJOHQFSGPSNBODFþBNF
should be a blue-yellow color and be between 1- 2 inches high.
To check the ame, view the ame through the holes in both
TJEFTPGUIFýSFCPY Hole for viewing the ame
