Dynabrade 58401 User manual

57737 VACUUM SHROUD
Parts Page Reorder No. PD04•03
Effective January, 2004
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools
(ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade
’ s
Warning/Safety Operating Instructions for more complete safety information.
12,000 RPM Air Motor and Machine Parts
5" & 6" 2-Hand
Random Orbital Sander
Models:
58400 - 5" Pad, 3/16" Orbit, Non-Vac 58415 - 5" Pad, 3/8" Orbit, Non-Vac
58401 - 5" Pad, 3/16" Orbit, Vac-Ready 58416 - 5" Pad, 3/8" Orbit, Vac-Ready
58405 - 6" Pad, 3/16" Orbit, Non-Vac 58418 - 6" Pad, 3/8" Orbit, Non-Vac
58406 - 6" Pad, 3/16" Orbit, Vac-Ready 58419 - 6" Pad, 3/8" Orbit, Vac-Ready
58409 - 6" Pad, 3/16" Orbit, Central Vac 58420 - 6" Pad, 3/8" Orbit, Central Vac
1Sanding Pad: See Chart
257069 Balancer Shaft
395630 Snap Ring
495628 Bearing Shield
556053 Bearing Seal
656052 Bearing
7Motor Shaft Balancer
57364 5", 3/16" Orbit
56687 5", 3/8" Orbit
57365 6", 3/16" Orbit
56688 6", 3/8" Orbit
854673 Key
956046 Lock Ring
10 02695 Bearing
11 54630 Front Bearing Plate
12 54705 Rotor/Blade Set (5/pkg.)
13 56595 Cylinder Assembly
(Includes: 95865 Pin)
14 01020 O-Ring
15 54629 Rear Bearing Plate
16 01206 Bearing
17 95626 Retaining Ring
18 Shroud
57369 Lip Seal Shroud
57737 6" Vacuum Shroud
19 Housing Assembly: See Chart
(Includes: 56581 Housing Grip
and labels)
20 95627 Pin
21 56582 Safety Throttle Lever
22 98459 O-Ring
23 56579 Valve Stem
24 56578 Speed Regulator
25 01025 O-Ring (3)
26 56598 Seal
27 51944 Tip Valve
28 51943 Spring
29 56586*Vacuum Plug
30 56469 Exhaust Gasket
31 96459 O-Ring
32 56468 Handle Housing Assy.
(Includes 51938 Screen)
33 96469 Screw (2)
34 96454 Screw (2)
35 56597*Muffler
36 56596*Muffler Clip
Index Key
No. Part # Description
Adhesive: A2= Loctite #271
Torque: N•m x 8.85 = In. - lbs.
Oil: O1= Air Lube
O
A
T
KEY
O1
O1
O1
O1
O1
O1
A2
A2
1
5
4
3
9
10
11
12
13
15
17
16
18
19
20
21
24
23
26 27
28
29 30
32
35
36
87
34 N•m T
3 N•m T
3 N•m T
2
6
14
31
22
25
*Specific Components For Models:
5", 6" Non-Vacuum
6" Central Vacuum
SANDING PADS
56104 - 5" Vac
56105 - 6" Vac
56106 - 5" Non-Vac
56107 - 6" Non-Vac
96425
Screw (4)
95886
Washer (4)
33
34
HOUSING MODEL
ASSEMBLY # NUMBER
64431 58400
64432 58401
64435 58404
64436 58405
64437 58406
64440 58409
64446 58415
64447 58416
64448 58417
64449 58418
64450 58419
64451 58420

2
Important Operating, Maintenance and Safety Instructions
Carefully read all instructions before operating or servicing any Dynabrade®Abrasive Power Tool.
Warning: Hand, wrist and arm injury may result from repetitive work motion and overexposure to vibration.
Important: All Dynabrade rotary vane air tools must be used with a Filter-Regulator-Lubricator to maintain all warranties.
Operating Instructions:
Warning: Eye, face, respiratory, sound and body protection must be worn while operating power tools. Failure to do so may result in serious injury or death.
Follow safety procedures posted in workplace.
1. With power source disconnected from tool, securely fasten abrasive/accessory on tool.
2. Install air fitting into inlet bushing of tool. Important: Secure inlet bushing of tool with a wrench before attempting to install the air fitting to avoid
damaging valve body housing.
3. Connect power source to tool. Be careful not to depress throttle lever in the process.
4. Air tools are not intended for use in explosive atmospheres and are not insulated for contact with electrical power sources. Sanding/Grinding certain
materials can create explosive dust. It is the employers responsibility to notify the user of acceptable dust levels. Sanding/Grinding can cause sparks
which can cause fires or explosions. It is the users responsibility to make sure the work area is free of flammable materials.
Maintenance Instructions:
1. Check tool speed regularly with a tachometer. If tool is operating at a higher speed than the RPM marked on the tool, the tool should be serviced to
correct the cause before use.
2. Some silencers on air tools may clog with use. Clean and replace as required.
3. All Dynabrade rotary vane air motors should be lubricated. Dynabrade recommends one drop of air lube per minute for each 20 SCFM (example: if
the tool specifications state 40 SCFM, set the drip rate of your filter-lubricator at 2 drops per minute).
Dynabrade Air Lube (P/N 95842: 1 pt. 473 ml.) is recommended.
4. It is strongly recommended that all Dynabrade rotary vane air tools be used with a Filter-Regulator-Lubricator to minimize the possibility of misuse due
to unclear air, wet air or insufficient lubrication. Dynabrade recommends the following: 11405 Air Line Filter-Regulator-Lubricator — Provides accurate
air pressure regulation, two-stage filtration of water contaminants and micro-mist lubrication of pneumatic components.
Operates 40 SCFM @ 100 PSIG has 3/8" NPT female ports.
5. Use only genuine Dynabrade replacement parts. To reorder replacement parts, specify the Model #, Serial #, and RPM of your machine.
6. A Motor Tune-Up Kit (P/N 98220) is available which includes assorted parts to help maintain motor in peak operating condition. Please refer to
Dynabrade's Preventative Maintenance Schedule for a guide to expectant life of component parts.
7. Mineral spirits are recommended when cleaning the tool and parts. Do not clean tool or parts with any solvents or oils containing acids, esters,
keytones, chlorinated hydrocarbons or nitro carbons.
8. DO NOT clean or maintain air tools with chemicals that have a low flash point (example: WD-40®).
Full One Year Warranty
Following the reasonable assumption that any inherent defect which might prevail in a product will become apparent to the user within one year from the date
of purchase, all equipment of our manufacture is warranted against defects in workmanship and materials under normal use and service. We shall repair or
replace at our factory, any equipment or part thereof which shall, within one year after delivery to the original purchaser, indicate upon our examination to have
been defective. Our obligation is contingent upon proper use of Dynabrade tools in accordance with factory recommendations, instructions and safety
practices. It shall not apply to equipment which has been subject to misuse, negligence, accident or tampering in any way so as to affect its normal
performance. Normally wearable parts such as bearings, contact wheels, rotor blades, etc., are not covered under this warranty.
• Important: User of tool is responsible for following accepted safety codes such as those published by the American National Standards Institute (ANSI).
• Always disconnect power supply before changing abrasive/accessory or making machine adjustments.
• Inspect abrasives/accessories for damage or defects prior to installation on tools.
• Please refer to Dynabrade’s Warning/Safety Operating Instructions Tag (Reorder No. 95903) for more complete safety information.
Notice
All Dynabrade motors use the highest quality parts and metals available and are machined to exacting tolerances. The failure of quality pneumatic motors
can most often be traced to an unclean air supply or the lack of lubrication. Air pressure easily forces dirt or water contained in the air supply into motor
bearings causing early failure. It often scores the cylinder walls and the rotor blades resulting in limited efficiency and power. Our warranty obligation is
contingent upon proper use of our tools and cannot apply to equipment which has been subjected to misuse such as unclean air, wet air or a lack of
lubrication during the use of this tool.
Safety Instructions:
Products offered by Dynabrade should not be converted or otherwise altered
from original design without expressed written consent from Dynabrade, Inc.
Note: For 3/8" dia. orbit model specifications refer to corresponding 3/16" dia. orbit models
Model Motor Motor Orbit Dia. Pad Dia. Sound Maximum Air Flow Hose I.D. Size Air Inlet Weight Length Height
Number hp (W) RPM Inch (mm) Inch (mm) Level CFM/SCFM (LPM) Inch or (mm) Thread Pound (kg) Inch (mm) Inch (mm)
58400 .45 (336) 12,000 3/16 (5) 5 (127) 81 dB(A) 3/23 (651) 1/4 or (8) 1/4" NPT 2.5 (1.2) 11-1/16 (280) 4-15/16 (126)
58401 .45 (336) 12,000 3/16 (5) 5 (127) 84 dB(A) 3/23 (651) 1/4 or (8) 1/4" NPT 2.5 (1.1) 11-1/16 (280) 4-15/16 (126)
58405 .45 (336) 12,000 3/16 (5) 6 (152) 81 dB(A) 3/23 (651) 1/4 or (8) 1/4" NPT 2.6 (1.2) 11-3/8 (288) 4-15/16 (126)
58406 .45 (336) 12,000 3/16 (5) 6 (152) 83 dB(A) 3/23 (651) 1/4 or (8) 1/4" NPT 2.5 (1.2) 11-3/8 (288) 4-15/16 (126)
58409 .45 (336) 12,000 3/16 (5) 6 (152) 83 dB(A) 3/23 (651) 1/4 or (8) 1/4" NPT 2.7 (1.2) 11-3/8 (288) 4-15/16 (126)
Additional Specifications: Air Pressure 90 PSIG (6.2 Bar) •Thread 5/16"-24 Female

Disassembly/Assembly Instructions
Important: The manufactures warranty is void if the tool is disassembled before the warranty expires. Use these instructions in conjunction with the Part Number
57260 Tool Repair Kit. This kit includes special tooling for the proper disassembly/assembly of the Two-Hand Dynorbital Sander. This Tooling will be referred to in
these instructions. An air motor Tune-Up Kit, Part Number 98220 is also available. It contains the high and medium wear components that most
commonly need replacement.
Motor Disassembly:
1. Disconnect the sander from the air supply.
2. Use the 57092 Repair Collar to hold the sander in a vise. Position the sander so that the sanding pad is facing up. Note: Do not tighten the collar and sander in the vise.
Only hold the sander snugly, so that the motor lock ring can be removed easily.
3. Use the 50679 26mm Open End Wrench to remove the sanding pad from the sander by holding the 57069 Balancer Shaft stationary and turning the pad counterclockwise.
4. Use the 56058 Lock Ring Tool to remove the 56046 Lock Ring by turning it counterclockwise.
5. Pull the air motor assembly out of the sander housing.
6. Use the retaining ring pliers to remove the 95626 Retaining Ring.
7. Remove the 01020 O-Ring from the 56595 Cylinder and fasten a 2" bearing separator around the part of the cylinder that is closest to the 54629 Rear Bearing Plate.
8. Place the air motor with the bearing separator attached onto the 96232, #2 Arbor Press so that the counter-balance is hanging down from the table of the arbor press.
9. Use a 5/16" dia. flat end drive punch as a press tool to push the motor shaft balancer out of the 01206 Bearing. Use 96213 Bearing Removal Tool to push the
01206 Bearing out of the 54629 Rear Bearing Plate.
10. Remove the cylinder, rotor, vanes, key and the 54630 Front Bearing Plate.
11. Use a 2" bearing separator and arbor press to remove the 02695 Bearing.
12. Fasten the counterweight of the motor shaft balancer in a vise with aluminum or bronze jaws so that the 57069 Balancer Shaft is pointing up.
13. Use a small flat blade screwdriver to remove the 95630 Snap Ring.
14. Use the 56056 Bearing Puller to remove the balancer bearing assembly.
15. Fasten the separator between the 57069 Balancer Shaft and the 95628 Washer.
16. Place the bearing separator on the table of the arbor press so that the hex end of the 57069 Balancer Shaft is pointing down. Use the 5/16" flat end drive punch as a
press tool to push the balancer shaft out of the 56052 Bearing. Remove the 56053 Bearing Seal and the 95628 Bearing Shield.
Motor Disassembly Complete.
Motor Assembly:
Important: Clean and inspect all motor parts for wear or defect.
1. Balancer Assembly:
a.) Install the 95630 Snap Ring onto the 57069 Balancer Shaft.
b.) Install the 95628 Bearing Shield onto the balancer shaft so that the convex side is toward the hex portion of the balancer shaft.
c.) Install the 56053 Bearing Seal so that it fits down completely over the shaft step.
d.) Apply a small amount of the Loctite #271 (or equivalent) to the bearing surface of the 57069 Balancer Shaft.
e.) Orient the seal side of the 56052 Bearing toward the hex portion of the balancer shaft. Use the large end of the 57091 Bearing Press Tool along with the 96232,
#2 Arbor Press to push the 56052 Bearing onto the balancer shaft until it fits against the shaft step. (Drawing 1)
2. Fasten the counterweight of motor shaft balancer in a vise with aluminum or bronze jaws so that the bearing pocket is pointing up.
3. Apply a small amount of the Loctite #271 (or equivalent) to the outside diameter of the 56052 Bearing. Slide the balancer shaft/bearing assembly all the way into the
bearing pocket of the motor shaft balancer. Secure this assembly in the motor shaft balancer by squeezing the 95630 Snap Ring into the groove in the
motor shaft balancer.
4. Install the 56046 Lock Ring onto the motor shaft balancer so that the “OFF” inscription is toward the counterweight of the shaft.
5. Use the small end of the 57091 Bearing Press Tool and the arbor press to install the 02695 Bearing all the way onto the motor shaft balancer. (Drawing 2)
6. Install the 54630 Front Bearing Plate onto the 02695 Bearing and check it for smooth rotation. (Drawing 3)
7. Install the 54673 Key and 54705 Rotor/Blade Set (5) onto the motor shaft balancer.
8. Apply the 95842 Dynabrade Air Lube (10W/NR or equivalent) to the blades.
9. Install the 56595 Cylinder over the rotor so that the short line-up pin fits into the front bearing plate.
10. Place the 54629 Rear Bearing Plate over the shaft so that the long line-up pin fits through the hole in the rear bearing plate. Use the small end of the 57091 Bearing
Press Tool to install the 01206 Bearing onto the motor shaft balancer and into the 54629 Rear Bearing Plate. Use the press tool and the arbor press to install these so
that there is a snug fit between the bearing plates and the cylinder. Note: Carefully press the 01206 Bearing onto the motor shaft balancer. (Drawing 4)
11. Use retaining ring pliers to install the 95626 Retaining Ring so that the concave side of the ring is toward the motor assembly.
Note: Be sure that the retaining ring is completely pressed down into the groove on the shaft.
12. Use the 57092 Repair Collar to hold the housing in a vise so that the opening for the motor is facing up.
13. Apply a small amount of petroleum lubricant to the 01020 O-Ring and install the o-ring into the air inlet hole in the cylinder.
14. Install the motor assembly into the housing making sure to align the line-up pin with the line-up hole that is on the inside of the housing.
15. Use the 56058 Lock Ring Tool to secure the motor in the housing. (Torque to 34 N·m/300 in. lbs.)
16. Install the appropriate shroud and weight-mated sanding pad.
Motor Assembly Complete.
Handle and Valve Disassembly:
1. Place the 57092 Repair Collar around the housing so that the handle is pointing up.
2. Use a Phillips screwdriver to remove the four screws that fasten the handle to the housing. Carefully pull the handle from the housing. This provides access to the tip
valve components, also the handle; o-ring, gasket and vacuum plug.
3. Use a 1/8" dia. flat end drive punch to remove the 95627 Pin and the 56582 Safety Throttle Lever Assembly.
4. Pull the 56578 Speed Regulator and valve stem out of the housing.
Handle and Valve Disassembly Complete.
Handle and Valve Assembly:
1. Place the 57092 Repair Collar around the housing so that the handle mounting area is facing up.
2. Install the 01025 O-Rings (3) onto the 56578 Speed Regulator, apply a small amount of petroleum lubricant to the o-rings and insert the regulator assembly into the
housing. Note: Be careful that the o-rings do not get caught and pulled out of the o-ring grooves.
(continued text and diagrams on next page)

DYNABRADE
®
DYNABRADE, INC., 8989 Sheridan Drive • Clarence, NY 14031-1490 • Phone: [phone] • Fax: [phone] • International Fax: [phone]
DYNABRADE EUROPE S.àr.l., Zone Artisanale • L-5485 Wormeldange—Haut, Luxembourg • Telephone: [phone] • Fax: [phone]
© DYNABRADE, INC., 2004 PRINTED IN USA PD04.03_Rev.2_11/04
Visit Our Web Site: www.dynabrade.com Email: Customer[email protected]
98220 Motor Tune-Up Kit
• Includes assorted parts to
help maintain and repair motor.
96232 (#2) Arbor Press
• This arbor press is ideal for the disassembly
and assembly of air motors.
96346 2" Bearing Separator
• Use the separator to remove gears
and bearings.
Dynabrade Air Lube
• Formulated for pneumatic equipment.
• Absorbs up to 10% of its weight in water.
• Prevents rust and formation of sludge.
• Keeps pneumatic tools operating longer
with greater power and less down time.
95842: 1pt. (473 ml)
95843: 1gal. (3.8 L)
Diagrams
Optional Accessories

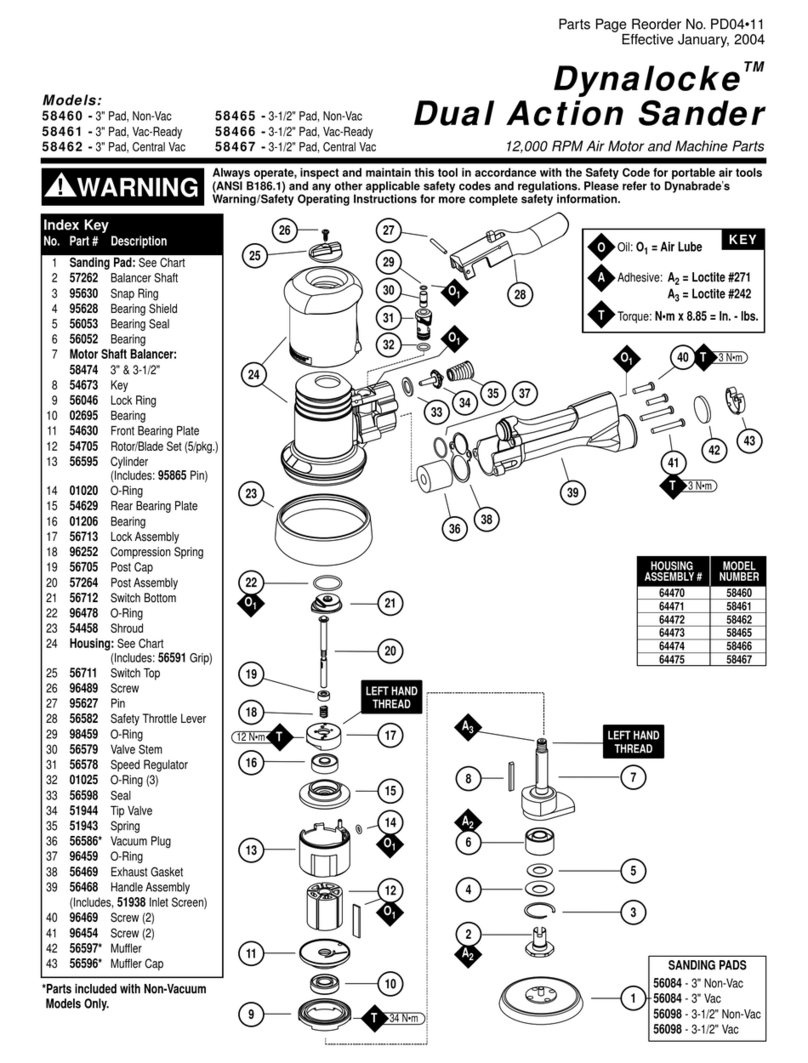

3. Install the 98459 O-Ring onto the 56579 Valve Stem, apply a small amount of petroleum lubricant to the o-ring and insert the shortest portion (from the end to the o-ring)
of the valve stem assembly into the speed regulator.
4. Install the 56582 Safety Throttle Lever Assembly onto the housing and secure it in place with the 95627 Pin.
5. Install the 56598 Seal into the air inlet passage of the housing.
6. Install the 56586 Vacuum Plug into the exhaust passage of the housing. (See Exploded View)
7. Use needle-nose pliers to grasp and install the 51944 Tip Valve so that it fits under the 56579 Valve Stem.
8. Install the large end of the 51943 Spring into the air inlet passage of the handle.
9. Install the 56469 Gasket onto the mounting surface of the handle.
10. Apply a small amount of petroleum lubricant to the 96459 O-Ring and install it onto the outside diameter of the air inlet passage at the location of the first shoulder.
11. Connect the handle to the housing and secure it in place with the four screws. (Torque to 3 N•m/26 in.- lbs.)
Note: The two longer screws, Part Number 96454 (2) also secure the 56581 Grip to the housing.
12. Install the 56597 Muffler and secure it in place with the 56596 Muffler Clip. (See Exploded View)
Handle and Valve Assembly Complete. Tool Assembly Complete. Please allow 30 minutes for adhesives to cure before operating tool.
Important: Motor should now be tested for proper operation at 90 PSIG. If motor does not operate properly or operates at a higher RPM than marked on the tool, the tool should
be serviced to correct the cause before use. Before operating, place 2-3 drops of Dynabrade Air Lube (P/N 95842) directly into air inlet with throttle lever depressed. Operate tool
for 30 seconds to determine if tool is operating properly and to allow lubricating oils to properly penetrate motor.
Loctite®is a registered trademark of Loctite Corp.
Balancer Shaft
Shaft Step
Bearing Seal and
Bearing Shield
Drawing 1
Balancer Shaft
Motor Shaft
Balancer
02695 Bearing
57091
Bearing Press Tool
Drawing 2
57091
Bearing Press Tool
Balancer Shaft
Motor Shaft
Balancer
02695 Bearing
Front Bearing Plate
Drawing 3
57091
Bearing Press Tool
Front Bearing Plate
(with 02695 Bearing)
54629 Rear Bearing Plate
(with 01206 Bearing)
Cylinder Assembly
(w/ rotor and vanes)
Line-Up Pin
Drawing 4
56052 Bearing
57091
Bearing Press Tool
Motor Shaft Balancer
Balancer Shaft
57260 Motor Repair Kit:
• Contains special tools for
disassembly/assembly of machine.
Important: Lock Ring must now be placed
over sub-assembly. Not shown in drawings.
