READ & SAVE THESE INSTRUCTIONS
8 ½ Inch Drywall Sander
Owner’s Manual
WARNING: Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety
precautions may result in serious personal injury.
Item #61531

Page 2 of 19
Thank you very much for choosing an Ironton™product!
For future reference, please complete the owner’s record below:
Serial Number/Lot Date Code: ________________________________
Purchase Date: ____________________________________________
Save the receipt, warranty, and this manual. It is important that you read
the entire manual to become familiar with this product before you begin
using it.
This drywall sander is designed for certain applications only. Northern
Tool and Equipment is not responsible for issues arising from
modification or improper use of this product such as an application for
which it was not designed. We strongly recommend that this product not
be modified and/or used for any application other than that for which it
was designed.
For technical questions, please call 1-800-222-5381.

Page 3 of 19
Table of Contents
Intended Use..........................................................................................................................................4
Technical Specifications......................................................................................................................4
Important Safety Information...............................................................................................................4
Specific Operation Warnings...............................................................................................................6
Grounding..............................................................................................................................................6
Extension Cords....................................................................................................................................7
Main Parts of Drywall Sander ..............................................................................................................8
Assembly Instructions..........................................................................................................................9
Before Each Use....................................................................................................................................9
Operating Instructions..........................................................................................................................9
After Each Use.....................................................................................................................................11
Maintenance ........................................................................................................................................11
Troubleshooting..................................................................................................................................12

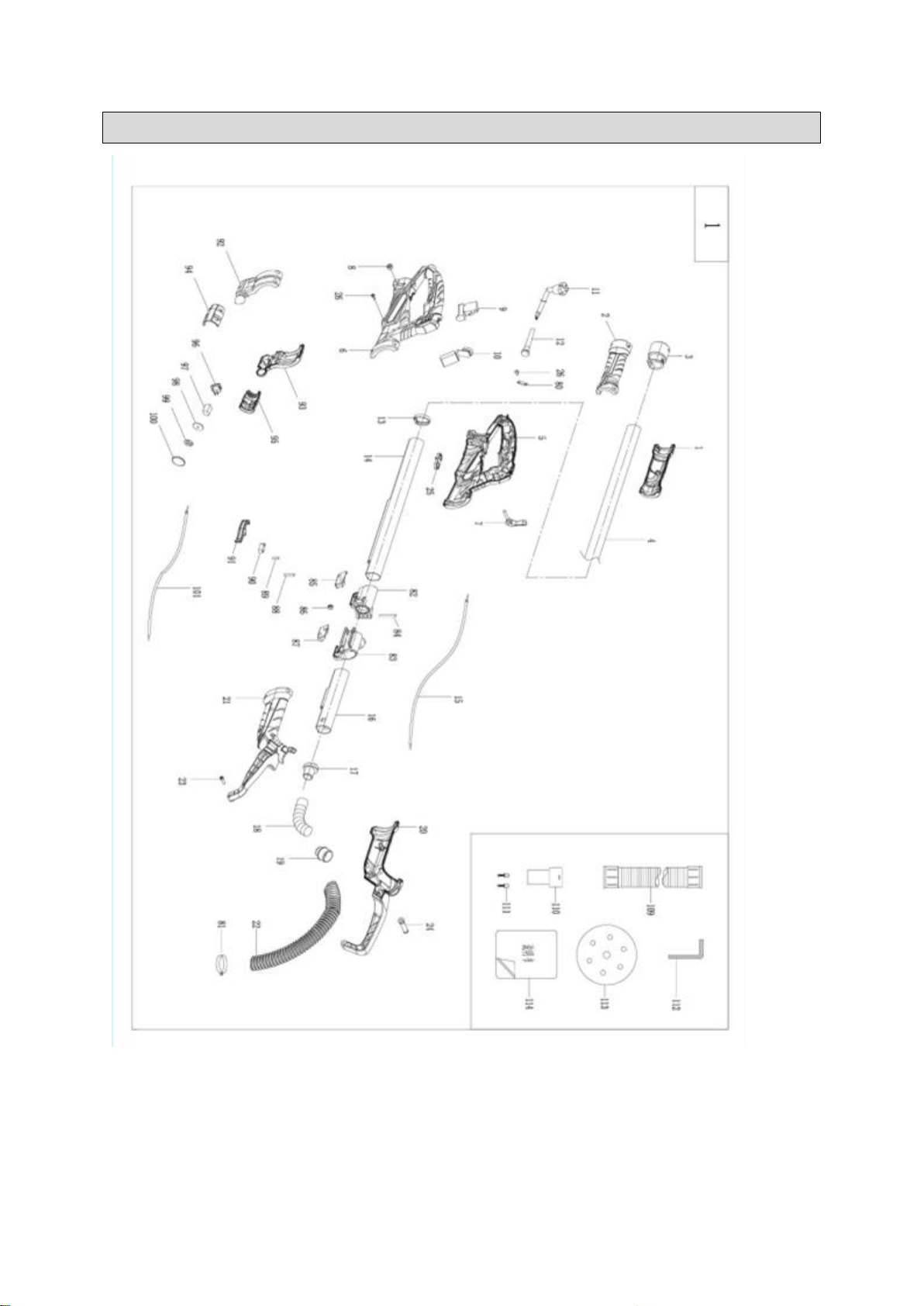

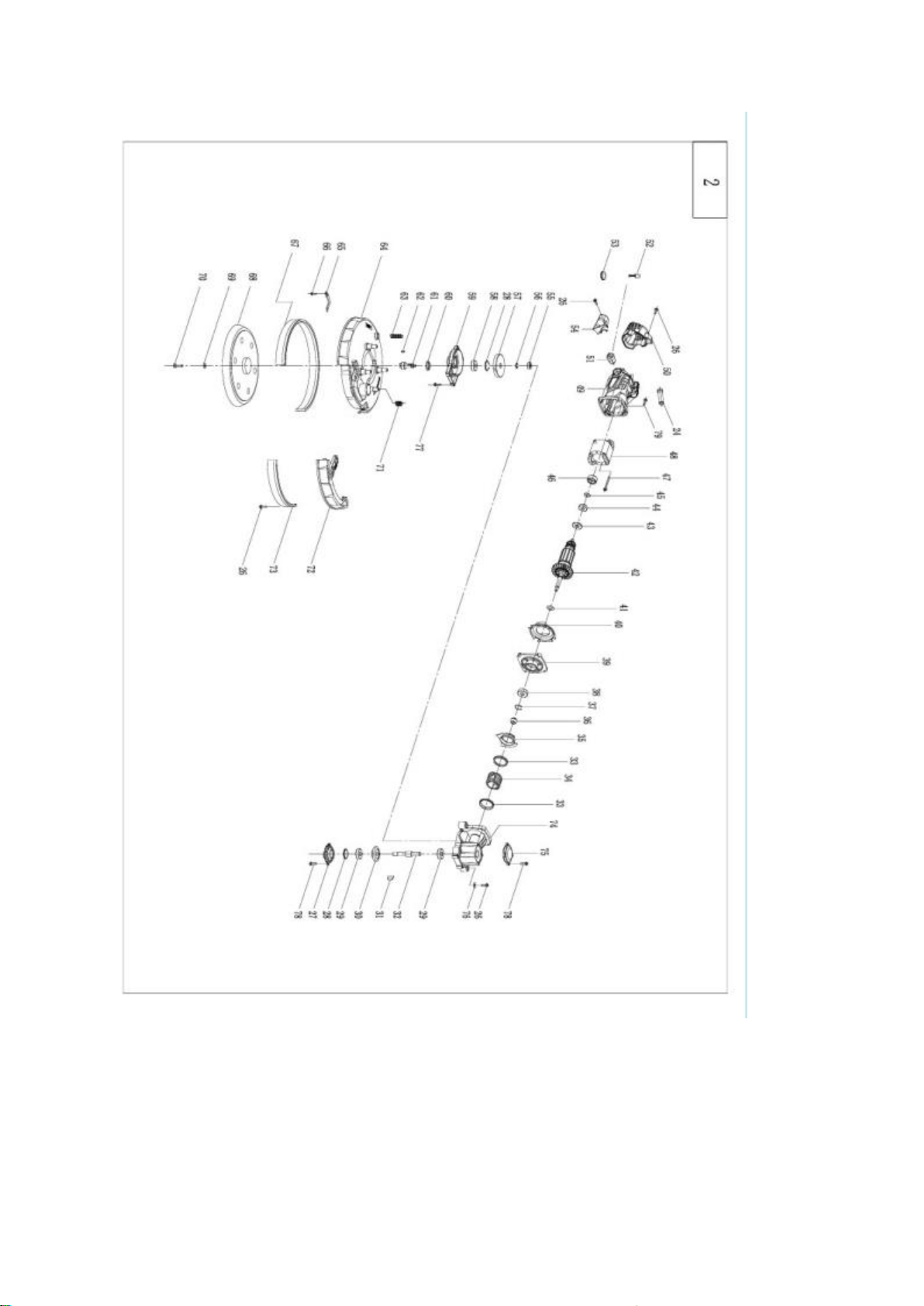

Parts Diagram (1 of 2).........................................................................................................................13
Parts List..............................................................................................................................................15
Replacement Parts..............................................................................................................................17
Limited Warranty.................................................................................................................................18

Page 4 of 19
Intended Use
The Ironton 8 ½ Inch Drywall Sander is designed to sand drywall or plaster walls and ceilings in any
position. The sander provides a superior finish and is faster than conventional methods for both new
construction and renovation work. Use the built-in extensions to change the length of the tool from 4ft.
to 5.6ft. long to reach up to 12ft. high. The sander is ergonomically designed for effortless handling. Its
removable brush segment allows sanding right up to the edge with ease. The robust drive system
transfers power efficiently to the sanding pad and ensures a long service life. The center and edge
vacuum locations provide a large area of dust collection. The tool hooks up easily to a standard
vacuum to ensure a dust-free working environment.
Technical Specifications
Property
Specification
Motor
110V
Power
1 HP (750W)
Speed
750 –1600 RPM
Sanding Disc
8 1/2in. dia.
Handle Adjusts
4ft. to 5.6ft. reaching up to 12ft. high
Important Safety Information
⚠WARNING
Read and understand all instructions. Failure to follow all instructions may result in serious injury
or property damage.
The warnings, cautions, and instructions in this manual cannot cover all possible conditions or
situations that could occur. Exercise common sense and caution when using this tool. Always be
aware of the environment and ensure that the tool is used in a safe and responsible manner.
Do not allow persons to operate or assemble the product until they have read this manual and
have developed a thorough understanding of how it works.
Do not modify this sander in any way. Unauthorized modification may impair the function and/or
safety and could affect the life of the product. There are specific applications for which the product
was designed.
Use the right tool for the job. DO NOT attempt to force small equipment to do the work of larger
industrial equipment. There are certain applications for which this equipment was designed. This
product will be safer and do a better job at the capacity for which it was intended. DO NOT use
this equipment for a purpose for which it was not intended.
Industrial or commercial applications must follow OSHA requirements.
⚠WARNING
WORK AREA SAFETY
Inspect the work area before each use. Keep work area clean, dry, free of clutter, and well-lit.
Cluttered, wet, or dark work areas can result in injury. Using the product in confined work areas
may put you dangerously close to cutting tools and rotating parts.

Page 5 of 19
Do not use the sander where there is a risk of causing a fire or an explosion; e.g., in the presence
of flammable liquids, gases, or dust. The product can create sparks, which may ignite the
flammable liquids, gases, or dust.
Do not allow the sander to come into contact with an electrical source. The tool is not insulated
and contact will cause electrical shock.
Keep children and bystanders away from the work area while operating the tool. Do not allow
children to handle the product.
Be aware of all power lines, electrical circuits, water pipes, and other mechanical hazards in your
work area. Some of these hazards may be hidden from your view and may cause personal injury
and/or property damage if contacted.
⚠WARNING
PERSONAL SAFETY
Stay alert, watch what you are doing, and use common sense when operating the tool. Do not use
the tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of
inattention while operating the tool may result in serious personal injury.
Dress properly. Do not wear loose clothing, dangling objects, or jewelry. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving
parts. Air vents on the tool often cover moving parts and should be avoided.
Wear the proper personal protective equipment when necessary. Use ANSI Z87.1 compliant safety
goggles (not safety glasses) with side shields, or when needed, a face shield. Use a dust mask in
dusty work conditions. Also use non-skid safety shoes, hardhat, gloves, dust collection systems,
and hearing protection when appropriate. This applies to all persons in the work area.
Do not overreach. Keep proper footing and balance at all times.
Remove keys or wrenches before connecting the tool to an air supply, power supply, or turning on
the tool. A wrench or key that is left attached to a rotating part of the tool may cause personal
injury.
Secure the work with clamps or a vise instead of your hand when practical. This safety precaution
allows for proper tool operation using both hands.
⚠CAUTION
SANDER USE AND CARE
Do not force the sander. Products are safer and do a better job when used in the manner for which
they are designed. Plan your work, and use the correct product for the job.
Check for damaged parts before each use. Carefully check that the product will operate properly
and perform its intended function. Replace damaged or worn parts immediately. Never operate the
product with a damaged part.
Do not use a product with a malfunctioning switch. Any power tool that cannot be controlled with
the power switch is dangerous and must be repaired by an authorized service representative
before using.

Page 6 of 19
Disconnect the power/air supply from the product and place the switch in the locked or off position
before making any adjustments, changing accessories, or storing the tool. Such preventive safety
measures reduce the risk of starting the tool accidentally.
Store the sander when it is not in use. Store it in a dry, secure place out of the reach of children.
Inspect the tool for good working condition prior to storage and before re-use.
Use only accessories that are recommended by the manufacturer for use with your product.
Accessories that may be suitable for one product may create a risk of injury when used with
another tool. Never use an accessory that has a lower operating speed or operating pressure than
the tool itself.
Keep guards in place and in working order. Never operate the product without the guards in place.
Do not leave the sander running unattended.
Specific Operation Warnings
⚠WARNING
To reduce the risk of injury, user must read instruction manual.
To reduce the risk of injury, always wear eye and respiratory protection.
Hold power tools by insulated gripping surfaces, when performing an operation where the cutting
tool may contact hidden wiring or its own cord.
Do not point the tool at people or animals.
Never place your hand near the rotating accessory. Accessories may kickback over your hand.
Grounding
⚠WARNING
This machine must be grounded while in use to protect the operator from electrical shock. This
unit is equipped with an electrical cord that has an equipment grounding conductor and a
grounding plug. The plug MUST be plugged into a matching receptacle that is properly installed
and grounded in accordance with ALL local codes and ordinances.
DO NOT MODIFY THE PROVIDED PLUG. If it will not fit the receptacle, have the proper
receptacle installed by a qualified electrician.
CHECK with a qualified electrician or service person if you do not completely understand the
grounding instructions, or if you are not sure the tool is properly grounded.
Grounded Tools: Tools with 3-Prong Plugs
Tools marked with Grounding Required have a 3-wire cord and 3-prong grounding plug. The plug
must be connected to a properly grounded outlet. If the tool should electrically malfunction or break
down, grounding provides a low resistance path to carry electricity away from the user, reducing the
risk of electric shock. (See Figure A.)

Page 7 of 19
The grounding prong in the plug is connected through the green wire inside the cord to the grounding
system in the tool. The green wire in the cord must be the only wire connected to the tool’s grounding
system and must never be attached to an electrically live terminal.
Your tool must be plugged into an appropriate outlet, properly installed and grounded in accordance
with all codes and ordinances. The plug and outlet should look like those in the following illustration.
Double Insulated Tools: Tools with Two-Prong Plugs
Tools marked Double Insulated do not require grounding. They have a special double insulation
system which satisfies OSHA requirements and complies with the applicable standards of
Underwriters Laboratories, Inc., the Canadian Standard Association, and the National Electrical Code.
(See Figure B.)
Double insulated tools may be used in either of the 120 volt outlets shown in the following illustration.
Extension Cords
⚠WARNING
USE A PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When
using an extension cord, be sure to use one heavy enough to carry the current your product will
draw. An undersized cord will cause a drop in line voltage, resulting in loss of power and cause
overheating.
Be sure your extension cord is properly wired and in good condition. Always replace a damaged
extension cord or have it repaired by a qualified person before using it. Protect your extension
cords from sharp objects, excessive heat and damp or wet areas.
Grounded tools require a 3-wire extension cord. Double Insulated tools can use either a 2- or 3-
wire extension cord.
As the distance from the supply outlet increases, you must use a heavier gauge extension cord.
Using extension cords with inadequately sized wire causes a serious drop in voltage, resulting in
loss of power and possible tool damage.
The smaller the wire’s gauge number, the greater the capacity of the cord. For example, a 14-
gauge cord can carry a higher current than a 16-gauge cord. Minimum extension cord wire size is
shown in the following table:
Minimum Wire Size Of Extension Cords
Nameplate AMPS
Cord Length
25'
50'
100'
150'

Page 8 of 19
0-6
18 AWG
16 AWG
16 AWG
14 AWG
6-10
18 AWG
16 AWG
14 AWG
12 AWG
10-12
16 AWG
16 AWG
14 AWG
12 AWG
12-16
14 AWG
12 AWG
NOT RECOMMENDED
When using more than one extension cord to make up the total length, make sure each cord
contains at least the minimum wire size required.
If you are using one extension cord for more than one tool, add the nameplate amperes and use
the sum to determine the required minimum cord size.
If you are using an extension cord outdoors, make sure it is marked with the suffix W-A (Win
Canada) to indicate it is acceptable for outdoor use.
Make sure your extension cord is properly wired and in good electrical condition. Always replace
a damaged extension cord or have it repaired by a qualified electrician before using it.
Protect your extension cords from sharp objects, excessive heat, and damp or wet areas.

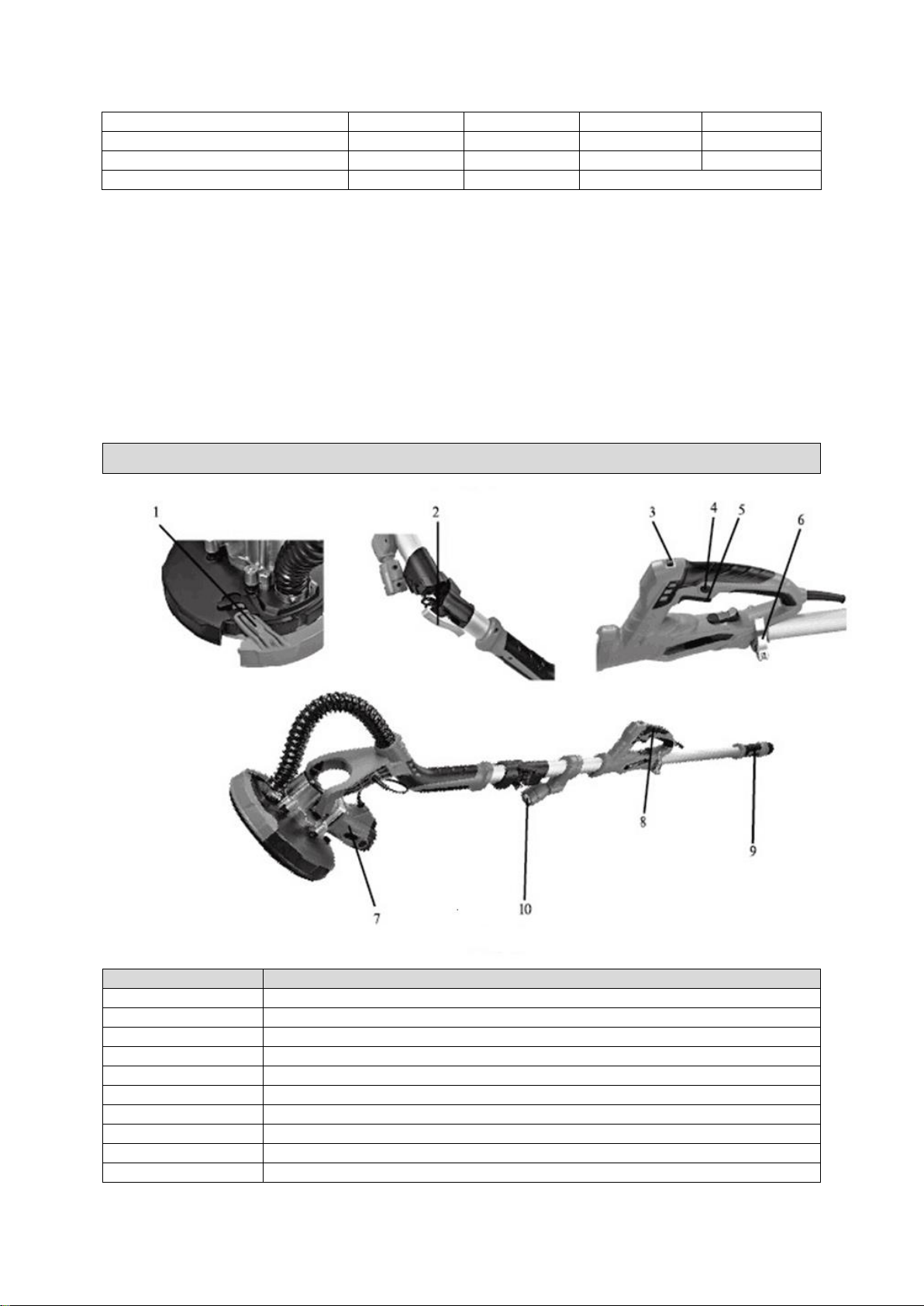

Main Parts of Drywall Sander
Reference
Subassembly
1
Disc Disassembling Knob
2
Folded Button
3
Governor
4
Lock Button
5
Switch
6
Quick Release Button
7
Motor
8
Assisting Handle
9
Back Handle
10
LED Light

Page 9 of 19
Assembly Instructions
Installing the Sander
Tighten the folded button and connect the body with the front handle. Loosen the back handle
adjustment knob. Connect the back handle and the assisting handle. Adjust the length of the handle
and tighten the adjustment knob. See the following page for images.
Before Each Use
⚠WARNING
ALWAYS check for damaged or worn out parts before using the sander. Broken parts will affect the
sander’s operation. Replace or repair damaged or worn parts immediately.
Make sure that the power switch is in the OFF position and unplug the sander from its electrical
outlet before performing any procedure in this section.
Wipe the work surface clean of all dirt and debris, especially for that of previous coarser sanding
sessions, which will scratch the surface of a finer grit sanding session.
Operating Instructions
⚠WARNING
To reduce the risk of injury, user must read this manual.
To reduce the risk of injury, always wear eye and respiratory protection.
Hold power tools by insulated gripping surfaces, when performing an operation where the cutting

Page 10 of 19
tool may contact hidden wiring or its own cord.
Never place your hand near the rotating accessory. Accessories may kickback over your hand.
Do not point the tool at people or animals.
Hold the handle firmly.
Do not place your hands over the rotating disc and stand still while using the sander.
Hold the work piece tightly. If necessary, use a clamp or vice.
General Use
1. To turn ON the switch (5) of the sander, press the main switch lock button (4).
2. To keep the sander working continuously, press the locking button and the switch will be locked in
the ON position. When turning OFF the switch (5) of the sander, press the main switch lock button
(4) one time.
3. Turn the governor (3) to adjust the speed. 1 is the lowest speed and 5 is the highest.
Corner Sanding
Press and turn the disassembled part’s (see #72 in the parts list) knob counter-clockwise to remove
the sanding disc. Now it will be easier to sand corners.

Page 11 of 19
Replacing Sandpaper
Completely remove the old sandpaper from the disc. Make sure all of it is removed. Lay the new
sandpaper in the correct position, making sure the hole in the sandpaper matches the hole in the
sanding pad.
Replacing the Sanding Pad
Before removing the old sandpaper, use the hex key to loosen the screw in the center of the sanding
pad. Remove the old sanding pad and install the new sanding pad.
After Each Use
⚠WARNING
Store the sander in a dry and clean place.
Keep sander away from children.
Maintenance
Maintain the sander by adopting a program of conscientious repair and maintenance in accordance
with the following recommended procedures. It is recommended that the general condition of any tool
be examined before it is used. Keep your tool in good repair. Keep handles dry, clean, and free from
oil and grease. The following chart is based on a normal operation schedule.
Maintenance Interval
Maintenance Point
Daily after operating
Clean the sander with a brush, dry cloth, or blow into it with
pressurized air. .

Page 12 of 19
Troubleshooting
Use the table below to troubleshoot problems before contacting service personnel or your local
dealer. If the problem continues after troubleshooting, call your local dealer for assistance.
Failure
Possible Cause
Corrective Action
Sander will not
start.
Power is not connected.
Connect the power.
Internal damage.
Have a technician service the sander.
Sander is not
working properly.
Parts are worn.
Replace parts as needed.

Page 13 of 19
Parts Diagram (1 of 2)

Page 14 of 19

Page 15 of 19
Parts List
Reference
Part Description
Quantity
1
Left back handle
1
2
Right back handle
1
3
Connecting pin
1
4
Alu. inner tube
1
5
Left middle handle
1
6
Right middle handle
1
7
Quick release screw
1
8
Quick release locking nut
1
9
Switch
1
10
Speed controller
1
11
Power line
1
12
Sander sheath
1
13
Alu. Tube seal cover
1
14
Alu. outer tube
1
15
Line 6.5*2*0.75
1
16
Alu. outer tube
1
17
Connecting pin
1
18
Dust hose
1
19
Dust hose joint
1
20
Left supporting arm
1
21
Right supporting arm
1
22
Hose
1
23
Screw M6*20
1
24
Small sander sheath
1
25
Middle handle cover
1
26
Screw ST4*16
46
27
Gear box inner cover
1
28
Inner snap ring 26
2
29
Bearing 6000
2
30
Big auger gear
1
31
Woodruff key 3*10
1
32
Gear shaft
1
33
Rotating seal sheath
2
34
Rotating
1
35
Middle cover sheath
1
36
Small auger bear
1
37
Bearing snap ring 9
1
38
Bearing 629
1
39
Middle cover
1
40
Windproof ring
1
41
Shim 9*18*0.8
1
42
Rotor
1
43
Dust ring
1
44
Bearing 608
1
45
Shim 8*16*0.8
1
46
Bearing cover 608
1
47
Screw ST 4*50
1
48
Stator
1
49
Housing
1
50
Back cover
1
51
Brush carrier
2
52
Carbon brush
2

Page 16 of 19
Reference
Part Description
Quantity
53
Brush carrier cover
2
54
Housing side cover
1
55
Bearing 606
1
56
Bearing snap ring 10
1
57
Large helical gear
1
58
Bearing 6000
1
59
Gear box cover
1
60
Oil seal
1
61
Output shaft
1
62
Square key 3*10
1
63
Spring
1
64
Plastic disc
1
65
Plastic disc cover
1
66
Screw 3*1
1
67
Big circle brush
1
68
Tray
1
69
Shim 6
1
70
M6*20
1
71
Gear box compression spring
1
72
Disassembled part
1
73
Small circle brush
1
74
Gear box
1
75
Gear box cover
1
76
Shim 4.5*14*1
4
77
Round head screw M4*20
4
78
Round head screw M4*16
8
79
Round head screw M4*25
4
80
Line-pressing plate
1
81
Hose clamps ring
1
82
Left folding joint
1
83
Right folding joint
1
84
Round head screw 5*45
1
85
Left fixing cover
1
86
Round sander sheath
2
87
Right fixed cover
1
88
Round head screw 5*28
1
89
Round head screw 5*16
1
90
Rotating plate
1
91
Folded button
1
92
Right lamp chimney fixed housing
1
93
Left lamp chimney fixed housing
1
94
Right lamp chimney
1
95
Left lamp chimney
1
96
LED Switch
1
97
LED Drive
1
98
φ28*6*1.5 Aluminum spacer
1
99
3*1W LED Light
1
100
φ35 lens
1
101
LED outgoing line
1

Page 17 of 19
Replacement Parts
For replacement parts and technical questions, please call Customer Service at 1-800-222-5381.
Not all product components are available for replacement. The illustrations provided are a
convenient reference to the location and position of parts in the assembly sequence.
When ordering parts, the following information will be required: item description, item model
number, item serial number/item lot date code, and the replacement part reference number.
The distributor reserves the rights to make design changes and improvements to product lines
and manuals without notice.

Page 18 of 19
Limited Warranty
Northern Tool and Equipment Company, Inc. ("We'' or ''Us'') warrants to the original purchaser only
(''You'' or ''Your'') that the Ironton product purchased will be free from material defects in both
materials and workmanship, normal wear and tear excepted, for a period of one year from date of
purchase. The foregoing warranty is valid only if the installation and use of the product is strictly in
accordance with product instructions. There are no other warranties, express or implied, including the
warranty of merchantability or fitness for a particular purpose. If the product does not comply with this
limited warranty, Your sole and exclusive remedy is that We will, at our sole option and within a
commercially reasonable time, either replace the product or product component without charge to You
or refund the purchase price (less shipping). This limited warranty is not transferable.
Limitations on the Warranty
This limited warranty does not cover: (a) normal wear and tear; (b) damage through abuse, neglect,
misuse, or as a result of any accident or in any other manner; (c) damage from misapplication,
overloading, or improper installation; (d) improper maintenance and repair; and (e) product alteration
in any manner by anyone other than Us, with the sole exception of alterations made pursuant to
product instructions and in a workmanlike manner.
Obligations of Purchaser
You must retain Your product purchase receipt to verify date of purchase and that You are the original
purchaser. To make a warranty claim, contact Us at 1-800-222-5381, identify the product by make
and model number, and follow the claim instructions that will be provided. The product and the
purchase receipt must be provided to Us in order to process Your warranty claim. Any returned
product that is replaced or refunded by Us becomes our property. You will be responsible for return
shipping costs or costs related to Your return visit to a retail store.
Remedy Limits
Product replacement or a refund of the purchase price is Your sole remedy under this limited warranty
or any other warranty related to the product. We shall not be liable for: service or labor charges or
damage to Your property incurred in removing or replacing the product; any damages, including,
without limitation, damages to tangible personal property or personal injury, related to Your improper
use, installation, or maintenance of the product or product component; or any indirect, incidental or
consequential damages of any kind for any reason.
Assumption of Risk
You acknowledge and agree that any use of the product for any purpose other than the specified
use(s) stated in the product instructions is at Your own risk.
Governing Law
This limited warranty gives You specific legal rights, and You also may have other rights which vary
from state to state. Some states do not allow limitations or exclusions on implied warranties or
incidental or consequential damages, so the above limitations may not apply to You. This limited
warranty is governed by the laws of the State of Minnesota, without regard to rules pertaining to
conflicts of law. The state courts located in Dakota County, Minnesota shall have exclusive jurisdiction
for any disputes relating to this warranty.

Page 19 of 19
Distributed by:
Northern Tool & Equipment Company, Inc.
Burnsville, Minnesota 55306
www.northerntool.com
Made in China
