Dynamic CCTV DTV-IRB-SDI User manual

FULL HD-SDI
2.1MEGA PIXEL
TRUE D&N IR CAMERA

3

4
■Contents
Features
Warning
Precautions
Components and Accessories
Names and functions of parts
Dimension
---------------------------------------------------- 6
---------------------------------------------------- 7
---------------------------------------------------- 8
---------------------------------------------------- 10
---------------------------------------------------- 11
--------------------------------------------------- 13

5
How to Use the Camera
● Function Menu Structure ------------ 14
● How to Set up the Functions ------ 15
DISPLAY MODE 15
LENS 15
SHUTTER / AGC 16
AWB 16
PICT ADJUST 17
WDR/BLC/DNR 18
DAY/NIGHT 19
PRIVACY 20
MOTION DET 20
CAMERA ID 21
SYSTEM INFO 21
RESET ON 21
Troubleshooting
Specification
---------------------------------------------------- 14
---------------------------------------------------- 22
---------------------------------------------------- 23

6
FULL HD-SDI IR CAMERA
Full HD-SDI Video
By adopting a 1/3” 2.1Mega Pixel Panasonic
Progressive CMOS Sensor Produces high
quality picture.
1920x1080p, 30fps / 1280x720p, 60fps
Excellent Low Illumination Sensitivity
By adopting highly sensitive color CMOS
and digital signal processing technology, it
can clearly distinguish the outline and color
of a subject in an extremely low luminance
environment even, for example, under star-
light. Since surveillance is possible in places
where the light is poor, the camera is appro-
priate for day and night surveillance outdoors
or on the outside of buildings.
DNR(Digital Noise Reduction) Function
The high-performance DSP chip effectively
removes low-light gain noise and ghosting
to provide clear images even in dark environ-
ments.
Motion Detection
Since the camera detects motion and gener-
ates signals without any additional external
sensor, you can monitor activity more ef-
ciently by connecting the camera to an alarm
device.
Alarm Out (option)
1/4” high density CCD allows the user to cap-
ture bright, high-quality images under ultra
low lighting conditions.
Day & Night (ICR)
The camera identies whether it is day or
night and automatically switches to the ap-
propriate mode, depending on its environ-
ment. By day, the camera switches to color
mode in order to maintain optimal color. At
night, it switches to B/W mode so as to obtain
better picture denition.
Miscellaneous Functions
HLC(High Light Compensation), SENS-UP,
FLIP(H/V-REV), D-ZOOM, SHARPNESS,
MOTION DETECTION and PRIVACY func-
tions are provided.
Junction Box
Weatherproof (IP67)
OSD
The camera’ control is convenient using by 8
different foreign languages OSD.
- English, Italian, German
■Features

7
FULL HD-SDI IR CAMERA

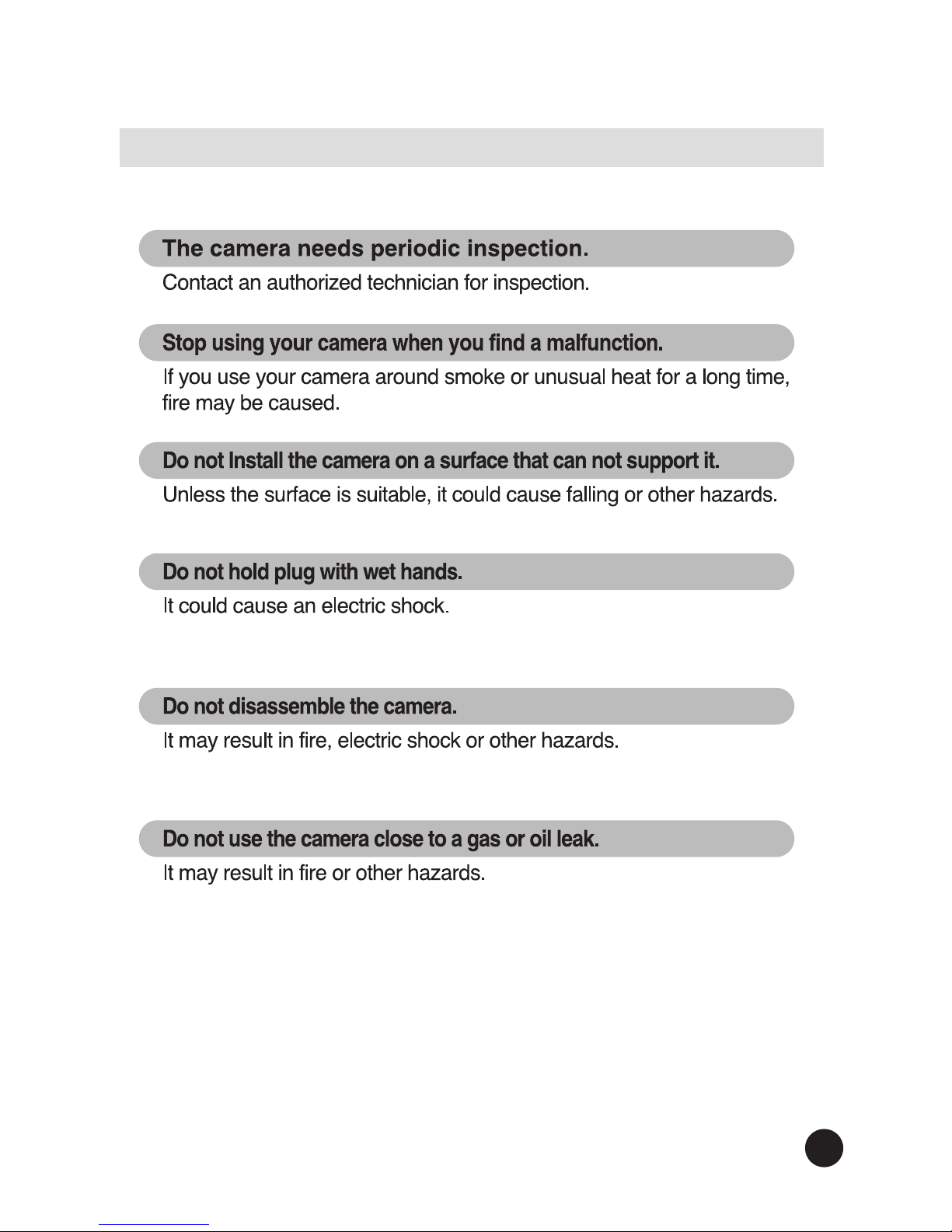

■Warning

8
FULL HD-SDI IR CAMERA

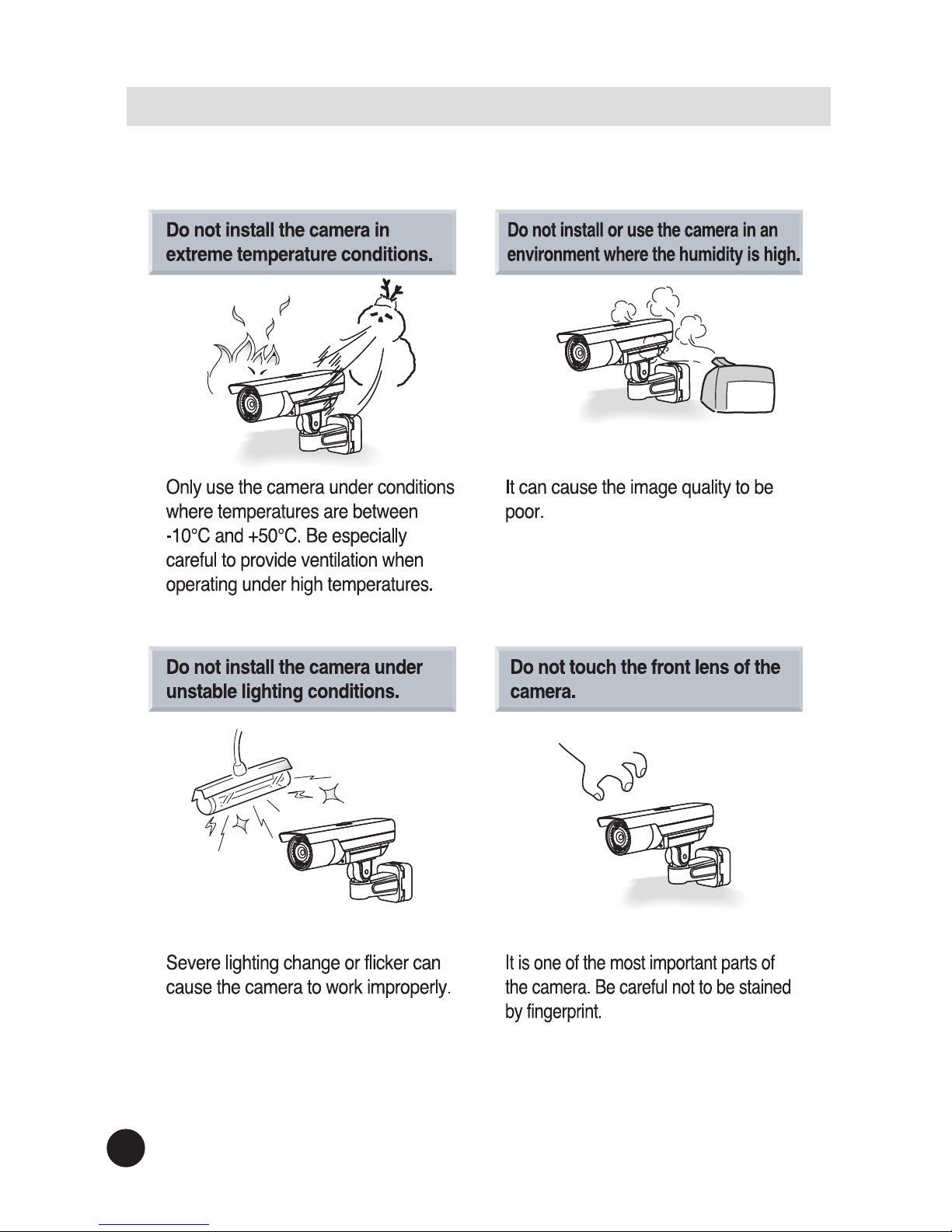

■Precautions

9
FULL HD-SDI IR CAMERA
Sensor.
For heated Sensor, it will be out of order

10
FULL HD-SDI IR CAMERA

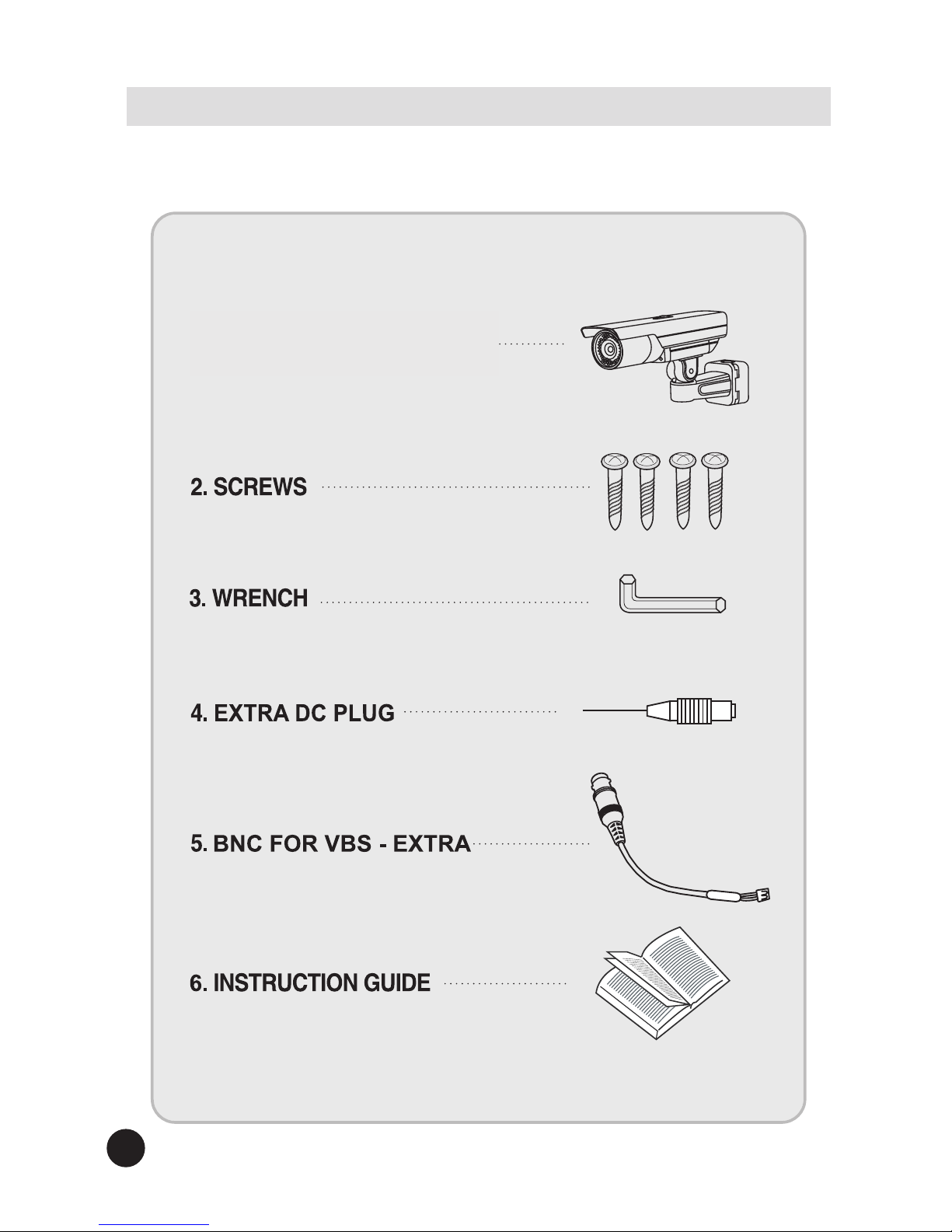

■Components and Accessories
1. MEGA PIXEL IR CAMERA

11
FULL HD-SDI IR CAMERA
CDS SENSOR
OSD CONTROLLER
IR POWER VR
MEGA PIXEL LENS
BUILT-IN 48IR LEDs
EXTRA VIDEO
■Names and Functions of Parts

12
FULL HD-SDI IR CAMERA
(F1.2, 2.8mm~11mm)
370mm
294mm
210mm
■Names and Functions of Parts
▪ LENS : Vari-Focal Auto IRIS MEGA PIXEL Lens
▪ OSD PCB

13
FULL HD-SDI IR CAMERA
(F1.2, 2.8mm~11mm)
370mm
294mm
210mm
■Names and Functions of Parts
■Dimension
▪ Extra Video for a Spot Monitor
Installers can check the video output through a portable monitor
at the sight.
▪ Junction Box
Easy installation
▪ SMPS PCB for Dual Power (option)
DC12V or AC24V dual input power
▪ BUILT-IN Powerful 48 IR LEDs
Connect video out jack to the monitor’s video in jack as shown below.

14
FULL HD-SDI IR CAMERA
14
■How to Use the Camera
MAIN MENU
■DISPLAY MODE
► SDI SCALE
► CVBS
► COLOR BAR
► SDI FORMAT
► CVBS_RATIO
► SHADINGT DET
► SDI FPS
► FONT SIZE
► DEFECT DET
■LENS ► MODE
■SHUTTER/AGC ► SHUTTER
► DSS
► MODE
► FREQ
► AGC
■AWB ► MODE
■PICT ADJUST
► BRIGHTNESS
► ACE
► FLIP
► DZOOM
► GAMMA
► SHARPNESS
► STILL
► HLMASK
► COLOR GAIN
► MIRROR
► SHADING
■WDR/BLC/DNR
► MODE
► BLC POS-X
► BLC SIZ-Y
► WDR_WGT
► BLC POS-Y
► DNR
► BLC OSD
► BLC SIZ-X
■DAY & NIGHT ► AUTO
► EXT
► COLOR ► B&W
■PRIVACY
► MODE
► X-POS
► Y-SIZ
► ZONE NO
► Y-POS
► COLOR
► ZONE OP
► X-SIZ
► TRANS
■MOTION ► OFF ► ON
■CAMERA ID ► MODE
► SETUP ID
► X-POS ► Y-POS
■SYSTEM INFO ► VERSION ► DATE ►
RESET DEFAULT ON(PUSHING)
■RESET ON ► ON
■EXIT

15
FULL HD-SDI IR CAMERA
15
■How to Use the Camera
Notes
● All item with the "↲ " , you can move to sub menu pressing SET button.
● An item with the "___" ,push & hold menu button 3 second to settings.
Notes
● Please select correct lens mode by lens specications.
󱎎
■ DISPLAY MODE
►SDI SCALE : Compression SDI signal or not. FULL or COMP.
COMP shows bright image.
►SDI FORMAT : Select resolution. (1080P (1920X1080) or 720P(1280X720)).
►SDI FPS : Select frame per second. 30fps or 25fps.
►CVBS : Select format of composit video out. (NTSC or PAL).
(Composit video out deactivate at "WDR" mode under "WDR/BLC/DNR" in menu).
►CVBS_RATIO : Select CVBS ratio of composit video out. (16:9 or 4:3).
►FONT SIZE : Select font size of OSD. (x1 or x2).
►COLOR BAR : Color bar test. (ON or OFF).
►SHADING DET : Set to same brightness image of corner if image shaded by lens.
Shoot camera toward white paper in full screen and operate
"ON" to write data in memory. To activate function, turn "ON" of
"SHADING" under "PICT ADJUST" in menu.
►DEFECT DET : Remove white dead pixels in image. Close the lens and select to
"ON". "THRS____00000006" will display. Set up to "00000030"
by "RIGHT" button. Push the"MENU" key and hold it until disap
pear the menu.(Over 5 second).
■ LENS
►MODE : Select the lens type (DC/VIDEO/MANUAL).

16
FULL HD-SDI IR CAMERA
■ SHUTTER / AGC
►SHUTTER : Set shutter speed to AUTO or MANUAL (1/30 - 1/30,000).
DSS deactivate at "MANUAL".
►MODE : Select location of installed camera. "INDOOR" or "OUTDOOR".
Very important! If selection was not correctly, image able to show not clearly.
►AGC : Auto gain control. (0-20 Default : 13). Day & Night & DNR deactivate if AGC "OFF".
►DSS : Digital slow shutter. (OFF/x2/x3/x4). DSS deactivate at "MANUAL" mode of
"SHUTTER". Camera detects the light level and maintains bright & clear
image. (Sense-Up)
►FREQ : Select frequency. (50Hz or 60Hz).
■ AWB
►MODE : Set white balance.(AUTO,AUTO ext,PRESET(Push) or MANUAL
(KELVIN/R-GAIN/B-GAIN)).
● AUTO exe : Set color temperature for low temperature lamp at outdoor.
● KELVIN : Set color temperature.(LOW/MIDDLE/HIGH).
● R-GAIN : Set gain of RED color.(1-20).
● B-GAIN : Set gain of BLUE color.(1-20).
If white balance is not correct in "AUTO" mode at special area, use "PRESET"
or "MANUAL" mode.
■How to use the camera
Notes
Mode : "Indoor or Outdoor"
● If selection is not made correctly, picture is showing unclear image.

17
FULL HD-SDI IR CAMERA
■How to Use the Camera
■ PICT ADJUST
►BRIGHTNESS : Control the brightness.(0-20).
►GAMMA : Gamma correction control.(0.5-0.75)
►COLOR GAIN : Color gain control.(0-20).
►ACE : Auto contrast enhancer.(ON or OFF).
►SHARPNESS : Control the sharpness.(0-15).
►MIRROR : Flip the image horizontally on the screen.(ON or OFF).
►FLIP : Flip the image vertically on the screen.(ON or OFF).
►STILL : Hold the captured image.(ON or OFF).
►SHADING : Activate of memorized shading data by "SHADING DET" under
"DISPLAY MODE". (ON or OFF).
►DZOOM : Digital zoom.(0-4).
►HL MASK : Remove exceptionally bright light areas to allow detail image.
(ON(Level 0-20) or OFF).
● COLOR : Select color of masked area.(CYN/GRN/MAG/RED/BLU/BLK/WHT/YEL).

18
FULL HD-SDI IR CAMERA
■How to Use the Camera
■ WDR / BLC / DNR
►MODE : Set wide dynamic range & back light compensation & Digital noise
reduction.(WDR or BLC)
● WDR or BLC. (Composit video out deactivate at "WDR" mode).
The frame rate reduce from 30 to 15 at "WDR" mode.
►WDR_WGT : Control the weght range of WDR.(0-4).
►BLC OSD : Display the out line of BLC area.(ON/OFF).
►BLCX-POS : Select horizontal position of BLC zone.(0-20).
►BLCY-POS : Select vertical position of BLC zone.(0-20).
►BLCX-SIZ : Select horizontal size of BLC zone.(0-20).
►BLCY-SIZ : Select vertical size of BLC zone.(0-20).
►DNR : Digital noise reduction.(OFF/LOW/MIDDLE/HIGH).
DNR reduces the background noise in a low luminance environment.
DNR deactivate if AGC "OFF" of "SHUTTER/AGC" in menu.

19
FULL HD-SDI IR CAMERA
■How to Use the Camera
■ DAY & NIGHT
►MODE : Set display pictures in Color or Black and White.(AUTO/COLOR/B&W/EXT).
Day & Night deactivate if AGC "OFF" of "SHUTTER / AGC" in menu.
● AUTO : Color in a normal environment, switches to B/W mode at low ambient
illumination.
- AGC THRS : AGC Threshold level.(0-20).
- MARGIN : AGC Margin level.(0-20).
- DELAY : AGC delay.(0-10).
● COLOR : Always displayed in color.
● B&W : Always displayed in B&W.
● EXT : If supplied CDS sensor used for detect ambient visible illumination
under 3-5lux, camera switches to B/W image.
- DELAY : Delay to change B/W mode.(0-10).

20
FULL HD-SDI IR CAMERA
■How to Use the Camera
■PRIVACY
Mask an 32 areas user want to hide on the screen.
►MODE : Activate privacy mode.ON/OFF.
►ZONE NO : Select zone number.(0-31 points).
►ZONE OP : Activate zone.ON/OFF.
►X-POS : Select horizontal position of zone.(0-60).
►Y-POS : Select vertical position of zone.(0-40).
►X-SIZ : Select horizontal size of zone.(0-40).
►Y-SIZ : Select vertical size of zone.(0-40).
►COLOR : Select color of masking area.(CYN/GRN/MAG/RED/BLU/BLK/WHT/YEL).
►TRANS : Select zone transparency.(0-4).
■MOTION DET
This feature allows to observe movement of objects in 4 areas on the screen,
and square lane appear on the screen when movement is detected.
►OFF / ON : Activate motion detection mode.(ON/OFF).
►RESOLUTION : Select motion resolution.(0-4).
►SENSITIVITY : Select motion sensitivity.(0-20).
►WINDOW TONE : Select window tone.(0-6).
►WINDOW USE : Select activate window.(ON/OFF).
►X-POS : Select horizontal position of window.(0-60).
►Y-POS : Select virtical position of window.(0-40).
►X-SIZE : Select horizontal size of window.(0-60).
►Y-SIZE : Select virtical size of window.(0-40).
