Vandal Resistant Dome Camera
3
By adopting a diagonal 6mm(1/3") 520K
pixel(NTSC), 610K pixel(PAL) Color Double
Density the camera produces clear picture quality
with a horizontal resolution of 650 TV lines in
color and 700TV lines in B/W.
Without assistance from an external sensor, this
camera independently detects and traces objects
while examining stillness and movement to
activate the alarm.
HLC(High Light Compensation), SENS-UP,
REVERSE , D-ZOOM, SHARPNESS and
PRIVACY functions are provided.
You can set a mode according to the camera
installation conditions.
- BASIC, DAYNIGHT, BACKLIGHT, ITS, INDOOR, USER
The camera’s OSD is complimented by 18 languages.
- NTSC : English, Korean, Japanese, Spanish, French,
Portuguese, Taiwanese
- PAL :
English, Chinese, German, Italian, French,
Spanish, Russian, Czech, Polish, Romanian,
Serbian, Swedish, Danish, Turkish, Portuguese,Thai
Intelligence
PROFILE
3
By adopting a diagonal 6mm(1/3") 520K
pixel(NTSC), 610K pixel(PAL) Color Double
Density the camera produces clear picture quality
with a horizontal resolution of 650 TV lines in
color and 700TV lines in B/W.
Without assistance from an external sensor, this
camera independently detects and traces objects
while examining stillness and movement to
activate the alarm.
HLC(High Light Compensation), SENS-UP,
REVERSE , D-ZOOM, SHARPNESS and
PRIVACY functions are provided.
You can set a mode according to the camera
installation conditions.
- BASIC, DAYNIGHT, BACKLIGHT, ITS, INDOOR, USER
The camera’s OSD is complimented by 18 languages.
- NTSC : English, Korean, Japanese, Spanish, French,
Portuguese, Taiwanese
- PAL :
English, Chinese, German, Italian, French,
Spanish, Russian, Czech, Polish, Romanian,
Serbian, Swedish, Danish, Turkish, Portuguese,Thai
Intelligence
PROFILE
3
By adopting a diagonal 6mm(1/3") 520K
pixel(NTSC), 610K pixel(PAL) Color Double
Density the camera produces clear picture quality
with a horizontal resolution of 650 TV lines in
color and 700TV lines in B/W.
Without assistance from an external sensor, this
camera independently detects and traces objects
while examining stillness and movement to
activate the alarm.
HLC(High Light Compensation), SENS-UP,
REVERSE , D-ZOOM, SHARPNESS and
PRIVACY functions are provided.
You can set a mode according to the camera
installation conditions.
- BASIC, DAYNIGHT, BACKLIGHT, ITS, INDOOR, USER
The camera’s OSD is complimented by 18 languages.
- NTSC : English, Korean, Japanese, Spanish, French,
Portuguese, Taiwanese
- PAL :
English, Chinese, German, Italian, French,
Spanish, Russian, Czech, Polish, Romanian,
Serbian, Swedish, Danish, Turkish, Portuguese,Thai
Intelligence
PROFILE
BASIC, DAYNIGHT, BACKLIGHT, ITS, INDOOR, USER

5
Vandal Resistant Dome Camera

66
Vandal Resistant Dome Camera

77
Vandal Resistant Dome Camera

88
Vandal Resistant Dome Camera
VANDAL DOME CAMERA

99
Vandal Resistant Dome Camera

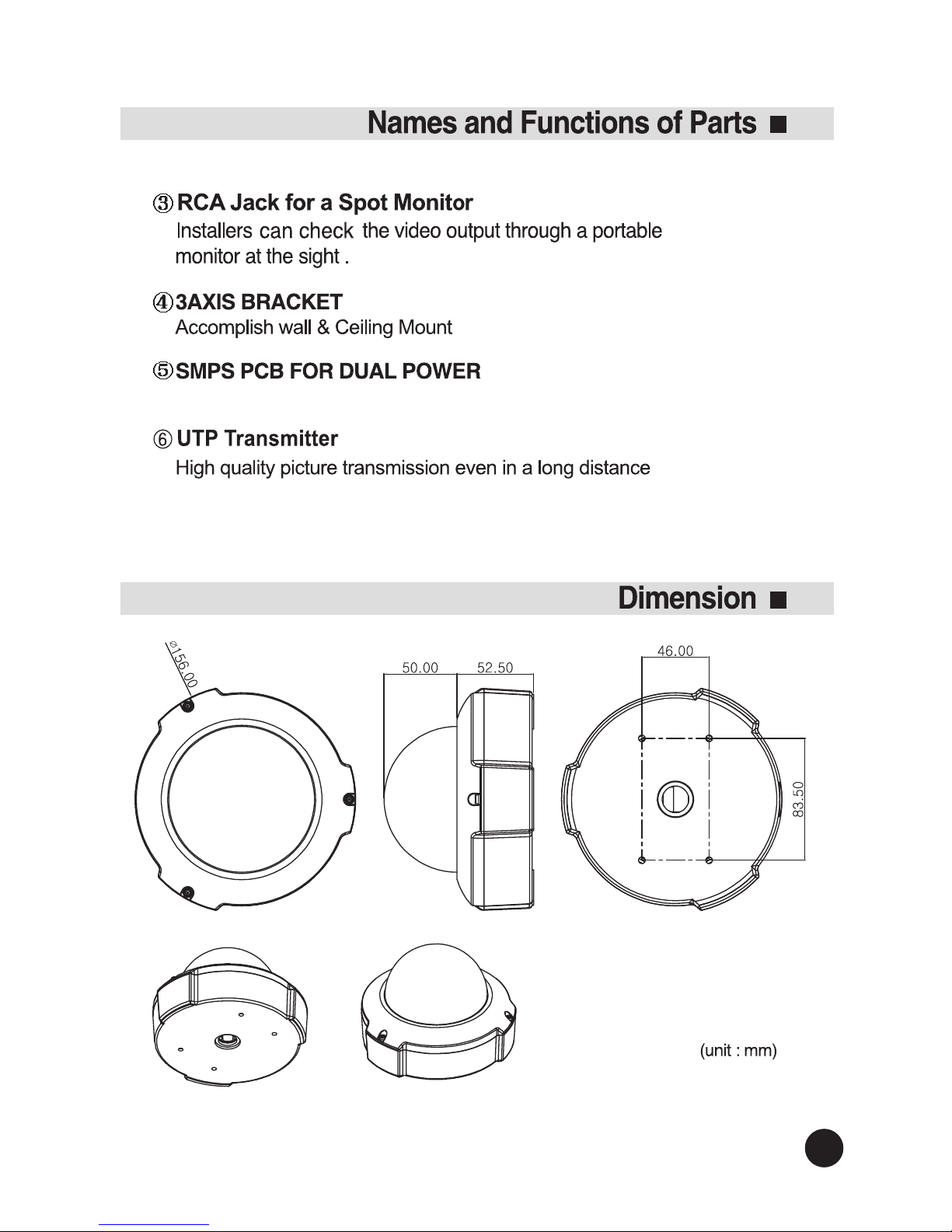

⑥ UTP Transmitter(Option)
② OSD CONTROLLER
③ SPOT MONITOR
⑦ POWER AC24V or
DC 12V CONNECTOR
⑨ UTP CONNECTOR
⑧ VIDEO CONNECTOR
① VARI-FOCAL LENS
④ 3AXIS BRACKET
⑤ POWER BOARD
DC12V/AC24V (Option)

1010
Vandal Resistant Dome Camera
(F1.2, 2.8mm ~ 11mm)-Standard
(F1.2, 9mm ~ 22mm)-Option
(F1.2, 3.5mm ~ 16mm)-Option
Control OSD Menu Using joystick.
ⴞⴟⴠ
Internal Connectors
For easy connection power video and UTP
the Joystick
OSD Controller
8

1111
Vandal Resistant Dome Camera
(F1.2, 2.8mm ~ 11mm)-Standard
(F1.2, 9mm ~ 22mm)-Option
(F1.2, 3.5mm ~ 16mm)-Option
Control OSD Menu Using joystick.
ⴞⴟⴠ
Internal Connectors
For easy connection power video and UTP
(Option)
For easy connection Power, Video and UTP
DC 12V or 24V AC Dual Input

1212
Vandal Resistant Dome Camera
Dual Power Type only
(option)
(option)

1313
Vandal Resistant Dome Camera
Dual Power Type only
(option)
(option)
24V AC Class 2 power supply.(24V AC / DC 12V Dual Power Type only)

1414
Vandal Resistant Dome Camera
MAIN SETUP
ඖ1.LENS DC
2.EXPOSURE
3.SSDR
ATW
4.WHITH BAL
OFF
5.BACKLIGHT
ON
6.DNR3
AUTO
7.DAY/NIGHT
8.SPECIAL
9.EXIT SAVE
ON
BRIGHTNESS
ATW OUTDOOR INDOOR
AUTO EXTERN COLOR
B/W
IMAGE ADJ CAM TITLE SYNC
MOTION PRIVACY DIS
PROFILE COMM ADJ RETURN
SAVE NOT SAVE RESET
• OFF • USER BLC • HLC
SSDR
3
MANUAL AWC · SET

1515
Vandal Resistant Dome Camera
MAIN SETUP
ඖ1.LENS DC
2.EXPOSURE
3.SSDR
ATW
4.WHITH BAL
OFF
5.BACKLIGHT
ON
6.DNR3
AUTO
7.DAY/NIGHT
8.SPECIAL
9.EXIT SAVE
ON
Joystick.
You can set up function using the Joystick on the OSD Board.

16
MAIN SETUP
¢º 1.LENS DC
2.EXPOSURE
3.SSDR
ATW
4.WHITH BAL
OFF
5.BACKLIGHT
ON
6.DNR3
AUTO
7.DAY/NIGHT
8.SPECIAL
9.EXIT SAVE
Change the status
by moving the
setup switch left or
right.
Select the function
by moving up or
down direction of
function setup switch.
ON
Using this function, you can control the screen brightness.
1. When the SETUP menu screen is displayed, select ‘LENS’ by using
the Function Setup button so that the arrow indicates ‘LENS’.
2. Select the connected lens type by using the Function Setup button.
efault  2
MAIN SETUP
¢º 1.LENS DC
2.EXPOSURE
2
Select the function
by the Joystick.
Change the status
by the Joystick.
16
Vandal Resistant Dome Camera
▶
▶
Joystick.
Joystick.
Joystick.
Joystick.
Joystick so that the arrow indicates 'LENS'.

17
MAIN SETUP
¢º 1.LENS DC
2.EXPOSURE
3.SSDR
ATW
4.WHITH BAL
OFF
5.BACKLIGHT
ON
6.DNR3
AUTO
7.DAY/NIGHT
8.SPECIAL
9.EXIT SAVE
Change the status
by moving the
setup switch left or
right.
Select the function
by moving up or
down direction of
function setup switch.
ON
Using this function, you can control the screen brightness.
1. When the SETUP menu screen is displayed, select ‘LENS’ by using
the Function Setup button so that the arrow indicates ‘LENS’.
2. Select the connected lens type by using the Function Setup button.
efault  2
MAIN SETUP
¢º 1.LENS DC
2.EXPOSURE
2
MAIN SETUP
¢º 1.LENS DC
2.EXPOSURE
3.SSDR
ATW
4.WHITH BAL
OFF
5.BACKLIGHT
ON
6.DNR3
AUTO
7.DAY/NIGHT
8.SPECIAL
9.EXIT SAVE
Change the status
by moving the
setup switch left or
right.
Select the function
by moving up or
down direction of
function setup switch.
ON
Using this function, you can control the screen brightness.
1. When the SETUP menu screen is displayed, select ‘LENS’ by using
the Function Setup button so that the arrow indicates ‘LENS’.
2. Select the connected lens type by using the Function Setup button.
efault  2
MAIN SETUP
¢º 1.LENS DC
2.EXPOSURE
2
MAIN SETUP
¢º 1.LENS DC
2.EXPOSURE
3.SSDR
ATW
4.WHITH BAL
OFF
5.BACKLIGHT
ON
6.DNR3
AUTO
7.DAY/NIGHT
8.SPECIAL
9.EXIT SAVE
Change the status
by moving the
setup switch left or
right.
Select the function
by moving up or
down direction of
function setup switch.
ON
Using this function, you can control the screen brightness.
1. When the SETUP menu screen is displayed, select ‘LENS’ by using
the Function Setup button so that the arrow indicates ‘LENS’.
2. Select the connected lens type by using the Function Setup button.
efault  2
MAIN SETUP
¢º 1.LENS DC
2.EXPOSURE
2
MAIN SETUP
¢º 1.LENS DC
2.EXPOSURE
3.SSDR
ATW
4.WHITH BAL
OFF
5.BACKLIGHT
ON
6.DNR3
AUTO
7.DAY/NIGHT
8.SPECIAL
9.EXIT SAVE
Change the status
by moving the
setup switch left or
right.
Select the function
by moving up or
down direction of
function setup switch.
ON
Using this function, you can control the screen brightness.
1. When the SETUP menu screen is displayed, select ‘LENS’ by using
the Function Setup button so that the arrow indicates ‘LENS’.
2. Select the connected lens type by using the Function Setup button.
efault  2
MAIN SETUP
¢º 1.LENS DC
2.EXPOSURE
2
17
Vandal Resistant Dome Camera

1818
Vandal Resistant Dome Camera
MAIN SETUP
▶
1.LENS DC
2.EXPOSURE
1. When the SETUP menu screen is displayed, select 'EXPOSURE’ by using
the Function Setup button so that the arrow indicates 'EXPOSURE’.
2. Select a desired mode using the Function Setup button.
● BRIGHTNESS : Adjusts the video brightness.
● SHUTTER : You can select the shutter.
- ESC : Select this to control the shutter speed automatically. If ESC is
selected, the shutter speed is automatically controlled
depending on the ambient illumination of the subject.
- MANUAL : You can control shutter speed manually.
(NTSC MODEL - 1/60sec~1/120,000sec, PAL MODEL-1/50sec~1/120,000sec)
● A.FLK : Select this when you experience picture flicker, this happen
when there is a clash with the installed lighting frequency.
● --- : Shutter speed is fixed at 1/60 sec (1/50 sec).
● AGC(AUTO GAIN CONTROL) : The higher the gain level, the brighter the screen -
but the greater the noise.
- OFF : Deactivates the AGC function.
- LOW : Allows automatic gain control from 5.3dB to 32dB.
- HIGH : Allows automatic gain control from 5.3dB to 37dB.
● SENS-UP : When it is night or dark, the camera automatically detects the light
level and maintains a clear picture if this mode is activated.
- OFF : Deactivates the SENS-UP function.
- AUTO : Activates the SENS-UP function.
● RETURN : Select this to save the changes in the EXPOSURE menu and return to
the SETUP menu.
• When you use a DC lens, set the shutter mode to --- if color rolling occurs.
• When the SHUTTER is set to ESC after selecting the Internal Synchronization
Type, the picture may become unstable if the camera faces a bright fluorescent
light. Therefore, take care when choosing the installation position.
• If you set the Function Setup button to ‘AUTO’ mode, You can adjust the
brightness by increasing or decreasing the shutter speed. (x2 ~ x512)
• Note that the higher the zoom level, the brighter the screen, but the more likely it
is that an after-image will appear.
• Although Noise, Spots, and Whitish symptoms may occur in SENS-UP operation
when the zoom level is increased, this is normal.
EXPOSURE SETUP
▶1.
BRIGHTNESS
IIIIIIIIIIIIIIIIIIIII
25
2.SHUTTER ESC
3.AGC HIGH
4.SENS-UP AUTO
5.RETURN
Joystick so that the arrow indicates 'EXPOSURE'.
Joystick.
