Dynex DX-G1113 User manual

USER GUIDE
GUÍA DEL USUARIO
GM Car Stereo Install Kit
Juego de instalación de equipos estereofónicos para
vehículos GM
DX-G1113
DX-G1113.fm Page 1 Wednesday, August 16, 2006 3:38 PM

2Contents
Dynex DX-G1113 GM
Car Stereo Install Kit
Contents
Car stereo install kit components.......................................................6
Installing your car stereo ...................................................................8
Buick
Century 1982-1996....................................................................9
Electra 1984-1990 ...................................................................10
Estate Wagon 1984-1994 ........................................................10
LeSabre 1984-1994 .................................................................10
Park Avenue 1984-1994...........................................................10
Reatta 1990-1991....................................................................11
Regal 1984-1987 .....................................................................12
Riviera 1983-1985 ...................................................................13
Riviera 1990-1995 ...................................................................14
Roadmaster 1991-1994...........................................................15
Skyhawk 1982-1989................................................................16
Skylark 1983-1985...................................................................17
Skylark 1987-1989...................................................................18
Skylark 1990-1995...................................................................19
Cadillac
Cimarron 1982-1988 ...............................................................33
Deville 1985-1995 ...................................................................20
Fleetwood 1985-1993 .............................................................20
Eldorado 1984-1991 ................................................................21
Escalade 1999-2002 ................................................................22
Seville 1984-1991....................................................................21
Chevrolet
Astro 1985-1989......................................................................23
Astro 1990-1995......................................................................24
Astro 1996-2004......................................................................25
Beretta 1991-1996 ..................................................................26
Blazer (full size) 1988-1991 .....................................................27
Blazer 1998-2001 ....................................................................28
DX-G1113.fm Page 2 Wednesday, August 16, 2006 3:38 PM

Contents 3
Camaro 1982-1984 ................................................................. 29
Camaro 1985-1992 ................................................................. 30
Camaro 1997-2002 ................................................................. 31
Caprice 1991-1993.................................................................. 15
Pickup 1995-2002................................................................... 22
Caprice 1994-1996.................................................................. 32
Cavalier 1982-1990................................................................. 33
Cavalier 1991-1994................................................................. 34
Cavalier 1995-1999................................................................. 35
Celebrity 1982-1983 ............................................................... 36
Celebrity 1984-1989 ............................................................... 37
Citation II 1985 ....................................................................... 38
Corsica 1991-1996 .................................................................. 26
Corvette 1984-1989................................................................ 39
Corvette 1997-2004................................................................ 40
El Camino 1985-1988.............................................................. 41
Express 1996-2000.................................................................. 42
Impala SS 1994-1996.............................................................. 32
Lumina 1990-1994 ................................................................. 43
Lumina 1995-2000 ................................................................. 44
Lumina APV 1990-1995 .......................................................... 45
Lumina APV 1996 ................................................................... 46
Malibu 1997-2000 .................................................................. 48
Monte Carlo 1985-1988 .......................................................... 41
Monte Carlo 1995-2000 .......................................................... 44
Nova 1985-1988 ..................................................................... 49
S10 Blazer 1982-1985............................................................. 50
S10 Blazer 1986-1994............................................................. 51
S10 Pickup 1982-1985 ............................................................ 50
S10 Pickup 1986-1993 ............................................................ 51
S10 Pickup 1998-2001 ............................................................ 28
Silverado 1999-2002............................................................... 22
Suburban 1988-1991.............................................................. 27
Suburban 1995-2002.............................................................. 22
DX-G1113.fm Page 3 Wednesday, August 16, 2006 3:38 PM

4Contents
Tahoe 1995-2002.....................................................................22
Van (full size) 1988-1995.........................................................52
Venture 1997-1999..................................................................53
GMC
Jimmy1998-2001 ....................................................................28
Jimmy (full size) 1989-1991 ....................................................27
S15 Jimmy 1982-1985.............................................................50
S15 Jimmy 1986-1994.............................................................51
S15 Pickup 1982-1985.............................................................50
S15 Pickup 1986-1993.............................................................51
Safari 1985-1989.....................................................................23
Safari 1990-1995.....................................................................24
Safari 1996-2004.....................................................................25
Savana 1996-2000...................................................................42
Sierra 1995-2002.....................................................................22
Sonoma 1998-2001.................................................................28
Suburban 1989-1991...............................................................27
Suburban1995-2002 ...............................................................22
Van (full size) 1988-1995.........................................................52
Yukon 1995-2002 ....................................................................22
Oldsmobile
98 1984-1990..........................................................................54
Achieva 1992-1995..................................................................55
Bravada 1991-1994 .................................................................51
Cutlass Calais 1984-1991 .........................................................56
Cutlass Ciera 1982-1996 ..........................................................57
Cutlass Supreme 1984-1988....................................................58
Delta 88 1986-1988.................................................................54
Firenza 1982-1989...................................................................16
Omega 1983-1984...................................................................59
Silhouette 1990-1995..............................................................45
Silhouette1996........................................................................46
Silhouette 1997-1999..............................................................53
Toronado 1982-1985 ...............................................................60
DX-G1113.fm Page 4 Wednesday, August 16, 2006 3:38 PM

Contents 5
Pontiac
6000 1982-1991 ..................................................................... 61
Bonneville 1982-1986 ............................................................ 70
Bonneville 1987-1993 ............................................................ 62
Bonneville 1994-1999 ............................................................ 63
Fiero 1984-1988...................................................................... 64
Firebird 1982-1984 ................................................................. 29
Firebird 1985-1992 ................................................................. 30
Firebird 1993-2002 ................................................................. 65
Grand Am 1985-1991 ............................................................. 66
Grand Am 1992-1995 ............................................................. 67
Grand Am 1996-1998 ............................................................. 68
Grand Am 1999-2000 ............................................................. 69
Grand Prix 1985-1987............................................................. 70
Grand Prix 1990-1993............................................................. 71
Grand Prix 1994-1996............................................................. 72
Grand Prix 1997-2003............................................................. 73
Montana 1999 ........................................................................ 53
Sunbird J-2000 1982-1988 ..................................................... 33
Sunfire 1995-1999 .................................................................. 74
TransSport 1990-95 ................................................................ 45
TransSport 1996...................................................................... 46
TransSport 1997-1998 ............................................................ 53
Saturn
All models 1991-1994............................................................. 75
Installing your car stereo .................................................................. 8
Legal notices................................................................................... 78
Español................................................... 79
DX-G1113.fm Page 5 Wednesday, August 16, 2006 3:38 PM

6Car stereo install kit components
Car stereo install kit components
You car stereo install kit should include the following parts:
Part Description
Studs (4)
Radio housing
Flat faceplate
1/2-inch faceplate
1-inch faceplate
DX-G1113.fm Page 6 Wednesday, August 16, 2006 3:38 PM

Car stereo install kit components 7
Equalizer faceplate
Nuts (4)
Equalizer brackets
Bracket set 1
Bracket set 2
Bracket 3
Bracket 4
Bracket (L)S-
Part Description
DX-G1113.fm Page 7 Wednesday, August 16, 2006 3:38 PM

8Installing your car stereo
Installing your car stereo
Tools
You need the following tools to install your car stereo:
•Phillipsscrewdriver
•Hex-headscrewdriver
• Torx-head screwdriver
• Cutting tool
Bracket set 5
Bracket 6
Bracket 7
Bracket set 8
Bracket set 9
Bracket set 10
Part Description
DX-G1113.fm Page 8 Wednesday, August 16, 2006 3:38 PM

Installing your car stereo 9
Buick
Century 1982-1996
To install your car stereo:
1Disconnect the negative battery terminal to prevent an accidental short circuit.
2Remove the four screws from the top inside edge of the dash trim bezel.
3Remove the five screws from both sides of the steering column.
4Remove the three Phillips screws that secure the rocker-switch housing, then lift the
housing out.
5Remove the bezel.
6Remove the hardware that secures the factory mounting brackets to the factory head
unit.
7Remove and retain the brackets.
8Go to “Completing the installation” on page 76.
2
S10 shown
as example
DX-G1113.fm Page 9 Wednesday, August 16, 2006 3:38 PM

10 Installing your car stereo
Buick
Electra 1984-1990
Estate Wagon 1984-1994
LeSabre 1984-1994
Park Avenue 1984-1994
To install your car stereo:
1Disconnect the negative battery terminal to prevent an accidental short circuit.
2Unsnap the climate control trim bezel, then remove four exposed star-drive screws.
3Pull the steering column back, then carefully unsnap the dash trim bezel.
4Remove the hardware that secures the factory mounting brackets to the factory head
unit. Remove and retain the brackets.
5Go to “Completing the installation” on page 76.
2
S10 shown
as example
DX-G1113.fm Page 10 Wednesday, August 16, 2006 3:38 PM

Installing your car stereo 11
Buick
Reatta 1990-1991
To install your car stereo:
1Disconnect the negative battery terminal to prevent an accidental short circuit.
2Remove the two torx-head screws above the instrument panel.
3Remove one torx-head screw from each A/C vent.
4Unclip the dash trim bezel, then remove it.
5Remove the hardware that secures the factory mounting brackets to the factory head
unit. Remove and retain the brackets.
6Go to “Completing the installation” on page 76.
2
S10 shown
as example
DX-G1113.fm Page 11 Wednesday, August 16, 2006 3:38 PM

12 Installing your car stereo
Buick
Regal 1984-1987
To install your car stereo:
1Disconnect the negative battery terminal to prevent an accidental short circuit.
2Remove the radio knobs and cigarette lighter.
3Carefully unclip the radio trim bezel, then remove it.
4Remove the hardware that secures the factory mounting brackets to the factory head
unit. Remove and retain the brackets.
5Go to “Completing the installation” on page 76.
2
S10 shown
as example
DX-G1113.fm Page 12 Wednesday, August 16, 2006 3:38 PM

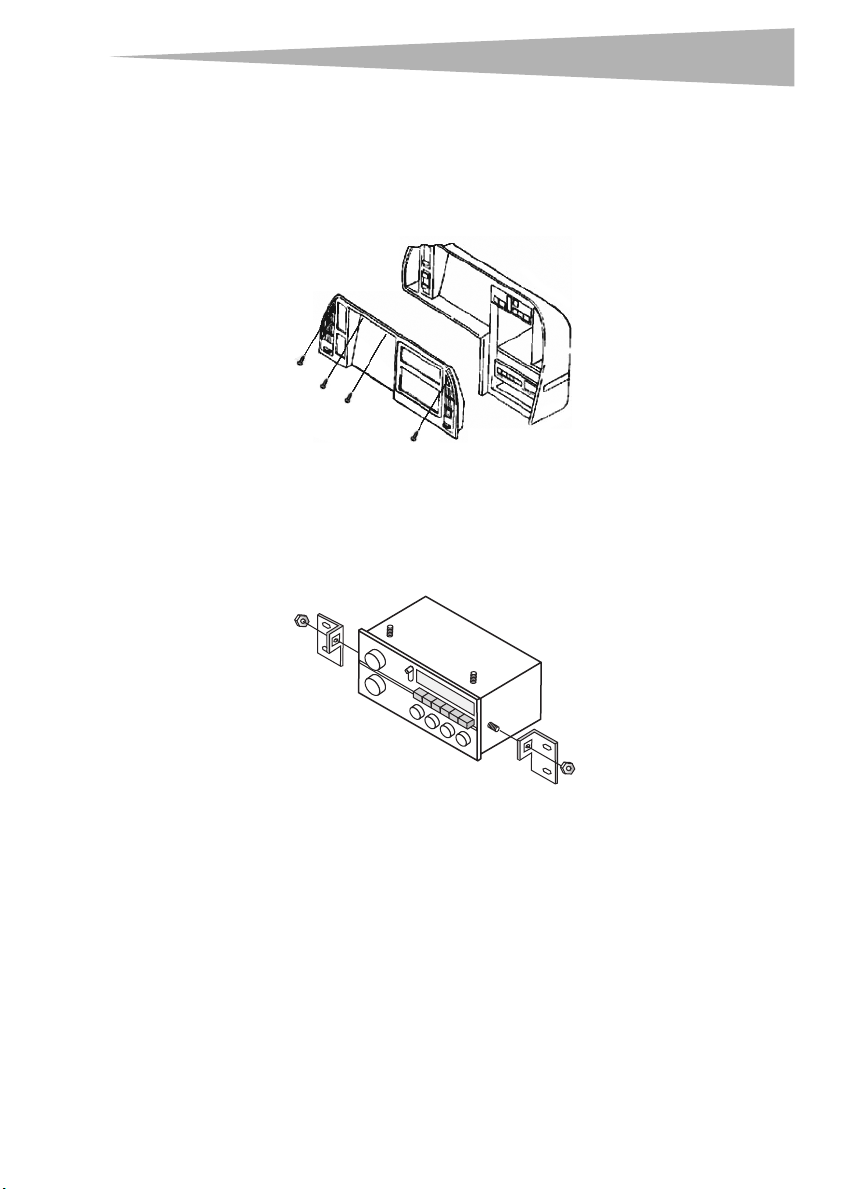

Installing your car stereo 13
Buick
Riviera 1983-1985
To install your car stereo:
1Disconnect the negative battery terminal to prevent an accidental short circuit.
2Carefully pull to remove the dash trim bezel.
3Remove the four screws that secure the factory head unit, then disconnect the wiring.
4Remove the hardware that secures the factory mounting brackets to the factory head
unit. Remove and retain the brackets.
5Go to “Completing the installation” on page 76.
2
S10 shown
as example
DX-G1113.fm Page 13 Wednesday, August 16, 2006 3:38 PM

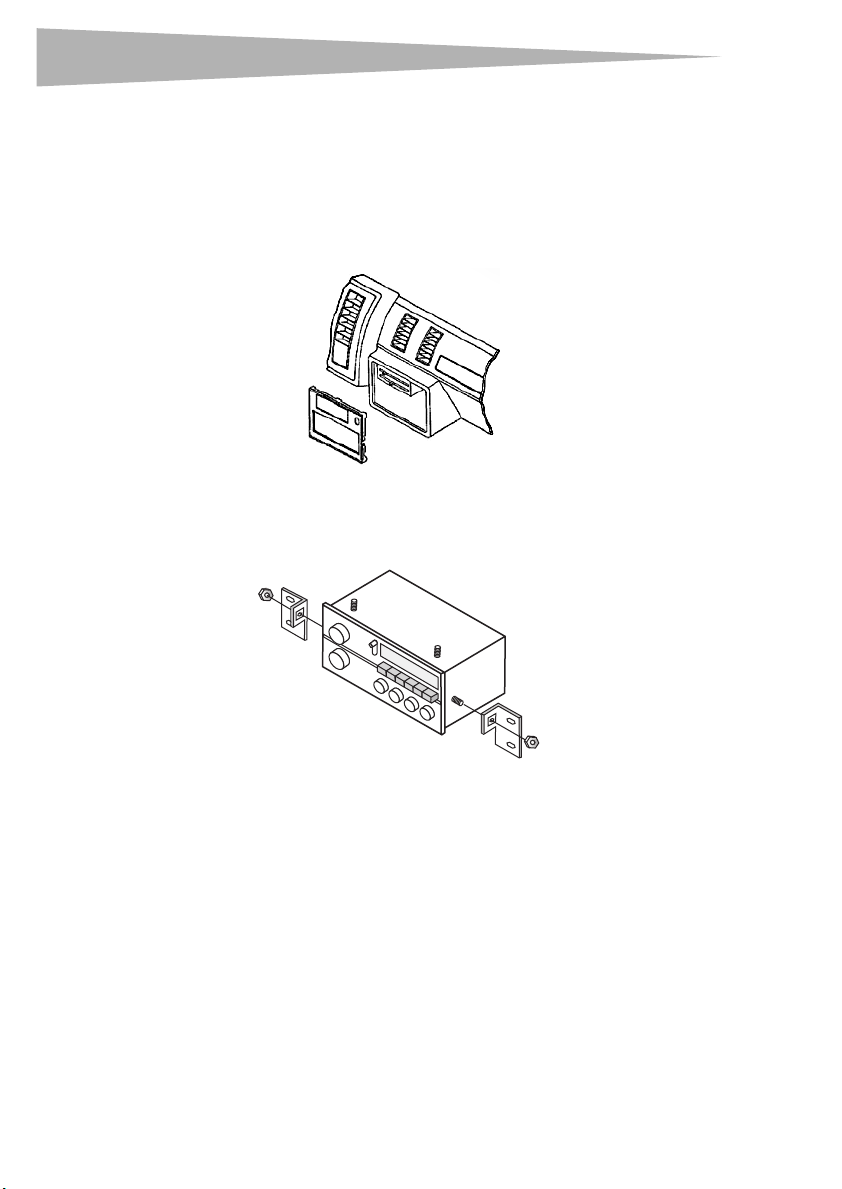

14 Installing your car stereo
Buick
Riviera 1990-1995
To install your car stereo:
1Disconnect the negative battery terminal to prevent an accidental short circuit.
2Remove the two torx-head screws above the instrument cluster and one torx-head
screw from each AC vent.
3Unsnap the panel.
4Remove the hardware that secures the factory mounting brackets to the factory head
unit. Remove and retain the brackets.
5Go to “Completing the installation” on page 76.
2
S10 shown
as example
DX-G1113.fm Page 14 Wednesday, August 16, 2006 3:38 PM

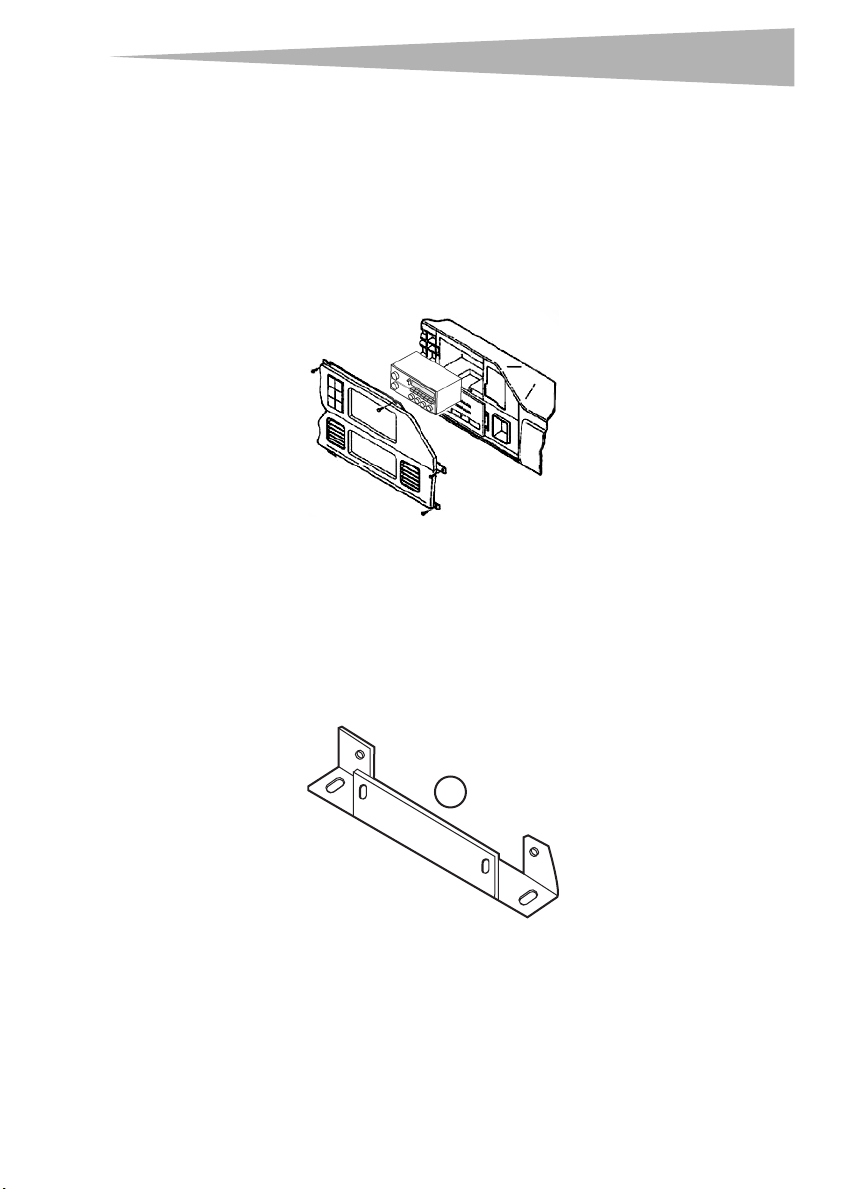

Installing your car stereo 15
Buick
Roadmaster 1991-1994
Chevrolet
Caprice 1991-1993
To install your car stereo:
1Disconnect the negative battery terminal to prevent an accidental short circuit.
2Remove the two screws from the driver-side service panel, then unclip the panel.
3Pry off the trim piece located above the glove box, then remove one screw.
4Remove three screws from the top edge of the dash trim bezel. Remove one screw
from the lower-left corner of the glove box and one screw from the parking brake
release.
5Remove the dash trim bezel.
6Cut and remove all mounting tabs on bracket 4 except the B tabs. Each mounting tab
has a letter stamped on the back of the tab. Cut the tabs with the blade pointed away
from you and your fingers.
7Go to “Completing the installation” on page 76.
B
DX-G1113.fm Page 15 Wednesday, August 16, 2006 3:38 PM

16 Installing your car stereo
Buick
Skyhawk 1982-1989
Oldsmobile
Firenza 1982-1989
To install your car stereo:
1Disconnect the negative battery terminal to prevent an accidental short circuit.
2Remove the glove box by removing the door strap wire clip and four screws.
3Remove the two screws below the cigarette lighter and three screws below the
steering column.
4Remove one screw from top-left of the factory head unit, then unclip the dash trim
bezel.
5Remove the hardware that secures the factory mounting brackets to the factory head
unit. Remove and retain the brackets.
6Go to “Completing the installation” on page 76.
2
S10 shown
as example
DX-G1113.fm Page 16 Wednesday, August 16, 2006 3:38 PM

Installing your car stereo 17
Buick
Skylark 1983-1985
To install your car stereo:
1Disconnect the negative battery terminal to prevent an accidental short circuit.
2Remove the four screws from the top edge of the instrument panel.
3Remove the one screw from the bottom-left corner of the panel.
4Remove two screws from the steering column trim, then remove the trim.
5Pull up and out on the dash trim bezel, then remove it.
6Remove the hardware that secures the factory mounting brackets to the factory head
unit. Remove and retain the brackets.
7Go to “Completing the installation” on page 76.
2
S10 shown
as example
DX-G1113.fm Page 17 Wednesday, August 16, 2006 3:38 PM

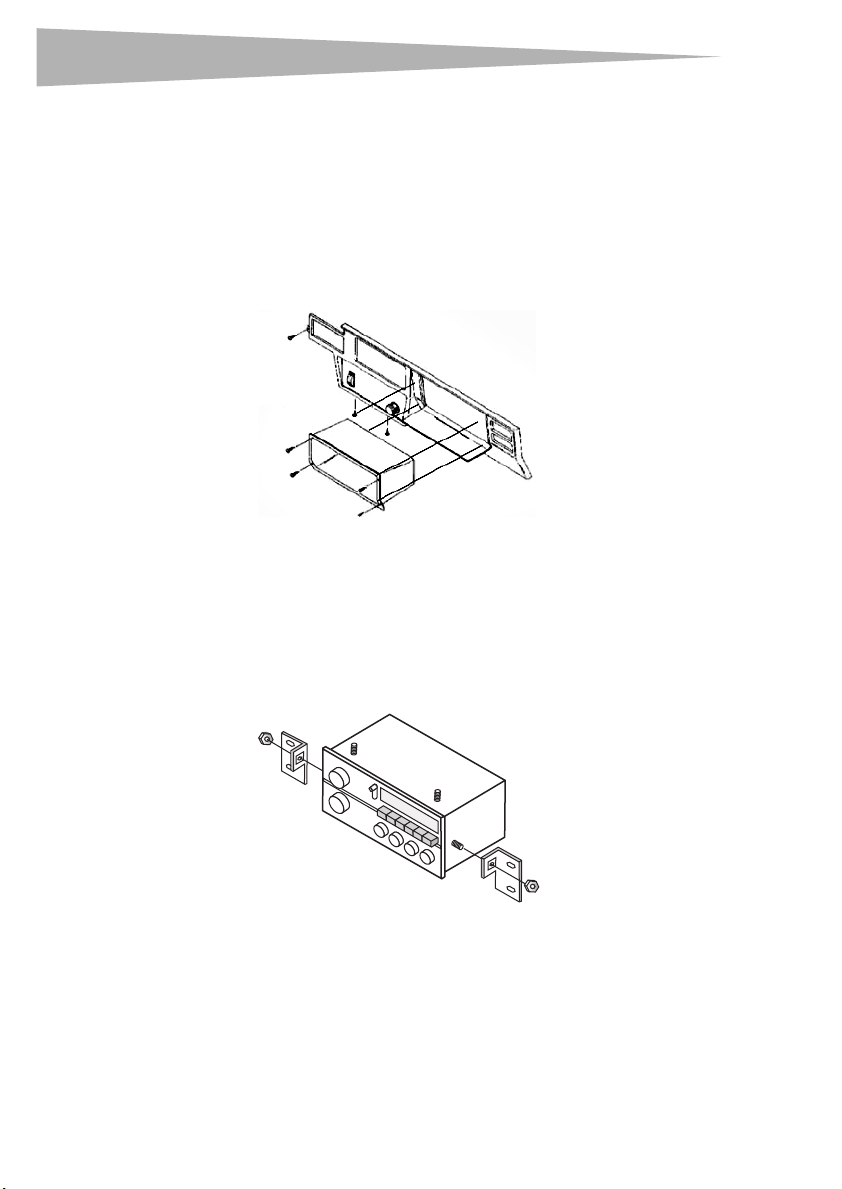

18 Installing your car stereo
Buick
Skylark 1987-1989
To install your car stereo:
1Disconnect the negative battery terminal to prevent an accidental short circuit.
2Unsnap the gear shift bezel from the base of the console. Remove the two screws that
secure the bottom of the dash trim bezel, then remove the bezel.
3Remove the hardware that secures the factory mounting brackets to the factory head
unit. Remove and retain the brackets.
4Go to “Completing the installation” on page 76.
2
S10 shown
as example
DX-G1113.fm Page 18 Wednesday, August 16, 2006 3:38 PM

Installing your car stereo 19
Buick
Skylark 1990-1995
To install your car stereo:
1Disconnect the negative battery terminal to prevent an accidental short circuit.
2Pull out on the ashtray, then remove the two exposed screws inside the ashtray
compartment.
3Remove the two screws that secure the ashtray and lower edge of the dash trim bezel.
4Using a panel removal tool, pry out on the trim bezel, then remove it.
5Remove two nuts from the bottom of the factory head unit, then remove it.
6Remove the hardware that secures the factory mounting brackets to the factory head
unit. Remove and retain the brackets.
7Go to “Completing the installation” on page 76.
2
S10 shown
as example
DX-G1113.fm Page 19 Wednesday, August 16, 2006 3:38 PM

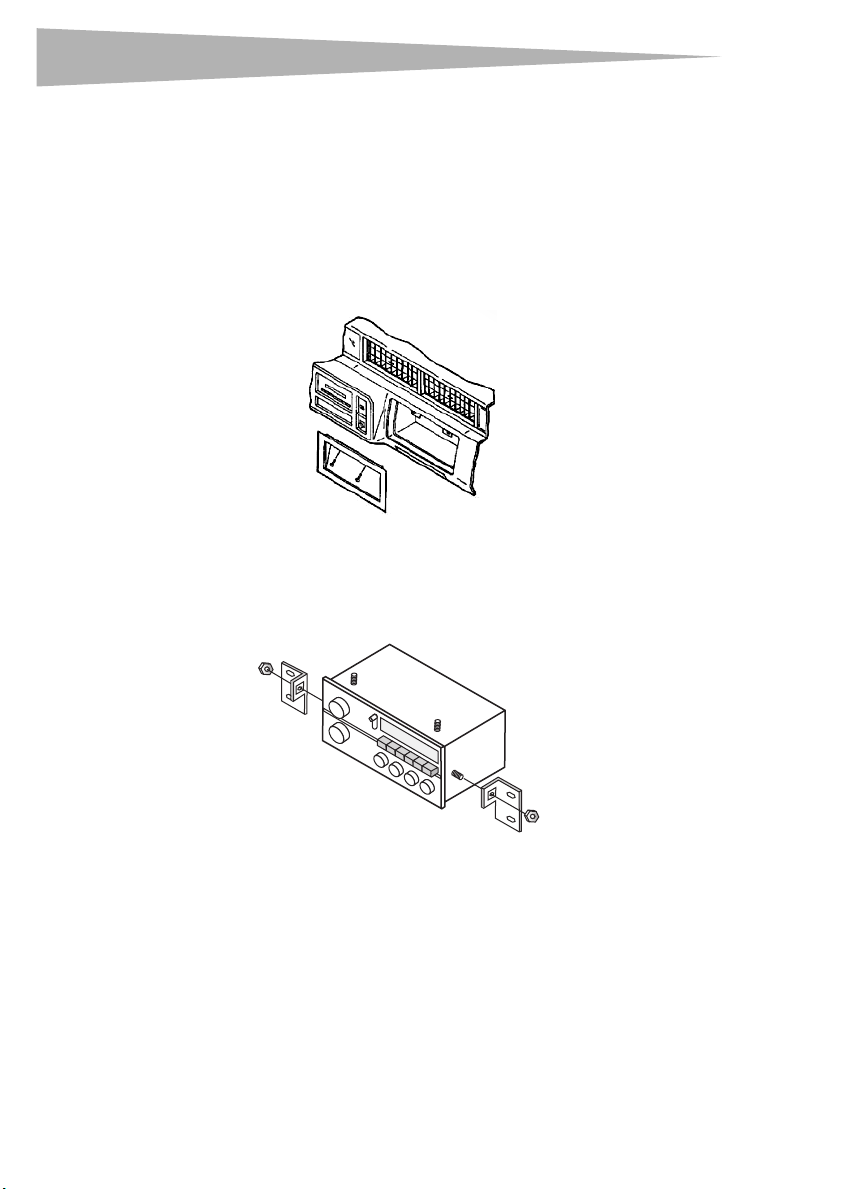

20 Installing your car stereo
Cadillac
Deville 1985-1995
Cadillac
Fleetwood 1985-1993
To install your car stereo:
1Disconnect the negative battery terminal to prevent an accidental short circuit.
2Remove the two screws at the top of the radio trim bezel.
3Pull out on the top edge of the bezel, then pull up to remove it.
4Remove the hardware that secures the factory mounting brackets to the factory head
unit. Remove and retain the brackets.
5Go to “Completing the installation” on page 76.
2
S10 shown
as example
DX-G1113.fm Page 20 Wednesday, August 16, 2006 3:38 PM
