Dynorbital-Spirit 21000 User manual

SAFETY INSTRUCTIONS
Carefully Read all instructions before operating or servicing any Dynabrade®Abrasive Power Tool.
Products offered by Dynabrade are not to be modified, converted or otherwise alerted from the original design without expressed written consent from Dynabrade, Inc.
Tool Intent: Dynorbital-Spirit™ Random Orbital Sander is used for sanding and finishing a variety of materials including wood, metal, plastic, fiberglass, solid surfaces,
composites, rubber, glass and stone.
Do Not Use Tool For Anything Other Than Its Intended Applications.
Training: Proper care, maintenance, and storage of your tool will maximize its performance.
• Employer's Responsibility – Provide Dynorbital-Spirit™ operators with safety instructions and training for safe use of tools and accessories.
Accessory Selection:
• Abrasive/accessory RPM (speed) rating MUST be approved for AT LEAST the tool RPM rating.
• Before mounting an accessory, visually inspect for defects. Do not use defective accessories.
• Follow tool specifications before choosing size and type of accessory.
• Only use recommended fittings and air line sizes. Air supply hoses and air hose assemblies must have a minimum working pressure rating of 150 PSIG (10 bars, g) or 150
percent of the maximum pressure produced in the system, whichever is higher. (See Tool Machine Specifications Table.)
• DO NOT use – ......................................................
OPERATING INSTRUCTIONS
Warning: Always wear eye protection. Operator of tool is responsible for following: accepted eye, face, respiratory, hearing and body protection.
Caution: Hand, wrist and arm injury may result from repetitive work, motion and overexposure to vibration.
(Continued on next page.)
Parts Page Reorder No. APD02•13
Effective November, 2002
Supersedes APD02•01U
Dynorbital-Spirit™
Air Tool Manual – Safety, Operation and Maintenance
Models:
3/8" Orbit 3/16" Orbit 3/32" Orbit
21000 21011 21020 21031 21040 21051
21001 21012 21021 21032 21041 21052
21002 21013 21022 21033 21042 21053
21003 21014 21023 21034 21043 21054
21004 21015 21024 21035 21044 21055
21005 21016 21025 21036 21045 21056
21006 21017 21026 21037 21046 21057
21007 21018 21027 21038 21047 21058
21008 21019 21028 21039 21048 21059
21009 21060 21029 21061 21049 21062
21010 21063 21030 21064 21050 21065
FOR COMPLETE MODEL DESCRIPTION REFERENCE PAGE 6.
SAFETY LEGEND
WARNIN
G
WARNING
Read and understand tool manual before
work starts to reduce risk of injury to
operator, visitors, and tool.
WARNING
Eye protection must be worn at all times,
eye protection to conform to ANSI Z87.1.
WARNING
Respiratory protection to be used when exposed to
contaminants that exceed the applicable threshold
limit values required by law.
WARNING
Practice safety requirements. Work alert,
have proper attire, and do not operate tools under
the influence of alcohol or drugs.
WARNING
Ear protection to be worn when exposure to sound,
exceeds the limits of applicable Federal, State or
local statues, ordinances and/or regulations.
WARNING
Air line hazard, pressurized supply lines and flexible
hoses can cause serious injury. Do not use dam-
aged, frayed or deteriorated air hoses and fittings.
Read and understand this tool manual before operating your air tool. Follow all safety rules for the protection of operating person-
nel as well as adjacent areas. Always operate, inspect and maintain this tool in accordance with the American National Safety
Institute (ANSI) Safety Code for Portable Air Tools – B186.1. For additional safety information, refer to Safety Requirements for the
Use, Care and Protection of Abrasive Wheels – ANSI B7.1, Code of Federal Regulation – CFR 29 Part 1910, European Committee for
Standards (EN) Hand Held Non-Electric Power Tools – Safety Requirements and applicable State and Local Regulations.
SAVE THIS DOCUMENT, EDUCATE ALL PERSONNEL
12,000 RPM Air Powered Random Orbital Sander
AUTOMOTIVE
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade

To Tool Station
Closed Loop Pipe System
(Sloped in the direction of air flow)
Ball
Valve
Ball
Valve
Filter
Coupler
Regulator
Lubricator
Air Flow
Drain
Valve
Drain
Valve
Air Tool Air Compressor
and Receiver
Drain Valve
Air Hose
90 PSIG MAX
(6.2 Bar)
Air Flow
Refrigerated
Air Dryer
2
Filter
Regulator
Lubricator
90 PSIG
(6.2 Bar)
OPERATING INSTRUCTIONS (continued)
• Keep hand and clothing away from working end of the air tool.
Operation: Be sure that any loose clothing, hair and all jewelry is properly restrained.
• Secure inlet bushing on air tool with a wrench before attempting to install the air fitting to avoid damaging housing assembly.
• Check tool RPM (speed) with tachometer with air pressure set at 90 PSIG while the tool is running. If tool is operating at a higher speed than the RPM marked on the tool
housing, or operating improperly, the tool must be serviced and corrected before use.
Caution: Tool RPM must never exceed abrasive/accessory RPM rating. Check accessory manufacturer for details on maximum operating speed or special
mounting instructions.
• With power source disconnected from air tool, mount recommended accessory into collet assembly.
• Connect air tool to power source. Be careful NOT to depress throttle lever in the process. Do not expose air tool to inlet pressure above 90 PSIG or (6.2 Bars).
Caution: After installing the accessory, before testing or use and/or after assembling tool, the Dynorbital-Spirit™ must be started at a reduced speed to check for good
balance. Gradually increase tool speed. DO NOT USE if tool vibration is excessive. Correct cause, and retest to insure safe operation.
• Make sure that work area is uncluttered, and visitors are at a safe range from the tools and debris.
• Use a vise or clamping device to hold work piece firmly in place.
• Do not apply excessive force on tool or apply “rough” treatment to it.
• Always work with a firm footing, posture and proper lighting.
Report to your supervisor any condition of the tool, accessories, or operation you consider unsafe.
Air System
1DROP/MIN.
10 SCFM
LUBRICATOR SETTING
•Ideally the air supply should be free from moisture.
Incorporating a refrigerated air dryer after the
compressor and drain valves at each tool station
(as shown) further reduces moisture from
condensation in the air supply.
•Dynabrade Air Power Tools are designed to
operate at 90 PSIG (6.2 Bar/620 kPa) maximum
air pressure at the tool inlet, when the tool is
running. Use recommended regulator to control
air pressure.
➤➤
➤
➤
➤
➤
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade

Maintenance Instructions
Important: A Preventative Maintenance Program is recommended whenever portable power tools are used.
•Use only genuine Dynabrade replacement parts to insure quality. To order replacement parts, specify Model#, Serial# and RPM of your air tool.
•All Dynabrade Rotary Vane air tools must be used with a Filter-Regulator-Lubricator to maintain all warranties. Dynabrade recommends the following:
11405 Air Filter-Regulator-Lubricator (FRL) – Provides accurate air pressure regulation and two stage filtration of water contaminants. Operates 40
SCFM/1,133 LPM @ 100 PSIG with 3/8" NPT female ports.
•Dynabrade recommends one drop of air lube per minute for each 10 SCFM (example: if the tool specification states 40 SCFM, set the drip rate on the
filter-lubricator to 4 drops per minute). Dynabrade Air Lube (P/N 95842: 1 pt 473 ml) is recommended.
Routine Preventative Maintenance: Check free speed of Dynorbital-Spirit™ using a tachometer.
•Mineral spirits are recommended when cleaning the tool and parts. Do not clean tool or parts with any solvents or oils containing acids, esters,
ketones, chlorinated hydrocarbons or nitro carbons.
•DO NOT clean or maintain tools with chemicals that have a low flash point (example: WD-40®).
•A Drop-In Motor and Tune-Up Kit are available, see specific kit number on page 9.
•Air tool stampings must be kept legible at all times, if not, reorder and replace. User is responsible for maintaining specification information i.e.:
Model #, S/N, and RPM.
•Blow air supply hose out prior to initial use.
•Visually inspect air hoses and fittings for frays, visible damage and signs of deterioration. Replace damaged or worn components.
•Refer to Dynabrade's Warning/Safety Operating Instructions Tag (Reorder No. 95903) for safety information.
After maintenance is performed on tool, add a few drops of Dynabrade Air Lube (P/N 95842) to the air line and start the tool a few times to lubricate air motor.
Check for excessive tool vibration.
Handling and Storage:
•Protect tool inlet from debris (See Notice Below).
•DO NOT carry tool by air hose.
•Protect abrasive accessories from exposure to water, solvents, high humidity, freezing temperature and extreme temperature changes.
•Store accessories in protective racks or compartments to prevent damage.
Notice
All Dynabrade motors use the highest quality parts and materials available and are machined to exacting tolerances. The failure of quality pneumatic motors
can most often be traced to an unclean air supply or the lack of lubrication. Air pressure easily forces dirt or water contained in the air supply into motor
bearings causing early failure. It often scores the cylinder walls and the rotor blades resulting in limited efficiency and power. Our warranty obligation is
contingent upon proper use of our tools and cannot apply to equipment which has been subjected to misuse such as unclean air, wet air or a lack of
lubrication during the use of this tool.
One Year Warranty
Following the reasonable assumption that any inherent defect which might
prevail in a product will become apparent to the user within one year from
the date of purchase, all equipment of our manufacture is warranted
against defects in workmanship and materials under normal use and
service. We shall repair or replace at our factory, any equipment or part
thereof which shall, within one year after delivery to the original purchaser,
indicate upon our examination to have been defective. Our obligation is
contingent upon proper use of Dynabrade tools in accordance with factory
recommendations, instructions and safety practices. It shall not apply to
equipment which has been subject to misuse, negligence, accident or
tampering in any way so as to affect its normal performance. Normally
wearable parts such as bearings, contact wheels, rotor blades, etc., are not
covered under this warranty.
3
1. American National Safety Institute – ANSI
25 West 43rd Street
Forth Floor
New York, NY 10036
Tel: [phone]
Fax: [phone]
3. European Committee for Standardization
Rue de Stassart 36
B - 1050 Brussels, Belgium
2. Government Printing Office – GPO
Superintendent of Documents
Attn. New Orders
P.O. Box 371954
Pittsburgh, PA 15250-7954
Tel: [phone]
Reference Contact Information
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade

Dynorbital-Spirit™
Complete Assembly
4
23 N•m T
Note: To order replacement parts specify the Model # and Serial # of your machine.
A8
O1
O1
O1
A2
A1
A1
O1
O1
A1
O1
Index Key
No. Part # Description
1
2
3
4
20
14
19
18
16
15
14
13
12
11
10
9
8
7
6
5
29
21
24
23
22
26
27
30 31
O
T
A
Oil: O1= Air Lube
Adhesive: A1= Loctite #609
A2= Loctite #271
A8= Loctite #567
Torque: N•m x 8.85 = In. - lbs.
KEY
23 N•m T
See page 5 for Machine
Exhaust Assemblies.
32
Highly Recommended
Drop-in Complete Motor Assemblies
Orbit 3" & 3-1/2" 5" 6"
3/8" 59450 59453 59456
3/16" 59451 59454 59457
3/32" 59452 59455 59458
Orbit 3" & 3-1/2" 5" 6"
3/8" 59070 59071 59072
3/16" 59060 59061 59062
3/32" 59065 59066 59067
All above parts are included in Drop-in Motors.
Note: 59058 Lock Ring only included with
3/8" Orbit Drop-in Motors.
For assembly instructions, see page 6.
For Models:
21000, 21001, 21002, 21003, 21004, 21005, 21006
21007, 21008, 21009, 21010, 21011, 21012, 21013
21014, 21015, 21016, 21017, 21018, 21019, 21020
21021, 21022, 21023, 21024, 21025, 21026, 21027
21028, 21029, 21030, 21031, 21032, 21033, 21034
21035, 21036, 21037, 21038, 21039, 21040, 21041
21042, 21043, 21044, 21045, 21046, 21047, 21048
21049, 21050, 21051, 21052, 21053, 21054, 21055
21056, 21057, 21058, 21059, 21060, 21061, 21062
21063, 21064, 21065
17
25
28
1Sanding Pads (See Pg. 10)
2Vacuum Lip-Seal Shroud
57089 5" & 6"
3Vacuum Shroud
57084 3 1/2"
4Shroud (Non-Vac)
54458 3-1/2"
56051 5" & 6" (Lip Seal)
595630 Snap Ring
657069 Balancer Shaft
795628 Washer
856053 Bearing Seal
956052 Bearing
10 Motor Shaft Balancer
11 98461 Key
12 59058 Lock Ring
13 50659 O-Ring
14 58368 Bearing (2)
15 59076 Front Bearing Plate
16 57113 Rotor/Blade Set
17 01024 O-Ring
18 59051 Cylinder
19 59077 Rear Bearing Plate
20 98463 Retaining Ring
21 95697 Retaining Ring
22 Housing (See Chart, Pg. 6)
23 59054 Throttle Lever - 3/8"
59052 Throttle Lever - 3/16"
59053 Throttle Lever - 3/32"
24 98927 Pin
25 98459 O-Ring
26 58363 Valve Stem
27 59075 Speed Regulator
28 01025 O-Ring (2)
29 01464 Seal
30 58365 Tip Valve
31 01468 Spring
32 01494 Inlet Bushing
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade

Machine Exhaust Assemblies
Self Generated Vacuum (Vac-Ready)/Machine Exhaust
Central Vacuum/Machine Exhaust Non-Vacuum/Machine Exhaust
Vacuum Conversion Instructions..
To Disassemble:
1. Disconnect tool from power source. Invert machine and secure in vise, using 57092 Collar (supplied in 57098 Repair Kit) or padded jaws.
2. Remove sanding pad with 50679 (26 mm) Open-End Wrench (supplied with sander) and lip-seal shroud from housing.
3. Remove 56028 Muffler Cap and 56027 Muffler Insert (2) from 57066 Muffler Body. Using a 12 mm hex wrench (supplied in 57098 Repair Kit), remove
muffler body from housing (not applicable for Self-Generated Vac to Central Vac).
Non-Vac to Self-Generated Vac for Hook-Up to Self-Contained Dust Collection System
1. Attach 57083 Vacuum Adapter to either 57084, 57086, 57087 Vacuum Overskirts or 57089 Vacuum Lip-Seal Shroud. Then attach to the housing making
sure the protrusions on the overskirt or shroud are aligned with the notches on the housing.
2. Place 95526 O-Ring on the muffler body between the shoulder and the four (4) protrusions. Using a 12 mm hex wrench, attach the muffler body and
o-ring to the housing through the vacuum adapter.
3. Place vacuum nozzle into the vacuum adapter with the slots facing outward making sure that the knob on the nozzle is aligned with the slot in the adapter.
4. Place 57067 Vacuum Tube into the vacuum adapter with the grooves facing inward until the adapter “snaps” onto the tube and the tube cannot be pulled
out. If the tube can be pulled out, rotate it 1/4 turn and place it back into the adapter until it “snaps”.
5. Rotate tube until holes line up. Insert dowel pin in holes until it is centered. Attach sanding pad, attach machine to portable dust collection system.
Non-Vac to Central Vac
1. Attach 57093 Vacuum Adapter to either 57084, 57086, 57087 Vacuum Overskirts or 57089 Vacuum Lip-Seal Shroud. Then attach to the housing making
sure the protrusions on the overskirt or shroud are aligned with the notches on the housing.
2. Using a 12 mm hex wrench, attach the muffler body to the housing through the central vacuum adapter.
3. Place muffler cap with inserts on muffler body making sure that the protrusions on the body fit in the pockets on the cap.
4. Attach weight-mated vacuum sanding pad with 50679 (26 mm) Open-End Wrench. Attach machine to central vacuum system.
Self-Generated Vac to Central Vac
1. Remove 96197 Dowel Pin with an 1/8" drive pin. Remove 57067 Vacuum Tube from 57083 Vacuum Adapter by turning it clockwise while pulling backward.
2. Using a small flat screwdriver, pry vacuum nozzle until it is loose and then remove it by using two fingers to push and pull it until it hits the “legs” on
vacuum adapter. Place vacuum tube back into vacuum adapter far enough to push the “legs” back then push vacuum nozzle and vacuum tube
out the rest of way.
3. Using a 12 mm hex wrench (supplied in 57098 Repair Kit), remove the 57066 Muffler Body and 95526 O-Ring from the housing through the adapter.
Remove the o-ring from the muffler body.
4. Remove 57083 Vacuum Adapter and attach 57093 Vacuum Adapter to either 57084, 57086, 57087 Vacuum Overskirts or 57089 Vacuum Lip-Seal Shroud.
Then attach to the housing making sure that the protrusions on the overskirt or shroud are aligned with the notches on the housing.
5. Using a 12 mm hex wrench, attach the muffler body and o-ring to the housing through the central vacuum adapter.
6. Place muffler cap with inserts on muffler body making sure that the protrusions on the body fit in the pockets on the cap. Attach sanding pad.
Central Vac to Self Generated Vac
1. Remove 57093 Central Vacuum Adapter and put the 57083 Vacuum Adapter in its place.
(Continued on next page.)
Index Key
No. Part # Description
157083 Vacuum Adapter
296197 Dowel Pin
357066 Muffler Body
495526 O-Ring
557068 Vac Nozzle
657067 Vac Tube
757093 Vacuum Adapter
856027 Muffler Insert (2)
956028 Muffler Cap
10 59273 Muffler Assembly
123
7 3 8 9 3 8 9
10
456
Non-Vacuum to Vacuum Conversion Kits
Original Converts Kit
Non-Vac Tool to Part Number
3-1/2" (89 mm) Self-Generated Vac-Ready 57118
3-1/2" (89 mm) Central Vac-Ready 57119
5" (127 mm) Self-Generated Vac-Ready 57120
5" (127 mm) Central Vac-Ready 57121
6" (152 mm) Self-Generated Vac-Ready 57122
6" (152 mm) Central Vac-Ready 57123
Optional: 30 quantity Muffler Insert available, P/N 56054.
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade

Vacuum Conversion Instructions (continued)
2. Place 95526 O-Ring on the muffler body between the shoulder and the four (4) protrusions. Using a 12 mm hex wrench (supplied in 57098 Repair Kit),
attach the muffler body and o-ring to the housing through the vacuum adapter.
3. Place vacuum nozzle into the vacuum adapter with the slots facing outward making sure that the knob on the nozzle is aligned with the slot in the adapter.
4. Place 57067 Vacuum Tube into the vacuum adapter with the grooves facing inward until the adapter “snaps” onto the tube and the tube cannot be pulled
out. If the tube can be pulled out, rotate it 1/4 turn and place it back into the adapter until it “snaps”.
5. Rotate tube until holes line up. Insert 96197 Dowel Pin in holes until it is centered. Attach machine to portable dust collection system.
Drop-in Motor Removal/Replacement Instructions - Dynorbital -Spirit™
Important: Manufacturer’s warranty is void if tool is disassembled before warranty expires.
Drop-in Motor Repair Kit P/N 59459 is available which includes special repair tools for the correct removal and replacement of the air motor.
Disconnect tool from power source before motor exchange.
To Remove:
1. Disconnect the sander from the air supply.
2. Invert the sander, and place the 57092 Repair Collar (supplied in the 59459 Drop-in Motor Repair Kit) around the housing and secure in a vise. Padding
can be used on the vise jaws to protect the housing. Important: Do not over tighten the sander in the vise. If the sander is held too tight the removal
of the lock ring and air motor will be difficult.
3. Remove the sanding pad with the 50679 26 mm Open-end Wrench. (Supplied with the sander.)
4. Insert the 56058 Lock Ring Tool (supplied in the 59459 Drop-in Motor Repair Kit) into the corresponding tabs of the lock ring. Loosen the 59058 Lock
Ring turning it counterclockwise.
5. Remove the 59058 Lock Ring and the 50659 O-Ring from the air motor assembly. (3/32" and 3/16" dia. orbits only.)
6. Discard the air motor assembly.
To Install Replacement:
Important: Clean and inspect the housing, valve mechanism, and exhaust assembly. Replace any valve, muffler, or vacuum components as is necessary.
Follow all torque and lubrication specifications.
1. Place the 50659 O-Ring into the 59058 Lock Ring and slip these over the motor shaft balancer. (3/32" and 3/16" dia. orbits only.) Spread 1 drop of
pneumatic tool oil on the surface between the 50659 O-Ring and the 59076 Front Bearing Plate.
2. Apply 1 drop of oil to the 01024 O-Ring. (O-Ring is supplied with the drop-in air motor assembly.)
3. With the sander housing secured in a vise (use the 57092 Repair Collar of padding on the jaws of the vise to protect the housing) slide the drop-in air
motor into the housing aligning the line-up post with the notch on the inside of the housing. Note: Make certain that the line-up post enters the notch
in the housing and that the 01024 O-Ring remains seated in the side of the cylinder.
4. Tighten the lock ring with the 56058 Lock Ring Wrench. (Torque to 23 N•m/200 in.-lbs.)
5. Install a Dynabrade weight-mated sanding pad.
Drop-in Motor Replacement Complete.
Important: Before connecting the sander to the air supply. depress the throttle lever and place 2-3 drops of Dynabrade Air Lube (P/N 95842) directly into the
sanders air inlet. The sander should now be tested at 90 PSIG. operating pressure at the sanders air inlet. Operate the sander for 30 seconds to determine
if it is operating properly and to allow the lubricating oil to permeate the air motor.
Complete Model Description/Housing Number
6
Model Vacuum Housing
Number Description Number
21000 3" Non-Vacuum 21151
21001 3" Basic Vacuum 21152
21002 3" Deluxe Vacuum 21152
21003 3" Self Generated Vacuum 21152
21004 3" Central Vacuum 21153
21005 3-1/2" Non-Vacuum 21154
21006 3-1/2" Basic Vacuum 21155
21007 3-1/2" Deluxe Vacuum 21155
21008 3-1/2" Self Generated Vacuum 21155
21009 3-1/2" Central Vacuum 21156
21010 5" Non-Vacuum 21157
21011 5" Basic Vacuum 21158
21012 5" Deluxe Vacuum 21158
21013 5" Self Generated Vacuum 21158
21014 5" Central Vacuum 21159
21015 6" Non-Vacuum 21160
21016 6" Basic Vacuum 21161
21017 6" Deluxe Vacuum 21161
21018 6" Self Generated Vacuum 21161
21019 6" Central Vacuum 21162
Model Vacuum Housing
Number Description Number
21020 3" Non-Vacuum 21163
21021 3" Basic Vacuum 21164
21022 3" Deluxe Vacuum 21164
21023 3" Self Generated Vacuum 21164
21024 3" Central Vacuum 21165
21025 3-1/2" Non-Vacuum 21166
21026 3-1/2" Basic Vacuum 21167
21027 3-1/2" Deluxe Vacuum 21167
21028 3-1/2" Self Generated Vacuum 21167
21029 3-1/2" Central Vacuum 21168
21030 5" Non-Vacuum 21169
21031 5" Basic Vacuum 21170
21032 5" Deluxe Vacuum 21170
21033 5" Self Generated Vacuum 21170
21034 5" Central Vacuum 21171
21035 6" Non-Vacuum 21172
21036 6" Basic Vacuum 21173
21037 6" Deluxe Vacuum 21173
21038 6" Self Generated Vacuum 21173
21039 6" Central Vacuum 21174
Model Vacuum Housing
Number Description Number
21040 3" Non-Vacuum 21175
21041 3" Basic Vacuum 21176
21042 3" Deluxe Vacuum 21176
21043 3" Self Generated Vacuum 21176
21044 3" Central Vacuum 21177
21045 3-1/2" Non-Vacuum 21178
21046 3-1/2" Basic Vacuum 21179
21047 3-1/2" Deluxe Vacuum 21179
21048 3-1/2" Self Generated Vacuum 21179
21049 3-1/2" Central Vacuum 21180
21050 5" Non-Vacuum 21181
21051 5" Basic Vacuum 21182
21052 5" Deluxe Vacuum 21182
21053 5" Self Generated Vacuum 21182
21054 5" Central Vacuum 21183
21055 6" Non-Vacuum 21184
21056 6" Basic Vacuum 21185
21057 6" Deluxe Vacuum 21185
21058 6" Self Generated Vacuum 21185
21059 6" Central Vacuum 21186
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade

Motor Assembly/Disassembly Instructions - Dynorbital -Spirit™
Important: Manufacturers warranty is void if tool is disassembled before warranty expires.
A Full Service Repair Kit P/N 57098, is available which includes special repair tools for correct disassembly/assembly of the sander.
To Disassemble
1. Disconnect sander from air supply.
2. Invert the sander, and place the 57092 Repair Collar (supplied in the 57098 Full Service Repair Kit) around the housing and secure in a vise. Padding
can be used on the vise jaws to protect the housing. Important: Do not over tighten the sander in the vise. If the sander is held too tight the
removal of the lock ring and air motor will be difficult.
3. Remove sanding pad with the 50679 26 mm Open-end Wrench (supplied with the sander).
4. Insert 56058 Lock Ring Tool (supplied in 57098 Full Service Repair Kit) into the corresponding tabs of lock ring. Loosen the 59058 Lock Ring
turning it counterclockwise.
5. Remove the 59058 Lock Ring and the 50659 O-Ring from the air motor assembly (3/32" and 3/16" dia. orbits only).
6. Remove 01024 O-Ring and 98463 Retaining Ring from motor assembly.
7. Fasten a 2 in. bearing separator (P/N 96346 available) around the 59051 Cylinder just below the 59077 Rear Bearing Plate. Place the air motor
assembly in a #2 arbor press (P/N 96232 available) so that the separator is resting on the table of the arbor press and with the balancer pointing down.
8. Use a flat nose 3/16" dia. drive punch as a press tool. Place it against the small end of the motor shaft balancer and push the shaft out of the
upper 58368 Bearing.
9. Remove the rotor, vanes and rotor key from the motor shaft balancer.
10. Again fasten the 2 in. bearing separator between remaining 59076 Front Bearing Plate/58368 Bearing and the top of the balancer. Rest the separator
on the table of the arbor press and push the motor shaft out of the 58368 Bearing.
11. Disassemble the balancer assembly as follows:
a.) Place motor shaft assembly into a soft jaw vise. Using a thin screwdriver, pick out the end of 95630 Snap Ring and peel out. This will loosen the
balancer assembly.
b.) Screw the threaded portion of the 56056 Bearing Puller (supplied in 57098 Repair Kit) into the 57069 Balancer Shaft and heat the outside of the
motor shaft balancer to approximately 200° F (approximately 10 seconds with a propane torch). Now, using the slider weight, pull
the assembly out.
c.) Press off 56052 Bearing with a bearing separator and remove bearing seal and bearing shield.
12. If during step 11, the 56052 Bearing remains in the motor shaft balancer, it can be removed by the heating the shaft balancer again and using either an
inside bearing puller or a blind hole bearing puller.
To Assemble:
Important: Be certain parts are clean and in good repair before assembling.
1. Assemble the balancer assembly as follows:
a.) Install 95630 Snap Ring onto balancer shaft. Install 95628 Shield with convex face toward hex of balancer shaft.
b.) Install 56053 Seal. Note: Be certain seal is pressed completely over shaft step.
c.) Apply 1 drop of #271 Loctite®(or equivalent) and spread over several places around inside diameter of 56052 Bearing and the outside diameter
of the 57069 Balancer Shaft.
d.) Press fit 56052 Bearing with seal side toward hex of balancer shaft up to shaft step as shown in Drawing 1. This must be a firm press fit for
proper retention of bearing.
2. Place the motor shaft balancer in a soft jaw vise with large end-up.
3. Apply 1 drop of #609 Loctite®(or equivalent) and spread over several places around the outside diameter of the 56052 Bearing and slide balancer
assembly into the motor shaft balancer until 56052 Bearing are firmly seated at bottom. Squeeze 95630 Snap Ring into groove in motor shaft balancer
to complete the assembly. Remove from vise. Place 50659 O-Ring and 59058 Lock Ring onto the motor shaft balancer (3/8" orbit models only).
4. Apply 1 drop of #609 Loctite®(or equivalent) and spread around lower area of motor balancer shaft where the front 58568 Bearing will be located.
5. Install 58368 Bearing onto the motor shaft balancer down to the shoulder as shown in Drawing 2.
6. Press 59076 Front Bearing Plate onto 58368 Bearing as shown in Drawing 3 and check for smooth rotation.
7. Install the 98451 Rotor Key and 57090 Rotor on the motor shaft balancer. Place the 56073 Vanes into the rotor slots.
Note: Vanes should be lubricated with Dynabrade Air Lube P/N 95842 (or equivalent) before installation.
8. Place 59051 Cylinder Assembly over rotor. The “short” line-up post goes toward the front bearing plate.
9. Place 58368 Bearing into 59077 Rear Bearing Plate. Apply 1 drop of #609 Loctite®(or equivalent) and spread around inside diameter of 58368 Bearing.
(Continued on next page.)
7

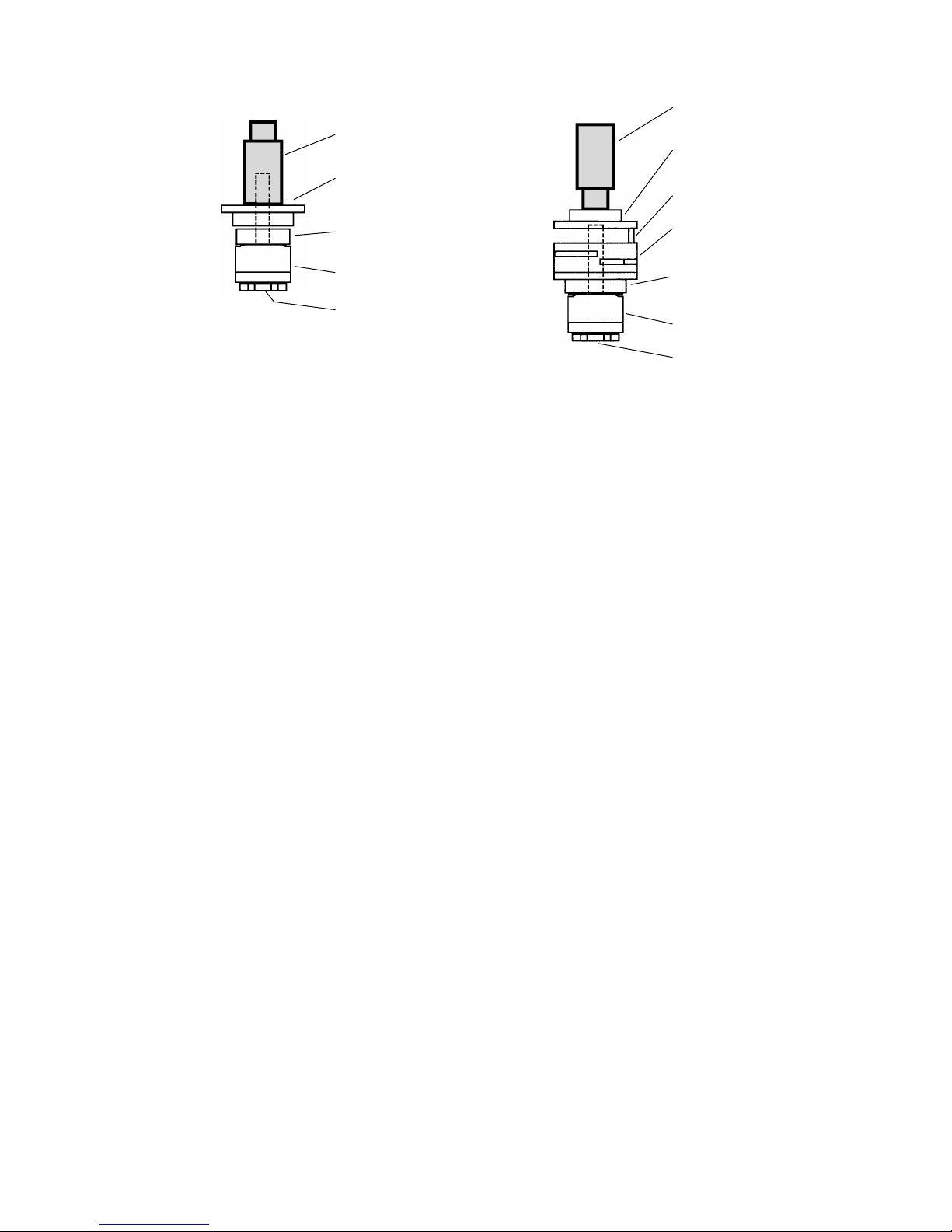

57091
Bearing Press Tool
Balancer Shaft Assembly
56052 Bearing
Shaft Step
Bearing Seal and
Bearing Shield
Drawing 1
Balancer Shaft Assembly
Motor Shaft Balancer
58368 Bearing
57091
Bearing Press Tool
Drawing 2
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade

To Assemble (Continued):
10. Place 59077 Rear Bearing Plate (with 58368 Bearing pressed into place) over shaft and "long" end of line-up pin and press fit in place as
shown in Drawing 4.
11. Install 98463 Snap Ring in groove.
12. Place 01024 O-Ring into recess in side wall of cylinder.
13. Install 50659 O-Ring into 59058 Lock Ring. Slide the lock ring assembly over the motor shaft balancer (3/32" and 3/16" orbits only). Apply 1 drop of
pneumatic tool oil and spread between the motor bearing plate and 50659 O-Ring.
14. Place 1 drop of pneumatic tool oil on 01024 O-Ring.
15. Secure motor housing in vise, using 57092 Collar or padded jaws. Slide motor assembly into second housing. Note: Be certain line-up post enters the
notch in the bottom of the housing and 01024 O-Ring stays seated in cylinder.
16. Tighten lock ring with 56058 Lock Ring Tool to 23 N•m/200 in.-lbs. Attach weight-mated sanding pad.
Valve and Speed Regulator Assemblies:
1. Secure housing in vice using 57092 Collar or padded jaws.
2. Remove inlet bushing, 01468 Spring, 58365 Tip Valve and 01464 Seal from housing. Remove 98927 Pin from housing and lever.
3. Remove 95697 Snap Ring. Press the speed regulator and valve stem out of the housing. Remove the 01025 O-Rings (2) and 98459 O-Ring.
4. Place new 01025 O-Rings (2) on the speed regulator and a new 98459 O-Ring on the valve stem. Then place in housing with valve stem. Install new
95967 Snap Ring. Apply a small amount of pneumatic tool oil to valve o-rings.
5. Place new 01464 Seal in housing. Using tweezers or needle nose pliers, place the tip valve into housing so that the tip valve goes under the valve
stem. Place new 01468 Spring into housing so small end is towards tip valve.
6. Apply a small amount of #567 Loctite®(or equivalent) around the threads of the first inlet bushing and tighten into housing to 23 N•m/200 in. - lbs.
7. Install Lever on housing with 98927 Pin centered on housing.
Note: Motor should operate at between 11,000 and 12,000 RPM at 6.2 bar (90 PSIG). RPM should be checked with a tachometer. Before operating,
we recommend that 2-3 drops of Dynabrade Air Lube P/N 95842 (or equivalent) be placed directly into the air inlet with throttle lever depressed. Operate the
machine for approximately 30 seconds before application to workpiece to determine if machine is working properly and safely and to allow lubricating
oils to properly dispense through machine.
Loctite®is a registered trademark of the Loctite Corp.
Disc Pad Change:
1. Insert 50679 Wrench on flats of 57069 Balancer Shaft and twist off sanding pad by hand.
2. With wrench still in place, hand tighten new pad on tool.
3. No need to remove shroud or overskirt.
Required Weight of Pads:
3" Models –– Use pad weighing 75g.
3-1/2" Models –– Use pad weighing 80g.
5" Models –– Use pad weighing 100g.
6" Models –– Use pad weighing 130g.
57091
Bearing Press Tool
Balancer Shaft Assembly
Motor Shaft Balancer
58368 Bearing
59076
Front Bearing Plate
Drawing 3 57091
Bearing Press Tool
Balancer Shaft Assembly
Motor Shaft Balancer
59076 Front Bearing Plate
(with 58368 Bearing)
59077 Rear Bearing Plate
(with 58368 Bearing)
59051 Cylinder Assembly
(w/Rotor and Vanes)
Line-Up Pin
Drawing 4
Motor Assembly/Disassembly Instructions - Dynorbital -Spirit™
8
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade

Parts Common to all Models:
LEGEND
XType of wear, no other
comments apply.
LEasily lost. Care during
assembly/disassembly.
DEasily damaged.during
assembly/disassembly.
R1 Replace each time tool is
disassembled.
R2 Replace each second
time tool is disassembled.
Note: Please refer to page 4 of tool manual for specific part number.
Index Part Description Number High Wear Medium Wear Low Wear Non-Wear
# Number Required 100% 70% 30% 10%
1See Note Sanding Pad 1 X
257084 Vacuum Shroud 1 X
357089 Vacuum Lip-Seal Shroud 1 X
454458 3-1/2" Shroud (Non-Vac) 1 X
56051 5" & 6" Shroud (Non-Vac) 1 X
595630 Snap Ring 1 L
657069 Balancer Shaft 1 X
795628 Washer 1 X
856053 Bearing Seal 1 X
956052 Bearing 1 X
10 See Note Motor Shaft Balancer 1 X
11 98461 Key 1 X
12 59058 Lock Ring 1 X
13 50659 O-Ring 1 X
14 58368 Bearing 2 X
15 59076 Front Bearing Plate 1 X
16 57113 Rotor/Blade Set 1 X
17 01024 O-Ring 1 X
18 59051 Cylinder 1 X
19 59077 Rear Bearing Plate 1 X
20 98463 Retaining Ring 1 D
21 95697 Retaining Ring 1 D
22 See Note Housing 1 X
23 See Note Throttle Lever 1 X
24 98927 Pin 1X
25 98459 O-Ring 1 X
26 58363 Valve Stem 1 X
27 59075 Speed Regulator 1 X
28 01025 O-Ring 2 X
29 01464 Seal 1 X
30 58365 Tip Valve 1 L
31 01468 Spring 1 L
32 01494 Inlet Bushing 1 X
Drop-in Motors
• Allows a quick and easy replacement.
No motor adjustments needed.
59450 – 3", 3-1/2" Dia., 3/8" Orbit
59451 – 3", 3-1/2" Dia., 3/16" Orbit
59452 – 3", 3-1/2" Dia., 3/32" Orbit
59453 – 5" Dia., 3/8" Orbit
59454 – 5" Dia., 3/16" Orbit
59455 – 5" Dia., 3/32" Orbit
59456 – 6" Dia., 3/8" Orbit
59457 – 6" Dia., 3/16" Orbit
59458 – 6" Dia., 3/32" Orbit
Complete Repair Solution
Includes: 10 Pack of Drop-in Motors
59459 Repair Kit
59460 – 3", 3-1/2" Dia., 3/8" Orbit
59461 – 3", 3-1/2" Dia., 3/16" Orbit
59462 – 3", 3-1/2" Dia., 3/32" Orbit
59463 – 5" Dia., 3/8" Orbit
59464 – 5" Dia., 3/16" Orbit
59465 – 5" Dia., 3/32" Orbit
59466 – 6" Dia., 3/8" Orbit
59467 – 6" Dia., 3/16" Orbit
59468 – 6" Dia., 3/32" Orbit
10 Pack of Drop-in Motors
59470 – 3", 3-1/2" Dia., 3/8" Orbit
59471 – 3", 3-1/2" Dia., 3/16" Orbit
59472 – 3", 3-1/2" Dia., 3/32" Orbit
59473 – 5" Dia., 3/8" Orbit
59474 – 5" Dia., 3/16" Orbit
59475 – 5" Dia., 3/32" Orbit
59476 – 6" Dia., 3/8" Orbit
59477 – 6" Dia., 3/16" Orbit
59478 – 6" Dia., 3/32" Orbit
59459 Drop-in Motor Repair Kit:
Includes special tools for proper
disassembly/assembly of the
Dynorbital-Spirit™ drop-in motor.
Includes: 57092 Repair Collar
56058 Lock Ring Wrench
57098 Full Service Repair Kit:
Includes special tools for proper
disassembly/assembly of the
Dynorbital-Spirit™.
Includes: 57092 Repair Collar
56058 Lock Ring Wrench
56056 Bearing Puller
57091 Bearing Press Tool
57099 Bearing Puller
96034 12mm Hex Wrench
96510 Tune-Up Kit
• Tune-Up Kit contains high
wear and medium wear parts.
This service chart is published as a guide to expectant life of component parts. The replacement levels are based on average tool usage over one
year. Dynabrade Inc. considers one year usage to be 1,000 hours or 50% of a man year. Parts included in motor tune-up kit are identified by High
Wear and Medium Wear items.
Preventative Maintenance Schedule
For All Dynorbital-Spirit™ Sanders
9
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade

Pad 3-1/2" 5" 6"
Description Dual Purpose Non-Vac Vac Non-Vac Vac
1/2" Thick, “Diamond Pattern Face” — 50630 50631 50632 50633
1/2" Thick, “Post Pattern Face” — — 50695 —50696
Random Orbital Sanding Pads
Perfectly balanced and weight-mated to Dynorbital®Spirit Random Orbital Sander.
Coated Abrasive Discs
Pad 3-1/2" 5" 6"
Description Dual Purpose Non-Vac Vac Non-Vac Vac
3/8" Thick, Soft Density — 56102 56100 56103 56101
3/8" Thick, Medium Density — 56106 56104 56107 56105
5/8" Thick, Soft Density 56097 56185 56186 56187 56188
5/8" Thick, Medium Density 56098 56175 56176 56177 56178
Premium Urethane Pad - Vinyl Face for PSA-Type Discs
Pad 3-1/2" 5" 6"
Description Dual Purpose Non-Vac Vac Non-Vac Vac
3/8" Thick, Soft Density — 56157 56155 56158 56156
3/8" Thick, Medium Density — 54325 54326 54327 54328
5/8" Thick, Soft Density 54311 56195 56196 56197 56198
5/8" Thick, Medium Density 54313 56180 56181 56182 56183
Premium Urethane Pad - Hook Face Short Nap Pads for Scrim-Back Discs
Rubber Pad, Medium Density - Vinyl Face Pads for PSA-Type Discs
Pad 3-1/2" 5" 6"
Description Dual Purpose Non-Vac Vac Non-Vac Vac
1/2" Thick, Medium Density 54314 50605 50607 50606 50610
Rubber, Medium Density - Hook Face Long Nap Pads for Non-Woven Nylon Discs
•Premium urethane pads, available in soft or medium density, resist heat build-up.
•New 5/8" thick pads, ideal for sanding of intricate contours.
•Unique vinyl surface pads provide excellent disc adhesion, allowing for quick removal of used discs.
•Special rubber/vinyl face pads for PSA discs.
•“Post Pattern” design for enhanced vacuum pick-up.
•Unique vinyl surface pads provide excellent disc adhesion, allowing for quick removal of used discs.
•No need to align vacuum holes, saves time on disc changes.
•Hook face “short nap” pads for reattachable discs.
•3-1/2", 5" and 6" diameter disc pads have 5/16"-24 male threaded stud.
•The 3-1/2" diameter discs, without holes, can be used on vacuum and non-vacuum 3-1/2" Dynorbital-Spirit™ Sanders.
•Hook face “long nap” pads for Abrasive Impregnated Non-Woven Nylon Discs.
Premium Aluminum Oxide Discs / PSA Mounted
Abrasive Grit
80 100 120 150 180 220 320
*No Holes 92090 – 92092 – 92094 92095 92097
No Holes 93101 93102 93103 93104 93105 93106 –
5-Hole Pattern 93109 93110 93111 93112 93113 93114 –
No Holes 93200 93201 93202 93203 93204 93205 –
6-Hole Pattern 93215 93216 93217 93218 93219 93220 –
Note: Other grits available upon request.
*Used on either vacuum or non-vacuum 3-1/2" sander.
All Discs: 120 Grit and Coarser – 125/Roll; 10 Rolls = Unit.
150 Grit and Finer – 175/Roll; 6 Rolls = Unit. Complete rolls only.
Disc
Type
3-1/2" Diameter
5" Diameter
6" Diameter
Disc
Type
Silicon Carbide Discs / PSA Mounted
Abrasive Grit
80 100 120 150 180 220
No Holes 93051 93052 93053 93054 93055 93056
5-Hole Pattern 93060 93061 93062 93063 93064 93065
No Holes 93069 93070 93071 93072 93073 93074
6-Hole Pattern 93077 93078 93079 93080 93081 93082
6" Diameter
Note: Other grits available upon request.
All Discs: 120 Grit and Coarser – 125/Roll; 8 Rolls = Unit.
150 Grit & Finer – 250/Roll; 4 Rolls = Unit. Complete rolls only.
5" Diameter
10
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade

59459 Drop-in Motor Repair Kit:
Includes special tools for proper
disassembly/assembly of the
Dynorbital-Spirit™ drop-in motor.
Includes: 57092 Repair Collar
56058 Lock Ring Wrench
57098 Full Service Repair Kit:
Includes special tools for proper
disassembly/assembly of the
Dynorbital-Spirit™.
Includes: 57092 Repair Collar
56058 Lock Ring Wrench
56056 Bearing Puller
57091 Bearing Press Tool
57099 Bearing Puller
96034 12mm Hex Wrench
Self-Contained Dust Collection Systems
Easily attach to Dynorbital®Supreme Random Orbital Sander – Self-Generated Vac-Ready Models.
50694 Mini-Reusable Felt Bag
•New bag design features a one
micron filter rating. Bag traps over
99% of vacuum particles one
micron or larger.
•Mounts directly to any Vac-Ready
tool or to any exhaust hose.
•Measures 11" long x 3" wide.
End opens up - no need to remove
bag from tool when emptying.
50683 Reusable Felt Bag
•New bag design features a one
micron filter rating. Bag traps over
99% of vacuum particles one
micron or larger.
•Hook ‘n loop end for easy emptying.
•Measures 14-1/2" L x 7-1/2" W.
•Connects to vacuum hose.
56304 Reusable Felt Bag w/Zipper
•New bag design features a one
micron filter rating. Bag traps over
99% of vacuum particles one
micron or larger.
•Has zipper-lock end.
•Measures 14-1/2" L x 7-1/2" W.
•Connects to vacuum hose.
95986 Hose Cover
(5' long cloth cover)
•Covers air line and exhaust/vacuum
hoses (not included).
•Eliminates damage from hoses
dragging on the workpiece.
54290 “Bag-in-Box” System
•95361 Air Line 5' long.
•50682 Flex-Hose 1" dia. x 6' long.
•95362 Rubber Connectors (5, attach
air line to vacuum hose).
•95575 Durable Box Receptacle (to
house bag and store tool).
•Sample paper bag included.
Paper bag reorder:
50692 (400/case) or
50693 (24 per package.)
50617 & 56303 – 6' Long Flex-Hose
•Both systems include 6' long 50682
Flex-Hose.
•Shown with optional 95361 Air Line
(1/4" diameter).
50617: Has 50683 Standard Reusable
Felt Bag with hook ’n loop
end for easy emptying.
56303: Has 56304 Zipper-Lock Bag.
54284 Mini-Flex-Hose System
•95580 Air Line 1" dia. x 28" long.
•50638 Flex-Hose 1" dia. x 18" long.
•50694 Mini-Reusable Felt Bag.
•95362 Rubber Connectors (3) which
connect air line to exhaust hose.
Optional Accessories
50679 26 mm
Open-End Wrench
Overskirt Shrouds
Protects pad edges when working
near workpiece sides; maximizes
dust pick-up on vacuum models.
57086: 5" Diameter
57087: 6" Diameter
Drop-in Motors
Allows a quick and easy replacement.
No motor adjustments needed.
59450 – 3", 3-1/2" Dia., 3/8" Orbit
59451 – 3", 3-1/2" Dia., 3/16" Orbit
59452 – 3", 3-1/2" Dia., 3/32" Orbit
59453 – 5" Dia., 3/8" Orbit
59454 – 5" Dia., 3/16" Orbit
59455 – 5" Dia., 3/32" Orbit
59456 – 6" Dia., 3/8" Orbit
59457 – 6" Dia., 3/16" Orbit
59458 – 6" Dia., 3/32" Orbit
Complete Repair Solution
Includes: 10 Pack of Drop-in Motors
59459 Repair Kit
See page 9 for offering list.
96510 Tune-Up Kit
•Includes assorted parts to help
maintain and repair motor.
11
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade

DYNABRADE
®
DYNABRADE, INC., 8989 Sheridan Drive •Clarence, NY 14031-1490 •Phone: [phone] •Fax: [phone] •International Fax: [phone]
DYNABRADE EUROPE S.àr.l., Zone Artisanale •L-5485 Wormeldange—Haut, Luxembourg •Telephone: [phone] •Fax: [phone]
© DYNABRADE, INC., 2002 PRINTED IN USA
Visit Our Web Site: www.dynabrade.com Email: Customer[email protected]
Machine Specifications
Model Motor Motor Dia. Orbit Sound Air Flow Rate Air Pressure Spindle Weight Length Height
Number HP (W) RPM Inch (mm) Level CFM/SCFM (LPM) PSIG (Bars) Thread Pound (kg) Inch (mm) Inch (mm)
21000 .25 (186) 12,000 3/8" (10) 81 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.4 (0.6) 6 (152) 3-1/2 (89)
21001, 21002, 21003 .25 (186) 12,000 3/8" (10) 77 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.5 (0.7) 8-1/2 (216) 3-1/2 (89)
21004 .25 (186) 12,000 3/8" (10) 84 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.5 (0.7) 7 (178) 3-1/2 (89)
21005 .25 (186) 12,000 3/8" (10) 81 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.4 (0.6) 6 (152) 3-1/2 (89)
21006-08 .25 (186) 12,000 3/8" (10) 77 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.5 (0.7) 8-1/2 (216) 3-1/2 (89)
21009 .25 (186) 12,000 3/8" (10) 83 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.5 (0.7) 7 (178) 3-1/2 (89)
21010 .25 (186) 12,000 3/8" (10) 75 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.5 (0.7) 6-1/2 (165) 3-1/2 (89)
21011, 21012, 21013 .25 (186) 12,000 3/8" (10) 76 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.6 (0.7) 8-1/2 (216) 3-1/2 (89)
21014 .25 (186) 12,000 3/8" (10) 77 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.5 (0.7) 7-1/4 (184) 3-1/2 (89)
21015 .25 (186) 12,000 3/8" (10) 79 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.6 (0.7) 7 (178) 3-1/2 (89)
21016, 21017, 21018 .25 (186) 12,000 3/8" (10) 79 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.7 (0.7) 9 (229) 3-1/2 (89)
21019 .25 (186) 12,000 3/8" (10) 79 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.6 (0.7) 7-3/4 (197) 3-1/2 (89)
Model Motor Motor Dia. Orbit Sound Air Flow Rate Air Pressure Spindle Weight Length Height
Number HP (W) RPM Inch (mm) Level CFM/SCFM (LPM) PSIG (Bars) Thread Pound (kg) Inch (mm) Inch (mm)
21020 .25 (186) 12,000 3/16" (5) 73 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.4 (0.6) 6 (152) 3-1/2 (89)
21021, 21022, 21023 .25 (186) 12,000 3/16" (5) 76 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.4 (0.6) 8-1/2 (216) 3-1/2 (89)
21024 .25 (186) 12,000 3/16" (5) 74 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.4 (0.6) 7 (178) 3-1/2 (89)
21025 .25 (186) 12,000 3/16" (5) 73 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.4 (0.6) 6 (152) 3-1/2 (89)
21026, 21027, 21028 .25 (186) 12,000 3/16" (5) 76 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.4 (0.6) 8-1/2 (216) 3-1/2 (89)
21029 .25 (186) 12,000 3/16" (5) 74 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.4 (0.6) 7 (178) 3-1/2 (89)
21030 .25 (186) 12,000 3/16" (5) 75 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.4 (0.6) 6-1/2 (165) 3-1/2 (89)
21031, 21032, 21033 .25 (186) 12,000 3/16" (5) 80 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.5 (0.7) 8-1/2 (216) 3-1/2 (89)
21034 .25 (186) 12,000 3/16" (5) 77 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.5 (0.7) 7-1/4 (184) 3-1/2 (89)
21035 .25 (186) 12,000 3/16" (5) 75 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.5 (0.7) 7 (178) 3-1/2 (89)
21036, 21037, 21038 .25 (186) 12,000 3/16" (5) 80 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.6 (0.7) 9 (229) 3-1/2 (89)
21039 .25 (186) 12,000 3/16" (5) 75 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.6 (0.7) 7-3/4 (197) 3-1/2 (89)
Model Motor Motor Dia. Orbit Sound Air Flow Rate Air Pressure Spindle Weight Length Height
Number HP (W) RPM Inch (mm) Level CFM/SCFM (LPM) PSIG (Bars) Thread Pound (kg) Inch (mm) Inch (mm)
21040 .25 (186) 12,000 3/32" (2) 76 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.3 (0.6) 6 (152) 3-1/2 (89)
21041, 21042, 21043 .25 (186) 12,000 3/32" (2) 77 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.4 (0.6) 8-1/2 (216) 3-1/2 (89)
21044 .25 (186) 12,000 3/32" (2) 75 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.4 (0.6) 7 (178) 3-1/2 (89)
21045 .25 (186) 12,000 3/32" (2) 76 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.4 (0.6) 6 (152) 3-1/2 (89)
21046, 21047, 21048 .25 (186) 12,000 3/32" (2) 77 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.4 (0.6) 8-1/2 (216) 3-1/2 (89)
21049 .25 (186) 12,000 3/32" (2) 75 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.4 (0.6) 7 (178) 3-1/2 (89)
21050 .25 (186) 12,000 3/32" (2) 75 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.4 (0.6) 6-1/2 (165) 3-1/2 (89)
21051, 21052, 21053 .25 (186) 12,000 3/32" (2) 77 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.5 (0.6) 8-1/2 (216) 3-1/2 (89)
21054 .25 (186) 12,000 3/32" (2) 77 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.4 (0.6) 7-1/4 (184) 3-1/2 (89)
21055 .25 (186) 12,000 3/32" (2) 74 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.5 (0.6) 7 (178) 3-1/2 (89)
21056, 21057, 21058 .25 (186) 12,000 3/32" (2) 83 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.5 (0.7) 9 (229) 3-1/2 (89)
21059 .25 (186) 12,000 3/32" (2) 76 dB(A) 2/16 (453) 90 (6.2) 5/16"-24 female 1.5 (0.7) 7-3/4 (197) 3-1/2 (89)
Additional Specifications: Air Inlet Thread 1/4" NPT • Hose I.D. Size 1/4" (8 mm)
3/8" Orbit Models
3/16" Orbit Models
3/32" Orbit Models
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
