e-Flame USA FS1511B User manual

STOVE FAN HEATER
FS1511B
OWNER’S MANUAL
WARNING! Read and understand this entire owner’s manual, including all safety
information, before plugging in or using this product. Failure to do so could result in
fire, electric shock, serious personal injury, or death.
Only use this heater as described in this manual. Any other use is not recommended
by the manufacturer, and may cause fire, electric shock, or other personal injury.
WARNING! INDOOR use only! NEVER use this heater outdoors!
CAUTION! Keep this owner’s manual for future reference. If you sell or give this product
away, make sure this manual accompanies this product.
NO VENTING REQUIRED
120V AC; 60 Hz; Adjustable 750 or 1500 Watts

2
IMPORTANT SAFETY INSTRUCTIONS!
WARNING
 Read all instructions before using this heater!
 This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If
provided, use handles when moving this heater. Keep combustible materials, such as
furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front
of the heater, and keep them away from the sides and rear.
 Extreme caution is necessary when any heater is used by or near children or invalids and
whenever the heater is left operating and unattended.
 DO NOT operate any heater with a damaged cord or plug or after the heater malfunctions,
has been dropped or damaged in any manner. Discard heater, or return to authorized
service facility for examination and/or repair.
 DO NOT run power cord under carpeting. DO NOT cover power cord with throw rugs,
runners, or similar coverings. DO NOT route power cord under furniture or appliances.
Arrange power cord away from traffic area, and where it will not be tripped over.
 Connect to properly grounded outlets ONLY.
 DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening, as this
may cause electric shock or fire, or damage the heater.
 To prevent a possible fire, DO NOT block air intakes or exhaust in any manner. Doing so
could cause a fire. DO NOT use on soft surfaces, like a bed, where openings may become
blocked.
 A heater has hot and arcing or sparking parts inside. DO NOT
use it in areas where
gasoline, paint, or flammable liquids are used or stored.
 Use this heater only as described in this manual. Any other use not recommended by
the manufacturer may cause fire, electric shock, or injury to persons.

ALWAYS plug heaters directly into a wall outlet/receptacle. NEVER use with an
extension cord or relocatable power tap (outlet/power strip).
 DO NOT USE OUTDOORS!
 DO NOT place the heater near a bed because objects such as pillows or blankets can fall off
the bed and be ignited by the heater.
 AVOID FIRE! Regularly inspect all air vents to make sure they are free from dust, lint, or other
blockage. Unplug the unit and clean with a vacuum ONLY. DO NOT rinse or get wet.
 For residential use only! NOT for commercial use! Any commercial or public use of this
heater voids all warranties, and could cause injury.
 NEVER modify this heater. Doing so could result in personal injury or property damage.
Modification of this fireplace completely voids all warranties.
 ATTACH ALL FOUR LEGS BEFORE PLUGGING IN OR TURNING ON THIS HEATER!
 NEVER plug in or turn on this heater with the hot air vents touching the ground!

3
WARNING
 ALWAYS turn this heater off before unplugging it from the outlet.
 Risk of electric shock! DO NOT OPEN! No user-serviceable parts inside!
 ALWAYS disconnect this unit from the power supply before performing any assembly or
cleaning, or before relocating the electric fireplace.
 NEVER leave this heater unattended. ALWAYS unplug this heater when not in use.
 ALWAYS store this heater in a dry location. NEVER use the fireplace if it has become wet.
 NEVER use this heater in bathrooms, laundry rooms, or any other location where the
heater could fall into a bathtub or pool, become damp, or come in contact with water.
 Place the heater near a wall outlet so an extension cord is not needed. If an extension cord is
needed, the gauge of the cord must be at least 14AWG, and the rating must be at least
1875 Watts. NEVER use a smaller gauge cord with a lower rating. Doing so may result in
fire or electric shock.
 NEVER overload the circuit. If this heater trips the circuit breaker, unplug all other
appliances on the same circuit before the next use. Avoid plugging other appliances into the
same circuit as this heater.
 NEVER plug this heater into an outlet that is old, cracked, or has any loose wires or
connections. Plugging this heater into a faulty outlet could result in electric arcing within
the outlet that could cause the outlet to overheat or catch fire.
 ALWAYS check your heater cord and plug connections with each use!
i) MAKE SURE the plug fits tight in the outlet! Faulty wall outlet connections or loose plugs
can cause the outlet to overheat.
ii) Heaters draw more current than small appliances. Overheating may occur even if it
has not occurred with the use of other appliances.
iii) During use check frequently to see if the plug outlet or faceplate is HOT!
iv) If the outlet or faceplate is HOT, discontinue use immediately and have a qualified
electrician inspect and/or replace the faulty outlets.
 The power cord supplied with the heater has
three prongs: two flat blades (live and
neutral) and one round pin (ground). If a 3-
slot receptacle is not available, an adapter
MUST be used. The adapter MUST be
properly grounded
to the outlet box (see
figure at right). [NOTE: The adapter is NOT
INCLUDED.]
 SAVE THESE
INSTRUCTIONS!

4
PREPARATION
 Remove all parts and hardware from the carton and place them on a clean, soft, and dry
surface.
Make sure all parts are dry, and the power cord and plug are not damaged. See
IMPORTANT SAFETY INFORMATION on pages 2 and 3.
 Compare the contents with the parts list to make sure nothing is missing.
 Dispose of all packaging materials properly.
 Please recycle whenever possible.
TOOLS NEEDED FOR ASSEMBLY
 Phillips (“+”) screwdriver (not included)
PARTS AND HARDWARE
Item Description Qty
A Stove 1
B Legs 4
C Screws 8
A
B
C

5
ASSEMBLY
ALWAYS make sure the unit is unplugged before beginning assembly! NEVER move or
clean the heater, or change the bulbs, while it is plugged in.
1) Carefully turn the STOVE (A) upside down and lay it on a clean soft surface.
2) Insert the TAB of one LEG (B) into the SLOT in the corner of the stove frame.
3) Thread two SCREWS (C) through the holes in the leg and into the stove frame. Partially
tighten the screws with a Phillips screwdriver.
4) Repeat Steps 2 and 3 for the other three legs.
5) Check the alignment and tighten all 8 screws securely with the screwdriver.
DO NOT over-tighten the screws.
ALWAYS attach the feet before using! NEVER plug in or operate this unit if the feet are
not securely attached!

6

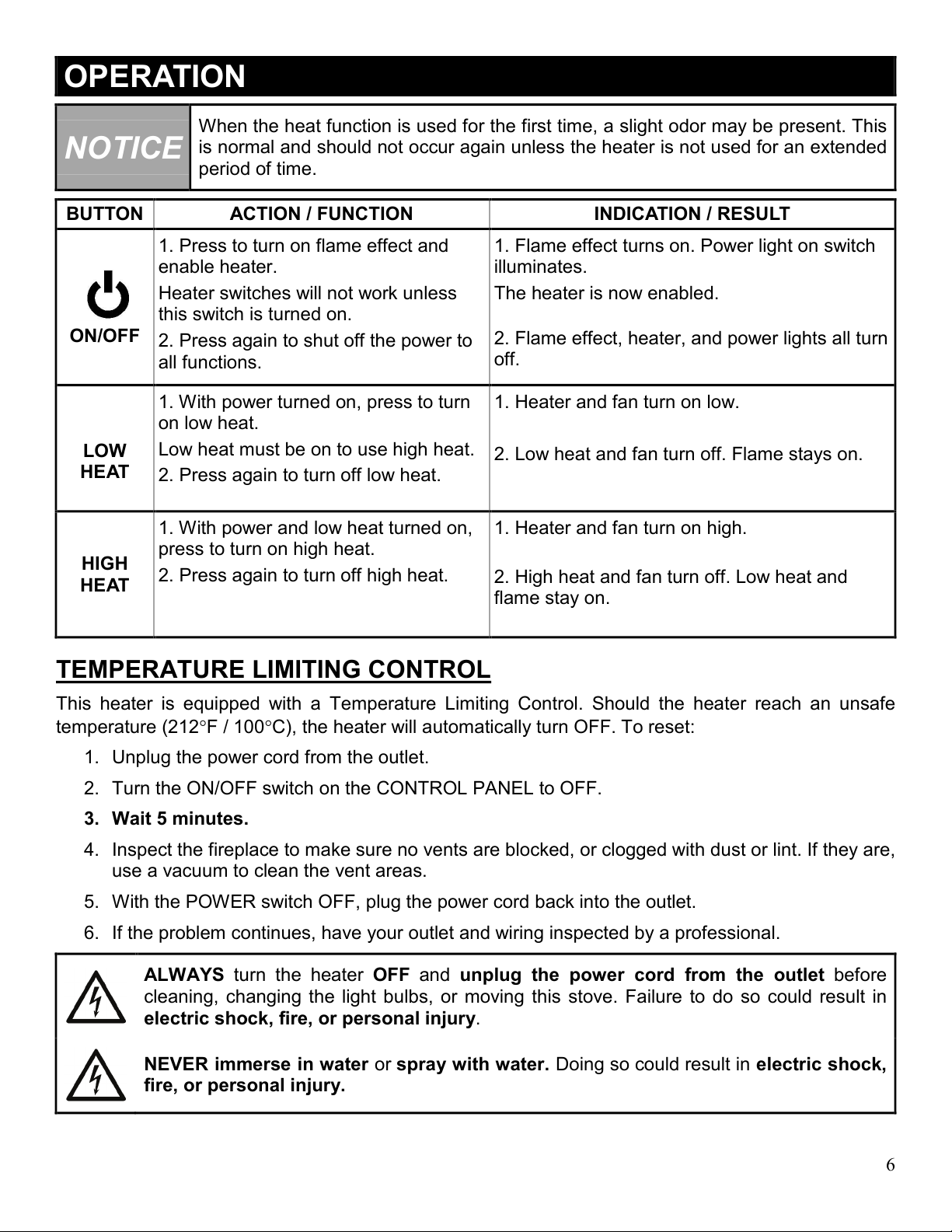

OPERATION
NOTICE
When the heat function is used for the first time, a slight odor may be present. This
is normal and should not occur again unless the heater is not used for an extended
period of time.
BUTTON ACTION / FUNCTION INDICATION / RESULT
ON/OFF
1. Press to turn on flame effect and
enable heater.
Heater switches will not work unless
this switch is turned on.
2. Press again to shut off the power to
all functions.
1. Flame effect turns on. Power light on switch
illuminates.
The heater is now enabled.
2. Flame effect, heater, and power lights all turn
off.
LOW
HEAT
1. With power turned on, press to turn
on low heat.
Low heat must be on to use high heat.
2. Press again to turn off low heat.
1. Heater and fan turn on low.
2. Low heat and fan turn off. Flame stays on.
HIGH
HEAT
1. With power and low heat turned on,
press to turn on high heat.
2. Press again to turn off high heat.
1. Heater and fan turn on high.
2. High heat and fan turn off. Low heat and
flame stay on.
TEMPERATURE LIMITING CONTROL
This heater is equipped with a Temperature Limiting Control. Should the heater reach an unsafe
temperature (212°F / 100°C), the heater will automatically turn OFF. To reset:
1. Unplug the power cord from the outlet.
2. Turn the ON/OFF switch on the CONTROL PANEL to OFF.
3. Wait 5 minutes.
4. Inspect the fireplace to make sure no vents are blocked, or clogged with dust or lint. If they are,
use a vacuum to clean the vent areas.
5. With the POWER switch OFF, plug the power cord back into the outlet.
6. If the problem continues, have your outlet and wiring inspected by a professional.
ALWAYS turn the heater OFF and unplug the power cord from the outlet before
cleaning, changing the light bulbs, or moving thi
s stove. Failure to do so could result in
electric shock, fire, or personal injury.
NEVER immerse in water or spray with water. Doing so could result in electric shock,
fire, or personal injury.

7
CARE AND MAINTENANCE
CLEANING
Metal:
• Buff using a soft cloth, slightly dampened with a citrus oil-based product.
• DO NOT use brass polish or household cleaners as these will damage the metal.
Glass:
• Use glass cleaner and dry thoroughly with a paper towel or lint-free cloth.
• NEVER use abrasive cleansers or any cleaner that could scratch the surface.
Plastic:
• Wipe with a slightly damp cloth and a mild solution of dish soap and warm water.
Vents:
• Use a vacuum or duster to remove dust and dirt from the heater and vent areas.
MAINTENANCE
Risk of electric shock! DO NOT OPEN the main panels! No user-serviceable parts
inside!
Storage:
• Store heater in a clean dry place when not in use.
Electrical and Moving Parts:
• The fan and motors are lubricated at the factory and will not require lubrication for the life of
the stove.
• Except for the light bulbs, all electrical parts and components are integrated into the heater and
are not serviceable by the consumer.
Light Bulb Inspection and Replacement:
The flame effect is created by two 40-Watt light bulbs with an E-12 (small) socket base. Use only this
same type of bulb as a replacement. If the flame effect does not work, the bulbs may have come
loose or been damaged during shipping.
Light bulbs become very hot during use. Allow at least 10 minutes for the bulbs to
cool before touching.
To inspect or replace the bulbs, first unplug the power cord from the outlet. Locate the access panel
on the back of the stove. Remove the screws and the panel. Check the bulbs to be sure they are
finger tight and in working order. Replace any damaged or faulty bulbs. Reattach the access panel.
Do not operate this heater without the access panel in place. Do not remove the back cover. There
are no serviceable parts inside.

8
LIMITED WARRANTY
This warrants to the original purchaser that this product is free from defects in material and
workmanship as of the date of purchase and that it will, under normal use and proper care, remain so
for one year from the date of purchase. Missing or initially defective parts will be replaced free of
charge during the period of this limited warranty. The original dated sales receipt is required for all
warranty claims. This warranty does not cover damage which has occurred during transport from the
point of purchase to the consumer’s home. This warranty does not cover glass, light bulbs, remote
controls, or batteries.
This product is for residential use only. Any and all commercial use of this product voids all
warranties, and frees the manufacturer from all liability. Read and understand all assembly and
operating instructions, and all safety information and warnings, before use. The following will void this
warranty: Damage caused from tampering with, modifying, or altering the fireplace insert in any
manner; Damage due to incorrect assembly, improper care, misuse, or abuse; Damage from being
used with the wrong power source; Water damage; Damage caused from this insert being used
outdoors; Damage caused from this insert being used for excessive periods of time; Damage caused
by the insert being used in a commercial application; Damage from use as a primary heat source;
Other misuse or abuse not specifically listed herein.
This product is not intended to be used as a primary heat source.
Dura Global Sourcing, Inc.(hereafter, Dura), its directors, officers, or agents, will not be liable to
the purchaser or any third party, whether in contract, in tort, or on any other basis, for any indirect,
special, punitive, exemplary, consequential, or incidental loss, cost, or damage arising out of or in
connection with the sale, maintenance, use, or inability to use this product, even if DURA, its
directors, officers, or agents have been advised of the possibility of such losses, costs or damages, or
if such losses, costs, or damages are foreseeable. In no event will DURA, its officers, directors, or
agents be liable for any direct losses, costs, or damages that exceed the purchase price of the
product. Some states do not allow the exclusion or limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to the purchaser. This limited warranty gives you
specific legal rights, and you may also have other rights which vary from state to state.
Thank you for purchasing this product! If you have questions about the assembly or operation of
this product, are missing parts, or have defective parts,
please e-mail us at...
[e-mail]
Made in China
