e-Flame USA EF-BLT16 User manual

1
VERMONT ELECTRIC FIREPLACE HEATER
MODEL EF-BLT16
OWNER’S MANUAL
NO VENTILATION REQUIRED
PRODUCES SAFE AND EFFICIENT HEAT
110/120-VOLT – 1500-WATT
SAVE THESE INSTRUCTIONS FOR FUTURE USE
NO VENTING REQUIRED
PRODUCES SAFE EFFICIENT HEAT
PLAEASE READ THIS ENTIRE INSTRUCTIONS MANUAL BEFORE USING
110-120VOLT - 1500 WATT
SAVE THESE INSTRUCTIONS FOR FUTURE USE

2
CONSUMER SARETY INSTRUCTIONS
Read this manual before installing and operating this appliance. Failure to follow these instructions
may result in electrical shock, property damage, personal injury, and will void the warranty. Do not
store or use gasoline, or any other flammable liquids and vapors, in the vicinity of this appliance.
Keep this manual for future reference.
SAFETY INFORMATION
1. This heater is hot when in use. To avoid burns, do not let skin touch hot surfaces. If provided,
use handles when moving the heater. Keep all combustible materials such as furniture,
pillows, bedding, papers, curtains, and all other textiles at least 3-feet from the front of the
heater.
2. Use extreme caution when using the heater near children, elderly, and pets. Never leave the
heater unattended when in use.
3. Always unplug the heater when not in use.
4. Do not operate the heater if it has a damaged cord or plug, malfunctions, or has been
dropped or damaged. Return heater to authorized facility for examination for electrical or
mechanical adjustments or repairs.
5. Do not use heater outdoors.
6. This heater is not intended for use in bathrooms, laundry areas, or any location where it can
be exposed to water. Always use in a dry location.
7. Do not run the power cord under any carpeting. Do not cover the power cord with throw rugs,
runners, or any kind of floor covering textile. Keep the power cord away from any traffic
areas where it could be tripped over.
8. To disconnect the heater, turn all controls to the OFF position, then remove plug from the
outlet.
9. Connect ONLY to properly grounded outlets.
10. Do not insert or allow any foreign objects to enter the ventilation or exhaust opening as this
may cause an electrical shock or fire, as well as damaging the heater.
11. Too prevent a possible fire, do not block air intakes or exhaust at any time. Never use the
heater on a soft surface, such as a bed, where openings may become obstructed.
12. This heater has hot and potentially sparking parts inside. Do not use in areas where
gasoline, paint, or any flammable liquids are used or stored.
13. Use this heater only as described in this manual. Any other use not recommended by the
manufacturer may cause fire, electrical shock, and injury.
14. Always plug heaters directly into a wall outlet. Never use with an extension cord or
relocatable power tab (outlet/power strip)

3
15. This electrical fireplace is not designed for “zero” clearance wall and/or cabinet/millwork
installations. Accessibility for servicing and maintenance must be possible without disturbing
building structures and/or cabinet millwork finishes.
USER INSTRUCTIONS
1. Any repairs to this unit must be carried out by a qualified and approved service person only.
2. Under no circumstance should this unit be modified. Parts having to be removed for servicing
must be replaced with original parts supplied by the manufacture only.
3. This heater can be cleaned with a damp cloth using water only. Always unplug heater before
cleaning. Do not use abrasive cleaners on this heater.
LOCATION OF YOUR FIREPLACE
When choosing a location for your new electric fireplace, ensure the general instructions for
placement are followed. Also, for the best effect, install the fireplace out of direct sunlight. It is safe to
set the fireplace insert close to non-combustibles.
MANTEL INSTALLATION
Please refer to the detailed instructions that came with the mantel you purchased.

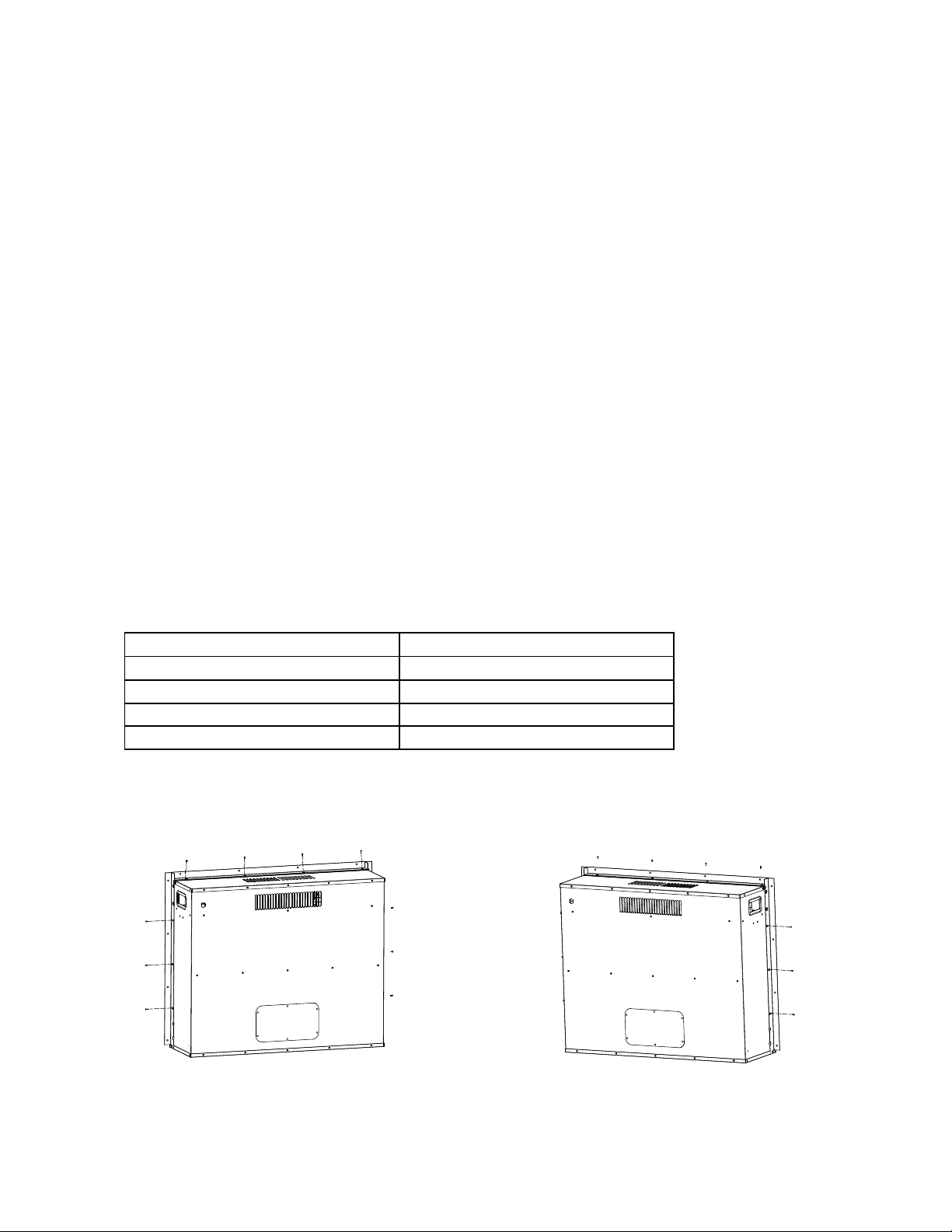

SPECIFICATIONS
FLANGE INSTALLATION
EF-BLT16
Dimensions W x D x H
77cm x25cm x62.5cm
Net Weight Gross Weight
21 kg / 23.2 kg
Voltage
110-120V~
Frequency
60 Hz
Watts
1500 W

4
ELECTRICAL CONNECTIONS
A 15-amp, 120-volt, 60-hz circuit with a properly grounded outlet is required to operate this heater.
Preferably, the fireplace insert will be on a dedicated circuit as other appliances on the same circuit
may cause the circuit breaker to trip or blow a fuse when the heater is in operation. This unit comes
with a standard 6-foot long 3-wire cord, exiting out the back of the fireplace insert. Plan the
installation to avoid the use of an extension cord. If an extension cord must be used, it must be a
minimum 14-ga, 3-wire with a grounding-type plug and connector, and rated not less than 1875-
watts. The extension cord shall not be more than 20-feet in length.
CAUTION
There are no serviceable parts inside (except for the lightbulbs)
PRE-INSTALLATION
To avoid scratching the finish, assemble the product on a soft, non-abrasive surface, such as carpet
or cardboard. Assembly of this product may require more than one person.
INSTALLATION
Attach top electric fireplace trim piece with the screws provided. Please refer to the detailed
instructions that came with the manual that you purchased.
OPERATION
The electric fireplace “ON/OFF” switch must be switched to “ON” before any of the control functions
will operate. The main switch does not have to be turned off when the electric fireplace is not being
used for brief time periods. If, however, you are not planning to use the electric fireplace for
extended periods of time, we recommend the main power “ON/OFF” be switched off.
This electric fireplace insert features convenient separate controls for the flame effect and heat
control. This feature allows you to operate the unit in two different ways. 1.) as a full featured
fireplace insert with both flame effect and heater operating simultaneously and 2.) as a visual effect
with flame affect only. NOTE: This electric fireplace insert is not designed to operate in “heat” mode
without a flame effect.
ELECTRIC FIREPLACE CONTROLS
MANUAL CONTROLS
The digital manual controls are easily accessible on the top right of the console behind an access
panel.

5
You have the following controls:
Turn on/off the device
1. POWER ON/OFF BUTTON - Power to the unit
2. SOUND BUTTON - Press this button to turn on/off the sound effect
3. FLAME BRIGHTNESS ADJUSTMENT - Press the button to change the flame brightness, it has
5 classes flame brightness to adjustable from L5-L4-L3-L2-L1.
4. HEATER SETTINGS - This fireplace insert consists of a fan forced electric heater with two
heater settings, 800W(L) or 1,500W(H). Press the button once to turn on the Low heater press
the button a second time to turn on the High heater, press the button the third time to turn off the
heater. Note: the fan may continue to run for a short time after the heater is turned off. The fan
will turn off automatically
5. ADJUST THE TIMER - Period timer from 0.5 to 7.5 hours. The heater will operate for 0.5 hour to
touch, and so forth. The heater will stop heating when the time is exhibited. Use the CR025 3V
battery for remote control.
GLASS INSTRUCTIONS
1. Under no circumstances should this product be operated with a broken or chipped glass
panel.
2. Do not strike or slam the glass.
3. Do not use abrasive cleaners to clean the glass. Make sure the glass is cool to the touch.
4. This product uses tempered glass. Replacement of the glass supplied by the manufacturer
should be done by qualified/authorized personnel only.
MAINTENANCE OF MOTORS
1. Always disconnect the unit from the main power supply and allow it to cool before any
servicing operation.

6
2. The motors used on the fan heater and flame blower are pre-lubricated for extended bearing
life and require no further lubrication. However, periodic cleaning/vacuuming of the unit
around the air intake and exhaust, as well as the fan heater, is recommended. For heavy
blows alternating cold and warm air, check the fan for free movement and for debris
restricting air flow. If the fan does not move freely, the unit needs to be turned off and the fan
replaced in order to prevent further damage of the unit.
REPLACING THE LIGHTBULBS
The electric fireplace insert uses two (2) 40-watt lightbulbs. The lightbulbs are located at the bottom
of the unit. You can change the lightbulbs from the back of the electric fireplace. For your
convenience, if one of the lightbulbs burns out, it may be easier to replace all of the lightbulbs at the
same time.
1. Turn the electric fireplace master power to the “off” position.
2. Let the electric fireplace insert cool completely before changing lightbulbs.
3. Pull the mantel away from the wall so you can get in behind the electric fireplace.
4. Remove the screws from the panel using a philips or flathead screwdriver.
5. Carefully remove the lightbulb. This may require holding the light socket with one hand while
unscrewing the lightbulb with the other hand.
6. Install the new lightbulbs.
7. Insert and tighten the screws into the panel that were removed in step 4.
8. Return your mantel to its original position.
BATTERY REPLACEMENT
Please dispose of the remote’s used battery per municipal or provincial/state law.
CARE AND CLEANING
1. Always turn the heater off and unplug the power cord from the outlet before cleaning.
2. Cleaning of the control panel, located in the upper right-hand corner of the electric fireplace,
is to be done only using a soft cloth, slightly dampened in water (if needed, a small amount
of dish soap can be added to the water) and dried using a clean dry cloth. Cleaning of the

7
screen diffuser is to be done using only water and a lint-free cloth. Do NOT use any abrasive
cleaners or textiles on the controls or the diffusing screen.
PROBLEM
POSSIBLE CAUSE
SOLUTION
The fireplace does not operate.
The fireplace is not plugged in.
A circuit breaker is tripped or a fuse
is blown.
The ON/OFF switch is defective.
There is loose wiring.
Make sure the fireplace is plugged
into a standard 120V outlet. Check
additional appliances on the circuit;
ideally the fireplace should be on a
dedicated 15-amp circuit.
Call Customer Service.
The power light is ON, but the flame
effect is not visible.
The fireplace is not operating
correctly.
Lightbulbs are not functioning.
Loose wiring.
Refer to operating instructions.
Refer to Replacing the Lightbulbs.
Call Customer Service.
The heater is not operating.
Incorrect operation.
The heater switch is defective.
The heater assembly is defective.
There is loose wiring.
The vents are dirty or clogged.
Unplug the unit. Clear the vent area
of dust and debris. Wait ten minutes,
plug the unit in again and turn on the
heater.
Call Customer Service.
There is excessive noise when the
heater is operating.
Dirty or clogged blower.
The heater assembly is defective.
Refer to Maintenance of Motors in
Care Maintenance.
Call Customer Service.
The power light is ON, but the ember
bed flame is not flickering.
Light bulbs are not functioning.
Loose wirings.
Refer to Replacing the Light Bulbs.
Call Customer Service.
There is excessing noise when the
flame is ON, but the heater is OFF.
The rotating flame reflector shaft is
rubbing against the housing.
The flame reflector shaft motor is
defective.
Open the back of the fireplace and
reposition the flame reflector shaft.
Turn off the unit prior to servicing.
Call Customer Service.

8
LIMITED WARRANTY
This warrants to the original purchaser that this product is free from defects in material and
workmanship as of the date of purchase and that it will, under normal use and proper care, remain
so for 1 year from the date of purchase. Missing or initially defective parts will be replaced free of
charge during the period of this limited warranty. If parts are unavailable, comparable replacement or
refund will be given. The original dated sales receipt is required for all warranty claims. This warranty
does not cover damage which has occurred during transport from the point of purchase to the
consumer’s home. This warranty does not cover glass, lightbulbs, or batteries.
This product is for residential use only. Any and all commercial use of this product voids all
warranties, and frees the manufacturer from all liability. Read and fully understand all assembly and
operating instructions, and all safety information and warnings, before use. The following will void
this warranty: damage caused by tampering with, modifying, or altering the electric fireplace in any
manner; damage due to incorrect assembly, improper care, misuse, or abuse; damage from being
used with the wrong power source; water damage; damage caused from the electric fireplace being
used outdoors; damage caused from the electric fireplace being used for excessive periods of time;
damage caused by the electric fireplace being used in any commercial application; damage from use

9
as a primary heat source; other misuse and abuse not specifically listed herein.
This product is not intended to be used as a primary heat source. e-Flame USA, it’s directors,
officers, or agents, will not be liable to the purchaser or any third party, whether in contract, in tort, or
on any other basis, for any indirect, special, punitive, exemplary, consequential, or incidental loss,
cost, or damage arising out of or in connection with this sale, maintenance, use, or inability to use
this product, even if e-Flame USA, or its directors, or agents have been advised of the possibility of
such losses, costs, or damages that exceed the purchase price of the product. Some states do not
allow the exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to the purchaser. This limited warranty gives you specific legal rights, and
you may also have other rights, which vary from state-to-state.
Thank you for purchasing this product! If you have any questions about the assembly or operation of
this product, are missing any parts, or have defective parts, please email us at [e-mail].
