E-LITES ELMH-36*15W-4IN1 User manual

ELMH-36*15W-4IN1
User Manual

1.Before Using………………………………………………3
What’s inside…………………………………………………………3
Open box instruction…………………………………………………………3
A C power supply…………………………………………………………3
Safety Instruction…………………………………………………………3
2.Introduction………………………………………………4
Features…………………………………………………………4
Size…………………………………………………………4
3.Installation……………………………………………………5
Installation requirements………………………………………………………5
Power connection…………………………………………………………6
DMX Signal connection……………………………………………………6
Master and slave connection……………………………………………………6
4.Operating instruction………………………………………………7
Control board function……………………………………………………7
Menu Map…………………………………………………………7
Operating instruction…………………………………………………………8
The remote control operating
instruction …………………………………………………8
Channel………………………………………………………… 8

Before Using
What’s inside
Equipment x 1
Power cable with Plug x 1
User manual x 1
Iron holder x 2
Open Instruction
Please open the equipment carefully ,and check all the spare parts are included or not.If any part of the
cause of the failure due to improper transportation or carton,please keep the packing materials and
immediately inform the shipper to check.If the equipment must be returned to the factory,the equipment
should be use the original carton and packaging.
AC Power Supply
The equipment power supply is able to adapt to the wide input voltage.Please confirm the input voltage
is in the scale of rated voltage。The equipment can adapt to100V-240V AC voltage，Frequency50-60HZ。It can
not run a rheostat(variable resistor) or dimmer circuits.
Safety Instruction
This product is I level protection equipment,so it is must be connected well and connected by the
professional people.
Make sure the volatage don’t be above or below which the user manual rated values.
Confirm the power cord is not a sword cut or damaged.
Must be cut off the power supply in the condition of no using or cleaning.
Only allowed with the power cord plug connection.Please do not force when unplug the power cord
to pull the plug.。
Be careful in the process of installation of equipment.Avoid touching the bare wire,otherwise it will
suffer fatal shocks.。
Don’t look the light source directly,otherwise it will hurts the eyes.
When choosing installation position of equipment and the equipment must be more than 0.5m
distance between objects.
Please use the equipment wires appropriate.
Without the manufacturer’s authorization or laypeople don’t remove,repair and modification of
equipment.
The maximum operating temperture is 40℃，don’t operate the equipment when it is over 40℃
Do not connect the equipment to the dimmer equipment。
Under 120V voltage,output power don’t series more than 10 pcs equipment,voltage 230V.Output
power don’t series more than 20 pcs

Introduction
Specification
Rated Voltage：AC100V～240V
Rated Power: 600W
LED Qty: 36x15W Osram LEDs
LED Drive Current: 1000mA
Beam Angle：7°
IP ：IP20
DMX Mode：18CH（Basic mode）/20CH(Stand mode)/160CH(Extend mode)
Packing Size：500x395x570mm
Net weight：20 Kg
Gross weight：23.2Kg
Product feastures
3 Pin & 5 Pin calderon input and 3 Pin &5 Pin calderon output
4Control Mode:DMX512, Artnet, Sound, Master-slave
Black plastic
LCD display
Display board can be 180°in turn, it can be fited in different setting.
Indoor Temperature：-20°C～+40°C
3 kind of DMX mode selection ：18CH （Baaic mode ）/20CH(Stand
mode)/160CH(Extend mode)
Dimmer:0-100%
Tilt/Pan movement：
8bit and 16bit resolution
Smooth and accurate positioning
Tilt：540°Pan270°rotation
Tilt,Pan high-speed infinite rotation,speed can be adjusted.
The scanning position can be memory, it will be automatically reset without expected
movement after rotation.
0-20HZ Strobe、pulse strobe、Asynchronous stroboscopic effect.
Super mixed color and rainbow effect.
All the color can be for the total dimmer.
7 programmable program is invoked by controller.
Fan cooling(fan will be change the speed with the temperature variation.
Temperature detecting system(If the temperature detection error,the light doesn’t work).

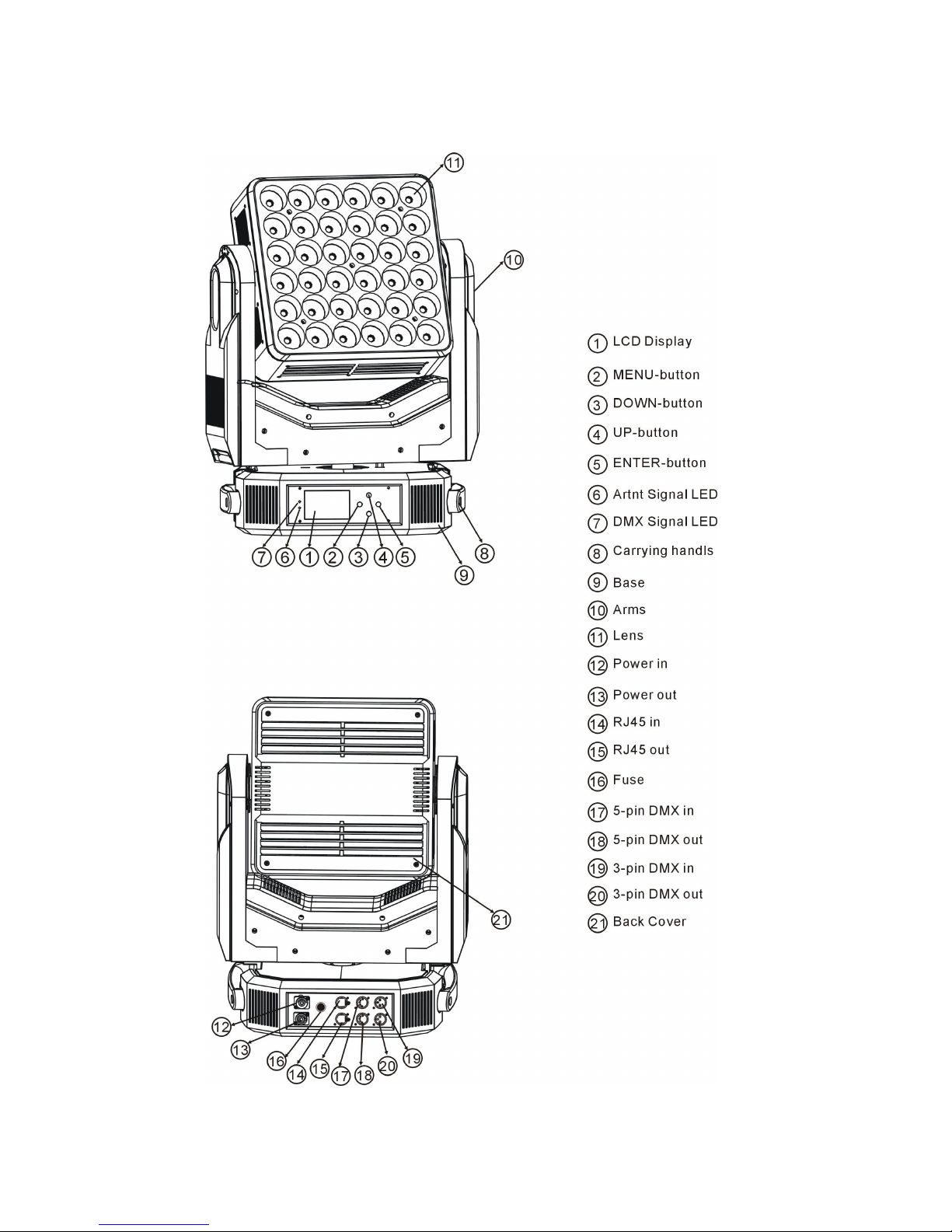

Product Introduction

Installation

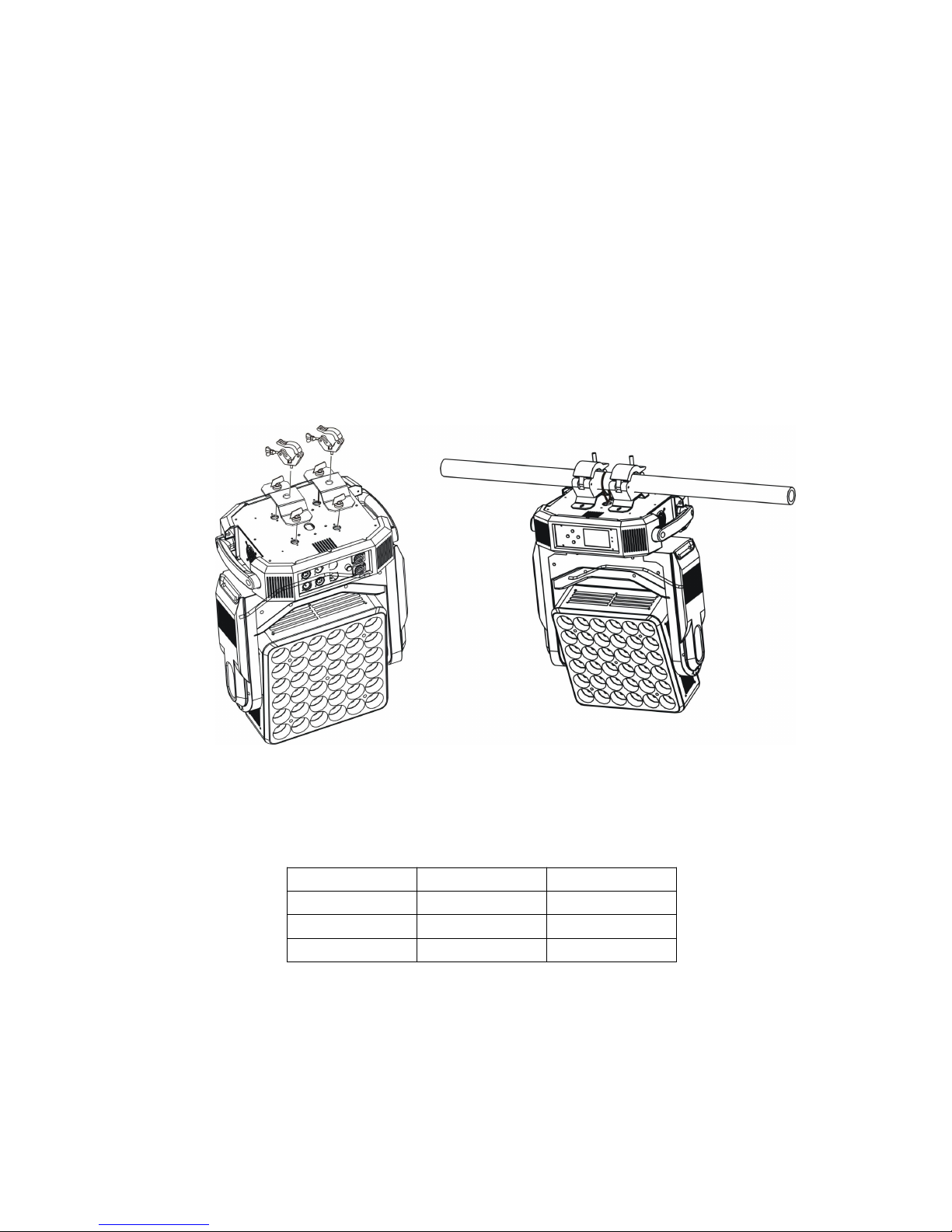

Installation Requirements
This equipment can be used in many places, it can hang and put on the ground。
Choosing a suitable place to put or hang the equipment when installation.Must be use
the special screws and hook to make sure the lamp’s weight is in the weight range。
When installing the equipment,ensure no inflammable and explosive goods at 0.5
meter distance.
Please ask the professionals to install the equipment,any improper installation will
cause personal injury or material damage.
To prevent others entering the working ares below,the installation or maintenance of
equipment with suitable and stable platform
The equipment must be placed in ventilated place, at least 50 cm from the
ground,please ensure that the vent without clogging.
Power supply connection
The equipment can be used in the wide voltage input。Please make sure the voltage is the scale
of rated voltage when connecting the power.The equipment can adapt to 100V to 240 V AC
voltage and 50-60 Hz.
s Connection Pin
Brown AC Live 1
Blue AC Neutral 2
Green/Yellow AC Ground 3

DMX Signal Connection
1. Use DMX512 controller, use the DMX signal（male ）to plug into the first lamp(female）
3 pin。
2. Put out of the equipment of the first signal wire(head),connected to the equipment of
the next 3 pin plug(female),so on.See belowed pictures.
Operating Instruction
Control board function
Button Function
MENU Choose Menu or function exit
ENTER Current show menu or enter into the current selected function
UP Increase the value
DOWN Decrease the value

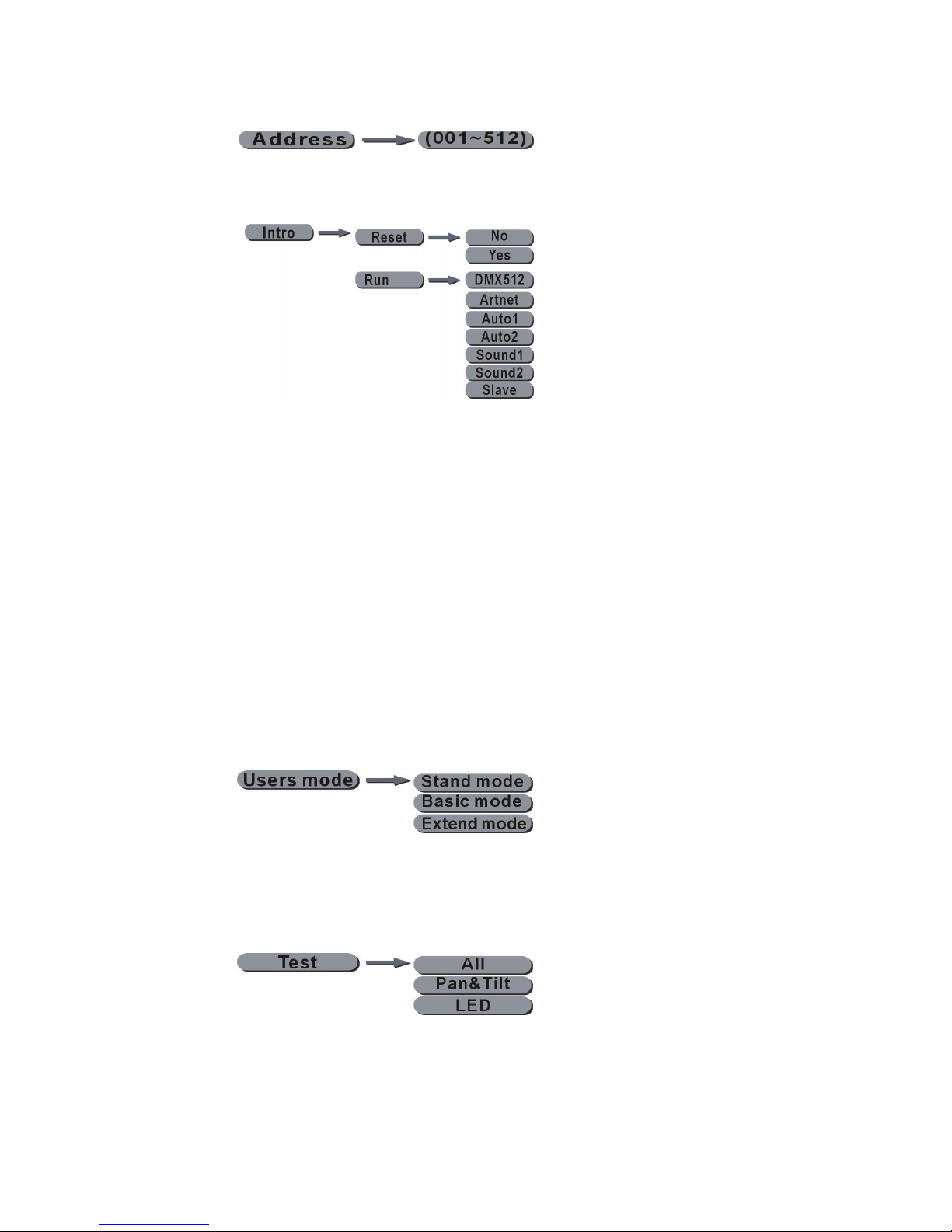

Menu Map

Menu Instruction：
[DMX address setting]
Press MENU when it shows 【Address】,then press ENTER.
Change the DMX address by UP or DOWN.
[Function selection]
Press MENU until it shows 【Intro,press】ENTER
Press UP or DOWN to choose 【Reset】、【 Run】.
When choosing Reset，press ENTER，and press UP or DOWN to choose 【YES】or
【NO】.When choosing 【YES】,press ENTER，the equipment reset,restore factory setting.
When choosing Run ，press ENTER ，press UP or DOWN to choose 【DMX512 】,
【Artnet】,【Auto1】,【Auto2】,【Sound1】,【Sound2】,【Slave】.When choosing 【DMX512】,
the DMX controller sending the signal(3 pin or 5 pin signal is valid),the corresponding
display board DMX 512LED flashing.When selecting【Artnet】，use Artnet function，RJ45
interface valid ，it received RJ45 signal ，the corresponding display board Artnet LED
flashing。
When choosing 【Auto1】,【Auto2】,【Sound1】or 【Sound2】，【Auto1】,【Auto2】，
【Sound1】,【Sound2】，choose Auto or Sound mode,it can be used as the master.When
choosing 【Slave】,it is Slave，receive the Master signal.Choose the Slave need to quit
to the main menu can be controlled.
[ DMX Mode selection]
Press MENU until it shows 【Users mode】,press ENTER.
Choose CH mode by pressing UP or DOWN：【Stand mode】、【Basic mode】or 【Extend
mode】。
[Test Procedure]
Press MENU，until it shows 【Test】,and then press ENTER.
Press UP or DOWN to choose 【All】,【Pan&Tilt】and 【LED】.When selecting 【All】，
it is testing the motor and LED,When selecting 【Pan&Tilt】to test the motor，choose
【LED】it is only LED operated..

[Adaptive function setting]
Press MENU，until it shows【Set】，and then press ENTER.
Press UP or DOWN to choose 【Fan control】、 【Disp.setting】、 【Pan】 、【Tilt】。
When selecting 【Fan control】，press ENTER，press UP or DOWN to choose the 3 kinds
of Fan control.【Auto】mode will according the lamp’s head to auto control the fan’s speed.
【High】mode is the fan’s high speed operation,【Low 】mode is fan’s low speed
operation.
When selecting 【Disp.setting】，press ENTER，press UP or DOWN to choose 【Shut
off time】、【Flip display】、【Key lock】or 【Disp flash】，If selecting【Shut off time】，
press ENTER ，operate UP or DOWN，it can be set LCD backlight close from 2-60 mins.If
selecting【Flip display】，press ENTER，operate UP or DOWN，press【ON/OFF】to choose
【ON】,the screens can rotate 180°。When selecting【Key lock】，press ENTER，operate
UP or DOWN，press【ON/OFF】to choose【ON】,when the backlight closed,the button key
is locked,the operation is invalid at this time.It must be entered Up、Down、Up、Down，
press ENTER to confirm the unlock.。When selecting【Disp flash】，press ENTER，operate
UP or DOWN,it can be choosed【ON/OFF】,choose【ON】,the screen’s backlight begin to
blink when the equipment received the DMX signal,that means it is received the DMX
signal.The screen’s backlight closed when there is no signal.
When selecting【Pan】or【Tilt】，press ENTER，operate UP or DOWN，Choose【Normal】
or 【Reverse】to set the forward anf reverse operation.
[Check equipment’information]
Press MENU，until it shows【Info】，press ENTER.
Operate UP or DOWN to choose 【Time Info】、 【Temp Info】、 【Software Ver】。
When selecting【Time Info】，press ENTER，operate UP or DOWN to choose【Power on】、
【Ttl Life hrs】or【Last Run Hrs】，If choosing 【Power on】，press ENTER to enter
into the equipment“XXXX”hours。If selecting【Ttl Life hrs】，press ENTER to enter into the
equipment total operation time“XXXX”hours，If selecting 【Last Run Hrs】，press ENTER
to show the LED’s last operation“XXXX”hours。
When selecting【Temp Info】，press ENTER to show【Head Temp】,and then press
ENTER,it will show the head temperature“XXX°C”.

When selecting【Software Ver】，press ENTER ,it will show the equipment’software version.

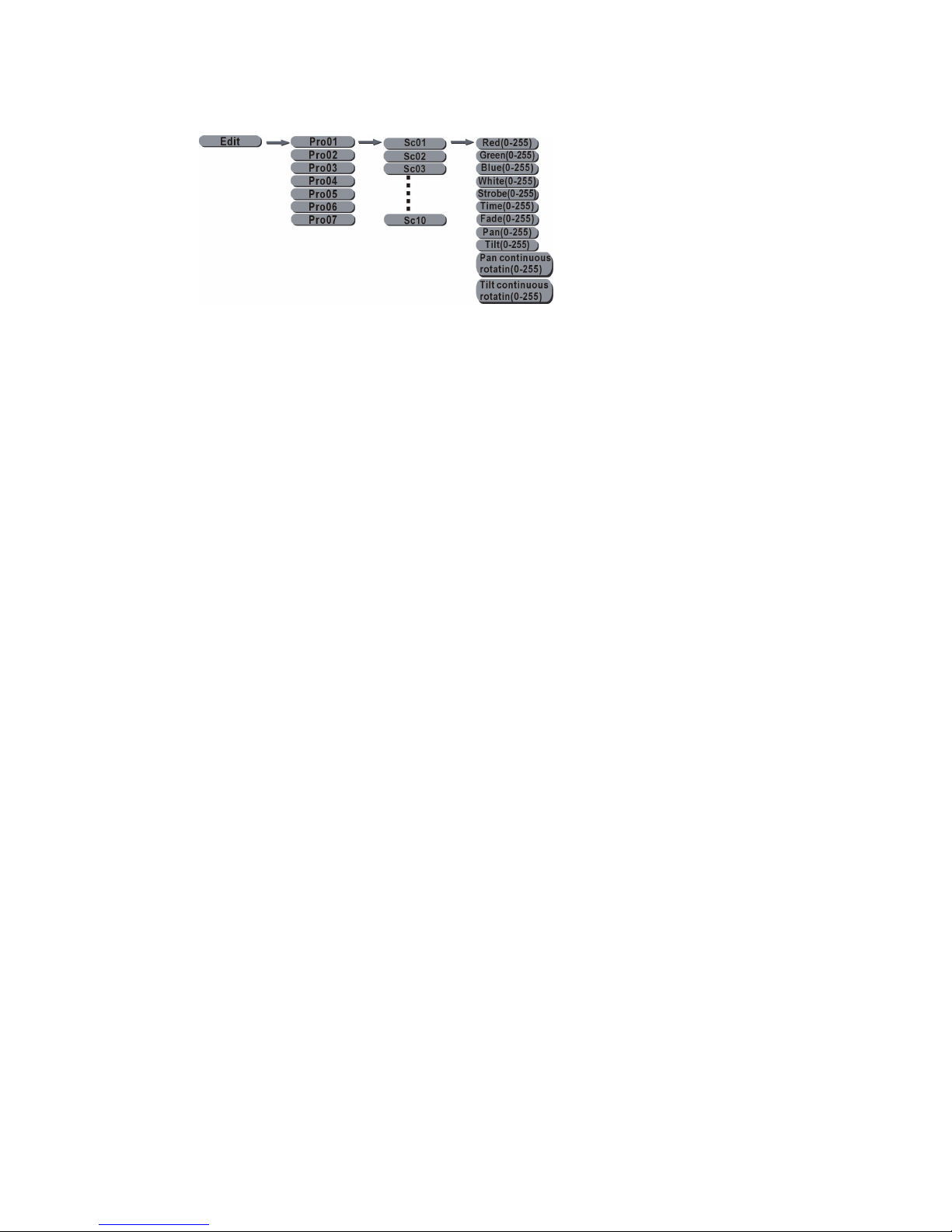

[Adaptive Program]
This function can edit 7 program，each program can edit 10 step
Press MENU，until it shows 【Edit】，and then press ENTER.
Operate UP or DOWN to choose the needed edit program【Pro01】-【Pro07】,when
selecting one needed edit program,press ENTER，choose each edit step【Sc01】-
【Sc10】,enter each step can choose 【Red 0-255】、【Green 0-255】、【Blue
0-255】、【White 0-255】、【Strobe 0-255】、【 Time 0-255】【Fade 0-255】、
【Pan 0-255】、【 Tilt 0-255】、【 Pan continuous rotatin】、【Tilt continuous
rotatin】，
Remarks：Every step in the editing program【Time 0-255】can not be 0。

DMX Channel Table
DMX channel ˊS functions and their values(160 DMX CHANNELS)
Mode/Channel
Value Function
St Ba Ex
1 1 1
PAN Movement 8bit
0-255 Pan Movement
2 2
Pan Fine 16bit
0-255 Fine control of Pan Movement
3 2 3
TILT Movement 8bit
0-255 Tilt Movement
4 4
Tilt Fine 16bit
0-255 Fine control of Tilt Movement
5 3 5
Speed Pan/Tilt movement
0-225 max to min speed
226-235 Blackout by movement
236-255 No function
6 4 6
Pan Motor continuous rotation
0-127 no function
128-189 Forwards Pan rotation from fast to slow
190-193 No rotation
194-255 Backwards Pan rotation from slow to fast
7 5 7
Tilt Motor continuous rotation
0-127 No function
128-189 Forwards Tilt rotation from fast to slow
190-193 No rotation
194-255 Backwards Tilt rotation from slow to fast
8 6
Red LED – all arrays
0-255 Red(0-Black, 255-100% Red)
9 7
Green LED – all arrays
0-255 Green (0-Black, 255-100% Green)
10 8
Blue LED – all arrays
0-255 Blue (0-Black, 255-100% Blue)
11 9
White LED – all arrays
0-255 White (0-Black, 255-100% White)
17
Red LED – all arrays 1
0-255 Red(0-Black, 255-100% Red)
18
Green LED – all arrays 1
0-255 Green (0-Black, 255-100% Green)
19
Blue LED – all arrays 1
0-255 Blue (0-Black, 255-100% Blue)
20
White LED – all arrays 1
0-255 White (0-Black, 255-100% White)
21
Red LED – all arrays 2
0-255 Red(0-Black, 255-100% Red)
22
Green LED – all arrays 2
0-255 Green (0-Black, 255-100% Green)
23
Blue LED – all arrays 2
Blue (0-Black, 255-100% Blue)
24
White LED – all arrays 2
0-255 White (0-Black, 255-100% White)
…… ……
157
Red LED – all arrays 36
0-255 Red(0-Black, 255-100% Red)
158
Green LED – all arrays 36
0-255 Green (0-Black, 255-100% Green)
159
Blue LED – all arrays 36
0-255 Blue (0-Black, 255-100% Blue)
160
White LED – all arrays 36
0-255 White (0-Black, 255-100% White)

DMX channel ˊS functions and their values(160 DMX CHANNELS)
Mode/Channel Value Function
St Ba Ex
12 10 8
Shutter, Strobe
0-31 Led turn off
32-63 Led turn on
64-95 Strobe effect slow to fast
96-127 Led turn on
128-159 Pulse-effect in sequences
160-191 Led turn on
192-223 Random strobe effect slow to fast
224-255 Led turn on
13 11 9
Dimmer intensity:
0-255 Intensity 0 to 100%
14 12 10
Color Macro:
0-7 No function
8-39 From RED to YELLOW
40-71 from YELLOW to GREEN
72-103 from GREEN to CYAN
104-135 from CYAN to BLUE
136-167 from BLUE to MAGENTA
168-199 from MAGENTA to RED
200-231 from RED to WHITE
232-255 Cross fading colours from slow to fast
15 13 11
Color Presets:
0-4 No function
5-9 White2700k
10-14 White3200k
15-19 White4300k
20-24 White5600k
25-29 White6500k
30-34 White8000k
35-39 Yellow
40-44 Mageuta
45-49 Cyan
50-54 Salmon
55-59 Turquoise
60-64 Light Green
65-69 Steel Blue
70-74 Orange
75-79 Straw
80-84 Pale Lavander
85-89 Pink
90-94 Red
95-99 Green
100-104 Blue
105-109 Natural White
110-114 Red/Green/Blue/White
115-119 RED/WHITE
120-124 GREEN/RED
125-129 BLUE/ RED
130-134 WHITE/ RED
135-139 WHITE/PINK
140-144 WHITE/TURQUOISE
145-149 SMALL RED/WHITE
150-255 Reserved

DMX channel ˊS functions and their values(160 DMX CHANNELS)
Mode/Channel Value Function
St Ba Ex
19 17 15
Color Presets Dimmer
0-255 Dimmer 100 to 0%
16 14 12
1-9 Led turn off
10-13 Pattern 1
14-17 Pattern 2
18-21 Pattern 3
22-25 Pattern 4
26-29 Pattern 5
30-33 Pattern 6
34-37 Pattern 7
38-41 Pattern 8
42-45 Pattern 9
42-45 Pattern 10
46-49 Pattern 11
50-53 Pattern 12
54-57 Pattern 13
58-61 Pattern 14
62-65 Pattern 15
66-69 Pattern 16
70-73 Pattern 17
74-77 Pattern 18
78-81 Pattern 19
82-85 Chase 1
86-89 Chase 2
90-93 Chase 3
94-97 Chase 4
98-101 Chase 5
102-105 Chase 6
106-109 Chase 7
110-113 Chase 8
114-117 Chase 9
118-121 Chase 10
122-125 Chase 11
126-129 Chase 12
130-133 Chase 13
134-137 Chase 14
138-141 Chase 15
142-145 Chase 16
146-149 Chase 17
150-153 Chase 18
154-157 Chase 19
158-161 Chase 20
162-165 Chase 21
166-169 Chase 22
170-173 Chase 23
174-177 Chase 24
178-181 Chase 25
182-185 Chase 26
186-189 Chase 27
190-193 Chase 28
194-197 Chase 29
198-201 Chase 30
202-205 Chase 31
206-209 Chase 32
210-213 Chase 33
214-217 Chase 34
218-221 Chase 35
222-229 Chase 36
230-233 Chase 37
234-237 Chase 38
238-255 No function

Remark:Color of Chase Patterns scene is decided by the front R/G/B/W 4 channels.but one
item to note is there will be no effect if no channels was selected.
Priority sequence of LED effect:Chase Patterns>Color Presets>Color Macro>Value of each
channel
17
15 13
Chase Speed
0-125 Fast to Slow Backward
126-130 Stop(Speed=0)
131-255 Slow to Fast Forward
18 16 14
Chase Fade:
0-255 Fade Chase
20 18 16
Reset ,internal programs
0-79 Normal
80-84 All motor reset
85-99 No function
100-119 Internal program 1 (secne1-8 of EEPROM)
120-139 Internal program 2 (secne9-16 of EEPROM)
140-159 Internal program 3 (secne17-24 of EEPROM)
160-179 Internal program 4 (secne25-32 of EEPROM)
180-199 Internal program 5 (secne33-40 of EEPROM)
200-219 Internal program 6 (secne41-48 of EEPROM)
220-239 Internal program 67(secne49-56 of EEPROM)
240-255 Music Control (secne of Program 1)
