E'loo 85 Series Round User manual

USER MANUAL
Thank you for purchasing E’LOO electronic bidet.
Please read carefully before product installation and keep in a place you can reach easily.
85 Series
www.eloo.com.tw
STOP
THIS PRODUCT SHOULD NOT BE DISPOSED WITH OTHER
HOUSEHOLD WATES AT THIS END OF ITS WORKING LIFE.
IN ORDER TO BE RECYCLE, PLEASE BRING YOUR PROD-
UCT IN A CERTIFIED RECYCLING CENTER.

19
02
Warranty Certificate
SUMMARY
01. Safety Precaution ...................................................................
02. Configuration ..........................................................................
03. Installation ..............................................................................
04. How To Use ............................................................................
05. Features .................................................................................
06. Maintenance ...........................................................................
07. If the product is not use for a long period ...............................
08. Troubleshootings ....................................................................
09. Specification ...........................................................................
10. Warranty Certificate ................................................................
03
08
09
11
13
14
15
16
18
19
Please read the manual carefully prior to use
The manufacturing warranty is provided with in 1 year from the purchasing date
(on the invoice).
The warranty includes services and all needed spare parts.
The warranty is only valid if all needed elements are given with a copy of the
original invoice.
The warranty is valid for all defected parts resulting from manufacturing.
The warranty is not valid for parts damaged by the user or by installation non
conform to E’LOO recommendations, for instance :
If the product had been disassemblea or repaired by non official technician from
E’LOO.
The installation is not conforming to E’LOO recommendation.
The use is not conforming to E’LOO precaution of use.
The connection has been done on a non conforming plug.
Or all other damages caused by use or an installation that is not indicated in the
E’LOO User Manual.
Please fill in the blanks with the needed information of your warranty certificates
immediately after installation.
In case of question to our after sales services they will be asked to you.
NAME OF THE PRODUCT : E’LOO
NAME OF THE MODEL : 85 Series
PRODUCT SERIALN :
(At the backside of the main unit)
PURCHASING DATE :
WARRANTY :

DANGER:
IMPORTANT SAFETYGUARDS
DANGER :
WARNING :
CAUTION : If these cautions are not observed, silght physical or property
If not observed, serious injury or even death may occur as a
If these warnings, are not observed, considerable physical
result of electrocution.
injury or property damage may occur as a result of burns,
electrocution, fire, or injury.
damage may occur.
When using electrical products, especially when children are present, basic
safety precautions should always be taken:
READ ALL INSTRUCTIONS BEFORE USING.
Save these instructions for future reference.
To reduce the risk of electrocution
03
18
Specification Safety Precaution
Failure to observe the following warnings may result in electric shock, fire, personal
injury, property damage or product damage :
● Do not use a damaged power plug or loose electric outlet.
● Make sure to use a dedicated electrical outlet. Failing to do so may result in
electric shock or fire.
● Do not move the product by pulling the power cord.
● Do not handle the power plug with wet hands.
● Do not forcefully bend the power cord or place heavy objects on it to prevent it
from being damaged or deformed.
● Do not connect and pull out the power plug repeatedly.
● Unplug the product before cleaning, repairing, inspecting, or replacing parts.
● Remove any dust or water from the power plug.
● Do not plug the appliance into an electrical outlet or power strip that is being
used by too many appliances.
● Use an electrical outlet adequate for the wattage of the product.
● If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
85 Series Round 85 Series Elongated
230V 50 HzStandard Power Voltage
Length Of The Power Cord
Supply Water Pressure
Heated Water
Heated Seat
Product
Dimension
(mm)
Heated Dryer
Electrical Safety Protection
Net Weight
Gross Weight
Certification
from 5 pascal to 69 pascal
1.2m
1200W (max.)
52W (max.)
130W (max.)
15mA-GFCI
470L x 385W x 107H 520L x 385W x 107H
3.4 ± 0.3 Kg
4.8 ± 0.5 Kg
CE, RoHS

DANGER: To reduce the risk of electrocution
Prior to contact our after sales service, please contact the E’LOO
in order to get further information for the warranty procedure.
To facilitate the procedure, please prior answer the following
questions?
The product is no more operating :
1- Isn’t the power connection cable unplugged?
2- Isn’t the power ON/OFF button switch off?
3- Does LED lamp on the control panel blinks or lights?
4- Is the user detected by the seat digital sensor?
Washing funtions is no more operating :
1- Isn’t the water supply valve shut off?
2- Isn’t there any water leakage on the water supply connection pope?
3- Isn’t the water supply connection pipe clogged with foreign elements?
4- Isn’t the nozzle clogged with foreign elements?
5- Isn’t the nozzle clogged with limestone accumulation?
6- wich LED lamp light or blinks?
Water pressure is weak :
1- Is the water supply valve fully open?
2- Isn’t the water supply connection pipe clogged with foreign elements?
3- Isn’t the water pressure level set to a too low level?
Water, air and seat temperature is no more operating :
1- Is the product connected to the plug?
2- Isn’t the power ON/OFF button switch off?
3- Isn’t the temperature level set to a too low level?
17
04
● If the product produces a strange noise, a burnt smell, or emits smoke, unplug
it immediately from the electrical outlet and call E’LOO Service Center. Failing to
do so may result in electric shock or fire.
● Do not insert a wire or sharp object in any product gaps or the warm air outlet.
This may result in electric shock, fire, or product damage.
● Do not place an electric heater near the product or dispose of any burning
materials such as a lit cigarette in the toilet. This may result in fire or product
deformation.
● Do not place any containers filled with water, medicine, food any metallic objects,
or any flammable material on top of the product. If foreign material enters the
product, this may result in electric shock or fire.
● Do not use the product in locations exposed to excessive moisture and do not
splash water onto the product.
● Do not use the product if it is nor working properly.
● Please unplug the product immediately, and call E’LOO Service Center after
closing the main water supply valve. Failing to do so may result in electric shock
or fire.
● While taking a shower or cleaning the bathroom, pull the power plug out of the
electrical outlet and exercise caution that water or detergent does not splash
onto the bidet. Failing to do so may result in electric shock or fire.
● If foreign material enters the product, pull the power plug out of the electrical
outlet, turn off the main water value, and call the E’LOO Service Center.
● Do not disassemble, repair, or modify the product yourself.
● Do not use the product while bathing.
● Do not place or store the product where it can fall or be pulled into a tub or sink.
● Do not place in or drop the product into water or any other liquid.
● Do not reach for the product if it has fallen into water. Unplug the product
immediately. And call the E’LOO Service Center.

05
16
Issue Possible Cause Solution
● Open the water shut-off valve
● Straighten the hose
● Clean the nozzles
● Clean the nozzle wands
Water not heated
● Make sure the bidet is plugged in
● Start the air dryer during
cleansing
● Plug in the power cord
● Start the air dryer when the
cleansing stops
Dryer malfunction
Please check the following before calling for service
Check if there is any abnormal status Please stop using.
Unplug the power cord.
Close shut-off valve.
Call the service center.
Constant leakage from product
Crack on the seat
There is no power when plug
Burnt smell near the seat
Electribity leakage
Other malfunctions
Troubleshootings
● Unplug to reset
● Ensuring the active sensor is
initiated
● Unplug and plug in again
● Move the location of remote control
● Replace the batteries
● Adjust sitting position
● Reset the seat temp.
(See remote control malfunction)
● Reset the water temp.
(See remote control malfunction)
● Reset the dryer temp.
(See remote control malfunction)
● Adjust sitting position
(See remote control malfunction)
● Is the water shut-off valve closed
● Twisted hose
● Clogged nozzles
● Dirty nozzle wand
● Washing time exceeded 3 mins
● User not proper seated
● Power failure
● Can not receive the IR signal
● LED of remote control is flashing
● User not proper seated
● Seat temp. set to off
● Remote malfunction
● Water temp. set to off
● Remote malfunction
● Dryer temp. set to off
● Remote malfunction
● User not proper seated
● Remote malfunction
Press the button
but the bidet does
not work
Low water pressure
or no water supply
Water shuts off
unexpectedly
Remote control
malfunction
Seat not heated
Deodorant
malfunction
CAUTION:
● Do not block the warm air outlet with your hand.
● Close supervision is necessary when this product is used by children or persons
requiring general assistance.
● Use this product for its intended use only, as described in this manual. Do not use
any attachments that are not recommended by E’LOO.
● Never block the air openings of the product or place it on a soft surface, such as
a bed or couch, where the air openings may be blocked. Keep the air openings
free of lint, hair, etc.
● Never drop or insert any object into any opening or hose.
● Do not use the product outdoorsor operate where aerosol (spray) products are
being used or where it could be exposed to oxygen.
● Unplug this product before filling. Fill (reservoir) with water only unless otherwise
specified by the manufacturer. Do not overfill (or specify filling instructions).
Failure to observe the following warnings may result in electric shock, fire, personal
injury, property damage or product damage:
● Do not connect the main water to the hot water pipe (only connect to cold water
supply).
● After the installation, make sure to check all water supply connections for leaks.
Rubber washers should be in place for the water connection hoses & T-Valve.
● Exercise caution that urine does not come into contact with the nozzles or warm
air dryer outlet-failure to do so may result in bad odors or malfunction.
● If the product will not be used for a long period of time unplug the power cord,
close the main water supply valve, and drain any water in the water tank.
● Do not pull out the bidet hose or connection hose using excessive force.
● This appliance is not intended for use by persons [including children] with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety. Children should be supervised
to ensure that they do not play with the appliance.

15
06
Grounding & GFI Outlet Instructions
Release the product by pressing the quick release button and pull out
the product.
Drain the water from the tank by unscrewing the tank closer by coin.
After drain the tank water then screw on the closer properly.
Open the water supply valve of the 85 Series.
Plug in the power cord.
In case the product is not use for a long period, we recommend to
fully respect following operation :
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
STEP 1
STEP 2
Unplug the power cord.
Turn off the tap water shut-off valve.
PRIOR TO REUSE THE 85 Series :
DANGER : Improper use of the grounding plug can result
in a risk of electric shock.
● If repair or replacement of the cord or plug is necessary, do not connect the
grounding wire to either flat blade terminal. The wire with insulation having an
outer surface that is green with or without yellow stripes is the grounding wire.
● Check with a qualified electrician or serviceman if the grounding instructions
are not completely understood, or if in doubt as to whether the product is
properly grounded.
If it is necessary to use an extension cord, use only a three wire extension
cord with a threeblade grounding plug, and a three-slot receptacle that will
accept the plug of the product. Replace or repair a damaged cord immediately.
This product should only be used
with a grounded GFI (Ground Fault
Interrupter) outlet and a grounded
3 prong electrical cord as shown in
figure A. In the event of an
electrical short circuit, using a
grounded GFI outlet reduces the
risk of electric shock.
This product is equipped with
agrounded cord and is for use on a
nominal 110V/220V circuit only (min 15 amps) and must be plugged into
an outlet that is properly grounded with a GFI breaket as shown. Replace
or repair a damaged cord immediately.
GroundGFI Outlet Bidet Seat Cord
with Grounding Pin
Grounding Pin
Receptacle
test
reset
Receptacle
test
reset
Europe USA
figure A
Extension Cord

0714
Maintenance
STOP
Do not bend or pinch the hose : It
could affect the normal water
supply and cause malfunction or
improper working.
If the product is not to be used for an extended period of time, unplug the power
cord. Never operate this product if it has a damaged cord or plug, if it is not working
properly, if it has been dropped or damaged, or dropped into water. Return the
product to a service center for examination and repair. Connect this product to a
properly grounded outlet only. Refer to the Grounding Instructions.
Set the temperature of wash
spray, warm air dryer, and seat to
“low” or “off” to prevent burning.
Do not self disassemble, repair
or modify the seat. Do not water on the seat directly,
this could result in damage.
Do not use hard brushes or
abrasive cetergent to clean this
product.
Use only neutral detergent and
a damp soft cloth for cleaning.
Keep any flammable material
away from the seat all the time to
prevent a fire hazard happen.
Do not stand or weight heavily
on the seat to prevent seat
cracking or causing people injury.
During low water pressure, skin
burn may occur due to the water
temperature coming out from
the nozzles increase rapidly.
Extra care is needed.
Avoid dropping the remote or
getting wet : it will cause
malfunction.
Do not press the buttons using
excessive force.
Do not use the product if it is working improperly,
and call for Service :
The product should be used with
correct electrical current only to
avoid possible fire or shock. An
approved residual current device
(RCD) must be used.
1
Cleaning The Seat
1. Apply to soft detergent on brush to
clean nozzles and wands regurarly.
3Cleaning The Nozzles
Do not spray water or cleaner directly on the seat. Wipe the product and
components with a soft damp cloth.
Please keep dry and well ventilated place where installed the seat. A humid
environment should cause the seat malfunction.
Apply to water, 75% diluted alcohol or
soft detergent on soft cloth for wiping
clean the seat.
2Cleaning The Toilet Fixture
1. Press the detach button to remove
the seat.
2. Clean up the corner and surface
of toilet fixture.
3. Re-install the seat onto toilet fixture
and make it sure mounted
properly with hearing “click” sound.
Detached
button
Remove from the toilet
Re-install the seat

13
08
LED night light that illuminates the
entire toilet bowl. It makes toilet
environment more comfortable and
safety.
Night Light
Two self-cleaning retractable
wands are designed, one for the
family cleanse and another one for
the lady cleanse.
Dual Nozzle Design
The all-new UV light device eliminates
germs and harmful bacteria for
improved hygiene.
UV Sterilization (Optional)
It is programmed to eliminate the
odors when someone is pressing
the button to turn on.
Active Carbon Deodorization
(Optional) The nozzles and seat made by a
special germ-resistant platic that
offers up to 99.8% of anti-bacteral
protection.
Anti-Bacterial Material
Push the button located at the
back right side of the seat, and
you can release the seat from the
mounting plate friendly.
Quick Release
The design allows the seat and lid
to close softly which is safety and
less noisy.
Gentle Closing Seat & Lid
A built-in filter that purifies the
water before going into the
product.
Built-In T-Valve
It adopts a power saving feature to
make power conservation when it
is not in use.
Power Save Model
The advanced technology-touch
panel with device on the unit, you
can recharge the battery simply
plug into the port on the product
Remote Control
Accomodate most toilet fixtures in
the market. Also, installing seat is
simple and does not require to
renew the old toilet installment.
Fit Most Toilet Fixtures
A rear wash with stream of water
which cleans an individual’s
posterior more thoroughly.
Family Wash
Providing an additional touch of
tender service to dry the moisture
that staying on the buttock after
washing and less toilet paper usage.
Warm Air Dryer
Warm Seat
Adjust the seat temperature to their
preferred temperature in accordance
with the external weather conditions as
well as their personal needs.
The unique nozzle design that
produces concentrated and
spraying swirls of water which
ultimately promotes cleanness with
its massaging effects.
SPA Wash
A smoothing, non irritating
washing much providing more
comfortable, hygienic,
experience.
Lady Wash
STOP
Toilet Fixture
T-Valve
Water Shut-off Valve
Lid
Family Wash
Night Light
(Optional)
Seat
UV Sterilizer
(Optional)
Lady Wash
Water Supply Hose
Detached Button
Filter
Power Cord
Remote Control
Remote Mounting
T-valve x1 / Hose x1
Instruction T-valve & HoseParts
Mounting Plate x1
Metal
Washer x2 Plastic Nut x2
Screw x2 Washer x2
Remote Control
STOP
Washer x2
Washer x2
Not
Including
Remote Control
Mount x2

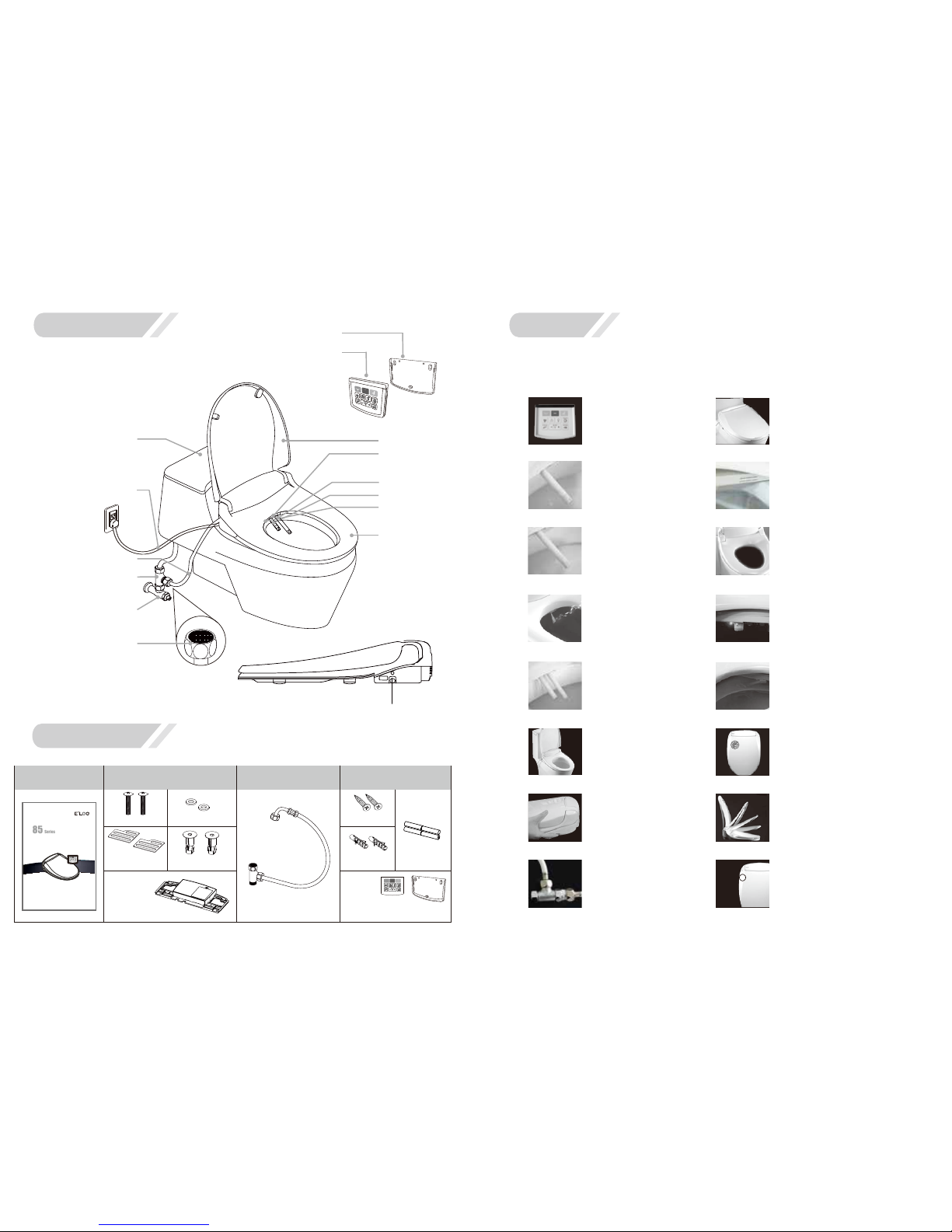

Configuration
Accessories
Features
It is the way - Water wash is the most cleaning as well as refreshing
your body after toilet.
USER MANUAL
Thank you for purchasing E’LOO electronic bidet.
Pleaseread carefully before product installation and keep in a place you can reach easily.
85 Series
www.eloo.com.tw
STOP

Active Sensor
figure 1
IR receiver /
Spare cleaning button
Important Notice
※ Ensuring Activation of the Product
Function buttons can only be activated while the active sensor (please refer
to figure 1) is initiated.
※Water Comes out near the Nozzles
1. If water comes out near the nozzles, there are two possibilities:
a. Nozzles self-cleaning
b. Releasing remained water in the pipe
※ Nozzles Self-Cleaning and UV Sterilization (Option)
1. Nozzles self-cleaning will be activated automatically before and after each use.
2. Sixty seconds after each use, UV light will be activated automatically. The
sterilization process will be lasting for three minutes.
※Low Water Pressure
1. If the user feels the water temperature increase rapidly at low water pressure,
please lower the water temperature setting immediately to prevent possible
skin burn.
2. Please check the following for trouble shooting:
a. Supply of water : Ensuring the source of the water is working normally.
b. Shut-off valve : Ensuring the valve is opened properly.
c. T-valve filter : Ensuring the filter is not blocked.
09
12
Europe
or
USA
connect water
shut-off valve
connect water tank hose
connect to
seat
(with filter)
Step 2. Connect T-valve and Hoses
The T-valve is required to install properly as
the build-in filter keeps out the impurities from
the tap water. Failure to do so could result in
leaking.
Step 3. Install Mounting Plate
The mounting plate and washers must be
assembled correctly as instructed.
Screw
Washer
Metal Plate
Mounting Plate
Plastic Nut
Step 1. Before installation
1. Remove the existing toilet seat.
Steps may vary by type of seat.
2. Close the water supply shut-off valve near
the wall and flush the toilet to empty the
water tank.
Turn the water supply
shut-off valve clockwise
Step 4. Attaching & Detaching the
product
Slide the product onto the mounting plate. You
will hear a “Clicking” indicating the seat has
been properly attached.
Step 5. Pre-Test
1. Slide the seat onto the mounting plate.
A ”clicking” sound indicating means that the
seat has been mounted properly.
2. Turn on the water valve in place. And then
enjoy your One Touch electronic bidet.
Installation

Select the designated power saving hours by pressing button.
When the power save is ON, the bidet will be acivated when someone sits on.
Please reset if you want to continue the power save.
1. Select the designated temperature by pressing button.
2. 4 levels of seat temperature OFF-L-M-H to select.
1. Select a cleansing mode. Press or button.
2. While cleaning, press + / - button to adjust the water pressure.
3. Press STOP button to stop the cleaning.
The cleaning can last for 3 minutes then will stop automatically for safety reason.
STOP
Deodorization
Water pressure
Family Wash
Power save
Lady Wash
Water temperature
Water pressure
Night light
Heated seat
Air Dryer
Detach button
IR receiver / Spare cleaning button
Remote Mount
Battery
Cover
STOP
11
10
Spare Cleaning Button
UV Sterilizing Light
(Option)
Room temp
Status bar
Water Temp 35±2℃ 37±2℃ 39±2℃
Room temp 35±2℃
Status bar
Seat Temp 37±2℃ 39±2℃
Room temp 4 hours 8 hours 12 hours
Status bar
Hours
Remote Control Installation How To Use
Family Wash
Lady Wash
SPA Wash
Water Temperature
Dryer Temperature
Seat Temperature
Deodorization (Optional)
Night Light
Power Save
Features Instruction
1. While cleansing, press the same button to turn into SPA wash mode. SPA wash
is a massage function created by a rhythmical pulsation of water pressure.
2. Press the same button again to return the original mode.
1. Select the designated temperature by pressing button.
2. 4 levels of water temperature OFF-L-M-H to select.
1. Select the designated temperature by pressing button.
2. Please press STOP button to stop the dryer.
Press button to turn on / off deodorization.
Press button to turn on / off the night light.
The light will turn on when plug in.
Sixty seconds after each use, UV light will be activated automatically.
The sterilization process will be lasting for 3 minutes.
When the remote control is not working. You can press the round spare
cleaning button to activate Family cleanse. Press again to stop.
About the battery
● Do not use rechargeable battery.
● When replacing the battery, use new
battery of the same brand.
● If the battery leaks, please palce the
battery inside a plastic bag. And going
to the battery-recycling centers.
Identify a location for the visible and reachable from the product and that
does not obstruct the IR signal coming from the top of the remote control.
STOP
100-70
20-30
50-7050-70
100-140
40
INSTALLATION OF THE REMOTE CONTROL
Test the position of the remote contol to ensure it will
operate properly.
The transmission signal of the remote control may be
interfered by lamp of bathroom (Triphosphor lamp) or
direct rays of the sun.
Load Battery
Load the battery into the remote control
as shown below.
Tighten the battery cover with screws.
+-
-+
Low battery notification
The low battery indicating that the
LED of remote control is flashing.
