Eagle Eye Extreme HD User manual

HD119 English USER MANUAL‐ 0-
FULL HD 1080P SPORT VIDEO CAMERA
USER MANUAL
Please read this user manual carefully and thoroughly before any attempt Install and operate this product
and retain it for your future reference

HD119 English USER MANUAL‐ 1-
————————— CATALOG ——————————
PREFACE......................................................................................................- 3 -
WARNING ...................................................................................................- 4 -
MAIN FEATURES .......................................................................................- 5 -
INSTALLATION ANDS USE.........................................................................- 6 -
1. MAIN UNIT &BUTTONS............................................................................ - 6-
2. INSTALL BATTERY.................................................................................... - 7-
3. INSTALL SD/SDHC CARD........................................................................ - 8-
4. INSTALL BRACKET ................................................................................. - 10 -
5. ADJUST LENS AZIMUTH .......................................................................... - 11 -
6. RECORD AND CAPTURE......................................................................... - 12 -
7. PLAYBACK VIDEO CLIPS......................................................................... - 13 -
8. PLAYBACK PHOTOS ............................................................................... - 14 -
9. HDMI TV PLAYBACK............................................................................. - 15 -
10. CONNECT WITH PC VIA USB............................................................... - 16 -
POWER CHARGER....................................................................................- 17 -
1. INSTALL OF BATTERY............................................................................ - 17 -
2. CHARGING THE BATTERY ....................................................................... - 17 -
3. BATTERY CHARGING TIME &OPERATING TIME ....................................... - 18 -
4. BATTERY REMAINING STATUS................................................................ - 19 -
MAIN MENU ICON INTRODUCE ...............................................................- 20 -
VIDEO SETTING.........................................................................................- 22 -
1. VIDEO MODE ......................................................................................... - 22 -
2. MOTION DETECT.................................................................................... - 23 -
3. TIME REC SETTING................................................................................ - 23 -
4. AUTO REC SETTING .............................................................................. - 25 -

HD119 English USER MANUAL‐ 2-
————————— CATALOG ——————————
5. LOOP SETTING ...................................................................................... - 26 -
6. VIDEO SIZE SETTING .............................................................................. - 27 -
7. REC CONTENT SETTING ........................................................................ - 28 -
9. PHOTO SIZE SETTING............................................................................. - 29 -
SYSTEM SETTING.....................................................................................- 30 -
1. LANGUAGE SETTING ............................................................................... - 30 -
2. DATE SETTING ...................................................................................... - 31 -
3. TIME SETTING ........................................................................................ - 32 -
4. IMAGE FLIP SETTING............................................................................... - 33 -
5. LIGHT FREQUENCY SETTING................................................................... - 34 -
6. AUTO POWER OFF SETTING ................................................................... - 35 -
7. AUTO SCREEN OFF SETTING .................................................................. - 36 -
8. VOLUME SETTING................................................................................... - 37 -
9. FORMATTING SETTING ........................................................................... - 38 -
10. CHECK SD INFORMATION.................................................................... - 39 -
11. RESET................................................................................................ - 40 -
12. UPDATE ............................................................................................... - 41 -
GENERAL SPECIFICATION......................................................................- 44 -
CHARGER SPECIFICATION......................................................................- 46 -
1. CHARGER.............................................................................................. - 46 -
2. OPTION OF PLUG：................................................................................ - 46 -
ACCESSORIES INTRODUCE....................................................................- 47 -
FITTINGS：................................................................................................. - 47 -

HD119 English USER MANUAL‐ 3-
————————— PREFACE ——————————
Thank you for choosing the HD119 1080p Full HD Helmet DV to pursue
your digital video adventures. Whether you are racing at the track, pedaling
through the woods or gliding through fresh powder, to get the utmost
satisfaction from your digital video, please take a moment to read this manual
carefully so to operate the DV properly. If you encounter any difficulty in
reading this guide, please turn to a knowledgeable person for help.
APPROVAL INFORMATION:
All our products meet the requirements of approval FCC or CE, and are
granted the FCC or CE certification. They are authorized to bear FCC or CE
mark.
FCC:
This product has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
CE:
This product complies with standards including Low Voltage Device
Directive 73/23/EEC; EMC Directive 89/336/EEC and R&TTE
Directive1999/5/EC. It passed the subject tests by the authority concerned and
is authorized to bear CE mark.
ABOUT THE MANUAL:
We do our best to ensure all content and details contained within this
manual are accurate and up to date with the product specifications at the time
of printing this manual. However, product functions and specifications may
change without notice. In the event that the manual information does not
match the actual product functions or specifications, the products functions or
specifications will be considered correct and the manual’s considered incorrect.

HD119 English USER MANUAL‐ 4-
————————— WARNING ——————————
Do not store the device in any place with following conditions:
- High temperature (45℃or higher)
- Exposure to the direct sunlight or a heating device
- Inside the car with closed windows (especially, in the summer)
- Humid place such as the bathroom
When removing dust, use soft, dry cloth. Do not use organic solvents such
as thinner or benzene or wet cloth.
Do not place a debit card or a bus pass near the speakers. Magnetic
interference may occur, which will damage the card.
Do not place the device near a magnet. The device may not work properly.
Do not repair, disassemble, or remodel the device. Incorrect repairing may
cause electric shock and data loss saved in the product and void your
warranty.
Do not use the product in a place where use of electronic devices is
prohibited.
Do not operate or set up this device while driving. If it is required to change
set up, please do it after pulling over the car or before driving.
Do not heat up or short the main body or the battery.
Do not disassemble the battery.
Batteries are to be inserted with correct polarity according to the direction
shown in the manual.
When using an auxiliary device, leave a gap between the auxiliary device
and the main device.
Keep the device out of reach of children.
Waterproof Capability
-The waterproof capability of this DV is similar as IPX6;
-Please do not use the DV under water;

HD119 English USER MANUAL‐ 5-
————————— Main Features ——————————
1.5inch TFT LCD(480 x 240 dots)
5.0 MP High definition CMOS image sensor
1080p H.264 .MOV video recording format
Water Resist
Easy operation for recording and taking a picture
Optional recording resolution:
Full HD 1920 x 1080p 30FPS
1440 x 1080p 30 FPS
HD 1280 x 720p 30 FPS
WVGA 848 x 480 60 FPS
Optional picture resolution: 4000 x 3000 12M
4000 x 3000 12M
3200 x 2400 8M
2592 x 1944 5M
Video and Picture playback available
Internal SD card reader for memory expand(SDHC 1GB~32GB
available)
High speed USB2.0 interface for power charge and data transfer
HDMI 1080p output
3.7V 1300mA removable and rechargeable Li-ion battery
Secure mounts for different use

HD119 English USER MANUAL‐ 6-
—————————— Installation ands use ————————

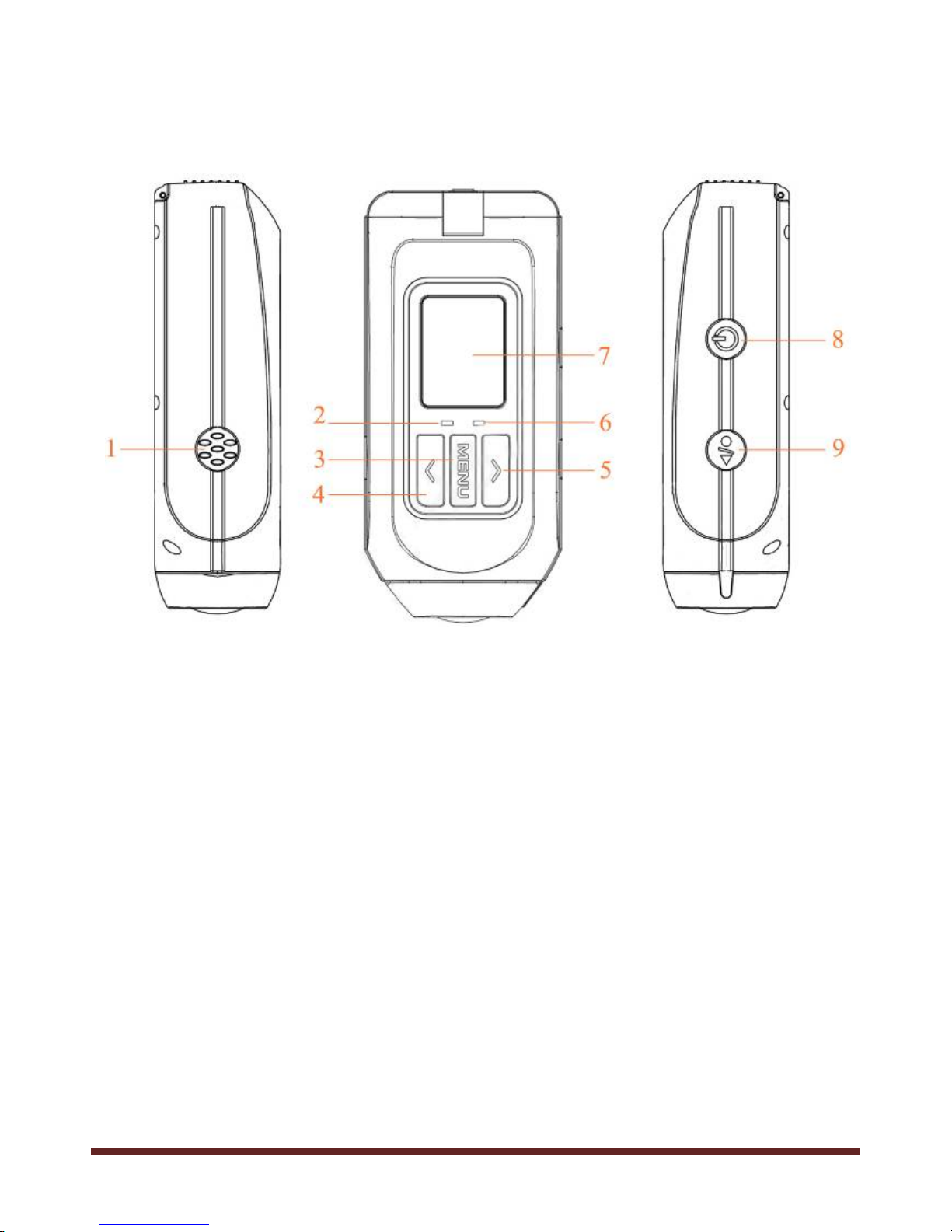

1. Main Unit & Buttons
1. MIC
2. Power on Red/Power charging Green indicator
3. MENU button
4. Down/ Fast Forward
5. Up/ Rewind
6. Recording indicator
7. 1.5inch LTPS LCD
8. Power ON/OFF, / Picture Capture
9. Record/Play/Confirm,

HD119 English USER MANUAL‐ 7-
————————— Installation and use —————————

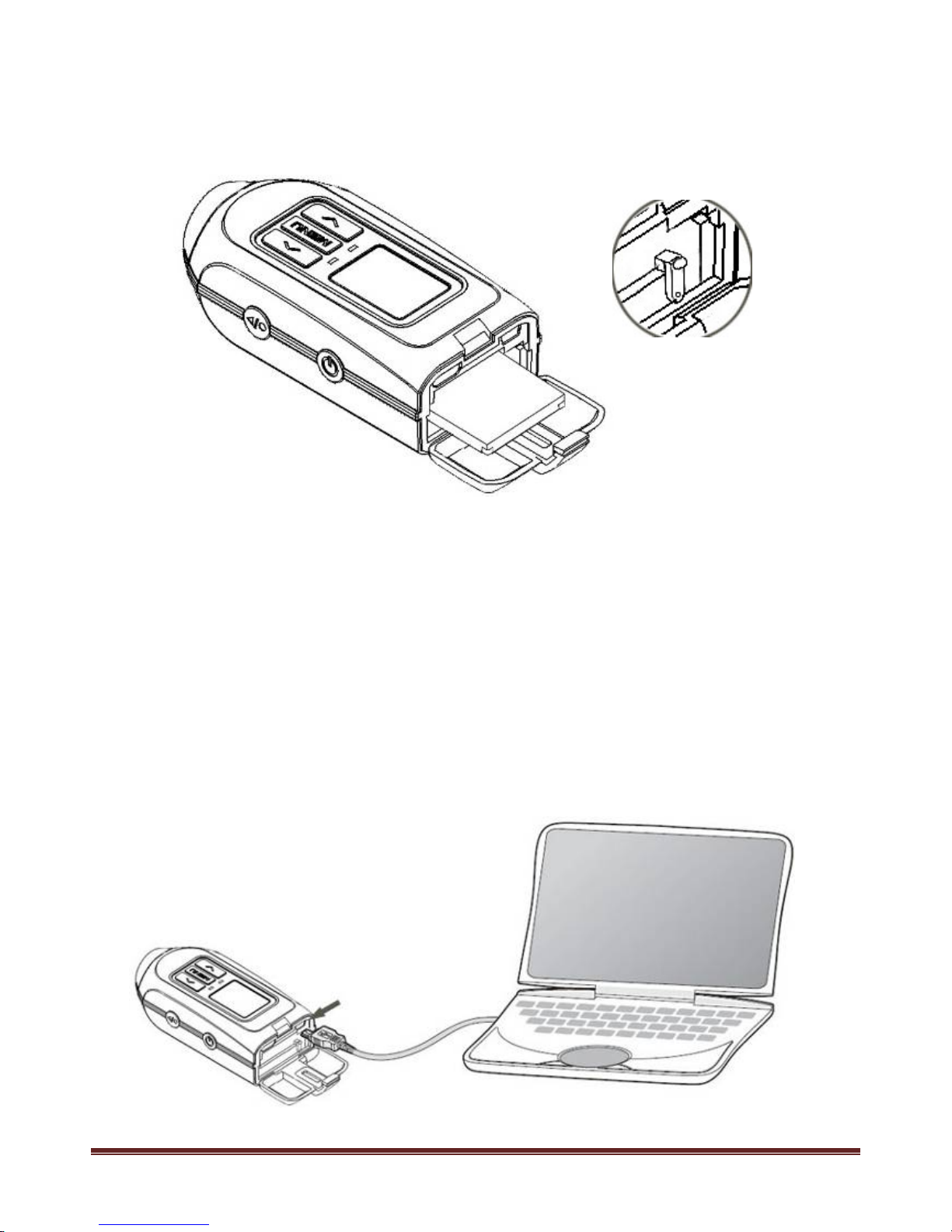

2. Install battery
Please install battery according to below diagram thoroughly.
Incorrect installation: the tag face is above.
Correct installation: the tag face is below.
Rotate locking tab as shown. Close and latch battery door fully before use.

HD119 English USER MANUAL‐ 8-
————————— Installation and use —————————

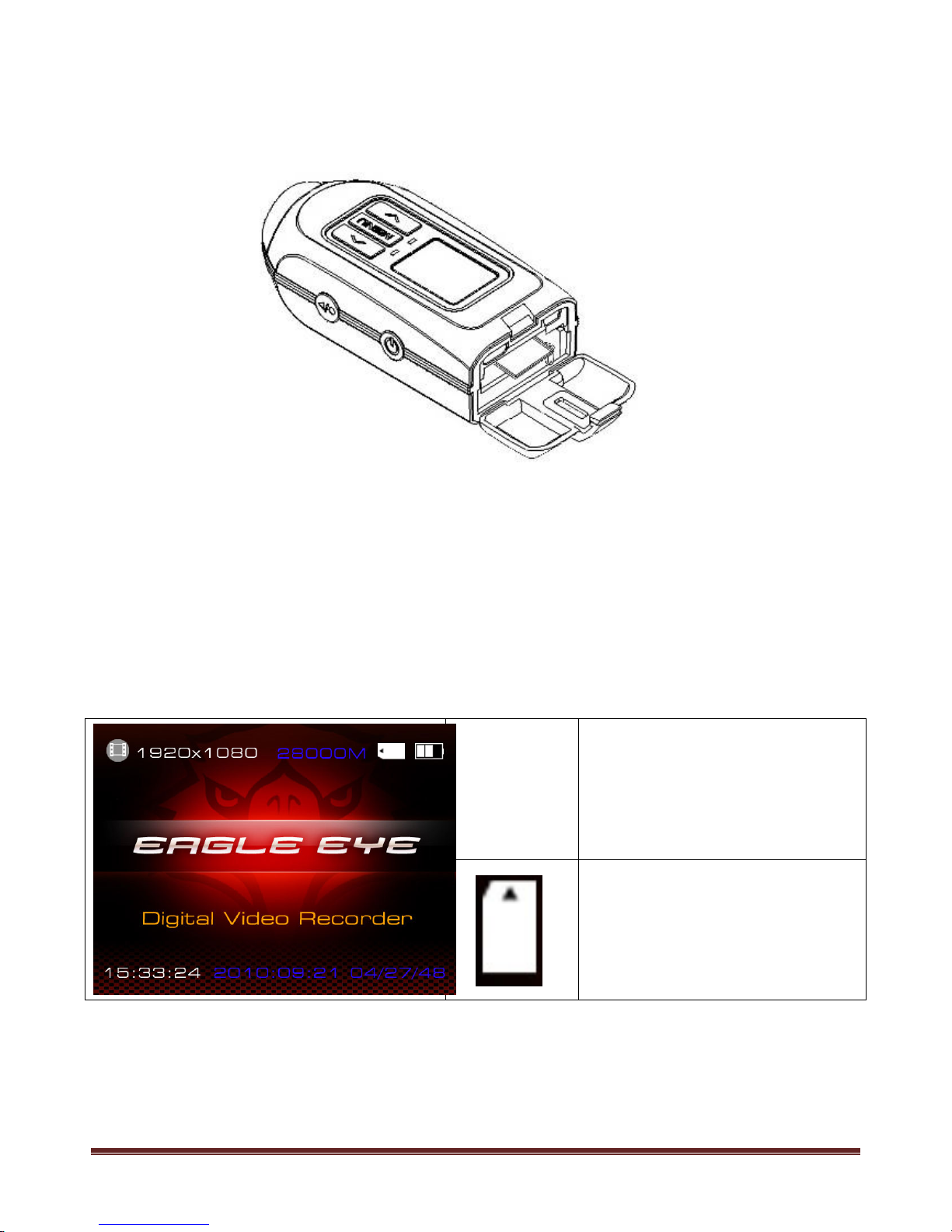

3. Install SD/SDHC Card
1). Installation of SD/SDHC card
Please install SD/SDHC card according to below diagram thoroughly.
Incorrect installation: the tag face is above
Correct installation：the tag face is below

HD119 English USER MANUAL‐ 9-
————————— Installation and use —————————
2). Card Type and Capacity
A, The DV built in 32MB ROM memory is for system files only.
B, The DV built in SD card reader supports SD and SDHC cards up to 32GB.
Note: Some SD or SDHC cards may not work properly. SD/SDHC cards
made by Sandisk are strongly recommended.
3). Checking the Memory:
User should check if the SD/SDHC card is installed well before using the DV.
Internal Memory
External
memory(SD/SDHC
card)
Please install the SD/SDHC card correctly, the side with metal faces up, the
side with character faces down.

HD119 English USER MANUAL‐ 10 -
————————— Installation and use —————————

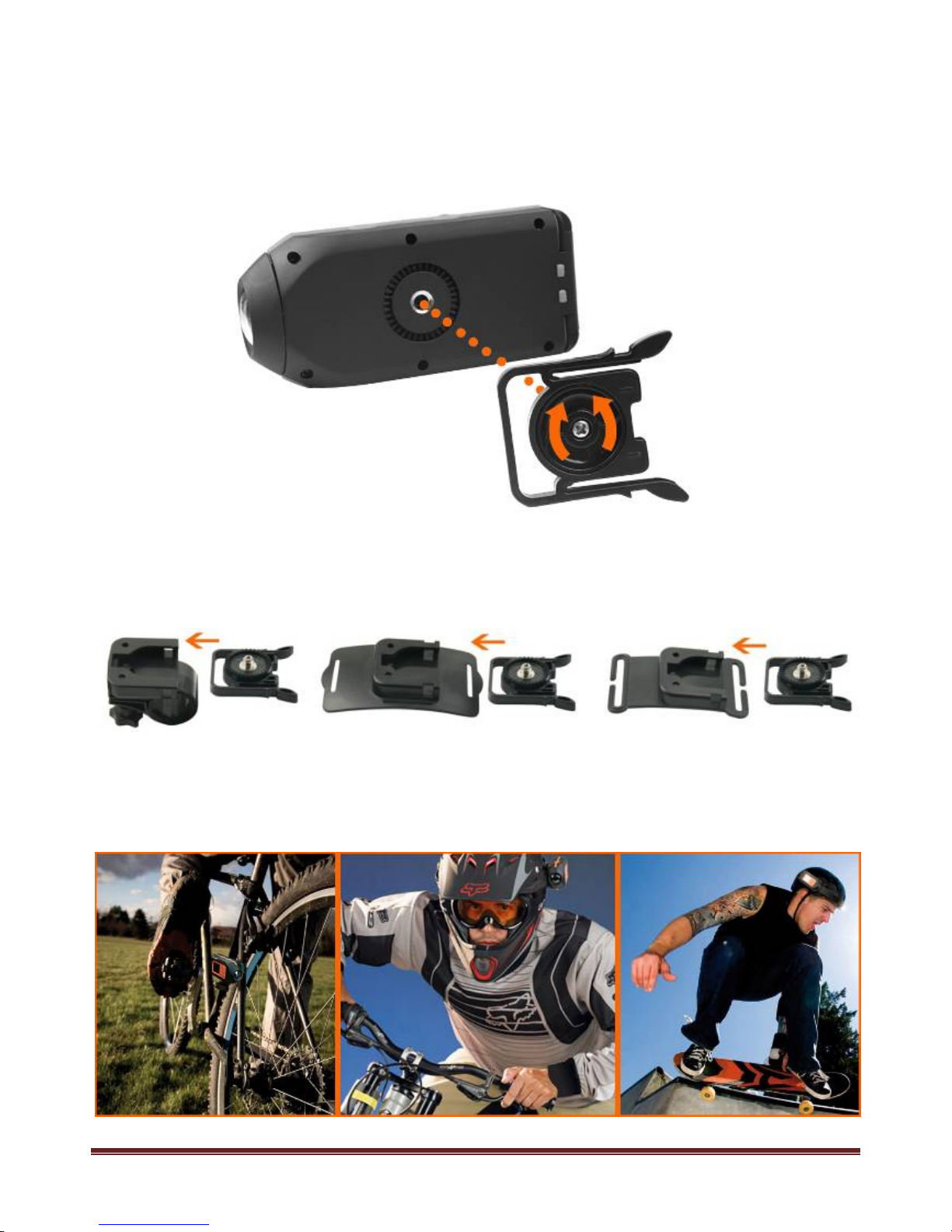

4. Install bracket
Fixing the common gear wheel to the DV house
Mounting the gear wheel with Handlebar grip、Helmet grip or Goggle Mount
Some illustration for using

HD119 English USER MANUAL‐ 11 -
————————— Installation and use —————————

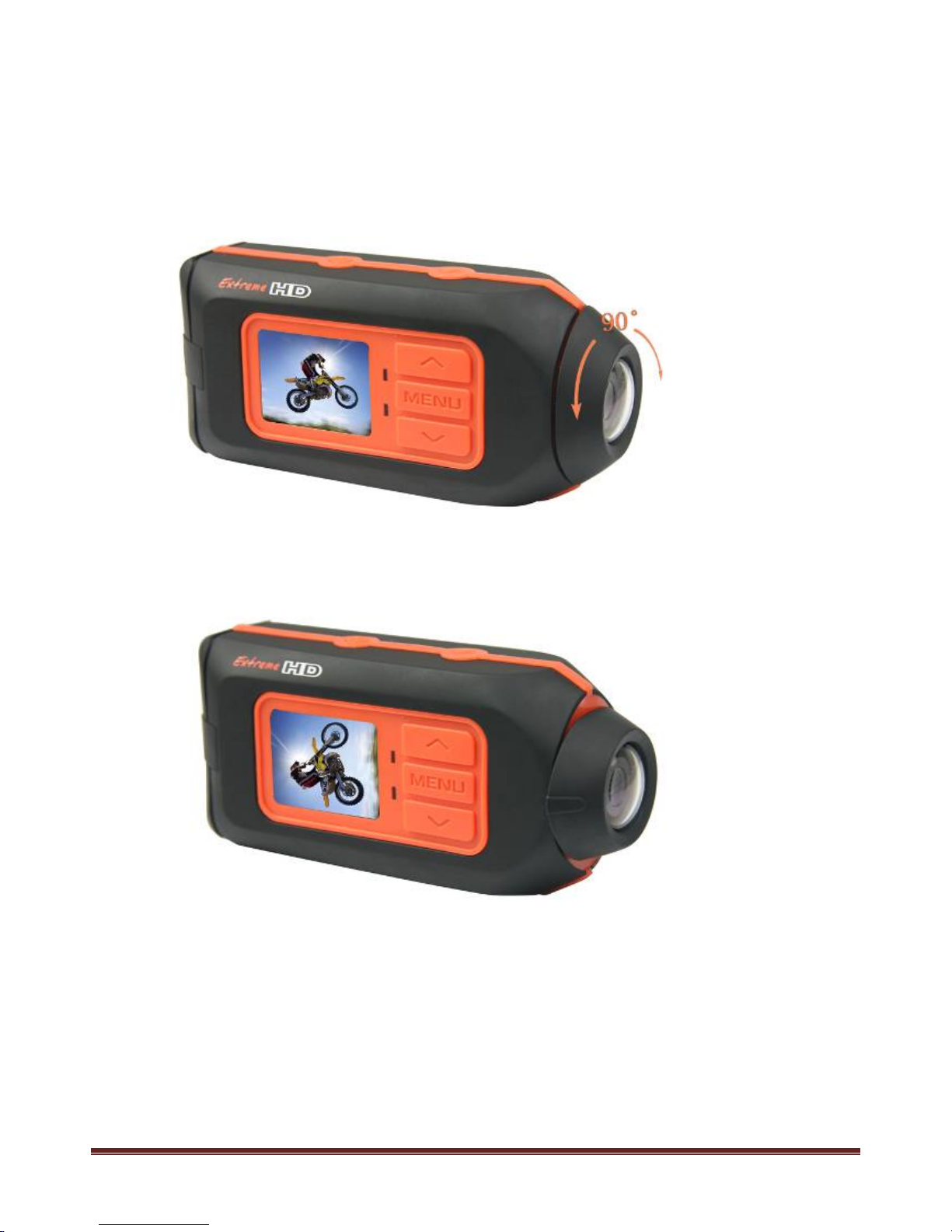

5. Adjust lens azimuth
Rotate the lens -90 ~ +90 degree by different mounting desired.
Rotate the lens 90 degree anticlockwise
NOTICE:
The rotated range is from -90〫to +90〫, rotate fiercely or overly may
cause structure damage.

HD119 English USER MANUAL‐ 12 -
————————— Installation and use —————————

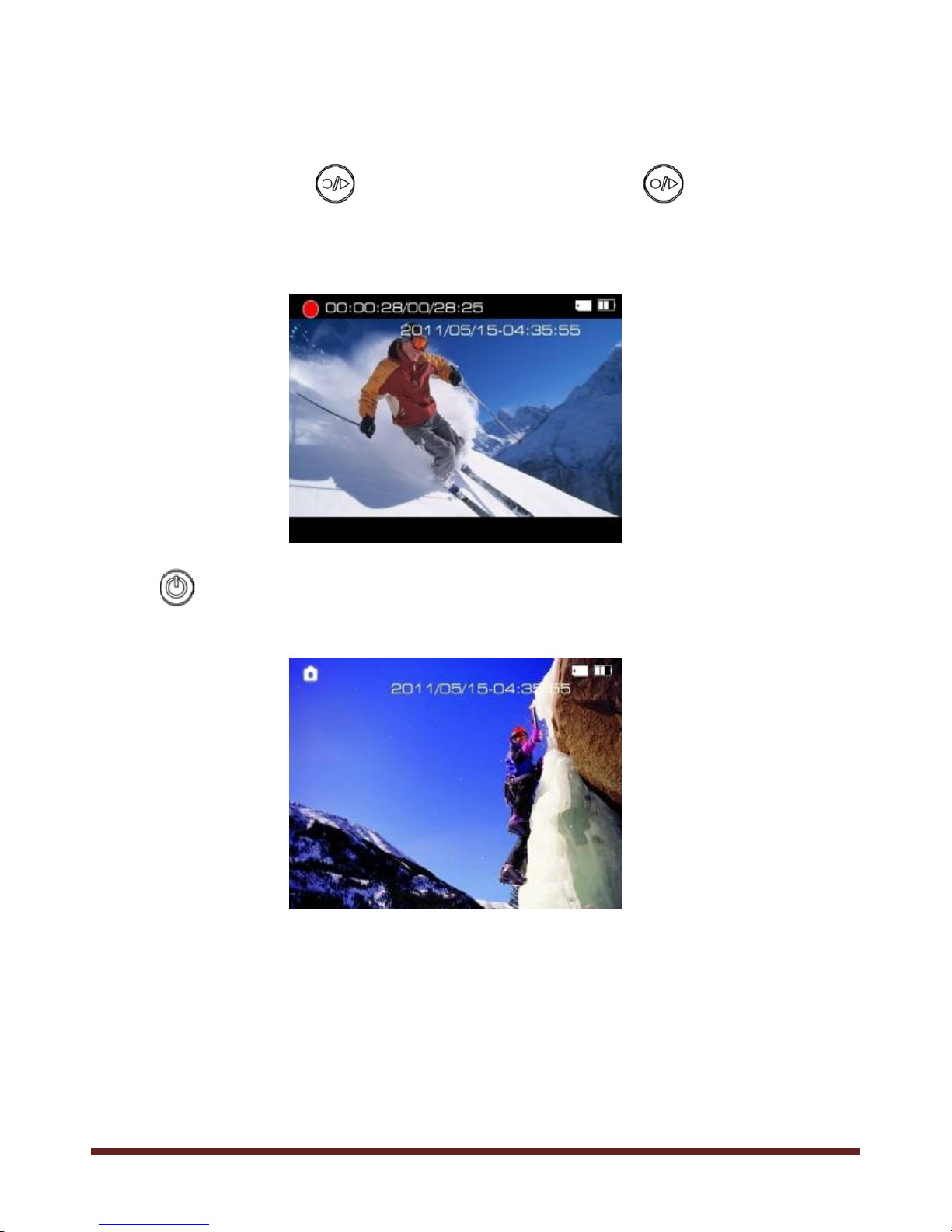

6. Record and Capture
Power on DV，press button to recording，press button again to
stop and save the video clip.
Press button to capture and save a photo.

HD119 English USER MANUAL‐ 13 -
————————— Installation and use —————————
7. Playback Video clips
Long press button to enter main menu, select video playback icon
and then press button to enter, and the photo thumbnails will display on
the screen as 2x3 matrix.
Press to select, and then press button twice to
play the clip selected.
Press button again to pause.
Long press button to enter <Delete> dialog in play or pause status.

HD119 English USER MANUAL‐ 14 -
————————— Installation and use —————————
8. Playback photos
Long press button to enter main menu, select photo playback icon
And then press button to enter, and the photo thumbnails will display
on the screen as 2x3 matrix.
Press button to select, and then press button to
playback the photo selected.
Long press button to enter <Delete> dialog in play status.

HD119 English USER MANUAL‐ 15 -
————————— Installation and use —————————
9. HDMI TV Playback.
Connect the DV with TV by HDMI cable, power on the DV, switch the TV to
HDMI input mode.
Press button to power on the DV, long press to enter main
menu, press to select Video playback or Photo playback,
and press to enter.
And the file thumbnails will display on the screen as 2x3 matrix.
Press to select and press to playback the selection,
press to toggle backward/ forward selection
X2/X4/X8/X1(default)
On pause or stop status press to return.
Attention ：
The output resolution is 1080p （ @1440x1080 ） or 1080i （ @1920x1080 ） in
playback condition, 480i in other status, some TV would not display correctly
that because the TV does not support 1080P HD input, the DV will recognize
the TV system when connected.

HD119 English USER MANUAL‐ 16 -
————————— Installation and use —————————
10. Connect with PC via USB
Connect HD119 with PC via the provided USB cable for downloading or
uploading files and updating firmware
 Connect the DV with Computer by the USB cable
 Power on the DV
 The screen of the DV will display “USB connected” .
Attention：User can not do any operation on the DV after connected with the
computer, only operation in computer available.

HD119 English USER MANUAL‐ 17 -
—————————— Power Charger ——————————
1. Install of Battery
To install the battery, open the battery door by sliding the latch up (Latch is
tight. You may need to use a coin). Insert battery and rotate locking tab as
shown. Close and latch battery door fully before use.
2. Charging the battery
A. Charging by connecting to PC
User can charge HD119 by connecting the USB cable to a computer or by
using the AC Adaptor.

HD119 English USER MANUAL‐ 18 -
—————————— Power Charger ——————————
B. Charging With AC/DC Adaptor
C. Charging With Cigar-lighter
NOTE:
The battery is charging so long as connect with computer, please power
off the DV to save the charging time.
The maker strongly recommends using a supplied AC/DC adaptor, but if
it is necessary that another AC/DC adaptor is purchased separately at a
shop, please check its electric specification is in accordance with
HD119's specification.
3. Battery Charging Time & Operating Time
Charging Time Continuous play
time Recording time
Approx. 5hrs in Power On
Approx. 3hrs 30mins in Power
Off
Approx ：4 hours
Approx ：2 hours and
30 minutes（1080P）

HD119 English USER MANUAL‐ 19 -
————————— Power Charger ——————————
4. Battery Remaining Status
Full
Some Power
Consumed
Power almost
drained
No Power
To make sure the battery and power charger work as long as possible.
Do not leave unit plugged in for extended periods. Excessive power
charging will reduce the battery working life and possibly damage the unit;
The battery will gradually loose charge when not in use. Always charge it
prior to use.
Please disconnect power when unit is not in use.
For the first time usage, charge the battery at least 12 hours. Make sure
power off when charging battery
