Eagle Eye Sport Ocean HD User manual

FHD Oceans English USER MANUAL - 0 -
FULL HD 1080P SPORT VIDEO CAMERA
USER MANUAL
Please read this user manual carefully and thoroughly before any attempt Install and operate this product
and retain it for your future reference

FHD Oceans English USER MANUAL - 1 -
————————— CATALOG ———————————
WARNING........................................................................................................ - 4 -
INSTALLATION AND USE............................................................................ - 6 -
1. MAIN UNIT................................................................................................... - 6-
2. REMOTE CONTROL............................................................................................ - 7-
3. INSTALL BATTERY ....................................................................................... - 8-
4. INSTALL SD/SDHC CARD.......................................................................... - 9-
5. INSTALL BRACKET..................................................................................... - 11 -
6. ADJUST LENS AZIMUTH............................................................................. - 12 -
7. RECORD AND CAPTURE .......................................................................... - 13 -
8. PLAYBACK VIDEO CLIPS........................................................................... - 14 -
9. PLAYBACK PHOTOS .................................................................................. - 15 -
10. HDMI TV PLAYBACK............................................................................. - 16 -
11. CONNECT WITH PC VIA USB................................................................. - 17 -
POWER CHARGER..................................................................................... - 18 -
1. INSTALL OF BATTERY............................................................................. - 18 -
2. CHARGING THE BATTERY........................................................................ - 18 -
3. BATTERY CHARGING TIME &OPERATING TIME .................................... - 19 -
4. BATTERY REMAINING STATUS................................................................ - 20 -
MAIN MENU ICON INTRODUCE............................................................... - 21 -
VIDEO SETTING........................................................................................... - 23 -
1. VIDEO MODE ........................................................................................... - 23 -
2. MOTION DETECT..................................................................................... - 24 -
3. TIME REC SETTING................................................................................. - 24 -
4. AUTO REC SETTING ............................................................................... - 26 -
5. LOOP SETTING ........................................................................................ - 27 -
6. VIDEO SIZE SETTING............................................................................... - 28 -
7. REC CONTENT SETTING......................................................................... - 29 -

FHD Oceans English USER MANUAL - 2 -
————————— CATALOG ———————————
8. PHOTO SIZE SETTING.............................................................................. - 30 -
SYSTEM SETTING....................................................................................... - 31 -
1. LANGUAGE SETTING ................................................................................ - 31 -
2. DATE SETTING........................................................................................ - 32 -
3. TIME SETTING.......................................................................................... - 33 -
4. IMAGE FLIP SETTING................................................................................ - 34 -
5. LIGHT FREQUENCY SETTING................................................................... - 35 -
6. AUTO POWER OFF SETTING................................................................... - 36 -
7. AUTO SCREEN OFF SETTING.................................................................. - 37 -
8. VOLUME SETTING.................................................................................... - 38 -
9. FORMATTING SETTING ............................................................................ - 39 -
10. CHECK SD INFORMATION .................................................................... - 40 -
11. RESET................................................................................................... - 41 -
12. UPDATE.................................................................................................. - 42 -
GENERAL SPECIFICATION....................................................................... - 45 -
CHARGER SPECIFICATION...................................................................... - 47 -
1. CHARGER ................................................................................................ - 47 -
2. OPTION OF PLUG：................................................................................. - 47 -
ACCESSORIES INTRODUCE.................................................................... - 48 -
FITTINGS ....................................................................-48 -

FHD Oceans English USER MANUAL - 3 -
————————— PREFACE ——————————
Thank you for choosing the DV 1080p Full HD Helmet DV to pursue your
digital video adventures. Whether you are racing at the track, pedaling through
the woods or gliding through fresh powder, to get the utmost satisfaction from
your digital video, please take a moment to read this manual carefully so to
operate the DV properly. If you encounter any difficulty in reading this guide,
please turn to a knowledgeable person for help.
APPROVAL INFORMATION:
All our products meet the requirements of approval FCC or CE, and are
granted the FCC or CE certification. They are authorized to bear FCC or CE
mark.
FCC:
This product has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
CE:
This product complies with standards including Low Voltage Device
Directive 73/23/EEC; EMC Directive 89/336/EEC and R&TTE
Directive1999/5/EC. It passed the subject tests by the authority concerned and
is authorized to bear CE mark.
ABOUT THE MANUAL:
We do our best to ensure all content and details contained within this
manual are accurate and up to date with the product specifications at the time
of printing this manual. However, product functions and specifications may
change without notice. In the event that the manual information does not
match the actual product functions or specifications, the products functions or
specifications will be considered correct and the manual’s considered incorrect.

FHD Oceans English USER MANUAL - 4 -
————————— WARNING ——————————
Do not store the DV in any place with following conditions:
- High temperature (45℃or higher)
- Exposure to the direct sunlight or a heating device
- Inside the car with closed windows (especially, in the summer)
- Humid place such as the bathroom
When removing dust, use soft, dry cloth. Do not use organic solvents such
as thinner or benzene or wet cloth.
Do not place a debit card or a bus pass near the speakers. Magnetic
interference may occur, which will damage the card.
Do not place the DV near a magnet. The DV may not work properly.
Do not repair, disassemble, or remodel the DV. Incorrect repairing may
cause electric shock and data loss saved in the product and void your
warranty.
Do not use the product in a place where use of electronic devices is
prohibited.
Do not operate or set up this DV while driving. If it is required to change set
up, please do it after pulling over the car or before driving.
Do not heat up or short the main body or the battery.
Do not disassemble the battery.
Batteries are to be inserted with correct polarity according to the direction
shown in the manual.
When using an auxiliary device, leave a gap between the auxiliary device
and the main device.
Keep the DV out of reach of children.
Waterproof Capability
-The waterproof capability of this DV: Under water 10 meters,
>1 Hour

FHD Oceans English USER MANUAL - 5 -
————————— Main Features ——————————
2.0 inch TFT LCD(960 x 240 dots)
5.0 MP High definition CMOS image sensor
Angle of View: 170ºultra wide angle in WVGA, 720p,
Angle of View: 127ºwide angle in 1080p mod
1080p H.264 .MOV video recording format
Water Proof
Radio Frequency remote controller
GPS Built in
Easy operation for recording and taking a picture
Optional recording resolution:
Full HD 1920 x 1080p 30FPS
1440 x 1080p 30 FPS
HD 1280 x 720p 30 FPS
WVGA 848 x 480 60 FPS
Optional picture resolution: 4000 x 3000 12M
3200 x 2400 8M
2592 x 1944 5M
Video and Picture playback available
Internal Micro SD card reader for memory expand(SDHC 1GB~32GB
available)
High speed USB2.0 interface for power charge and data transfer
HDMI 1080p output
3.7V 1300mA removable and rechargeable Li-ion battery
Secure mounts for different use

FHD Oceans English USER MANUAL - 6 -
—————————— Installation and use ————————
1. Main Unit

FHD Oceans English USER MANUAL - 7 -
———————— Installation and use —————————

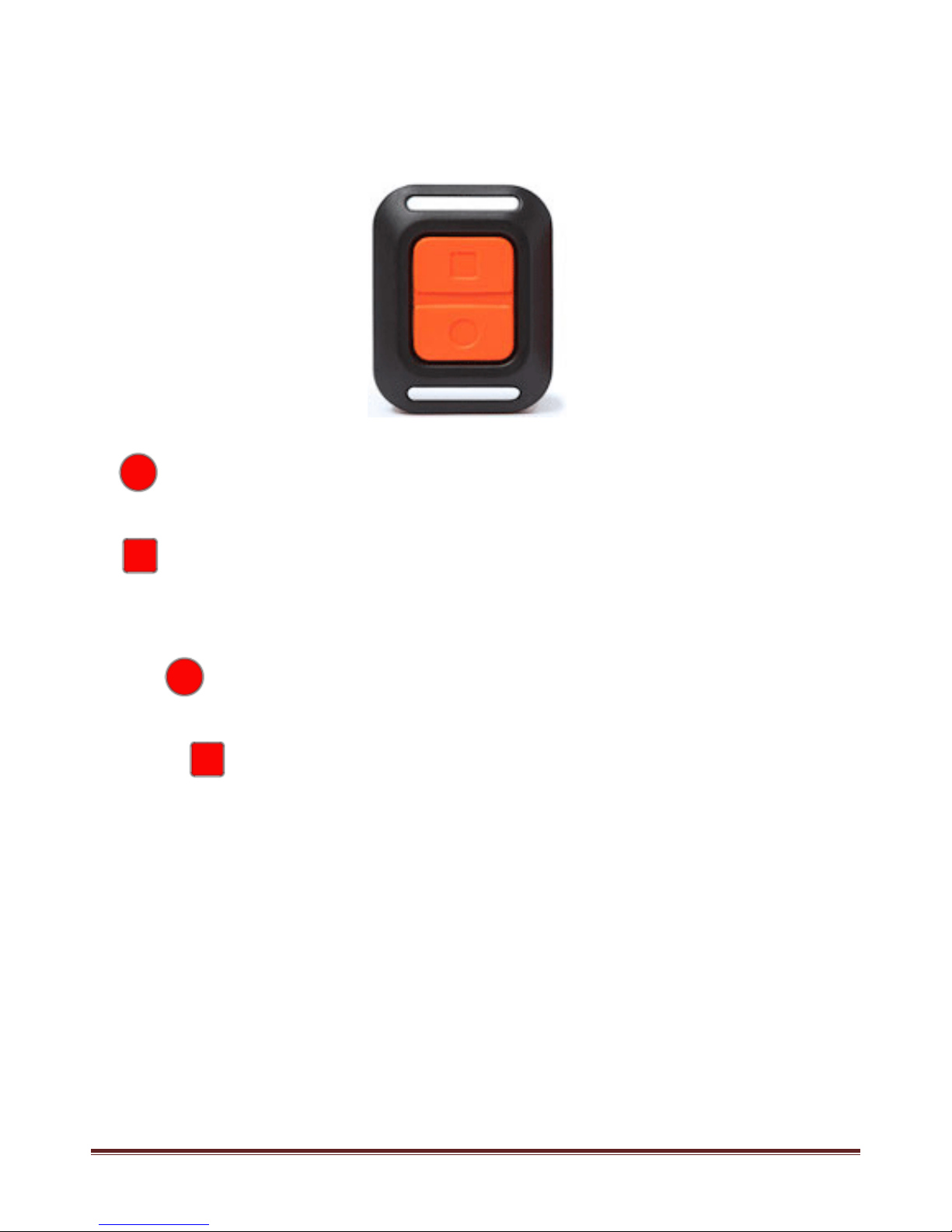

2. Remote control
Start recording
Stop recording
1. When DV is power off，push <Record > button to REC location, and then
Press on remote control, DV will be power on and start to record video.
2. Press to stop recording and power off the DV When DV is power on.

FHD Oceans English USER MANUAL - 8 -
————————— Installation and use —————————

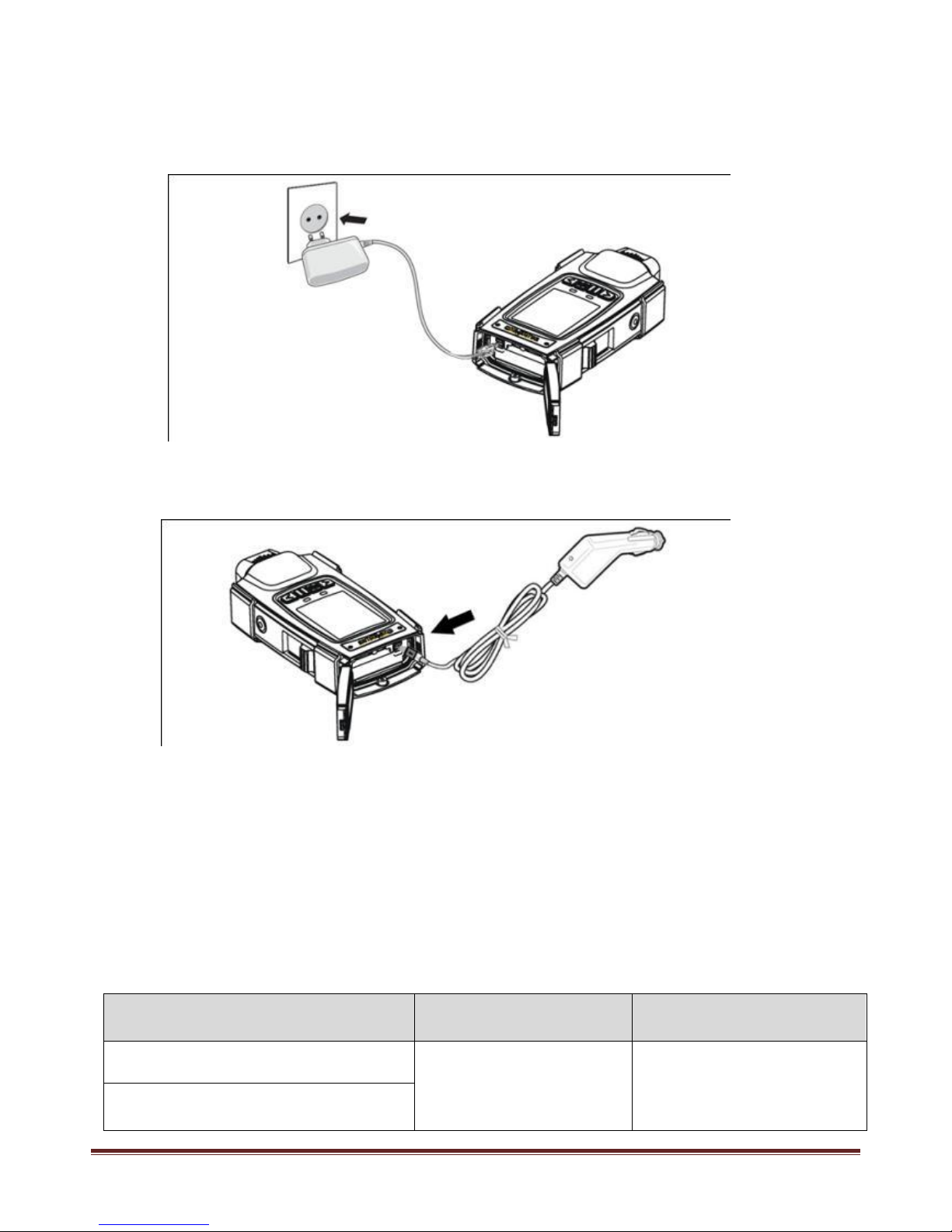

3. Install battery
Please install battery according to below diagram thoroughly.
Incorrect installation: the tag face is above.
Correct installation: the tag face is below.
Push locking tab as shown. Close and latch battery door fully before use.

FHD Oceans English USER MANUAL - 9 -
————————— Installation and use —————————
4. Install SD/SDHC Card
1). Installation of SD/SDHC card

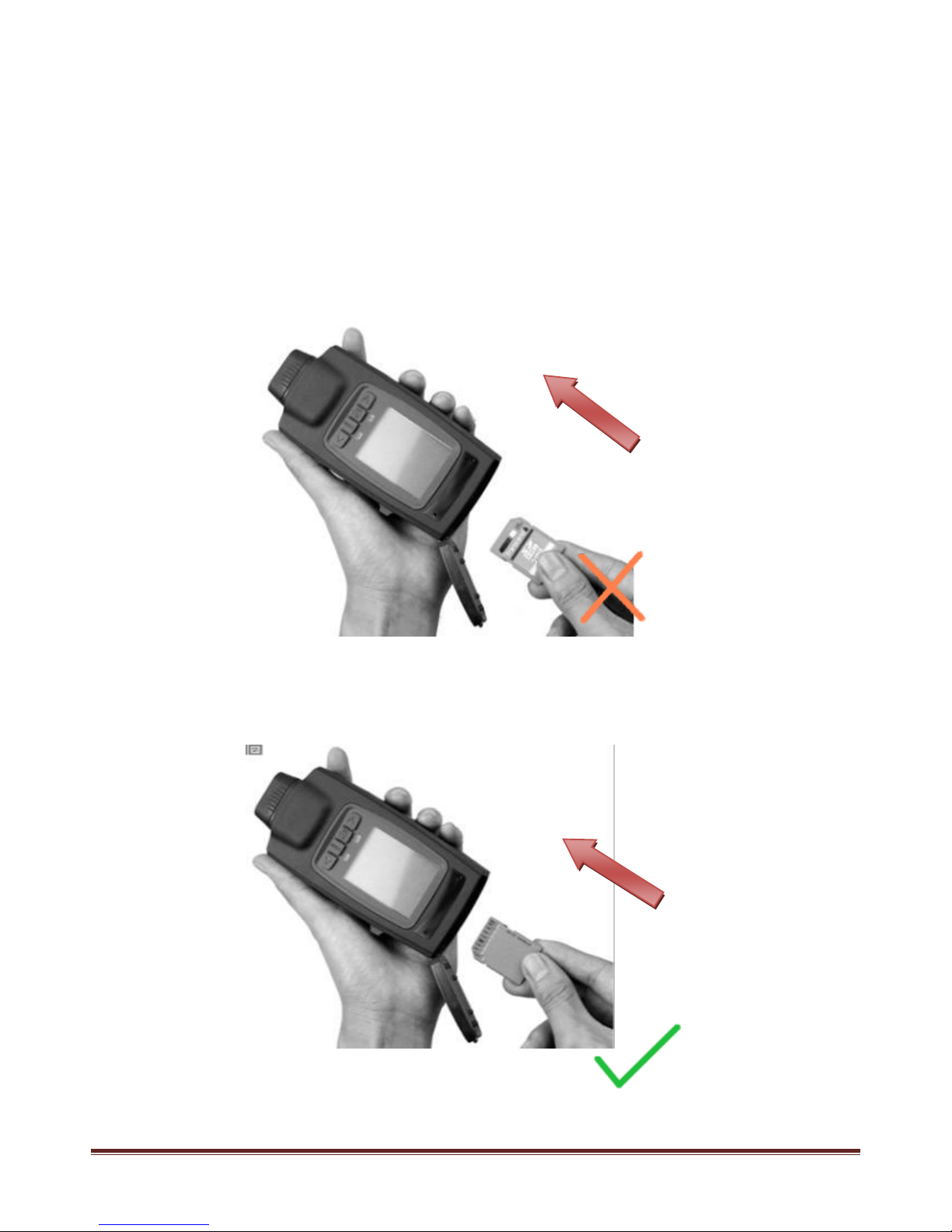

Please install SD/SDHC card according to below diagram thoroughly.
Incorrect installation: the tag face is above
Correct installation：the tag face is below

FHD Oceans English USER MANUAL - 10 -
————————— Installation and use —————————
2). Card Type and Capacity
A, The DV built in 32MB ROM memory is for system files only.
B, The DV built in Micro SD card reader supports Micro SD and SDHC cards
up to 32GB.
Note: Some SD or SDHC cards may not work properly. SD/SDHC cards
made by Sandisk are strongly recommended.

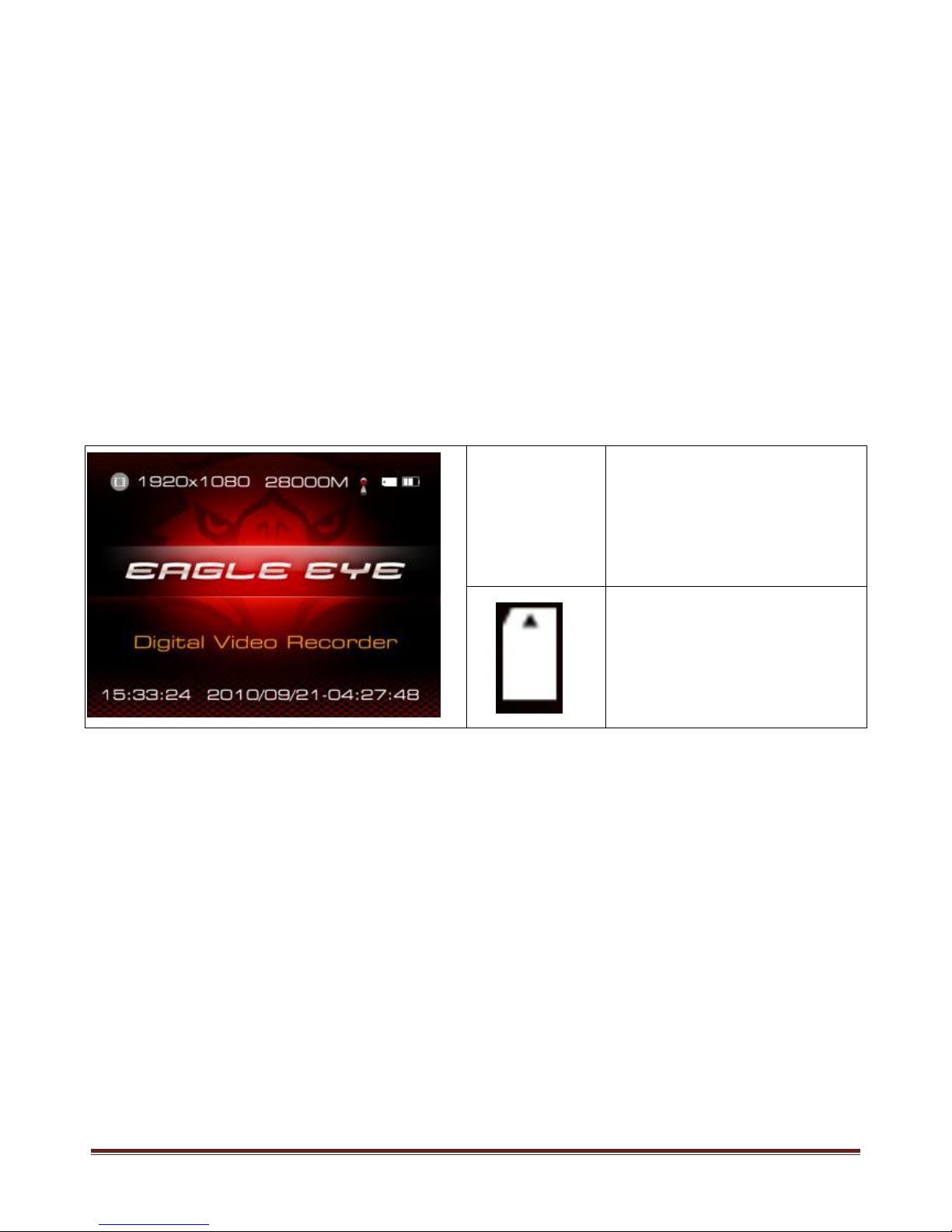

3). Checking the Memory:
User should check if the SD/SDHC card is installed well before using the DV.
Internal Memory
External
memory(Micro
SD/SDHC card)

FHD Oceans English USER MANUAL - 11 -
————————— Installation and use —————————
5. Install bracket

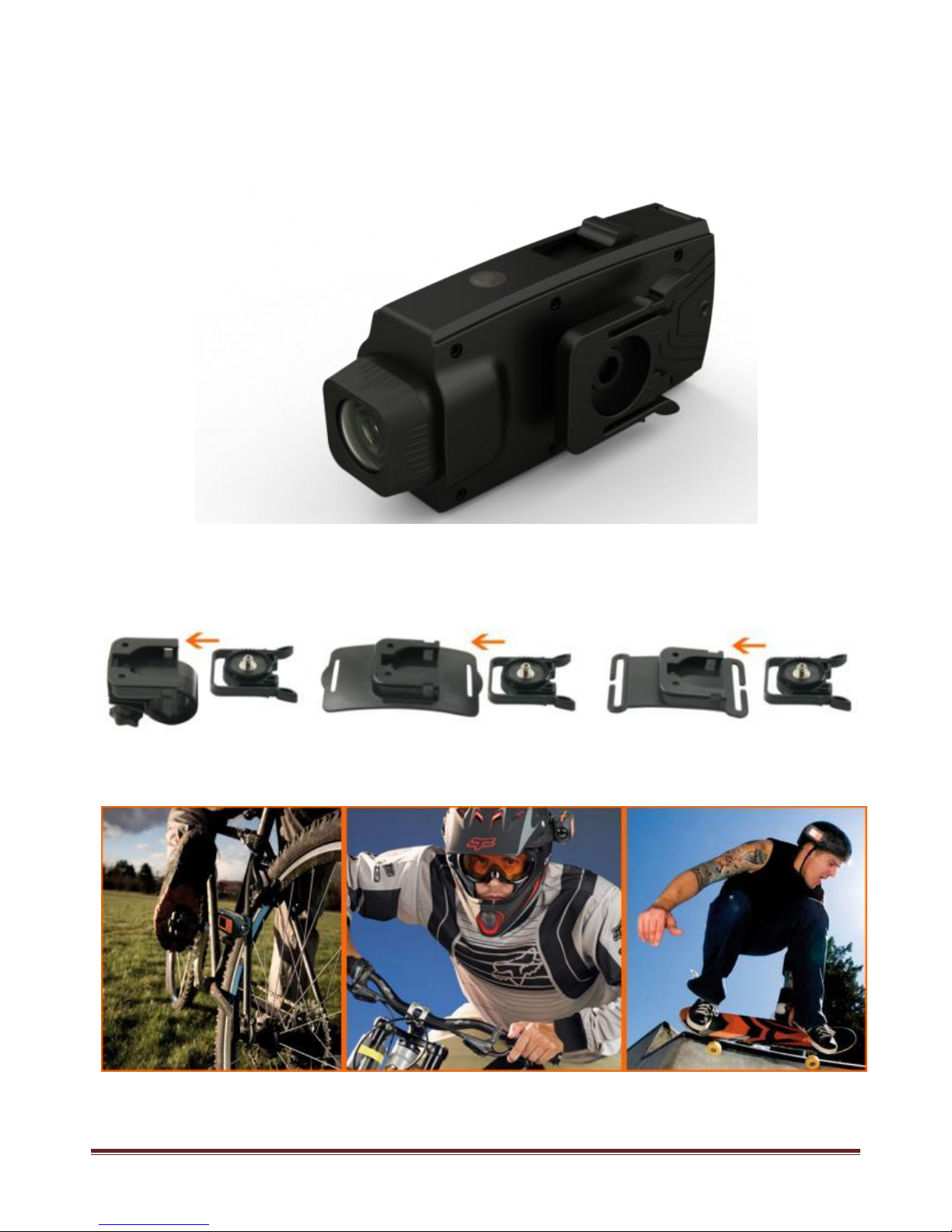

Fixing the common gear wheel to the DV house
Mounting the gear wheel with Handlebar grip、Helmet grip or Goggle Mount
Some illustration for using

FHD Oceans English USER MANUAL - 12 -
————————— Installation and use —————————
6. Adjust lens azimuth
Rotate the lens -90 ~ +90 degree by different mounting desired.
Rotate the lens 90 degree anticlockwise
NOTICE:
The rotated range is from -90 to +90 , rotate fiercely or overly may
cause structure damage.

FHD Oceans English USER MANUAL - 13 -
————————— Installation and use —————————
7. Record and Capture
A. Power on DV，push <Record> button to record location to recording，and
push <Record> button back to stop and save the video clip.
B. Push <Record> button to record location to prepare for recording, press
<REC> button of the remote controller to record, and then press <STOP>
button to stop and save the video clip.
GPS icon indication:
: Received GPS signal
The GPS coordinate data will display on the left bottom screen.
: Can not receive GPS signal
Note: The weather and electromagnetic interference may effects the time
of receive the GPS date.
Press<Power>button to capture and save a photo.

FHD Oceans English USER MANUAL - 14 -
————————— Installation and use —————————
8. Playback Video clips

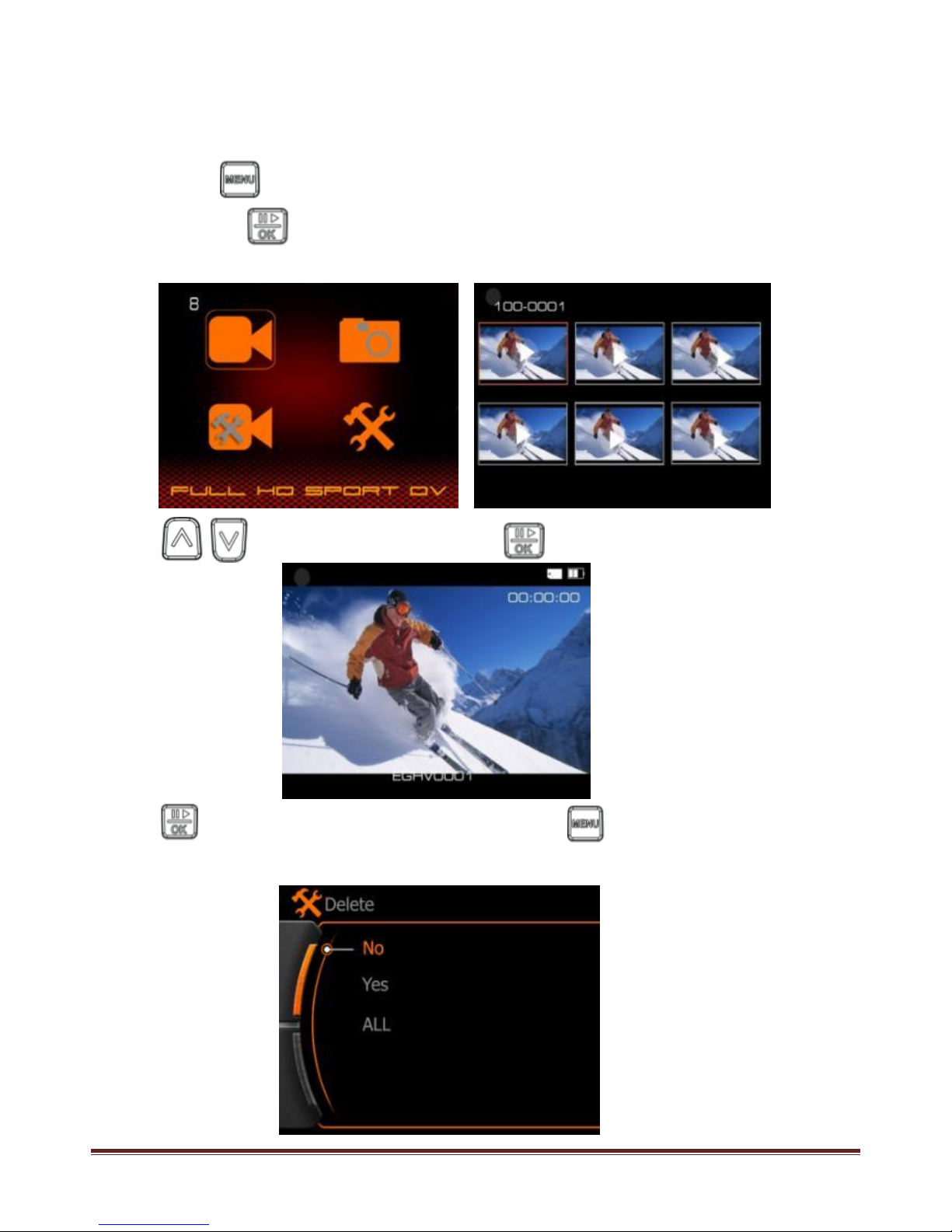

Long press button to enter main menu, select video playback icon
and then press button to enter, and the photo thumbnails will display on
the screen as 2x3 matrix.
Press to select, and then press button twice to play the
clip selected.
Press button again to pause. Long press button to enter
<Delete> dialog in play or pause status.

FHD Oceans English USER MANUAL - 15 -
————————— Installation and use —————————
9. Playback photos
Long press button to enter main menu, select photo playback icon
And then press button to enter, and the photo thumbnails will display
on the screen as 2x3 matrix.
Press button to select, and then press button to
playback the photo selected.
Long press button to enter <Delete> dialog in play status.

FHD Oceans English USER MANUAL - 16 -
————————— Installation and use —————————
10. HDMI TV Playback.

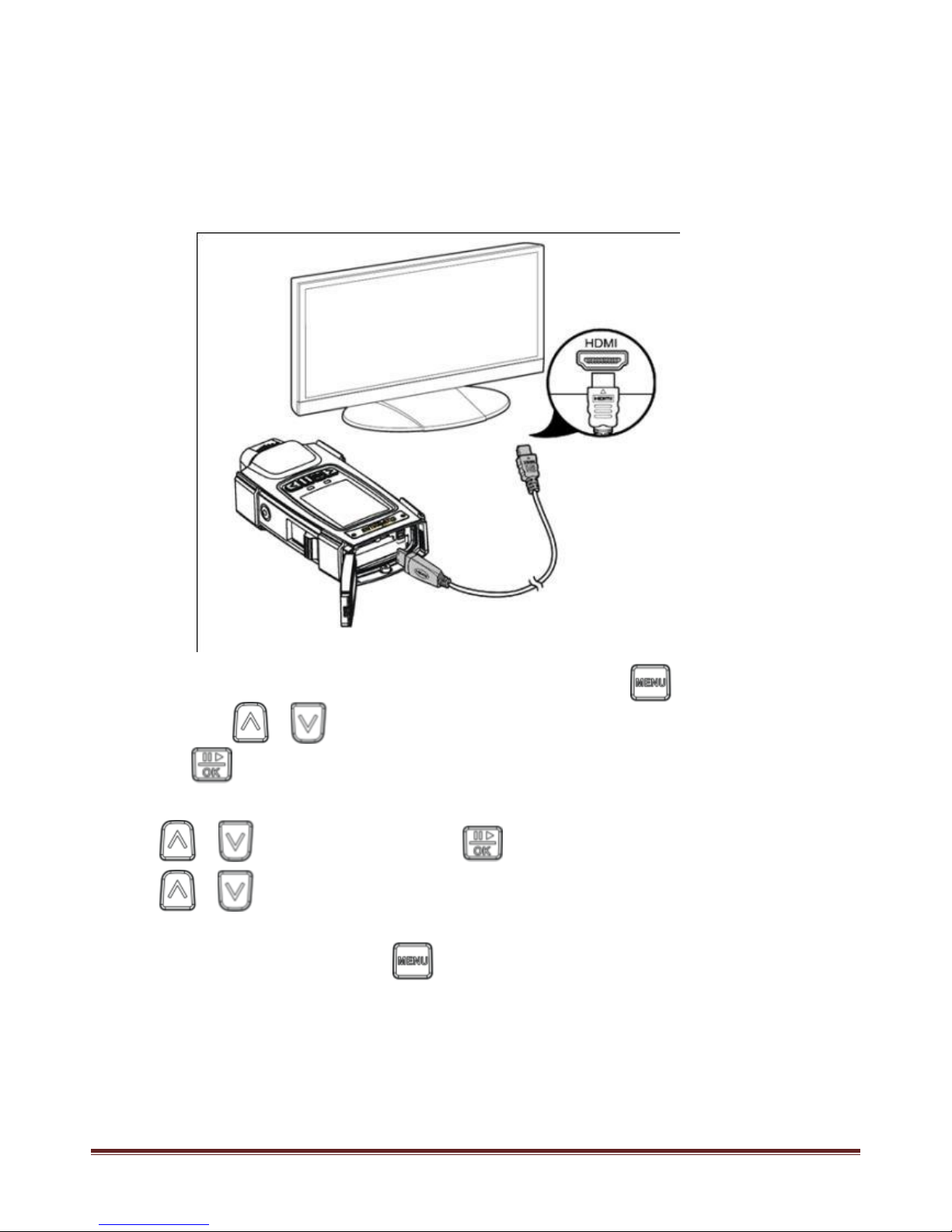

Connect the DV with TV by HDMI cable, power on the DV, switch the TV to
HDMI input mode.
Press <Power> button to power on the DV, long press to enter main
menu, press to select Video playback or Photo playback,
and press to enter.
And the file thumbnails will display on the screen as 2x3 matrix.
Press to select and press to playback the selection,
press to toggle backward/ forward selection
X2/X4/X8/X1(default)
On pause or stop status press to return.
Attention ：
The output resolution is 1080p （ @1440x1080 ） or 1080i （ @1920x1080 ） in
playback condition, 480i in other status, some TV would not display correctly
that because the TV does not support 1080P HD input, the DV will recognize
the TV system when connected.

FHD Oceans English USER MANUAL - 17 -
————————— Installation and use —————————
11. Connect with PC via USB
Connect DV with PC via the provided USB cable for downloading or
uploading files and updating firmware

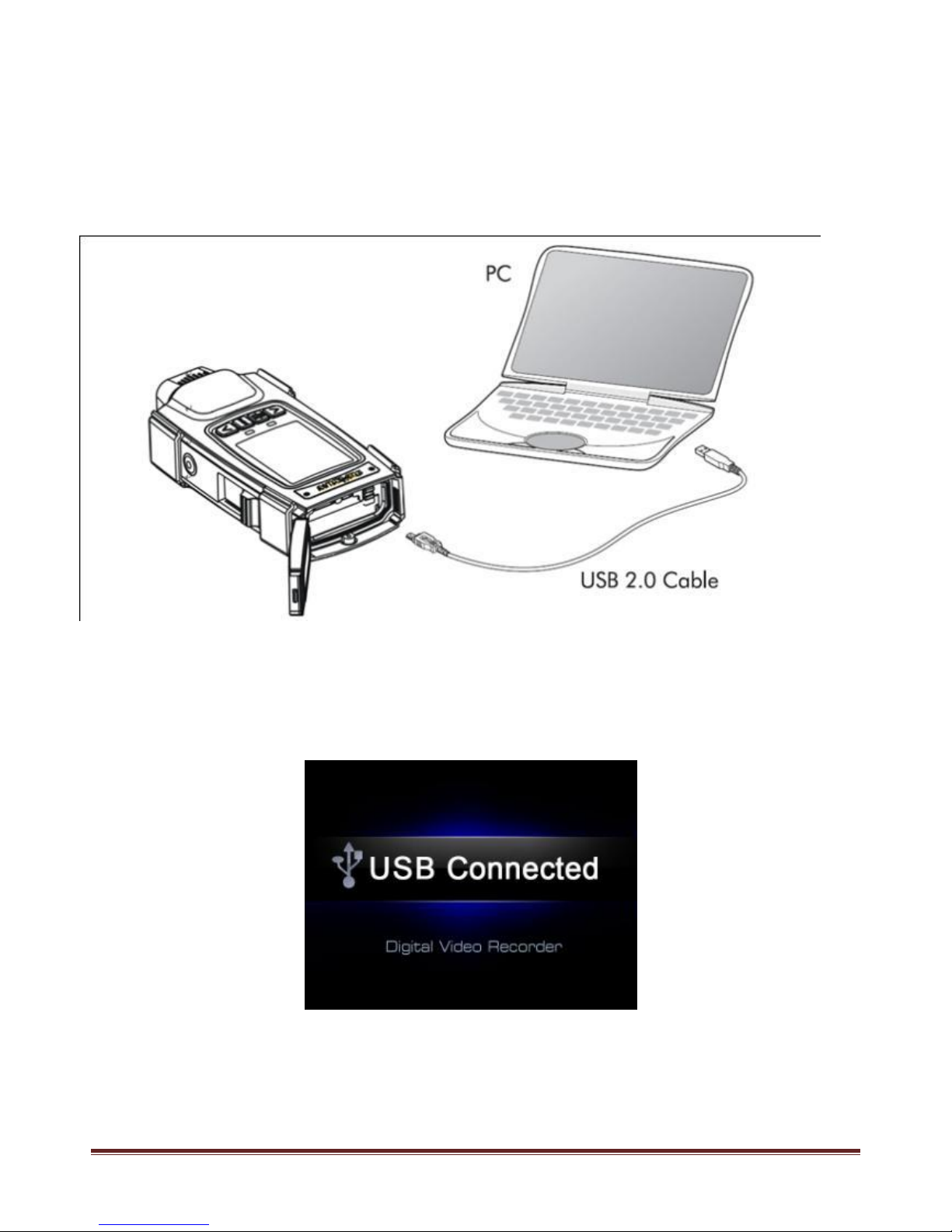

①Connect the DV with Computer by the USB cable
②Power on the DV
③The screen of the DV will display “USB connected” .
Attention：User can not do any operation on the DV after connected with the
computer, only operation in computer available.

FHD Oceans English USER MANUAL - 18 -
—————————— Power Charger ——————————
1. Install of Battery
To install the battery, open the battery door by sliding the latch up (Latch is
tight. You may need to use a coin). Insert battery and rotate locking tab as
shown. Close and latch battery door fully before use.
2. Charging the battery
A. Charging by connecting to PC
User can charge DV by connecting the USB cable to a computer.

FHD Oceans English USER MANUAL - 19 -
—————————— Power Charger ——————————
B. Charging With AC/DC Adaptor
C. Charging With Cigar-lighter
NOTE:
The battery is charging so long as connect with computer, please power
off the DV to save the charging time.
The maker strongly recommends using a supplied AC/DC adaptor, but if
it is necessary that another AC/DC adaptor is purchased separately at a
shop, please check its electric specification is in accordance with DV's
specification.
3. Battery Charging Time & Operating Time
Charging Time
Continuous play
time
Recording time
Approx. 5hrs in Power On
Approx ：4 hours
Approx ：2 hours and
30 minutes（1080P）
Approx. 3hrs 30mins in Power
Off
