Eagle Eye HD-128 User manual

~ 1 ~
User Manual

~ 2 ~
Main Features ................................................................................................................................. 4
Install & Use ................................................................................................................................... 5
Camera Body Instruction .......................................................................................................... 5
Remote Controller（Optional）................................................................................................ 6
Install the battery ..................................................................................................................... 7
Install Memory Card ................................................................................................................. 8
Install waterproof housing........................................................................................................ 9
Install the Mounts .................................................................................................................. 10
Record & Capture................................................................................................................... 11
Media Playback ...................................................................................................................... 12
Delete Files............................................................................................................................. 13
Connect with TV ..................................................................................................................... 14
Connect with PC..................................................................................................................... 15
Power charge ......................................................................................................................... 16
System Icons................................................................................................................................. 18
Main Interface ........................................................................................................................ 18
Icons ...................................................................................................................................... 18
Settings ........................................................................................................................................ 19
System Settings ............................................................................................................................ 22
Wi-Fi ...................................................................................................................................... 24
Download & Install the APP.................................................................................................... 25
Screenshot of APP works........................................................................................................ 26
Firmware Update .......................................................................................................................... 29
Specifications................................................................................................................................ 30

~ 3 ~

~ 4 ~
Main Features
480 x 240，1.5”TFT LCD Screen Display
16MP Panasonic CMOS Image Sensor
170°Super Wide angle under 720P; 135°under 1080P
Full HD 1080P H.264 Video compression to MP4 format
Waterproof, shockproof, support 50M depth diving
Wireless RF remote controller
Support Multi-mode video record and picture shot
Built in WIFI, real-time video display and setting
Optional Video resolution
16：9 FULL HD 1920 x 1080p 60FPS
4：3 FULL HD 1280 x 960p 30FPS
16：9 FULL HD 1280 x 720p 120FPS
16 : 9 FULL HD 1280 x 720p 30FPS
16 : 9 WVGA 848 x 480 240FPS
Optional Picture resolution：
16MP/Piece
12MP/Piece
8MP /Piece
Audio & Video playback
Support4GB~32GB SDHC TF Storage card
USB2.0 for data transfer and power charge
HDMI & RCA Video output

~ 5 ~
Install & Use

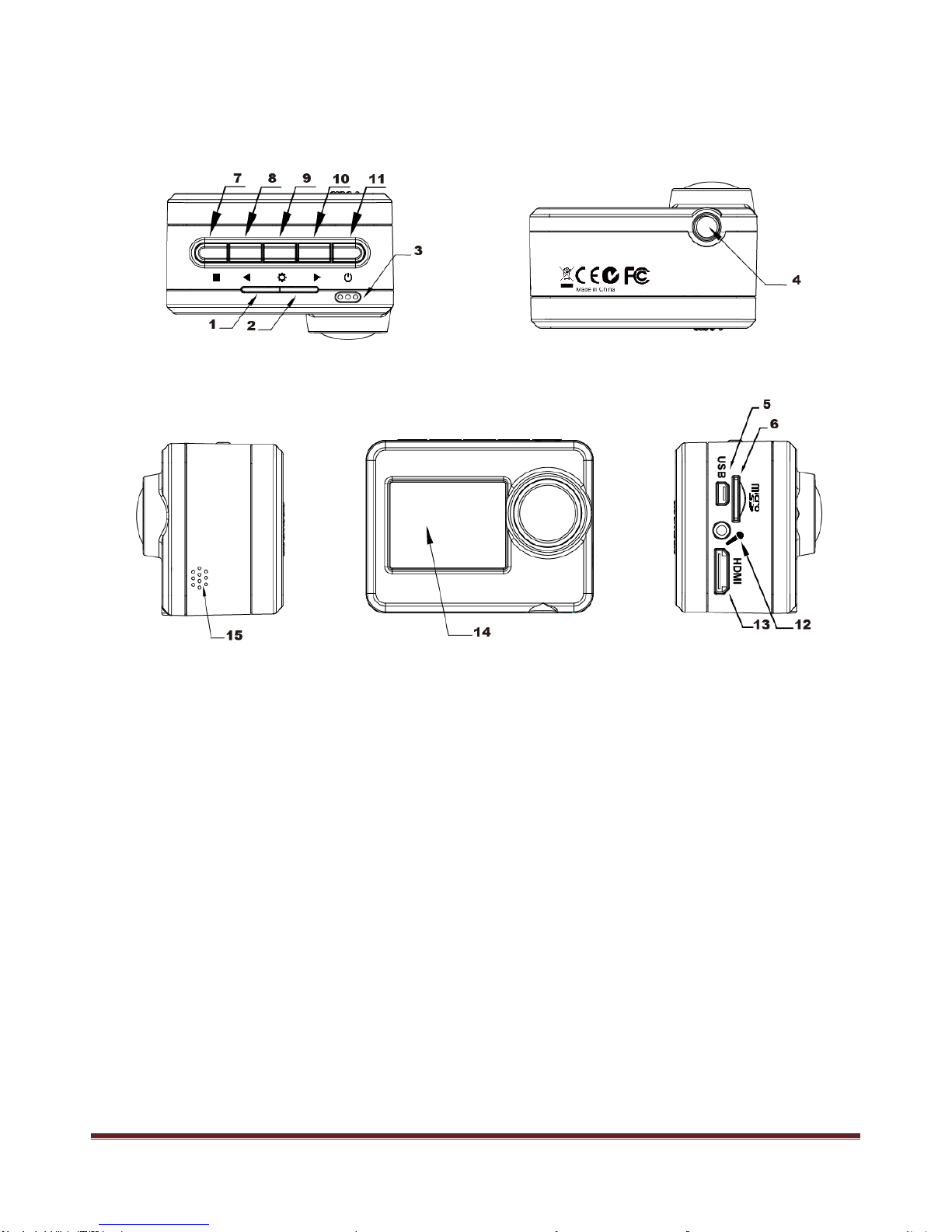

Camera Body Instruction
1. REC indicator (Red) / Charging
Indicator (Blue)
2. Remote Indicator ( Green )
3. MIC
4. Tripod hole
5. USB/RCA
6. TF card slot
7. REC / Confirm
8. UP
9. MENU
10. Down
11. Power / Capture
12. MIC input
13. HDMI
14. LCD monitor
15. Speaker

~ 6 ~
Remote Controller（Optional）
Start video record
Remote to start video record only under Camera Powered ON, not valid if
camera is OFF.
Stop video record
Remote to Stop the video record.
Remote Pair with Camera
Power on the camera first, then Press & hold the REC button and at the same time Press &
hold the button on the remote controller till the Green remote indicator (On
camera,right one) turned on. Then we could try to control the camera START / STOP the
video record to check if paired successfully.
Note:
-Please do not do any other operate during this.
-Camera remote indicator (Green) will keep ON for 3 seconds if paired successfully.
-Camera remote indicator (Green )will not turn on if not successfully paired.
This operation only necessary when you bought new remote controller, pairing process
has been did before leaving factory.

~ 7 ~
Install the battery
Please install the battery according to the graphic:
Open the battery cover
Install the battery ( Note: label side face up)
Close back cover

~ 8 ~
Install Memory Card
1. Install the TF card according to graphic
2. Camera without built-in memory, support 1GB~32GB TF card above Class10 external
memory expand
3. After installed the SD card, rest available memory could be checked on the screen
Screen won't display the SD
card icon if without valid SD
card installed correctly
Screen will display the SD
card icon if valid SD card
installed correctly
Attention:
Please use the original SD card for good using experience. Bad or phony SD card would
happen the problem like "can not read" or "file damaged". Please format the SD card in
this camera before use it the first time. Class10 or above high speed SD card is necessary.

~ 9 ~
Install waterproof housing
As arrowhead showed in graphic below, pull "A" locker, "B" locker will slack off at same
time automatically
Put the camera into the waterproof housing as graphic below:
Close the cover
Close the locker "B" first, and then press the "A" locker to locked-in.

~ 10 ~
Install the Mounts
+ =
Please choose the suitable mount to finish the installation according to different use.
Waterproof Housing buttons instruction:
Note：
Waterproof housing max depth is 50 Meters ( 167 Feet)
A pot of fog or water globule would glue to the inside cover, it is allowed and won't effect
the camera working.

~ 11 ~
Record & Capture
①Press Power button to turn on the camera, press REC button to start video record,
when the red icon displayed on the left bottom of screen, that means the camera is
doing normally record.
②Camera could start video record immediately if press the REC button while Wi-Fi
turned OFF, but if Wi-Fi turned ON, camera will only available to start video record
after Wi-Fi boot up completely (Need about 20 seconds), more details please check the
Wi-Fi setting page.
③Press POWER button to turn on the camera, press POWER button again to switch to
Picture taking mode. Make sure such icon displayed on the left top, then we are
capable to take photo.
Remote to take picture or record video, please check the Remote Controller instruction.
Picture taking function is not available by remote controller.

~ 12 ~
Media Playback
Press and hold the MENU button for 3 seconds to enter the video playing back interface,
use < & > button to select the files.
Press and hold the MENU button again for 3 seconds, then we could switch to the image
playing back interface.
Use < & > to select the video or image, press REC button to confirm, press REC button
again to play the video.

~ 13 ~
Delete Files
Press & Hold the MENU button to enter “playback mode”, select the files that want to
delete, and then press the MENU button, the delete option menu will appear as below.
Use < & > button to make the choice, press REC button to confirm.
Confirm to delete
Drop current operation
Press REC button to confirm the operation.
If playing a Video or Image, please press POWER button to quit.
Press & Hold the MENU button to switch from VIDEO to IMAGE playback mode, do this
operation again to quit.
Note:
Please think carefully before use this function, files can not be recovered after deleted,
advise to back up files in computer in advance.

~ 14 ~

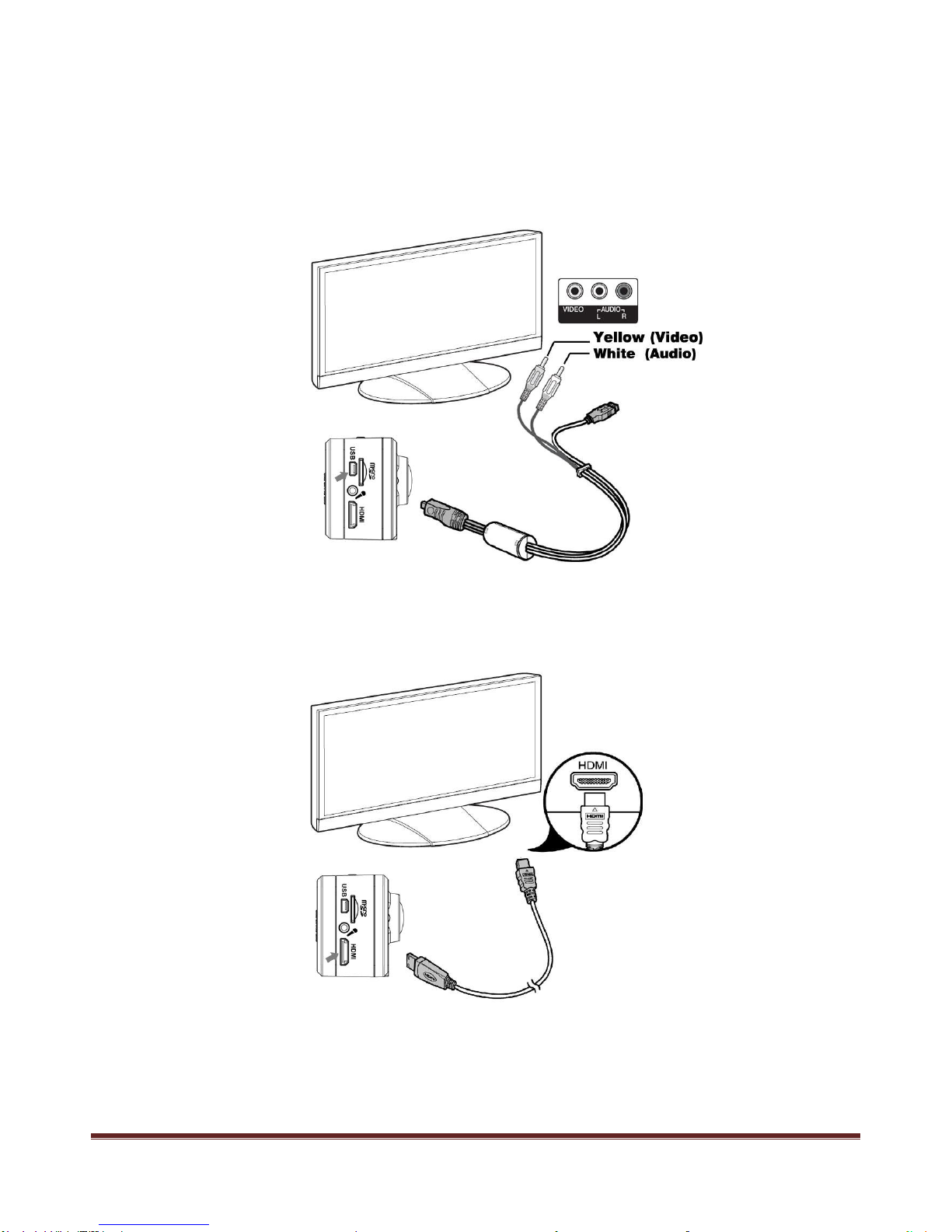

Connect with TV
1.USB-RCA cable connect with TV ( output)
Find out the USB-RCA cable in standard accessories, USB side insert to camera, RCA side
insert to TV ( Yellow for Video, White for Audio)
2. HDMI cable connect with TV (output)
Please insert the Atype connector to the TV , insert Ctype connector to camera
Note：
The video that output to TV is 1080P resolution when playing back video clip, real-time
output display is 1080i only.

~ 15 ~
Connect with PC
Camera connect with computer by USB cable, could browse the files in camera or charge
the power.
Power on the camera after connect it with the computer by USB cable, the screen will
display connecting graphic like below:
Please choose the suitable option according to need.
USB : Mass storage Read the media in the SD card
USB:USB Charge Charging the camera via the USB
AV Out USB RCA video output

~ 16 ~
Power charge
1. Install the Battery
Please install the battery correctly according to below:
Charge the camera by computer via USB cable
Attention：
Please make sure the camera powered off when charging the camera by PC, the green
indicator will flash while charging, and it will turn OFF after full charged.

~ 17 ~
2. Charging by wall charger （Optional ）
Battery fully charging time and usage time
Fully charging time
Standby time
Recording time
Approximately 4 Hours under
power ON state
Approximately 3.5
Hours
Approximately 100
minutes (1080P )
Approximately 3.5 Hours under
power OFF state
Battery Icon
Full Power
75% Power
50% Power
< 20%
No Power
Note:
a ,Please do not keep the battery in the camera if long time aside.
b ,Please do not use up the power completely.
c ,Please fully charge the battery on first time use, it will help to extend the battery life.

~ 18 ~
System Icons
Main Interface
Icons
1080P/30
Video size and FPS
REC Mode
28000M
Available storage
Picture taking mode
00：33：24
Recorded time
Burst Mode
2010/09/21
Date
TF Card installed
16：18
Time
Battery
Wi-Fi OFF
Wi-Fi ON
Power Charging

~ 19 ~
Settings
Power ON the camera, Press the MENU button for 3 seconds, then we will enter the
setting interface as below. Press the MENU button again, then we will switch the setting
between .
Image take Setting
Video Record Setting
System Setting
Photo Size
The Characters will turn to Yellow if the menu Selected, press REC button to confirm and
enter the secondary menu. There have several options: 16MP / 12MP / 8MP .
Self Timer
If the character display in this color ( Black&White), that means this function
can not be activated because it is clashing with other function. We should Close the
“Burst Capture”feature and then it will be capable to change.
Self timer means time delay after we press the image capture ( Power) button. There have
several options: OFF / 3 Seconds / 5 Seconds / 10 Seconds / 30 Seconds

~ 20 ~
Time Stamp
If we turn ON this feature, the Date / Time will display on the Image. There have several
options: OFF / Date / Time / Date & Time
Burse Capture
If we turn ON this feature, the camera will take pictures very fast in every second while
pressing the Capture ( Power ) button. There have several options: OFF / 3P / 5P/ 10P/

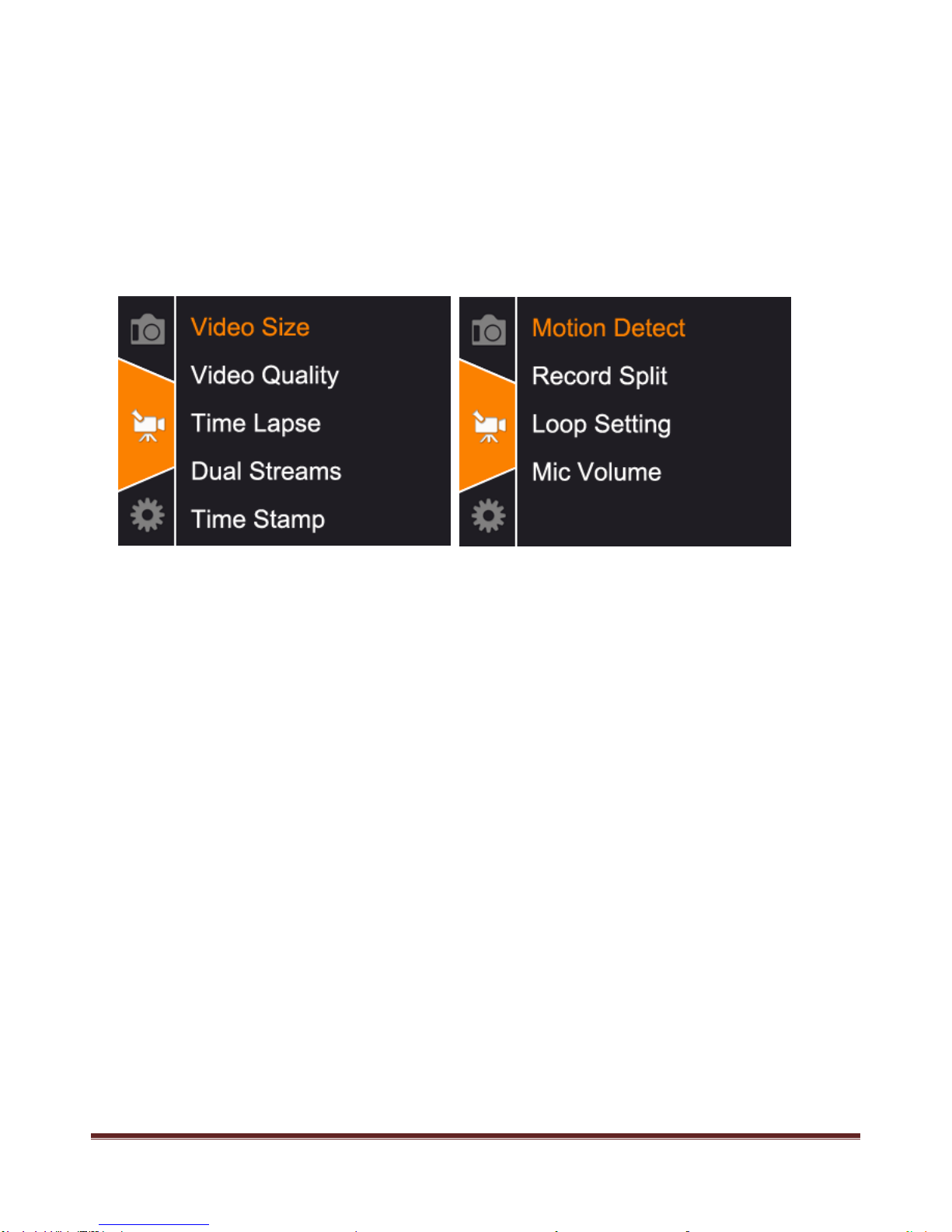

Video Size
The video resolution option, for power saving or memory saving purpose, we might need
to set a lower resolution to record the videos. There have several options: 1080P / 720P /
480P
Video Quality
Another kind option to save the power and memory, There have several options: High /
Medium / Low .
Time Lapse
There have several options: OFF / 1 Seconds / 5 Seconds / 10 Seconds .
For example: 10 Seconds means the camera will capture only 1 Frame in every 10 Seconds.
If we record 1 Hours under 1080P@60FPS, then we will only capable to get a 6 Seconds
length footage.
1 Hours = 3600S = 360 Frames ( 3600/10 ) 360Frames / 60FPS = 6 Seconds
