Eagle Eye I watch User manual

http://www.tzone.ae Sole Distributor: Technology Zone Security System
E
E S Se er ri ie es s— —— — I I W Wa at tc ch h
H
Ho om me e M Mo on ni it to or ri in ng g I IP P
C
Ca am me er ra a
I
I w wa at tc ch h
2012-9 V6.18
U
Us se er r M Ma an nu ua al l

Home Monitoring IP CAMERA User Manual
2
Index
1INTRODUCTION......................................................................................................................4
1.1 THE PACKAGE INCLUDES .....................................................................................................4
1.2 FUNCTION AND FEATURES....................................................................................................4
1.3 TECHNICAL PARAMETERS ....................................................................................................5
2APPEARANCE AND INTERFACE ........................................................................................6
2.1 APPEARANCE ......................................................................................................................6
2.2 INTERFACE OF EQUIPMENT ..................................................................................................6
3VISIT IP CAMERA FROM LAN..............................................................................................7
3.1 LAN CONNECTION ...............................................................................................................7
3.2 SEARCH AND SET THE IP ADDRESS OF THE IP CAMERA ............................................................7
3.3 VISIT IP CAMERA................................................................................................................8
3.3.1 Video Play Area..............................................................................................................9
4VISIT IP CAMERA FROM WAN...........................................................................................10
4.1 WAN CONNECTION ............................................................................................................10
4.2 PORT FORWARDING ........................................................................................................... 11
4.3 DDNS .............................................................................................................................. 11
4.3.1 Manufacturer’s DDNS................................................................................................... 11
4.3.2 Third Party DDNS ........................................................................................................12
5OTHER SETTINGS ...............................................................................................................12
5.1 NETWORK SETTING ...........................................................................................................12
5.1.1 Basic Network Setting...................................................................................................12
5.1.2 WIFI Setting.................................................................................................................12
5.1.3 ADSL Setting ................................................................................................................13
5.1.4 UPnP Setting................................................................................................................13
5.1.5 DDNS Setting ...............................................................................................................14

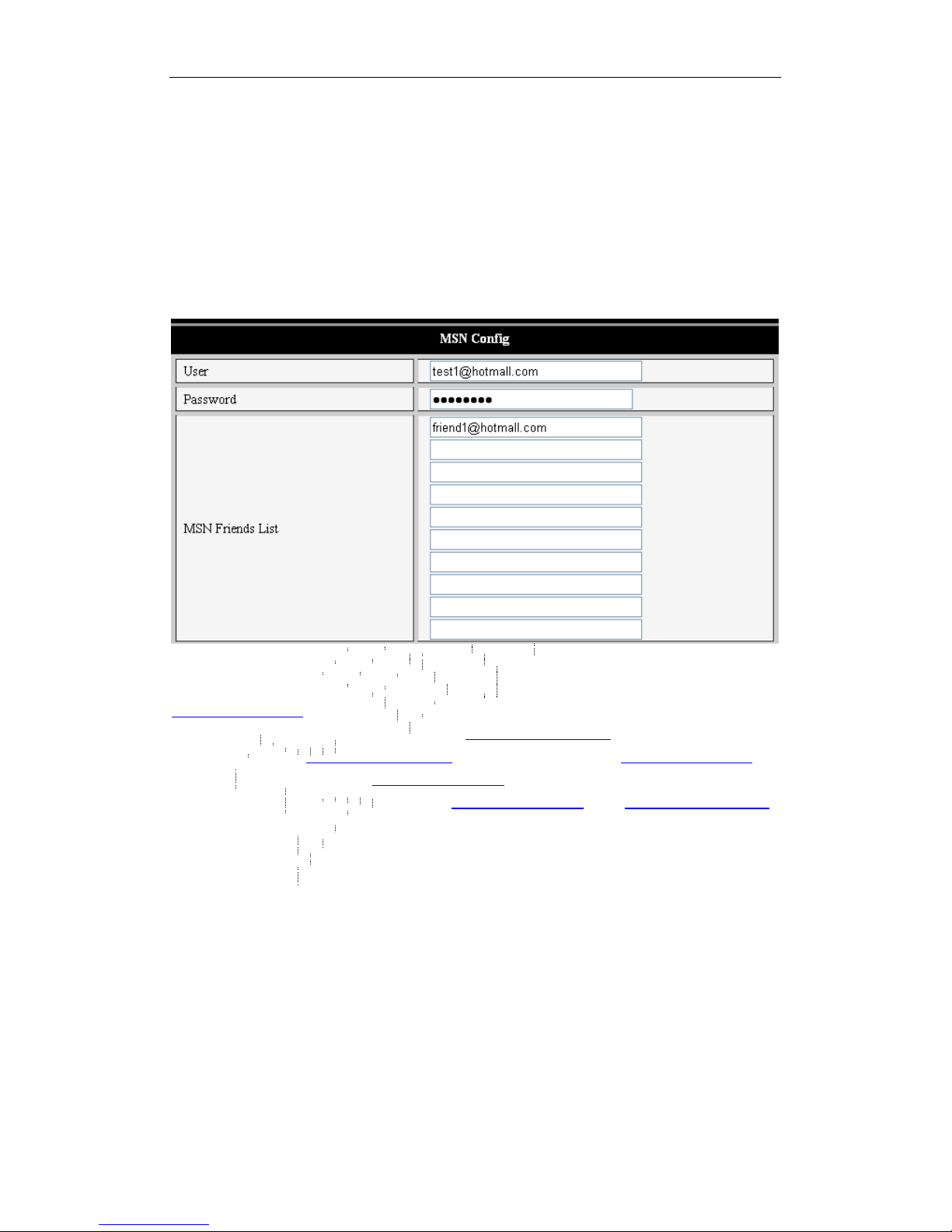

5.1.6 MSN Setting..................................................................................................................14
5.2 ALARM SETTINGS..............................................................................................................14

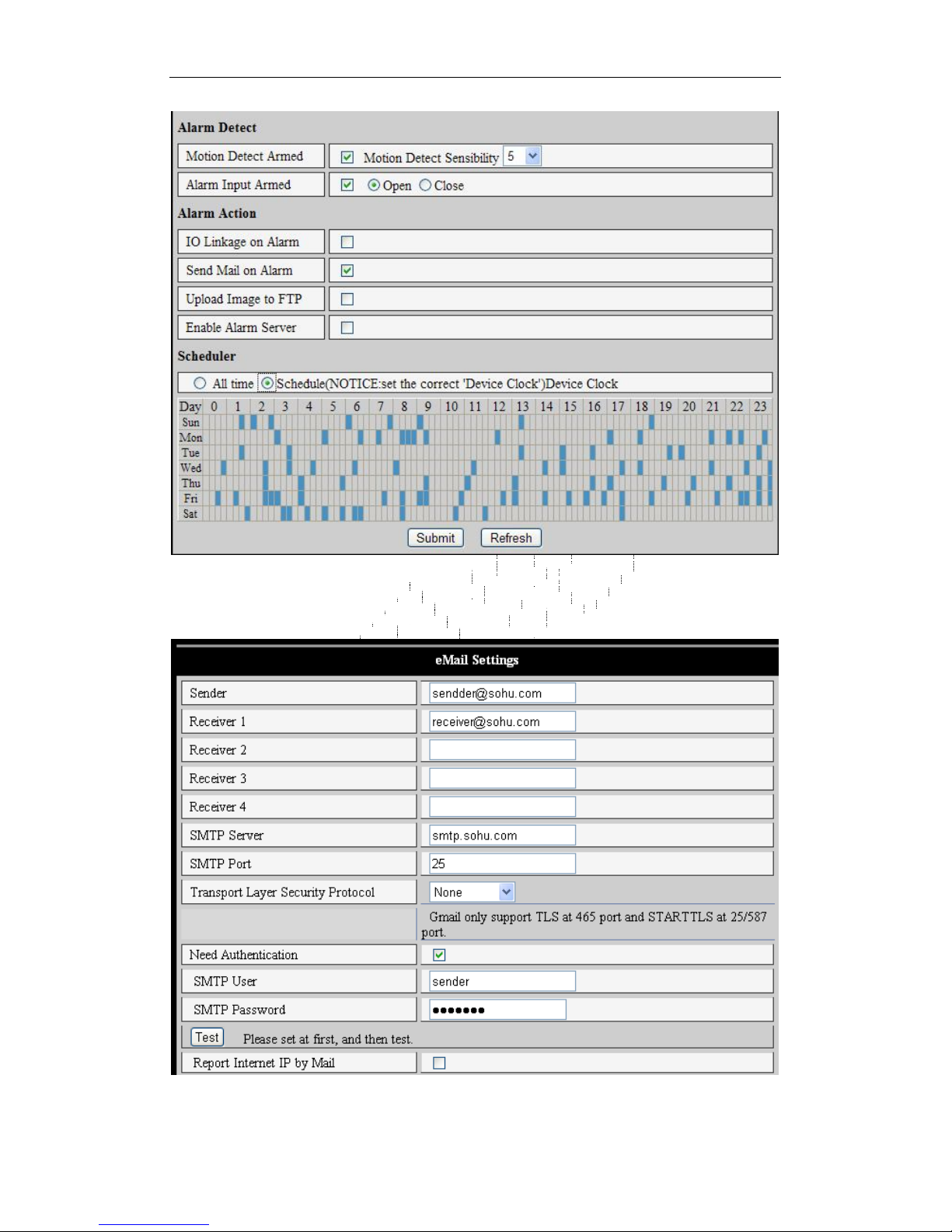

5.2.1 Alarm Setting................................................................................................................14
5.2.2 Mail Service Setting......................................................................................................16

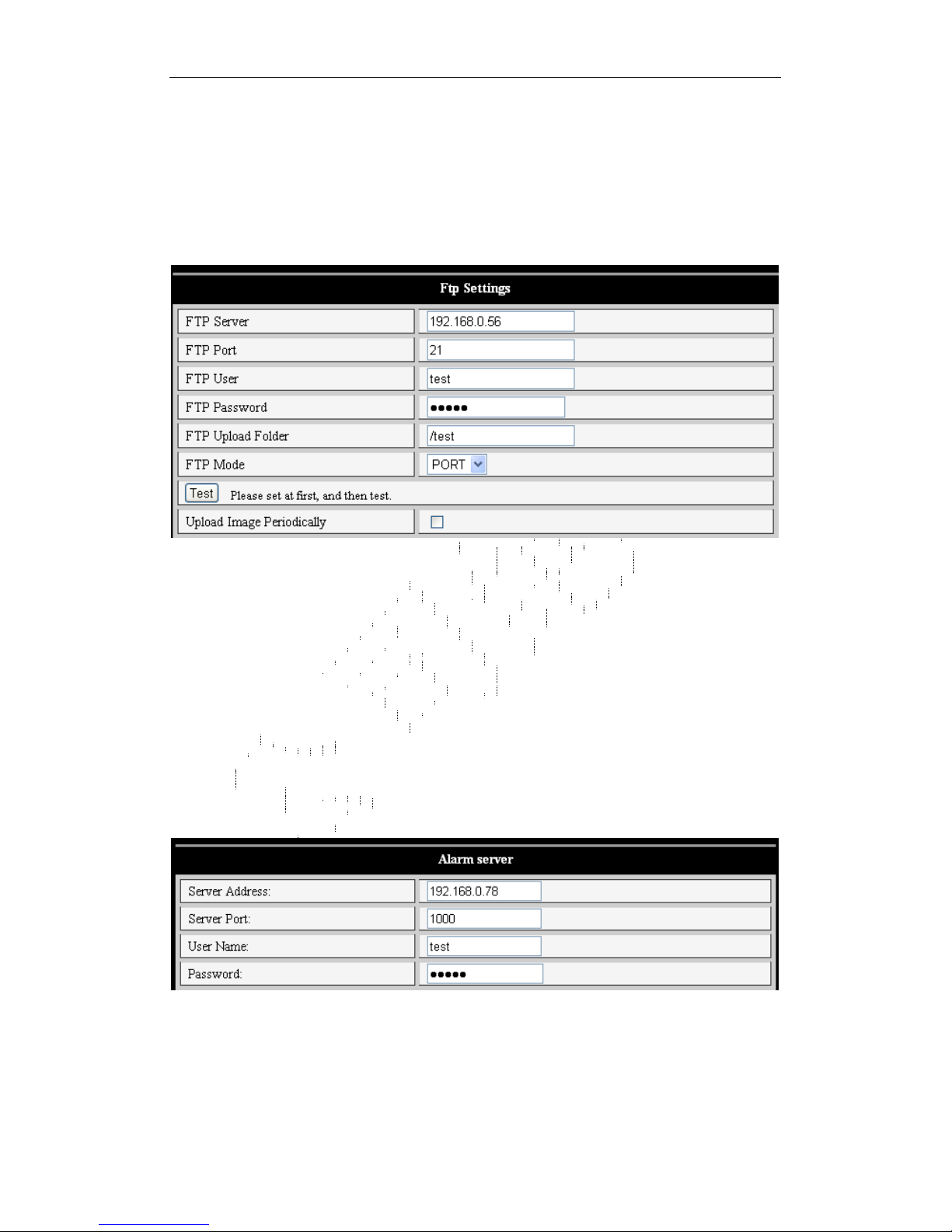

5.2.3 FTP Service Setting.......................................................................................................17
5.2.4 Alarm Server ................................................................................................................17
5.3 ADVANCED .......................................................................................................................18

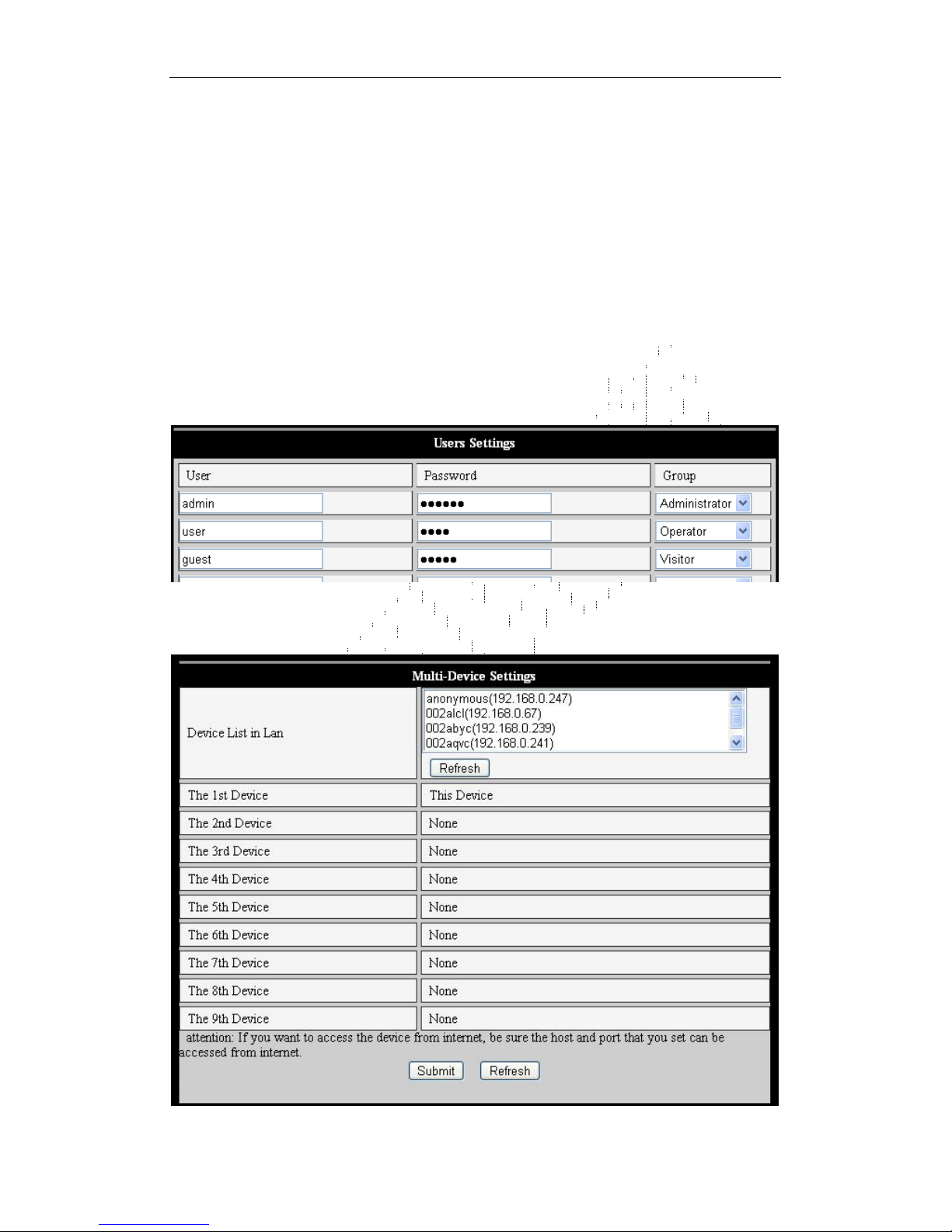

5.3.1 User Setting..................................................................................................................18
5.3.2 Multi Device Setting......................................................................................................18
5.3.3 Other settings ...............................................................................................................19
5.4 MAINTAIN.........................................................................................................................20
5.4.1 Device Information.......................................................................................................20

Home Monitoring IP CAMERA User Manual
3
5.4.2 Time Setting..................................................................................................................20
5.4.3 Firmware upgrade........................................................................................................20
5.4.4 Restore Factory Default................................................................................................20
5.4.5 User browsing Log........................................................................................................21
6CENTRALIZATION CONTROL............................................................................................21
7FAQ.........................................................................................................................................21

Home Monitoring IP CAMERA User Manual
4
Introduction
The IP Camera combines a high quality digital video camera with network connectivity
and a powerful web server to bring clear video to your desktop from anywhere on your
local network or over the Internet.
1.1 The package includes
IP Camera * 1
IP Camera Utility CD *1
5V Power Adapter *1
Stand of plastic * 1
Cable * 1
NOTE：If you select the device with wifi function, it has built-in wifi module and transmitting
antenna in package.
1.2 Function and Features
With built-in Microphone, it enables user to monitor the sound on the site. User can
also connect this equipment to the speaker, and it supports two-way intercom
function.
It was equipped with pan/tilt function, horizontally 270°and vertically 120°. Its outlook
is smart, easy and convenient to install in many sites.
Support 802.11b/g protocol, can build up wireless monitoring.
Infrared LED for night vision covers 5m area, to realize 24 hours monitoring.
Motion detection and alarm pin can be connected to external sensors to detect
environmental situation.
Alarming record can be stored by email, FTP server. External alarm can be open
when detecting something unusuality.
It adopts the TCP/IP network protocols and has inner web server. Users can browse
video through IE and other browsers. Data is transferred through one port; it is easy
for user to do the network setting.
Support mobile phone to view.
Manufacture attaches a label at the bottom of each IP Camera, providing free DDNS.
When IP Camera is connected to the internet, this DDNS can be used to visit the
device.
Manufacture provides free software, support Multi-view, Long time recording, video
replay etc.

Home Monitoring IP CAMERA User Manual
5
1.3 Technical Parameters
Item Sub Item Description
Capture
Sensor CMOS sensor
Total of pixel 300k
Minimum
illumination IR on，0 Lux
Lens f=3.6mm, F=2.0, Fixed Iris
Pan/Tilt Pan Coverage 270°
Tilt Coverage 120°
Assistant Lighting 10pcs 850nm Infrared LEDs, 5m distance
Lighting Control Auto control
Video and
Audio
Resolution 640*480(VGA)/320*240(QVGA)/160*120(QQVGA)
Compression MJPEG
Frame rate 30fps
Bit rate 128kbps ~ 5Mbps
Image Rotation Mirror /Flip
Audio Compression ADPCM
Network Basic Protocol TCP/IP、UDP/IP、HTTP、SMTP、FTP、DHCP、
DDNS、UPNP、NTP、PPPOE
Other Protocol 802.11b/g
Other
Features
Video control support
Dual way audio support
Motion Detection support
Triggered Actions Email/FTP/external alarm/send message to alarm
server
User Setting Three levels
Date/ Time Setting support
Upgrade Upgrade from network
DDNS A free DDNS provided by manufacturer
Hardware
Interface
Ethernet 10Base-T/100base-TX
Alarm In 1 way
Alarm Out 1 way
Audio In Internal mic
Audio Out Audio Line-out interface x 1
Physical
Index
Weight 245g
Main body 100mm(L)*99mm(W)*118mm(H)
Power DC 5V
Power consumption <6W
Operating
temperature -20~ 50
Operating 10% ~ 80% non-condensing

Home Monitoring IP CAMERA User Manual
6
temperature
Software(PC
Side)
OS Supported Microsoft Windows 98/2000/XP/Vista etc.
Browser Internet Explorer6.0 and Above or Compatible
Browser, Firefox, Safari etc.
Application
Software IPCMonitor.exe
2 Appearance and interface
2.1 Appearance
Figure 1
Note：Status Indicator: the green light is to show that the device is running, Slow flicker
（one per 2 second），indicates the device is searching for network; flicker（one or twice
per second）,indicates the wired network connected; Frequent flicker（2~3 times per
second）, indicates wireless network connected.
2.2 Interface of Equipment
Figure 2
RESET Button: Press the RESET button and hold on more than 10 seconds, the
equipment will restart and recover to the factory default settings.

Home Monitoring IP CAMERA User Manual
7
3 Visit IP Camera from LAN
3.1 Lan connection
Figure 3
3.2 Search and set the ip address of the ip camera
Run “BSearch_en.exe” in the CD, the setting interface as figure 4.
Figure 4
Operation Steps:
1) Click “Search (F3)
2) Choose the device
3) Change the ip address of the ip camera according to the information in the red frame
on the left. The numbers in the red circle should not be the same.
4) Put the user name and password into “Authentication” (By default, the user name

Home Monitoring IP CAMERA User Manual
8
is: admin, password is: 123456).
5) Click “Update”
6) After successfully update, click “Search (F3)”, choose the device and click “Browse
(F4)”. Then you may view the ip camera, like figure 5.
NOTE:
1) If you don’t know how to fill out the content of “IP config”, you could also tick the “Set
IP automatically” to get the IP address from the router automatically.
2) If you have the firewall software in your PC, when you run the BSearch_en.exe, it
may pop up a window to say “whether you want to block this program or not”, then
you should choose not to block.
3) The default ip address is 192.168.0.178 and default http port is 80.
Figure 5
3.3 Visit IP Camera
We suggest using IE kernel browser to view the video （it can provide more functions）,
but user need to install Player before viewing the video. Click “download and install
player (first use)” link, it will popup dialogue box as Figure 6, click Run, it will
automatically download player and install.
Figure 6

Home Monitoring IP CAMERA User Manual
9
3.3.1 Video Play Area
After install the plug-ins, click “Mode 1 to view” link in Figure 5 to view the video (video as
Figure 7).
Figure 7
1) Main Menu
The main menu includes the function setting of different submenu
2) Status Displaying Area
In right up corner, it is the status displaying area, to show the 9 devices’ status:
if not connected, button is gray
if connected, button is green
If wrong connected , button is yellow
If alarm , button is red
3) Multi Channel displaying area
If users add multi channel（refer to 5.3.2）, when shift to 4-Ch, 9-CH, and it will
automatically show other devices. You select one device, and you can operate it by
these keys: play, stop, and record, control Pan/tilt, etc.
These buttons mean start video, stop, monitor, talk, record and snapshot.
P.S.: If you want to click this button to record the video, please go to
advanced—Other Settings to set the Record Path first. Please see below figure8.

Home Monitoring IP CAMERA User Manual
10
Figure 8
4) PT and video control
In Pan/Tilt control area, user can control the position according to the arrow sign: up,
down, left, right, middle, horizontal cruise, vertical cruise, and stop etc.
Means open IO output and Close IO output.
User can also set the device frame rate、resolution, brightness, contrast and other
parameters.
4 Visit IP Camera from WAN
4.1 Wan connection
Figure 9
