Eagle EG178 User manual

User manual

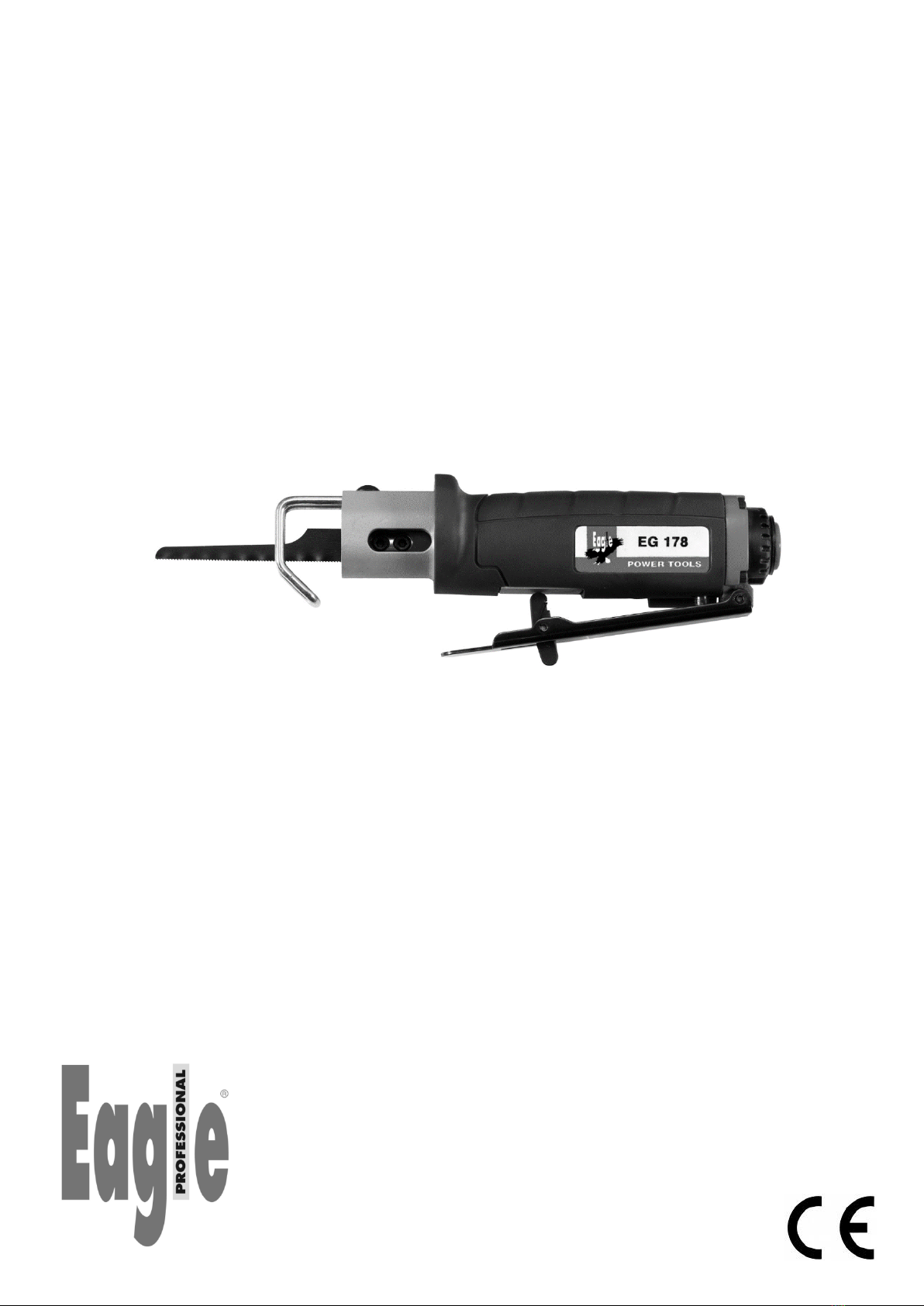

Eagle pneumatic reciprocating saw
EG178

2 User manual Eagle EG178 Pneumatic reciprocating saw
Dear Customer,
Many thanks for the confidence in our
products, that you have shown by
purchasing your new Eagle air-tool. Every
Eagle air-tool is carefully tested and is
subjected to the strictest quality control
procedures. To maintain a long service life
of your tool, please read the operating and
maintenance instructions thoroughly.
Contents
1Explanation of symbols ...........................2
2Declaration of compliance.......................2
3Safety instructions...................................2
4Main application ......................................3
5Specifications..........................................3
6Installation...............................................4
7Maintenance instructions ........................4
8Operating instructions .............................5
9Exploded view.........................................7
1 Explanation of symbols
In this operating manual the following
symbols are used:
Read the operating manual
carefully
Wear eye and ear protection
Wear protective work gloves
Wear
a dust mask
Your special attention is asked
for important specific instructions
or safety risks
2 Declaration of compliance
On our own responsibility, we hereby
declare that this product complies with the
standards or standard-setting documents as
listed on the rear page.
3 Safety instructions
Before using this air-tool, read the
operating instructions thoroughly.
Keep all documents supplied with
the tool in a safe place and pass
them on to other users.
Only use this air-tool the way it is designed
to. All modifications are strictly prohibited
and may cause serious injury.
Protection
1
2
3
Always wear:
(1) protective work gloves.
(2) eye protection and ear protection.
(3) a dust mask.
Working with air-tools can result in serious
injury caused by:
•Chips, dust and other particles.
•Breaking or damaged blades.
•Excessive exposure to noise that may
cause permanent hearing loss.
•Whipping air hoses caused by bad
connections or damaged hoses.
Warnings
•
Do not use this tool in
potentially explosive
atmospheres.
•Never let air-tools get in contact with
sources of electricity.
•Avoid unintentional starting of the tool.
•Unexpected tool movement caused by
reaction forces or breakage of
accessories can cause injuries.
•Release the start/stop lever in case of an
interruption of the air supply.

User manual Eagle EG178 Pneumatic reciprocating saw 3
•After releasing the start/stop lever, the tool
will run for a short period of time.
•Always disconnect the air pressure hose
before adjusting the tool or changing
accessories.
•Loose clothing and hair can get caught by
the blade and may cause serious injuries.
•When working in tight spaces hand
injuries may occur caused by reaction
forces
•Keep children away from air-tools.
•Only use this tool when assured that your
body is in a position to counteract to the
possible reaction forces caused by
stalling.
•Always keep the tool clean and dry.
•Always keep the work area clean,
sufficiently ventilated and well lit.
•Repairs must be carried out by authorized
persons only.
Special warnings for blades
•Never use cracked or
deformed blades.
•
Only use blades of the
correct size.
•Make sure the work piece is properly
supported or fixed.
•Check that the work piece is in such a
position that the created opening will
become wider or remain the same, thus
preventing the tool from stalling. Stalling
will cause unexpected reaction forces.
•If the blade gets jammed, immediately
shut off the tool and ease the blade free.
Thoroughly inspect the blade for damage
before proceeding.
•Pay special attention to the dangers of
dust and fumes resulting from sawing
dangerous materials. Always wear a dust
mask.
•Do not operate the saw with bystanders
present.
•Examine the saw thoroughly before each
use and especially when the tool has
been dropped.
4 Main application
This tool is intended for the sawing metal,
aluminium and plastics in combination with
good quality proper fitting blades.
5 Specifications
Technical specifications
Item nr.
EG178
Max free speed [blows per minute]
9500
Vibrations [m/s2]
3
Air inlet [inch]
1/4
Air consumption [l/min]
36
Max. air pressure [bar]
6,2
Sound power level [dBA]
88
Weight [kg]
0,55
Length [mm]
160

4 User manual Eagle EG178 Pneumatic reciprocating saw

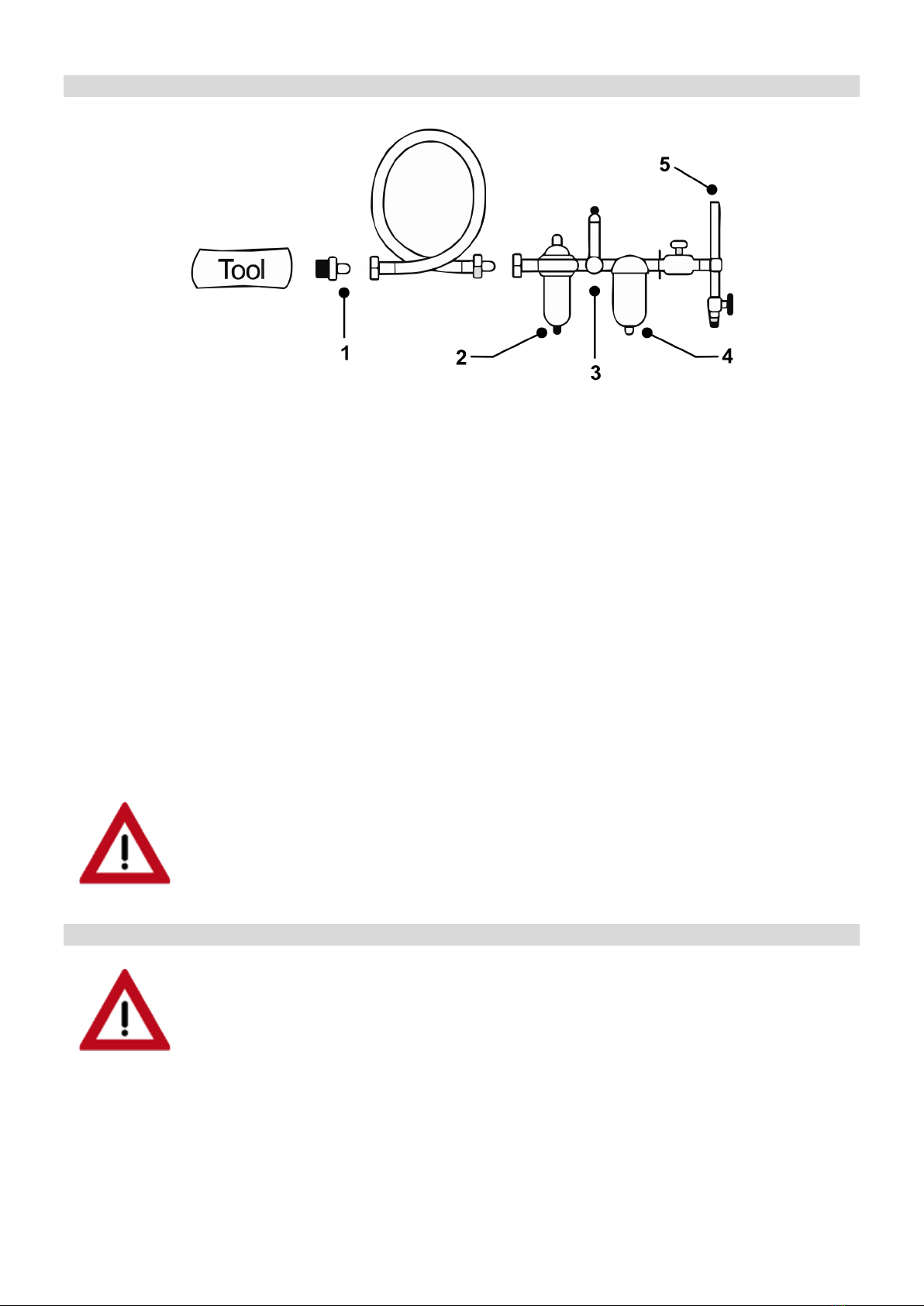

6 Installation
1. Quick coupling
2. Automatic lubricator
3. Regulator
4. Water separator
5. Air supply
Connecting
Use high quality hoses and couplings only.
Air pressure
Use 6,0 bar air pressure in combination with a good working air dryer.
The use of a higher air-pressure can lead to a shorter service life and injuries caused by the
higher rpm.
Lubrication
Use an automatic in-line lubricator that is set to 2 drops/min. If there is no automatic lubricator
available: lubricate by hand with 1 – 2 drops of special air-tool oil (SAE 10) through the air-
intake of the air-tool
Disconnect the air-tool before manually lubricating the air-tool.
7 Maintenance instructions
Oil daily. Only use lubricants recommended by the manufacturer (SAE 10). Before storing the
tool, lubricate through the air-intake and run the tool for a short time.
Thoroughly inspect the air-tool every 3 months when used daily.
Only use original spare parts, that are available through your distributor.
Disconnect the air-tool before executing maintenance.

User manual Eagle EG178 Pneumatic reciprocating saw 5
8 Operating instructions
1. Guide
2. Guide screw
3. Air intake
4. Start/stop lever
5. Blade screw
Check if the maximum air pressure is set to the specified value.
Check that the blade is fitted properly and is properly clamped before each use.
Use the correct type of blade for the material. Check the number of teeth.
Removing/installing the blade
Hold the tool firmly.
Loosen the blade screw with the supplied Allen key.
Insert a new blade of the correct type. Push it in as far as possible. Ensure the blade is not
damaged in any way.
Securely tighten the blade screw.
Only use original Eagle blades of the correct size.
Check if the blade is fitted properly
Let the tool run at free speed for 30 s in a safe position. Stop immediately if the vibration or the
side movement of the blade is too high or other problems are detected.
In case of any defects: disconnect the tool and solve the defect.
Disconnect the air-tool before changing blades or adjusting the guide

6 User manual Eagle EG178 Pneumatic reciprocating saw
Adjust the guide
Loosen the guide screw with the supplied Allen screw.
Slide the guide forwards or backwards as desired.
Fasten the guide screw.
Operating the tool
Securely clamp the workpiece.
Firmly hold the tool using both hands.
Rest the guide on the workpiece, without the blade touching the workpiece.
Start the tool and carefully let the blade touch the workpiece.
Move the tool through the workpiece.
Stop the tool when finished.
Inspect the blade thoroughly on wear before each use.

User manual Eagle EG178 Pneumatic reciprocating saw 7

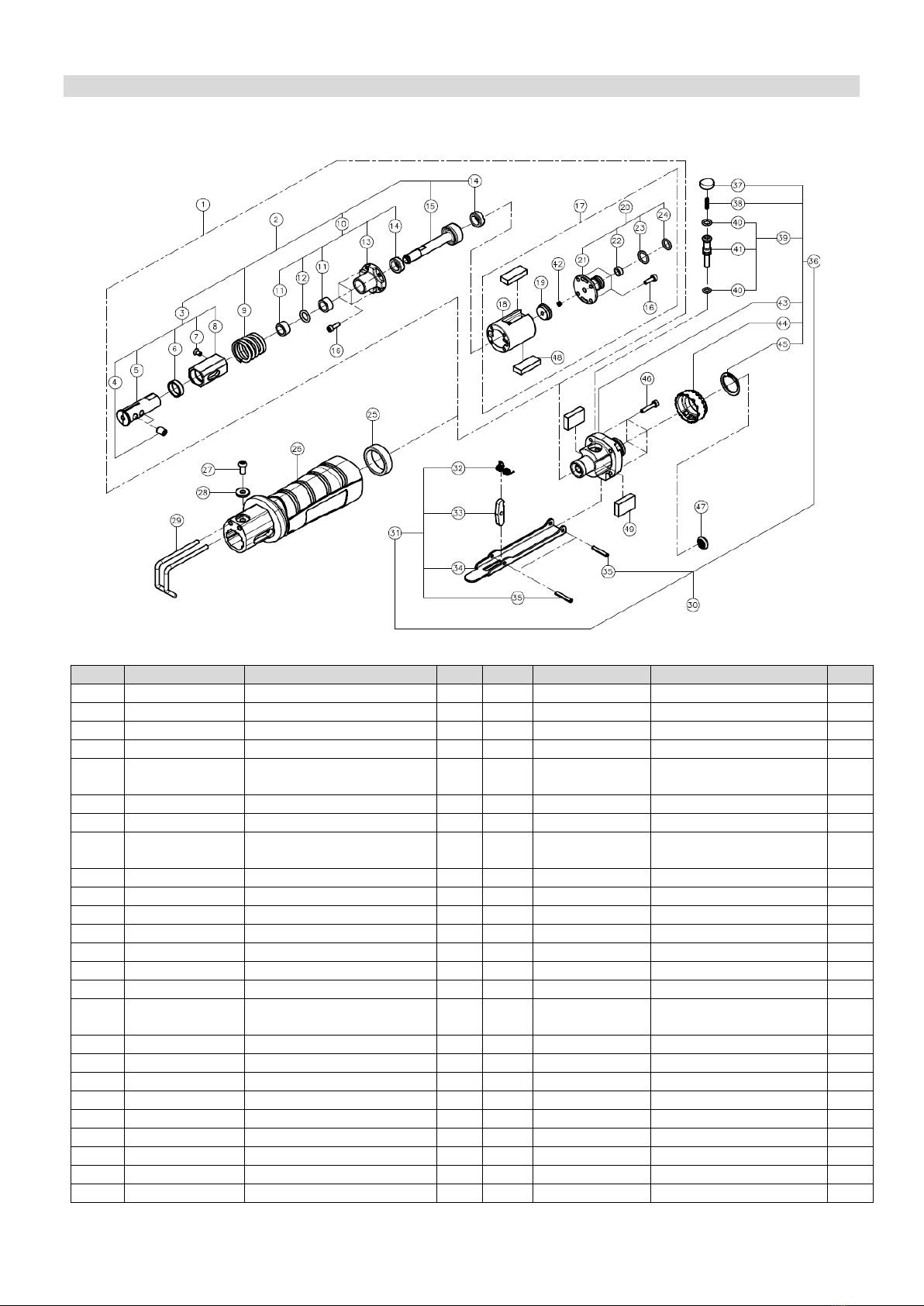

9 Exploded view
Index
Part No.
Description
Q'ty
Index
Part No.
Description
Q'ty
1
EGB5600-0001
Cylinder Group
1
26
EGB5400-0001
Main Body jacket Ass'y
1
2
EGB5600-0021
Cylinder Front Group
1
27
EGA0000-0681
BHSC Screw 5*10
1
3
EGB5500-0051
Spindle Group
1
28
EGA0005-2081
Washer Ø12*Ø5.2*2T
1
4
EGA0003-0601
Bolt M6*8
2
29
EGA0711-3931
Guide Rod
1
5
EGA5501-0001
Spindle
1
30
EGB5500-0011
Control Valves whole
group
1
6
EGA5603-0011
Rings
1
31
EGB5500-0041
Safety Trigger Ass'y
1
7
EGA0000-1451
Screw M3*6
1
32
EGA0101-0771
Spring
1
8
EGA5603-0021
Bush
1
33
EGA5501-0021
Safety Trigger Ended
Block
1
9
EGA0104-0091
Conical Spring
1
34
EGA5500-0001
Safety Trigger
1
10
EGB5600-0031
Cylinder Head Group
1
35
EGA0011-0601
Spring Pin 3*18
2
11
EGA5603-0001
Copper Sleeve
2
36
EGB5500-0021
Control Valves Group
1
12
EGA0200-1871
O-ring Black
1
37
EGA5603-0041
Rubber Plug
1
13
EGA5601-0001
Cylinder Head
1
38
EGA0100-0551
Spring 2.9*11.5L
1
14
EGA0309-1111
Bumper
2
39
EGB5500-0031
Valve Stem Group
1
15
EGA5602-0011
Piston
2
40
EGA0200-1891
O-Rimg 3.69*1.78
2
16
EGA0000-1741
Hex Socket Head Screw
M3*10
8
41
EGA5501-0011
Valve Stem
1
17
EGB5600-0011
Cylinder After Group
1
42
EGA0100-4001
Spring 6.7*4.5L
1
18
EGA5600-0001
Cylinder
4
43
EGA5502-0011
Control Valve
1
19
EGA5602-0001
Valve Plate
4
44
EGA5502-0021
Exhaust Cover
1
20
EGB5500-0001
Guide Valve Group
1
45
EGA0005-2091
C-Ring
1
21
EGA5502-0001
Guide Valve
1
46
EGA0000-2391
Screw M3*16
4
22
EGA0309-1091
Guide Valve Bumper
1
47
EGA0203-0311
Metal Filter
1
23
EGA0200-0611
O-Ring 8.9*1.6
1
48
EGA0203-0321
Muffler #1
2
24
EGA0200-5831
O-Ring 7.5*1.5
1
49
EGA0203-0331
Muffler #2
2
25
EGA0309-1101
Body Bumper
1

man_EG178_EN
EU Declaration of Conformity
Machinery Directive 2006/42/EC
For the following equipment
Product
:
Pneumatic reciprocating saw
Multiple List Model No.
:
EG178
Brand Name
:
EAGLE
Complies with the requirements of the European Community Directive 2006/42/EC.
The above product(s) has (have) been tested and has been found in compliance with the European
Standards as listed below.
EN 792-12:2000+A1:2008
Responsible for making this declaration is the:
Brand Owner Authorized representative established within the EU 
Company Name : Serenco Nederland B.V.
Company Address : Maarssenbroeksedijk 39
3542DM Utrecht
The Netherlands
Company Phone : + 31 (0) 30 2415011
Company Fax : + 31 (0) 30 2415046
Person responsible for making this declaration
Name ：R.F. Geirnaert
Position/Title ：Director
Utrecht June 1, 2018
(place) (Date) (Company stamp and legal signature)
