E&I A 1000 User manual

The material contained in this document is the property of Electronics & Innovation Ltd., it is subject to
change without notice.
September 2010 Revision A
1
A 1000
Broadband Power Amplifier
HIGH RF VOLTAGES MAY BE PRESENT AT THE OUTPUT OF THIS UNIT. All
operating personnel should use extreme caution in handling these voltages and be
thoroughly familiar with this manual.
Do not attempt to operate this unit prior to reading this manual. Specifically
Chapter 5; SAFETY.
The material contained in this document is the property of Electronics & Innovation Ltd., it is subject to
change without notice.
September 2010 Revision A
2
Warranty
Electronics & Innovation Ltd., (hereafter E&I) warrants for the period of one year from the
date of original delivery, each unit to be free of defects in materials and workmanship. For
the period of 12 months E&I will, at its option, repair or replace defective parts so as to
render the unit fully operational such that it performs according to the original
specifications; free of charge to the original purchaser.
Should warranty service be required, the unit must be returned to E&I, freight cost to be
borne by the owner. If, in our opinion, the unit has been damaged by use outside the
limits prescribed in this manual or by accident, then the warranty shall not be honored. In
such a case E&I will provide an estimate for repair, assuming repair is possible and
provide a quote at standard service rates.
Contents
Chapter 1
General Information……………………………………………………………3
Chapter 2
Operation………………………………………………………………………..4
Chapter 3
Technical Information………………………………………………………….7
Chapter 4
Maintenance……………………………………………………………………8
Chapter 5
Safety……………………………………………………………………………12
The material contained in this document is the property of Electronics & Innovation Ltd., it is subject to
change without notice.
September 2010 Revision A
3
Chapter 1 Introduction
The A 1000 is a broadband solid state amplifier covering the frequency spectrum from
300 KHz to 35 MHz. It is rated at 1000 watts of RF power with low harmonic and
intermodulation distortion. Over 1500 watts of saturated power can be produced with
increased distortion products. A linear Class A design, the A1000 will amplify inputs of
AM, FM, SSB, pulse and any complex modulation signals. The amplifier has 60 dB gain,
it is unconditionally stable and will not oscillate even with combinations of mismatched
source and load impedance. It is protected against failure due to output load mismatch
and/or overdrive.
RMS forward and reverse powers are monitored by a front panel meter. An integral power
supply permits operation from 208 V three phase AC power/ max 30 Amps.
1.2 INSTRUMENTATION IDENTIFICATION
Each amplifier is identified by a serial number tag on the back panel of the unit. Both the
model number and the serial number should be quoted to identify specific unit.
1.3 SPECIFICATIONS
Physical and electrical specifications are listed in Table 1-1 below
The material contained in this document is the property of Electronics & Innovation Ltd., it is
subject to change without notice.
September 2010
4 Revision A
Table 1-1. SPECIFICATIONS
FREQUENCY COVERAGE:
300 kHz to 35 MHz.
GAIN:
60 dB min, ±1.5 variation.
CLASS A LINEAR OUTPUT:
Nominal 1000 watts.
SATURATED RF POWER OUTPUT:
1500 Watts min
INPUT IMPEDANCE
50 ohms, VSWR, 1.5:1 Maximum.
OUTPUT IMPEDANCE:
50 ohms, VSWR, 2.5:1 Maximum
STs STABILITY:
Continuous operation into any load or
source impedance.
PROTECTION:
Unit will withstand a + 13 dBm input
signal (1.0 Volts RMS) for all output load
conditions, without damage.
POWER OUTPUT METER:
True RMS power detection. ±5% of full
scale accuracy.
POWER REQUIREMENTS:
3 208 VAC 47-63 Hz. 30 Amps
SIZE:
30 X 24 X 62 inches L x W X H
762 X 210 x 1575 mm. L x W x H
WEIGHT:
610 pounds 277 kg
CONNECTORS:
N
OPERATING TEMPERATURE:
0 –30 C
RACK MOUNTING:
Chapter 2 Operation
2.1 INTRODUCTION
The A1000 RF amplifier is used to amplify the RF level of signal sources in the
300 KHz to 35 MHz range. No tuning or any other form of adjustment is required.
The A1000 produces rated power output at its output connector, regardless of
load impedance. Any power reflected due to output load mismatch is absorbed in
the amplifier. Therefore, although the output impedance is 50 ohms (maximum
VSWR: 2.5:1), the amplifier will work into any load impedance.
The material contained in this document is the property of Electronics & Innovation Ltd., it is
subject to change without notice.
September 2010 5 Revision A
2.2 RACK INSTALLATION
This unit is 35.5 U high, 24” width, 30” Length.
2.2.1 Mains Voltage
The unit runs of 208 3 phase VAC 47 –63 Hz. 30 Amps max
2.3 OPERATION
A fixed line cord is supplied to form a connection between the mains supply and
the rear of the unit. The plug is L14-30P 3 pole / 4 wire.
2.3.1 Proceed as follows:
(i) Ensure that there is at least 24” or 60 cm clearance at the rear of the
unit for air flow.
(ii) Ensure RF input voltage is not excessive
a. The 1 V rms indicated maximum input voltage is 5 times the level of
the input signal required to achieve maximum output. Input voltages
in excess of 2 volts peak may permanently damage the instrument.
b. The unit should not be driven at an input of over 1 dBm for a period
of greater than one minute
(iii) Connect the output via a 50 ohm coaxial lead and N plug to the load.
(iv) Connect the input signal via a 50 ohm coaxial lead and N plug to the
input connector.
2.3.2 Front Panel Display
The A1000 front panel has a passive LCD display designed for simplicity and
ease of use. During initialization, the LCD shows the software revision. After the
amplifier is initialized, the LCD indicates Forward Power, Reflected Power, and
amplifier status (see figure 2.1).
Pf:___W Pr:___W
Status:________
Figure 2.1 : Front Panel Display
Where Pf refers to forward power, Pr refers to reverse power, and Status
indicates “OK” unless there is a fault condition, such as:
Overheat (heat-sink temperature is too high for reliable operation)
The material contained in this document is the property of Electronics & Innovation Ltd., it is
subject to change without notice.
September 2010 6 Revision A
PSU fault (internal fault in the main switching power supply)
In the event of a fault, the unit may be reset by cycling the power. In the case
over an over temp fault, ensure that the air inlet and out let are not restricted. If
the fault persists, please contact Field Service.
2.3.3 RS 232 Interface
The A500 features a standard RS-232 serial interface suitable for connection to a
PC or host system. The communication protocol is extremely simple to facilitate
readback and control with readily available terminal programs such as
Hyperterm. The RS-232 link has the following parameters:
Baud rate: 19200
Data bits: 8
Parity: none
Stop bits: 1
Flow control: none
An example configuration using HyperTerminal on a PC is shown in figure 2.2.
Figure 2.2: Example RS-232 setup using Hyper Terminal
The material contained in this document is the property of Electronics & Innovation Ltd., it is
subject to change without notice.
September 2010 7 Revision A
In the default state, the RS-232 port will echo the same information sent to the
front panel LCD display, allowing a running datalog to be stored to disk using the
capture feature of the terminal program.
Single character commands can be sent to the amplifier to achieve the following:
"1" key enables telemetry (readback similar to LCD display) - this is the default
mode at power up
“2” key clears any faults and tries to start the supply.
“0” key disables telemetry (Complement to “1” key)
Chapter 3 Technical Description
3.1 GENERAL DESCRIPTION
The A1000 is designed to amplify signals by 60 dB in the frequency band of 300
KHz to 35 MHz. The signal from the rear panel N connector is fed via a length of
50 ohm coaxial cable into the input of the pre-amp, the first stage is the MMIC
front end. The output signal of the MMIC is coupled to the gate of transistor Q1.
The further amplified signal appearing at the drain of Q1 is coupled to the input of
Q2. This is transformed to 50 and fed to the driver output BNC port.
The driver output signal is fed through a length of coaxial cable to the input of the
IPA, the output is fed to the power amplifier splitter. This splitter has four outputs.
Each output is then fed to each of the four PA rf trays. Inside each rf tray the
signal is split again four ways and fed to each of the four PAs in the tray. In each
PA module the signal is split into two equal phase and amplitude signals. These
signals are fed to the inputs of transistors Q1 and Q2. The amplified signals
appearing at the drains of Q1 and Q2 are then fed to the output BNC port via the
impedance matching network. The output of the four modules is then fed to a
combiner to produce a single signal for each rf tray. The output of each rf tray is
fed to the control/ combiner tray when the four signals are combined to produce a
single output.
The power signal is then fed into a length of 50 ohm coaxial cable to the RF bi-
directional coupler. The output of the coupler is then fed directly to the N
connector on the rear panel, this is the unit output.
The forward and reverse coupled ports of the bi-directional coupler are fed to the
RF detector which is situated on the main control board. The RF detector feeds a
voltage, which is representative of the true RMS power to the control board
proper. The control board in turn drives the front panel display.
The material contained in this document is the property of Electronics & Innovation Ltd., it is
subject to change without notice.
September 2010 8 Revision A
There are three switch mode power supply modules that provide a 42 VDC 300
ampere source. Another provides 24 VDC outputs and provides 6.3 amps. The
24 Vdc power supply also has a 5 VDC output which feeds the control board.
The material contained in this document is the property of Electronics & Innovation Ltd., it is
subject to change without notice.
September 2010 9 Revision A
Chapter 4 Maintenance
4.1 INTRODUCTION
The E&I A1000 RF amplifier requires no periodic maintenance. The instrument is
unconditionally stable and is fail-safe under all load conditions. Damage can only
be externally caused by the incorrect selection of the AC supply voltage or by an
input signal in excess of the specified 1 volt rms equivalent to a power level of 13
dBm or a power level of 1 dBm for greater than one minute.
This chapter therefore, deals only with certain fundamental procedures for fault
location.
The material contained in this document is the property of Electronics & Innovation Ltd., it is
subject to change without notice.
September 2010 10 Revision A
Performance limits quoted are for guidance only and should not be taken for
guaranteed performance specifications unless they are also quoted in the
Specification Section 1.2.
4.2 PERFORMANCE CHECKS
To determine the amplifier’s performance carry out the following procedure.
4.2.1 Initial Check
The following check can be made after repair and adjustments or
whenever the condition of the unit is in question.
a. Connect AC power supply. Switch on power and observe that the
display initializes.
b. Connect a sweep generator capable of sweeping the frequency range
300 KHz to 35 MHz, to the input connector.
c. Adjust the output level of the sweep generator so that a 50 ohm video
detector connected at the output of the unit will not be damaged by
excessive power output. (Reference section 4.4.1 for set up.)
d. Observe the gain versus frequency ripple on an oscilloscope calibrated
in decibels. The gain variation must be not more than +/- 1.5 dB over
the frequency range.
e. Connect a calorimetric power meter through a 60 dB 1000 watt
attenuator to the output connector. Adjust the input CW signal to any
frequency between 300 kHz and 35 MHz for 1000 watts output.
f. Observe the harmonic distortion of the output, properly attenuated, on
a spectrum analyzer. The harmonic components contributed by the
amplifier should be better than 22 dB down from the fundamental.
The material contained in this document is the property of Electronics & Innovation Ltd., it is
subject to change without notice.
September 2010 11 Revision A
4.3.1 Measurement of Gain
1. Equipment Required (or equivalent):
a) Osilloscope - Tektronix T921
b) Sweep/Generator - HP8601A
c) Signal Generator - Exact Model 7060
d) 50 ohm Detector - Wavetek D151
e) Attenuator, 60 dB, 1000 Watts Bird
Figure 4-1. Gain Measurement
2. Connect the equipment as shown in Figure 4-1, then proceed as follows:
a) Set the oscilloscope to DC, Time/cm to Ext. X, and gain to
l0mv/cm.
b) Set the sweep generator to the video sweep mode with the start
frequency at 300 kHz and the sweep width to 35 MHz.
c) Disconnect the A1000 from the set-up and connect the
sweep/generator RF output directly to the 60 dB attenuator.
60 dB Attenuator
RF Detector
Sweep Generator
RF Output
Sweep
Signal
Trigger
300 KHz –35 MHz
Input
The material contained in this document is the property of Electronics & Innovation Ltd., it is
subject to change without notice.
September 2010 12 Revision A
d) Adjust the output level of the sweep/generator for full vertical
deflection on the oscilloscope face.
e) Calibrate the scope face to show 3 dB in 1 dB steps by
attenuating the sweep/generator in 1 dB.
f) Return sweep/generator output level to full deflection. Rotate the
step attenuator (CCW) so that the output is reduced by 60 dB.
g) Reconnect the A1000 into the test set-up of Figure 4-1.
h) Place the A1000 power switch to the "ON" position.
i) Observe the gain versus frequency sweep on the oscilloscope.
The average gain should be greater 60 dB
The gain variation should be within the 3 dB as shown on the
oscilloscope.
4.4.2 Measurement of Harmonics
Figure 4-2.
1.) Equipment Required:
a) Sweep/Signal Generator
b) Calorimetric Power Meter HP435B
50 dB Attenuator
Sweep Generator
RF Output
300 KHz –35
MHz
Spectrum
Analyzer
Power Meter
30 dB
coupler
The material contained in this document is the property of Electronics & Innovation Ltd., it is
subject to change without notice.
September 2010 13 Revision A
c) Spectrum Analyzer.
d) Attenuator (60dB)
e) Coupler (60 dB)
2.) Connect the Equipment as shown in Figure 4-2, then proceed as follows:
a) Adjust the signal generator to a CW center frequency of 300 kHz, for an
indicated output of 1000 watts on the power meter.
b) Using the spectrum analyzer, check that the level of the carrier
harmonics is less than -22 dB with respect to the carrier while manually
scanning the frequency band of 300 KHz to 35 MHz. An indicated power
output of 1000W should be maintained during this operation.
4.5 PACKAGING FOR RESHIPMENT
In the event of the equipment being returned for servicing it should be packed in
the original shipping carton and packing material. If this is not available, wrap the
instrument in heavy paper or plastic and place in a rigid outer box of wood,
fiberboard or very strong corrugated cardboard. Use ample soft packing to
prevent movement. Provide additional support for projecting parts to relieve
these of unnecessary shock. Close the carton securely and seal with durable
tape. Mark the shipping container FRAGILE to ensure careful handling.
Chapter 5 Safety:
Do not attempt to operate this unit with any of the covers removed. High AC and
DC voltages are present. The cover protects against electrical shock due to AC
line voltages, high DC and RF fields. Further the cover provides part of the
cooling system design. Components, specifically on the RF driver board and PAs
are prone to over-heat and eventual failure if the unit is operated without the
cover in place.
Ensure that the load is connected to the output prior to connecting the RF input
to the unit. This will prevent high voltages being present and exposed at the
output connector.
Only use the AC cord provided or equivalent.
Ensure that the mains outlet is properly grounded and the rack is grounded using
the ground stud provided on the rear left bottom corner.

Other E&I Amplifier manuals

E&I 1000S04 User manual

E&I

E&I 1000S04 User manual

E&I 2100L User manual

E&I

E&I 2100L User manual

E&I 2200L User manual

E&I

E&I 2200L User manual

E&I 1140LA User manual

E&I

E&I 1140LA User manual

E&I 3100L User manual

E&I

E&I 3100L User manual

E&I 1040L User manual

E&I

E&I 1040L User manual

E&I 3100LA User manual

E&I

E&I 3100LA User manual

E&I 1020L User manual

E&I

E&I 1020L User manual

E&I 350L User manual

E&I

E&I 350L User manual

E&I 2500L User manual

E&I

E&I 2500L User manual

E&I 210L User manual

E&I

E&I 210L User manual

E&I 2400L User manual

E&I

E&I 2400L User manual

E&I A150 User manual

E&I

E&I A150 User manual

E&I 240L User manual

E&I

E&I 240L User manual

E&I 325LA User manual

E&I

E&I 325LA User manual

Popular Amplifier manuals by other brands

DaytonAudio MA455 user manual

DaytonAudio

DaytonAudio MA455 user manual

Dan D'Agostino MLife owner's manual

Dan D'Agostino

Dan D'Agostino MLife owner's manual

Linear AMP Discovery operating manual

Linear AMP

Linear AMP Discovery operating manual

Sound Skulptor MP 566 Assembly guide

Sound Skulptor

Sound Skulptor MP 566 Assembly guide

T+A V10 user manual

T+A

T+A V10 user manual

Mantracourt ICA3 user manual

Mantracourt

Mantracourt ICA3 user manual

auna AV1 AMP-EQ manual

auna

auna AV1 AMP-EQ manual

RAM Trucks 1500 Service manual

RAM

RAM Trucks 1500 Service manual

LOUD Technologies FreePlay quick start guide

LOUD Technologies

LOUD Technologies FreePlay quick start guide

Lab.gruppen fP Series FP 2600 Specifications

Lab.gruppen

Lab.gruppen fP Series FP 2600 Specifications

Cello PERFORMANCE AMPLIFIER II owner's manual

Cello

Cello PERFORMANCE AMPLIFIER II owner's manual

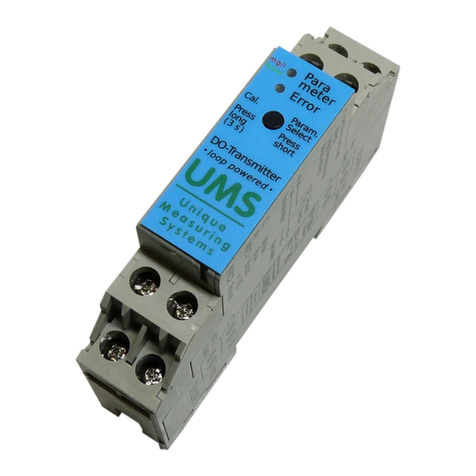

UMS OxyScan Transmitter DIN rail Operation manual

UMS

UMS OxyScan Transmitter DIN rail Operation manual

Kramer Tools VP-200Dxl user manual

Kramer

Kramer Tools VP-200Dxl user manual

Linear Power 302IQ Owner's manual and installation guide

Linear Power

Linear Power 302IQ Owner's manual and installation guide

Pyle PT510 user manual

Pyle

Pyle PT510 user manual

Ametek SW 5550AE Operation manual

Ametek

Ametek SW 5550AE Operation manual

Blacknote DSA 100 Special owner's manual

Blacknote

Blacknote DSA 100 Special owner's manual

Alvarez System 600T MK II owner's guide

Alvarez

Alvarez System 600T MK II owner's guide

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
