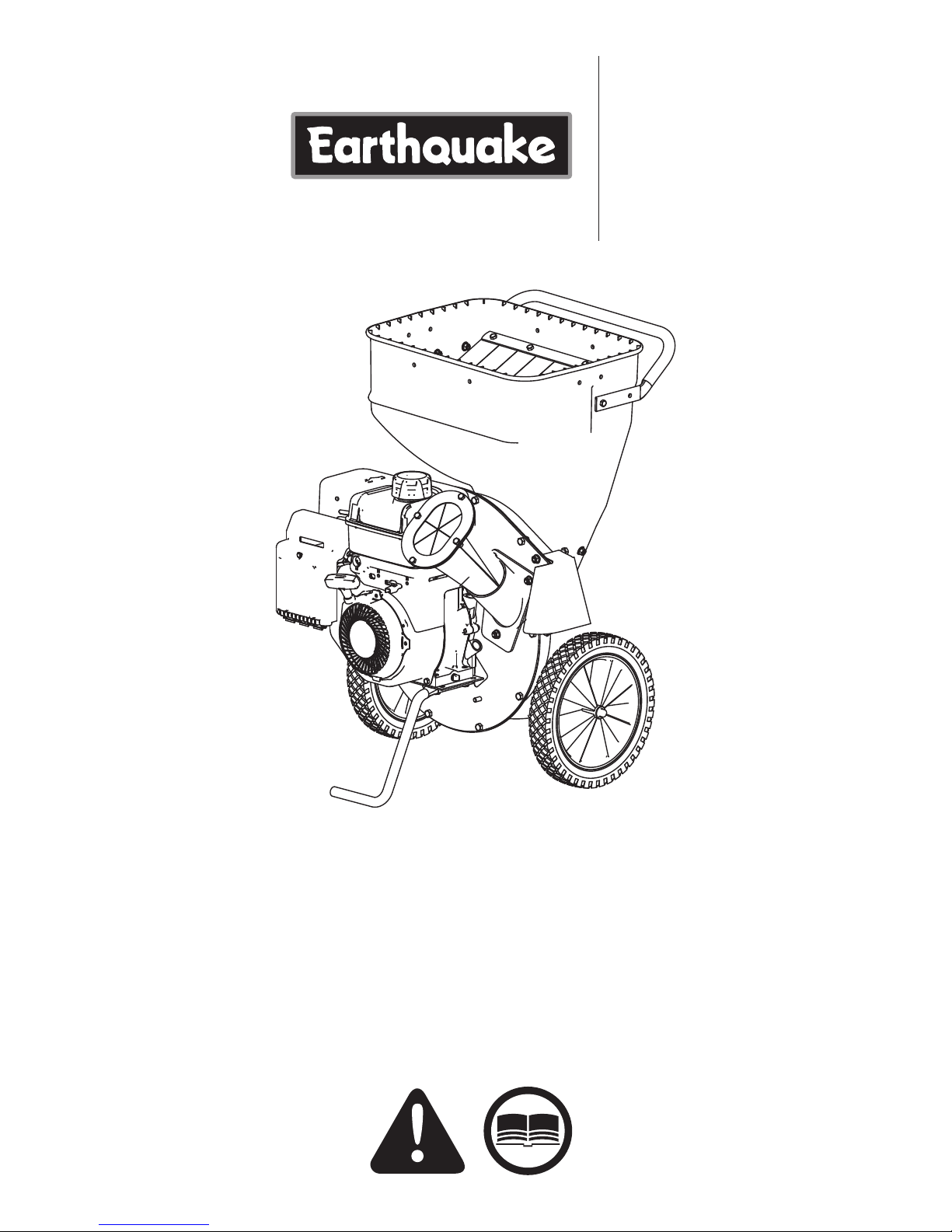

EarthQuake 14267 User manual

Operator’s Manual
Original Operating Instructions
Chipper/Shredders
P/N: 14306
ECN: 9496
REV2: 01/03/13
© 2013 Ardisam, Inc.
All Rights Reserved
Get parts online at
www.getearthquake.com
GAS/OIL
RATIO
50:1
Model No. Description
14267 212cc Viper Earthquake Chipper / Shredder
14268 212cc Viper Earthquake Chipper / Shredder (CE)
9060300 8.50 Torque Rated Briggs Earthquake Chipper / Shredder
9060140 8.25 Torque Rated Briggs Earthquake Chipper / Shredder (CE)
9070300 11.50 Torque Rated Briggs Earthquake Chipper / Shredder
9010400 14.50 Torque Rated Briggs Earthquake Chipper / Shredder
12547 14.50 Torque Rated Briggs Earthquake Chipper / Shredder (CE)
1692327 Tow Bar Kit
1692210 Vacuum Kit
Includes:

Operator’s Manual
Chipper/Shredders
2Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5
INTRODUCTION
Congratulations on your investment in quality. Thank you for purchasing a Chipper/Shredder from Earthquake™. We have worked to
ensure that your product meets the highest standards for usability and durability. With proper care, your Chipper/Shredder will provide
many years of service.
Please read this entire manual before installation and use. Earthquake reserves the right to change, alter or improve the product
and this document at any time without prior notice.
CONTENTS
Registration ........................................................................................................................................................................................................................................2
Warnings & Safety Precautions................................................................................................................................................................................................3-8
Assembly .......................................................................................................................................................................................................................................9-11
Features & Controls........................................................................................................................................................................................................................12
Operation & Storage...............................................................................................................................................................................................................13-14
Recommendations & Maintenance ..................................................................................................................................................................................15-19
Troubleshooting & Repair ....................................................................................................................................................................................................20-22
Specications...................................................................................................................................................................................................................................23
Parts & Accessories ........................................................................................................................................................................................................................23
Parts Breakdown......................................................................................................................................................................................................................24-30
Certicates of Conformity....................................................................................................................................................................................................31-35
Warranty .....................................................................................................................................................................................................................................36-37
This manual may contain information for several models. Read and keep this manual for future reference. This manual contains
important information on SAFETY, ASSEMBLY, OPERATION, AND MAINTENANCE. The owner must be certain that all the product
information is included with the unit. This information includes the MANUAL, the REPLACEMENT PARTS and the WARRANTIES.
This information must be included to make sure state laws and other laws are followed. This manual should remain with the
engine even if it is resold.
OWNERSHIP RECORDS
Owner’s Name:
Owner’s Address:
City: State/Province: Zip Code/Postal Code:
Model Number: Serial Number:
Date of Purchase:
Notes:
REGISTRATION AND SERVICE
Record the engine model number and serial number in the space provided for easy reference when ordering parts or requesting
technical support. Excluding emissions-related warranty items, the warranty is valid only if the completed registration is received by
Ardisam within 30 days of purchase. (SEEWARRANTY SECTION FOR MORE INFORMATION.) You can register your warranty online
by visiting www.getearthquake.com, or by mailing it to: Ardisam, 1160 Eighth Avenue, Cumberland, WI 54829. If you do not have a
computer, call our customer service department at [phone] Mondays through Fridays from 8 a.m. to 5 p.m. CST.
Serial
Number
FEDERAL EMISSIONS INFORMATION
Earthquake warrants to the retail purchaser, that this small, o-road engine
was designed, built and equipped to conform at the time of initial sale to all
applicable regulations of the U.S. Environmental Protection Agency (EPA).

3Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5
Operator’s Manual
Chipper/Shredders
SAFETY
OWNER’S RESPONSIBILITY
Accurate assembly, and safe and eective use of the chipper/
shredder is the owner’s responsibility.
 
 
 
schedule included in this Earthquake operator’s manual.
 
familiar with all controls and safety precautions.
SPECIAL MESSAGES
Your manual contains special messages to bring attention to
potential safety concerns, machine damage as well as helpful
operating and servicing information. Please read all the informa-
tion carefully to avoid injury and machine damage.
NOTE: Generalinformation is giventhroughout the manual
that may help the operator in the operation or service of
the machine.
IMPORTANT SAFETY PRECAUTIONS
Please read this section carefully. Operate the chipper/shred-
der according to the safety instructions and recommendations
outlined here and inserted throughout the text. Anyone who
uses this chipper/shredder must read the instructions and be
familiar with the controls. Learn how to control the chipper/
shredder at all times.
This symbol points out important safety instructions
which if not followed could endanger your personal
safety. Read and follow all instructions in this manual
before attempting to operate this equipment.
 
    
operate the chipper/shredder without proper instruction.
PREPARATION
  
Always wear sturdy footwear and safety goggles. Never
wear sandals, sneakers or open shoes, and never operate the

that might get caught in moving parts.
 
the engine.
 
 
unit discharges debris at high speeds.
 
running.
 
a. Use an approved fuel container.
b. Never add fuel to a running engine or hot engine.
c. Fill fuel tank outdoors with extreme care. Never ll fuel
tank indoors.
d. Replace gasoline cap securely and clean up spilled fuel
before restarting.
DANGER
DANGER INDICATES A SERIOUS INJURY OR FATALITY
WILL RESULT IF THE SAFETY INSTRUCTIONS THAT
FOLLOW THIS SIGNAL WORD ARE NOT OBEYED.
WARNING
WARNING INDICATES A SERIOUS INJURY OR FATALITY
COULD RESULT IF THE SAFETY INSTRUCTIONS THAT
FOLLOW THIS SIGNAL WORD ARE NOT OBEYED.
CAUTION
CAUTION INDICATES YOU CAN OR YOUR EQUIPMENT
CAN BE HURT IF THE SAFETY INSTRUCTIONS THAT
FOLLOW THIS SIGNAL WORD ARE NOT OBEYED.
IMPORTANT
IMPORTANT INDICATES HELPFUL INFORMATION FOR
PROPER ASSEMBLY, OPERATION, OR MAINTENANCE
OF YOUR EQUIPMENT.
WARNING
YOU MUST READ, UNDERSTAND AND COMPLY WITH
ALL SAFETY AND OPERATING INSTRUCTIONS IN
THIS MANUAL BEFORE ATTEMPTING TO SETUP AND
OPERATE YOUR ROTOTILLER.
FAILURE TO COMPLY WITH ALL SAFETY AND
OPERATING INSTRUCTIONS CAN RESULT IN LOSS OF
MACHINE CONTROL, SERIOUS PERSONAL INJURY TO
YOU AND/OR BYSTANDERS, AND RISK OF EQUIPMENT
AND PROPERTY DAMAGE.THE TRIANGLE IN THE TEXT
SIGNIFIES IMPORTANT CAUTIONS OR WARNINGS
WHICH MUST BE FOLLOWED.
CALIFORNIA PROPOSITION 65 WARNING
ENGINE EXHAUST FROM THIS PRODUCT CONTAINS
CHEMICALS KNOWN TO THE STATE OF CALIFORNIA
TO CAUSE CANCER, BIRTH DEFECTS, OR OTHER
REPRODUCTIVE HARM.

Operator’s Manual
Chipper/Shredders
4Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5
TRAINING
1. Read the operating and service instructions carefully. Be
thoroughly familiar with the controls and the proper use of
the equipment. Know how to stop the unit and disengage
the control quickly.
2. Keep the area of operation clear of all persons, particularly
small children, and pets.
GENERAL OPERATION
1. Read, understand, and follow all instructions in the manual
and on the unit before starting.
 
machine. Keep clear of the discharge opening at all times.
3. Only allow responsible adults, who are familiar with the
instructions, to operate the unit (local regulations can
restrict operator age).
4. Be sure the area is clear of other people before operating.
Stop the unit if anyone enters the area.
5. Never direct discharge material toward anyone. Avoid
discharging material against a wall or obstruction.
Material may ricochet back toward the operator.
6. Operate the machine only in daylight or good artificial
light.
     
alcohol or drugs.
8. Always wear eye and hearing protection when operating
this unit.
9. Keep in mind the operator is responsible for accidents
occurring to other people or property.
10. It is a violation of California Public Resource Code Section
4442 to use or operate the engine on or near any forest-
covered, brush-covered, or grass-covered land unless the
exhaust system is equipped with a spark arrester meeting
any applicable local or state laws. Other states or federal
areas may have similar laws.
11. Always operate the chipper/shredder outdoors, on a firm,
level, earthen or grassy surface where the unit will be
stable and stay in position. Never attempt to operate
the unit on a slope, or on a wet or slippery surface where
you could slip and fall toward the chipper cone or hopper
openings.
12. Never operate the chipper/shredder on asphalt, concrete,
or other hard surfaces as material being ejected out of the
discharge chute could ricochet, causing injury to you or
bystanders.
13. Always obey the size limitations for tree limbs and
branches stated in the Waste Materials Guide portion of
this manual.
14. Never leave the machine running unattended. Always turn
off the engine, wait for the rotor to come to a complete
stop, and disconnect the spark plug before leaving the
area. Always move the unit to a safe storage area when not
in use.
15. Always maintain secure footing and solid balance while
starting or operating the chipper/shredder. Never lean
directly over the machine.
16. Always stand to the side of the chipper cone when feeding
tree limbs and branches into the unit, as tree limbs,
branches, and harder woods may kick back while being
chipped.
17. Always keep hands out of the chipper cone and shredder
hopper when feeding materials. Never wrap fingers tightly
around branches as you are feeding them into the unit,
as a sudden inward surge could pull your hands and arms
into the unit.
18. Never allow material to build up in the discharge area or
shredding chamber, as this may cause new material being
fed into the machine to kickback with sufficient force to
injure you or other bystanders.
19. Never allow material to build up around the engine during
chipper/shredder operation. This could result in a fire, or
overheating of the engine.
20. Never attempt to reposition or move the chipper/shredder

to tip over, and reaching to steady the unit could result in
accidental insertion of your hands into the chipper cone or
shredder hopper areas.
IMPORTANT
THE RIGHT AND LEFT SIDES OF YOUR CHIPPER/
SHREDDER ARE DETERMINED FROM THE OPERATING
POSITION, STANDING AND FACING THE UNIT.
ENGINE IS SHIPPED FROM FACTORYWITHOUT OIL.YOU
MUST ADD ENGINE OIL BEFORE STARTING ENGINE.
DANGER
THE CHIPPER/SHREDDER HAS SPINNING BLADES
THAT CAN AMPUTATE HANDS AND FEET. DO NOT
PLACE HANDS OR FEET IN THE HOPPER OR CHIPPER
CONE, OR DISCHARGE CHUTE.
WARNING
THIS UNIT DISCHARGES DEBRIS AT HIGH SPEEDS.
ALWAYS WEAR PROTECTIVE GOGGLES AND DO NOT
OPERATE WITHOUT THE DEBRIS BAG IN PLACE.
DO NOT ALLOW ANYONE IN THE AREA WHILE THE
UNIT IS RUNNING. IF SOMEONE DOES ENTER THE
AREA, SHUT THE UNIT OFF IMMEDIATELY UNTIL
THEY LEAVE. ORGANIZE THE WORK AREA PRIOR TO
STARTING WORK.

5Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5
Operator’s Manual
Chipper/Shredders
21. Never continue to operate the machine if it starts
making unusual noise or vibration. Shut the engine off
immediately, allow the rotor to stop, disconnect the
spark plug wire and secure the wire away from the spark
plug. Inspect the unit for any signs of damage or foreign
material in the chipping or shredding areas. Remove
any solid material that may be preventing the unit from
operating properly.
22. Never attempt to clear clogs from the chipper cone,
shredder hopper or discharge chute while the unit is
running. Always shut the engine off, allow the rotor to
come to a complete stop, and remove the spark plug wire
from the spark plug before removing excess materials.
23. Never attempt to perform any maintenance, repairs,
or attachment of accessories while the unit is running.
Always shut the unit off, allow the rotor to come to a
complete stop, and remove the spark plug wire from the
spark plug before beginning these activities.
24. Always make sure that the shredding chamber, shredder
hopper, and chipper cone are empty before starting the
unit after it has been idle. Attempting to start the unit with
material in these areas could cause the engine starting
cord to stop suddenly, injuring your hand and fingers, or
toppling the unit over. Vibration is generally a warning
sign of trouble.
25. Before cleaning, repairing, or inspecting, shut off the
engine and make certain that all moving parts have come
 
secure the wire away from the spark plug to prevent
accidental starting.
 
dangerous carbon monoxide fumes can collect.
27. Never operate the machine without proper guards, plates,
or other safety protective devices in place.
28. Use only attachments and accessories approved of by the
manufacturer of the machine.
TRANSPORTING AND STORAGE
1. Always observe safe refueling and fuel handling practices
when refueling the unit after transportation or storage.
2. Never store the unit (with fuel) in an enclosed poorly
ventilated structure. Fuel vapors can travel to an ignition
source (such as a furnace, water heater, etc.) and cause an
explosion. Fuel vapor is also toxic to humans and animals.
3. Always use the hopper handle and built-in wheels to
move the chipper/shredder. Never lift the unit using the
fuel tank for support. If the unit must be lifted , always
use at least two people, and always grip the unit securely
using the front leg and hopper handle.
4. Always follow the engine manual instructions for storage
preparations before storing the unit for both short and
long term periods.
5. Always follow the engine manual instructions for proper
start-up procedures when returning the unit to service.
6. Never store the unit or fuel container inside where there
is an open flame or pilot light, such as in a water heater.
Allow unit to cool before storing.
CHILDREN
Tragic accidents can occur if the operator is not alert to the
presence of children. Children are often attracted to the unit and
the operating activity. Never assume that children will remain
where you last saw them.
1. Keep children out of the work area and under the watchful
care of another responsible adult.
2. Be alert and turn unit off if children enter the area.
3. Never allow children to operate the unit.
EMISSIONS
1. Engine exhaust from this product contains chemicals
known, in certain quantities, to cause cancer, birth defects,
or other reproductive harm.
   
Index information on the engine emissions label.
IGNITION SYSTEM
1. This spark ignition system complies with Canadian ICES-
002.
SERVICE AND MAINTENANCE
Safe Handling of Gasoline
1. Extinguish all cigarettes, cigars, pipes, and other sources of
ignition.
2. Use only approved gasoline containers.
3. Never remove the gas cap or add fuel with the engine
running. Allow the engine to cool before refueling.
4. Never fuel the machine indoors.
5. Never store the machine or fuel container where there is
an open flame, spark, or pilot light such as near a water
heater or other appliance.
6. Never fill containers inside a vehicle or on a truck bed with
a plastic bed liner. Always place containers on the ground
away from your vehicle before filling.
7. Remove gas-powered equipment from the truck or
trailer and refuel it on the ground. If this is not possible,
then refuel such equipment on a trailer with a portable
container, rather than from a gasoline dispenser nozzle.

Operator’s Manual
Chipper/Shredders
6Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5
Amputation
Hazard
To avoid serious personal injury from
rotating cutting blades, keep hands out
of discharge while machine is running.
Thrown Objects
Hazard
To avoid serious personal injury from
discharged debris, never operate
without the discharge bag installed.
DANGER WARNING
1732181
Amputation Hazard
To avoid serious personal injury from rotating
cutting blades, keep hands out of inlet while
machine is running.
DANGER
1732039
1731921
1731920
1731919
Amputation Hazard
To avoid serious
personal injury from
rotating cutting
blades, keep hands
out of inlet while
machine is running.
DANGER
Avoid Serious Injury or Death
• Read and follow the operating instructions.
• Know the location and function of all controls.
• Wear proper safety goggles and hearing
protection.
• Never wear loose clothing.
• Keep hands and clothing clear of material
being pulled into the unit.
• Keep hands and feet away from the discharge
chute area.
• Keep safety devices (guards & shields)
in place and working.
• Do not operate when children or others
are present.
• Be sure all moving parts have stopped
before placing hands near the cutting
blades.
• When leaving the machine, shut off the
engine.
WARNING
1731918
NO HANDS BELOW THIS LINE
Safety Decals
This unit has been designed and manufactured to provide you with the safety and reliability you would expect from an industry
leader in outdoor power equipment manufacturing.
Although reading this manual and the safety instructions it contains will provide you with the necessary basic knowledge to
operate this equipment safely and effectively, we have placed several safety labels on the unit to remind you of this important
information while you are operating your unit.

injury can result when these instructions are not followed. The information is for your safety and it is important! The safety decals
below are on your unit.
If any of these decals are lost or damaged, replace them at once. See your local dealer for replacements.
These labels are easily applied and will act as a constant visual reminder to you, and others who may use the equipment, to follow
the safety instructions necessary for safe, effective operation.
Decal - Danger,
Rotating Cutting Blades,
North American Models
Decal - Danger,
Rotating Cutting Blades, Warning, Debris,
North American Models
Decal - Operating Instructions,
North American Models
Decal - Operating Instructions, CE
Models
Decal - Danger,
Rotating Cutting Blades,
CE Models
Decal - Danger,
Thrown Objects, Do Not Operate
Without Collection Bag,
CE Models

7Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5
Operator’s Manual
Chipper/Shredders
1731919
Warning: Read Operator’s Manual.
Read and understand the Operator’s
Manual before using this machine.
1731919
Danger: Thrown Objects.
This machine is capable of throwing
objects and debris. Keep bystanders
away.
1731919
Danger: Amputation Hazard.
To avoid serious personal injury from
rotating cutting blades, keep hands out
of inlet while machine is running.
1731919
Warning: Disconnect the Spark Plug
Wire Before Servicing.

secure it away from the spark plug
before servicing the unit.
1731919
Danger: Wear Appropriate Safety
Equipment.
This machine is capable of throwing
objects and debris. Always wear safety
goggles while operating.
This machine’s operating sound power
level is 109 dB(A) or more. Wear
hearing protection while operating.
1731919
Danger: Thrown Objects.
This machine is capable of throwing
objects and debris. Keep bystanders
and children away when engine is
running.
1731919
Danger: Do Not Place Hands in
the Machine.
To avoid serious personal injury from
rotating cutting blades, keep hands
out of inlet while machine is running.

symbol is present.
Safety Icons (European Models)

Operator’s Manual
Chipper/Shredders
8Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5

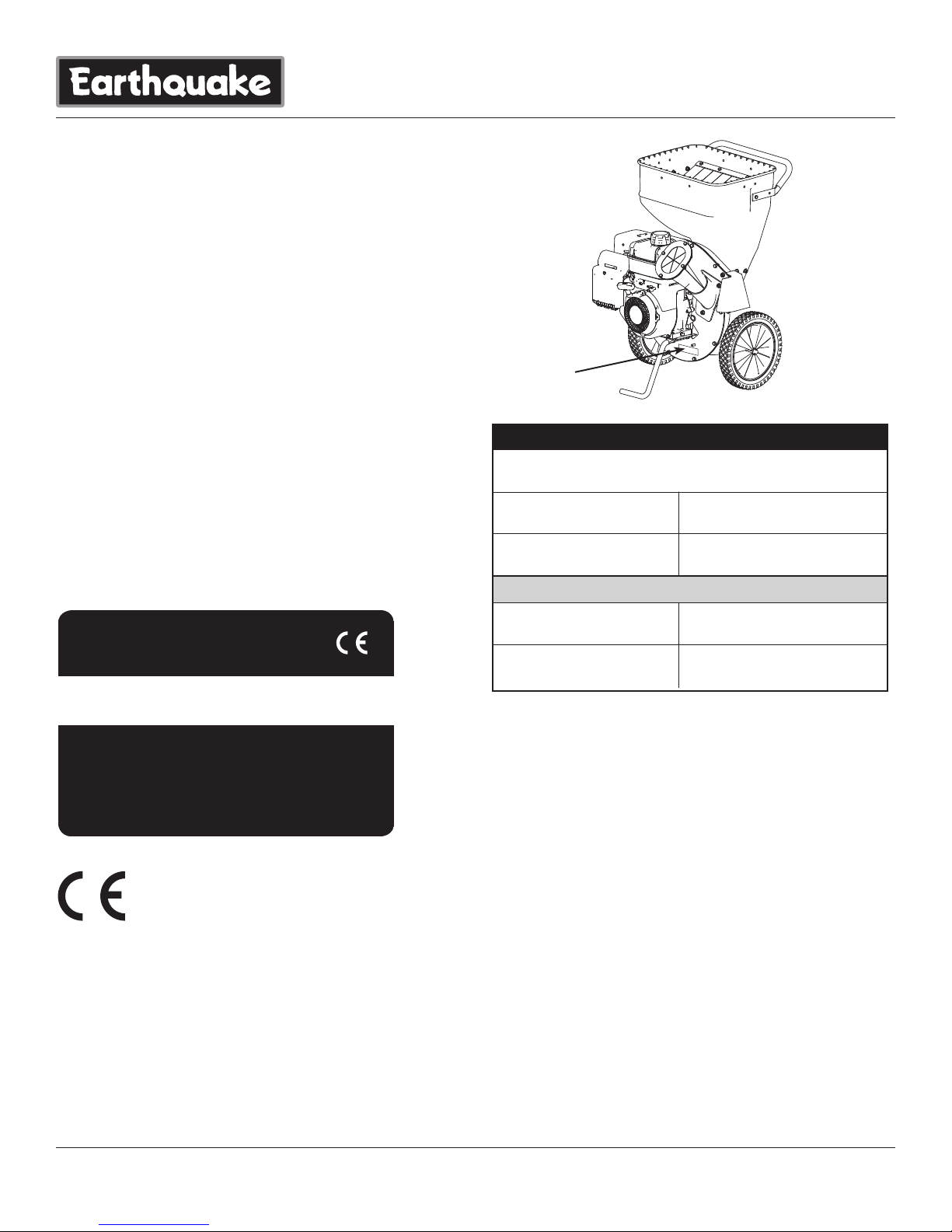

ID Tag
ENGINE REFERENCE DATA

Unit PART Number
PRODUCT REFERENCE DATA
Unit SERIAL Number
 
Engine Make
Engine Type/Spec
Engine Model
Engine Code/Serial Number
When contacting your authorized dealer for replacement
parts, service, or information you MUST have these
numbers.
Record your model name/number, manufacturer’s
identification numbers, and engine serial numbers in the
space provided for easy access. These numbers can be found
in the locations shown.
NOTE: For location of engine identification numbers, refer to
the engine owner’s manual.
CE Models: Place the extra copy of the identification tag in the
manual.
CE Identification Tag Markings



* Tested according to EN836:1997/A2:2001
** Tested according to 2000/14/EC
CE Specifications
Model Number: 9060140 / 9010140
Engine Maximum RPMs: 3700
Power Rating: 4 kW
Mass: 52kg
Noise Guaranteed Sound Power (LwA): 109 dB(A)
Noise Sound Pressure Level (LpA): 96 dB(A)
Identification Numbers
ARDISAM, INC.
1160 8th Avenue | Cumberland, WI 54829 | USA
Serial No.
Model: XXXXXXX Year: XXXX
Type: Chipper Shredder Mass: XX kg
Max. Operating Speed: XXXX rpm
LPA (dBA): XXXLWA (dBA): XXX
LBLINFOXXXXXX
Intended Use /
Foreseeable Misuse
This is a petrol engine-powered chipper/shredder that breaks
up leaves and wooded pieces such as tree branches, brush and
limbs into smaller volume via a high-speed rotor containing
chipping blades and shredding hammers. It shall not be used
for any other purpose.

9Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5
Operator’s Manual
Chipper/Shredders

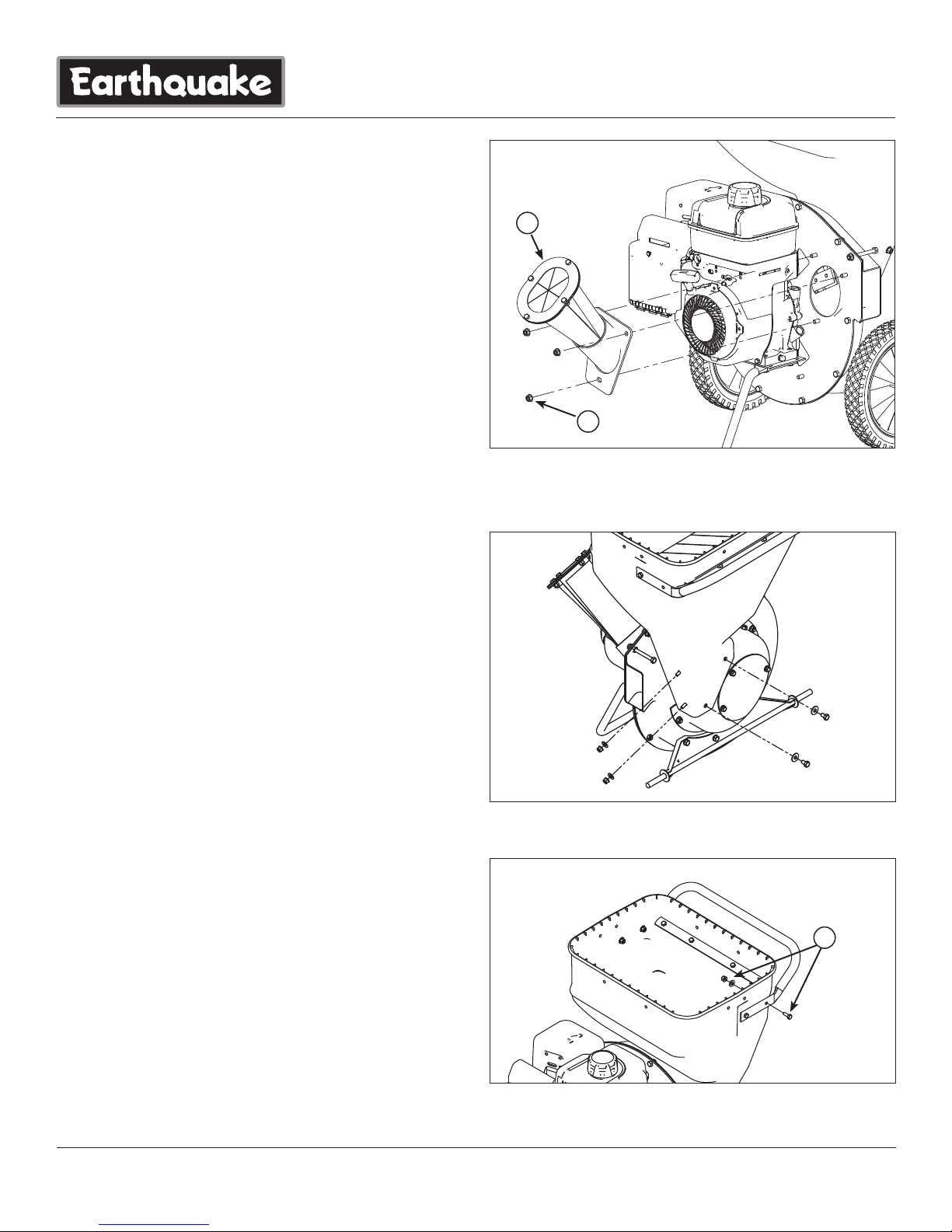

FIGURE 1 - Installing the Chipper Cone
A. Metal Cone Assembly
B. 5/18-18 Flange Nut
Assembly
Install Chipper Cone - All Models
1 . Position the chipper cone (A) over the three 5/16-18
threaded studs protruding from the engine plate, and
attach using three 5/16-18 flange nuts (B). SEE FIGURE 1
2. Rotate cone and cone base away from engine so cone
does not contact engine.
3. Tighten the flange nuts securely.
A
B
Install the Hopper - All Models
1. Attach the hopper to the rotor housing. Make sure
to engage the metal lip of the hopper liner inside the
housing.
2. Secure the hopper to the rotor housing using two 5/16 x

hardware at this time. SEE FIGURE 2
3. From the inside of the hopper install one 5/16-18 flange
nut on each 5/16 weld stud. Finger tighten only at this
time.
4. Check that the hopper is seated correctly and tighten all
hardware.
Install the Handle - All Models
1. Lift the hopper handle up until the outer holes in the
handle align with the holes in the shredder hopper and
secure with 1/4-20 x 3/4 screws, washers, and nuts (A).
Insert the screws from the outside of the shredder hopper.
SEE FIGURE 3
FIGURE 2 - Attaching the Hopper
A
FIGURE 3 - Installing the Hopper Handle
A. 1/4-20 x 3/4 Screw & Nut

Operator’s Manual
Chipper/Shredders
10 Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5
ATTACHING HOPPER EXTENSION TO HOPPER
For European models only (14268, 9060140, and 12547)
Tools Required:


NOTE: Assemble extension before adding fuel or engine oil.
To attach the hopper extension:
1) Before bolting the handle into position, slide one hopper ex-
tension half (1709470) over the rim of the hopper. The groove
around the inside bottom of the hopper extension should t
over the rim around the top of the hopper. SEE FIGURE 4
2) Ensuring the hopper and hopper extension holes are now
aligned along the top rim of the hopper, place a 1/4-20 x 3/4
bolts (1960507) through each of the four holes in the extension
and hopper. Secure bolts in place with the included 17/64 x 5/8
     DO
NOT fully tighten hardware at this point. SEE FIGURE 4
3) Bolt handle into position using appropriate hardware. Lay the
unit down, resting the handle on a piece of cardboard to pre-
vent scratching.
4) Follow Step 1 to install the second extension half to the opposite
side of the hopper. Again, the bottom groove of the hopper
extension should t over the rim at the top of the hopper. Align
the bolt holes between the top of the hopper and bottom of the
hopper extension and insert hardware. SEE FIGURE 5
5) Place a 1/4-20 x 3/4 bolt (1960507) in each of the three holes
along the two seams of the joined hopper extension halves.
DO NOT
fully tighten. SEE FIGURE 6
6) Place bolt through each of the two holes on top of the joined hopper
SEE FIGURE 7
7) Once all hardware has been inserted, use 5/32” allen wrench and
7/16” wrench to fully tighten all hardware, including those around
hopper rim and along the hopper extension seams.
1/4-20 bolt
hopper extension
BALLOON #
NOITPIRCSED#TRAP CE/QTY.
61NZKLBHBS4/3X02-4/1TLOB70506911
21930642 NUT 1/4-20 HFLTPLK BLK ZN 16
2ECREPPOHREPPIHCNOISNETXE07490713
hopper extension
1/4-20 bolt
ange nut
ange nut
at washer
at washer
1/4-20 bolt
hopper extension
BALLOON #
NOITPIRCSED#TRAP CE/QTY.
61NZKLBHBS4/3X02-4/1TLOB70506911
21930642 NUT 1/4-20 HFLTPLK BLK ZN 16
2ECREPPOHREPPIHCNOISNETXE07490713
hopper extension
1/4-20 bolt
ange nut
ange nut
at washer
at washer
FIGURE 4
FIGURE 5
2
3
1
3
1/4-20 bolt
1/4-20 bolt
1/4-20 bolt
FIGURE 6
2
3
1
3
1/4-20 bolt
1/4-20 bolt
1/4-20 bolt
1/4-20 bolt
FIGURE 7

11Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5
Operator’s Manual
Chipper/Shredders

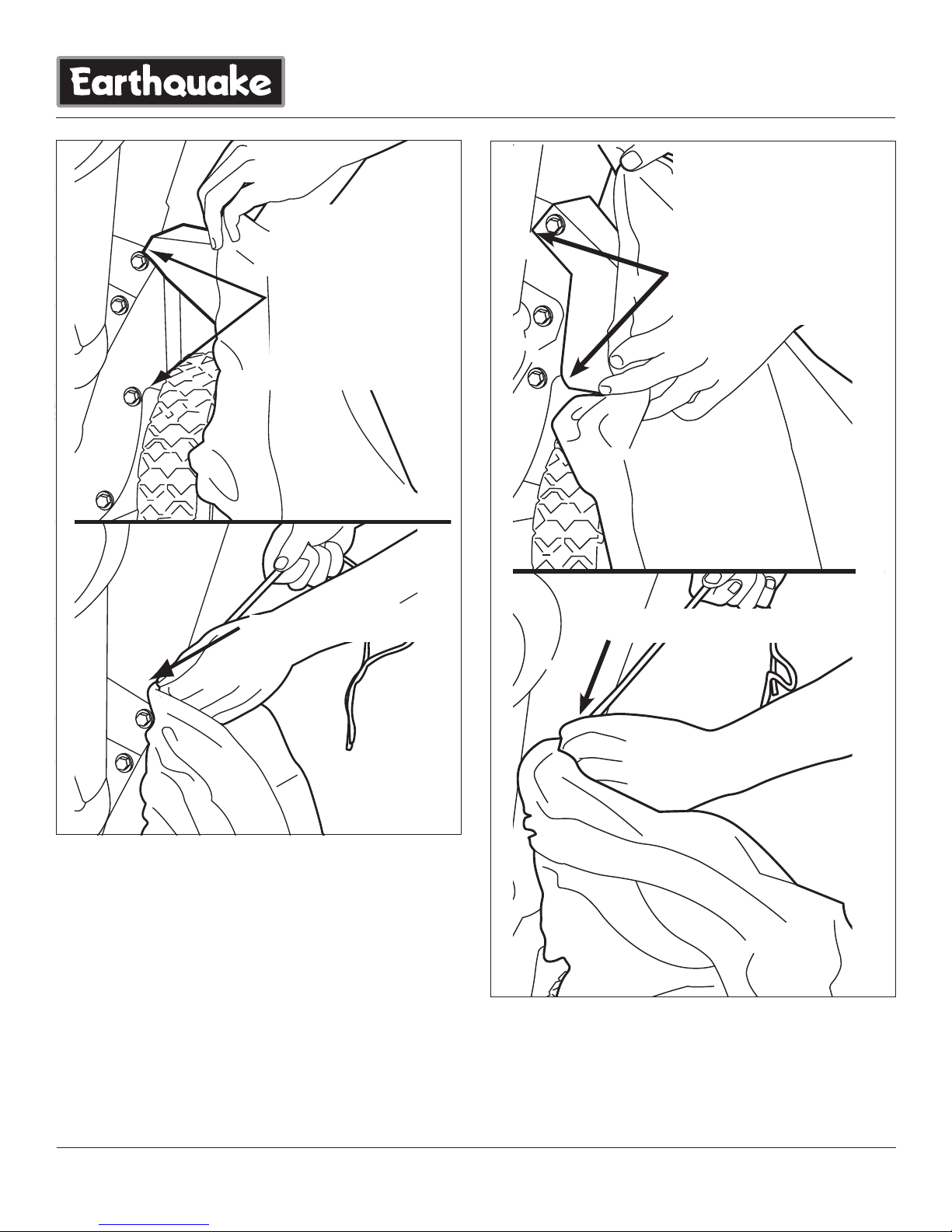

FIGURE 8 - Discharge Bag (North American Models)
FIGURE 9 - Discharge Bag (CE Models)
Install Discharge Bag
This product comes with a discharge bag for collection
of debris as it exits the discharge chute. Install the bag as
shown in FIGURE 8 or 9.
Add Engine Oil
Refer to“Engine Oil Type and Capacity” in the Regular
Maintenance section for oil type and fill procedures.
Add Fuel
Refer to“Adding Fuel” in the Operation section for fuel
specifications and filling procedures.
Pull drawstring tight.
Lift discharge
chute and slide
bag over chute.
Make sure bag
noose fits over
top of discharge
chute and notch
in chute bottom.
Slide bag over dis-
charge chute.
Make sure bag
noose fits over top
of discharge chute
and notch in chute
bottom.
Pull drawstring tight.
Slide bag over dis-
charge chute.
Make sure bag
noose fits over top
of discharge chute
and notch in chute
bottom.

Operator’s Manual
Chipper/Shredders
12 Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5

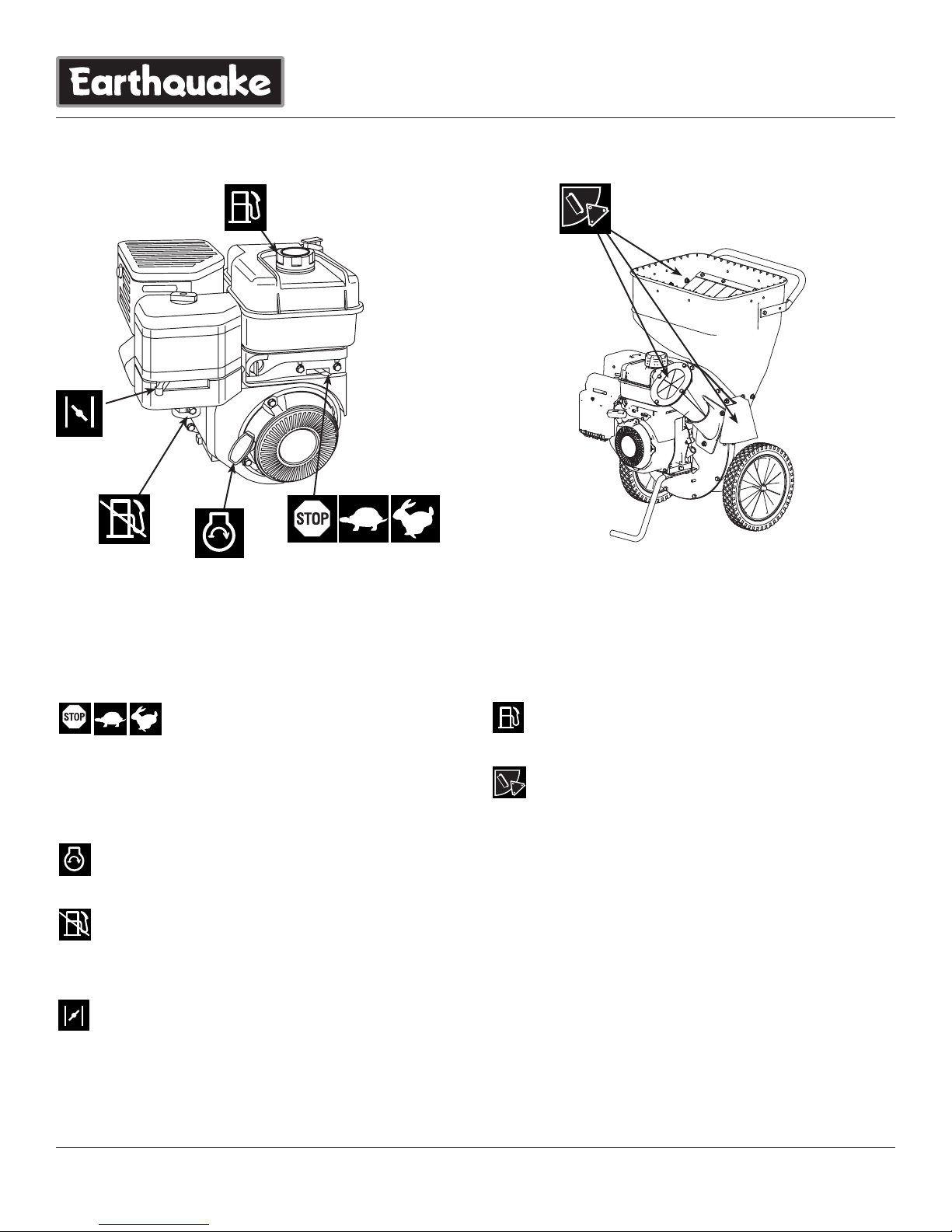

Engine Stop / Throttle Control
The engine stop / throttle control lever controls turn the
engine off and controls the engine speed. Move the throttle
right to increase engine speed and left to decrease engine
speed. Moving the lever all the way to the left stops the
engine. Always operate at FULL throttle (lever fully right).
Recoil Starter
The recoil starter is used to turn the engine over for starting.
Fuel Shut-Off Valve
The fuel shut-off valve is located below the air cleaner
housing. Always close the valve when the unit is not in use.
Choke
Close the choke for cold starting. Open the choke once the
engine starts. A warm engine may not require choking. Move
the lever right to close the choke.
Fuel Tank
To remove the cap, turn counterclockwise.
Chipper Cone / Shredder Hopper
Chipper Cone: The chipper cone is located on the front of
the unit next to the engine. Insert branches and tree limbs
up to approximately 3”(7.6 cm) in diameter into the chipper
cone. NEVER insert hands past the mouth of the cone.
Shredder Hopper: The shredder hopper is on top of the
unit. Leaves and other light waste can be loaded into the
shredder hopper. NEVER insert hands into the hopper .
Debris Bag: Use the debris bag to collect the material

the debris bag in place.
Control Functions
The information below briefly describes the function of individual controls. Operating requires the combined use of several controls
applied in specific sequences. To learn what combination and sequence of controls to use for various tasks see the OPERATION
section.
Features & Controls

13Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5
Operator’s Manual
Chipper/Shredders
Starting the Engine
1. Set the throttle to FULL.
2. Close the choke.
NOTE: A warm engine may not require choking.
3. Place one foot on the front support leg to hold the unit
firmly in place.
4. Pull the starting rope out to begin turning the engine over.
Pull slowly at first and increase speed with each successive
pull.
5. After the engine starts, open the choke and move the
engine throttle control to SLOW. Warm up the engine by
running it for at least a minute.
6. Set throttle to FULL and begin chipping/shredding.
General Operating Safety
Be sure to read all information in the Safety and Operation
sections before attempting to operate this unit. Become
familiar with all of the controls and how to stop the unit.
Upon start-up and shut-down, you may hear the metal-
to-metal sound of the triangular hammers and J-hammers
positioning themselves on the rotor. This is normal. If
this sound continues after the machine has reached full
speed, contact your dealer for an inspection of the unit.
Overloading the equipment will shorten its life, and can
cause mechanical failures.
Chipper Operation
The chipper is designed to handle tree limbs and branches
up to approximately 3” (7,6 cm) in diameter. The chipping
knives also permit the processing of course organic matter
like corn stalks. Tree branches must be inserted large-end
first into the chipper cone. Since occasional kick-backs may
occur, always stand off to the side of the unit. Allow the self-
feeding action of the unit to draw the sticks in.
Shredder Operation
The shredder is designed to shred light brush, leaves, and
other soft but bulky organic waste. As material is loaded
into the shredder hopper it is pulled into the path of the
triangular and J-hammers by air flow.
Vacuum Attachment (Optional)
In addition to the chipper cone and hopper, loose debris
may be processed by the Vacuum hose adapter kit. Leaves
may be raked directly into the leaf tray where vacuum action
will draw them into the shredder. For hard-to-reach areas,
the nozzle and hose assembly may be used. The strength of
the Vacuum may be changed using the rotating sleeve on
the nozzle. (See Vacuum Kit parts explosion on page 28.)
Operating Location
Select an area with firm, level ground, covered by dirt or
       
bystanders. Locate and organize the materials to be
processed so that you don’t have to walk in front of the inlet
or discharge openings, and so you have adequate room to
work safely.
Adding Fuel
To add fuel:
1. Remove the fuel cap (see Figure 1).
 
fuel expansion. Refer to your engine manual for specific
fuel recommendations.
3. Install and hand tighten the fuel cap.
DANGER
THE EXHAUST FROM THIS PRODUCT CONTAINS
CARBON MONOXIDE GAS. CARBON MONOXIDE IS A
COLORLESS, ORDERLESS AND TASTELESS GAS THAT
CAN CAUSEDIZZINESS,NAUSEA,UNCONSCIOUSNESS
OR EVEN BRAIN DAMAGE AND DEATH IF INHALED
FOR PROLONGED PERIODS.
OPERATE THE UNIT OUTDOORS IN A WELL
VENTILATED LOCATION ONLY. KEEP CHILDREN, PETS
AND BYSTANDERS AWAY.
FAILURE TO FOLLOW THESE INSTRUCTIONS MAY
RESULT IN SERIOUS INJURY OR DEATH
WARNING
GASOLINE IS HIGHLY FLAMMABLE AND MUST BE
HANDLED WITH CARE. NEVER FILL THE TANK WHEN
THE ENGINE IS STILL HOT FROM RECENT OPERATION.
DO NOT ALLOW OPEN FLAME, SMOKING OR MATCHES
INTHE AREA. AVOID OVERFILLING ANDWIPE UP ANY
SPILLS.
WARNING
TO AVOID SERIOUS PERSONAL INJURY FROM
ROTATING CUTTING BLADES, KEEP HANDS OUT OF
INLET WHILE MACHINE IS RUNNING.
WARNING
DO NOT USE GASOLINE CONTAINING METHANOL,
GASOHOL CONTAINING MORE THAN 10% ETHANOL,
GASOLINE ADDITIVES OR WHITE GAS BECAUSE
ENGINE/FUEL SYSTEM DAMAGE COULD RESULT.

Operator’s Manual
Chipper/Shredders
14 Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5
Stopping the Engine
NOTE: In the event of an emergency the engine can be stopped by
setting the throttle control to STOP.
1. Slide the throttle control fully left to the STOP position.
NOTE: Upon start-up and shut-down, you may hear the metal-
to-metal sound of the triangular hammers and J-hammers
positioning themselves on the rotor. This is normal.
2. After the engine has stopped moving, remove the spark
plug wire and remove any debris from the unit and
engine.
Processing Materials
Most materials to be processed can be handled more
efficiently by following these tips.
Chipping Tips:
  
feeding them into the chipper cone easier.
    
be processed by rotating them as you alternately insert
and retract them.
  
forcefully when being fed into the chipper cone, or cannot
be easily controlled, remove the material immediately and
set it aside.
    
chipper, the blades probably need to be sharpened.
Consult the Troubleshooting and Repair section of this
manual, or see your authorized dealer.
          
prevent them from whipping around.
   
cone by hand. Use a larger piece of material to force them
into the chipper cone.
Shredding Tips
  
material into the hopper opening.
   
discharge from becoming plugged.
  
chamber. It could get caught in the shredding hammers
and damage the unit.
Storage
Before you store your unit for the off-season, read the
Maintenance and Storage instructions in the Safety Rules
section, then perform the following steps:
  
in the engine owner’s manual. This includes draining the
fuel system, or adding stabilizer to the fuel (do not store a
fueled unit in an enclosed structure - see warning).
Before starting the unit after it has been stored:
  
   
in the engine owner’s manual.
    
use.

15Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5
Operator’s Manual
Chipper/Shredders
Operation Type of Waste Permitted Size Limitations Notes
Shredding 
including leaves, plants,
flowers, fruits, or vegetables.
Branches and twigs up to 1/2”
diameter and 18”long.
Alternately chip or shred moist green waste
with dry waste to avoid plugging of the
discharge chute.
Process at a feeding rate that allows the
rotor to keep up and maintain a high rate of
speed.
Chipping Long, thicker tree limbs or
small bunches of smaller sticks
grouped together for ease of
handling.
Tree limbs and branches,
or bundles of small sticks
grouped for easier handling.
Maximum diameter of
approximately 3” (7,6 cm).
Bulky tree limbs should be pruned close to
the main stem. Always use a shorter piece
of wood to push end pieces into the chipper
cone. Never place hands in the chipper
cone.
Never chip very hard or dry materials such as
kiln dried dimensional lumber (2x4’s etc.) or
other building materials.
Never use the chipper to process pressure-
treated wood products.
Vacuum
Attachment
Light, loose, dry waste such
as leaves, grass clippings, or
sawdust.
Small materials that will not
obstruct the vacuum hose.
The vacuum is engineered for small, loose
waste and for cleaning around decorative
landscaping and flower beds. Twigs, wet
leaves, and other bulky materials will clog
the hose or obstruct the shredding chamber.
Chipping & Shredding Recommendations

Operator’s Manual
Chipper/Shredders
16 Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5
Maintenance
Schedule & Procedures
The following schedule should be followed for normal care of your unit.
* Refer to engine owner’s manual. Change original engine oil after initial break-in period of 5-8 hours.
** More often in hot (over 85° F: 30° C) weather or dusty operating conditions.
SAFETY ITEMS Before
Each
Use
Every 5
Hours
Every 25
Hours
Every 100
Hours
Every
250
Hours
Spring &
Fall
Check for loose hardware X X
Check all safety labels X
Inspect cone, hopper, and guards. X
CHIPPER MAINTENANCE ITEMS Before
Each
Use
Every 5
Hours
Every 25
Hours
Every 100
Hours
Every
250
Hours
Spring &
Fall
Clean debris from engine and chipper. ** X X
 X
Inspect/Rotate Chipping Knives X
ENGINE MAINTENANCE ITEMS Before
Each
Use
Every 8
Hours
Every 25
Hours
Every 50
Hours
Every
100
Hours
Spring &
Fall
Check Engine Oil Level * X X
Change Engine Oil * ** X
Check / Change Engine Air Filter * ** X
Replace Spark Plug * X
Check for Loose Hardware
Service Interval: Every 5 hours; every spring and fall.
Inspect the unit, checking for loose hardware or components.
Pay special attention to the hardware attaching the chipper
cone, hopper, axle, and front leg.
Check Safety Labels
Service Interval: Every spring and fall.
Check that the safety labels are in place and undamaged.
Sample illustrations and part numbers of the decals can be
found on page 6. Replace any damaged or missing decals.
Inspect Cone, Hopper, & Guards
Service Interval: Every spring and fall.
Check that the chipper cone, shredder hopper, and discharge
guards are in place, undamaged, and secure. Replace any
damaged or missing parts.

17Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5
Operator’s Manual
Chipper/Shredders
Clean Debris from Engine & Chipper
Service Interval: Before each use and every 100 hours.
The engine requires air flow to cool itself and for
combustion. Before each use, clean any debris from the
unit especially from around the air shroud intake, air filter,
and muffler. Every 100 hours, remove the engine air shroud
and clean out any debris from the engine cooling fins (SEE
FIGURE 10). We recommend having this service performed
by an authorized dealer.
Inspect / Rotate Shredding Hammers
Service Interval: Every 25 Hours, or As Necessary
The shredding hammers of this unit can be rotated to
provide a new cutting surface as required. The triangular
hammers can be rotated twice, then flipped over for a total
of 6 sharp cutting surfaces. The J-hammers can be flipped
over once. To inspect the shredding hammers:
 
the spark plug.
2. Remove the small circular access panel (B) from the back
of the shredder housing. SEE FIGURE 11
3. Inspect the cutting edges of the triangular hammers (A)
and J-hammers (A). SEE FIGURES 11 AND 12
To rotate or replace the shredding hammers, see the
Troubleshooting and Repair section.

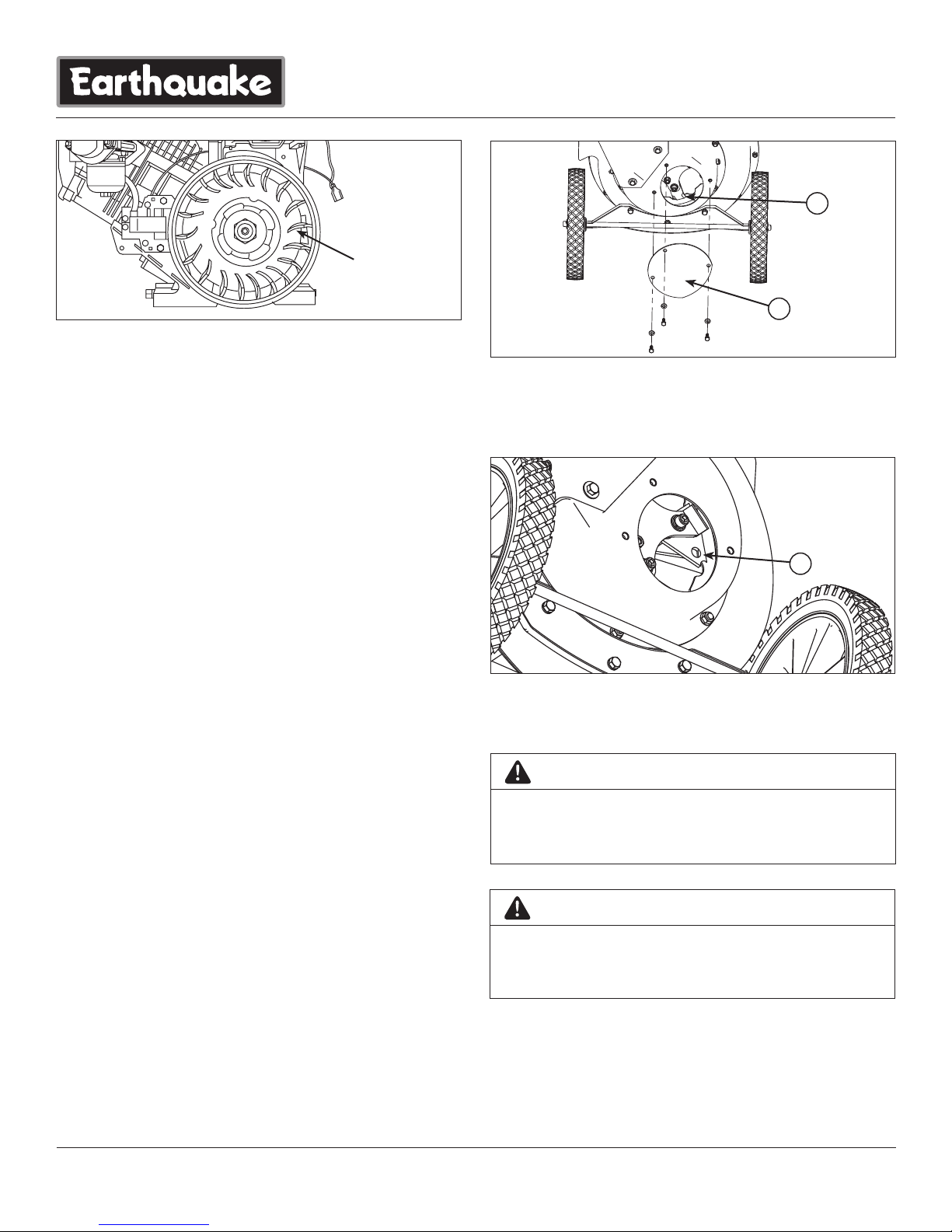

FIGURE 11
A. J-Hammer Wear Area
B. Access Panel
A
FIGURE 10 - Clean Debris from Engine Cooling Fins
FIGURE 12
A. Triangular Hammer Wear Area
ns
A
B
WARNING
AMPUTATION HAZARD. TO AVOID SERIOUS INJURY
FROM ACCIDENTAL STARTING, ALWAYS DISCONNECT
THE SPARK PLUG WIRE AND SECURE IT AWAY FROM
THE SPARK PLUG WHEN SERVICING THE UNIT.
WARNING
TO AVOID SERIOUS INJURY FROM ACCIDENTAL
STARTING, ALWAYS DISCONNECT THE SPARK PLUG
WIRE AND SECURE IT AWAY FROM THE SPARK PLUG
WHEN SERVICING THE UNIT.

Operator’s Manual
Chipper/Shredders
18 Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5
FIGURE 13 - Inspect Chipper Knives
A. Chipper Cone
A
Inspect Chipping Knives
Service Interval: Every 25 Hours, or As Necessary
The chipping knives of this unit can be rotated or sharpened
to provide a new cutting surface as required. When
inspecting the knives be careful to avoid touching the
sharpened edges. To inspect the chipping knives:
  
the spark plug.
2. Remove the nuts securing the chipper cone to the front
of the chipper. Remove the chipper cone (A) to access the
knives. SEE FIGURE 13
3. Using the recoil starter, slowly pull the starter rope to
rotate the rotor into position so the blades can be seen.
To sharpen or replace the chipper knives, see the
Troubleshooting and Repair section.
FIGURE 14 - Change Air Filter.
NOTE: This illustration is for general reference only. Some
engine models may appear different. Refer to the engine
manual for more detailed instruction.
A. Screw
B. Filter Cover
C. Pre-Cleaner (Not included in some engine models)
D. Air Filter Element
E. Air Filter Base
F. Slots and Tabs
A
B
CDE
F
Check / Change Engine Air Cleaner
Service Interval: Every 25 Hours
The engine air cleaner assembly should be opened, inspected,
and the filter element replaced every 25 hours, or as required if
debris has built up in the assembly.
To replace the air filter and pre-cleaner assembly:
1. Loosen the screw (A) and remove the filter cover (B).
SEE FIGURE 14
  
either are soiled, then replace.
    
inside the filter cover (B). Make sure the arrows on the
filter element are pointed up, and the lip of the pre-
cleaner covers the bottom filter pleats.
4. Insert the cover tabs (F) into the filter base slots.
5. Tilt the cover up into place and tighten the screw (A).
Replace Spark Plug
Please contact your authorized dealer to perform this service.

19Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5
Operator’s Manual
Chipper/Shredders
Engine Oil Type & Capacity
Select a quality engine oil using the chart in Figure 15. 8.5
torque rated models require 5/8 quart (0.6L) of oil.
Check Engine Oil Level
Service Interval: Before Each Use
Check the engine oil level at the oil fill and level check plug
(A). SEE FIGURE 16
1. Stop the engine and wait for all moving parts to stop.
2. Remove the oil fill and level check plug (A) by twisting
it counter-clockwise. The oil should be filled up to the
mouth of the filler opening as shown in the FIGURE 16
inset.
Change Engine Oil
Service Interval: Every 50 Hours
1. Stop the engine and wait for all moving parts to stop.
Allow the unit to cool before changing the oil.
2. Remove the oil fill and level check plug (A) by twisting it
counter-clockwise. SEE FIGURE 16
3. Place an oil drain pan below the engine and remove the
oil drain plug (B). Allow the oil to drain completely.
SEE FIGURE 16
4. Reinstall the oil drain plug (B). Tighten the plug to 125
inch pounds (14 Nm)
5. Add oil to the oil fill hole (A) until the oil level is even
with the bottom edge of the oil fill hole. SEE FIGURE 16
A
FIGURE 16 - Oil Fill and Oil Drain
A. Oil Fill & Level Check Plug
B. Oil Drain Plug
Use oil classied API Service Class SF,
SG, SH, SJ or better with SAE Viscosity:
10080604020 320-20
3827164-7 0-18-30
°F
°C
30 Conventional**
5W-30, 10W-30 Synthetic
5W-30
10W-30
Conventional*
*CAUTION: Air cooled engines run hotter than automotive engines.
The use of non-synthetic multi-viscosity oils (5W-30, 10W-30, etc.)
in temperatures above 40º F (4ºC) will result in higher than normal
oil consumption. When using a multi-viscosity oil, check oil level
more frequently.
**CAUTION: SAE 30 oil, if used below 40º F (4ºC), will result in hard
starting and possible engine bore damage due to inadequate
lubrication.
FIGURE 15 - Oil Recommendations
B

Operator’s Manual
Chipper/Shredders
20 Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5
PROBLEM CAUSE REMEDY
Engine will not start. 1. Out of fuel. Add fuel.
2. Spark plug wire disconnected. Reconnect spark plug wire.
3. Engine controls not set correctly. Refer to Starting in the Operation section.
4. Spark plug fouled. Remove the spark plug, clean or replace.
5. No compression. Recoil starter See your authorized dealer.
pulls with no resistance.
6. No spark. Ignition problem. See your authorized dealer.
7. Old or stale fuel. See your authorized dealer.
Engine exhaust is black.    
2. Choke closed. Open choke.
Engine runs but no material is     
discharged. 2. Engine not running at full speed. Set throttle control to FAST.
Excessive branch vibration when 1. Chipper knives dull. Sharpen or replace chipper knives.
chipping materials. 2. Tree limbs are extremely hard or Material is not suitable for chipping.
dried out.
Unusual noise or vibration when. 1. Rotor overloaded with material. Allow unit to clear itself before adding more
processing material. material to the hopper.
    
loose. required.
    
necessary.
Vacuum not working.    
2. Material too wet. Allow material to dry.
    
    
5. Engine not running at full RPM. Set throttle control to FAST.
Troubleshooting Chart
While normal care and regular maintenance will extend
the life of your equipment, prolonged or constant use may
eventually require that service be performed to allow it to
continue operating properly.
The troubleshooting guide below lists the most common
problems, their causes, and remedies.
See the information on the following pages for instructions on
how to perform most of these minor adjustments and service
repairs yourself. If you prefer, all of these procedures can be
performed for you by your local authorized dealer.
WARNING
TO AVOID SERIOUS INJURY, PERFORM MAINTENANCE
ON THE UNIT ONLY WHEN THE ENGINE IS STOPPED.
ALWAYS DISCONNECT THE SPARK PLUG WIRE AND
FASTEN IT AWAY FROMTHE PLUG BEFORE BEGINNING
THE MAINTENANCE, TO PREVENT ACCIDENTAL
STARTING OF THE ENGINE.
