Eastman outdoors 37211 Instruction Manual

OUTDOOR USE ONLY / NEVER LEAVE UNATTENDED

Page 1 of 18

Outdoor Gourmet Cooking Set

Instruction and Safety Manual

WARNING AND SAFETY

INFORMATION; ASSEMBLY AND

OPERATING INSTRUCTIONS;

MAINTENANCE & COOKING

INSTRUCTIONS FOR:

Outdoor Gourmet

18” Carbon Steel

Wok Kit Model 37503

Outdoor Gourmet

18” Carbon Steel

Wok Kit Model 37211

Baby Kahuna Burner with Adjustable &

Removable Legs Model 90315

Portable Kahuna™ XL Burner

Model 90411

For a Safe Cooking Experience,

Follow All Instructions and Safety

Warnings in this Instruction

Manual

This Instruction Manual contains

important information necessary for the

proper assembly and safe use of the

appliance.

Read and Follow all Warnings and

Instructions before assembling and

using the appliance.

Follow all warnings and instructions

when using the appliance.

KEEP THIS MANUAL FOR FUTURE

REFERENCE. The installer must leave the

instructions with the consumer.

Approximate assembly time is 10 minutes.

DANGER

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. If odor continues, keep away from the

appliance and immediately call your fire

department.

Failure to follow these instructions could

result in fire or explosion which could cause

property damage, personal injury or death.

DANGER

1. Never operate this appliance unattended.

2. Never operate this appliance within 10 ft

(3 m) of any structure, combustible

material or other gas cylinder.

3. Never operate this appliance within 25 ft

(7.5m) of any flammable liquid.

4. Do not fill cooking vessel beyond

maximum fill line.

5. Never allow oil or grease to get hotter

than 400ºF or 200ºC. If the temperature

exceeds 400ºF (200ºC) or if oil begins to

smoke, immediately turn the burner or gas

supply OFF.

6. Heated liquids remain at scalding

temperatures long after the cooking

process. Never touch cooking appliance

until liquids have cooled to 115ºF (45ºC) or

less.

7. If a fire should occur, keep away from the

appliance and immediately call your fire

department. Do not attempt to extinguish

an oil or grease fire with water.

Failure to follow these instructions could

result in fire, explosion or burn hazard,

which could cause property damage,

personal injury or death.

OUTDOOR USE ONLY / NEVER LEAVE UNATTENDED

Page 2 of 18

WARNINGS

•

The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas

Code, ANSI Z223.1/NFPA 54, Storage and Handling of Liquefied Petroleum Gases, ANSI/NFPA 58 or CSA

B149.1, Natural Gas and Propane Installation Code, CSA B149.1, Propane Storage and Handling, CSA

B149.2, or the Standard for Recreational Vehicles, ANSI A119.2/NFPA 1192, and the Recreational Vehicle

Code, CSA Z240 RV series, as applicable.

•

Fryer/boilers shall not be used on or under any apartment, or condominium balcony or deck.

•

This appliance is for OUTDOOR use only. Do NOT operate in a building, garage or any other enclosed area.

•

Do not leave the appliance unattended. Keep children and pets away from the appliance at all times.

•

Always perform the leak test as described in this manual before lighting this appliance. Do not light the

burner until after you have checked the hose, regulator, needle valve, and all LP gas connections for leaks.

Do NOT use the appliance if there is a leak. Contact Eastman Outdoors at 1-800-241-4833 on how to obtain

and replace the parts.

•

This appliance is not intended to be installed or used in or on recreational vehicles and/or boats.

•

Do not operate this appliance under ANY overhead construction, roof covering (car port), awning or

overhang. Keep a minimum clearance of 10 feet (3.05 m) from all sides, front and back of the appliance to

ANY structure or combustible material.

•

Keep the fuel supply hose away from any heated surfaces.

•

This appliance is not intended for commercial use. Do NOT use this product for anything other than its

intended purposes.

•

This appliance is not for frying turkeys.

•

The use of alcohol, prescription or non-prescription drugs may impair the consumer’s ability to properly

assemble or safely operate this appliance.

•

When cooking with oil or grease, have a Type BC or ABC fire extinguisher readily available.

In the event of an oil or grease fire do not attempt to extinguish with water. Immediately call the fire

department. A Type BC or ABC fire extinguisher may, in some circumstances contain the fire.

•

In the event of rain, snow, hail, sleet or other forms of precipitation while cooking with oil or grease, cover the

cooking vessel immediately and turn off the appliance burner and gas supply. Do not attempt to move the

appliance or cooking vessel.

•

When cooking, the appliance must be on a level, stable noncombustible surface in an area clear of

combustible material. An asphalt surface (blacktop) may not be acceptable for this purpose.

•

Do not place an empty cooking vessel on the appliance while in operation except when using a wok. Use

caution when placing anything in the cooking vessel while the appliance is in operation.

•

Do not move appliance when in use. Allow cooking vessel to cool to 115ºF (45ºC) before moving or storing.

•

This appliance is not intended for and should never be used as a heater.

•

This appliance will be hot during and after use. Use insulated oven mitts or gloves for protection from hot

surfaces or splatter from cooking liquids.

•

When cooking with oil or grease, the Eastman Outdoors thermometer provided MUST be used. Follow

instructions in this manual for proper installation and use of the thermometer. If the thermometer supplied

with this fryer/boiler has been lost or damaged, contact Eastman Outdoors at 1-800-241-4833 on how to

obtain a replacement thermometer.

•

If the temperature exceeds 400ºF (200ºC) or if oil begins to smoke, immediately turn the burner or gas

supply OFF and wait for the temperature to decrease to less than 350ºF (175ºC) before relighting burner

according to the instructions in this manual. If there is lid (cover), do not remove the lid.

•

Never use a cooking vessel larger than 30 quarts and a diameter greater than 12.25 inches or woks larger

than 18 inch in diameter. Use only those accessories, such as cooking vessels and accessory attachments

manufactured and recommended for use by Eastman Outdoors with this appliance, to allow for safe and

proper performance of this appliance. Do NOT use glass, ceramic or plastic cooking vessels on the burner.

If you are unsure of anything in these instructions and

warnings, stop and contact Eastman Outdoors at 1-800-241-

4833 for assistance.

Failure to follow these instructions and warnings could result in

fire or explosion, which could cause property damage, personal

injury or death.

OUTDOOR USE ONLY / NEVER LEAVE UNATTENDED

Page 3 of 18

•

NEVER overfill the cooking vessel with oil, grease or water. Follow instructions in this manual for

establishing proper oil, grease or water levels.

•

When cooking with oil or grease, introduction of water or ice from any source into the cooking oil/grease

many cause overflow and severe burns from hot oil and water splatter. When frying with oil/grease, all food

products MUST be completely thawed and towel dried before being immersed in the fryer.

•

Avoid bumping of or impact with the appliance to prevent spillage or splashing of hot cooking liquid.

•

Never drop food or accessories into the hot cooking liquid. Lower food and accessories slowly into the

cooking liquid in order to prevent splashing or overflow. When removing food from the appliance, care shall

be taken to avoid burns from hot cooking liquids.

•

To avoid accidental burns from burner flame or hot oil, turn OFF the burner before removing food from the

cooking vessel. Use caution when removing food or basket from the pot to avoid pulling pot off the burner.

•

Do NOT modify or alter this appliance or its components. Modifications/alterations of this appliance or its

components will void warranty and could lead to serious personal injury, property damage, or death.

•

Do not tamper with or attempt repairs on the burner body, frame, valves, regulator hose assembly, or LP

tank. Repair should be done by a qualified service person. Please contact Eastman Outdoors at 1-800-241-

4833 for assistance.

•

Do NOT loosen or disconnect any gas fitting while the appliance is in use.

•

This appliance has an open flame so do NOT lean over the appliance and keep your hands, hair, face, and

clothing away from the burner at all times because they could catch on fire when lighting the burner or while

the burner is in operation. In sunlight or other bright light, the flame may be almost invisible.

FAILURE TO FOLLOW THESE INSTRUCTIONS AND WARNINGS COULD RESULT IN FIRE OR

EXPLOSION, WHICH COULD CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

TABLE OF CONTENTS

Assembly

Warnings 1-3

Burner parts diagram 4

Burner assembly 4-5

Regulator hose assembly 5-6

Leg adjustment 6

Fuel safety 6-7

Connecting the LP gas tank 7-8

Leak testing 8-9

Operation

Maintenance Before every use 9-10

Lighting 10-11

Shut off 11

Using your Appliance 11

How to Determine Fill Level 11

Thermometer attachment instructions 11-12

Lighting and Placing Cooking Vessel on Burner 12

Heat Cooking Liquid 12

Insert Food into Cooking Vessel 12-13

Cooking Food 13

Clean Up 13

Packing and storage 13-14

Leg removal 14

Frequently asked questions 14-15

Fish/Hot Pot Assembly instructions 15

Cooking Instructions

Cooking with Wok 15-16

Frying Fish of Chicken Wings 16-17

Warranty

Warranty information 17-18

OUTDOOR USE ONLY / NEVER LEAVE UNATTENDED

Page 4 of 18

Step 1 ASSEMBLY

Burner Parts Diagram

Lower Leg

Locking Button

(3 Places)

Regulator Control Valve

Lower Leg Locking Knob

(3 Places)

TOP VIEW

Leg Extension in

Extended High Position

Air Shutter

(Air Shutter Can Be Rotated

To Adjust Flame Quality)

High Pressure

Regulator

QCC1 (Type I) Fitting (Attach this end to

Propane Tank with a Type I Connection.)

(Do not use a Wrench to tighten.)

SIDE VIEW

ASSEMBLED BURNER

DRAWINGS

Burner Orifice/Regulator

Hose Assembly Connection

(Tighten with Wrench)

QTY PARTS LIST

1 1. Burner Body

3 2. Legs

1 3. Burner Element

3 4. Burner Grate

1 5. Burner Orifice/Regulator

Hose Assembly

3 6. Burner Housing Bolt

1 7. Air Shutter

1 8. Shutter Spring

6 9. Short Square Bolts

9 10.Flat Washer

9 11. Lock Washers

6 12. Small Diameter Nuts

1 13. Open End Wrench

Short Leg

Post (3 Places)

Upper Leg

Locking Button

(3 Places)

Upper Leg

Locking Knob

(3 Places)

Tools required for assembly: Adjustable wrench, Water, and Liquid detergent

Step 1.1 Burner Assembly

Before you begin, remove all packaging materials. Make sure you have all items shown in the assembly drawing

and parts list. Numbers in parentheses ( ) below refer to the numbers in the part list.

Attach the three burner grates (4) to the burner

body (1) using two short square bolts (9), flat

washers (10), lock washers (11) and hex nuts (12)

(figure 1). Be sure the grate arms lean outside the

burner body.

Fig. 1

OUTDOOR USE ONLY / NEVER LEAVE UNATTENDED

Page 5 of 18

Completed burner and grate arm assembly.

Fig. 2

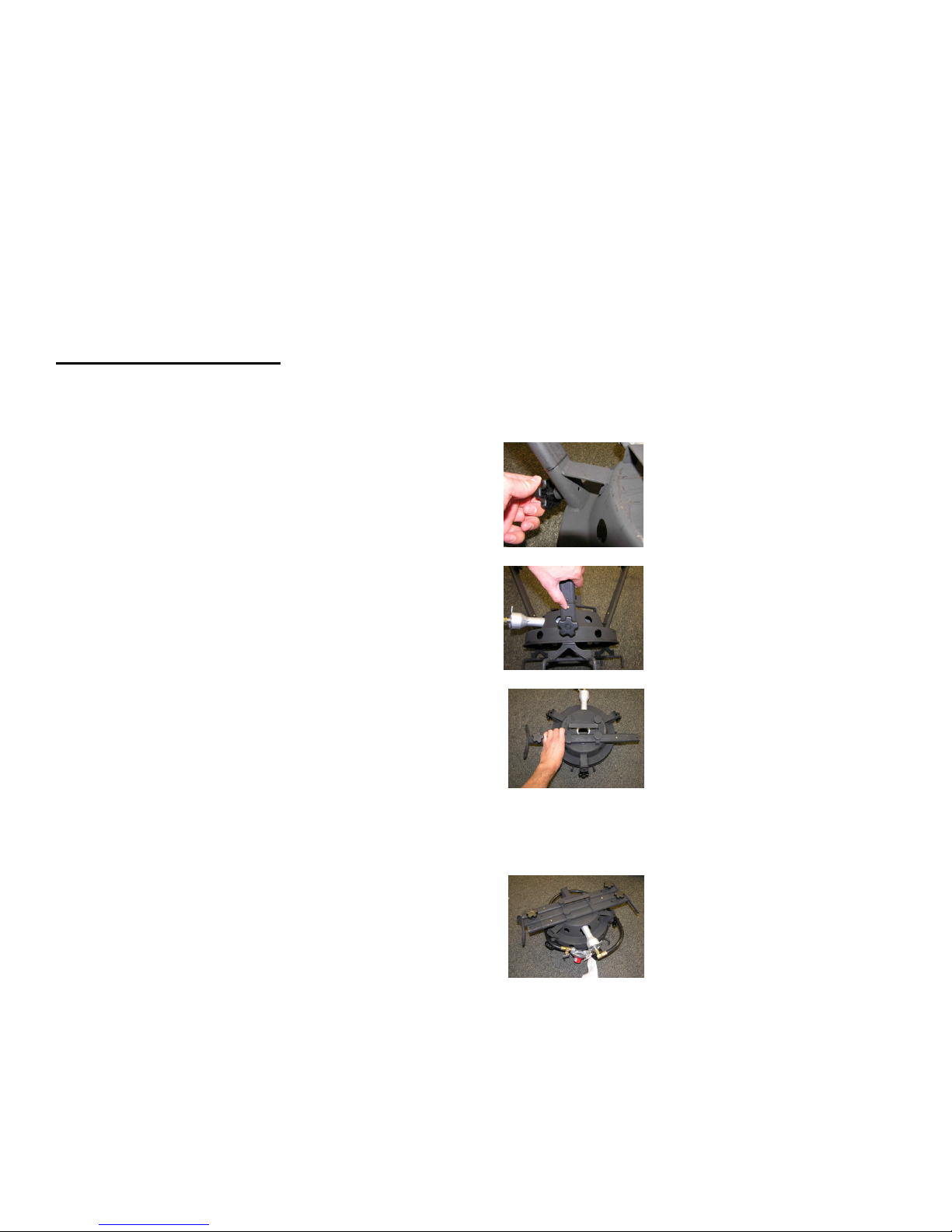

Loosen the upper-leg locking knob on each leg post

of the burner body (figure 3).

Fig. 3

Hold one of the legs (2), so the snap button is

facing toward you. Insert the leg into the leg post on

the burner body, so the snap button is away from

the burner body. Slide in leg until the snap button

locks in place. Repeat this step with the two

remaining legs.

Fig. 4

Retighten the locking knob on each leg by turning it

clockwise until tight and the end of the locking knob

extends through the hole on the other side of the

leg (figure 5).

Fig. 5

Completed burner assembly

Fig. 6

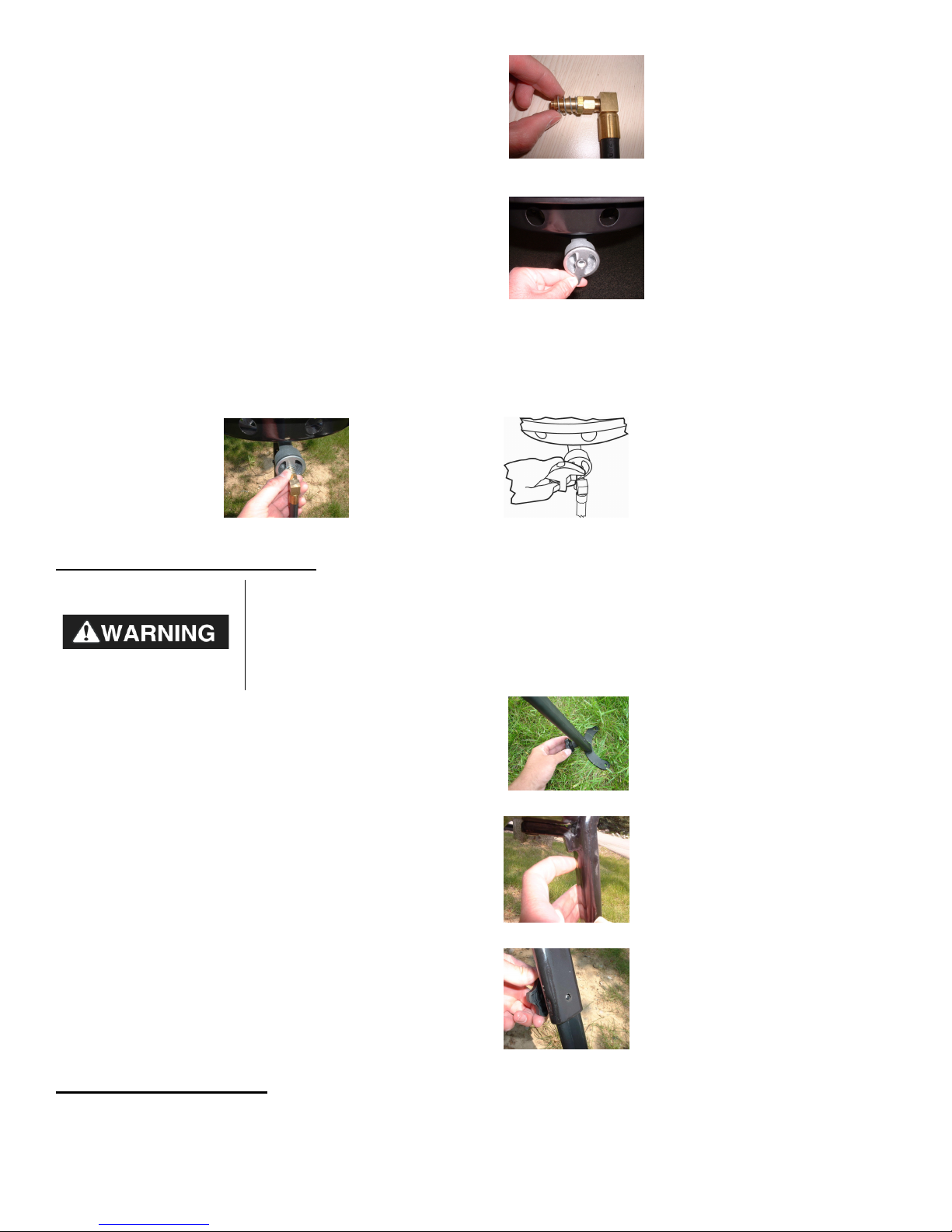

Step 1.2 Regulator Hose Assembly

One adjustable wrench is needed when attaching the hose to the appliance.

•

Do not disassemble the regulator hose assembly or regulator. This is

a pre-assembled unit.

•The high pressure regulator and hose assembly supplied must be

used. Replacement high pressure regulators assemblies must be

those specified by Eastman Outdoors.

Do not use burner without the legs attached and

locked into place with the locking knobs. Failure to

follow these instructions can lead to fire or explosion,

which could cause property damage, serious personal

injury or death.

OUTDOOR USE ONLY / NEVER LEAVE UNATTENDED

Page 6 of 18

Place the shutter spring (8) onto burner

orifice/regulator hose assembly (5) by sliding the

small end of the shutter spring onto the burner

orifice/regulator hose assembly (figure 7).

Fig. 7

Set the air shutter (#7) onto the burner element (#3)

by placing it on the casting (figure 8).

Fig. 8

IMPORTANT: Line up hose/orifice assembly (#5) with the hole in the burner element (#3) so the orifice is

perpendicular to the burner element (figure 9). Finger-tighten orifice into the hole and then wrench tighten

with an adjustable wrench 1 to 2 revolutions or until snug (figure 10). DO NOT OVER TIGHTEN. The

connection is tight enough when one cannot loosen the hose/orifice by hand. Proper connection is

critical for correct operation of the burner.

Fig. 9 Fig. 10

Step 1.3 Leg Adjustment

To extend legs, loosen lower locking knob on leg

(figure 11).

Fig. 11

Push in the snap button on the top inside of the leg

(figure 12). (When shortening legs, push in the

snap button next to the lower locking knob on each

leg.).

Fig. 12

Extend leg until the lower snap button snaps into

place by the lower locking knob. Retighten lower

locking knob (figure 13).

Fig. 13

Step 1.4 Fuel Safety

Only use LP gas with this appliance.

Only use an approved 20 lb. LP gas tank with this appliance (the same as those commonly used on gas grill

Only use HIGH leg position with low profile cooking vessels

smaller than 12 quarts and woks 18 inches or smaller.

Failure to follow these instructions can lead to fire or

explosion, which could cause property damage, serious

personal injury or death.

OUTDOOR USE ONLY / NEVER LEAVE UNATTENDED

Page 7 of 18

with Acme/Type 1/QCC1 Safety Valves). These can be quickly identified because the valves have external

threads.

LP gas is flammable, explosive under pressure, colorless, tasteless and heavier than air. It pools in low areas.

LP gas is naturally odorless, but a distinctive odor has been added by the LP gas supplier for your protection.

LP gas can cause skin to freeze on contact.

Burning LP gas consumes oxygen and produces carbon monoxide, a deadly gas. Never operate this appliance

inside a building or confined area.

Carefully read and follow all instructions on LP tank.

The LP-gas supply tank must be constructed and marked in accordance with the specifications for LP-gas tanks

of the U.S. Department of Transportation (DOT) CFR49 or the National Standard of Canada, CAN/CSA-B339,

Cylinders, Spheres and Tubes for the Transportation of Dangerous Goods.

Never use a LP tank with a damaged body, valve, collar or foot ring. A dented or rusty LP tank may be

hazardous and should be checked out by a LP gas supplier.

Use only LP tanks that include a collar to protect the tank valve.

Do not store spare LP gas tanks under or near this appliance. Never fill the tank beyond 80 percent full. If

these instructions are not followed exactly, a fire causing death or serious injury may occur.

When the appliance is not in use, the gas must be turned off at the supply cylinder. Storage of the appliance

indoors is permissible only if the cylinder is disconnected and removed from the appliance. Always use and

store LP tank in an upright position. Never store or transport LP tank in occupied enclosures. LP tanks must be

stored outdoors out of the reach of children and must not be stored in a building, garage or any other enclosed

area.

Always perform a leak test on all gas connections whenever a tank is connected. If bubbles form in the leak test

solution, do not use. Never use a flame to test for leaks.

Step 1.5 Connecting the LP Gas Tank

See figure 14 for the regulator control valve on

left and high-pressure regulator on right. See

figure 15 for the QCC1 fitting.

Fig. 14

Fig. 15

NOTE: The regulator control valve controls the flame intensity and acts as an On/Off valve when operating the

appliance. When finished cooking or in case of emergency, close the LP tank valve by turning LP tank valve

clockwise until tight (Closed Position). Be sure to close LP tank valve before disconnecting the hose.

Make sure the regulator control valve is in the closed position by turning the valve clockwise until it is tight

(figures 16 & 17). This will not allow gas to flow through the hose.

Fig. 16 Fig. 17

Make sure the valve on LP tank is clean. Attach regulator (in up position) and hose to LP tank by sliding the

black portion of the QCC1 fitting overtop LP tank valve threads (figure 18). Turn QCC1 fitting clockwise until

hand tight (figure 19). Do not use a wrench to tighten Type I (QCC1) fitting (hand tighten only).

Clean and Inspect hose before each use. If evidence of abrasion, wear,

cuts, or leaks, replace hose prior to operation. Replace only with Eastman

Outdoors high pressure regulator assembly Model 90320.

High pressure regulator and hose assembly supplied must be used. Do

not use high pressure regulator and hose assembly with any other gas

appliance.

Failure to follow these instructions can lead to fire or explosion, which

could cause property damage, serious personal injury or death.

OUTDOOR USE ONLY / NEVER LEAVE UNATTENDED

Page 8 of 18

Fig. 18 Fig. 19

Make sure burner orifice/hose connection is in the

down position so the hose curves to the ground

(figure 20). If hose does not curve to the ground,

turn hose at the orifice hose connection end until the

hose curves to the ground.

Fig. 20

Check regulator control valve

Close regulator control valve and slowly open LP tank valve by turning it counterclockwise two

complete turns. If gas passes through the regulator to the burner, hear or smelling gas escaping,

immediately close the LP tank by turning LP valve clockwise. The regulator control valve is faulty, do

not use and call Eastman Outdoors Customer Service Department at 1-800-241-4833 for replacement.

If no gas passes through the regulator control valve, proceed to next step.

The LP tank must be in the upright position for proper function of the cylinder supply system so it is

arranged for vapor withdrawal.

NOTE: Most LP tanks are equipped with a safety device to shut off the flow of gas if the hose is cut or

severed. Sometimes this safety device may be tripped when lighting the burner or opening the LP tank

valve too quickly. To prevent this, always make sure regulator control valve is closed before opening

LP tank valve and always open LP tank valve slowly.

If the safety device is activated (shuts off/limits gas supply to appliance), close LP tank valve and open

regulator control valve to release gas remaining in the regulator. Close regulator control valve and

disconnect the QCC1 fitting from LP tank. This will reset the safety shut off device. Reconnect the

QCC1 to the LP tank by following above instructions.

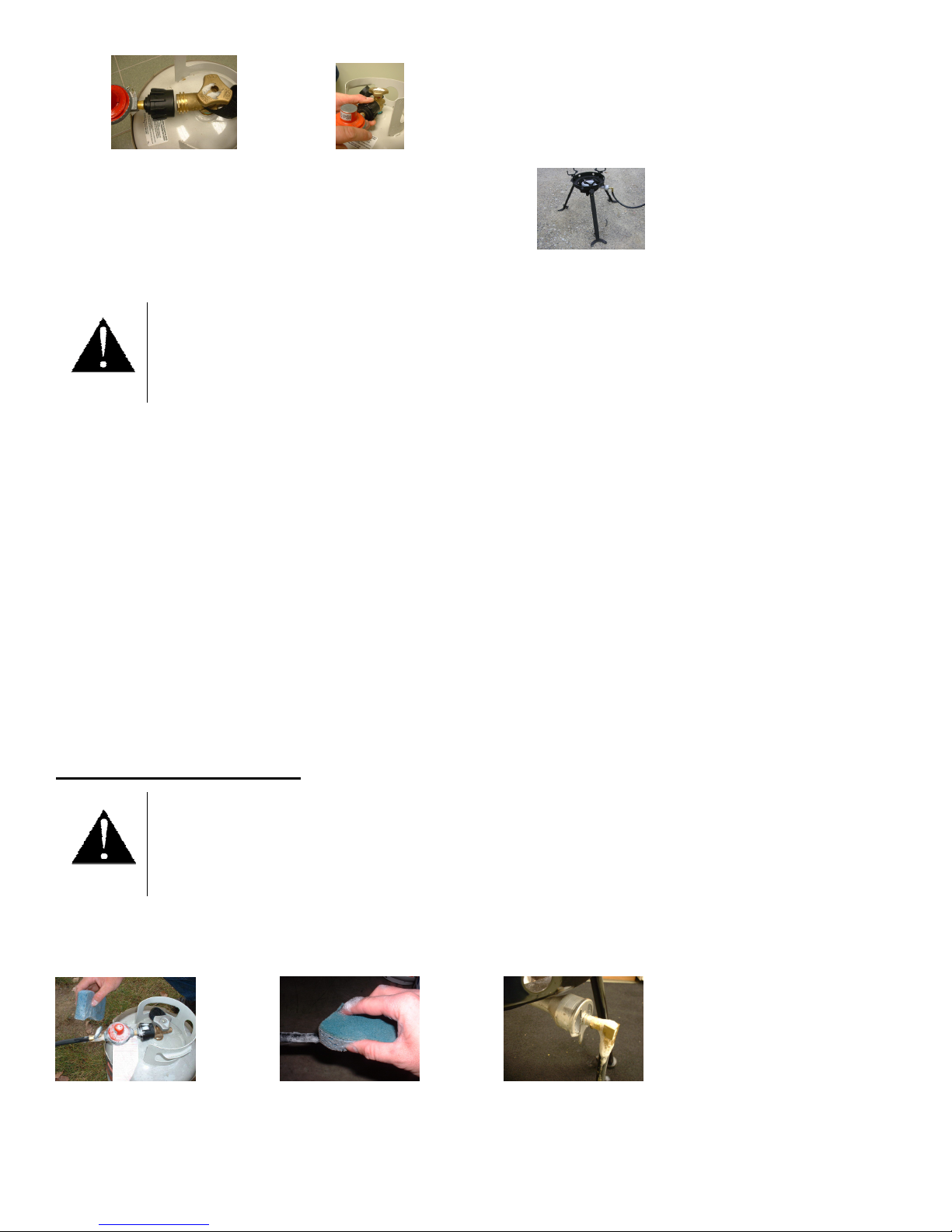

Step 1.6 Leak Testing

Close regulator control valve, by turning it clockwise. Apply a mixture of equal parts liquid detergent

(dishwashing soap) and water to LP tank valve, QCC1 connection, regulator, regulator control valve, all

connections, hose crimps, entire length of hose and hose/burner attachment connections with a sponge

(figures 21, 22 and 23).

Fig. 21 Fig. 22 Fig. 23

Open LP tank valve one turn by slowly turning it counter clockwise. If you hear gas rushing, smell gas,

or see growing bubbles, immediately turn LP tank off and make sure all connections are tight.

•

Do not smoke when checking regulator control valve.

•Do not check regulator control valve near ignition sources such as gasoline,

open flame, or electrical appliances.

•Do not open LP tank valve for more than 5 seconds.

•

If gas is escaping, close LP tank valve and

do not

use appliance.

•

Conduct leak test every time LP tank is connected or reconnected.

•Do not use open flame to check for gas leaks.

•Do not smoke during the leak test.

•Always conduct leak test outdoors in well ventilated area away from ignition

sources such as gasoline, open flame, sparks or electrical appliances.

OUTDOOR USE ONLY / NEVER LEAVE UNATTENDED

Page 9 of 18

Retest system by redoing this step. If you still hear gas rushing, smell gas, or see growing bubbles,

immediately turn LP tank off and contact Eastman Outdoors Customer Service Department at 1-800-

241-4833. DO NOT USE THE BURNER.

Proceed to the next step only if you do not hear or smell gas or see growing bubbles.

Turn regulator control valve ¼ turn counter-clockwise until gas starts to pass through regulator. Do not

open regulator control valve for more than 5 seconds. Check to ensure there are no leaks at the

connections, hose crimps, or entire length of hose where soapy water has been applied. If growing

bubbles begin to appear, there is a leak. Immediately turn off both the LP tank valve and regulator

control valve.

Tighten the connections and repeat test. If the leak cannot be stopped, contact Eastman Outdoors

Customer Service Department at 1-800-241-4833. DO NOT USE THE BURNER.

Always close the regulator control valve and LP tank valve after performing the leak test.

STEP 2 OPERATION

Step 2.1 Maintenance Before every use

Before each use, check to make sure appliance area is clear and free from combustible materials,

gasoline and other flammable vapors and liquid.

Perform leak test on all gas connections, hose, valves, and regulator. If bubbles form in leak test

solution, do not use.

Clean and inspect the hose before each use of the appliance. If there is evidence of abrasion, wear,

cuts or leaks, the hose must be replaced prior to the appliance being put into operation. The gas

pressure regulator provided with this appliance must be used. Replace only with Eastman

Outdoors regulator assembly Model No. 90320.

Before each use, visually check the ventilation opening(s) of the LP tank enclosure and the burner

to ensure they are free and clear of debris. Do NOT obstruct flow of combustion and ventilation air.

Keep the ventilation opening(s) of the cylinder enclosure and burner free and clear of debris.

Before each use, visually check and clean the burner, venturi, and orifices for insects and insect

nests. Spiders and small insects can nest in venturi or orifices during warehousing, transit, or

between periods of use. Obstructions in the venturi or orifices interfere with the flow of air and gas

through the burner. This can cause a yellow flame, flashback, and can lead to a fire beneath the

burner. If this occurs, immediately turn the LP tank valve off and turn the regulator control valve off.

DO NOT USE THE BURNER. If a nest is detected, with the burner at room temperature, clean the

venturi and casting holes with a bent wire, heavy-duty pipe cleaner, or screwdriver. Compressed

air may help clear away smaller particles.

Before and after each use, with the gas OFF at the LP tank and the burner cooled to room

temperature, visually check the regulator, needle valve, QCC1, hose, hose connections, burner

parts, air shutter, and venturi section for any sign of wear or damage.

Before each use, inspect the cooking vessel for dents, cracks, or pinholes. Fill the cooking vessel

with water and dry off the outside of the cooking vessel. If water appears on the outside of cooking

vessel, there is a leak. Do NOT use the cooking vessel if there is a leak. Contact Eastman

Outdoors at 1-800-241-4833 on how to obtain replacement parts.

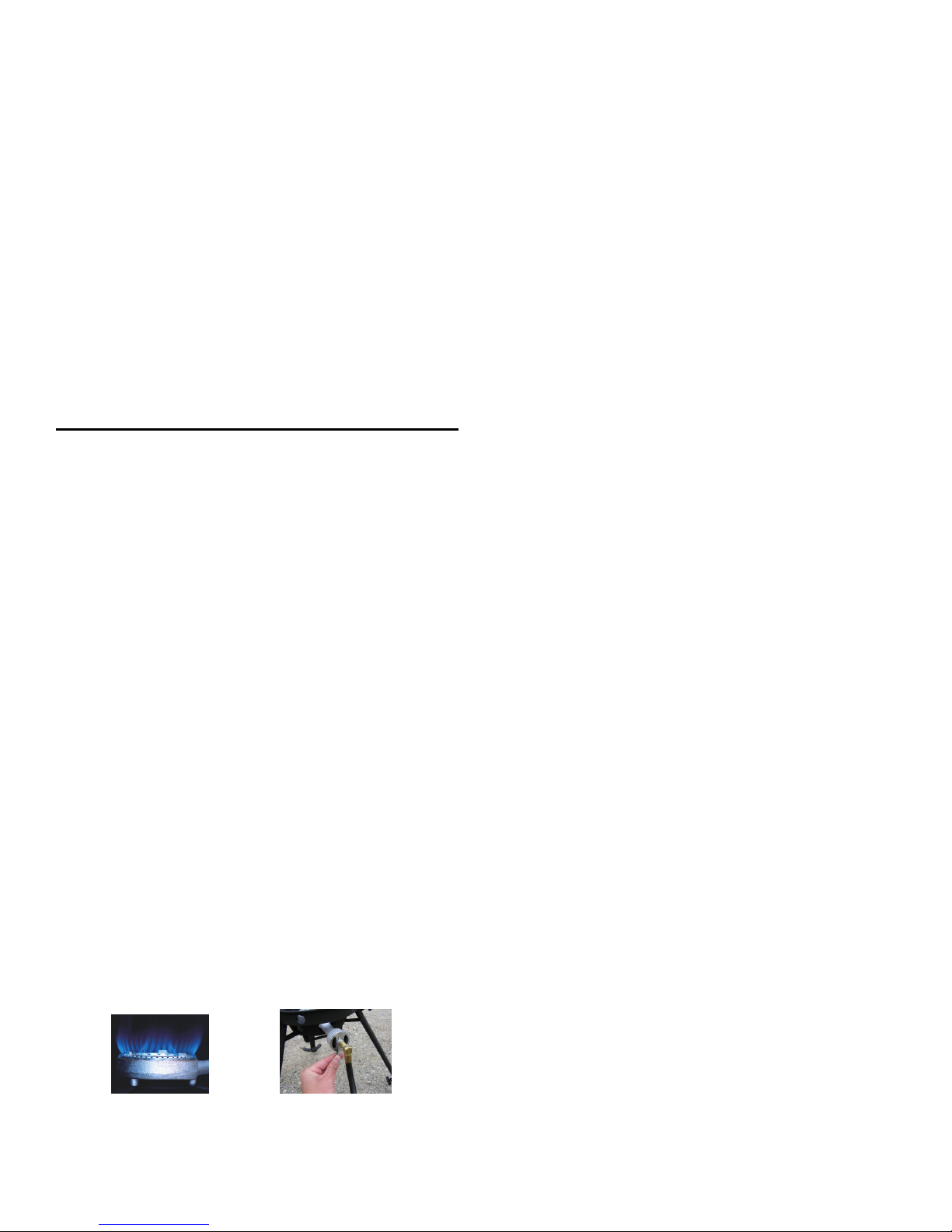

While operating burner, visually check flames. They should be deep blue to almost invisible in the

light (figure 24). If they are not, adjust the air shutter until deep blue flame is obtained (figure 25).

Fig. 24 Fig. 25

If burner flames are yellow, blows out, does not light, or flames inside venturi tube, immediately

OUTDOOR USE ONLY / NEVER LEAVE UNATTENDED

Page 10 of 18

turn gas OFF at the LP tank. Spiders and other insects can build nests inside the burner venturi

blocking air and gas flow. If this occurs, with gas OFF at LP tank and burner cooled to room

temperature, remove air shutter, spring, and hose assembly and clean venturi tube and casting

holes with a bent wire, heavy-duty pipe cleaner, or screwdriver through the air shutter holes.

Compressed air may help clear away smaller particles. If burner casting is not cleared, flush water

or use compressed air through the small casting holes to blow or wash out debris through the air

shutter holes. Once cleared, reassemble air shutter, spring, and hose assembly. If flame occurs

inside venturi tube, this is caused by a blockage and may cause damage to hose/orifice assembly.

Step 2.1 Lighting

Locate the appliance outdoors in well-ventilated areas, clear of combustible materials, and on a level, stable,

noncombustible surface like brick, concrete, or dirt.

If there is wind, locate the appliance in an outdoor area that is protected from the wind.

Close regulator control valve by turning valve clockwise until tight. Start propane gas flow from LP tank

by slowly turning the LP valve two complete turns counter-clockwise.

Place a lit match (Eastman Outdoors strongly

recommends using a long-stem match or lighter)

under the burner up through the hole in the center

of the burner element (figure 27).

Fig. 27

Slowly turn the regulator control valve a half rotation (counter-clockwise) until burner lights. Do not open

regulator control valve more than 1/2 a turn until the burner is lit.

If burner does not ignite in 3 to 5 seconds, turn regulator control valve off and turn LP tank valve off.

Check to make sure the LP tank is not empty. Wait five minutes for gas fumes to dissipate. Do not

attempt to re-light if you smell gas. Disconnect the QCC1 fitting and reconnect it to LP tank. Doing this

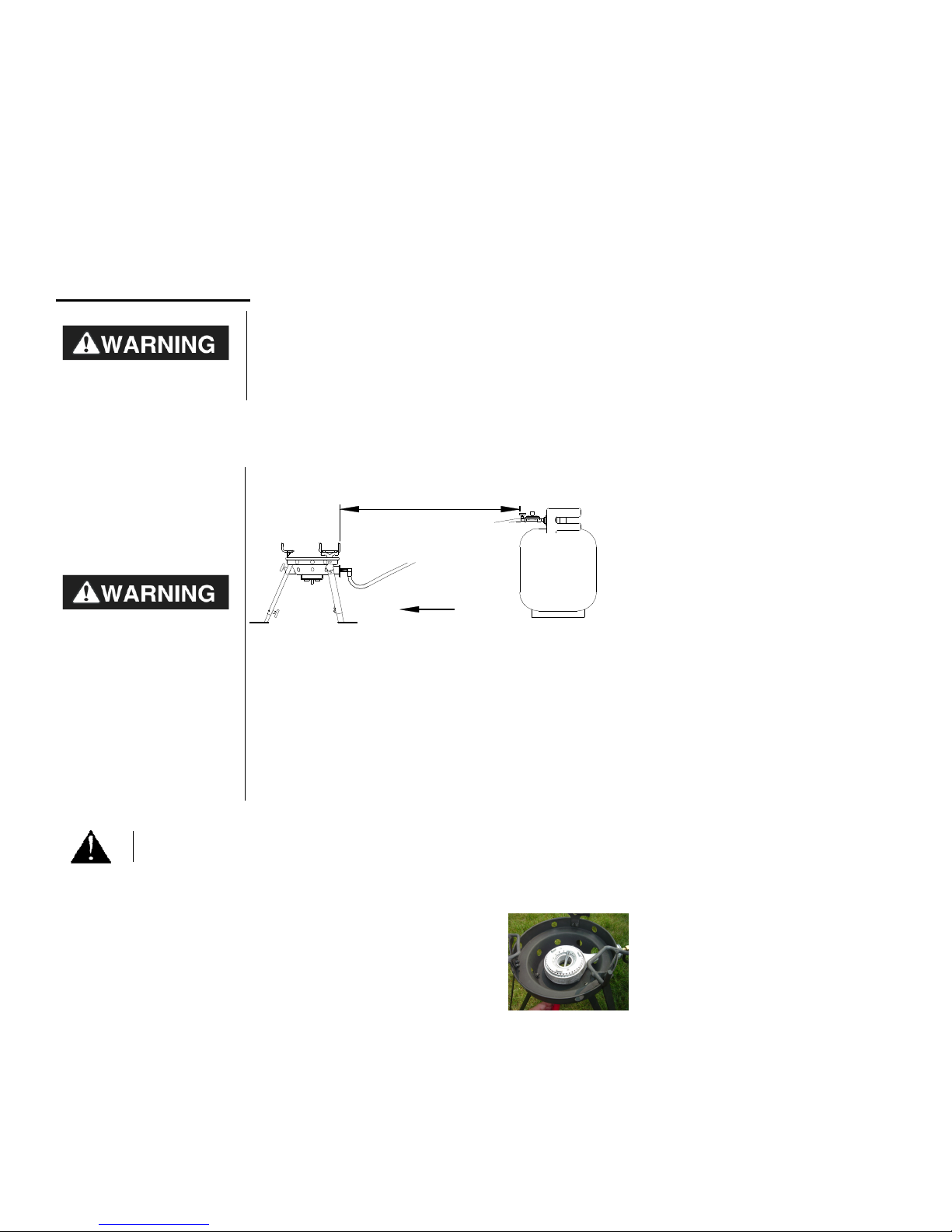

Always locate LP tank a minimum of 3ft (0.9m) upwind from burner. (figure 26)

MAINTAIN A DISTANCE

OF 3 FT (0.9M) BETWEEN

LP TANK & BURNER

WIND

DIRECTION

LP TANK

Fig.26

Trip hazard. Do not step over/walk between LP tank and hose.

Do not use on porches, wooden decks, picnic tables or in a building, garage,

under overhangs, or any enclosed area.

Do not use on any surface that will burn or melt like wood, asphalt (blacktop),

vinyl, plastic or on a soft surface.

Failure to follow these instructions can lead to fire or explosion, which could

cause property damage, serious personal injury or death

Do not allow your hands, hair, fabric, clothing, or any body part to be over

appliance or on appliance when lighting.

Failure to follow these instructions can lead to serious personal injury or

death

•

Always have a Type BC or ABC dry chemical fire extinguisher readily available.

OUTDOOR USE ONLY / NEVER LEAVE UNATTENDED

Page 11 of 18

resets the safety valve in the LP tank if the valves are opened too quickly. Repeat the lighting

procedure making sure to open both valves slowly.

When burner is lit, turn regulator control valve to

regulate flame intensity. Turn valve counter-

clockwise to increase flame. Turn valve clockwise

to reduce flame. Flame should be deep blue to

almost invisible in light (figure 28). If not, adjust air

shutter until a blue flame is obtained (figure 29).

Fig. 28 Fig. 29

If flame goes out during operation, first turn regulator valve off and then turn LP tank valve off. Wait five

minutes for gas fumes to dissipate and then repeat lighting procedures.

Step 2.2 Shut Off

Shut off the regulator control valve by turning it clockwise until tight.

When the flame is out and no gas passes through the regulator control valve, close the LP tank by

turning the tank valve clockwise until tight.

If the appliance is not in use, gas must be turned off at the LP tank.

When the burner is not in use, disconnect the regulator and hose from LP tank and hook it onto the

hose connection to protect the QCC1 fitting from being damaged.

Burner, pot, and contents must be allowed to cool to room temperature before handling.

STEP 3 Using Your Appliance

Before first use, wash cooking vessel in hot soapy water. Dry to prevent water spots. To prevent

scratches, avoid using sharp utensils when cooking and avoid soap-filled steel wool pads, abrasive

sponges, or abrasive cleaners when cleaning. Discoloration of pot may result if pot is allowed to

overheat.

Step 3.1 How to Determine Fill Level

With burner off and cooking vessel placed off to the side of burner, add cooking oil/grease or water into

vessel. See above for proper oil/grease/water level. If the amount of oil determined from above

steps exceeds the maximum fill line, fill cooking vessel up to maximum fill line. Never fill vessel

above MAXIMUM FILL LEVEL.

Step 3.2 Thermometer Attachment Instructions

Always use a thermometer to ensure correct temperature.

INSTRUCTIONS FOR DETERMINING MAXIMUM FILL LEVEL OF THE COOKING

VESSEL:

1. Place the food product on the holder or in the basket.

2. Place the food product and holder/basket into the empty vessel.

3. Fill the vessel with water just until the food product is completely submerged. There

must be a minimum of 3 inches (8cm) between the water level and top of the vessel.

4. Remove the food product and holder/basket from the vessel and either mark the water

level on the side of the vessel or measure the amount of water in the vessel.

5. Remove the water and completely dry the vessel and the food product.

6. This is the amount of cooking oil the vessel is to be filled with to cook the food product.

Never fill cooking vessel above MAXIMUM FILL LEVEL.

Failure to follow these instructions can lead to fire or explosion, which

could cause property damage,

serious personal injury or death

OUTDOOR USE ONLY / NEVER LEAVE UNATTENDED

Page 12 of 18

Before each use, place tip of the thermometer into a pot of boiling water to check that it registers

approximately 212ºF +/- 20ºF (100ºC +/- 10ºC). If it does not function properly, contact Eastman

Outdoors at 1-800-241-4833 to obtain a replacement thermometer before using the appliance.

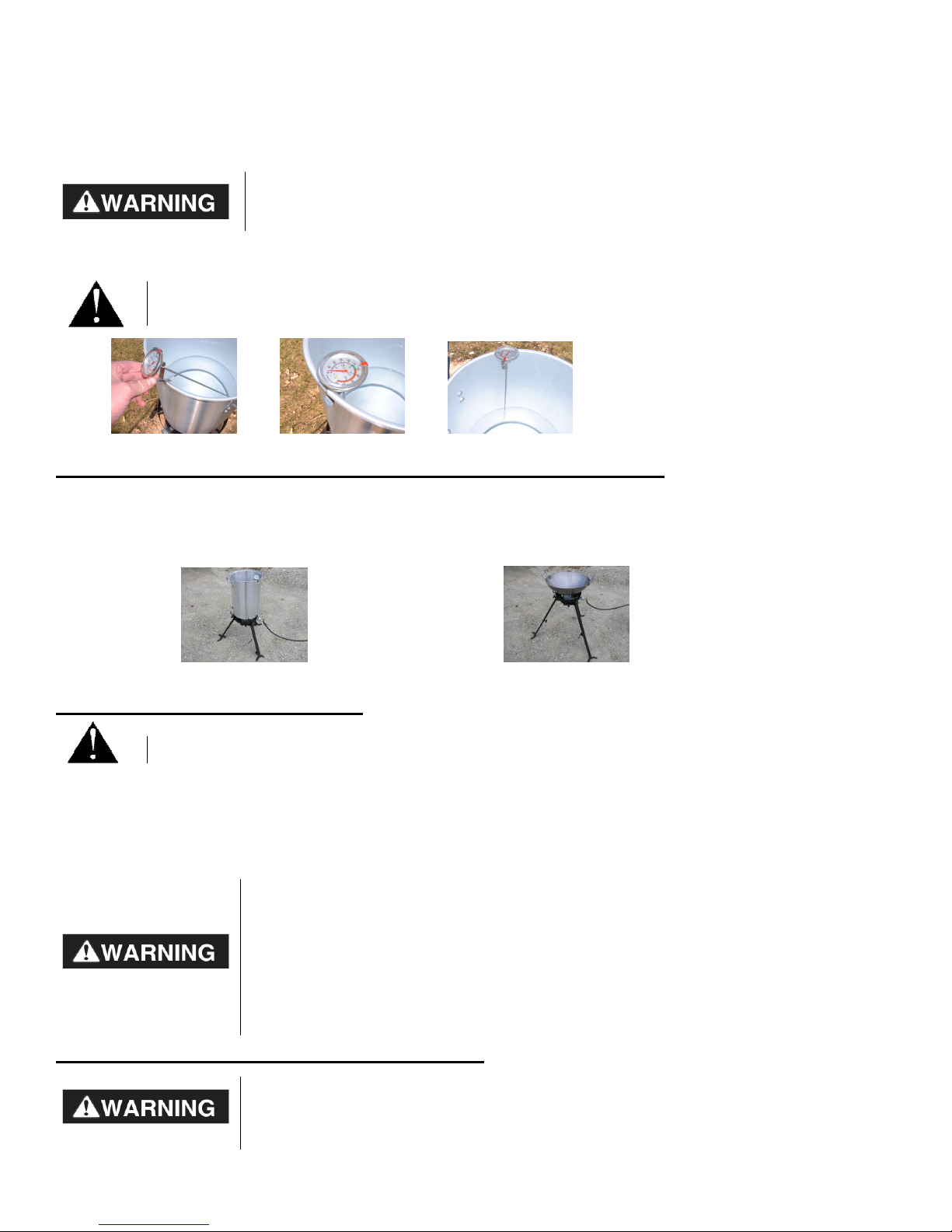

Attach thermometer to side of the cooking vessel (figure 30 & 31). Make sure tip of thermometer is

submerged in cooking oil/grease/water (figure 32).

Fig. 30 Fig. 31 Fig. 32

Step 3.3 Lighting and Placing Cooking Vessel onto Burner

Light the burner following lighting instructions in Step 2.1. Place correctly filled cooking vessel on the

burner (figure 33). For wok cooking, place wok on the burner (figure 34). Do NOT place an empty

cooking vessel on the appliance while in operation except when using a wok. Make sure cooking vessel

is centered on the burner.

Fig. 33: Burner with cooking vessel Fig. 34: Burner with wok

Step 3.4 Heat Cooking Liquid

Heat the cooking liquid to the desired temperature by following the Cooking Instructions Section.

Before cooking liquid reaches the desired temperature, turn the flame intensity down by adjusting the

regulator control valve so the temperature steadies at the desired degree. If the temperature begins to

drop before the desired temperature is reached, slightly increase the flame intensity by adjusting the

regulator control valve. Continue adjusting the flame intensity up and down as needed.

Step 3.5 Insert Food into Cooking Vessel

Do not fry without a thermometer or with a faulty thermometer.

Failure to follow these instructions can lead to fire or explosion, which

could

cause property damage,

serious personal injury or death

•

Do not allow tip of thermometer to pierce food because this will give a

false reading.

•

Do not use the lid while heating the oil or while deep-frying

Never permit oil/grease to exceed 350ºF (177ºC). Control heat intensity

with regulator control valve.

If temperature exceeds 350ºF (177ºC) or oil begins to smoke,

IMMEDIATELY turn needle valve down. If temperature does not drop,

continues to increase or smoke, IMMEDIATELY turn burner OFF.

Failure to follow these instructions can lead to fire or explosion, which

could cause property damage, serious personal injury or death.

Never insert frozen food into heated oil.

Failure to follow these instructions can lead to fire or explosion, which

could cause property damage, serious personal injury or death.

OUTDOOR USE ONLY / NEVER LEAVE UNATTENDED

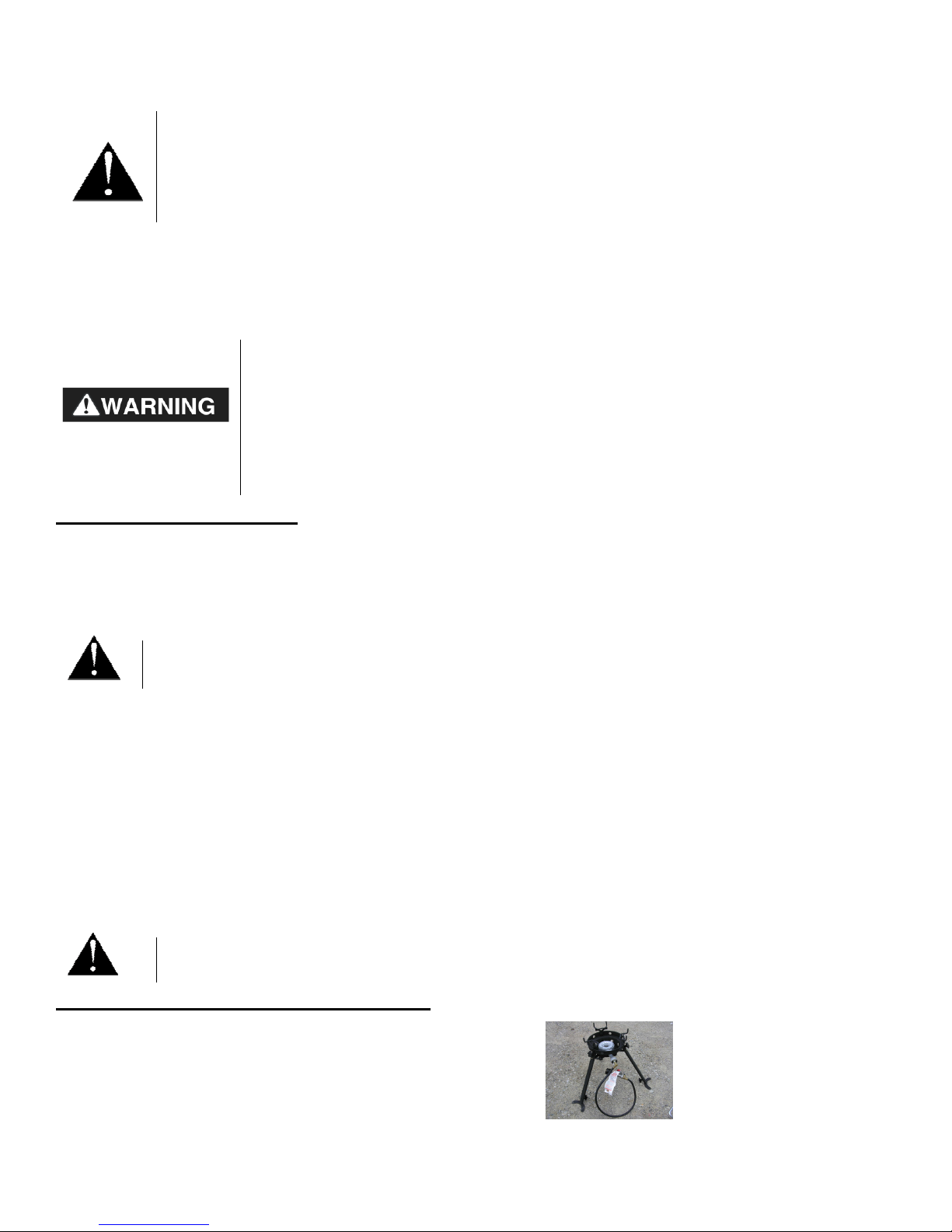

Page 13 of 18

Once cooking oil/grease/water reaches cooking temperature, slowly and gently partially insert the

completely thawed and towel dried food into the cooking vessel, and then remove it from oil/grease.

Oil/grease will boil do to moister on food. Repeat the process further into oil/grease, approximately

three or four times until the oil/grease does not boil and all moister is cooked off food. Then completely

submerge food into cooking liquid. Observe the cooking liquid level to avoid accidental spillage.

Step 3.6 Cooking Food

Cook food according to included cooking instructions. Once food is completely cooked, turn burner off

by first turning regulator control valve off and then turn LP tank valve off. Follow included cooking

instructions on how to remove food from cooking vessel.

Step 4 Clean Up

Once at room temperature, remove oil/grease or water from cooking vessel. Store used oil according to

oil manufacturer’s recommendations or dispose of properly. Do not pour oil/grease down any drain in

your dwellings. Do not pour oil/grease or salt water onto yard or lawn.

Clean cooking vessel with degreasing dish soap and hot water. Dry to prevent water spots. Do not use

soap-filled steel wool pads, abrasive sponges, or abrasive cleaners because scratching can occur.

Clean burner, as needed, with degreasing dish soap and water. Avoid getting water in burner casting.

Once clean, coat burner legs and burner body with a light layer of cooking oil. Avoid getting cooking oil

in burner casting. If rusting occurs, use steel wool to clean or buff rusted area and coat with cooking oil.

Do not paint interior of appliance. The exterior of the appliance may be touched up by using high

temperature paint.

Step 5 Packing and Storage

Step 5.1 Burner and LP tank storage

Close regulator and LP tank valves when not in

use. Disconnect LP tank and hook hose end with

QCC1 fitting onto orifice assembly (figure 35) to

protect the fitting from being damaged.

Fig. 35

Never permit oil/grease to exceed 350ºF (177ºC). Control heat intensity

with regulator control valve.

If temperature exceeds 350ºF (177ºC) or oil begins to smoke,

IMMEDIATELY turn needle valve down. If temperature does not drop,

continues to increase or smoke, IMMEDIATELY turn burner OFF.

Failure to follow these instructions can lead to fire or explosion, which

could cause propert

y damage,

serious personal injury or death

As food is slowly lowered into hot cooking oil, oil will begin to boil which can

cause splattering.

Wear cooking gloves/mitts, eye protection, shoes, and long sleeved shirt when

inserting or removing food from cooking vessel.

Always turn burner off when removing food from cooking vessel.

Allow burner, cooking vessel, and contents to cool to room temperature

before cleaning.

Allow burner, cooking vessel, and contents to cool to room temperature

before touching b

urner or locking knobs.

OUTDOOR USE ONLY / NEVER LEAVE UNATTENDED

Page 14 of 18

Place dust cap on cylinder valve outlet whenever the cylinder is not in use. Only install the type of

dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or

plugs may result in leakage of propane.

LP tank must be stored in an upright position outdoors, out of the reach of children and must not be

stored in a building, garage, or any other enclosed area.

Read and follow all instructions and storage instructions on LP tank.

Storage of appliance indoors is permissible only if LP tank is disconnected and removed from

appliance.

Store burner in a protected cool dry area and cover it to help prevent spiders and insects from

nesting in the venturi and orifices.

Step 5.2 Leg Removal

Once cooking vessel and burner cools to room temperature remove cooking vessel from burner.

Detach regulator control valve from LP tank.

Make sure all legs are in shortest position. Turn burner upside down so legs are facing up.

Loosen upper leg locking knob by turner knob

counter clockwise until the pin on the opposite side

of knob clears the leg (figure 36).

Fig. 36

Push upper snap button down and pull leg out of

the short leg post (figure 37). Repeat steps for

other two legs.

Fig.37

Loosen both of the storage knobs on the bottom of

burner housing by turning them both counter

clockwise. Slide one of the legs into storage rack so

the foot pad is pointing down (figure 38).

Fig. 38

Slide another leg from opposite side through the storage rack with foot pad pointing down. Slide

remaining leg from opposite side through storage rack with the foot pad pointing down. Tighten both

storage knobs by turning them clockwise until tight so legs are locked into place.

Wrap high pressure regulator and hose around

burner body and hook it to the burner orifice.

Burner is ready for transporting or storing (figure 39)

Fig. 39

Step 6 Frequently Asked Questions

Flame burns yellow, blows out, does not burn at all, or there is a flame inside the venturi?

Immediately turn gas OFF at LP tank. Spiders and insects can build nests inside burner venturi

blocking air and gas flow. If this occurs, with gas OFF at LP tank and burner at room temperature,

remove air shutter, spring, and hose assembly. Clean venturi tube and casting holes with a bent wire,

heavy-duty pipe cleaner, or screwdriver. Use compressed air or flush water through small casting holes

to clean out debris from air holes. Once cleared, reassemble air shutter, spring, and hose assembly.

OUTDOOR USE ONLY / NEVER LEAVE UNATTENDED

Page 15 of 18

Burner does not ignite in 3 to 5 seconds or burner ignites and has a low flame intensity?

Turn regulator control valve off and turn LP tank valve off. Check to make sure the LP tank is not empty.

Wait five minutes for gas fumes to dissipate. Do not attempt to re-light if you smell gas. Disconnect the

QCC1 fitting and reconnect it to LP tank. Doing this resets the safety valve in the LP tank if the valves

are opened too quickly. Repeat the lighting procedure making sure to open both valves slowly.

Locking knob is loose and the leg does not slide up and down?

Make sure locking knob is not loosened too much. If knob is loosened until it stops, it may pinch leg

causing it not to slide. Retighten knob so it locks leg into place and then loosen knob just enough so pin

clears the hole on the opposite side of the leg.

Leg is difficult to slide up and down?

Add a light coat of vegetable oil to outside of the inner leg. This will allow leg to slide up and down.

What temperature should the oil be at for optimum cooking use?

For best results, keep oil temperature between 325º (163º Celsius) and 350º Fahrenheit (177º Celsius).

If oil starts to smoke, the oil is breaking down and can become unsuitable for use. Although break down

temperatures can vary among different oils, most break down around 400º Fahrenheit (204º Celsius).

What is the best frying oil to use for outdoor cooking?

The best cooking oils are those with high flash points.

Step 7 Fish/Hot Pot Assembly Instructions

NOTE: Fish/hot pot is not included with all kits.

Tools required: flat head screwdriver & adjustable wrench.

Parts list – Pot, Basket, Handle, 3-Screws, Nuts, Washers & Lock Washers

Attach basket handle to outside of basket using enclosed screws and nuts

(figure 40). There are only a few hole locations on basket where handle will

line up correctly. Put screws through basket and then handle and secure with

washers and nuts. Make sure screws are tightened securely.

Check the screws before each use. Tighten if necessary.

Fig. 40

Step 8 Cooking with Wok

Burner is designed for woks up to 18 inches in diameter.

Step 8.1 Wok Food Preparation

To prevent possibility of cross contamination, always clean and disinfect all cooking and handling

surfaces and tools before, between use, and after each use…especially when handling uncooked meat.

Cut all ingredients close to the same size for even cooking. Plan on about 1/3 lb. of protein (beef,

chicken, seafood, tofu, etc.), 1/2 lb. of vegetables and 3 oz. of Wok King Finishing Sauce per person. In

addition to the veggies, you’ll need ¼ to ½ cup of cooked rice or noodles for each person. When you’re

finished preparing, make sure you refrigerate all food until you’re ready to Wok.

Step 8.2 Woking with burner

Make sure wok, utensils, ingredients, sauces, oils, and condiments are all in place and prepared for

cooking. Keep in mind, while woking, the number one rule is to maintain plenty of heat. Without high

heat, vegetables may end up soggy. Light the burner following all safety warnings and instructions.

Place the wok on burner grates and heat the wok.

Lightly coat wok with wok oil or vegetable oil. Drizzle oil around top perimeter and let oil coat sides and

bottom.

Once oil is hot, add meat to be cooked. (Do not overcook beef or undercook pork or fowl.) Stir or toss

ingredients continuously to keep them from burning.

OUTDOOR USE ONLY / NEVER LEAVE UNATTENDED

Page 16 of 18

Once meat is cooked, add heavy vegetables such as broccoli, cauliflower, bok choy, etc. Then add

remaining lighter vegetables.

For vegetarian dishes, tofu can be added now (we suggest that the tofu is pre-fried to prevent

crumbling). Mix slowly.

Once meat and vegetables are cooked add Wok King

Finishing Sauce. Pour an ample amount of

Finishing Sauce over ingredients, cook for one minute, and turn burner off, by first turning the

regulator control valve off and then turn the LP tank valve off. Wearing insulated outdoor cooking

gloves/mitts remove wok from heat and serve and enjoy! Wok and food are extremely hot!

Step 9 Frying Fish or Chicken Wings

Eastman Outdoors Fish-Fry/Hot pot and Eastman Outdoors Burner can fry up to 2 pounds of fish or

chicken wings at one time.

Step 9.1 Preperation

Fish Preparation

Fish must be completely thawed before frying. Mix Eastman Outdoors Seasoned Batter with water

(beer may be added instead of water for beer batter) and set aside. Sprinkle fish with Garlic Lemon

Pepper Seasoning. Cover and let seasoning soak in for 5 minutes.

Chicken Wing Preparation

Chicken wings must be completely thawed and towel dried before frying.

Step 9.2 Oil Preparation

With basket in the Fish-Fry/Hot pot, fill pot 1/3 to 1/2 full of oil. Never fill a cooking vessel more than 1/2

full of oil or past maximum fill line if using a marked cooking vessel. This allows for displacement of oil

caused by the addition of food, however, always check oil level to ensure adequate coverage so foods

fry evenly. Use oils with high flash points. Remove basket from oil and place on a paper towel.

Step 9.3 Deep Frying Instructions

Light burner and place cooking vessel with oil on burner. Make sure cooking vessel is centered on

burner. Use Eastman Outdoors’ Deep Fry Thermometer to prevent overheating and to ensure proper

cooking temperatures. Heat oil to 325ºF to 350ºF (163ºC to 177ºC). Do not use a lid when heating oil or

deep-frying.

Once oil temperature reaches 325ºF to 350ºF (163ºC to 177ºC), for fish, dip fish in batter and place up

to 2 pounds of thawed fish into the basket, for chicken wings, do not coat wings with sauce prior to

cooking, place up to 2 pound of thawed chicken wings into the basket.

Read and follow all warnings and ins

tructions before using.

Failure to follow these instructions can lead to fire or explosion, which

could cause property damage,

serious personal injury or death

Do not fry without a thermometer or with a faulty thermometer.

Never permit oil/grease to exceed 350ºF (177ºC). Control heat intensity

with regulator control valve.

If temperature exceeds 350ºF (177ºC) or oil begins to smoke,

IMMEDIATELY turn needle valve down. If temperature does not drop,

continues to increase or smoke, IMMEDIATELY turn burner OFF.

Failure to follow these instructions can lead to fire or explosion, which

could cause property damage,

serious personal injury or death

OUTDOOR USE ONLY / NEVER LEAVE UNATTENDED

Page 17 of 18

SLOWLY and GENTLY, partially insert completely thawed and dried fish/chicken wings into oil and then

remove them. Repeat the process further, approximately three or four times until fish/chicken wings are

completely submerged, while observing cooking liquid level, so as to avoid accidental spillage. This

process boils out excess moisture and helps prevent oil from boiling over.

When fish/chicken wings are placed in oil, the temperature will drop. Slowly bring oil back to 325ºF to

350ºF (163ºC to 177ºC). Before oil reaches 350ºF (177ºC), turn flame intensity down by adjusting the

regulator control valve so temperature steadies between 325ºF to 350ºF (163ºC to 177ºC). If

temperature begins to drop below 325ºF (163ºC), slightly increase flame intensity by adjusting the valve.

Continue adjusting flame intensity up and down until 325ºF to 350ºF (163ºC to 177ºC) is reached.

Fry fish until golden brown, which takes approximately 5-8 minutes, or until fish flakes easily with a fork.

Fry chicken wings for 8 to 10 minutes (hint: wings are cooked when they start to float).

When fish/chicken wings are completely cooked, turn burner off, by first turning the regulator control

valve off and then turn LP tank valve off. Leave the Fish/Hot pot on burner and wearing insulated

outdoor cooking gloves/mitts carefully remove the basket containing fish/chicken wings.

Drain excess oil from basket by attaching basket handle to the side of the cooking vessel. When oil

stops dripping, remove basket from the cooking vessel.

Place fish on a plate lined with paper towels. Serve and enjoy!

Place chicken wings in a stainless steel mixing bowl. If desired, add Eastman Wing Sauce. Toss to coat

well. Serve and enjoy!

LIMITED WARRANTY

Eastman Outdoors warrants this product against all manufacturing defects in materials and

workmanship for a period of thirty days from the date of purchase. This warranty is nontransferable if

the product is sold to an individual other than the original purchaser. This warranty does not cover

defects resulting from excessive wear and tear on the product. This warranty is void if the product has

been subject to accident, misuse, abuse, improper set-up, acts of GOD, and unauthorized modification.

Eastman Outdoor’s entire liability and your exclusive remedy, if product is defective in material or

workmanship during the warranty period, is repair or replacement at Eastman Outdoors expense. NO

OTHER WARRANTIES, WHETHER EXPRESSED OR IMPLIED, INCLUDING WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY TO THE

PRODUCT. Eastman Outdoors shall not in any event be liable for any incidental or consequential

damages, either in the breach of this warranty or any other reason, resulting from the use of this

As food is slowly lowered into hot cooking oil, oil will begin to boil which

can cause splattering.

Wear cooking gloves/mitts, eye protection, shoes, and long sleeved shirt

when inserting or removing food from cooking vessel.

Always turn burner off when removing food from cooking vessel.

Cooking oil, cooking vessel, and contents are extremely hot.

When removing food or basket from cooking vessel, avoid pulling

cooking vessel off burner.

Failure to follow these instructions can lead to fire or explosion, which

could cause property damage,

serious personal injury or death

Never insert frozen food into heated oil.

Failure to follow these instructions can lead to fire or explosion, which

could cause property damage, serious personal injury or death.

OUTDOOR USE ONLY / NEVER LEAVE UNATTENDED

Page 18 of 18

product. This warranty gives you specific legal rights. You may also have other rights that vary from

state to state.

For Service call Eastman Outdoors Customer Service Department at 800-241-4833. The representative

will ask for proof of purchase with date. Proof of purchase is a sales receipt from an authorized

Eastman Outdoors dealer or distributor.

If warranty service becomes necessary: Call the Eastman Outdoors Customer Service Department at

800-241-4833. Explain the nature of your problem. The representative will determine if the product or

parts need to be replaced, issue you a Return Authorization Number, and explain shipping and

handling charges. The customer is responsible for shipping and handling charges of the returned item

and replacement parts. All replaced parts need to be shipped to Eastman Outdoors before replacement.

Follow the Customer Service Representative’s instructions. If a return is necessary, it must be shipped

prepaid. Pack the product carefully in order to prevent damage.

Eastman Outdoors Inc. makes no claim of fitness of this product for a particular purpose or use and

assumes no liability for damages resulting from use of the product. Liability of the manufacturer in any

event is limited to the amount of the original purchase price of this product and remains in force for only

as long as the product remains in its original as-built configuration. Eastman Outdoors will not be held

liable for any losses due to negligent operation on the part of the user. Eastman Outdoors will not be

obligated to repair or replace equipment that has been altered or used other than in accordance with

the manufacturer’s operating instructions. Upon the expiration of the warranty (30 days) such liability

shall terminate. There are no other warranties, expressed or implied, pertaining to this product.

Eastman Outdoors neither assumes nor authorizes any other person or agent to assume any

responsibility or liability on its behalf for operation of this product.

Explain the nature of your problem. The representative will determine if the product or parts need to be

replaced, issue you a Return Authorization Number, and explain shipping and handling charges. The

customer is responsible for shipping and handling charges of the returned item and replacement parts.

All replaced parts need to be shipped to Eastman Outdoors before replacement.

Follow the Customer Service Representative’s instructions. If a return is necessary, it must be shipped

prepaid. Pack the product carefully in order to prevent damage.

Eastman Outdoors, Inc., makes no claim of fitness of this product for a particular purpose or use and
