EasyPro RGB9PL Operation and maintenance manual

Thank you for purchasing EasyPro's
submersible color changing LED light.
With this LED light you can illuminate a
pond or waterfall, highlight a deck or patio and extend the enjoyment of your
entire landscape in the evening hours. This light is fully submersible and may
be used in or out of water. Included is xture with pigtail and optional stainless
steel mounting plate.
RGB9PL Specs
• Corrosion resistant stainless steel housing, bracket and base mount
• Epoxy lled xtures
• Pigtail with 5 pin, quick connect end
• Water proof connections
• Dimmable, 24 volt DC
• 17.5 Watts (maximum with full color mix)
• RGBW for color mixing and true warm white color option
Safety and Electrical Connections
1. Always disconnect the electrical supply before handling, maintaining,
repairing or installing any pond equipment.
2. Lights must be attached to a matching 5 pin RGBW cords and RGBW 5 pin
24 volt DC controller.
3. Never connect the lights directly to a 110 volt or higher outlet.
4. Connect the RGBW controller/transformer to a 110 volt receptacle that is
protected by a Ground Fault Circuit Interrupter.
5. Do not modify wiring in any way, quick plug ends must stay intact to
function and should not be replaced with any other connections.
6. Not approved for swimming pool or spa use.
7. All electrical work must be performed by a qualied technician. Always follow
the National Electrical Code (NEC) or the Canadian Electrical Code as well as
all local, state and provincial codes. Failure to follow manufacturer’s installation
instructions may result in electrical shock, re hazard, personal injury or
death, damaged equipment, provide unsatisfactory performance and will void
manufacturer’s warranty.
RGB9PL
Stainless Steel
RGBW Color Changing
LED Light
Instructions for Operation
Safety • Warranty

Installation of LED Light
For a complete system you will need RGBC controller unit with remote control,
5 pin power cables with quick disconnects, optional splitters and RGB9PL
xture(s). All items are sold separately.
1. Before installing the product, check for damaged
or missing parts. Contact EasyPro immediately if
pieces are missing or damaged.
2. Be sure the power is disconnected before installing
the light.
3. Determine desired location to place the LED light.
Note: Consider that you may need future access to
the quick plugs should a xture need to be replaced.
4. Use with or without removable base to t xture into
desired location. If base is used it may need to be
ballasted to prevent xture from shifting.

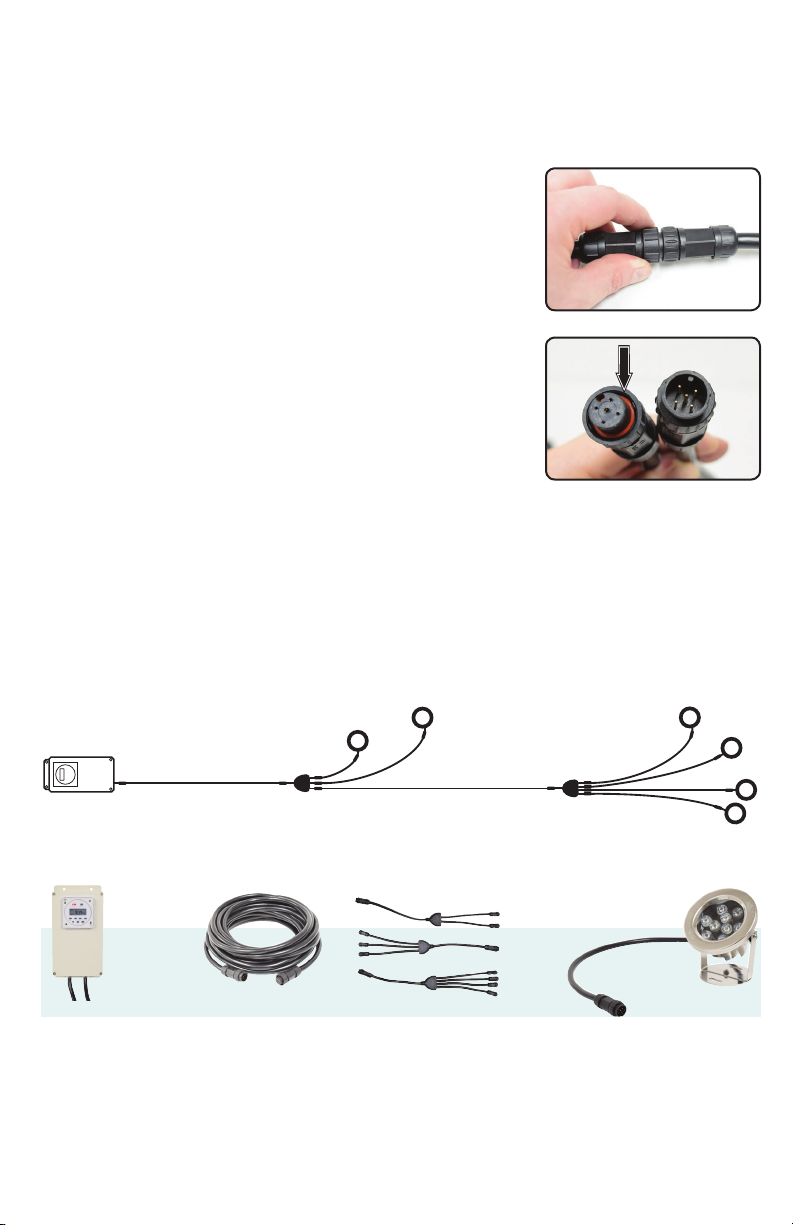

5. To connect pigtail wire from LED xture to 5
pin corresponding power cable or splitter (sold
separately) line up the pins from the xture’s pigtail
to the receptacle of the cable or splitter. Insert pins and secure with half-turn,
twist nut on cable or splitter. Always be sure o-ring seals are present. See
gures 1 and 2.
6. Connect power cables and/or splitters to RGBC controller (sold separately)
using quick connect plugs and receptacles. Be sure all connections are
secured with quick connectors.
7. Angle of xture can be adjusted with screws on side of unit.
8. Plug the controller unit into a GFCI outlet. Lights will start on default mode 1.
Note: Power supply must be maintained to control module or light will default
back to mode 1 on startup.
RGBC
Controller
LKC Cable
FCR13
1x3 Splitter
FCR14
1x4 Splitter
RBG9PL
LED
RBG9PL
LED
LKC Cable
RGB9PL
Controller
FCR12
FCR13
FCR14
Cable
Figure 1
Figure 2
o-ring

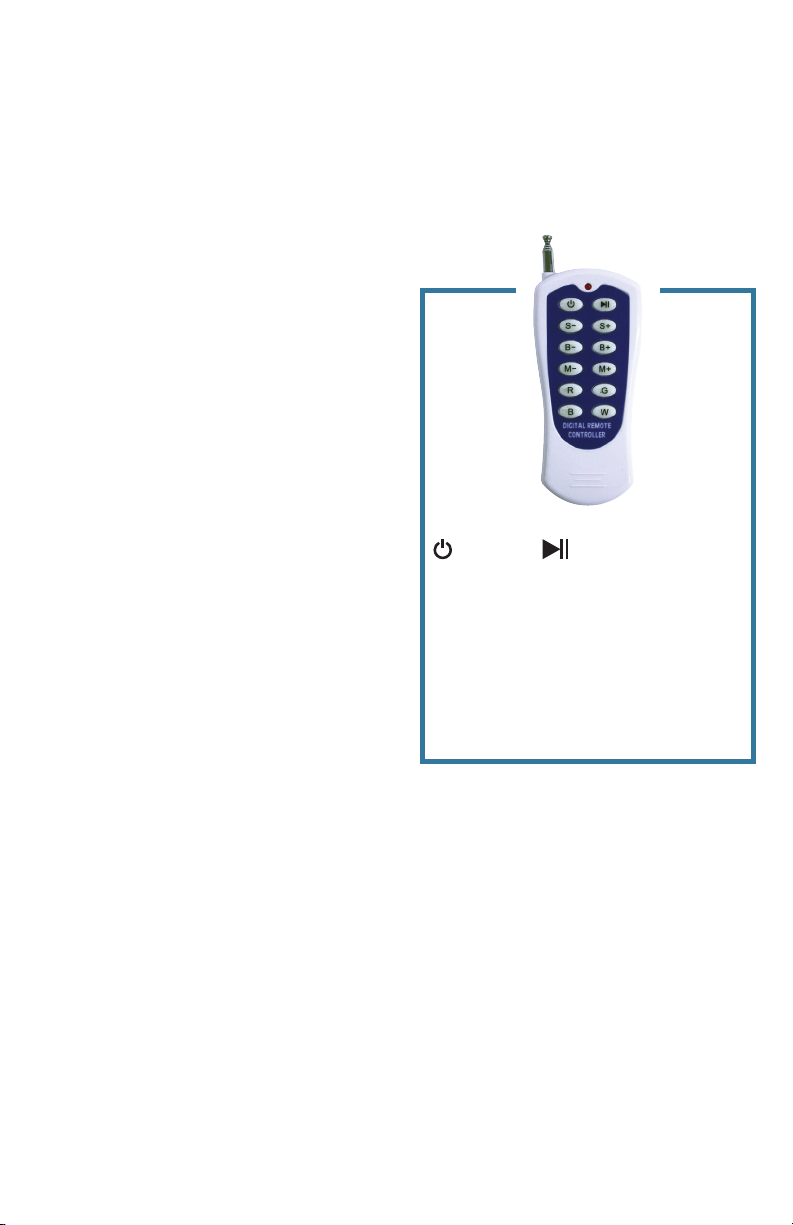

Remote Control Operation
(remote control will come with controller)
To change settings and colors, use the
unit’s remote control. Controllers within the
remote's 1000' range will be synchronized.
• Desired setting must be achieved by clicking
remote functions of speed, mode, power
or main colors. Depress buttons slowly and
deliberately.
• Brightness settings only work with solid
colors.
• Changing the speed of a light cycle will reset
the mode to the beginning of its cycle.
• Remote requires an A23 battery (included)
• Remote control works only when red light
of the timer is on. This is during Manual or
Programed “On” functions.
Color Modes
1. (Default) Change — Red, Yellow/Green, Green,
Cyan, Blue, Cool White, Yellow, Cool White,
Purple, Cool White, Cyan, Cool White, Warm
White, Orange
2. Change — Red, Green, Blue, Warm White
3. Change — Red, Green, Blue
4. Change — Warm White, Blue, Green, Red
5. Change — Red, Green, Blue, Warm White
(several color cycles then accelerates to strobe)
6. Change — Red, o, Green, o, Blue, o, Yellow/
Green, o, Purple, o, Cyan, o, Warm White, o
7. Change — Yellow/Green, Purple, Cyan
8. Change — Red, Yellow/Green, Warm White, o
9. Change — Warm White, Yellow/Green, Red, o
10. Change — Red, Green, Blue, Yellow/Green,
Purple, Cyan, Warm White
11. Change – Demo Mode
12. Solid — Red
13. Solid — Green
14. Solid — Blue
15. Solid — Yellow/Green
16. Solid — Purple
17. Solid — Cyan
18. Solid — Warm White
S-/S+ Speed
B-/B+ Brightness
M-/M+ Color Mode
R Red G Green
B Blue WWarm White
Power Reset Defaults
9. The LED light will default to mode 1 on initial startup. Use controller’s remote
to change settings and colors.
10. The longest length maximum length from controller to xture should not
exceed 300’.

800-448-3873 • Grant, Michigan
www.easypro.com
6836 • 9/19
Service and Maintenance
1. Disconnect the controller from the power supply before service.
2. All parts of the lighting system should be checked on a regular basis
to make sure the system is functioning properly.
3. All wires should be protected from possible damage from wildlife and other
causes. Damaged wires due to neglect are not covered under warranty.
4. If light output is diminished check the face of the light xture for debris and
clean if necessary, or use remote control to increase brightness.
5. If lights are not working, be sure the timer on the controller is set to operate
lights when desired. See operations manual of timer/controller for more
information.
EasyPro Pond Products Limited Warranty
EasyPro Pond Products (“EasyPro”) warrants to the purchaser that this product ("Product") will be free from any
mechanical or material defects for a period of three years from the date of purchase. Removal of Quick Connect
ends will void warranty. For use in fresh water only. This warranty only covers properly installed and maintained
Products sold by authorized EasyPro Sellers who are subject to and follow EasyPro’s quality control standards.
Please note that because EasyPro is unable to control the quality of Products sold by unauthorized sellers, unless
otherwise prohibited by law, this warranty does not cover Products purchased from unauthorized sellers.
This warranty does not cover normal wear and tear, nor any deterioration suered through overloading, improper
use, negligence, improper installation, acts of God or accident. Similarly, any modication made by the purchaser
to the Product will cause the warranty to be null and void. This warranty does not cover any cost associated with
the installation or removal of the Product subject to a warranty claim.
All returned items will be inspected to determine cause of failure before a warranty claim is approved.
The exclusive remedies provided hereunder shall, upon EasyPro’s inspection and option, be either repair or
replacement of the Product or parts covered under this warranty.
Making a Claim: A Return Authorization (“RA”) number must rst be obtained by calling EasyPro at 800-448-3873
or via email at [email protected]. It is the purchaser’s responsibility to pay the return shipping charges.
Be sure to include the RA number, original receipt (in the form of an invoice or sales receipt), your name, your
return address and your phone number inside of the package. No warranty claims will be honored without the
original receipt that shows that your purchase was made from an Authorized EasyPro Seller. Ensure the product is
properly packaged and insured for the replacement value. Damage due to improper packaging is the responsibility
of the sender.
ALL OTHER EXPRESS OR IMPLIED WARRANTIES INCLUDING MERCHANTABILITY OF FITNESS FOR A
PARTICULAR PURPOSE ARE HEAREBY LIMITED IN DURATION TO THE DURATION OF THE WARRANTY AS
DESCRIBED ABOVE. Some States do not allow limitations on how long an implied warranty lasts, so the above
limitations may not apply to you.
EasyPro shall not be held liable for any damages caused by defective components or materials of this Product; or
for loss incurred because of the interruption of service; or any consequential/incidental damages and expenses
arising from the production, sale, use or misuse of this Product. Some States do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
EasyPro shall not be held liable for any loss of sh, plants or any other livestock as a result of any failure or defect
of this Product. This warranty gives you specic legal rights, and you may also have other rights that vary from
State to State.
