Eaton®
Heavy Duty Hydrostatic Pumps
Parts & Repair Information
Series 2 Hydrostatic Pumps

1
Table of Contents
Introduction ............................................................................................................................................................... 3
Required Tools for Disassembly/Reassembly ............................................................................................................ 3
Major Assemblies – Disassembly Order – ID Tag Information ................................................................................... 4
Exploded View Drawing – Charge Pump, End Cover ..................................................................................5
Exploded View Drawing – Rotating Group.................................................................................................. 6
Exploded View Drawing – Main Housing .................................................................................................... 7
Parts List ................................................................................................................................................................... 8-27
Main Housing ............................................................................................................................................. 11
Servo Piston Sub-Assembly ....................................................................................................................... 11
Swash Bearing Sub-Assembly ................................................................................................................... 11
Propel Valve Plate or V-Groove Plate.......................................................................................................... 12
Bearing Plate .............................................................................................................................................. 12
Drive Shaft Sub-Assembly ......................................................................................................................... 12
Rotating/Swash Plate Assembly ................................................................................................................. 13
Charge Pump Kit Assemblies ..................................................................................................................... 14-15
End Covers ................................................................................................................................................. 16
Control Valves ............................................................................................................................................ 17-25
Manual Control Valve (Kit) .................................................................................................................. 17
Manual Control Valve Wide Band (Kit) ................................................................................................ 17
Manual Control Valve with N/C Neutral Lockout & Potentiometer (Kit) ............................................... 18
Manual Control Valve with N/C Neutral Lockout (Kit) .......................................................................... 19
Manual Control Valve with Potentiometer (Kit) ...................................................................................20
Solenoid Control Valve, Speed Sensor & Mating Connector (Kits)...................................................... 21
(EP) Electronic Proportional Displacement Control (Kit) ..................................................................... 22
EP Control Solenoid Actuated Valve Assemblies,
EP Control PWM Module (Kits) ........................................................................................................... 23
(MUX) Multiplex Displacement Control (Kit) ....................................................................................... 24
Low Pressure Relief Valve (Kit) .................................................................................................................. 26
Shaft Seal (Kits) ......................................................................................................................................... 26
Shim Kit, End Cover Bearing ...................................................................................................................... 26
Hold Down (Kits) ........................................................................................................................................ 26
Overhaul Gasket (Kits) ............................................................................................................................... 27
Repair Information – Complete Disassembly............................................................................................................. 28-33
Repair Information – Complete Reassembly ............................................................................................................. 34-41
Troubleshooting ......................................................................................................................................................... 43
Gauge Requirements, Gauge Port Size and Location ................................................................................. 45
Pressure Readings ..................................................................................................................................... 46
Fault-Logic Troubleshooting ....................................................................................................................... 47-52
Hydraulic Fluid Requirements .................................................................................................................................... 53-54
Special Tools ............................................................................................................................................................. 55-57
Model Code Descriptions........................................................................................................................................... 58-59

3
Required Tools for Disassembly/Reassembly
• 1/4 in. Hex Key
• 5/16 in. Hex Key
• 9/16 in. Hex Key
• 5/8 in. Hex Key
• 12 mm Hex Key
• 5/16 in. Socket or End Wrench
• 1/2 in. Socket or End Wrench
• 9/16 in. Socket or End Wrench
• 11/16 in. End Wrench
• 3/4 in. Socket or End Wrench
• 1 in. Socket or End Wrench
• 1 1/4 in. Socket or End Wrench
• Breaker Bar or Ratchet Wrench
• Torque Wrench (200 Max. Capacity)
• Adjustable Pliers
• Screwdrivers (Small & Large)
• Internal Retaining Pliers (str. .047 Tips)
• Internal Retainer Pliers (Str. Tips)
• Dial Indicator with Magnetic Base
• Depth Micrometer with Extensions
• Parallel Bars (2)
• Slide Hammer
• Split Blade Bearing Puller
• Seal Bullet (Special)
• Low Clearance Bearing Puller (Special)
• Hammer (Steel and Plastic)
• Small Machinist Ruler
• Small Flashlight
• Light Petroleum Jelly
• Suitable Solvents and Cleaners
• Low Clearance Bearing Puller (Special)
Special Tools are shown on pages 55-57
Introduction
This Manual provides service information for Eaton Heavy Series 2 Variable Displacement Pumps, Models 33, 39, 46, 54 and
64. Step by step instructions for complete disassembly, inspection and reassembly of the pump are given. The following
recommendations should be followed to insure successful repairs.
• Most repairs require the removal of the pump from the vehicle.
• Cleanliness is extremely important.
• Clean the port areas thoroughly before disconnect the hydraulic lines.
• Plug the pump ports and cover the open hydraulic lines immediately after they’re disconnected.
• Drain the oil and clean the exterior of the pump before making repairs.
• Wash all metal parts in clean solvent.
• Use compressed air to dry the parts. Dot not wipe them dry with paper towels or cloth: lint in a hydraulic system
will cause damage.
• The compressed air should be filtered and moisture free.
• Always use new seals when reassembling hydraulic pumps.
• Lubricate the new rubber seals with a petroleum jelly like Vaseline before installation.
• Torque all bolts over gasketed joints, then repeat the torquing sequence to make-up for gasket compression.
After all repairs are complete it is essential to verify the accuracy of pump repairs on an authorized test stand.

4

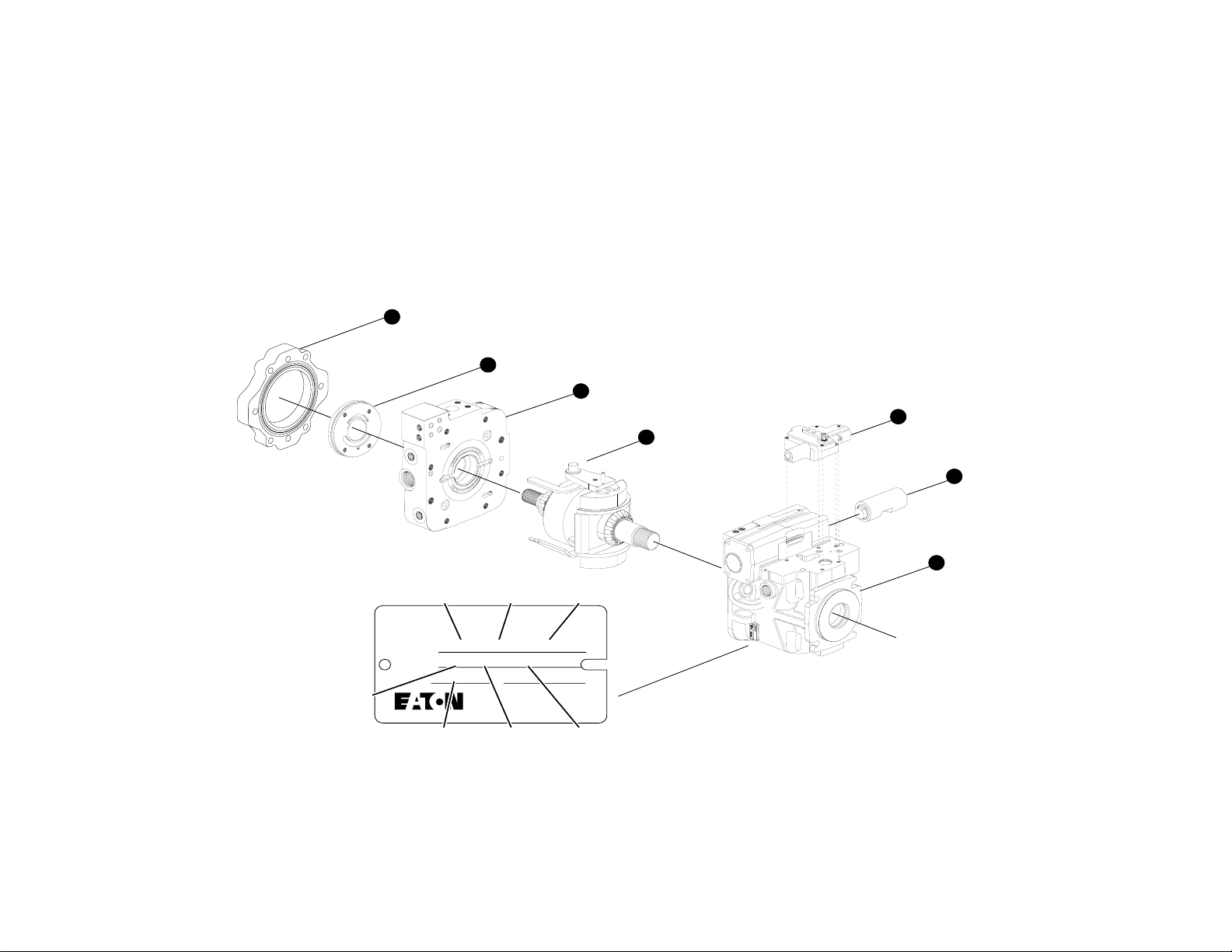

Major Assemblies -– Series 2 Variable Displacement Pump
NOTE: This is a typical Series 2 configuration
your model may differ slightly from this view
depending on features installed.
Order of Major disassembly is:
1. Control (as applicable)
2. Auxiliary Mounting Adaptor (if applicable)
3. Charge Pump Cover
4. End Cover
5. Rotating Group & Shaft
6. Servo Piston
7. Main Housing
Caution: Before attempting to disassemble pump refer to the
detailed disassembly instructions starting on Page 28
Eaton
Model No.
Serial No.
Rotation
Eaton Corporation
Hydraulics Division
Spencer, Iowa 51301
ABC
GE
D
F
0000 00 - 000
00 00 000000
ID Tag
ADisplacement cu. in./rev.
0033 = 3.3
0039 = 3.9
0046 = 4.6
0054 = 5.4
0064 = 6.4
BIdentifies Type of Product
22 = Variable Displacement Pump
CIdentifies Specific Unit Configuration
DMonth of Manufacture
EYear of Manufacture
FSpecific Serial Number of Unit
GIdentifies Direction of Input Shaft Rotation
Observed from Shaft End of Unit
CW = Clockwise
CCW = Counterclockwise For Detailed Model Code Listings refer to Pages 58-59
3Charge Pump Cover
4End Cover
5Rotating Assembly
& Shaft
1Control
2Auxiliary Mounting Adaptor
6Servo Piston
7Main Housing

5
Exploded View Drawing – Series 2 Variable Displacement Pump
3393644546
mc
3
ver/4,457,364,572,985,501
ni
3
ver/23.398.395.444.544.6
Model Number
Displacement
5
13
43
42
3
15
95
4
76
479
78
63
67
64
60
59
Detail of Charge Pump &
Adaptor Pads are on Pages 15 & 16
63
NOTE: This is a typical Series 2 configuration
your model may differ slightly from this view
depending on features installed.
41
57
65
66
66
55
55
56
A Items

6

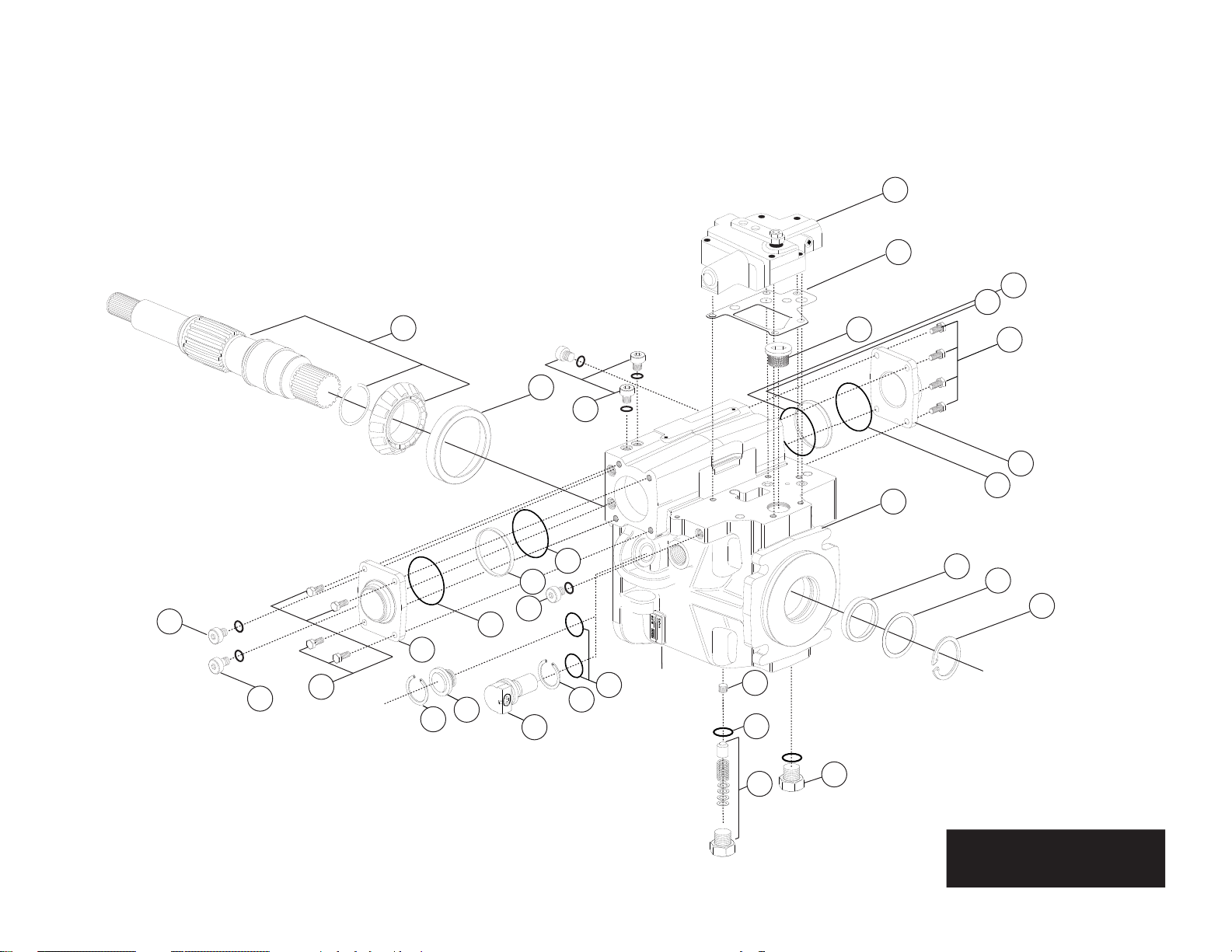

Exploded View Drawing – Series 2 Variable Displacement Pump
12
26
47
Because critical calibrations have
been made at the factory the Servo
Assembly should not be disassembled.
44
54
53
54
53
45
46
45
46
14
56
56
NOTE: This is a typical Series 2 configuration
your model may differ slightly from this view
depending on features installed.
B Items

7
Exploded View Drawing – Series 2 Variable Displacement Pump
2
118
67
31
66
40
1
30
117
48
49
119
116
7Control Valve Gasket
Control Valve
(Refer to pages 17-23 for Valve Options)
62
66
29
85
85
86
86
61
87
32
Optional
Magnetic Speed Sensor
ID Tag
Refer to
Page 4
for details
31
6
32
27
Optional
Plug
28
27
66
28
Optional
C Items

8
Legend ♦Refer to specific item assembly parts list.
◊Parts included in Kit. (Refer to specific Parts Kit list.)
Parts List – Series 2 Variable Displacement Pump
Item Part No. Qty. Description
1 C ♦1 Main Housing (see parts list on page 11)
2 C ♦1 Drive Shaft Sub-Assembly (see parts list on page 12)
3 A ♦1 End Cover (see parts list on page 16)
4 A 103090-325 8 Hex Bolt HD 3/8-16 Gr8 (54,4 - 63,7 - 75,4 cm3/rev)
103091-325 8 Hex Bolt HD 7/16-16 Gr8 (89,2 - 105,5 cm3/rev)
5 A ◊1 End Cover Gasket (54,4 -63,7 - 75,4 cm3/rev)
5 A ◊1 End Cover Gasket (89,2 - 105,5 cm3/rev)
6 C ♦1 Control Valve (see Control Valves on pages 17 through 24)
7 C ♦1 Control Valve Gasket (see Control Valves on pages 17 through 24)
12 B ♦1 Rotating Kit Assembly (see Assembly Parts List on page 13)
13 A ♦1 Propel Valve Plate (see Assembly Parts List on page 12)
14 B ♦1 Bearing Plate (see Assembly Parts List on page 12)
15 A ◊1 Eccentric Ring (see Charge Pump Assembly Parts List on page 14-15)
15 A ◊1 Gerotor Assembly (see Charge Pump Assembly Parts List on page 14-15)
15 A ◊1 Valve Plate, High Torque Charge Pump (see Charge Pump List on page 14-15)
15 A ◊1 Charge Pump Cover (see Charge Pump Kit Assembly Parts List on page 14-15)
15 A ◊4 Sealing Washer (see Charge Pump Kit Assembly Parts List on page 14-15)
15 A ◊4 Cap Screw 5/16-18 Soc HD 1-1/2" (see Charge Pump Parts List on page 14-15)
◊4 Cap Screw 5/16-18 Soc HD 1-3/4"(see Charge Pump Parts List on page 14-15)
◊4 Cap Screw 5/16-18 Soc HD 2" (see Charge Pump Parts List on page 14-15)
15 A ◊1 Charge Pump Drive Shaft (see Charge Pump Kit Assembly Parts List on page 14-15)
15 A ◊1 Key (see Charge Pump Kit Assembly Parts List on page 14-15)
◊1 Key (see Charge Pump Kit Assembly Parts List on page 14-15)
15 A ◊1 Retaining Ring (see Charge Pump Kit Assembly Parts List on page 14-15)
◊1 Retaining Ring (see Charge Pump Kit Assembly Parts List on page 14-15)
15 A ◊1 O-Ring (see Charge Pump Kit Assembly Parts List on page 14-15)
◊1 O-Ring (see Charge Pump Kit Assembly Parts List on page 14-15)
15 A ◊1 Charge Shaft Bushing (pressed inside Charge Pump Cover)
◊1 Charge Shaft Bushing (pressed inside Charge Pump Cover)
15 A ◊1 Valve Plate, High Torque Charge Pump
28 C 108300 2 Ring Seal (54,4 - 63,7 - 75,4 cm3/rev) (see gasket kit 990710-000 page 27)
26 B ♦1 Servo Piston Sub-Assembly (see Sub-Assembly Parts List on page 11)
27 C ◊2 O-Ring (see kit 990710-000 page 27)
28 C 108300 2 Ring Seal (54,4 - 63,7 - 75,4 cm3/rev) (see gasket kit 990710-000 page 27)
108915 2 Ring Seal (89,2 - 105,5 cm3/rev) (see gasket kit 990710-000 page 27)
29 C 108145 1 Servo Piston Cover (54,4 - 63,7 - 75,4 cm3/rev)
108372 1 Servo Piston Cover (89,2 - 105,5 cm3/rev)
30 C 109331 1 Servo Piston Cover (54,4 - 63,7 - 75,4 cm3/rev)
108371 1 Servo Piston Cover (89,2 - 105,5 cm3/rev)
31 C 95862-088 8 Hex Bolt HD 5/16-18 Gr 5 (54,4 - 63,7 - 75,4 cm3/rev)
95912-088 8 Screw, Cap Soc HD 5/16-18 Gr 8 (89,2 - 105,5 cm3/rev)
32 C ◊2 O-Ring (54,4 - 63,7 - 75,3 cm3/rev) (see gasket kit 990710-000 page 27)
40 C 103232 1 Bearing Cup (54,4 - 63,7 - 75,4 cm3/rev)
103807 1 Bearing Cup (89,2 - 105,5 cm3/rev)

9
Parts List – Series 2 Variable Displacement Pump
Item Part No. Qty. Description
41 A ◊A/R Bearing Shim (54,4 - 63,7 - 75,4 cm3/rev) (see Shim kit 990715-000 page 26)
◊A/R Bearing Shim (89,2 - 105,5 cm3/rev) (see Shim kit 990388-000 page 26)
42A43A 108295-000 1 Bearing Cup/ Bearing Cone S/A (54,4 - 63,7 - 75,4 cm3/rev)
42A43A 990386-000 1 Bearing Cup/ Bearing Cone S/A (89,2 - 105,5 cm3/rev)
44 B ♦2 Swash Bearing (54,4 - 63,7 - 75,4 cm3/rev) (see assembly parts list on page 11)
♦2 Swash Bearing (89,2 - 105,5 cm3/rev) (see assembly parts list on page 11)
45 B 108331 2 Race Pin
46 B 108823 2 Clocking Link (54,4 - 63,7 - 75,4 cm3/rev)
108973 2 Clocking Link (89,2 - 105,5 cm3/rev)
47 B 108152 1 Slide Block (54,4 - 63,7 - 75,4 cm3/rev)
108349 1 Slide Block (89,2 - 105,5 cm3/rev)
48 C ◊1 Low Pressure Relief Valve Plug (see LPRV Kit 9900713-000 page 26)
49 C ◊1 O-Ring (see gasket kit 990710-000 page 27)
53 B 108214 2 Hold Down Spring
54 B 16048-480 2 Hold Down Washer
55 A 107582 2 Hollow Dowel (54,4 - 63,7 - 75,4 cm3/rev)
108369 2 Hollow Dowel (89,2 - 105,5 cm3/rev)
56 A/B 98202 3 Dowel
57 A ◊4 Static Face Seal (see gasket kit 990710-000 page 27)
59 A ◊2 O-Ring (located between end cover and housing see page 27)
60 A ◊2 Back-up Ring (located between end cover and housing see page 27)
61 C 25083-01 1 O-Ring Plug
62 C 107887 1 O-Ring Plug Soc HD
63 A 25706-006 2 O-Ring Plug
64 A 25090-010 1 O-Ring Plug
65 A 25090-004 3 O-Ring Plug
66 A/C 25083-004 12 O-Ring Plug (not all positions shown in views)
67 A/C 25083-002 3 O-Ring Plug (used with IPOR if option is installed)
68 96559 1 Shipping Strap (54,4 - 63,7 - 75,4 cm3/rev) (not shown in view)
69 101822 1 Shipping Strap (89,2 - 105,5 cm3/rev) (not shown in view)
76 A 108840-xxx 2 Relief Valve, POR (Optional)
xxx = last 3 digits indicate pressure setting i.e. -300 = 3000 psi
78 A 109183-xxx 1 Relief Valve and or Check Valve (B Port)
xxx =last 3 digits indicate pressure setting i.e. -450 = 4500 psi
79 A 109183-xxx 1 Relief Valve and or Check Valve (A Port)
xxx = last 3 digits indicate pressure setting i.e. -650 = 6500 psi
80 ♦1 Control Valve Orfice
81 ♦1 Control Valve Orfice
82 ♦1 Control Valve Supply Orfic,
83 95653-012 2 Soc Pipe Plug .125-27 NPTF (inside charge pump inlet port)
84 95653-006 2 Soc Pipe Plug .062-27 NPTF(inside charge pump inlet port)
85 C ◊1 Magnetic Speed Sensor (see Speed Sensor Kit page 21)
108307 1 Plug (Optional)
86 C 16160-125 1 Retaining Ring (Optional)
Legend ♦Refer to specific item assembly parts list. A/R – As Required
◊Parts included in Kit. (Refer to specific Parts Kit list.)

10
Item Part No. Qty. Description
Legend ♦Refer to specific item assembly parts list.
◊Parts included in Kit. (Refer to specific Parts Kit list.)
Parts List – Series 2 Variable Displacement Pump
87 C ◊1 O-Ring (see gasket kit 990710-000 page 27)
95 A ◊1 Charge Pump Adaptor Kits see page 14-15)
116 C ◊1 Drive Shaft Seal (see Shaft Seal Kit page 26)
117 C ◊1 Ring, Retaining (see Shaft Seal Kit page 26)
118 C ◊1 Spacer (see Shaft Seal Kit page 26)
119 C 95653-012 1 Soc Pipe Plug .125-27 NPTF (Optional) Used only with remote or pressure side
filtration.

11

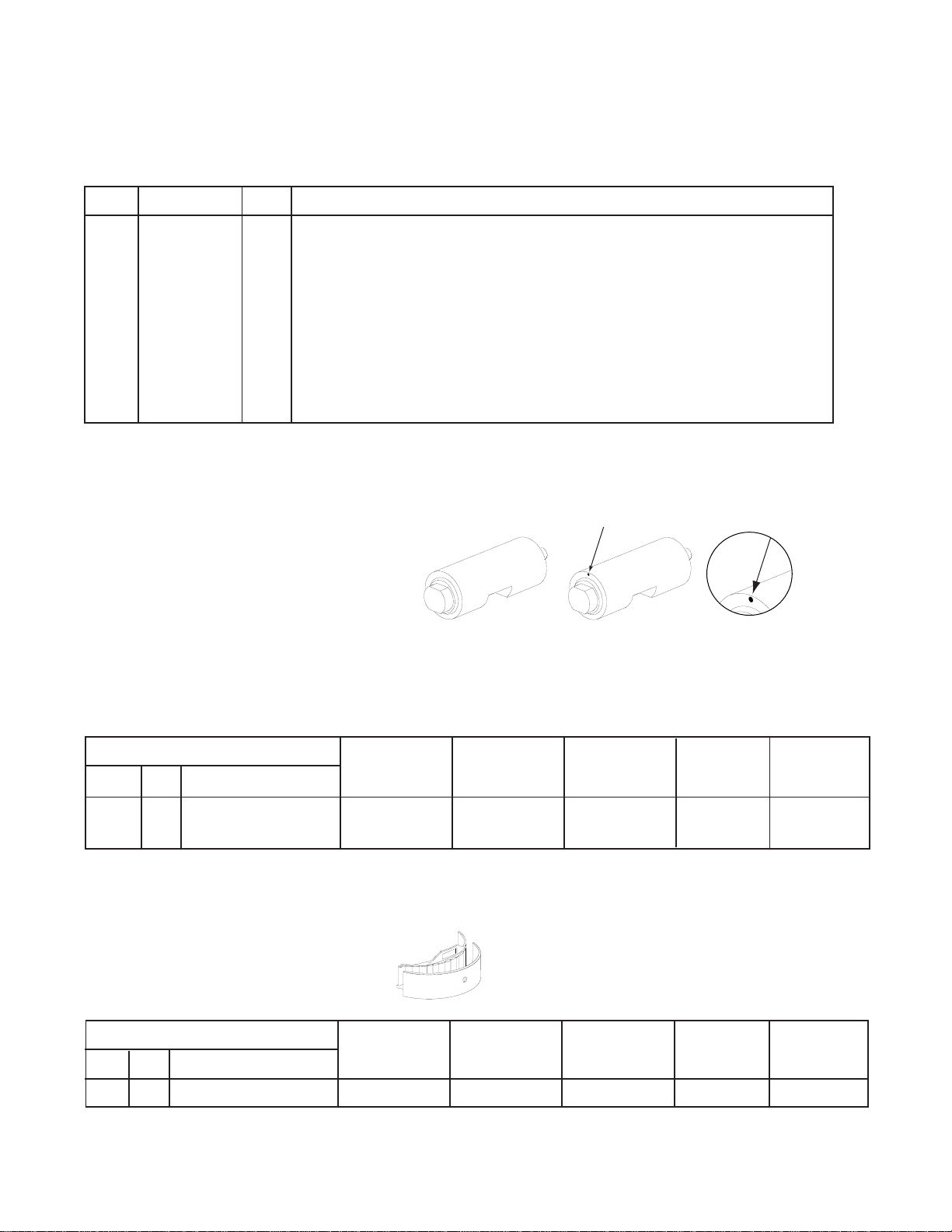

Parts List – Series 2 Variable Displacement Pump
Item 1 C
Main Housing
Note: There are two types of Servo Control Assemblies
They are NOT interchangeable.
1. Standard 2. With Pressure Override
Hole indicates with Pressure Override
Because critical calibrations have
been made at the factory the Servo
Assembly should not be disassembled.
Item 26 B
Servo Piston Sub-Assembly
Item 44 B
Swash Bearing Sub-Assembly
* Two Swash Bearings are needed when replacing we recommend that both Bearing Assemblies be replaced.
Servo Piston Sub-Assembly Part Number Part Number Part Number Part Number Part Number
Item Qty Description 54,4 cm3/rev 63,7 cm3/rev 75,4 cm3/rev 89,2 cm3/rev 105,5 cm3/rev
44 B 1 Swash Bearing S/A* 107575 107575 107575 108707 108707
Servo Piston Sub-Assembly Part Number Part Number Part Number Part Number Part Number
Item Qty Description 54,4 cm3/rev 63,7 cm3/rev 75,4 cm3/rev 89,2 cm3/rev 105,5 cm3/rev
26 B 1 Servo Piston S/A* 109558-002 109558-001 109558-001 110018-000 110018-000
1 Servo Piston S/A 109559-002 109559-001 109559-001 110017-000 110017-000
* - with POR (Pressure Override)
Item Part No. Qty. Description
1 C 109747 1 Main Housing – 54,4 - 63,7 - 75,4 cm3/rev
109745 1 Main Housing – 54,4 - 63,7 - 75,4 cm3/rev – with IPOR
109746 1 Main Housing – 54,4 - 63,7 - 75,4 cm3/rev – with Speed Sensor
109384 1 Main Housing – 54,4 - 63,7 - 75,4 cm3/rev – with IPOR and Speed Sensor
109755 1 Main Housing – 89,2 - 105,5 cm3/rev
109754 1 Main Housing – 89,2 - 105,5 cm3/rev – with IPOR
109753 1 Main Housing – 89,2 - 105,5 cm3/rev – with Speed Sensor
108812 1 Main Housing – 89,2 - 105,5 cm3/rev – with IPOR and Speed Sensor
110484 1 Main Housing – 89,2 - 105,5 cm3/rev

12
Parts List – Series 2 Variable Displacement Pump
Item 13 A
Propel Valve Plate or
V-Groove Plate
Item 14 B
Bearing Plate
CW V-Groove Plate
CW Propel Valve Plate
Item 2 C
Drive Shaft Sub-Assembly
All Drive Shafts listed are used with High Torque Charge Pumps
* – Models 33, 39 and 46 (54,4 - 63,7 - 75,4 cm3/rev)
** – Models 54 and 64 (89,2 - 105,5 cm3/rev)
Part Number Part Number Part Number Part Number
Model 33, 39 Model 46 Model 54 Model 64
Item Qty Description 54,4 - 63,7 cm3/rev 75,4 cm3/rev 89,2 cm3/rev 105,5 cm3/rev
14 B 1 Bearing Plate 103241 104198 103852 103814
Bearing Plate
Item Part No. Qty. Description
2 C 108029* 1 Drive Shaft S/A 23 Tooth 16/32 Input Pitch Spline – 27 Tooth 24/48 Pitch Spline Output
includes 103227 Pressed Bearing Cone and 103222-188 Retaining Ring.
109738* 1 Drive Shaft S/A 23 Tooth 16/32 Input Pitch Spline – 27 Tooth 24/48 Pitch Spline Output
includes 103227 Pressed Bearing Cone and 103222-188 Retaining Ring -
3/8 - 24 UNF -2B .75 deep threaded hole in shaft end.
108625* 1 Drive Shaft S/A 14 Tooth 12/24 Input Pitch Spline – 27 Tooth 24/48 Pitch Spline Output
includes 103227 Pressed Bearing Cone and 103222-188 Retaining Ring.
108646* 1 Drive Shaft S/A 21 Tooth 16/32 Input Pitch Spline – 27 Tooth 24/48 Pitch Spline Output
includes 103227 Pressed Bearing Cone and 103222-188 Retaining Ring.
108382** 1 Drive Shaft S/A 23 Tooth 16/32 Input Pitch Spline – 27 Tooth 24/48 Pitch Spline Output
includes 103808 Pressed Bearing Cone and 103222-200 Retaining Ring. Models 54,64.
109140** 1 Drive Shaft S/A 14 Tooth 8/16 Input Pitch Spline – 27 Tooth 24/48 Pitch Spline Output
includes 103808 Pressed Bearing Cone and 103222-200 Retaining Ring. Models 54,64.
10133** 1 Drive Shaft S/A 13 Tooth 8/16 Input Pitch Spline – 27 Tooth 24/48 Pitch Spline Output
includes 103808 Pressed Bearing Cone and 103222-200 Retaining Ring. Models 54,64.
Part Number Part Number Part Number Part Number
Model 33, 39 Model 46 Model 54 Model 64
Item Qty Description 54,4 - 63,7 cm3/rev 75,4 cm3/rev 89,2 cm3/rev 105,5 cm3/rev
13 A 1 Propel Valve Plate - CCW 107224 107784 103848 103976
13 A 1 Propel Valve Plate - CW 106458 106459 104297 103950
13 A 1 V-Groove Plate - CCW 106988 107808 104857 107143
13 A 1 V-Groove Plate - CW 106456 106457 104964 104006
Plate, Propel Valve or Plate, V-Groove
CCW – Counter Clockwise CW – Clockwise

13
12
12-13
12-3
12-4
12-6
12-8
12-10
12-9
12-7
12-5
12-11
12-12
12-14
12-2
12-B
12-A
Item 12 B (from page 6)
Rotating/Swash Plate Assembly
Parts List – Series 2 Variable Displacement Pump
Wide Land Slipper
Standard Slipper
Note: The Bearing Plate is item 14 on page 6
and is listed on Pages 8 and 12.
The Hold Down Springs and Hold Down
Washers are listed on Pages 6 and 9
Model 33, 39 Model 46 Model 54 Model 64
54,4 - 63,7 cm3/rev 75,4 cm3/rev 89,2 cm3/rev 105,5 cm3/rev
Item Qty Description Part Number Part Number Part Number Part Number
12 1 Rotating/Swash Plate Assy. 109752* 109367* 108424* 109435*
Wide Land ✔110292* ✔ 110563* ✔ 110290* ✔110546* ✔
12-A 1 Rotating Group Kit** 109428 109419 109431 109434
Wide Land ✔110291 ✔110562 ✔110289 ✔110545 ✔
12-B 1 Barrel Kit 990730-000 990731-000 990732-000 990733-000
12-2 1 Retaining Ring ‡ 103278-200 ‡ 130278-200 ‡ 103278-225 ‡ 103278-225
12-3 1 Spacer Cyl Barrel Spring ‡ 103242 ‡ 103242 ‡ 103815 ‡ 103815
12-4 1 Cylinder Barrel Spring ‡ 103240 ‡ 103240 ‡ 103813 ‡ 103813
12-5 1 Spacer Shaft Spring ‡ 107758 ‡ 107758 ‡ 108337 ‡ 108337
12-6 1 Barrel and Sleeve ‡ 109427 ‡ 109418 ‡ 109430 ‡ 109433
12-7 4 Cap Screw (Kit) NSS ‡ 990723-000 ‡ 990723-000 ‡ 990724-000 ‡ 990724-000
12-8 4 Washer (Kit) NSS ‡ 990723-000 ‡ 990723-000 ‡ 990724-000 ‡ 990724-000
12-9 2 Hold Down Strap (Kit) NSS ‡ 990723-000 ‡ 990723-000 ‡ 990724-000 ‡ 990724-000
12-10 4 Fixed Clr. Spacer (Kit) NSS ‡ 990723-000 ‡ 990723-000 ‡ 990724-000 ‡ 990724-000
12-11 1 Slipper Retainer Plate 103244 104211 103853 103817
12-12 9 Slipper Piston S/A 109768 109748 109757 109758
9 Slipper Piston S/A ✔110216 ✔106609 ✔110220 ✔110222 ✔
12-13 1 Fixed Clr Thrust Plate 107854 107854 108341 108341
12-14 1 Swash Plate S/A 109366 109366 109254 109254
NSS - Not Sold Separately S/A - Sub Assembly ‡ – Parts included in Rotating/Swash Plate Assy. ✔ – Wide Land Slipper
* These are Complete Rotating/Swash Plate Group Assemblies and include Items 12-2 through 12-14.
** Rotating Group Kit includes item 12-B (Barrel Kit), item 12-11 (Slipper Retaining Plate) and item 12-12 (Slipper piston S/A).
Rotating/Swash Plate Assembly

14
Parts List – Series 2 Variable Displacement Pump
Item 15 A
Charge Pump Kit Assemblies
A-Pad
C-Pad
B, BB-Pad
15-1
15-2
15-3
15-9
15-10
15-8
15-6
15-7
15-5
15-B
15-4
15-A
15-D
15-C
A-pad, High Torque Charge Pump, Dual 2 Bolt Mount,
No Shaft Seal, 9 Tooth 16/32 Pitch Spline
(Available For All Models)
B-pad, High Torque Charge Pump, Dual 2 Bolt Mount,
No Shaft Seal, 13 Tooth 16/32 Pitch
Spline (Available For All Models)
BB-pad, High Torque Charge Pump, Dual 2 Bolt Mount,
No Shaft Seal, 15 Tooth 16/32 Pitch
Spline (Available For All Models)
C-pad, High Torque Charge Pump, 4 Bolt Mount, No
Shaft Seal, 14 Tooth 12/24 Pitch Spline
(Available For All Models)

15
Item 15 A
Charge Pump Kit Assemblies
rebmuNtiK tiKpmuPegrahC
noitpircseD tnemecalpsiD
rotpadA
stloB
)ae4(
A-51
egnalF
gniR-O
.tsuC
B-51
rotpadAdaP
C-51
rotpadA
gniR-O
D-51
egrahC
stloBrevoC
)ae4(
1-51
gnilaeS
srehsaW
)ae4(
2-51
egrahC
A/SrevoC
3-51
egrahC
revoC
gniR-O
4-51
tfahS
5-51
yeK
6-51
gniniateR
gniR
7-51
cirtneccE
gniR
8-51
A/SrotoreG
9-51
etalPevlaV
01-51
000-566099euqroThgiH-daPoN
DIC58./cc41A/N
A/NA/NA/N 051-21959000-322301000-620801751-1678100-203901000-503101000-213901100-288701100-188701000-263801
000-776099euqroThgiH-daPoN
DIC58./cc41A/N
A/NA/NA/N 051-21959000-322301000-620801751-1678100-203901000-503101000-213901A/N
A/NA/N
000-086099euqroThgiH-daPA DIC58./cc41521-090301
240-1678000-570801951-1678
051-21959A/N
000-720801751-1678100-303901000-503101000-213901A/N
A/N
A/N
000-866099euqroThgiH-daPA DIC58./cc41A/N
240-1678A/N
951-1678 051-21959A/N
000-720801751-1678100-303901000-503101000-213901100-288701100-188701A/N
000-176099euqroThgiH-daPB DIC58./cc41A/N
540-1678A/N
A/N
051-21959A/N
000-720801751-1678100-403901000-503101000-213901100-288701100-188701A/N
000-386099euqroThgiH-daPB DIC58./cc41521-090301
540-1678000-670801951-1678
051-21959A/N
000-720801751-1678100-403901000-503101000-213901A/N
A/N
A/N
000-686099euqroThgiH-daPBB
DIC58./cc41521-090301
540-1678000-670801951-1678051-21959A/N
000-720801751-1678100-503901000-503101000-213901A/N
A/NA/N
000-476099euqroThgiH-daPBB
DIC58./cc41A/N
A/NA/NA/N 051-21959A/N
000-720801751-1678100-503901000-503101000-213901100-288701100-188701A/N
000-666099euqroThgiH–daPoNDIC82.1/cc12A/N
A/NA/NA/N 571-21959000-322301000-620801751-1678300-203901000-113101000-213901300-288701300-188701000-263801
000-876099euqroThgiH–daPoNDIC82.1/cc12A/N
A/NA/NA/N 571-21959000-322301000-620801751-1678300-203901000-113101000-213901A/N
A/N
A/N
000-186099euqroThgiH–daPA DIC82.1/cc12521-090301
240-1678000-570801951-1678571-21959A/N000-720801751-1678300-303901000-113101000-213901A/N
A/NA/N
000-966099euqroThgiH–daPA DIC82.1/cc12A/N
240-1678A/N951-1678 571-21959A/N000-720801751-1678200-303901000-113101000-213901300-288701300-188701A/N
000-276099euqroThgiH–daPB DIC82.1/cc12A/N
540-1678A/N951-1678 571-21959A/N000-720801751-1678200-403901000-113101000-213901300-288701300-188701
A/N
000-486099euqroThgiH–daPB DIC82.1/cc12521-090301
540-1678000-607801951-1678571-21959A/N000-720801751-1678200-403901000-113101000-213901A/N
A/NA/N
000-786099euqroThgiH–daPBBDIC82.1/cc12521-090301
540-1678000-607801951-1678
571-21959A/N000-720801751-1678200-503901000-113101000-213901A/N
A/N
A/N
000-576099euqroThgiH–daPBBDIC82.1/cc12A/N
540-1678A/N951-1678 571-21959A/N000-720801751-1678200-503901000-113101000-213901300-288701300-188701
A/N
000-766099euqroThgiH–daPoNDIC07.1/cc82A/N
A/NA/NA/N 002-21959000-322301000-620801751-1678400-203901000-113101000-213901400-288701400-188701000-263801
000-976099euqroThgiH–daPoNDIC07.1/cc82A/N
A/NA/NA/N 002-21959000-322301000-620801751-1678400-203901000-113101000-213901A/N
A/NA/N
000-286099euqroThgiH–daPA DIC07.1/cc82521-090301
240-1678000-570801951-1678
002-21959A/N000-720801751-1678200-303901000-113101000-213901A/N
A/NA/N
000-076099euqroThgiH–daPA DIC07.1/cc82A/N
240-1678A/N951-1678 002-21959A/N000-720801751-1678200-303901000-113101000-213901400-288701400-188701
A/N
000-376099euqroThgiH–daPB DIC07.1/cc82A/N
540-1678A/N951-1678 002-21959A/N000-720801751-1678200-403901000-113101000-213901400-288701400-188701A/N
000-586099euqroThgiH–daPB DIC07.1/cc82521-090301
540-1678000-670801951-1678
002-21959A/N000-720801751-1678200-403901000-113101000-213901A/N
A/N
A/N
000-676099euqroThgiH–daPBBDIC07.1/cc82521-090301
540-1678000-670801951-1678
002-21959A/N000-720801751-1678200-503901000-113101000-213901A/N
A/N
A/N
000-886099euqroThgiH–daPBBDIC07.1/cc82521-090301
540-1678000-670801951-1678002-21959A/N000-720801751-1678200-503901000-113101000-213901A/N
A/NA/N
000-376099euqroThgiH–daPoNDIC07.1/cc82A/N
540-1678A/N951-1678 002-21959A/N000-720801751-1678200-203901000-113101000-213901400-288701400-188701A/N
000–247099euqroThgiH-daPC DIC58./cc41).ae6(051-115401
851–1678000-180801951–1678
◊◊
000-720801751-1678
603901-100000-113101 000-213901
◊
◊◊
000–347099euqroThgiH-daPC DIC82.1/cc12
DIC07.1/cc82 ).ae6(051-115401
851–1678000-180801951–1678
◊◊
000-720801751-1678
603901-200000-113101 000-213101
◊
◊◊
◊= When replacing use the existing Bolts, Eccentric Ring , Gerotor S/A and Valve Plate. NOTE: All Parts can be purchased separately.

16
Item 3 A
End Covers*
Parts List – Series 2 Variable Displacement Pump
* All listed End Covers are for High-Torque Charge Pumps
POR = Pressure Override
Item Part No. Qty. Displacement Main Ports POR Options
3 A 110718 1 54,4 & 63,7 cm3/rev 62 N Remote Filter Ports
110568 1 54,4 & 63,7 cm3/rev 61 N
110619 1 54,4 & 63,7 cm3/rev 61 Y
110300 1 54,4 & 63,7 cm3/rev 62, M12X1.75 N
110202 1 54,4 & 63,7 cm3/rev 62, M12X1.75 Y
109766 1 54,4 & 63,7 cm3/rev 62 Y
109493 1 54,4 & 63,7 cm3/rev 62 N
108896 1 54,4 & 63,7 cm3/rev 62 Y Remote Filter Ports
108859 1 75,4 cm3/rev 62 Y Remote Filter Ports
110560 1 75,4 cm3/rev 62 N Remote Filter Ports
110628 1 75,4 cm3/rev 61 Y
110301 1 75,4 cm3/rev 62, M12X1.75 N
110201 1 75,4 cm3/rev 62, M12X1.75 Y
109470 1 75,4 cm3/rev 62 N
109147 1 75,4 cm3/rev 62 Y
110358 1 89,2 cm3/rev 61 Y Remote Filter Ports
110541 1 89,2 cm3/rev 61 Y
110356 1 89,2 cm3/rev 62 N Remote Filter Ports
110270 1 89,2 cm3/rev 61 N
109783 1 89,2 cm3/rev 62 Y
109784 1 89,2 cm3/rev 62 Y Remote Filter Ports
109281 1 89,2 cm3/rev 62 N
109400 1 89,2 cm3/rev 62 N Pressure Transducer
108344 1 105,5 cm3/rev 62 Y
109176 1 105,5 cm3/rev 62 N
109145 1 105,5 cm3/rev 62 N Pressure Transducer
109742 1 105,5 cm3/rev 62 Y Remote Filter Ports
109845 1 105,5 cm3/rev 62, M12X1.75 Y Pressure Side Filter
110322 1 105,5 cm3/rev 62 N Remote Filter Ports
110357 1 105,5 cm3/rev 61 Y Remote Filter Ports

17
Parts List – Series 2 Control Valve Assemblies
990708-000 – Manual Control Valve Wide Band (Kit)
Item Part No. Qty. Description
6 C 990708-000 1 Manual Control Valve Wide Band (Kit)
includes below;
110038-002 1 Manual Control Valve Wide Band S/A
108992-000 1 Control Gasket
95912-088 1 Cap SOC HD 5/16-18 GR 8
95912-150 4 Cap Screw SOC HD 5/16-18 GR 8
109280-000 1 Control Link S/A
96081-031 1 Nut 5/16-18
96100-031 1 Washer
103048-000 1 Control Lever
95729-000 1 Control Lever
Item 6 C
Control Valves
990704-000 – Manual Control Valve (Kit)
Item Part No. Qty. Description
6 C 990704-000 1 Manual Control Valve (Kit)
includes below;
110038-001 1 Manual Control Valve S/A
108992-000 1 Control Gasket
95912-088 1 Cap Screw SOC HD 5/16-18 GR 8
95912-150 4 Cap Screw SOC HD 5/16-18 GR 8
109280-000 1 Control Link S/A
96081-031 1 Nut 5/16-18
96100-031 1 Washer
103048-000 1 Control Lever
95729-000 1 Control Lever

18

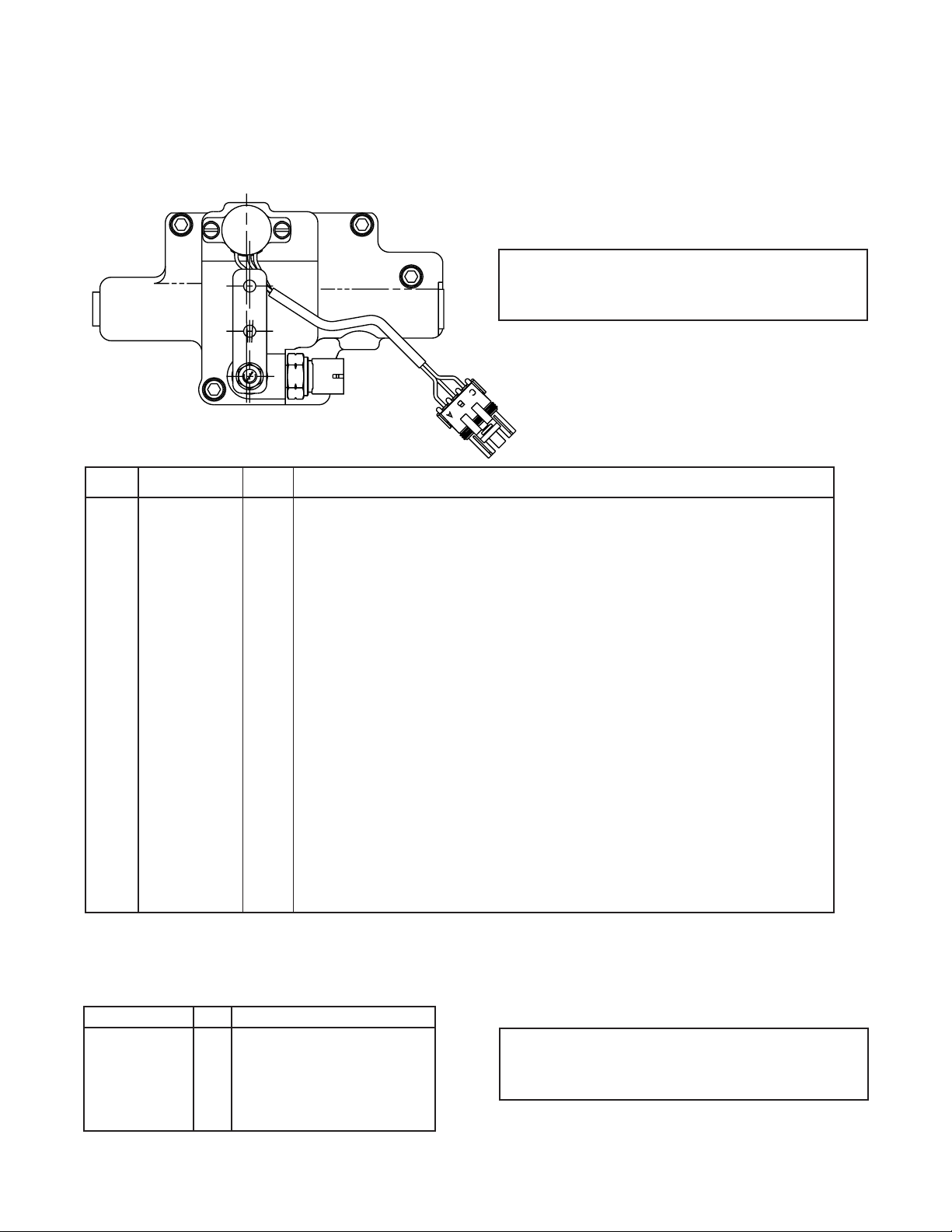

Parts List – Series 2 Control Valve Assemblies
990706-000 – Manual Control Valve with N/C Neutral Lockout
& Potentiometer (Kit)
Item Part No. Qty. Description
6 C 990706-000 1 Manual Control Valve with N/C Neutral Lockout & Potentiometer (Kit)
includes below;
110040-000 1 Manual Control Valve with N/C Neutral Lockout & Potentiometer
7 C 108992-000 1 Control Gasket
95912-088 1 Cap Screw SOC HD 5/16-18 GR 8
95912-150 4 Cap Screw SOC HD 5/16-18 GR 8
109280-000 1 Control Link S/A
96081-031 1 Nut 5/16-18
96100-031 1 Washer
103048-000 1 Control Lever
95729-000 1 Control Lever
◊107851-000 1 Potentiometer
◊16040-208 2 Screw 8-32 UN
◊95897-008 2 Washer
◊107762-000 1 Potentiometer Gasket
109195-000 1 Feedback Shaft S/A
8761-010 1 O-Ring
109196-000 1 Hollow Dowel
N/C = Normally Closed ◊= Parts included in Kit P/N 990719-000 see Below
990719-000 – Potentiometer Kit
Part No. Qty. Description
107851-000 1 Potentiometer
16040-208 2 Screw SF Head Mach 8-32 UN
95897-008 2 Washer
107762-000 1 Potentiometer Gasket
Connector (1) – Cross Reference Delphi/Packard P/N 1201 5792
Terminal (2) – Cross Reference Delphi/Packard P/N 1208 9040
Cable Seal (2) – Cross Reference Delphi/Packard P/N 1201 5323
Recomended wire size: 18 - 20 AWG
Recomended cable diameter: 2.03 - 2.85 mm
*Alternate reference source: Pioneer Standard Electronics 1-800-257-6613
990764-000 – Neutral Lockout
Switch Mating Connector Kit*
Connector (1) – Cross Reference Delphi/Packard P/N 1201 0717
Terminal (3) – Cross Reference Delphi/Packard P/N 1208 9040
Cable Seal (3) – Cross Reference Delphi/Packard P/N 1208 9679
Recomended wire size: 18 - 20 AWG
Recomended cable diameter: 1.6 - 2.15 mm
*Alternate reference source: Pioneer Standard Electronics 1-800-257-6613
990763-000 – Potentiometer
Mating Connector Kit*

19

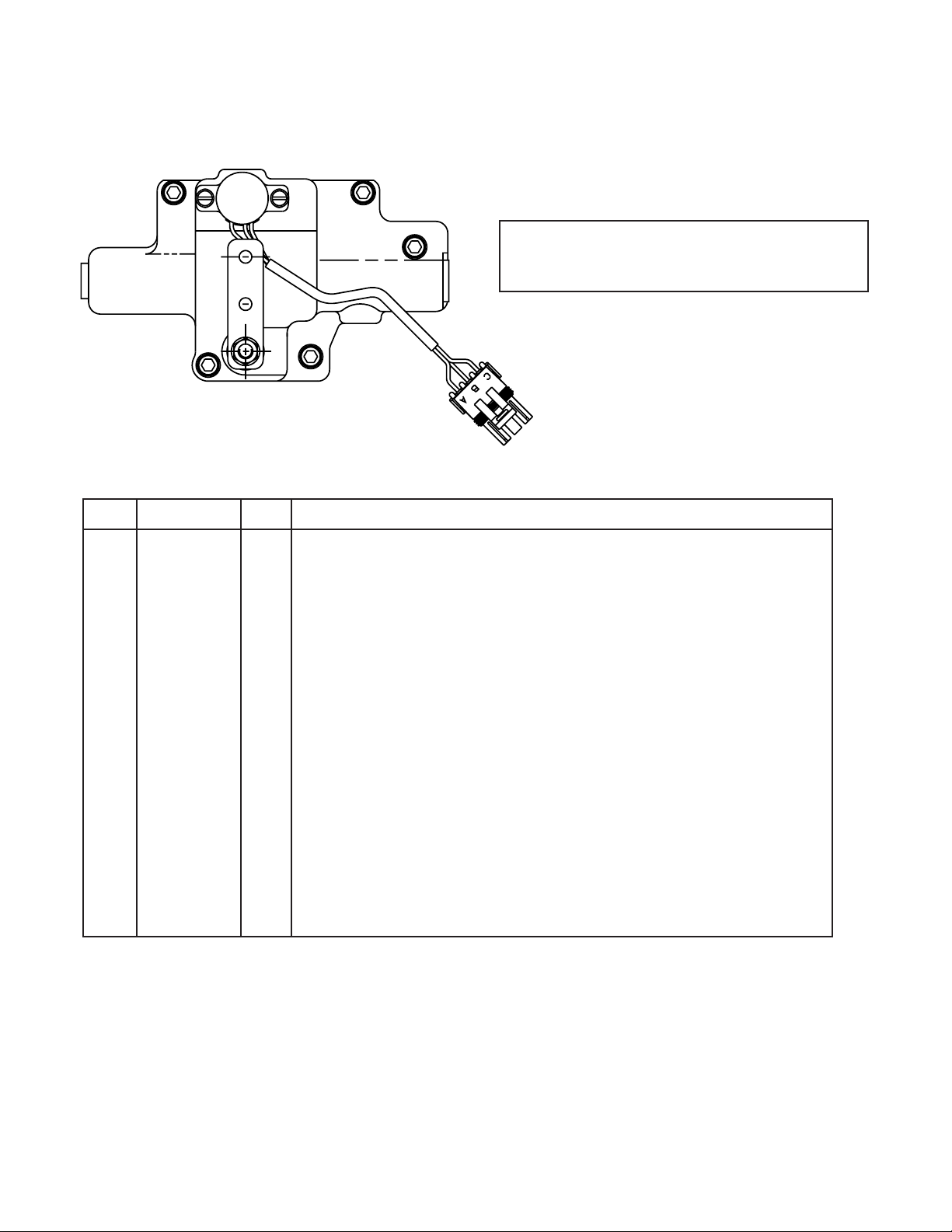

Parts List – Series 2 Control Valve Assemblies
990705-000 – Manual Control Valve with N/C Neutral Lockout (Kit)
Item Part No. Qty. Description
6 C 990705-000 1 Manual Control Valve with N/C Neutral Lockout (Kit)
includes below;
110039-000 1 Manual Control Valve with N/C Neutral Lockout
7 C 108992-000 1 Control Gasket
95912-088 1 Cap Screw SOC HD 5/16-18 GR 8
95912-150 4 Cap Screw SOC HD 5/16-18 GR 8
109280-000 1 Control Link S/A
96081-031 1 Nut 5/16-18
96100-031 1 Washer
103048-000 1 Control Lever
95729-000 1 Control Lever
N/C = Normally Closed
Connector (1) – Cross Reference Delphi/Packard P/N 1201 5792
Terminal (2) – Cross Reference Delphi/Packard P/N 1208 9040
Cable Seal (2) – Cross Reference Delphi/Packard P/N 1201 5323
Recomended wire size: 18 - 20 AWG
Recomended cable diameter: 2.03 - 2.85 mm
*Alternate reference source: Pioneer Standard Electronics 1-800-257-6613
990764-000 – Neutral Lockout Switch
Mating Connector Kit*

20

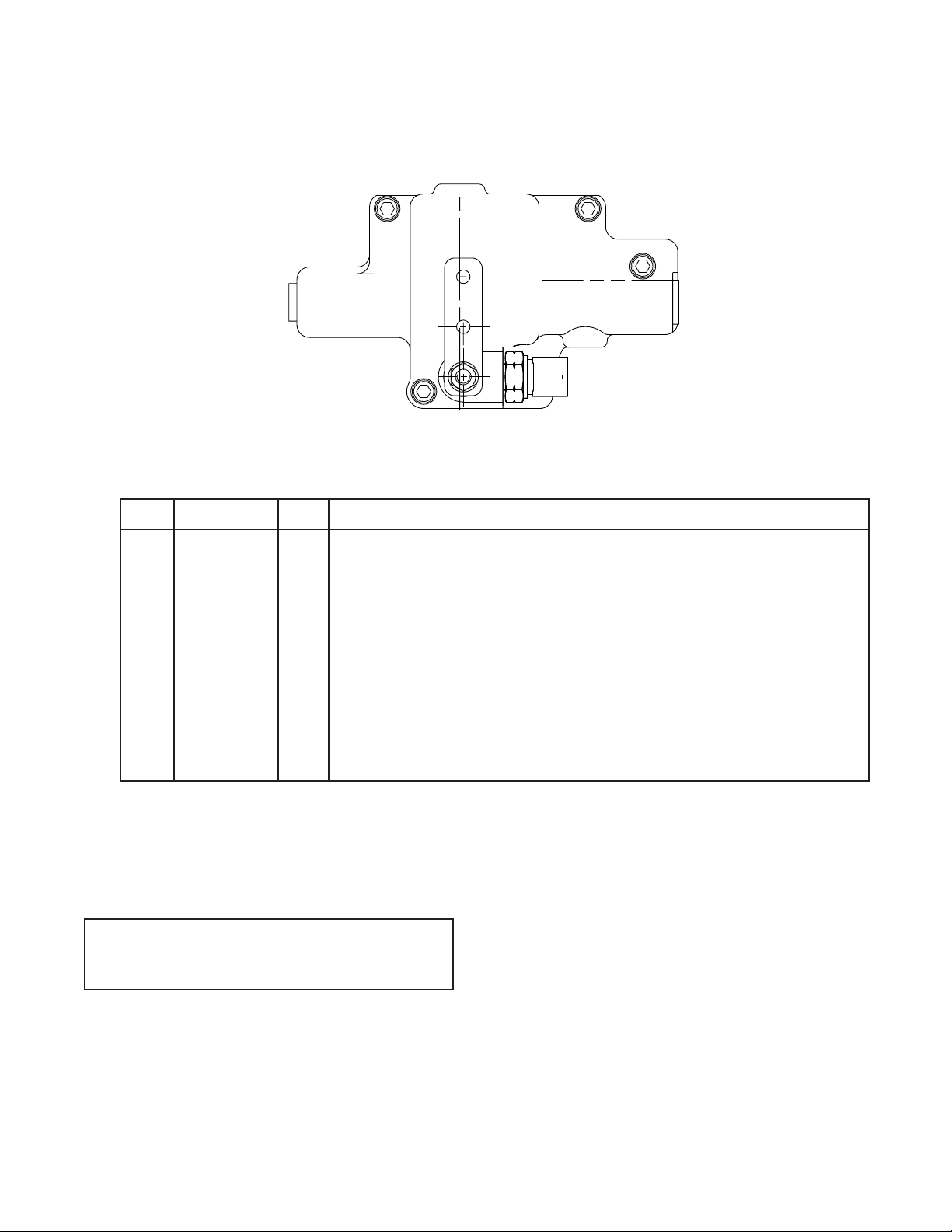

Parts List – Series 2 Control Valve Assemblies
990707-000 – Manual Control Valve with Potentiometer (Kit)
Item Part No. Qty. Description
6 C 990707-000 1 Manual Control Valve with Potentiometer (Kit)
includes below;
110025-000 1 Manual Control Valve with Potentiometer
7 C 108992-000 1 Control Gasket
95912-088 1 Cap Screw SOC HD 5/16-18 GR 8
95912-150 4 Cap Screw SOC HD 5/16-18 GR 8
109280-000 1 Control Link S/A
96081-031 1 Nut 5/16-18
96100-031 1 Washer
103048-000 1 Control Lever
95729-000 1 Control Lever
◊107851-000 1 Potentiometer
◊16040-208 2 Screw 8-32 UN
◊95897-008 2 Washer
◊107762-000 1 Potentimeter Gasket
109195-000 1 Feedback Shaft S/A
8761-010 1 O-Ring
109196-000 1 Hollow Dowel
◊= Parts included in Kit P/N 990719-000 see Page 18
990763-000 – Potentiometer
Mating Connector Kit*
Connector (1) – Cross Reference Delphi/Packard P/N 1201 0717
Terminal (3) – Cross Reference Delphi/Packard P/N 1208 9040
Cable Seal (3) – Cross Reference Delphi/Packard P/N 1208 9679
Recomended wire size: 18 - 20 AWG
Recomended cable diameter: 1.6 - 2.15 mm
*Alternate reference source: Pioneer Standard Electronics 1-800-257-6613
