Eaton Heavy Duty 2 Series User manual

Heavy-Duty Series 2
Hydrostatic Piston Pumps
Parts and Service
Model 3322
Model 3922
Model 4622
Model 5422
Model 6422

2EATON Heavy-Duty Series 2 Hydrostatic Pumps Parts and Repair E-PUPI-TS004-E October 2004
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
IDTag Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Parts Drawings
RequiredTools for Disassembly/Reassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Disassembly Order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Exploded Views
Charge Pump and End Cover Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Rotating Group and Main Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Parts Lists
Models 3322/3922/4622 (54, 64, 75 cc/rev) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Models 5422/6422 (89, 105 cc/rev) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

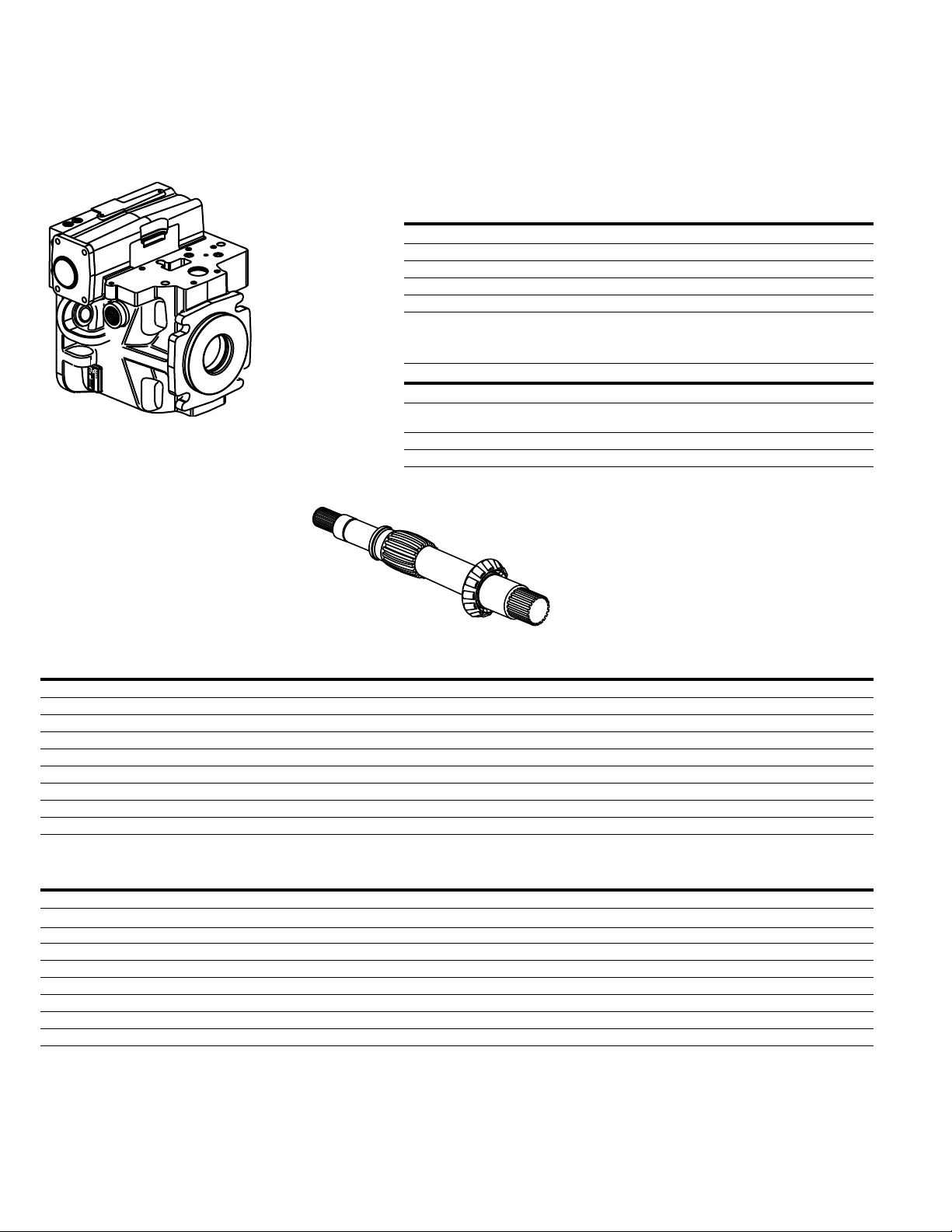

Main Housing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Drive Shaft Subassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

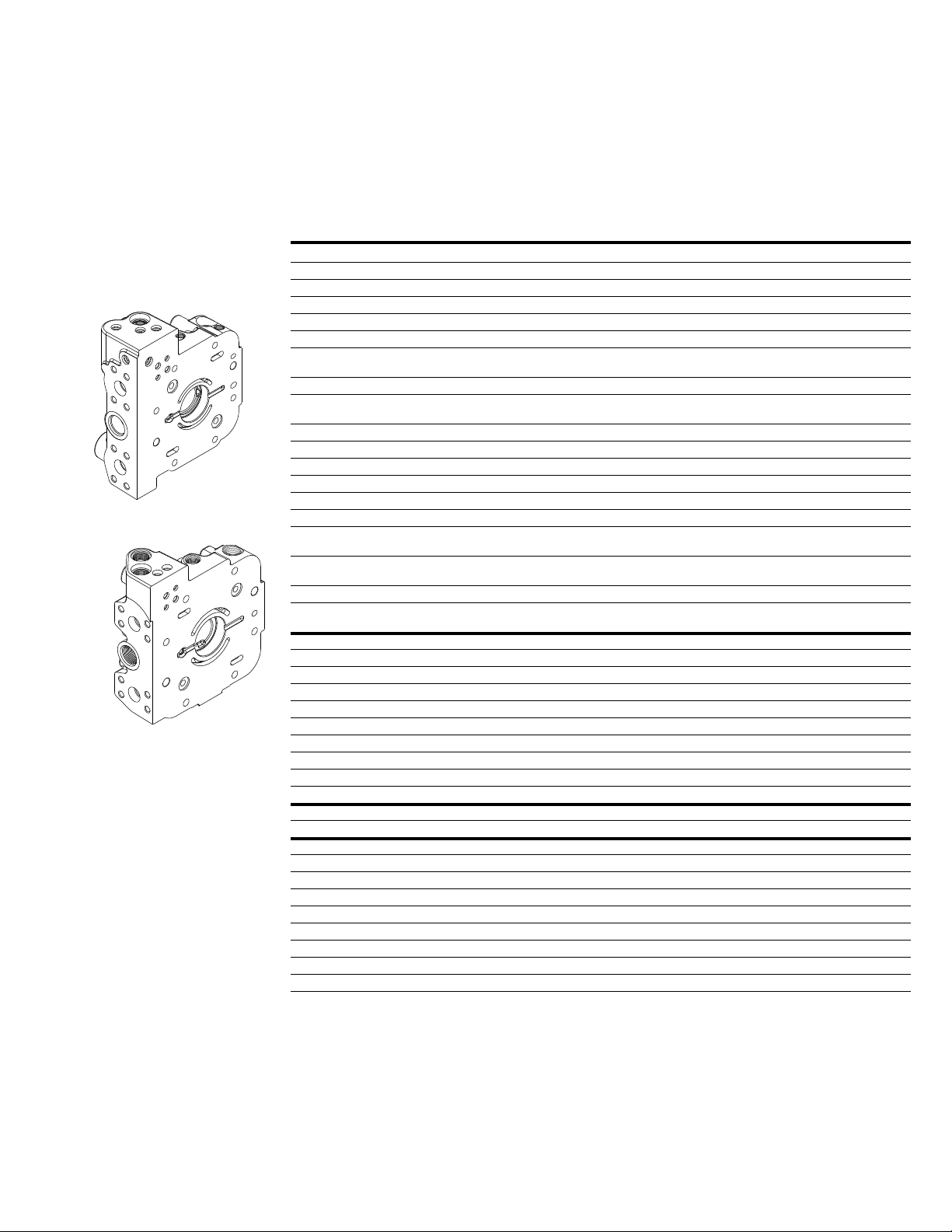

End Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-11
Controls

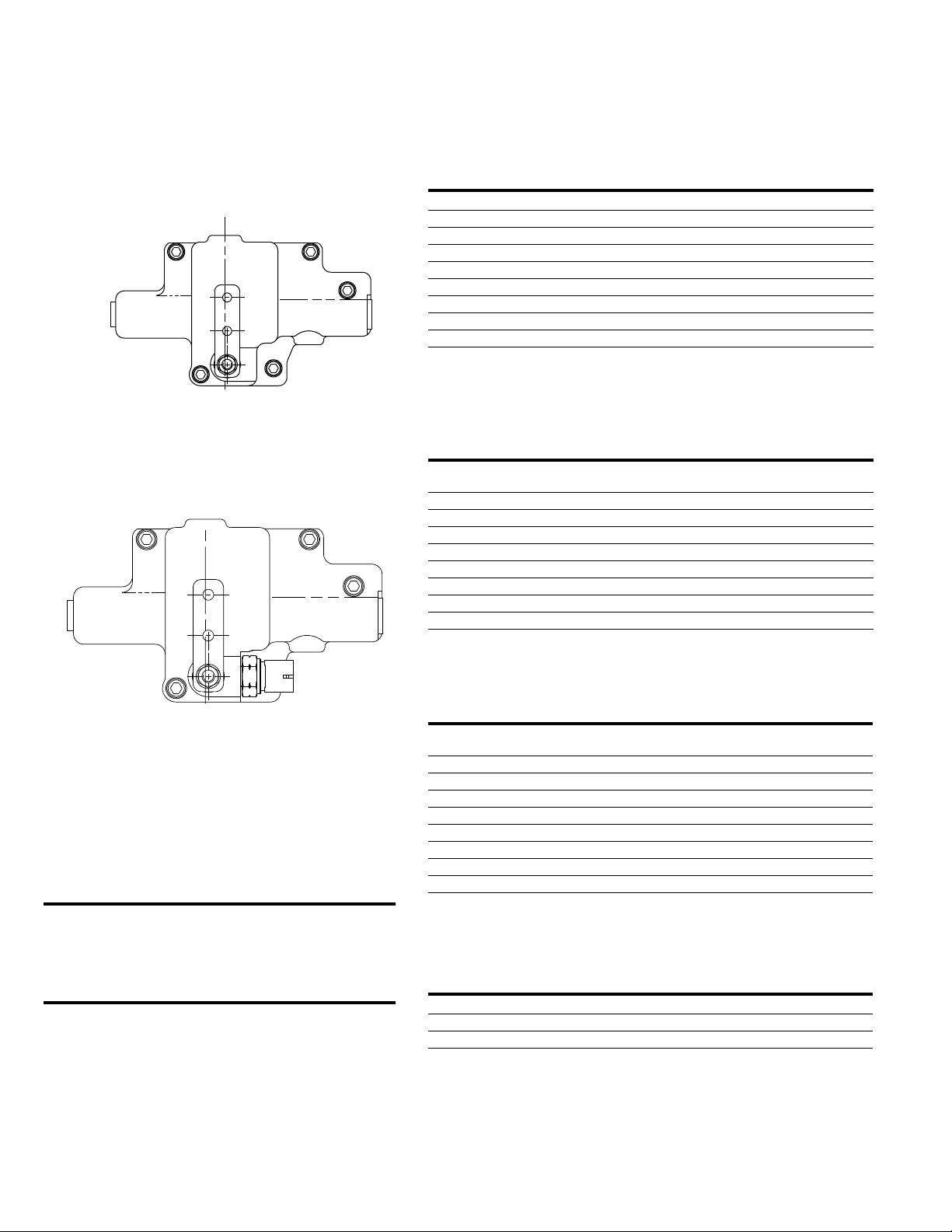

Manual Control Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Manual Control Valve Wide Band . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Manual Control Valve with N/C Neutral Lockout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

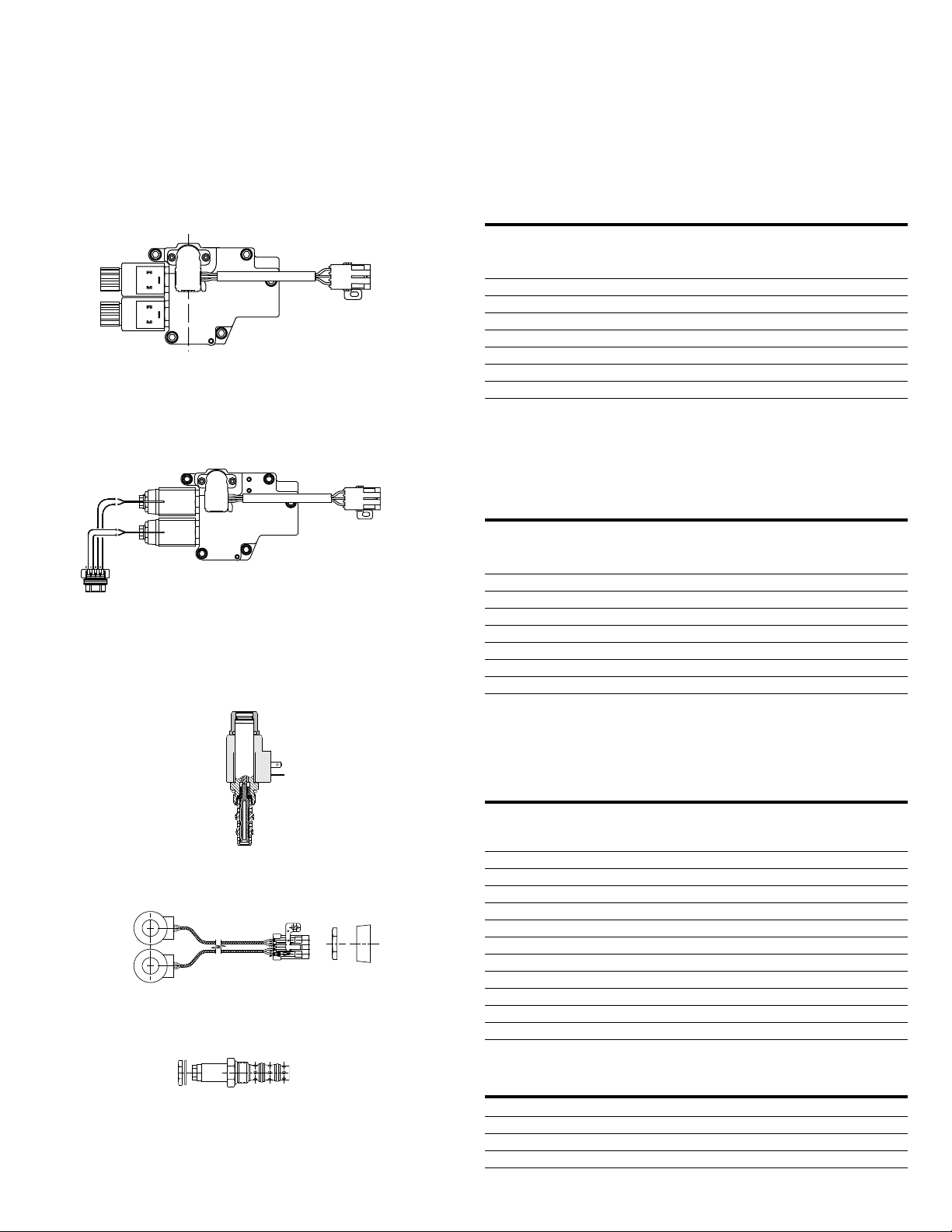

Solenoid Control Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

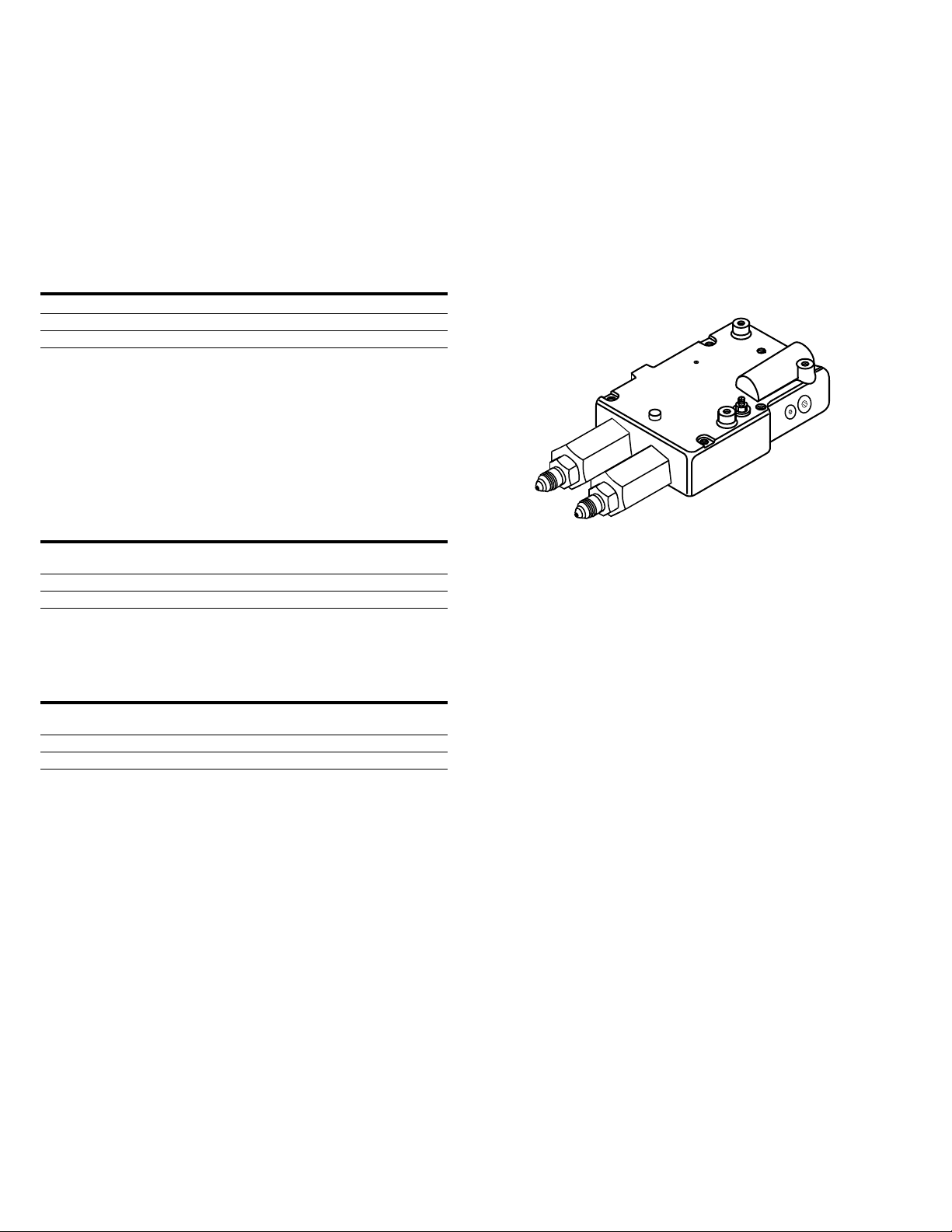

Hydraulic Remote Control Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Connector Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

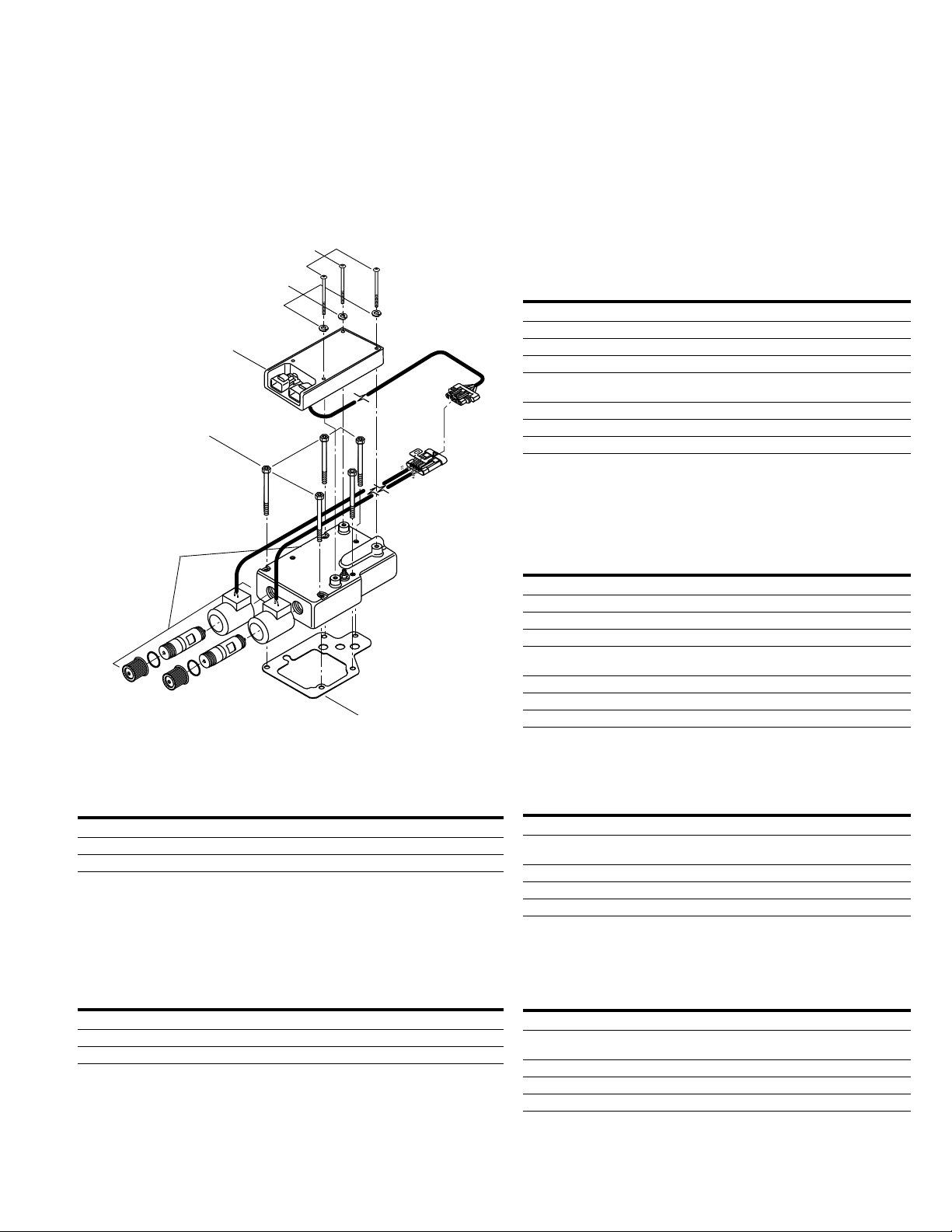

Electronic Proportional (EP) Displacement Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-16
Rotating Group/Swashplate Subassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-18
Hold-down Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Propel Valve Plate or V-Groove Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Charge Pump Subassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Auxiliary Mounting Kits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-22
Servo Piston and Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Pressure Override Valve. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
High Pressure Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Low Pressure Relief Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Repair Information
Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27-33
Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34-43
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44-53
Valve /Test Port Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Gauge Requirements, Gauge Port Size and Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Pressure Readings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Nominal Operating Pressures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Fault-LogicTables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47-51
Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Hydraulic Fluid Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53-54
SpecialTools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-57
Model Code Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58-59
Table of
Contents

3
EATON Heavy-Duty Series 2 Hydrostatic Pumps Parts and Repair E-PUPI-TS004-E October 2004
ID Tag
ADisplacement
cu.in/rev.(cc/rev.)
0033 = 3.3(54)
0039 = 3.9(64)
0046 = 4.6(75)
0054 = 5.4(89)
0064 = 6.4(105)
BIdentifies Type of
Product
22 = Variable
Displacement Pump
CIdentifies Specific Unit
Configuration
DMonth of Manufacture
EYear of Manufacture
FSpecific Serial Number
of Unit
GDirection of Input Shaft
Rotation Observed from
Shaft End of Unit
CW=Clockwise
CCW=Counterclockwise
ABC
GE
D
F
Refer to specific part
listings for your Eaton
pump when ordering
replacement parts.
Listings are available
from Eaton. Sample tag
shows identification.
When ordering replace-
ment parts, you must
include the following
information:
This Manual provides parts and service information for Eaton®Heavy Series 2
Hydrostatic Piston Pumps, Models 3322, 3922, 4622, 5422 and 6422. Step by step
instructions for complete disassembly, inspection and reassembly of the pump are
given.
The following recommendations should be followed to insure successful repairs.
• Most repairs require the removal of the pump from the vehicle.
• Cleanliness is extremely important.
• Clean the port areas thoroughly before disconnecting the hydraulic lines.
• Plug the pump ports and cover open hydraulic lines immediately after they have
been disconnected.
• Drain the oil and clean the exterior of the pump before making repairs.
• Wash all metal parts in clean solvent.
• Use filtered, moisture-free compressed air to dry the parts. Dot not wipe them
dry with paper towels or cloth – lint in a hydraulic system will cause damage.
• Always use new seals when reassembling hydraulic pumps.
• Lubricate new rubber seals with a petroleum jelly (Vaseline®) before installation.
• Torque all bolts over gasketed joints, then repeat the torquing sequence to make
up for gasket compression.
After all repairs are complete it is essential to verify the accuracy of pump repairs
on an authorized test stand.
Introduction

4EATON Heavy-Duty Series 2 Hydrostatic Pumps Parts and Repair E-PUPI-TS004-E October 2004
• 1/4 in. Hex Key
• 5/16 in. Hex Key
• 9/16 in. Hex Key
• 5/8 in. Hex Key
• 12 mm Hex Key
• 5/16 in. Socket or End Wrench
• 1/2 in. Socket or End Wrench
• 9/16 in. Socket or End Wrench
• 11/16 in. End Wrench
• 3/4 in. Socket or End Wrench
• 1 in. Socket or End Wrench
• 1-1/4 in. Socket or End Wrench
• Breaker Bar or Ratchet Wrench
• Torque Wrench (200 Max. Capacity)
• Adjustable Pliers
• Screwdrivers (Small & Large)
• Internal Retaining Pliers (str. .047 Tips)
• Internal Retainer Pliers (Str. Tips)
• Dial Indicator with Magnetic Base
• Depth Micrometer with Extensions
• Parallel Bars (2)
• Slide Hammer
• Split Blade Bearing Puller
• Hammer (Steel and Plastic)
• Small Machinist Ruler
• Small Flashlight
• Light Petroleum Jelly
• Suitable Solvents and Cleaners
Special Tools (shown on pages 54-56)
• End Cover Tool
• Limit Stop for Bearing Cone
Installation
• Low Clearance Bearing Puller
• Seal Bullet
End Cover
Rotating Assembly
& Shaft
Control
Servo Piston
Main Housing
Auxiliary Mounting Adaptor
Charge Pump Cover
3
4
5
2
7
6
1
Main components must be
taken apart in the proper
order to prevent damage
1 Control (as applicable)
2 Auxiliary Mounting adapter
(if applicable)
3 Charge Pump Cover
4 End Cover
5 Rotating Group and shaft
6 Servo Piston
7 Main Housing
Disassembly Order for
Main Components
Required Tools
Disassembly/
Assembly
CAUTION

5
EATON Heavy-Duty Series 2 Hydrostatic Pumps Parts and Repair E-PUPI-TS004-E October 2004
5
5
13
43
42
3
Charge Pump and
Auxiliary Mount (See page 19)
4
4 79
78
63
67
64
60 59 63
41
57
65
66
66
55
55
56
Obsolete shim adjusted POR
76
176
163
Note: this is a typical Series 2
configuration. Your model may
differ slightly from this view
depending on features installed.
Same Side Ported
End Cover
Model 5422-6422 Model 3322-4622
DISPLACEMENT
Model 3322 54,4 cm3/rev 3.32 in3/rev
Model 3922 63,7 cm3/rev 3.89 in3/rev
Model 4622 75,4 cm3/rev 4.59 in3/rev
Model 5422 89,2 cm3/rev 5.44 in3/rev
Model 6422 105,5 cm3/rev 6.44 in3/rev

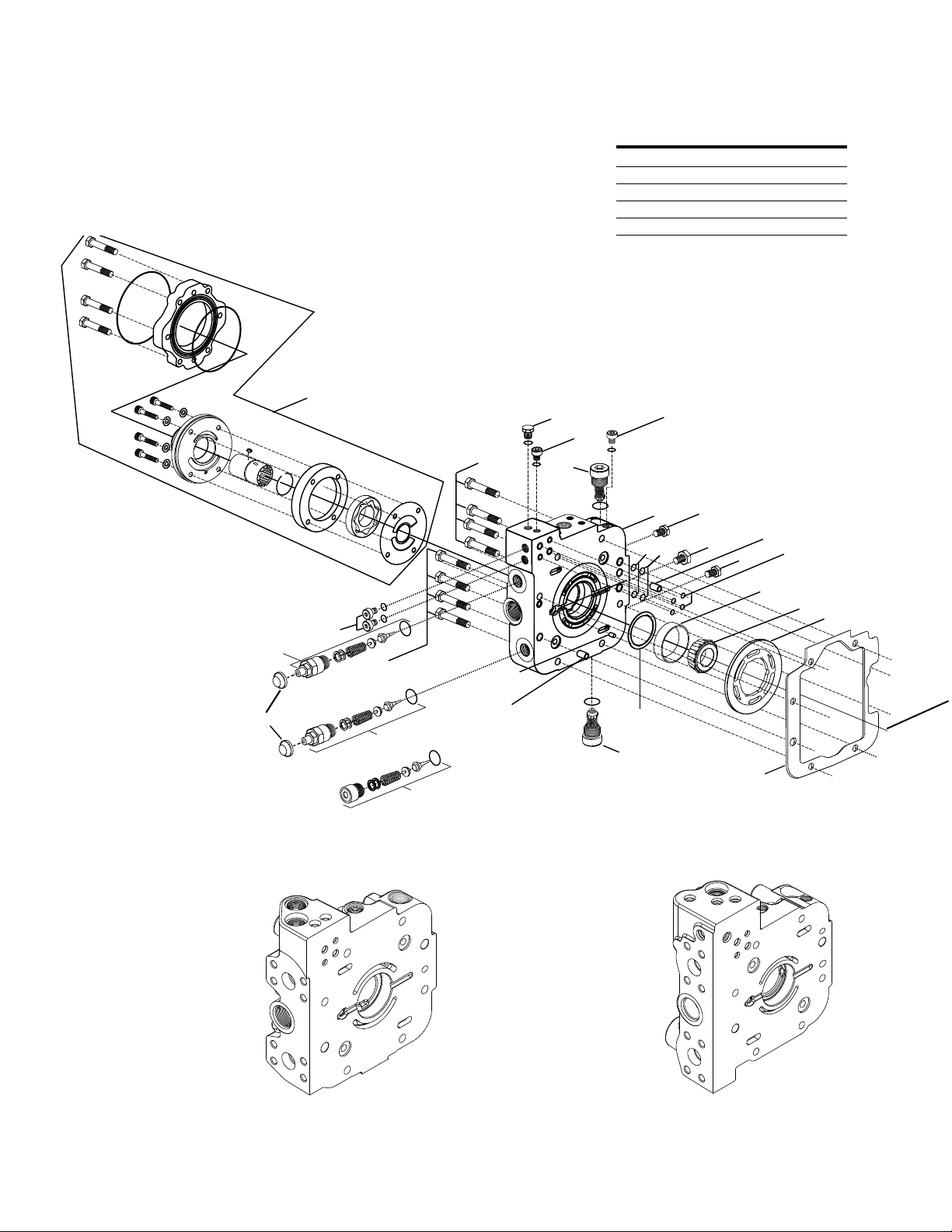

Parts Drawing
Charge Pump
& End Cover
Assembly
*Note: This is a typical Series 2
configuration. Your model may
differ slightly from this view
depending on features installed.

6EATON Heavy-Duty Series 2 Hydrostatic Pumps Parts and Repair E-PUPI-TS004-E October 2004
12
26
47
44
54
53
54
53
45 46
14
56
56
2
118
67 31
66
40
1
30
117
48
116
82
81
80
7
70 62
66
29
85 85
86
86
61
87
32
Optional
Magnetic Speed
Sensor
ID Tag
31
6
32
87
Optional
Speed
Sensor
Port Plug
28 27
66
28
27
26
Optional External
Servo Stop
109
108
110111
Optional External
Servo Stop 34
35
33
108
162
111 110
Parts Drawing
Rotating Group
& Main Housing
Assembly
*Note: This is a typical Series 2
configuration. Your model may
differ slightly from this view
depending on features installed.

7
EATON Heavy-Duty Series 2 Hydrostatic Pumps Parts and Repair E-PUPI-TS004-E October 2004
REFERENCE
ITEM P/N QTY. DESCRIPTION PAGES
1 See Table 2.0 1 Main Housing 9
2 See Table 3.0 1 Drive Shaft Sub-assembly 9
3 See Table 4.0, 4.1 1 End Cover 10-11
4 103090-325 8 Hex Bolt HD 3/8-16 Gr. 8
5 See Table 18.0 1 End Cover Gasket 25
6,7,8,9 See Table 5.0-6.1 1 Control Valve 12-16
12 See Table 7.0-7.1 1 Rotating Kit Sub-assembly 17-18
13 See Table 9.0 1 Propel Valve/V-Groove
/Quiet Plate 19
14 1032411Bearing Plate (Models 33/39)
14 1041981 Bearing Plate (Model 46)
15,16,17,18,19,20,21,22,23,24 Charge Pump Subassembly
See Table 10.0,10.1 20-22
28 108300* 2 Ring Seal
26 See Table 11.0, 11.1 1 Servo Piston Sub-assembly 23
27 8761-144* 2 O-Ring
28 108300* 2 Ring Seal
29 See Table 11.1 Servo Piston Cover 23
30 See Table 11.1 Servo Piston Cover 23
31 95862-088 8 Hex Bolt HD 5/16-18 Gr 5
32 8761-139* 2 O-Ring
33 16254-8 1 Thread seal
34 96097-050 1 Nut, Hex .50-20
35 16254-28 1 Washer
40 103232-000 1 Bearing Cup
41 See Table 15.0 A/R End Cover Bearing Shim Kit 26
42/43 108295-000 1 Bearing Cup/Bearing Cone
Subassembly
44 107575 2 Swash Bearing Sub-assembly
45 108331 2 Race Pin
46 108823 2 Clocking Link
47 108152 1 Slide Block
48 See Table 14.0** 1 Low Pressure Relief Valve Plug 25
49 8785-012* 1 O-Ring
53 108214 2 Hold Down Spring
54 16048-480 2 Hold Down Washer
55 107582 2 Hollow Dowel
56 98202 3 Dowel
57 110457-000* 4 Static Face Seal
59 8761-017* 2 O-Ring (between end cover
and housing)
60 108562-000* 2 Back-up Ring (between end
cover and housing)
61 25083-01 1 O-Ring Plug
62 107887 1 O-Ring Plug Soc HD
63 25706-006 2 O-Ring Plug
64 25090-010 1 O-Ring Plug
65 25090-004 3 O-Ring Plug
66 25083-004 12 O-Ring Plug
(not all positions shown)
67 25083-002 3 O-Ring Plug (used with
Pressure Override option)
68 96559 1 Shipping Strap (not shown)
70 111402-000 1 Control Link Sub-assembly
71, 72 See Table 5.0 Manual Control 12
76 4994730-xxx(1) 2 Relief Valve, Pressure Override
See Table 12.0 (optional) 23
78 110700-xxx(1) 1 Relief Valve and/or
See Table 13.0,13.1 Check Valve (B Port) 23
*available in gasket kit 990710-000
**available in kit
(1)See Table 14.1 for correct part number identification
and pressure settings.
Used only with remote or
pressure side filtration.
REFERENCE
ITEM P/N QTY. DESCRIPTION PAGES
79 110700-XXXXXX(1) 1 Relief Valve and/or Check Valve (A Port)
See Table 13.0, 13.1 24
80,81,82 See Table 1.0 1 Control Valve Orifice 8
83 95653-012 2 Soc Pipe Plug .125-27 NPTF
(inside charge pump inlet port)
84 95653-006 2 Soc Pipe Plug .062-27 NPTF
(inside charge pump inlet port)
85 ** 1 Magnetic Speed Sensor (optional)
108307 1 Plug (optional)
86 16160-125 1 Retaining Ring (optional)
87 8761-016* 1 O-Ring
95, 96, 97, 105 See Charge Pump Sub-assembly 20-22
116 ** 1 Drive Shaft Seal
117 ** 1 Ring, Retaining
118 ** 1 Spacer
119 95653-012 1 Soc Pipe Plug .125-27 NPTF (optional)
163 4994730-XXX 1 Pressure Override Relief Valve (optional)
See Table 12.0 24
176 499161-001 2 Cap Nut
Parts List
Models 3322/3922/4622

8EATON Heavy-Duty Series 2 Hydrostatic Pumps Parts and Repair E-PUPI-TS004-E October 2004
REFERENCE
ITEM P/N QTY. DESCRIPTION PAGES
1 See Table 2.0 1 Main Housing 9
2 See Table 3.0 1 Drive Shaft Subassembly 9
3 See Table 4.0, 4.1 1 End Cover 10-11
4 103091-325 8 Hex Bolt HD 7/16-16 Gr8
5 See Table 18.0 1 End Cover Gasket 26
6,7,8,9 See Tables 5.0-6.11 Control Valve 14
12 See Table 7.0 1 Rotating Kit Subassembly 16
13 See Table 8.0 1 Propel Valve/V-Groove
/Quiet Plate 18
14 103852 1 Bearing Plate (Model 54)
14 103814 1 Bearing Plate (Model 64)
15,16,17,18,19,20,21,22,23,24 Charge Pump Subassembly
See Table 10.0-10.1 19-21
28 108300* 2 Ring Seal
26 See Table 11.0 1 Servo Piston Sub-assembly 22
27 8761-157* 2 O-Ring
28 108915* 2 Ring Seal
29, 30 See Table 11.1 Servo Piston Cover 22
31 95912-088 8 Screw, Cap Soc HD 5/16-18 Gr 8
32 8761-145* 2 O-Ring
33 16254-8 1 Thread seal
34 96097-050 1 Nut, Hex .50-20
35 16254-28 1 Washer
40 103807-000 1 Bearing Cup
41 See Table 15.0 A/R End Cover Bearing Shim Kit 25
42/43 990386-000 1 Bearing Cup/Bearing Cone
Subassembly
44 111892 2 Swash Bearing Subassembly
45 108331 2 Race Pin
46 108973 2 Clocking Link
47 108349 1 Slide Block
48 See Table 14.0** 1 Low Pressure Relief Valve 24
49 8785-012* 1 O-Ring
53 108214 2 Hold Down Spring
54 16048-480 2 Hold Down Washer
55 108369 2 Hollow Dowel
56 98202 3 Dowel
57 110457-000* 4 Static Face Seal
59 8761-017* 2 O-Ring (between end cover
and housing)
60 108562-000* 2 Back-up Ring (between end
cover and housing)
61 25083-01 1 O-Ring Plug
62 107887 1 O-Ring Plug Soc HD
63 25706-006 2 O-Ring Plug
64 25090-010 1 O-Ring Plug
65 25090-004 3 O-Ring Plug
66 25083-004 12 O-Ring Plug (not all positions shown)
67 25083-002 3 O-Ring Plug (used with Pressure
Override option)
69 101822 1 Shipping Strap (not shown)
70 111402-000 1 Control Link Sub-assembly
71, 72 See Table 5.0 Manual Control 12
76 4994730-xxx(1) 2 Relief Valve, Pressure Override
See Table 12.0 (optional) 23
78 110700-xxx(1) 1 Relief Valve and/or Check Valve
See Table 13.0,13.1 (B Port) 23
*available in gasket kit 990710-000
**available in kit
(1)See Table 14.1 for correct part number identification
and pressure settings.
REFERENCE
ITEM P/N QTY. DESCRIPTION PAGES
79 110700-XXXXXX(1) 1 Relief Valve and/or Check Valve (A Port)
See Table 13.0, 13.1 23
80,81,82 101619-xxx See Table 1.0 Control Valve Orifice
See Below
83 95653-012 2 Soc Pipe Plug .125-27 NPTF
(inside charge pump inlet port)
84 95653-006 2 Soc Pipe Plug .062-27 NPTF
(inside charge pump inlet port)
85 See Table 17 1Magnetic Speed Sensor (optional)
25
108307 1 Plug (optional)
86 16160-125 1 Retaining Ring (optional)
87 8761-016* 1 O-Ring
95, 96, 97, 105 See Charge Pump
Sub-assembly 19-21
116 See Table 16.0 1 Drive Shaft Seal 26
117 See Table 16.0 1 Ring, Retaining 26
118 See Table 16.0 1 Spacer 26
119 95653-012 1 Soc Pipe Plug .125-27 NPTF (optional -
used only with remote or pressure side
filtration)
163 4994730-XXX 1 Pressure Override Relief Valve (optional)
See Table 14.0 24
176 499161-001 2 Cap Nut
SIZE
ITEM PART NO. mm[inch] DESCRIPTION
80, 81,82 101619-021 5,3[.021] Control Valve Orifice
80, 81,82 101619-028 7,1[.028] Control Valve Orifice
80, 81,82 101619-036 9,1[.036] Control Valve Supply Orifice
80, 81,82 101619-044 11,1[.044] Control Valve Orifice
80, 81,82 101619-048 12,1[.048] Control Valve Orifice
80, 81,82 101619-052 13,2[.052] Control Valve Orifice
80, 81,82 101619-057 14,5[.057] Control Valve Orifice
80, 81,82 101619-065 16,5[.065] Control Valve Orifice
80, 81,82 101619-073 18,5[.073] Control Valve Orifice
80, 81,82 101619-081 20,6[.081] Control Valve Orifice
80, 81,82 101619-094 23,9[.094] Control Valve Orifice
80, 81,82 101619-102 25,9[.102] Control Valve Orifice
Control Valve Orifice (Item 80, 81, 82)
Table 1.0
Parts List
Models 5422/6422

9
EATON Heavy-Duty Series 2 Hydrostatic Pumps Parts and Repair E-PUPI-TS004-E October 2004
Table 2.0 Main Housing
Models 3322/3922/4622
PART NO. QTY. DESCRIPTION
111813-000 1 Main Housing
111811-000 1 Main Housing, Pressure Override
111812-000 1 Main Housing, Speed Sensor
111810-000 1 Main Housing with Pressure Override and Speed Sensor
114192-000 1 Main Housing, No POR, Metric Ports
Models 5422/6422
PART NO. QTY. DESCRIPTION
111817-000 1 Main Housing, No POR, No Speed Sensor Port
111816-000 1 Main Housing, Pressure Override,
No Speed Sensor Port
111815-000 1 Main Housing, Speed Sensor Port, No POR
111814-000 1 Main Housing, Pressure Override and Speed Sensor
(Item 1)
Drive Shaft
Subassembly
(Item 2)
Table 3.0 Drive Shaft Subassembly
Models 3322/3922/4622 (54, 64, 75 cc/rev.)
BEARING RETAINING
SUBASSEMBLY SHAFT CONE RING DESCRIPTION
108029-000 108028-000 103227-000 103222-188 23 Tooth 16/32 Pitch Spline
108625-000 108624-000 103227-000 103222-188 14 Tooth 12/24 Pitch Spline
108646-000 108645-000 103227-000 103222-188 21 Tooth 16/32 Pitch Spline
109738-000 109737-000 103227-000 103222-188 23 Tooth 16/32 Pitch Spline 3/8-24 UNF 2B Tapped
113718-000 113717-000 103227-000 103222-188 14 Tooth 12/24 Pitch Spline Front of Tandem
113720-000 113719-000 103227-000 103222-188 27 Tooth 24/48 Pitch Spline
114681-000 114680-000 103227-000 103222-188 1.500” Taper With 3/8 Square Key
4992795-001 4992794-001 103227-000 103222-188 1.375” Taper With 3/8 Square Key
4998310-001 4998309-001 103227-000 103222-188 14 Tooth 24/48 pitch Spline
Models 5422/6422 (89, 105 cc/rev.)
BEARING RETAINING
SUBASSEMBLY SHAFT CONE RING DESCIPTION
109140-000 109139-000 103808-000 103222-200 14 Tooth 12/24 Pitch Spline
109512-000 109468-000 103808-000 103222-200 21 Tooth 16/32 Pitch Spline 3.22 ext.
110117-000 110116-000 103808-000 103222-200 21 Tooth 16/32 Pitch Spline
110133-000 110132-000 103808-000 103222-200 13 Tooth 8/16 Pitch Spline
112035-000 112034-000 103808-000 103222-200 1.50 Dia. Taper With 3/8 Square Key
112037-000 112036-000 103808-000 103222-200 27 Tooth 24/48 Pitch Spline
114890-000 114889-000 103808-000 103222-200 23 Tooth 16/32 Pitch Spline 3/8-24 UNF 2B Tapped
108382-000 108366-000 103808-000 103222-200 23 Tooth 16/32 Pitch Spline
4992795-001 4992794-001 103227-000 103222-188 1.50 Dia. Taper With .375” x 1” Square Key
* Includes 103227 Pressed Bearing Cone and 103222-188 Retaining Ring
** Includes 103808 Pressed Bearing Cone and 103222-200 Retaining Ring
Note: Bearing Cup must be replaced with shaft and new bearing cone.
*Note: Bearing cup must be
replaced with shaft
and new bearing cone
Parts List
Main Housing

10 EATON Heavy-Duty Series 2 Hydrostatic Pumps Parts and Repair E-PUPI-TS004-E October 2004
Table 4.0 End Cover
Opposite Side Ported End Cover
MODEL MAIN PRESSURE
PUMP PART NO. PORTS OVERRIDE OPTIONS
3322/3922 110568-000 Code 61 No No Charge Pump
110619-000 Code 61 Yes No Charge Pump
110300-000 Code 62, M12X1.75 No No Charge Pump
110202-000 Code 62, M12X1.75 Yes No Charge Pump
109766-000 Code 62 Yes No Charge Pump
109493-000 Code 62 No No Charge Pump
114348-000 Code 61 Yes Remote Filter Ports
110718-000 Code 62 No Remote Filter Ports
108896-000 Code 62 Yes Remote Filter Ports
4622 108859-000 Code 62 Yes Remote Filter Ports
110560-000 Code 62 No Remote Filter Ports
110628-000 Code 61 Yes
110301-000 Code 62, M12 X 1.75 No
110201-000 Code 62, M12 X 1.75 Yes
109470-000 Code 62 No
109147-000 Code 62 Yes
112548-000 Code 61 Yes Remote Filter Ports
5422 4997280-001 Code 61 No Remote Filter Ports
110190-000 Code 62 Yes Remote Filter Ports
110302-000 Code 62, M12 X 1.75 No 7/8-14 UNF Charge pressure Gauge Port
110356-000 Code 62 No Remote Filter Ports
110434-000 Code 62, M12 X 1.75 Yes 7/8-14 UNF Charge pressure Gauge Port
5422 110358-000 Code 61 Yes Remote Filter Ports
110541-000 Code 61 Yes
110356-000 Code 62 No Remote Filter Ports
110270-000 Code 61 No
109783-000 Code 62 Yes
109784-000 Code 62 Yes Remote Filter Ports
109281-000 Code 62 No
109400-000 Code 62 No Pressure Transducer
6422 108344-000 Code 62 Yes
4998511-001 Code 62, M12 X 1.75 No Pressure Transducer/7/8-14 UNF Charge
pressure Gauge Port
110303-000 Code 62 No 7/8-14 UNF Charge pressure Gauge Port
110435-000 Code 62, M12 X 1.75 Yes 7/8-14 UNF Charge pressure Gauge Port
111670-000 Code 62, M12 X 1.75 No M33 Charge Inlet, M22 Gauge Port
114875-000 Code 61 No 7/8-14 UNF Charge pressure Gauge Port
109176-000 Code 62 No
109145-000 Code 62 No Pressure Transducer
109742-000 Code 62 Yes Remote Filter Ports
109845-000 Code 62, M12X1.75 Yes Pressure Side Filter
110322-000 Code 62 No Remote Filter Ports
110357-000 Code 61 Yes Remote Filter Ports
(Item 3)
Opposite Side
Ported End Cover
Parts List
End Cover
*Note: All end covers include normal SAE-4 gauge ports for “A” & “B” high pressure ports.
(Except as noted)

11
EATON Heavy-Duty Series 2 Hydrostatic Pumps Parts and Repair E-PUPI-TS004-E October 2004
Table 4.1
Same Side Ported End Cover
MODEL MAIN PRESSURE
PUMP PART NO. PORTS OVERRIDE OPTIONS
3322/3922 114516-000 Code 62 Yes
113421-000 Code 61 No Remote Filter Ports
113194-000 Code 62 Yes Remote Filter Ports – Labeled
112206-000 Code 62 No
112870-000 Code 62 Yes Remote Filter Ports
113731-000 Code 62 No Remote Filter Ports
4992179-001 Code 61 Yes Integral C-pad/No Charge Pump/
Gauge Ports
4994477-001 Code 62 Yes Integral C-pad/No Charge Pump
113703-000 Code 62 No Integral C-pad/Pressure Transducer
M33 Charge Inlet/ M22 Gauge Metric Ports
4992178-001 Code 61 Yes
4993403-001 Code 62 No M33 Charge Inlet, M22/Gauge Metric Ports
4994225-001 Code 62 No Remote Filter Ports
4997704-001 Code 62, M12x1.75 No
114194-000 Code 62 Yes Pressure Side Filter
114543-000 Code 62 Yes Remote Filter Ports 3/4-16 UNF
4992179-001 Code 62 Yes Integral C-pad/No Charge Pump
Gauge Ports
114693-000 Code 62 Yes Integral C-pad/No Charge Pump
Gauge Ports
4994224-001 Code 62 Yes Integral C-pad/No Charge Pump
114693-000 Code 62 Yes Integral C-pad/No Charge Pump
Gauge Ports
4622 4997058-001 Code 61 No Remote Filter Ports
112596-000 Code 62 Yes
113721-000 Code 61 No Integral C-pad
113728-000 Code 61 No
4992768-001 Code 62 No
4992902-001 Code 62 Yes Remote Filter Ports
113721-000 Code 61 Yes Integral C-pad/No Charge Pump
4993725-001 Code 62 Yes Integral C-pad/No Charge Pump
113651-000 Code 62 Yes Integral C-pad/Gauge Ports
113652-000 Code 62 Yes Remote Filter Ports
5422 113651-000 Code 62 Yes No Charge Pump/Gauge Ports
4997280-001 Code 61 No Remote Filter Ports
6422 112056-000 Code 62 Yes Diag Fitting Ports /Integrated C-pad
111747-000 Code 62 Yes Diag Fitting Ports
114752-000 Code 62 No Remote Filter Ports
4992200-001 Code 61 No Remote Filter Ports
4997088-001 Code 61 Yes Remote Filter Ports
4997956-001 Code 61 Yes Remote Filter Ports
111005-000 Code 61 Yes 7/8-14 UNF/ Charge Pressure Gauge Port
4992804-001 Code 62 No Integral C-pad
112056-000 Code 62 Yes Integral C-pad/ Gauge Port
Same Side Ported
End Cover
Model 5422-6422
Model 3322-4622
(Item 3)
Parts List
End Cover
*Note: All end covers include normal SAE-4 gauge ports for “A” & “B” high pressure ports.
(Except as noted)

12 EATON Heavy-Duty Series 2 Hydrostatic Pumps Parts and Repair E-PUPI-TS004-E October 2004
Table 5.0 Manual Control Kit
Kit No. 990704-000
ITEM PART NO. QTY. DESCRIPTION
6 110038-001 1 Manual Control Valve Subassembly
7 108992-000 1 Control Gasket
8 95912-088 1 Cap Screw SOC HD 5/16-18 GR 8
9 95912-150 4 Cap Screw SOC HD 5/16-18 GR 8
70 111402-000 1 Control Link Subassembly
71 96081-031 1 Nut 5/16-18
72 96100-031 1 Washer
73 95729-000 1 Control Lever
73a 103048-000 1 Control Lever (Optional)
Table 5.1 Manual Control Valve Wide Band
Neutral Kit
Kit No. 990708-000
ITEM PART NO. QTY DESCRIPTION
6 110038-002 1 Manual Control Valve Subassembly Wide
Band Subassembly
7 108992-000 1 Control Gasket
8 95912-088 1 Cap SOC HD 5/16-18 GR 8
9 95912-150 4 Cap Screw SOC HD 5/16-18 GR 8
70 111402-000 1 Control Link Subassembly
71 96081-031 1 Nut 5/16-18
72 96100-031 1 Washer
73 95729-000 1 Control Lever
73a 103048-000 1 Control Lever (Optional)
(Item 6)
Table 5.2 Manual Control Valve with N/C Neutral
Lockout Kit
Kit No. 990705-000
ITEM PART NO. QTY DESCRIPTION
110039-000 1 Manual Control Valve with
6 N/C Neutral Lockout
7 108992-000 1 Control Gasket
8 95912-088 1 Cap Screw SOC HD 5/16-18 GR 8
9 95912-150 4 Cap Screw SOC HD 5/16-18 GR 8
70 111402-000 1 Control Link Subassembly
71 96081-031 1 Nut 5/16-18
72 96100-031 1 Washer
73 95729-000 1 Control Lever
73a 103048-000 1 Control Lever (Optional)
Table 5.3 Neutral Lockout Switch Mating
Connector Kit
Kit No. 990764-000
PART NO. QTY. REFERENCE DELPHI PACKARD P/N
Connector 1 1201 5792
Terminal 2 1208 9040
Cable Seal 2 1201 5323
Recommended wire size: 18 - 20 AWG
Recommended cable diameter: 2.03 - 2.80 mm
Alternate reference source: Power and Signal Group
North American Headquarters
1-800-722-5273
www.powerandsignal.com/netstore/start
Manual Control
Manual Control with
Neutral Lockout Switch
Parts List
Control Valve Sub-assemblies
Manual Control with Neutral Lockout
Switch and wide Land Spool
ITEM PART NO. DESCRIPTION
6 4992658-000 Pump Control Valve S/A
Manual Control with Neutral Detent
ITEM PART NO. DESCRIPTION
6 4994825-001 Pump Control Valve S/A
W/ Neutral Detent

13
EATON Heavy-Duty Series 2 Hydrostatic Pumps Parts and Repair E-PUPI-TS004-E October 2004
Kit No. 990718-000 24Vdc Solenoid Control with
Swashplate Feedback Sensor 14 pin Metri-Pack™
Connector
ITEM PART NO. QTY DESCRIPTION
6 110114-000 1 Subassembly includes:
111406-024* 1 24Vdc Coil Subassembly
108724-000* 1 Proportional Solenoid Cartridge
7 108876-000 1 Control Gasket
8 95912-125 4 Cap Screw SOC HD 5/16-18 GR 8
9 95912-150 4 Cap Screw SOC HD 5/16-18 GR 8
990719-000 1 Swashplate Sensor Kit
92 109195-000 1 Feedback Shaft Subassembly
93 8761-010 1 O-Ring
94 109196-000 1 Hollow Dowel
Kit No. 990693-000 SF 12 Vdc Control with
Swashplate Feedback Sensor 14 pin Metri-Pack™
Connector
ITEM PART NO. QTY DESCRIPTION
6 109124-000 1 Subassembly includes:
111406-012* 1 12Vdc Coil Subassembly
108724-000* 1 Proportional Solenoid Cartridge
7 108876-000 1 Control Gasket
8 95912-125 4 Cap Screw SOC HD 5/16-18 GR 8
9 95912-150 4 Cap Screw SOC HD 5/16-18 GR 8
990719-000 1 Swashplate Sensor Kit
92 109195-000 1 Feedback Shaft Subassembly
93 8761-010 1 O-Ring
94 109196-000 1 Hollow Dowel
* Can be purchased separately
Kit No. 990863-000 Solenoid 12Vdc Control
W/Swashplate Feedback Sensor (DIN 43650)
ITEM PART NO. QTY DESCRIPTION
6 113226-012 1 Solenoid (12V W/ Feedback Sensor)
111406-012* 1 12Vdc Coil Subassembly
108724-000* 1 Proportional Solenoid Cartridge
7 108992-000 1 Control Gasket (Man/Sol)
8 95912-125 2 Cap Screw SOC HD 5/16-18 GR 8
9 95912-175 3 Cap Screw SOC HD 5/16-18 GR 8
90 95897-008 2 Washer
92 109195-000 1 Feedback Shaft S/A
93 8761-010 1 O-Ring
94 109196-000 1 Hollow Dowel
88 113334-001 1 Feedback Sensor, Non-Contact
89 95890-150 2 Screw, Socket Head Cap 8-32 UNC
91 8761-116 1 O-Ring
130 101673-025 1 Screw, Cap Soc Hd 10-24 UNC
Kit No. 990719-000 Swashplate Sensor Kit
ITEM PART NO. QTY DESCRIPTION
88 107851-000 1 Swashplate Sensor
89 16040-208 2 SF Head Machine Screw 8-32 UN
90 95897-008 2 Washer
91 107762-000 1 Swashplate Gasket
(Item 6)
Solenoid Coil Subassembly
Solenoid Tube Subassembly
Table 5.4 Solenoid Control Kits
Solenoid Control
W/ Swashplate Feedback Sensor
“SE” is 12 Volt with connectors
per DIN 43650
12 or 24 volt with 4 pin
Metri-Pack™ connector
Proportional Solenoid
Cartridge Valve
Parts List
Control Sub-assemblies

14 EATON Heavy-Duty Series 2 Hydrostatic Pumps Parts and Repair E-PUPI-TS004-E October 2004
Kit No. 990789-000
Rating: 5-15 bar[73-218 lbf/in2]
ITEM PART NO. QTY DESCRIPTION
6 110686-000 1 Hydraulic Remote Control
Subassembly
7 110003-000 1 Gasket
8 95912-200 5 Cap Screw
Hydraulic Remote (parts sold separately)
Rating: 2-14 bar[29-203 lbf/in2]
ITEM PART NO. QTY DESCRIPTION
6 4993691-001 1 Hydraulic Remote Control
Subassembly
7 110003-000 1 Gasket
8 95912-200 5 Cap Screw
(Item 6)
Table 5.6 Hydraulic Remote Control Kits
Kit No. 990763-000 Swashplate Sensor Mating
Connector
PART QTY. DELPHI PACKARD P/N
Connector 1 1201 0717
Terminal 3 1208 9040
Cable Seal 3 1208 9679
Recommended wire size: 18 - 20 AWG
Recommended cable diameter: 1.6 - 2.15 mm
Alternate reference source: Power and Signal Group
North American Headquarters
1-800-722-5273
www.powerandsignal.com/netstore/start
Table 5.5 Connector Kits
Parts List

15
EATON Heavy-Duty Series 2 Hydrostatic Pumps Parts and Repair E-PUPI-TS004-E October 2004
EP Control Valve Kit with electronic module 1-
6 V Input, 12/24 V
Kit No. 9900040-000 Code”EE”
ITEM PART NO. QTY. DESCRIPTION
129 111520-016 1 Electronic Module
130 101673-175 3 10-24 Button Head Cap Screw
131 16045-203 3 #10 Lockwasher
9 95912-200 5 5/16"-18 Hex Head Cap Screw - 2.75"
6 4993054-012 1 Valve Assembly(includes Solenoid
Coil and Tube Subassemblies)
111501-000 2 Solenoid Tube Subassembly
114241-012 1 12 V Solenoid Coil and Wiring Harness
7 110003-000 1 Control Valve Gasket
*Includes necessary O-Rings.
EP Control Valve Kit with Electronic Module
±4-20mA Input, 12/24 V
Kit No. 9900042-000 Code “EG”
ITEM PART NO. QTY. DESCRIPTION
129 111520-020 1 Electronic Module
130 101673-175 3 10-24 Button Head Cap Screw
131 16045-203 3 #10 Lockwasher
4 95912-200 5 5/16"-18 Hex Head Cap Screw - 2.75"
6 4993054-012 1 Valve Subassembly (includes Solenoid
Coil and Tube Subassemblies)
114241-012 1 12 V Solenoid Coil and Wiring Harness
111501-000 1 Solenoid Tube and O-Rings
7 110003-000 1 Control Valve Gasket
EP Control Valve Kit with no Electronics, 12V
Kit No. 9900043-000 Code “EC”
ITEM PART NO. QTY DESCRIPTION
4 95912-200 5 5/16"-18 Hex Head Cap Screw - 2.75"
6 4993054-012 1 Valve Subassembly (includes Solenoid
Coil and Tube Subassemblies)
114241-012 1 12 V Solenoid Coil and Wiring Harness
111501-000 1 Solenoid Tube and O-Rings
7 110003-000 1 Control Valve Gasket
EP Control Valve Kit with no Electronics, 24 V
Kit No. 9900044-000 Code “ED”
ITEM PART NO. QTY DESCRIPTION
4 95912-200 5 5/16"-18 Hex Head Cap Screw - 2.75"
6 4993054-024 1 Valve Subassembly (includes Solenoid
Coil and Tube Subassemblies)
114241-024 1 24 V Solenoid Coil and Wiring Harness
111501-000 1 Solenoid Tube and O-Rings
7 110003-000 1 Control Valve Gasket
Parts are included in kit and may be purchased separately.
Table 6.0 Electronic Proportional (EP) Displacement Control Valve Kits
EP Control Assembly
(includes solenoid and
Coil Subassemblies
9
7
6
129
131
130
Parts List
Electronic
Proportional (EP)
Control
EP Control Electronic Module 1-6V Input
Kit No.990830-000
ITEM PART NO. QTY DESCRIPTION
129 111520-016 1 Electronic Module
130 101673-175 3 10-24 Button Head Cap Screw
131 16045-203 3 #10 Lockwasher
EP Control Electronic Module ±4-20mA Input
Kit No. 990832-000
ITEM PART NO. QTY DESCRIPTION
129 111520-020 1 Electronic Module
130 101673-175 3 10-24 Button Head Cap Screw
131 16045-203 3 #10 Lockwasher

16 EATON Heavy-Duty Series 2 Hydrostatic Pumps Parts and Repair E-PUPI-TS004-E October 2004
EP Solenoid Mating Connector Kit
Kit No. 990767-000
DELPHI PACKARD
DESCRIPTION QTY. PART NUMBER
Connector 1 1204 7950
Terminal 4 1204 8074
Cable Seal 4 1204 8086
Secondary Lock 1 1204 7948
Recommended wire size: 16 - 18 AWG
Recommended cable diameter: 2.03 - 2.80 mm
Alternate reference source: Power and Signal Group
North American Headquarters
1-800-722-5273
www.powerandsignal.com/netstore/start
Electronic Module Mating Connector Kit
Kit No. 990762-000
DELPHI PACKARD
DESCRIPTION QTY. PART NUMBER
Command Input Signal Connector 1 1211 0293
Terminal 3 1204 8074
Cable Seal 3 1204 8086
Cavity Plug 1 1205 9168
Secondary Lock 1 1205 2845
Power Supply Connector 1 1205 2641
Terminal 2 1204 8074
Cable Seal 2 1204 8086
Secondary Lock 1 1205 2634
Recommended wire size: 16 - 18 AWG
Recommended cable diameter: 2.03 - 2.80 mm
Alternate reference source: Power and Signal Group
North American Headquarters
1-800-722-5273
www.powerandsignal.com/netstore/start
Solenoid Coil Mating Connector Kit
(not required when using an Eaton Electronic Module)
Kit No. 9900023-000
DELPHI PACKARD
DESCRIPTION QTY. PART NUMBER
Connector 1 1218 6568
Terminal 4 1204 8074
Cable Seal 4 1204 8086
Secondary Lock 1 1204 7948
Recommended wire size: 16 - 18 AWG
Recommended cable diameter: 2.03 - 2.80 mm
Alternate reference source: Power and Signal Group
North American Headquarters
1-800-722-5273
www.powerandsignal.com/netstore/start
EP Control Electronic S/A Module
Mating Connector Kit 12V F-N-R Control
Kit No. 9900134-000
ITEM PART NO. QTY DESCRIPTION
6 111615-000 1 Control Housing S/A 12VDC
111074-000 2 Connector Housing
108432-003 4 Sleeve Terminal
105584-003 4 Seal Cable
Solenoid Connector Update Kit
Kit No.9900045-000
DELPHI PACKARD
DESCRIPTION QTY. PART NUMBER
Tool 1 1209 4429
4-Pin Housing Connector (Female) 1 1218 6568
4-Pin Housing Connector (Male) 1 1218 6271
Table 6.1 EP Connector Kits
Parts List
EP Connector Kits

17
EATON Heavy-Duty Series 2 Hydrostatic Pumps Parts and Repair E-PUPI-TS004-E October 2004
1
3
4
5
Barrel Kit
Rotating Group Kit
6
7
8
9
10
B
A
2
Note:
When overhauling rotating and
swashplate sub-assemblies,
piston and shoe sub-assemblies
must be replaced with new parts.
(Item 12)
Standard
Shoe
Wide Land
Shoe *Optional
See Note
Models 3322/3922
Complete Rotating/Swashplate
Kit No. 109752-000
ITEM PART NO. QTY. DESCRIPTION
A 110428-000 1 Rotating Group Kit (includes items B, 7
and 8)
B 990730-000 1 Barrel Kit (includes items 1 through 5)
1 103278-200 1 Retaining Ring
2 103242-000 1 Spacer Cyl Barrel Spring
3 103240-000 1 Cylinder Barrel Spring
4 107758-000 1 Spacer Shaft Spring
5 109427-000 1 Barrel and Sleeve
6 990723-000 1 Hold-down Kit
7 103244-000 1 Shoe Retainer Plate
8 101073 -000 9 Shoe Piston Subassembly
9 107854-000 1 Fixed Clr Thrust Plate
10 109366-000 1 Swashplate Subassembly
Model 4622
Complete Rotating/Swashplate
Kit No. 109367-000
ITEM PART NO. QTY. DESCRIPTION
A 109419-000 1 Rotating Group Kit (includes items B, 7
and 8)
B 990731-000 1 Barrel Kit (includes items 1 through 5)
1 103278-200 1 Retaining Ring
2 103242-000 1 Spacer Cyl Barrel Spring
3 103240-000 1 Cylinder Barrel Spring
4 107758-000 1 Spacer Shaft Spring
5 109418-000 1 Barrel and Sleeve
6 990723-000 1 Hold-down Kit
7 104211-000 1 Shoe Retainer Plate
8 104199-000 9 Shoe Piston Subassembly
9 107854-000 1 Fixed Clr Thrust Plate
10 109366-000 1 Swashplate Subassembly
Model 5422
Complete Rotating/Swashplate
Kit No. 108424-000
ITEM PART NO. QTY. DESCRIPTION
A 109431-000 1 Rotating Group Kit (includes items B, 7
and 8)
B 990732-000 1 Barrel Kit (includes items 1 through 5)
1 103278-225 1 Retaining Ring
2 103815-000 1 Spacer Cyl Barrel Spring
3 103813-000 1 Cylinder Barrel Spring
4 108337-000 1 Spacer Shaft Spring
5 109430-000 1 Barrel and Sleeve
6 990724-000 1 Hold-down Kit
7 103853-000 1 Shoe Retainer Plate
8 101077-000 9 Shoe Piston Subassembly
9 108341-000 1 Fixed Clr Thrust Plate
10 109254-000 1 Swashplate Subassembly
Model 6422
Complete Rotating/Swashplate
Kit No. 109435-000
ITEM PART NO. QTY. DESCRIPTION
A 109434-000 1 Rotating Group Kit (includes items B, 7
and 8)
B 990733-000 1 Barrel Kit (includes items 1 through 5)
1 103278-225 1 Retaining Ring
2 103815-000 1 Spacer Cyl Barrel Spring
3 103813-000 1 Cylinder Barrel Spring
4 108337-000 1 Spacer Shaft Spring
5 109433-000 1 Barrel and Sleeve
6 990724-000 1 Hold-down Kit
7 103817-000 1 Shoe Retainer Plate
8 103818-000 9 Shoe Piston Subassembly
9 108341-000 1 Fixed Clr Thrust Plate
10 109254-000 1 Swashplate Subassembly
Table 7.0 Rotating Group/Swashplate Sub-assembly(Standard Shoe)
Parts List
Rotating Group/
Swashplate Sub-assembly
(Standard Shoe)

18 EATON Heavy-Duty Series 2 Hydrostatic Pumps Parts and Repair E-PUPI-TS004-E October 2004
1
3
4
5
Barrel Kit
Rotating Group Kit
6
7
8
9
10
B
A
2
Note:
When overhauling rotating and
swashplate sub-assemblies,
piston and shoe sub-assemblies
must be replaced with new parts.
(Item 12)
Standard
Shoe
Wide Land
Shoe *Optional
See Note
Models 3322/3922
Complete Rotating/Swashplate
Kit No. 110292-000
ITEM PART NO. QTY. DESCRIPTION
A 110291-000 1 Rotating Group Kit (includes items B, 7
and 8)
B 990730-000 1 Barrel Kit (includes items 1 through 5)
1 103278-200 1 Retaining Ring
2 103242-000 1 Spacer Cyl Barrel Spring
3 103240-000 1 Cylinder Barrel Spring
4 107758-000 1 Spacer Shaft Spring
5 109427-000 1 Barrel and Sleeve
6 990723-000 1 Hold-down Kit
7 103244-000 1 Shoe Retainer Plate
8 110216 -000 9 Shoe Piston Subassembly
9 107854-000 1 Fixed Clr Thrust Plate
10 109366-000 1 Swashplate Subassembly
Model 4622
Complete Rotating/Swashplate
Kit No. 110563-000
ITEM PART NO. QTY. DESCRIPTION
A 110562-000 1 Rotating Group Kit (includes items B, 7
and 8)
B 990731-000 1 Barrel Kit (includes items 1 through 5)
1 103278-200 1 Retaining Ring
2 103242-000 1 Spacer Cyl Barrel Spring
3 103240-000 1 Cylinder Barrel Spring
4 107758-000 1 Spacer Shaft Spring
5 109418-000 1 Barrel and Sleeve
6 990723-000 1 Hold-down Kit
7 104211-000 1 Shoe Retainer Plate
8 106609-000 9 Shoe Piston Subassembly
9 107854-000 1 Fixed Clr Thrust Plate
10 109366-000 1 Swashplate Subassembly
Model 5422
Complete Rotating/Swashplate
Kit No. 110290-000
ITEM PART NO. QTY. DESCRIPTION
A 110289-000 1 Rotating Group Kit (includes items B, 7
and 8)
B 990732-000 1 Barrel Kit (includes items 1 through 5)
1 103278-225 1 Retaining Ring
2 103815-000 1 Spacer Cyl Barrel Spring
3 103813-000 1 Cylinder Barrel Spring
4 108337-000 1 Spacer Shaft Spring
5 109430-000 1 Barrel and Sleeve
6 990724-000 1 Hold-down Kit
7 103853-000 1 Shoe Retainer Plate
8 110220-000 9 Shoe Piston Subassembly
9 108341-000 1 Fixed Clr Thrust Plate
10 109254-000 1 Swashplate Subassembly
Model 6422
Complete Rotating/Swashplate
Kit No. 110546-000
ITEM PART NO. QTY. DESCRIPTION
A 110545-000 1 Rotating Group Kit (includes items B, 7
and 8)
B 990733-000 1 Barrel Kit (includes items 1 through 5)
1 103278-225 1 Retaining Ring
2 103815-000 1 Spacer Cyl Barrel Spring
3 103813-000 1 Cylinder Barrel Spring
4 108337-000 1 Spacer Shaft Spring
5 109433-000 1 Barrel and Sleeve
6 990724-000 1 Hold-down Kit
7 103817-000 1 Shoe Retainer Plate
8 110222-000 9 Shoe Piston Subassembly
9 108341-000 1 Fixed Clr Thrust Plate
10 109254-000 1 Swashplate Subassembly
Table 7.1 Rotating Group/Swashplate Sub-assembly(Wide Land Shoe)
Parts List
Rotating Group/
Swashplate Sub-assembly
(Wide Land Shoe)

19
EATON Heavy-Duty Series 2 Hydrostatic Pumps Parts and Repair E-PUPI-TS004-E October 2004
Table 9.0 Valve Plate
(Item 17)
MODEL 3322/3922 MODEL 4622 MODEL 5422 MODEL 6422
PART NO. PART NO. PART NO. PART NO. DESCRIPTION
107224-000 107784-000 103848-000 103976-000 Propel Valve Plate (Counterclockwise)
106458-000 106459-000 104297-000 103950-000 Propel Valve Plate (Clockwise)
106988-000 107808-000 104857-000 107143-000 V-Groove Plate (Counterclockwise)
106456-000 106457-000 104964-000 104006-000 V-Groove Plate (Clockwise)
111823-001 4993532-001 4993881-001 114557-000 Quiet Plate (Counterclockwise)
113169-000 113632-000 113148-000 112375-000 Quiet Plate (Clockwise)
Magnified MagnifiedMagnified
Valve Plate
(Item 13)
Table 8.0 Hold-down Kit
Models 3322/3922/4622
Kit No. 990723-000
PART NO. QTY. DESCRIPTION
95912-100 4 Cap Screw 5/16-18
108377-000 4 Washer
107858-000 2 Hold-down Strap
103237-001 4 Spacer
Models 5422/6422
Kit No. 990724-000
PART NO. QTY. DESCRIPTION
95912-125 4 Cap Screw 5/16-18
108377-000 4 Washer
108340-000 2 Hold-down Strap
103237-002 4 Spacer
CW Propel Valve Plate CW V-Groove Plate CW Quiet Plate
Parts List
Hold-down Kits
and Valve Plate

20 EATON Heavy-Duty Series 2 Hydrostatic Pumps Parts and Repair E-PUPI-TS004-E October 2004
SAE A-pad Auxiliary Mounting Adapter
Charge Pump, Dual 2 Bolt Mount,
No Shaft Seal, 9 Tooth 16/32 Pitch Spline
SAE B-pad Auxiliary Mounting Adapter
Charge Pump, Dual 2 Bolt Mount,
No Shaft Seal, 13 Tooth 16/32 Pitch Spline
SAE B-B-pad Auxiliary Mounting Adapter
Charge Pump, Dual 2 Bolt Mount,
No Shaft Seal, 15 Tooth 16/32 Pitch Spline
SAE C-pad Auxiliary Mounting Adapter
Charge Pump, 4 Bolt Mount, No Shaft Seal,
14 Tooth 12/24 Pitch Spline
20
97
105
95
D
19 16
17
15
22
21
23
24
18
A−Pad
B, B−B−Pad
C−Pad
Table 10.0
Charge Pump/Auxiliary Mount
ITEM QTY. DESCRIPTION
97 4 Adapter Bolts
105 1 Flange O-Ring Cust.
95 1 Pad Adapter
96 1 Adapter O-Ring
20 4 Charge Cover Bolts
19 4 Sealing Washers
18 1 Charge Cover Subassembly
24 1 Charge Cover O-Ring
21 1 Shaft
22 1 Key
23 1 Retaining Ring
15 1 Eccentric Ring
16 1 Gerotor Subassembly
17 1 Valve Plate
(Item 15)
Table 10.1 Charge Pump/Auxiliary Mount Kits
Kits With No Auxiliary Mounting Adapter
CHARGE CHARGE CHARGE CHARGE
ADAPTER COVER SEALING COVER COVER RETAINING ECCENTRIC GEROTOR VALVE
O-RING BOLTS WASHERS SUBASSY O-RING SHAFT KEY RING RING SUBASSY PLATE
KIT NO. DISPLACEMENT 96 20 19 18 24 21 22 23 15 16 17
990665-000 14cc/.85 CID – 95912-150 103223-000 108026-000 8761-157 109302-001 101305-000 109312-000 107882-001 107881-001 108362-000
990677-000 14cc/.85 CID – 95912-150 103223-000 108026-000 8761-157 109302-001 101305-000 109312-000 – – –
9900067-000 17cc/1.06 CID 8761-159 95912-175 103223-000 108026-000 8761-157 109302-003 101311-000 109312-000 107882-003 107881-003 –
9900068-000 17cc/1.06 CID – 95912-175 103223-000 108026-000 8761-157 109303-002 101305-000 109312-000 – – –
990666-000 21cc/1.28 CID – 95912-175 103223-000 108026-000 8761-157 109302-003 101311-000 109312-000 107882-003 107881-003 –
990678-000 21cc/1.28 CID – 95912-175 103223-000 108026-000 8761-157 109302-003 101311-000 109312-000 – – –
990667-000 28cc/1.70 CID – 95912-200 103223-000 108026-000 8761-157 109302-004 101311-000 109312-000 107882-004 107881-004 108362-000
990679-000 28cc/1.70 CID – 95912-200 103223-000 108026-000 8761-157 109302-004 101311-000 109312-000 – – –
990673-000 28cc/1.70 CID – 95912-200 – 108027-000 8761-157 109302-002 101311-000 109312-000 107882-004 107881-004 –
Parts List
Charge Pump
Sub-assembly
