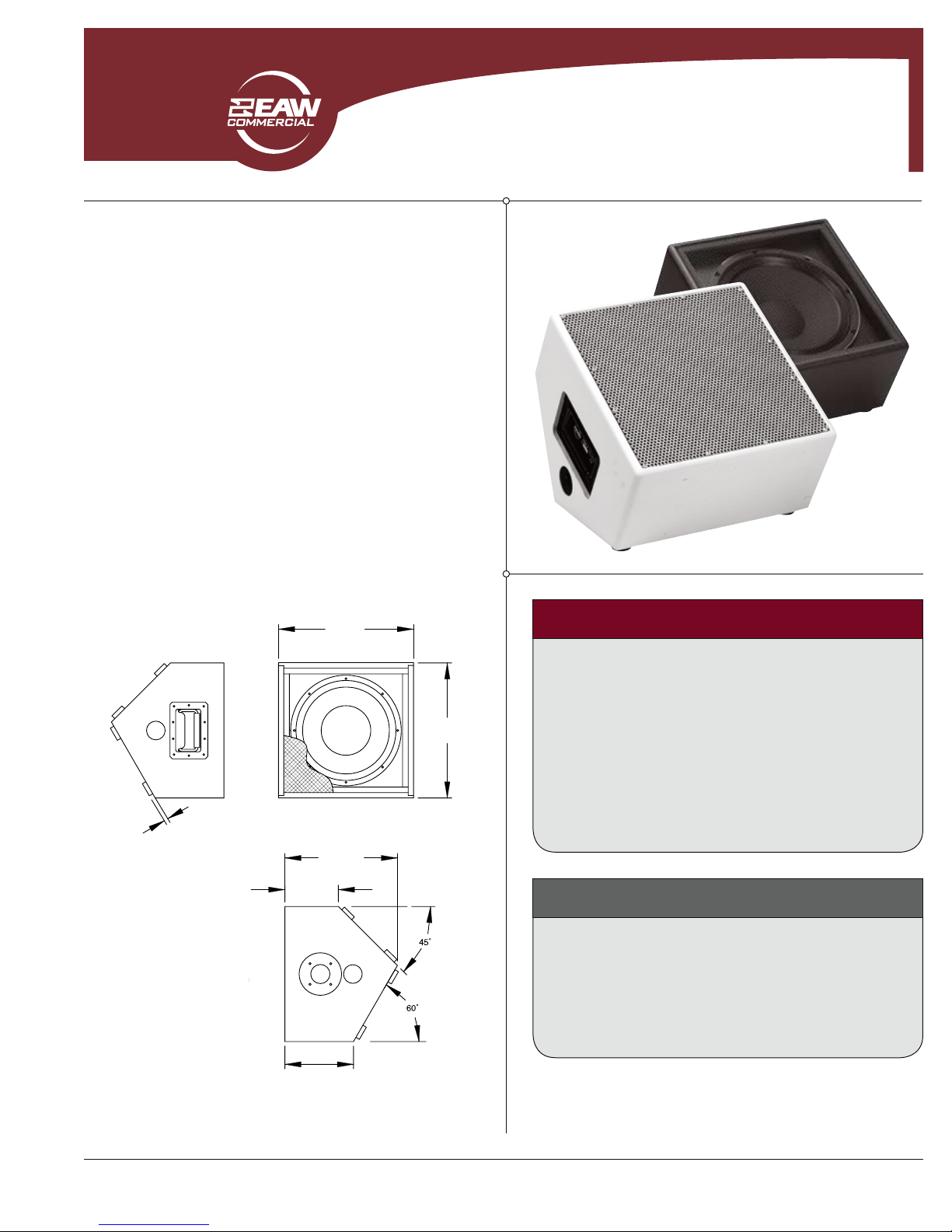

EAW VRM12 User manual

Part No. 0012698 Rev. F 05/07
15.00 in/
381.0 mm
15.00 in/
381.0 mm
12.50 in/
317.5 mm
5.94 in/
150.9 mm
7.63 in/
193.7 mm
0.44 in/
11.2 mm
LEFT SIDE FRONT RIGHT SIDE
15.00 in/
381.0 mm
15.00 in/
381.0 mm
12.50 in/
317.5 mm
5.94 in/
150.9 mm
7.63 in/
193.7 mm
0.44 in/
11.2 mm
LEFT SIDE FRONT RIGHT SIDE
DESCRIPTION
The VRM12 is engineered for superior performance as a oor
monitor and as a stand-mounted portable PA speaker.
The low-prole, dual-angle enclosure houses a 12-inch coaxial
driver that cuts through stage volume with high output capability.
Coherent point source reproduction helps deliver crisp speech for
meetings and presentations, while the 12-inch LF driver delivers full
range musical sound.
The cross-ply laminated birch enclosure includes loop-thru Neutrik
NL4 Speakon jacks on either side to minimize cable runs and clutter
on stage. Rubber feet stabilize the enclosure on the oor. A pole
mount cup and integral handle are included for
stand-mounting and transport.
The VRM12 is available in either black or white nish. A foam-
backed powder-coated steel grill protects the driver. The entire
loudspeaker is fully tested at the time of manufacture and is
warranted to be free from defects in materials and workmanship for
a period of ve years from the date of purchase.
VRM12
TWO-WAY COAX MONITOR/PA LOUDSPEAKER
• Coaxial 12-inch/1-inch full range driver
• Wide-angle 90° x 90° (nominal) HF beamwidth
• Enclosure has both 30° and 45° wedge angles
• Pole mount cup allows use as portable PA
• Integral passive crossover network allows economical
single-amplier powering
Features
• Houses of Worship • TV studios
• Theaters • Audiovisual
• Presentation • Performing Arts
• Portable PA • Classrooms
Applications
Eastern Acoustic Works | One Main Street | Whitinsville, MA 01588 USA | TEL toll free within US/Canada 888.337.7404
TEL outside US 425.892.6503 | FAX [phone] | Page 1 of 4
VRM12 DIMENSIONS

Part No. 0012698 Rev. F 05/07
VRM12
TWO-WAY COAX MONITOR/PA LOUDSPEAKER
Eastern Acoustic Works | One Main Street | Whitinsville, MA 01588 USA | TEL toll free within US/Canada 888.337.7404
TEL outside US 425.892.6503 | FAX [phone] | Page 2 of 4
SPECIFICATIONS
PRODUCT DATA
Model Name VRM12
Part Number Black: 0010102 White: 0011351
File creation date 7/29/2004
SPECIFICATION SHEET TABULAR DATA
Descriptive Data
Ways Type Mode
2-way Full-Range Single Amp
CONFIGURATION
SubsystemTransducer Loading
LF 1x12 in cone — Sealed
HF 1x1 in exit compression driver — Horn-loaded
PERFORMANCE
Operating Range 73 Hz to 20000 Hz
Nominal Beamwidth
Horizontal 90°
Vertical 90°
Axial Sensitivity (whole space SPL)
94 dB 73 Hz to 20000 Hz
Peak Sensitivity (whole space SPL)
97 dB 20 Hz to 20 kHz
Input Impedance (ohms) Nominal Minimum
8 6.6 @ 200 Hz
Recommended High-Pass Filter
High Pass => 60 Hz, 24 dB/octave Butterworth
Power Handling
300 W 49 V @ 8 ohms
Calculated Maximum SPL
Average Peak
119 dB 125 dB
VRM12 FREQUENCY RESPONSE ON-AXIS
120
110
100
90
80
70
60
360
100
10
1
100
10
1
10 100 1000 20000
10 100 1000 20000
100 1000 20000
dB SPL
Degrees
Frequency (Hz)
Frequency (Hz)
Frequency (Hz)
Ohms
Horizontal
Vertical
VRM12 BEAMWIDTH VS. FREQUENCY
120
110
100
90
80
70
60
360
100
10
1
100
10
1
10 100 1000 20000
10 100 1000 20000
100 1000 20000
dB SPL
Degrees
Frequency (Hz)
Frequency (Hz)
Frequency (Hz)
Ohms
Horizontal
Vertical
VRM12 IMPEDANCE VS. FREQUENCY
120
110
100
90
80
70
60
360
100
10
1
100
10
1
10 100 1000 20000
10 100 1000 20000
100 1000 20000
dB SPL
Degrees
Frequency (Hz)
Frequency (Hz)
Frequency (Hz)
Ohms
Horizontal
Vertical

Part No. 0012698 Rev. F 05/07
VRM12
TWO-WAY COAX MONITOR/PA LOUDSPEAKER
Eastern Acoustic Works | One Main Street | Whitinsville, MA 01588 USA | TEL toll free within US/Canada 888.337.7404
TEL outside US 425.892.6503 | FAX [phone] | Page 3 of 4
VRM12 VERTICAL POLARS

Part No. 0012698 Rev. F 05/07
VRM12
TWO-WAY COAX MONITOR/PA LOUDSPEAKER
Eastern Acoustic Works | One Main Street | Whitinsville, MA 01588 USA | TEL toll free within US/Canada 888.337.7404
TEL outside US 425.892.6503 | FAX [phone] | Page 4 of 4
VRM12 HORIZONTAL POLARS
