Eazix EZWFDI01 User manual

Eazix, Inc.
Unit 301 Plaz@ B, 6530 Northgate Avenue,
Filinvest Corporate City,
Alabang, Muntinlupa City, Philippines 1700
Document #:
R.EZWFDI01.HW13.01
Title:
EZWFDI01 User Manual
Page #:
1of18
COMPANY CONFIDENTIAL INFORMATION
Copyright © 2004 Eazix, Inc. All rights reserved.
Uncontrolled and unofficial unless directly viewed from Eazix eDMS
Introduction
The EAZIX EZWFDI01 is a wireless LAN adapter with PCI interface for Desktop computers. It conforms to
the IEEE 802.11g protocol and is backward-compatible with any installed 802.11b WLAN access point. It
operates at 2.4 GHz and provides data rates of up to 54 Mbps for today’s high-bandwidth applications. The
EZWFDI01 Network Interface Card (NIC) is based on the Globespan Virata PRISM Lance chipset.
Features:
•IEEE 802.11b/g compliant
•PCI host interface
•Frequency range: 2412 MHz to 2484 MHz
•64-, 128-bit WEP encryptions
•Data rates: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 Mbps
•Modulation techniques: OFDM with BPSK, QPSK, 16QAM, 64QAM; DBPSK, DQPSK, CCK
•Driver support for Microsoft Windows 98SE/ME/NT4/2000/XP
1 Installation Procedure
1.1 Installing the card into the host computer
1.1.1 Turn the host computer off, insert the WLAN card into the PCI slot, turn on the computer and start
the Windows operating system (Windows XP preferred).
1.2 Installing the software drivers
1.2.1 When Windows detects new hardware and asks for drivers, point to the directory where the
Globespan Virata (GSV) driver is located (SingleSource_Windows_Driver_Package_2.1.15.0)
and look for the appropriate driver.
1.2.2 Run setup.exe within the PRISM_Basic_Options_Package_1.0.9.83 folder to install the utility and
settings window.
1.2.3 Restart Windows.
2 Using the Settings window
2.1 The device should appear in the Device Manager list (Figure 2.1) when the card is inserted

Eazix, Inc.
Unit 301 Plaz@ B, 6530 Northgate Avenue,
Filinvest Corporate City,
Alabang, Muntinlupa City, Philippines 1700
Document #:
R.EZWFDI01.HW13.01
Title:
EZWFDI01 User Manual
Page #:
2of18
COMPANY CONFIDENTIAL INFORMATION
Copyright © 2004 Eazix, Inc. All rights reserved.
Uncontrolled and unofficial unless directly viewed from Eazix eDMS
Figure 2.1 Device Manager
2.2 The GSV WLAN icon will appear in the system tray at the bottom right of the screen (Figure 2.2)
Figure 2.2 GSV icon
Notes:
The device name in the Device Manager list may not exactly appear as in Figure 2.1. The number after
PRISM 802.11a/g Adapter (3886) # depends on the association of the driver with the device.

Eazix, Inc.
Unit 301 Plaz@ B, 6530 Northgate Avenue,
Filinvest Corporate City,
Alabang, Muntinlupa City, Philippines 1700
Document #:
R.EZWFDI01.HW13.01
Title:
EZWFDI01 User Manual
Page #:
3of18
COMPANY CONFIDENTIAL INFORMATION
Copyright © 2004 Eazix, Inc. All rights reserved.
Uncontrolled and unofficial unless directly viewed from Eazix eDMS
The GSV icon may not immediately appear as in Figure 2.2. It may show up as colored red or with a
red X over it, if the device and software are not yet properly configured.
Reminders:
The Network Connection icon will appear in the system tray at the bottom right of the screen if the
“Show icon in notification area when connected” option is checked in the General tab of the Wireless
Network Connection Properties window (Figure 2.3)
(Start -> Control Panel -> Network Connections -> Wireless Network Connection -> Properties ->
General tab)
Figure 2.3
The complete tabs of the GSV WLAN settings window will be shown if the “Use Windows to configure
my wireless network settings” option is unchecked in the Wireless Networks tab of the Wireless
Network Connection Properties window (Figure 2.4)

Eazix, Inc.
Unit 301 Plaz@ B, 6530 Northgate Avenue,
Filinvest Corporate City,
Alabang, Muntinlupa City, Philippines 1700
Document #:
R.EZWFDI01.HW13.01
Title:
EZWFDI01 User Manual
Page #:
4of18
COMPANY CONFIDENTIAL INFORMATION
Copyright © 2004 Eazix, Inc. All rights reserved.
Uncontrolled and unofficial unless directly viewed from Eazix eDMS
(Network Connection icon -> Properties -> Wireless Networks tab)
Figure 2.4
2.3 Double-click the GSV icon to open the WLAN settings window (Figure 2.5)

Eazix, Inc.
Unit 301 Plaz@ B, 6530 Northgate Avenue,
Filinvest Corporate City,
Alabang, Muntinlupa City, Philippines 1700
Document #:
R.EZWFDI01.HW13.01
Title:
EZWFDI01 User Manual
Page #:
5of18
COMPANY CONFIDENTIAL INFORMATION
Copyright © 2004 Eazix, Inc. All rights reserved.
Uncontrolled and unofficial unless directly viewed from Eazix eDMS
Figure 2.5 WLAN Settings window
2.4 Click on the Status tab to display the connection status: State, Current Tx Rate, Current Channel, Tx
and Rx Throughput, Link Quality and Signal Strength (Figure 2.5)

Eazix, Inc.
Unit 301 Plaz@ B, 6530 Northgate Avenue,
Filinvest Corporate City,
Alabang, Muntinlupa City, Philippines 1700
Document #:
R.EZWFDI01.HW13.01
Title:
EZWFDI01 User Manual
Page #:
6of18
COMPANY CONFIDENTIAL INFORMATION
Copyright © 2004 Eazix, Inc. All rights reserved.
Uncontrolled and unofficial unless directly viewed from Eazix eDMS
2.5 Click on the Configuration tab and place the required settings (Figure 2.6)
2.5.1 Type the Network Name
2.5.2 Select the Network Type: Access Point or Peer-to-Peer
2.5.3 Save the Profile for later use
Figure 2.6 Configuration tab

Eazix, Inc.
Unit 301 Plaz@ B, 6530 Northgate Avenue,
Filinvest Corporate City,
Alabang, Muntinlupa City, Philippines 1700
Document #:
R.EZWFDI01.HW13.01
Title:
EZWFDI01 User Manual
Page #:
7of18
COMPANY CONFIDENTIAL INFORMATION
Copyright © 2004 Eazix, Inc. All rights reserved.
Uncontrolled and unofficial unless directly viewed from Eazix eDMS
2.6 Click on the WEP tab and fill out with the necessary settings (Figure 2.7)
2.6.1 Select the required Encryption (WEP security) type: Disabled, 64 bit, 128 bit
2.6.2 Create encryption Keys, if needed
2.6.3 Select which WEP Key to use when trying to connect
Figure 2.7 WEP tab

Eazix, Inc.
Unit 301 Plaz@ B, 6530 Northgate Avenue,
Filinvest Corporate City,
Alabang, Muntinlupa City, Philippines 1700
Document #:
R.EZWFDI01.HW13.01
Title:
EZWFDI01 User Manual
Page #:
8of18
COMPANY CONFIDENTIAL INFORMATION
Copyright © 2004 Eazix, Inc. All rights reserved.
Uncontrolled and unofficial unless directly viewed from Eazix eDMS
2.7 Click on the Security tab (Figure 2.8)
2.7.1 Select the Authentication Type
2.7.2 Select the Authentication Mode: Open, Shared, AutoSwitch
2.7.3 Tick Allow Mixed Cells, as needed
Figure 2.8 Security tab

Eazix, Inc.
Unit 301 Plaz@ B, 6530 Northgate Avenue,
Filinvest Corporate City,
Alabang, Muntinlupa City, Philippines 1700
Document #:
R.EZWFDI01.HW13.01
Title:
EZWFDI01 User Manual
Page #:
9of18
COMPANY CONFIDENTIAL INFORMATION
Copyright © 2004 Eazix, Inc. All rights reserved.
Uncontrolled and unofficial unless directly viewed from Eazix eDMS
2.8 Click on the Bands tab (Figure 2.9)
2.8.1 Select the Band: Any, 2.4 GHz only, 5 GHz only
2.8.2 Select the Band Preference: Any, 2.4 GHz over 5, 5 GHz over 2.4
2.8.3 Select the IBSS Channel: Channels 1-11 (2.4 GHz), 36-165 (5 GHz)
Figure 2.9 Bands tab

Eazix, Inc.
Unit 301 Plaz@ B, 6530 Northgate Avenue,
Filinvest Corporate City,
Alabang, Muntinlupa City, Philippines 1700
Document #:
R.EZWFDI01.HW13.01
Title:
EZWFDI01 User Manual
Page #:
10 of18
COMPANY CONFIDENTIAL INFORMATION
Copyright © 2004 Eazix, Inc. All rights reserved.
Uncontrolled and unofficial unless directly viewed from Eazix eDMS
2.9 Click on the Domain tab (Figure 2.10)
2.9.1 Select the 802.11d support: None, Strict, Flexible
2.9.2 Choose the Countries/Domains
Figure 2.10 Domain tab

Eazix, Inc.
Unit 301 Plaz@ B, 6530 Northgate Avenue,
Filinvest Corporate City,
Alabang, Muntinlupa City, Philippines 1700
Document #:
R.EZWFDI01.HW13.01
Title:
EZWFDI01 User Manual
Page #:
11 of18
COMPANY CONFIDENTIAL INFORMATION
Copyright © 2004 Eazix, Inc. All rights reserved.
Uncontrolled and unofficial unless directly viewed from Eazix eDMS
2.10 Click on the About tab to display the details of the Network Driver, Configuration Utility and NIC
Firmware (Figure 2.11)
Figure 2.11 About tab

Eazix, Inc.
Unit 301 Plaz@ B, 6530 Northgate Avenue,
Filinvest Corporate City,
Alabang, Muntinlupa City, Philippines 1700
Document #:
R.EZWFDI01.HW13.01
Title:
EZWFDI01 User Manual
Page #:
12 of18
COMPANY CONFIDENTIAL INFORMATION
Copyright © 2004 Eazix, Inc. All rights reserved.
Uncontrolled and unofficial unless directly viewed from Eazix eDMS
3 Connecting the WLAN Card to the Access Point
3.1 GSV Utility

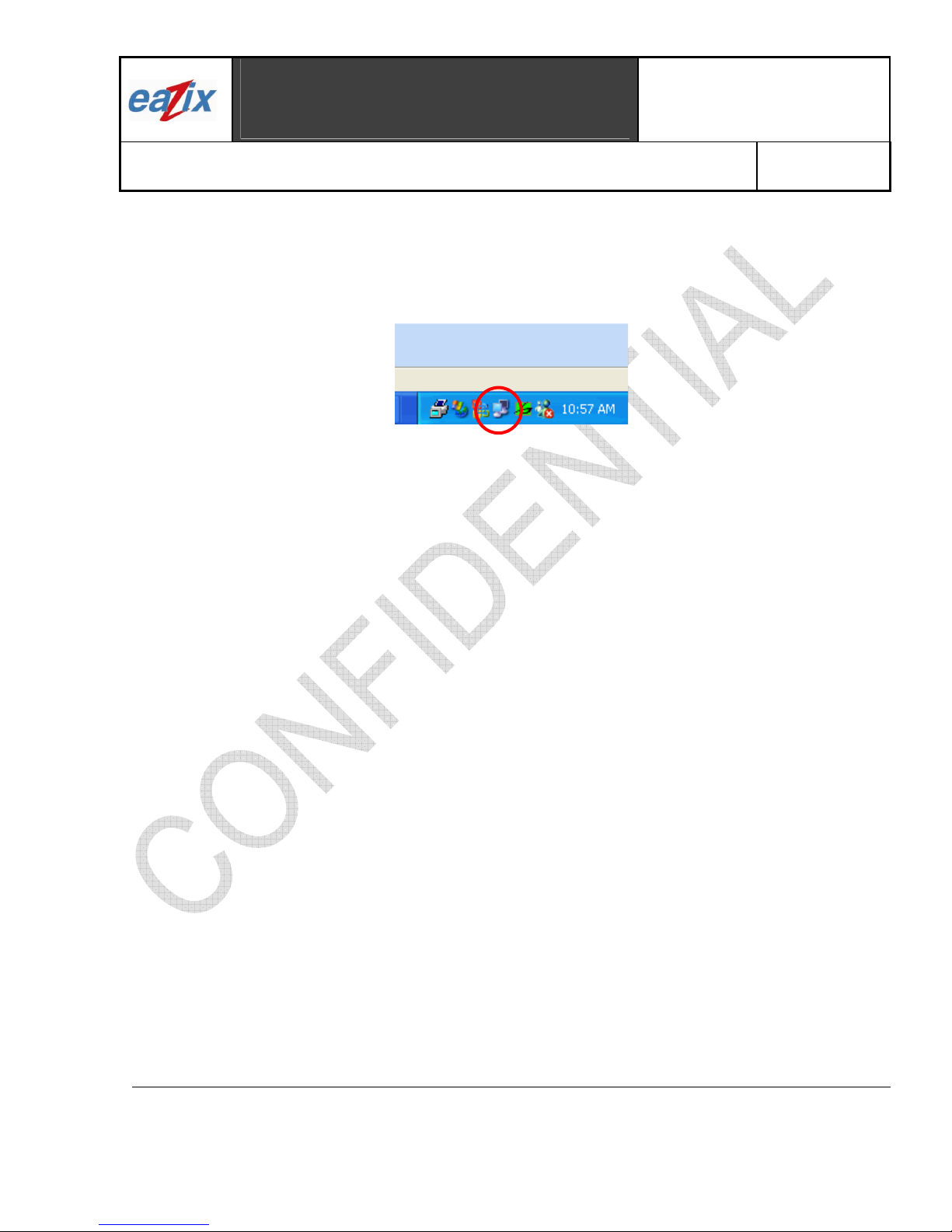

3.1.1 Click on the Network Connection icon in the system tray at the bottom right of the screen (Figure
3.1)
Figure 3.1 Network Connection icon
3.1.2 Click on the Properties button
3.1.3 Click on the Wireless Networks tab
3.1.4 Uncheck the “Use Windows to configure my wireless network settings” option (Figure 3.2)
3.1.5 Click OK
3.1.6 Double-click on the GSV icon in the system tray
3.1.7 Click on the Configuration tab
3.1.8 Fill out the Network Name
3.1.9 Select Access Point on the Network Type
3.1.10 Click on the WEP tab if the network requires authentication. Select the Encryption type. Type in
the WEP key(s). Choose which key to use.
3.1.11 Click Apply or OK

Eazix, Inc.
Unit 301 Plaz@ B, 6530 Northgate Avenue,
Filinvest Corporate City,
Alabang, Muntinlupa City, Philippines 1700
Document #:
R.EZWFDI01.HW13.01
Title:
EZWFDI01 User Manual
Page #:
13 of18
COMPANY CONFIDENTIAL INFORMATION
Copyright © 2004 Eazix, Inc. All rights reserved.
Uncontrolled and unofficial unless directly viewed from Eazix eDMS

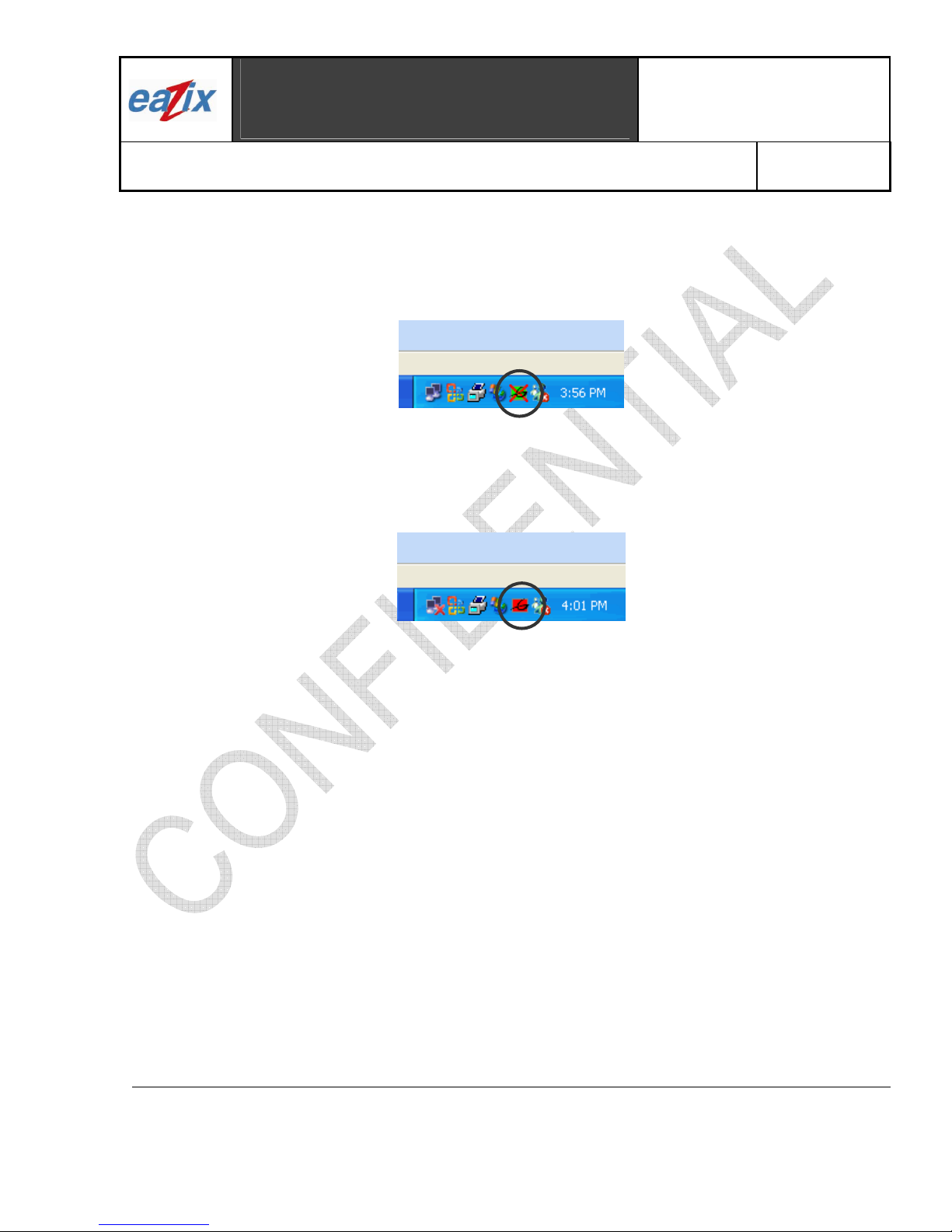

Notes:
The GSV icon is colored green if there is a proper wireless connection between the card and the
Access Point.
If the GSV icon is colored green with a red X over it (Figure 3.3), then a connection exists but
there is a problem in authentication (wrong WEP key, if it is required).
Figure 3.3
If the GSV icon is colored red (Figure 3.4), then a link cannot be established between the WLAN
card and the Access Point.
Figure 3.4
3.2 Windows Utility
3.2.1 Click on the Network Connection icon in the system tray
3.2.2 Click on the Properties button.
3.2.3 Click on the the Wireless Networks tab
3.2.4 Check the “Use Windows to configure my wireless network settings” option
3.2.5 Click on the Advanced button.
3.2.6 Choose the “Any available network (access point preferred)” or the “Access Point (infrastructure)
networks only” option (Figure 3.5).
3.2.7 Press Close

Eazix, Inc.
Unit 301 Plaz@ B, 6530 Northgate Avenue,
Filinvest Corporate City,
Alabang, Muntinlupa City, Philippines 1700
Document #:
R.EZWFDI01.HW13.01
Title:
EZWFDI01 User Manual
Page #:
14 of18
COMPANY CONFIDENTIAL INFORMATION
Copyright © 2004 Eazix, Inc. All rights reserved.
Uncontrolled and unofficial unless directly viewed from Eazix eDMS

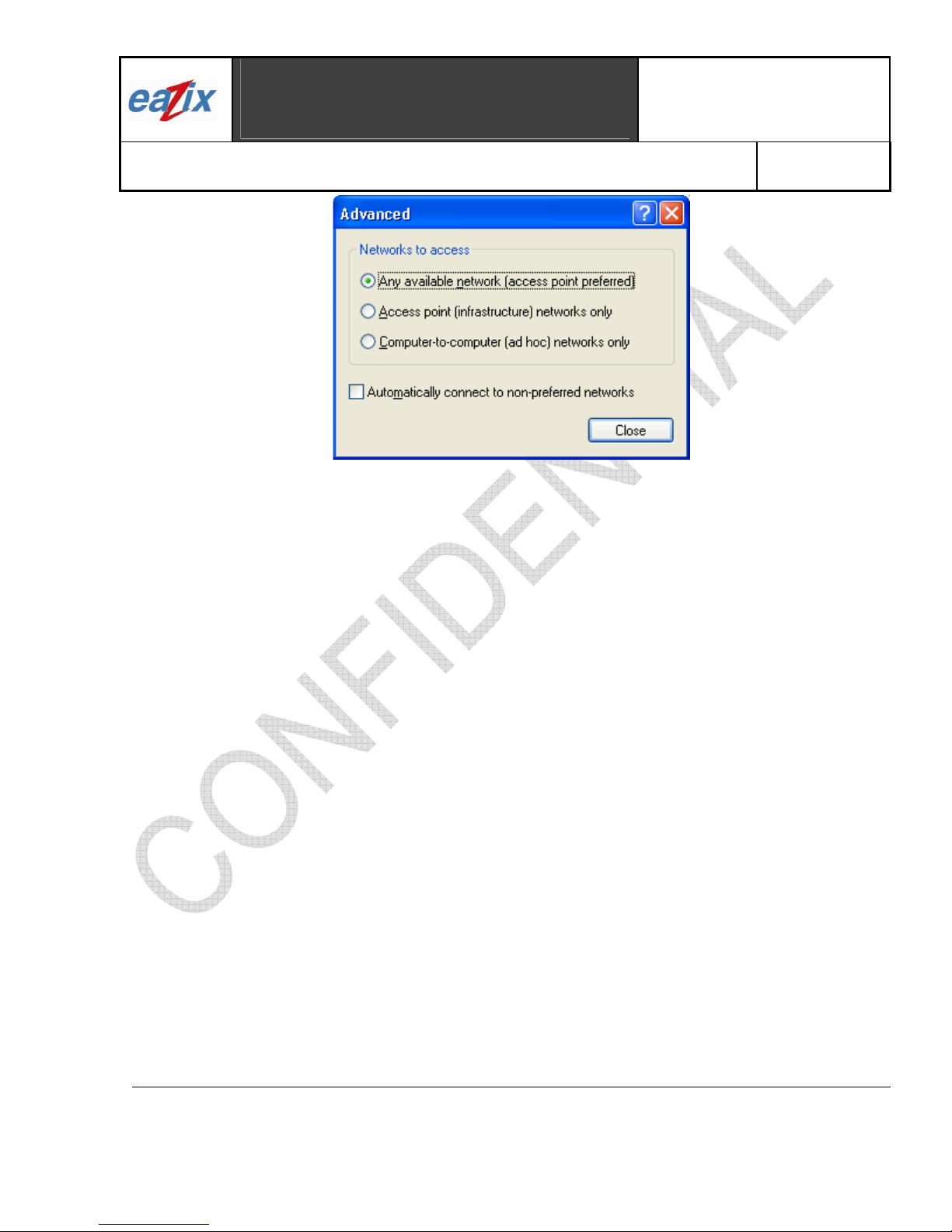

Figure 3.5 Advanced options
3.2.8 Add an Access Point to the Preferred networks. Select from the Available Networks list
3.2.9 Fill out the Network Name (SSID) and check the appropriate options (Figure 3.6). Type the
Network Key, if required
3.2.10 Click OK
3.2.11 Add as many Access Points as applicable

Eazix, Inc.
Unit 301 Plaz@ B, 6530 Northgate Avenue,
Filinvest Corporate City,
Alabang, Muntinlupa City, Philippines 1700
Document #:
R.EZWFDI01.HW13.01
Title:
EZWFDI01 User Manual
Page #:
15 of18
COMPANY CONFIDENTIAL INFORMATION
Copyright © 2004 Eazix, Inc. All rights reserved.
Uncontrolled and unofficial unless directly viewed from Eazix eDMS
Figure 3.6 Wireless Network Properties
3.2.12 Move the items in the Preferred Networks list up or down. Automatic connection will be made in
top-to-bottom order
3.2.13 Click OK
3.2.14 Right-click on the Network Connection icon in the system tray. Select the “View Available
Networks” option
3.2.15 Choose an Access Point from the Available Networks list (Figure 3.7)
3.2.16 Type the Network Key, if necessary
3.2.17 Press Connect
Note: Click on the Advanced button to go to the Wireless Networks tab directly.

Eazix, Inc.
Unit 301 Plaz@ B, 6530 Northgate Avenue,
Filinvest Corporate City,
Alabang, Muntinlupa City, Philippines 1700
Document #:
R.EZWFDI01.HW13.01
Title:
EZWFDI01 User Manual
Page #:
16 of18
COMPANY CONFIDENTIAL INFORMATION
Copyright © 2004 Eazix, Inc. All rights reserved.
Uncontrolled and unofficial unless directly viewed from Eazix eDMS
Figure 3.7 List of available networks
Notes:
The Network Connection icon is blinking (flashing, Figure 3.8) if there is a proper wireless
connection between the card and the Access Point.
Figure 3.8
If the Network Connection icon is not blinking (Figure 3.9), then a connection exists but there is a
problem in authentication (wrong WEP key, if it is required).
Figure 3.9

Eazix, Inc.
Unit 301 Plaz@ B, 6530 Northgate Avenue,
Filinvest Corporate City,
Alabang, Muntinlupa City, Philippines 1700
Document #:
R.EZWFDI01.HW13.01
Title:
EZWFDI01 User Manual
Page #:
17of18
COMPANY CONFIDENTIAL INFORMATION
Copyright © 2004 Eazix, Inc. All rights reserved.
Uncontrolled and unofficial unless directly viewed from Eazix eDMS
If the Network Connection icon has a red X beside it (Figure 3.10), then a link cannot be
established between the WLAN card and the Access Point.
Figure 3.10
4 Technical Specifications
Radio Technology IEEE 802.11g Turbo (DSSS and OFDM)
Operating Frequency 2412 – 2484 MHz (under ISM band)
Modulation Schemes DSSS: DQPSK, DBPSK, CCK
OFDM: 16QAM, 64QAM
RF Channel Availability United States: 11 channels (2412 MHz to 2462 MHz)
Europe: 13 channels (2412 MHz to 2472 MHz)
Japan: 13 channels (2412 MHz to 2472 MHz); channel 14 (2484 MHz)
only available in DSSS mode (11 Mbps max)
Data Rate OFDM: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps
CCK: 11 and 5.5 Mbps
QPSK: 2 Mbps
BPSK: 1 Mbps
Media Access Protocol CSMA/CA with ACK
Transmitter RF Output Power < 20.0 dBm EIRP (typical) including antenna gain
AntennaType1dBiratedgain
Operating Voltage 3.3 Vdc (PCI slot of host computer)
Interface PCI-32
Device Driver Support Microsoft Windows 98SE/ME/NT4/2000/XP
