Ebyte E103-W05A User manual

Chengdu Ebyte Electronic Technology Co., Ltd. E03-W05A User Manual
E103-W05A User Manual
W600 2.4GHz DIP Cost-effective WIFI module

Chengdu Ebyte Electronic Technology Co., Ltd. E03-W05A User Manual
Copyright ©2012–2018，Chengdu Ebyte Electronic Technology Co., Ltd
1
Contents
Chapter 1 Overview........................................................................................................................................................3
1.1 Introduction.......................................................................................................................................................3
1.2 Features.............................................................................................................................................................3
1.3 Application scenarios........................................................................................................................................4
Chapter 2 Specifications.................................................................................................................................................5
2.1 Limit parameters...............................................................................................................................................5
2.2 Operating parameter......................................................................................................................................... 5
Chapter 3 Size and pin definition................................................................................................................................... 6
Chapter 4 Basic Operation..............................................................................................................................................7
4.1 Hardware design............................................................................................................................................... 7
4.2 Software writing............................................................................................................................................... 8
Chapter 5 Basic Application........................................................................................................................................... 9
5.1 Basic circuit...................................................................................................................................................... 9
5.2 Basic usage....................................................................................................................................................... 9
Chapter 6 Quick Start................................................................................................................................................... 10
6.1 Preparation before configuration....................................................................................................................10
6.2 Application of TCP Server under AP............................................................................................................. 10
6.2.1 Application description........................................................................................................................10
6.2.2 Network Model....................................................................................................................................11
6.2.3 Parameter configuration...................................................................................................................... 11
6.3 The application of the TCP Client module working under STA....................................................................16
6.3.1 Application description........................................................................................................................16
6.3.2 Network Model....................................................................................................................................16
6.3.3 Parameter configuration...................................................................................................................... 16
6.3 The use of one-key distribution network (AIRKISS).................................................................................... 20
6.3.1 Network distribution preparation........................................................................................................ 21
6.3.2 Host computer configuration...............................................................................................................21
6.4 GPIO configuration........................................................................................................................................ 22

Chengdu Ebyte Electronic Technology Co., Ltd. E03-W05A User Manual
Copyright ©2012–2020，Chengdu Ebyte Electronic Technology Co., Ltd
2
6.4.1 AT+CIOMODE Set the working mode of GPIO................................................................................ 22
6.4.2 AT+CIOWRITE Set the GPIO level................................................................................................... 23
6.4.3 AT+CIOREAD Read GPIO level........................................................................................................23
6.4.5 Pin application example...................................................................................................................... 23
6.5 Serial port baud rate setting............................................................................................................................24
Chapter 7 Frequently Asked Questions........................................................................................................................ 26
7.1 Transmission distance is not ideal..................................................................................................................26
7.2 Module is easily damaged.............................................................................................................................. 26
7.3 Precautions......................................................................................................................................................26
7.3.1 The relationship between AP&STA&Server&Client..........................................................................26
7.3.2 Note for transparent transmission....................................................................................................... 27
7.3.2 AP The maximum number of connections connected to the server....................................................27
7.3.2 AT command........................................................................................................................................28
Chapter 8 Welding Operation Guidance.......................................................................................................................29
8.1 Reflow temperature........................................................................................................................................ 29
8.2 Reflow profile.................................................................................................................................................29
Chapter 9 Related Models............................................................................................................................................ 30
Chapter 10 Antenna Guide........................................................................................................................................... 31
10.1 Recommendation of Antenna....................................................................................................................... 31
Revision history............................................................................................................................................................ 32
About us........................................................................................................................................................................32

Chengdu Ebyte Electronic Technology Co., Ltd. E03-W05A User Manual
Copyright ©2012–2018，Chengdu Ebyte Electronic Technology Co., Ltd
3
Chapter 1 Overview
1.1 Introduction
E105-W05A is a DIP module under the E103-W05 series (for the convenience of the following description,
collectively referred to as E105-W05 or W05 below), it is a low-cost,
cost-effective 100mW (20dBm) wireless Module, small size, with PCB
antenna, working in the 2.4~2.483GHz, low power consumption, fast data
stream transmission. The module can use the serial port for data
transmission and reception and AT command related parameter setting.
Secondly, E103-W05 AT command is large Partially compatible with the E103-W01 module, making it easy to use
and quick to use, both for old and new users, and is a good data transmission partner in the Internet of Things.
The E103-W05 module is developed by Chengdu Ebyte Electronic Technology Co., Ltd. based on the W600 chip
of Winner Micro. The module integrates transparent transmission function, ready to use, supports serial AT
command set, server AT command set, users can use the network access function through the serial port, and it is
widely used in smart home appliances, smart homes, wireless audio and video, smart toys, IoT application fields
such as medical monitoring and industrial control.
1.2 Features
Transparent transmission when booting, and automatic connection when disconnected;
Multiple baud rates;
Smart Config configuration function;
TCP Server, TCP Client, UDP;
Three working modes: STATION, AP, STATION≈
14mA low-power data reception;
Serial transparent transmission;
Multiple encryption methods;

Chengdu Ebyte Electronic Technology Co., Ltd. E03-W05A User Manual
Copyright ©2012–2020，Chengdu Ebyte Electronic Technology Co., Ltd
4
Module serial port AT command configuration;
Built-in watchdog, never crash;
Parameter memory, save when power off.；
1.3 Application scenarios
Wireless meter reading;
Wireless sensing;
Smart home;
Industrial remote control and telemetry;
Smart buildings;
High-voltage line detection;
Environmental engineering;
Highway;
Small weather station;
Automated data collection;
Consumer Electronics;
Smart robot;
Street light control;

Chengdu Ebyte Electronic Technology Co., Ltd. E03-W05A User Manual
Copyright ©2012–2020，Chengdu Ebyte Electronic Technology Co., Ltd
5
Chapter 2 Specifications
2.1 Limit parameters
Main parameters
Performance
Remark
Min
Max
Power supply voltage (V)
3.0
3.6
Over 3.6V will permanently burn the module
Blocking power (dBm)
-
20
It is less likely to burn when used at close
range
Working temperature (℃)
-40
+85
Industrial grade
2.2 Operating parameter
Main parameter
Performance
Remark
Min
Type
Max
Operating voltage（V）
3.0
3.3
3.6
≥3.3V can guarantee output power
Communication level (V)
-
3.3
3.6
It is recommended that the difference
between the supply voltage and the supply
voltage is less than 0.3V to reduce power
consumption
Operating temperature （℃）
-40
-
+85
Industrial design
Operating frequency （MHz）
2400
-
2484
802.11 b/g/n
Power
consumption
Emission current (mA)
-
230
-
Instantaneous power consumption
Receiving current (mA)
-
95
-
-
Sleep current (μA)
-
5.0
-
-
Maximum transmit power (dBm)
-
-
20.00
802.11 b Faith 11
Receiving sensitivity (dBm)
-
-89
-
OFDM, 6 Mbps
Communication
Network (bps)
1.0M
-
54.0M
802.11 b/g/n

Chengdu Ebyte Electronic Technology Co., Ltd. E03-W05A User Manual
Copyright ©2012–2020，Chengdu Ebyte Electronic Technology Co., Ltd
6
rate
Serial port (bps)
600
-
2.0M
User programmable customization
Main parameter
Description
Remark
Reference distance
130M
Clear and open, 2.5 meters high
Operating frequency
80MHz
-
Modulation
-
DSSS(DBPSK,DQPSK,CCK) and
OFDM(BPSK,QPSK,16QAM,64QAM)
Package
DIP
-
Communication Interface
Serial port
600bps～2.0Mbps
Dimensions
24.7*14.4*11.2mm
（±0.2mm）
PCB onboard antenna + DIP
RF interface
PCB
The default PCB antenna, the equivalent impedance is about
50Ω
Weight
1.20±0.1
Unit：g
Chapter 3 Size and pin definition

Chengdu Ebyte Electronic Technology Co., Ltd. E03-W05A User Manual
Copyright ©2012–2020，Chengdu Ebyte Electronic Technology Co., Ltd
7
No.
Pin item
Direction
Application
1
GND
P
Ground wire, connected to the power reference ground
2
NC
IO
Floating, GPIO0 of the internal chip, programming enable
pin, low level enable
3
NC
IO
Floating, GPIO16 of the internal chip can be used as input
and output pins
4
RXD
I
Serial port receiving pin, support AT command
5
TXD
O
Serial port sending pin, support AT command
6
NC
IO
Floating, WAKE pin of the chip, high level wake up
7
RST
I
Hardware reset pin, low level reset
8
VCC
P
Power supply, range 3.0～3.6V (standard 3.3V)
Note: I:input; O:output; P:power supply
Chapter 4 Basic Operation
4.1 Hardware design
It is recommended to use a DC stabilized power supply to supply power to the module. The power supply ripple
factor should be as small as possible, and the module should be grounded reliably.；
Please pay attention to the correct connection of the positive and negative poles of the power supply. Reverse
connection may cause permanent damage to the module；
Please check the power supply to ensure that it is between the recommended supply voltages. If the maximum value
is exceeded, the module will be permanently damaged；
Please check the stability of the power supply, the voltage should not fluctuate greatly and frequently；
When designing the power supply circuit for the module, it is often recommended to reserve more than 30% margin,
because the whole machine is conducive to long-term stable operation；
The module should be as far away as possible from the power supply, transformer, high-frequency wiring and other
parts with large electromagnetic interference；
High-frequency digital wiring, high-frequency analog wiring, and power wiring must avoid the bottom of the

Chengdu Ebyte Electronic Technology Co., Ltd. E03-W05A User Manual
Copyright ©2012–2020，Chengdu Ebyte Electronic Technology Co., Ltd
8
module. If it is necessary to pass under the module, assuming that the module is soldered to the Top Layer, lay
copper on the top layer of the contact part of the module (all copper And well grounded), it must be close to the
digital part of the module and routed in the Bottom Layer；
Assuming that the module is soldered or placed on the Top Layer, it is also wrong to randomly route the wires on
the Bottom Layer or other layers, which will affect the stray and receiving sensitivity of the module to varying
degrees；
Assuming that there are devices with large electromagnetic interference around the module, it will greatly affect the
performance of the module. According to the intensity of the interference, it is recommended to stay away from the
module. If the situation permits, proper isolation and shielding can be done.；
Assuming that there are traces with large electromagnetic interference around the module (high-frequency digital,
high-frequency analog, power wiring), it will also greatly affect the performance of the module. According to the
intensity of the interference, it is recommended to stay away from the module. Isolation and shielding；
4.2 Software writing
The module chip solution is Winner Micro W600, and its driving method is completely equivalent to W600, and
users can operate according to the W600 chip book;
The GPIO15 and GPIO16 of the internal chip (external 2 and 3 pins) are general-purpose I/O ports, and the related
AT commands can be used for pins;

Chengdu Ebyte Electronic Technology Co., Ltd. E03-W05A User Manual
Copyright ©2012–2020，Chengdu Ebyte Electronic Technology Co., Ltd
9
Chapter 5 Basic Application
5.1 Basic circuit
5.2 Basic usage
No.
How to use
Descriptions
0
Module to module
communication
Module 1 is set to AP mode and establishes a TCP or UDP server, module 2 is set to
STATION mode and connected to AP 1, and communicates with module 1 through
TCP or UDP Client
1
Module and Server
communication
The Wi-Fi module is connected to the network through a wireless router, and
communicates with a server on the network (LAN or Internet) through TCP Client or
UDP.
2
Module and Client
communication
If you need to connect to the Internet server, you need to configure the corresponding
port mapping on the router.

Chengdu Ebyte Electronic Technology Co., Ltd. E03-W05A User Manual
Copyright ©2012–2020，Chengdu Ebyte Electronic Technology Co., Ltd
10
Chapter 6 Quick Start

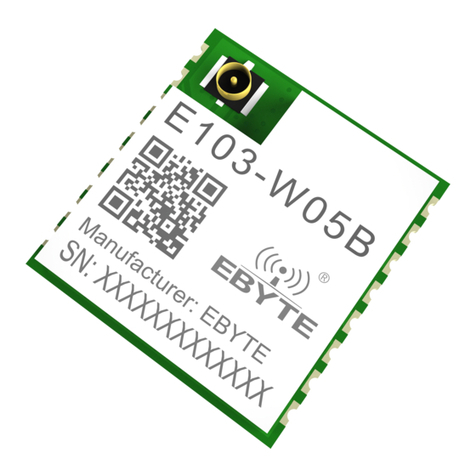

The E103-W05 module is easy to use and easy to access the network, and is compatible with most E103-W01 AT
commands in this section. Therefore, when using our E103-W05, you can also use the E103-W01 host computer to
easily achieve For the parameter settings of E103-W05, users are guided to use the product through communication
examples between the module and the module, the module and the server, and the module and the client.
When the user configures the parameters of the module, first of all, the user needs to ensure that the working
voltage of the module is 3.0~3.6V (typical value is 3.3V), the serial port pins have been correctly connected to the
relevant serial port tools and can communicate normally.
6.1 Preparation before configuration
Hardware used in this section ：
1
E103-W05 Wi-Fi module
2
E103-W05 model Wi-Fi module test board
3
Office computer
4
1 router (can be replaced by mobile phone Wi-Fi hotspot)
Software used in this section (all available for download on the official website):
1
Serial debugging assistant AccessPort/XCOM
2
TCP&UDP test tool
3
Airkiss related app "AirkissDebug"
4
PC software of E103-W01
6.2 Application of TCP Server under AP
6.2.1 Application description
We search for the hot spots of the E103-W05 module through the computer and connect, establish a TCP Client on

Chengdu Ebyte Electronic Technology Co., Ltd. E03-W05A User Manual
Copyright ©2012–2020，Chengdu Ebyte Electronic Technology Co., Ltd
11
the PC and connect to the port monitored by the TCP Server of the module, and realize the communication process.
6.2.2 Network Model
6.2.3 Parameter configuration
①Open the E103-W01 configuration software, select the serial port number and baud rate (default 115200), query
the version information, and check whether there is version-related data in the receiving box. If there is, it means
the communication is normal. As shown below:

Chengdu Ebyte Electronic Technology Co., Ltd. E03-W05A User Manual
Copyright ©2012–2020，Chengdu Ebyte Electronic Technology Co., Ltd
12

Chengdu Ebyte Electronic Technology Co., Ltd. E03-W05A User Manual
Copyright ©2012–2020，Chengdu Ebyte Electronic Technology Co., Ltd
13
②Set the working mode of the module to AP, and set related AP parameters, such as AP name, password,
encryption method, channel number, etc.
③After the setting is successful, we can search through the WIFI in the lower right corner of the computer to find
our module and connect it.

Chengdu Ebyte Electronic Technology Co., Ltd. E03-W05A User Manual
Copyright ©2012–2020，Chengdu Ebyte Electronic Technology Co., Ltd
14
④When connected, the module will print the following information, showing the MAC address of the connected
STA and the assigned IP address.
⑤Now we create TCP Server in the module and listen on the port

Chengdu Ebyte Electronic Technology Co., Ltd. E03-W05A User Manual
Copyright ©2012–2020，Chengdu Ebyte Electronic Technology Co., Ltd
15
⑥We build a client on the PC and connect to the client of the module, and then we can send data. Here, if the
server needs to send data to the client, we can send it through the AT+CIPSEND command. Here, users can
download the AT instruction manual of E103-W05 in the data download.

Chengdu Ebyte Electronic Technology Co., Ltd. E03-W05A User Manual
Copyright ©2012–2020，Chengdu Ebyte Electronic Technology Co., Ltd
16
6.3 The application of the TCP Client module working under STA
6.3.1 Application description
We use the E103-W05 module as the STA working mode to search for nearby WIFI and connect. At the same time,
the computer is also connected to the same WIFI, so that the E103-W05 and the computer are in the same local area
network. Create a TCP Client on the module side and create it on the computer side. TCP server, and then
communicate.
6.3.2 Network Model
6.3.3 Parameter configuration
①Set the module to STA mode and connect to the relevant WIFI hotspot (router). When the connection is
successful, the following information will be displayed in the receiving data box. At this time, we can query the
assigned IP information through IP information query.

Chengdu Ebyte Electronic Technology Co., Ltd. E03-W05A User Manual
Copyright ©2012–2020，Chengdu Ebyte Electronic Technology Co., Ltd
17
②. At this time, also connect our computer to the same wifi as the module, so that they are in a local area network.

Chengdu Ebyte Electronic Technology Co., Ltd. E03-W05A User Manual
Copyright ©2012–2020，Chengdu Ebyte Electronic Technology Co., Ltd
18
③On the computer, create a server and monitor the relevant ports.
④Set up the module and connect to the server. When the connection is successful, the receiving box will have the

Chengdu Ebyte Electronic Technology Co., Ltd. E03-W05A User Manual
Copyright ©2012–2020，Chengdu Ebyte Electronic Technology Co., Ltd
19
following prompt message.
⑤After successfully connecting to the server, we can perform data communication between the server and the
client, but here, in order to achieve simple data transmission, we need to make some settings to enter the
transparent transmission mode, so that we can avoid sending data every time. The awkward operation of specifying
the width. After the client connects to the server, perform the following operations to enter the transparent
transmission.
