Echelon REFLECT TOUCH User manual
INSTRUCTION MANUAL
REFLECT TOUCH
2
3
Hello,
I am Lou Lentine, President of Echelon, and I would like to welcome you to the Echelon community. You’ve
made a great decision for yourself and your family. The Echelon Experience is an innovative combination
connects your family, friends, the Echelon community, and Echelon instructors together to help you with
there is always a new and exciting class for you to join.
through workout experiences that make an active lifestyle more accessible and sustainable.
Thank you again for choosing Echelon and I look forward to seeing you in the next live class!
Best personal regards,
Lou Lentine
4
INCLUDES

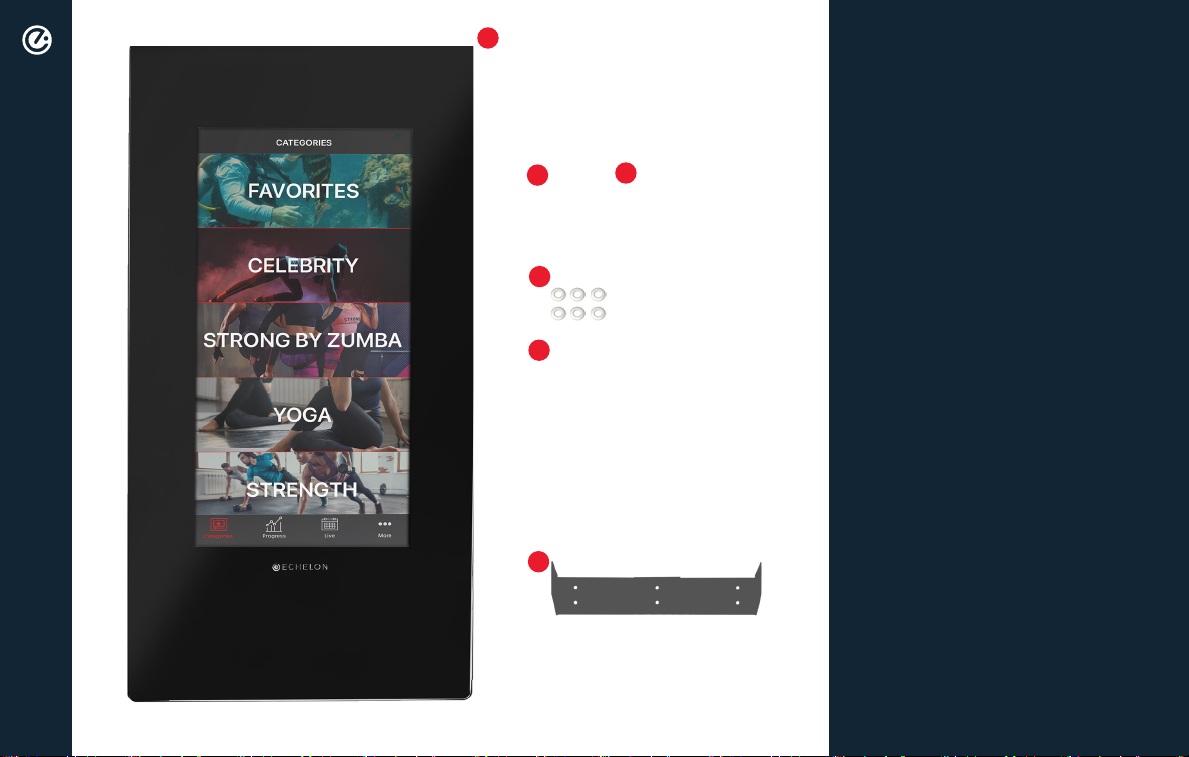

PARTS LIST
1. Echelon®Reflect
Fitness Mirror
2. Bolt (4)
3. Lag screw (2)
4. Washer (6)
4. Zip toggle anchor (4)
6. Wall mount
1
4
23
5
6
5
QUICK START GUIDE
ACCOUNT CREATION
If this product was purchased on the echelont.com website, you should have received
an activation email.
Go to member.echelont.com and follow the on-screen instructions to choose a plan and setup
your account. This info will be needed to login to your account on the Echelon FitTM App.
All account info and plans are managed at member.echelont.com and use the same login. After creating your
account login on member.echelont.com, write down your login info. This will be the same login for the App.
1. Choose "sign up now"
2. Select Purchase location
3. Choose your plan
Monthly / 1 Year / 2 Year
Select purchase location and follow
the on-screen instructions.
4. Set up payment method
5. ENTER PERSONAL ACCOUNT INFO
6. View YOUR ACCOUNT
Where you can edit your billing info, add
family members, manage subscriptions,
and (if on your mobile device) download
the app and sign in.
6
INSTALLING THE MOUNT
The Echelon®
NOTE: Standard installation height is 69" to the top of the wall mount.
5. Snap off excess plastic from the
zip toggle.
4. Insert zip toggles into 1/2" holes
and push the zip toggle plate
* Ensure eyelet of zip toggle is oriented as
shown above.
2. Mark all six holes by pressing the
tip of a lag screw through the
center of each cross mark.
* Ensure that you press hard enough to
leave a hole in the drywall behind the
template.
3. Using a 9/64” drill bit, drill two
pilot holes for the lag screws.
Using a 1/2” drill bit, drill four
holes for the zip toggles.
STUD MARK 9/64" 1/2"
1. Locate stud within the wall you
and mark with a pencil. Level
and tape wall mount template
with middle two cross marks
centered over stud mark.
6. Hand screw in bolts into the
zip toggles. Use drill to tighten
down.
*If installing onto an insulated wall, ensure
anchor sits ush inside inner wall before
tightening down.
7
setup tutorial videos available at
https://www.echelont.com/help
or simply scan the QR code.
ASSEMBLY

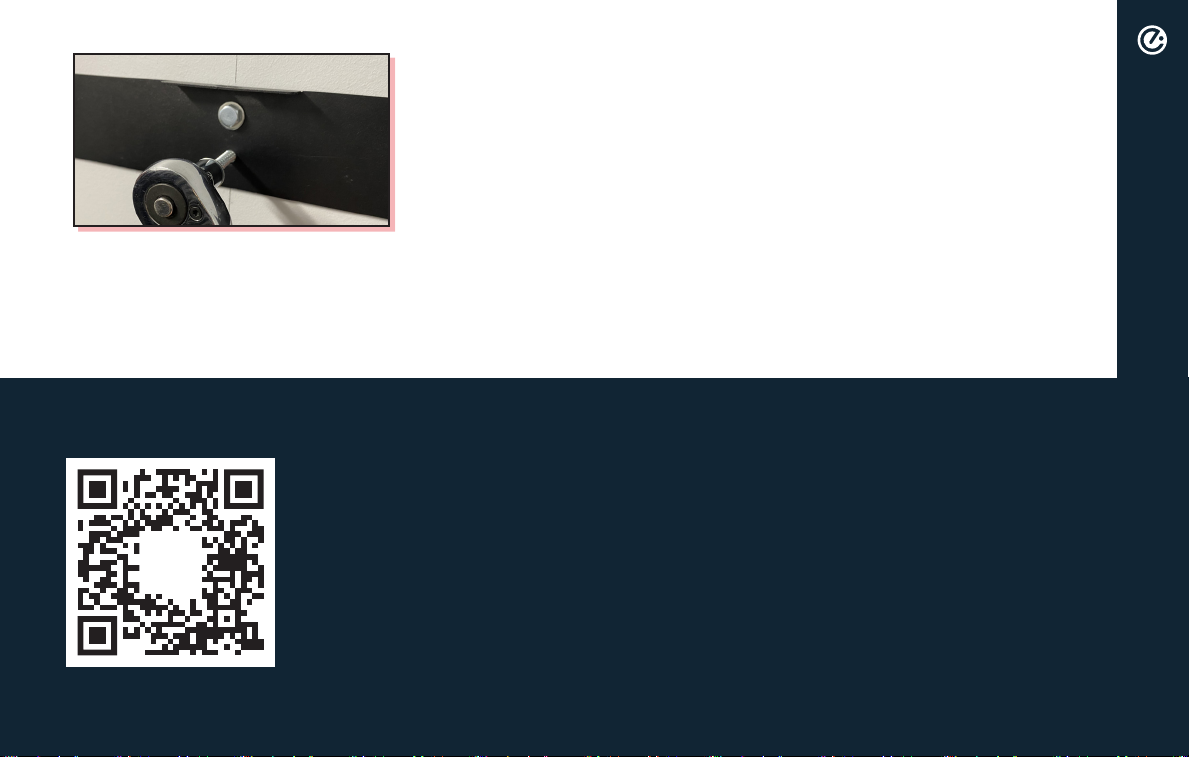

7. Drive in the two lag screws into
8

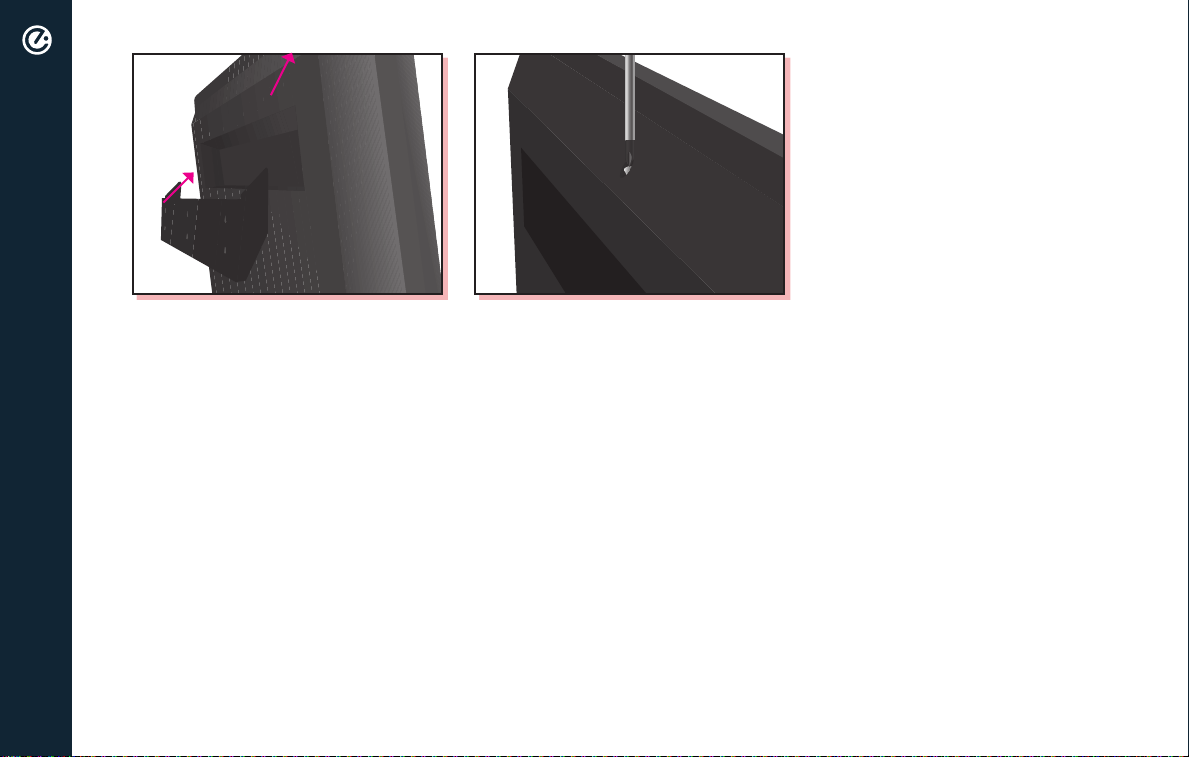

HANGING REFLECT ON MOUNT
mount as shown above.
2. Using a Philips screwdriver,
drive in the screw located
above bracket to secure.
BACK
The Reect may also be attached to a 200 x 200mm VESA mount stand.
NOTE:
9
FOLDING
THE ECHELON®
®
10
FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT
15.21
15.105(B)
IS CONNECTED.
FCC RF RADIATION EXPOSURE STATEMENT:
OR TRANSMITTER.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS:
UNDESIRED OPERATION.
SAFETY INFO AND WARNINGS
11
INNOVATION, SCIENCE AND ECONOMIC DEVELOPMENT CANADA (ISED)
INNOVATION, SCIENCE ET DÉVELOPPEMENT ÉCONOMIQUE CANADA (ISED)
CANADIAN NOTICE
AVIS CANADIEN
CAUTION: EXPOSURE TO RADIO FREQUENCY RADIATION.
ATTENTION: EXPOSITION AU RAYONNEMENT RADIOFRÉQUENCE.
TRANSMETTEUR.
SAFETY INFO AND WARNINGS
12
WHILE CLEANING YOUR ECHELON® REFLECT, PLEASE USE A SOFT RAG WITH MILD DETERGENT OR WATER TO
WIPE DOWN THE MACHINE. DO NOT USE CORROSIVE CHEMICAL LIQUIDS WHICH MAY DAMAGE
THE COVER.
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using THE .
DANGER - To reduce the risk of electric shock:
1. Always unplug this appliance from the electrical outlet immediately after using and
before cleaning.
WARNING - To reduce the risk of burns, fire, electric shock, or
injury to persons.
1. An appliance should never be left unattended when plugged in. Unplug from outlet when not in
use, and before putting on or taking off parts.
or injury to persons.
3. This appliance is not intended for use by persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Keep children
under the age of 13 away from this machine.
SAFETY INFO AND WARNINGS
13
4. Use this appliance only for its intended use as described in this manual. Do not use
attachments not recommended by the manufacturer.
5. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if
it has been dropped or damaged, or dropped into water. Return the appliance to a service
center for examination and repair.
6. Do not carry this appliance by supply cord or use cord as a handle.
7. Keep the cord away from heated surfaces.
8. Never operate the appliance with the air openings blocked. Keep the air openings free of lint,
hair, and the like.
9. Never drop or insert any object into any opening.
10. Do not use outdoors.
11. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
12. To disconnect, turn all controls to the off position, then remove plug from outlet.
BEFORE starting any tness or strength program, consult with your physician or health
ofcial. This will ensure that you engage in the proper strength or tness program for your
age and physical condition.
Before using the Echelon®
· Have you been sick recently?
· Have you had prolonged dizziness recently?
· Have you been out of breath for no reason recently?
· Have you had chest pain recently?
SAFETY INFO AND WARNINGS
14
· Do you currently have any injuries preventing you from exercise?
· Are you pregnant?
· Do you have any conditions or reasons you should NOT exercise?
· Are you over 35 years old and physically inactive?
· Have you been told by a doctor that you should NOT exercise?
.
Read the user manual fully and follow all instructions. This ensures your safety.
®
®
•
tucked away. Ensure that shoelaces are tucked into your shoes.
•
•
or other pains, STOP IMMEDIATELY! Consult your physician before using the again.
•
absorb sweat from your body and the handlebars.
•
attachments may cause injury or damage to the mirror and will affect the warranty of the mirror.
• Echelon® is wiped down after each use to keep it sanitary.
SAFETY INFO AND WARNINGS
15
• Cleaning and user maintenance shall not be made by children without supervision.
If any problems arise affecting the performance of the Echelon®, contact the manufacturer
immediately. Always ensure that parts which undergo wear are checked regularly.
CHELON®
SAFETY INFO AND WARNINGS
Click Here to Read More....
Mobile friendly optimized manual:
Echelon Reflect Touch Fitness Mirror User Manual
16
833-937-2453 (+1.423.402.9010) cs@echelonfit.com
Customer Service / Le service a la clientele / Servicio al Consumidor
MADE IN
CHINA
Read Instructions
Before Operating
PATENT
PENDING
DO NOT DISPOSE OF BATTERIES IN FIRE. ALWAYS DISPOSE OF BATTERIES PER LOCAL & FEDERAL GUIDELINES.
© 2020 ECHELON FITNESS MULTIMEDIA, LLC. All specifications are subject to change without notice. All rights reserved.
Echelon Fitness Multimedia, LLC 6011 Century Oaks Dr. Chattanooga, TN 37416
Rev:
Echelon® warrants this product to be free of manufacturing defects. Should any such defect develop or become evident within one year from the date
of purchase, Echelon® will replace the entire product or, at its option, repair or replace the defective part(s) without charge.
Contact Echelon® customer service at 833-937-2453 or at cs@echelon.com to determine whether it is necessary to return the unit. To return, securely
pack the entire unit. Be sure carton clearly identifies sender by name and address. Attach a letter or card describing defect and original sales receipt.
Mail prepaid to Echelon Fitness Multimedia, LLC 6011 Century Oaks Dr. Chattanooga, TN 37416.
This warranty is void if damage or malfunction is due to abuse or failure to operate product in accordance with instructions and on recommended
electrical current. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If you have any
questions, or would like to learn more about Echelon®, please contact us at 833-937-2453 or at cs@echelonfit.com.
Register your product online at echelonfit.com/pages/register-warranty/
Model:
ECHELONFIT.COM
For questions, assistance, or replacement parts, do not return to your retailer. Contact Echelon® customer
service below. For refunds on items not purchased from Echelon® directly, please contact your retailer.
ECHELON®FIT 1-YEAR LIMITED WARRANTY
062920
ECH-REFL02
WARRANTY
