Eclipse AVN726E User manual

/ECLIPSE"
I
• English· 2
eEspanal 28
G Fran~ais •••• 54
Quick Start guide
cP
FUJITSU TEN

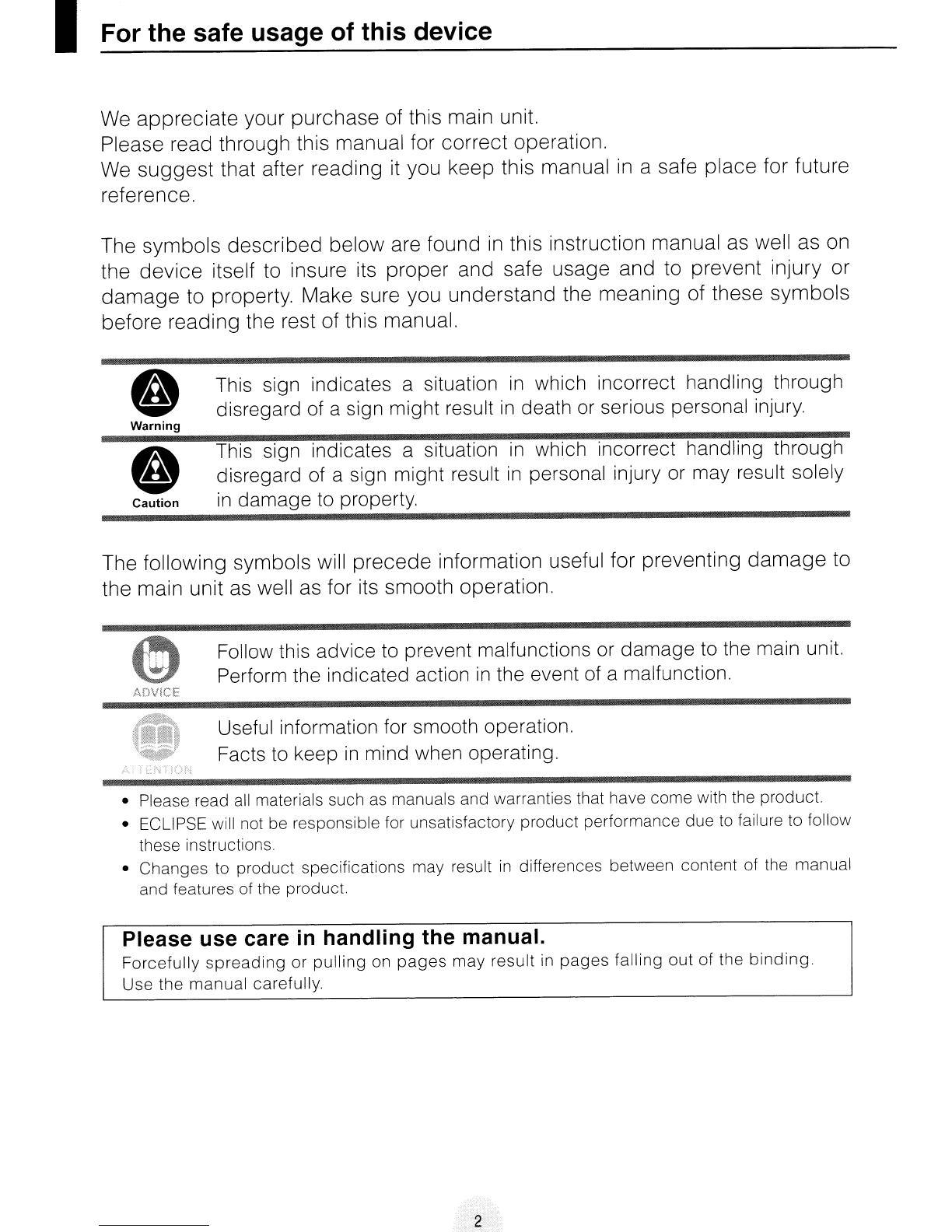

IFor the safe usage of this device
We appreciate your purchase of this main unit.
Please read through this manual for
correct operation.
We
suggest that after reading it you keep this manual in asafe place for future
reference.
The symbols
described below are found in this instruction manual as well as on
the
device itself to insure its proper and safe usage and to prevent injury or
damage to property. Make sure you understand the meaning of these symbols
before reading the rest of this manual.
e
Warning
Caution
This sign indicates asituation in which incorrect handling through
disregard of asign might result in death or serious personal injury.
This sign indicates asituation
in which incorrect handling through
disregard of asign might result in personal injury or may result solely
in damage to property.
The following symbols will
precede information useful for preventing damage to
the main unit as well as for its smooth operation.
Follow this advice
to prevent malfunctions or damage to the main unit.
Perform the indicated action in the event of amalfunction.
ADVICE
Useful information for smooth operation.
Facts
to keep in mind when operating.
•Please read all materials such as manuals and warranties that have come with the product.
•ECLIPSE will not be responsible for unsatisfactory product performance due
to failure to follow
these instructions
•Changes to product specifications may result in differences between content of the manual
and features of the product.
Please use care in handling the manual.
Forcefully spreading or pulling on pages may result in pages falling out of the binding.
Use the manual carefully.
2 .

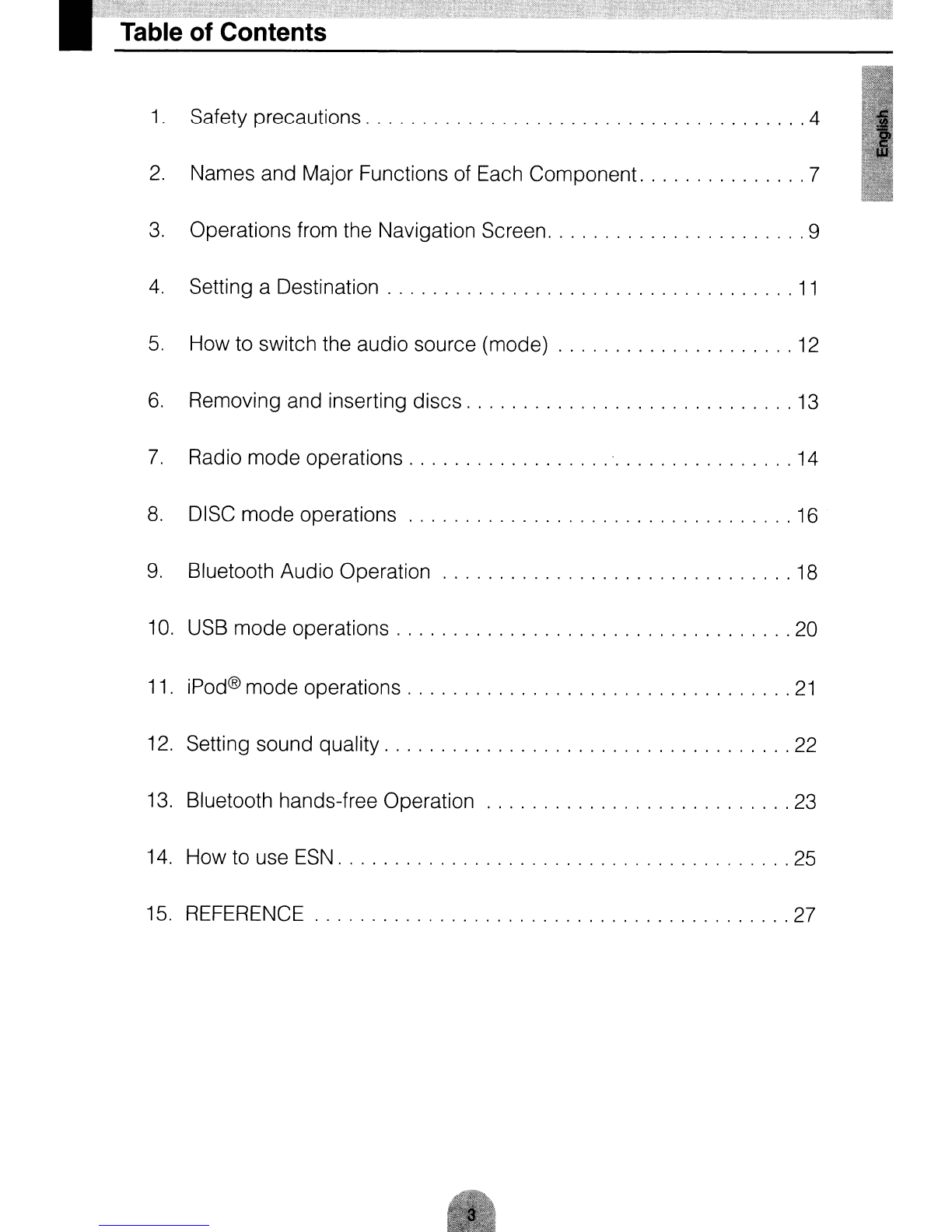

Table of Contents
1. Safety precautions 4
2. Names and Major Functions of Each Component 7
3. Operations from the Navigation Screen 9
4. Setting aDestination 11

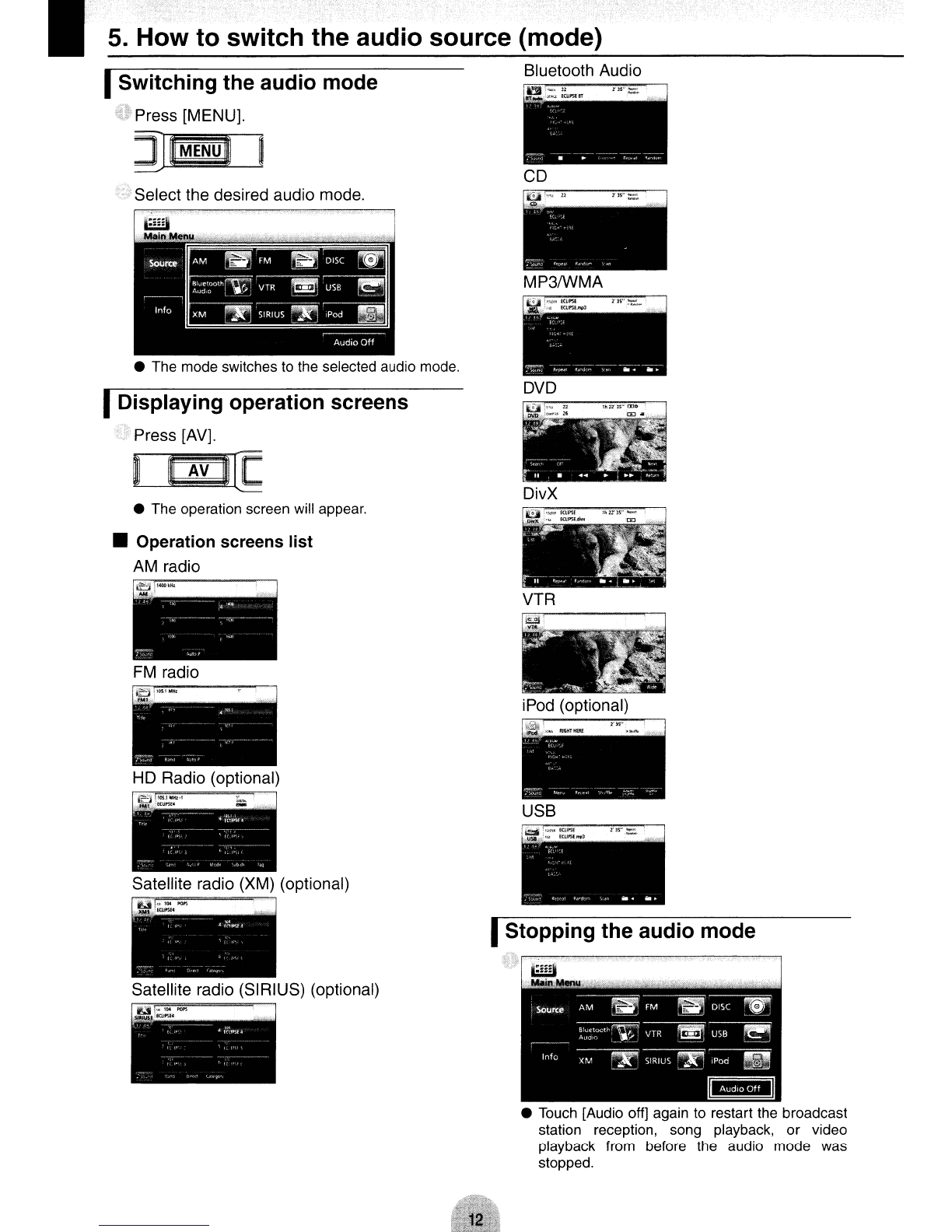

5. How to switch the audio source (mode) 12

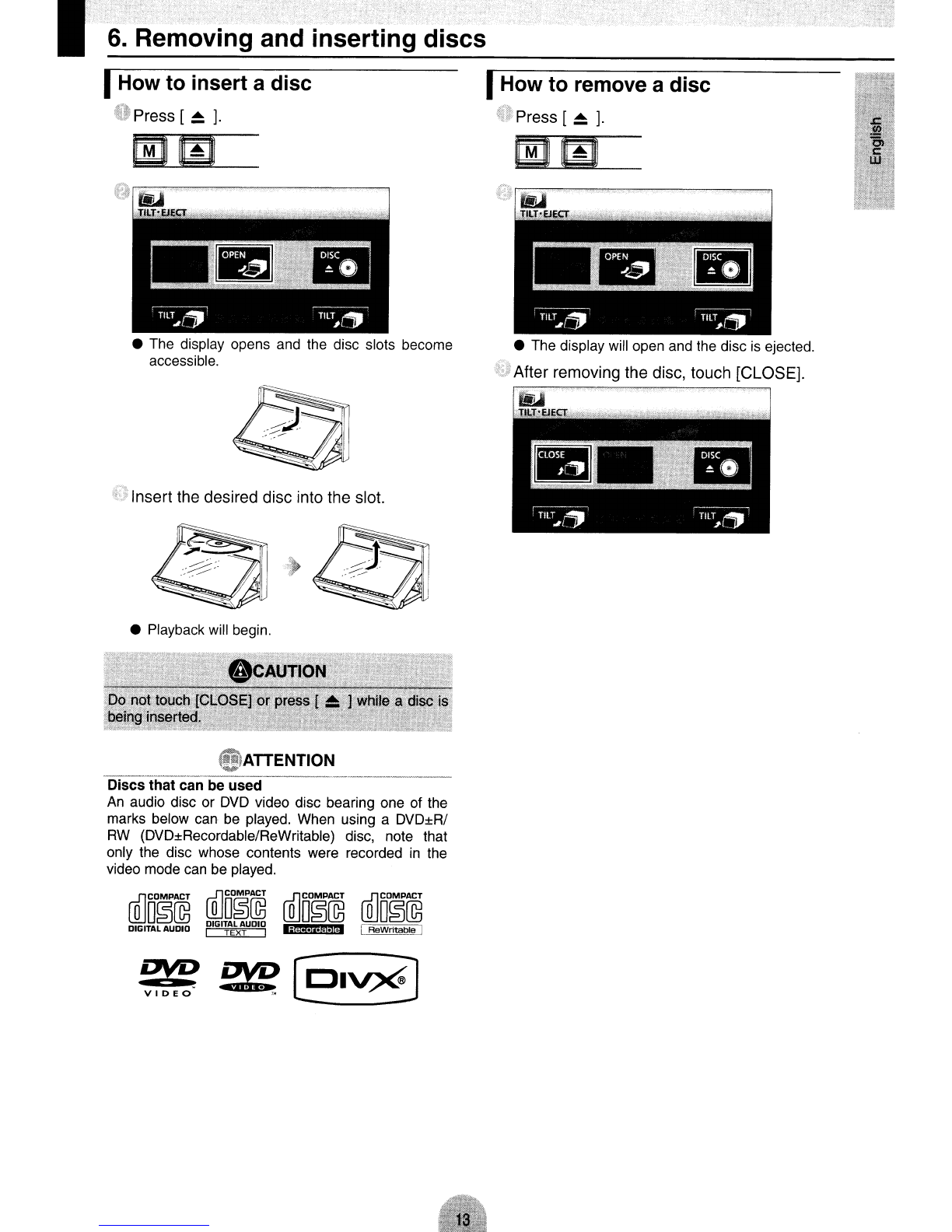

6. Removing and inserting discs 13

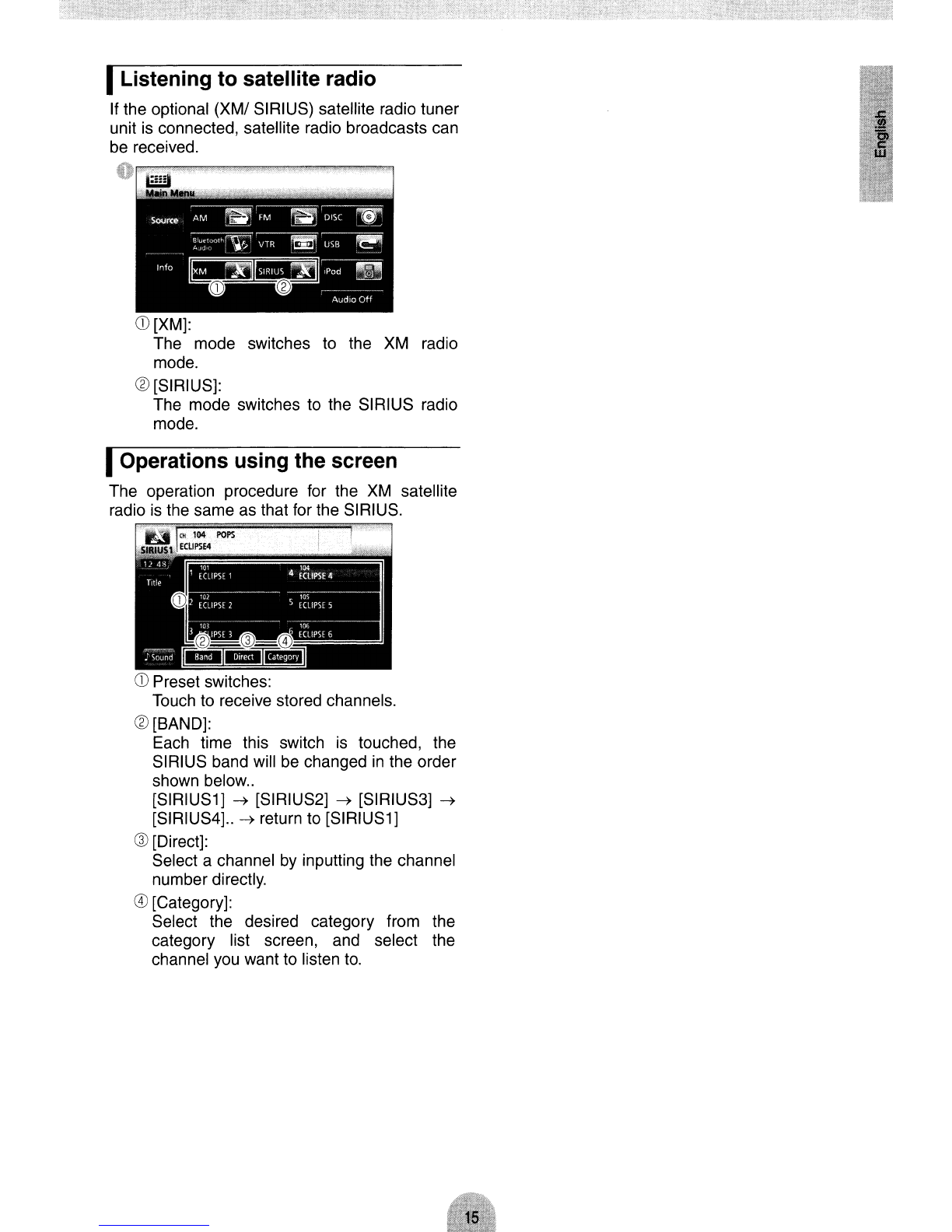

7. Rad io mode operations ' 14

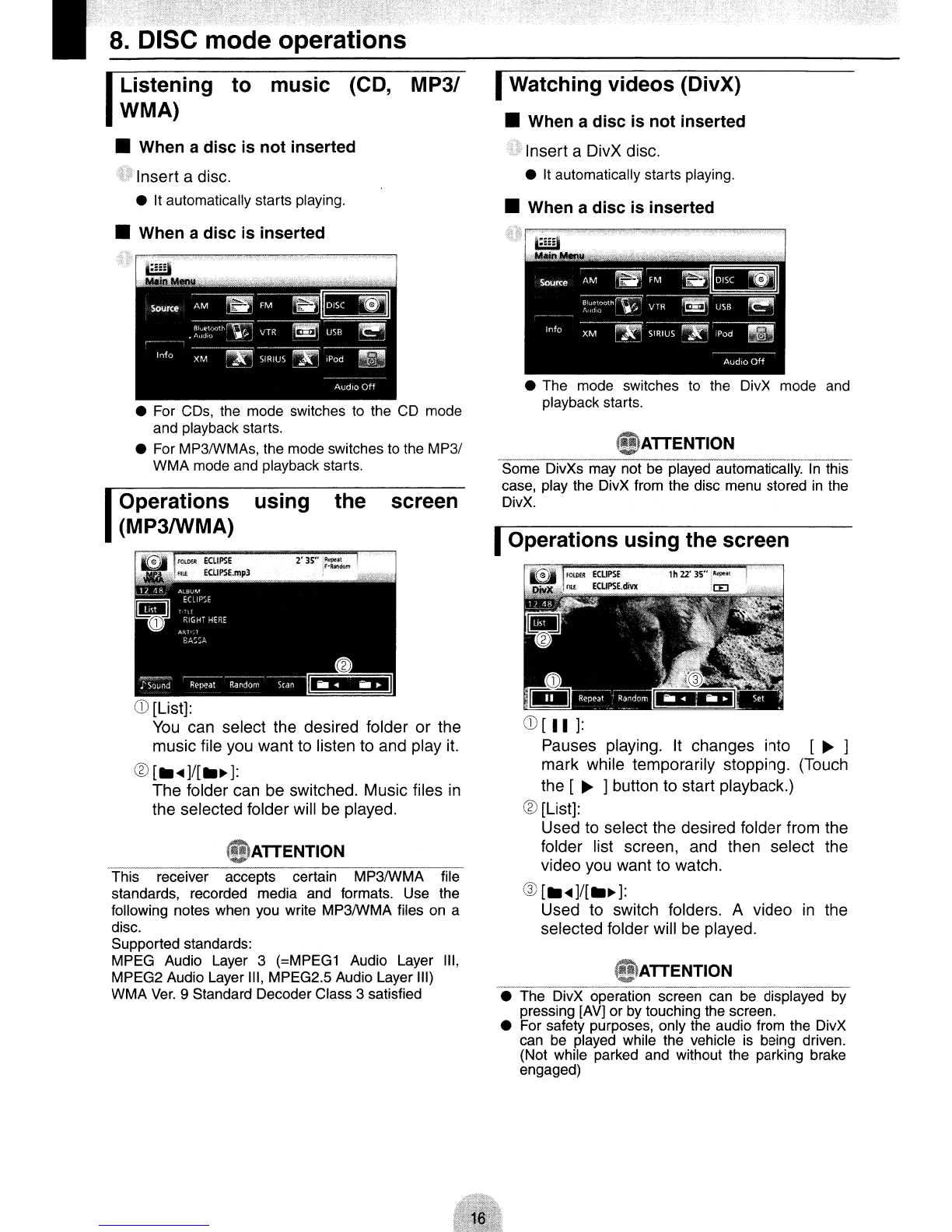

8. DISC mode operations 16

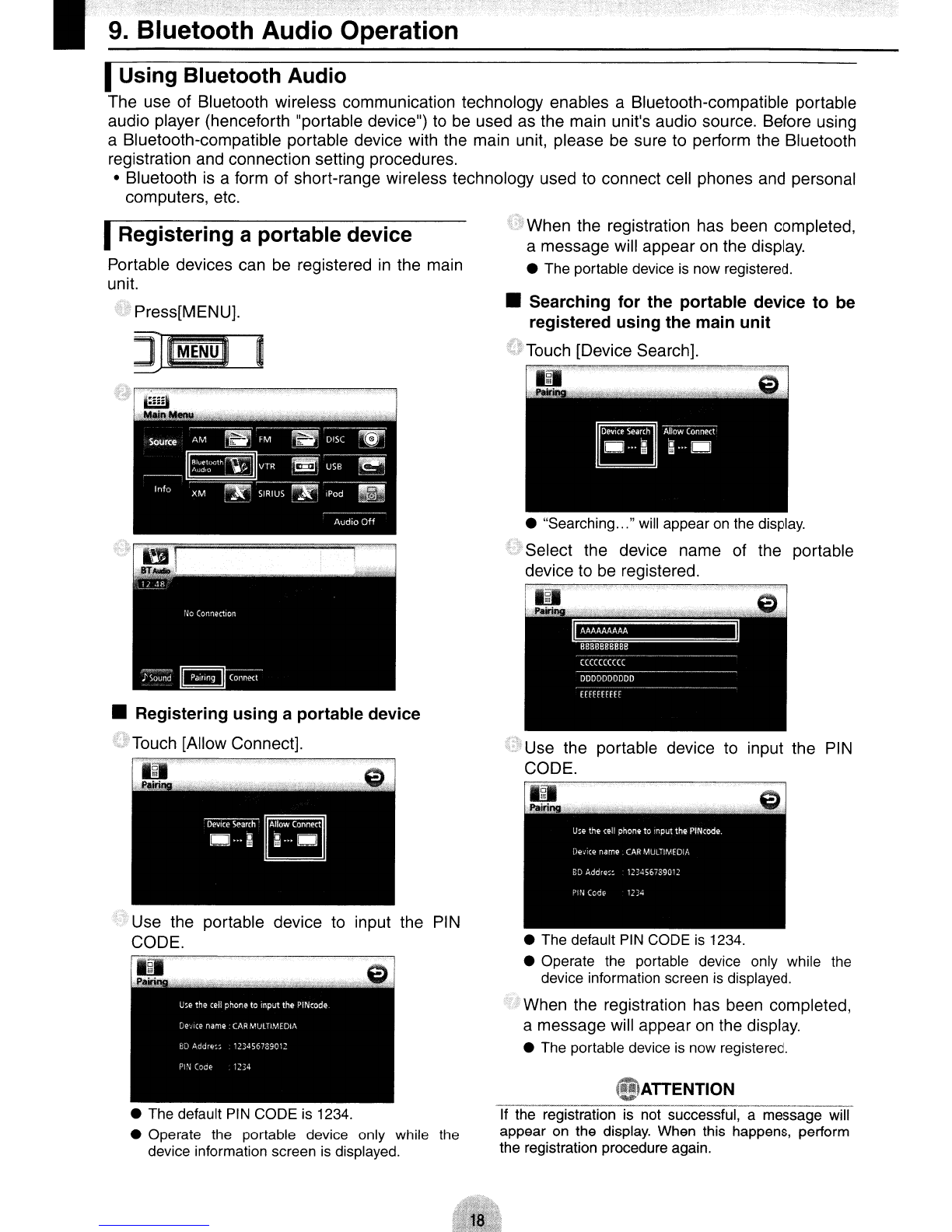

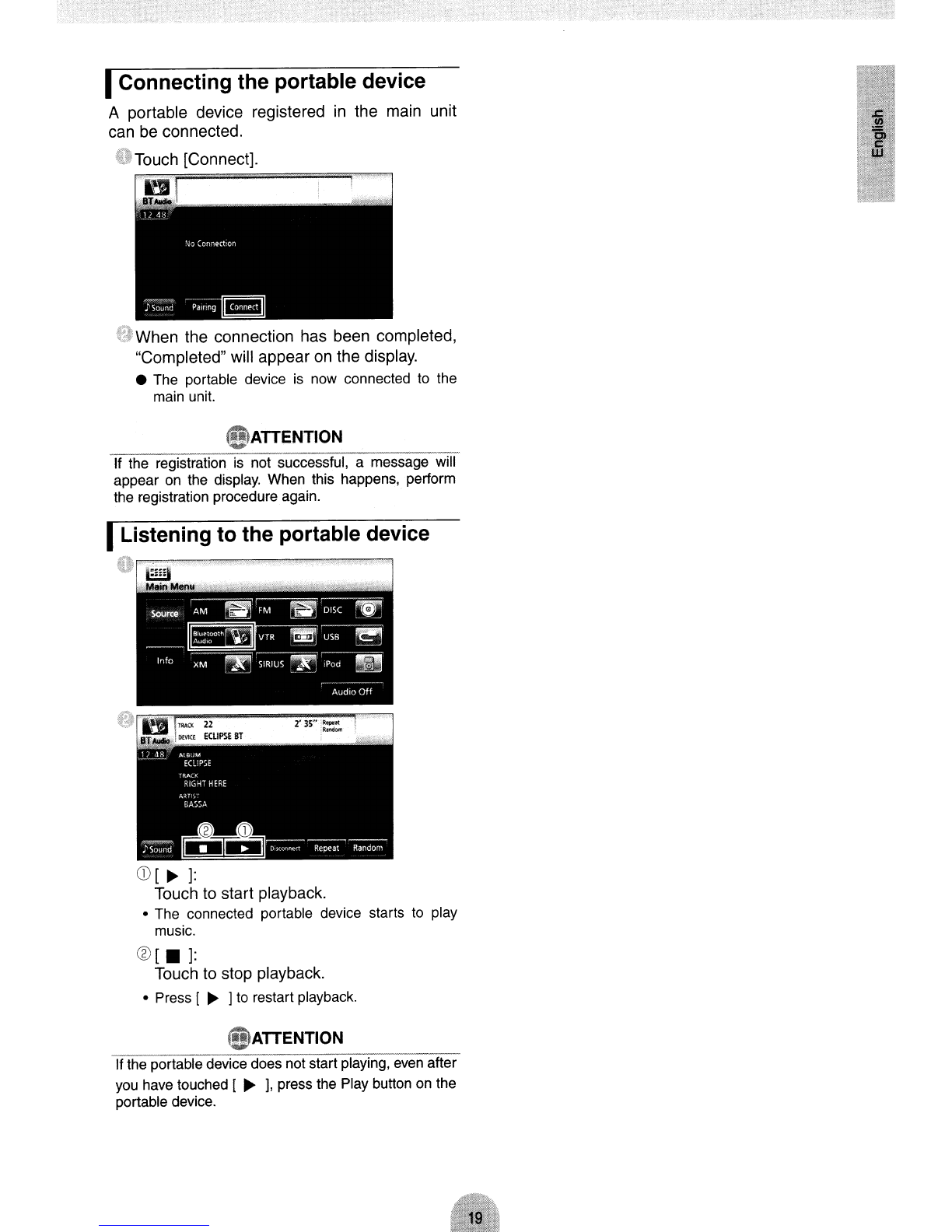

9. Bluetooth Audio Operation 18
10. USB mode operations 20
11. iPod® mode operations 21
12. Setting sound quality 22
13. Bluetooth hands-free Operation 23
14. How to use ESN 25
15. REFERENCE 27

•1. Safety precautions
Warning
•Do not modify this system for use other than that specified herein. Also, do not
deviate from the installation procedures described herein;
ECLIPSE will not be held
liable for damages including, but not limited
to serious injury, death or property
damage resulting from installations that enable unintended operation.
•Some devices require the use of batteries. Never place devices requiring batteries
where young children can get access to the batteries. If abattery
is swallowed, seek
immediate medical attention.
•
When the vehicle is in motion, never take your eyes off the road to make adjustments
to the main unit. You must pay attention to the road to avoid accidents, do not let the
operation or adjustment of the main unit distract you from proper vehicle operation.
•The driver should not look at
the screen while driving. Accidents may occur as a
result of not paying attention to your driving. .
•Do not place foreign objects
in the disc insertion slot or USB input terminal. Fires or
shocks may result.
•Do not disassemble or alter this main unit. Accidents, fires
or shocks may result.
•Do not let water
or foreign objects enter the internal parts of this main unit. Smoke,
fires or shocks may result.
•
Do not use when main unit is malfunctioning (the screen is not lit or no sound comes
out). Accidents, fires or shocks may result.
•Always replace fuses with fuses of identical capacity and characteristics. Never use
ahigher capacity fuse than the original. Using the wrong type of fuse may cause a
fire
or severe damage.
•If foreign objects
or water enters the main unit, smoke comes out, or there is a
strange odor, stop using
it immediately, and contact your dealer. Accidents, fires, or
shocks may result if
you continue to use it in these conditions.
•The driver should not change the disc or
USB device or use the iPod while driving.
As accidents may occur as aresult of not paying attention to your driving, you must
first stop or park your car
in asafe location and then proceed to remove or insert the
disc and/or
USB as well as controlling the iPod.
•Plastic bags and wrappings may cause suffocation and death. Keep away from
babies and children. Never place bags
or wrappings over anyone's head or mouth.
•Make sure to park the vehicle
in asafe place and set the parking brake before
watching DVDs
or videos. For safety reasons, only the sound of DVDs or videos will
be emitted while the vehicle
is in motion.
LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY
AND MUST
BE RECYCLED OR DISPOSED OF AS HAZ-
ARDOUS WASTE ACCORDING TO LOCAL,
STATE, OR
FEDERAL LAWS APPLICABLE TO YOU. DO NOT
PLACE
IN THE TRASH.

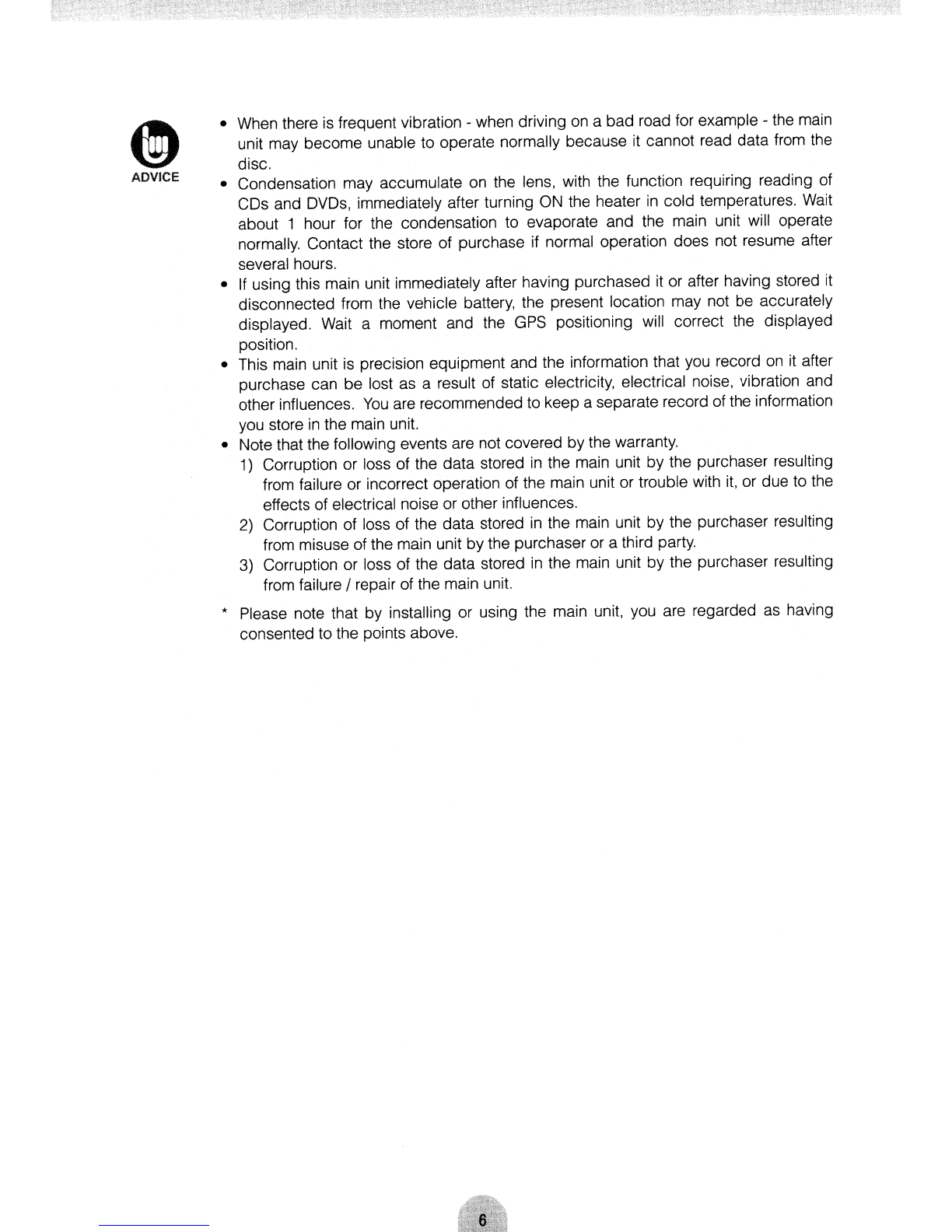

ADVICE
•When there is frequent vibration -when driving on abad road for example - the main
unit may become unable to operate normally because it cannot read data from
the
disc.
•Condensation may accumulate
on the lens, with the function requiring reading of
CDs and DVDs, immediately after turning
ON the heater in cold temperatures. Wait
about 1hour for the condensation to evaporate and the main unit will operate
normally. Contact the store of purchase if normal operation does not resume after
several hours.
•
If using this main unit immediately after having purchased it or after having stored it
disconnected from the vehicle battery, the present location may not be accurately
displayed. Wait amoment and the
GPS positioning will correct the displayed
position.
•This main unit
is precision equipment and the information that you record on it after
purchase can be lost as aresult of static electricity, electrical noise, vibration and
other influences.
You are recommended to keep aseparate record of the information
you store
in the main unit.
•Note that the following events are not covered by the warranty.
1) Corruption or loss of the data stored in the main unit by the purchaser resulting
from failure or incorrect operation of the main unit or trouble with
it, or due to the
effects of electrical noise or other influences.
2) Corruption of loss of the data stored in the main unit by the purchaser resulting
from misuse of the main unit by the purchaser or athird party.
3) Corruption or loss of the data stored in the main unit by the purchaser resulting
from failure /repair of the main unit.
*Please note that by installing or using the main unit, you are regarded as having
consented to the points above.

You can operate this receiver by pressing the panel buttons (panel switches) or by touching the
switches displayed
on the screen (touch switches).
IPanel buttons
Press the panel buttons to operate the device.
Press to switch to hands-free mode.
Press to adjust the audio volume.
Press to display the audio operation screens.
Press to adjust the screen image quality or screen brightness. (Press for 1second or more)
Press to display the navigation menu screen.
Press to display the (audio/info) menu screen.
For radio mode:
Press to select station manually.
Press to select station automatically. (Press for 1second or more)
For
CD, MP3IWMA, USB, and iPod mode:
Press to select atrack or music file.
Press to fast forward or fast reverse track or music file. (Press for 1second or more)
For
DVD, DivX, and iPod-video mode:
Press to select videos and chapters.
Press to fast forward and fast reverse videos and chapters. (Press for 1second or more)
Em] Press to temporarily mute the audio.
Press to display the TILT/EJECT screen.
ITouch switches
The main unit can be operated by touching switches on screen.

Screen Operations after Turning
Power ON
When the engine is turned ON, the DVD/audio
power will automatically turn
ON and the
Caution screen will appear. After the selection
of the language, touch
[I Agree] to switch to the
Navigation screen. The power will turn OFF
when turning off the engine.
8ATTENTION
•Press [NAVI] if the navigation screen does not
appear.
•Press [MENU] and then touch [AUDIO OFF] if the
audio or
DVD does not turn ON.
Setting the Navigation Operation
Mode
The main unit provides achoice of operation
modes ("Simple mode" and "Advanced mode"),
each providing different menus
and settings.
The navigation operations
and map-screen
layout are the same
in each mode. This
document describes the basic navigation
operations available from "Simple mode." See
the ECLIPSE web manual for advanced
navigation operations ("Advanced mode").
When the power of the main unit
is turned on for
the first time, the screen switches
in the order
shown below.
•"Simple mode" or "Advanced mode" can be
switched later.
•The features and settings available
in each
mode are as follows:
CD Available in Simple mode
®Available in Advanced mode
Type of action
CD
®
Navigating to aselected map point Yes Yes
Navigating to astreet address
Yes Yes
Navigating to an incomplete
Yes
Yes
address
Navigating to an intersection
Yes Yes
Navigating to recent destinations
Yes Yes
(History)
Navigating to Favorites
Yes Yes
Navigating to aPOI
Yes Yes
Navigating to coordinates No
Yes
Creating amulti-point route No
Yes
Saving amap point as aFavorite
Yes Yes
destination
Saving amap point as aPOI No
Yes
Saving amap point as alocation of No
Yes
aRoad Safety Camera
Mark amap point with aPin No
Yes
Saving the active route
No
Yes
Saving Track Logs
No
Yes
Map Screen settings No
Yes
Menu settings
Yes'1
Yes
Sound settings Yes'2
Yes
Route Planning options
Yes
Yes
Regional settings Yes'3
Yes
Warnings No
Yes
*1: Only background picture
*2: Only Master volume
*3: Only language selection

•The [+] and [-] switches can also be displayed
by touching the map control switch.
IMove the map
Dragging the map screen enables you to scroll
to your desired position.
IChange the map scale
When the map screen is touched, the [+] and [-]
switches appear.
Touch the [-] switch and the map will zoom out.
Touch the [+] switch and the map will zoom in.
CD Main information
ex) Next route event
®Secondary information
ex) Second route event
®Next street
@Current street and house number on left
and right
®Marks the position of your car
®Trip Information screen
ex) Speed information (your current
speed and the speed limit on the road
where you are driving)
Time information (current GPS time;
estimated time of arrival at destination;
time remaining until arrival at destination;
and time until next waypoint)
Distance information (remaining distance
to destination; distance to next waypoint;
and current elevation)
Compass (Shows the direction of your
heading both when the map
is
automatically rotated (3D) and when the
map is always facing North (20).)
(j) G PS reception sensitivity:
When your GPS position is available, the
main unit marks your current position with
the icon on the map.
INavigation screen adjustment
The map screen is the most frequently used
screen of the main unit. It can be accessed from
the Navigation menu by touching [MAP].
r~~:~perations from the Navigation Screen

:Display a 3D view of the map.
The 3D view displays aheading-
up, front-wide view.
:Always display the map so the
direction
in which the car is
traveling is on top.
CD [Find Address]:
By entering an address, the map
corresponding to that point (or area)
can
be displayed.
®[History]:
The map of the vicinity of apreviously set
destination can
be displayed.
@[Find POI]:
By entering the name of aPOI, the map
corresponding to that POI's vicinity of
can
be displayed. Also, enter the name of an
address to display the map of that area.
@[Favorites]:
The map of the vicinity of afavorite point
can be displayed.
®[Settings]:
Change the navigation settings.
In
"Simple mode," you can change the
language of the navigation screen, the
language of the voice guidance, and the
screen background.
You can also check
map and license information.
®[ .. ]:
Delete one character from the entered
text.
@[aA]:
Switch between uppercase and
lowercase.
@[@/!]:
Switch to symbol-input mode.
®Switch language:
Select the text-entry language. The
language for entering characters
can be
selected from the displayed list. The
layout of the keyboard changes according
to the language selected.
®[Done]:
Find the entered text.
IEntering Text
Enter text and numbers to find addresses and
POI Names.
The text-entry screen differs depending
on the
function.
Screen
Menu"
:Always display the map so that
north
is on top, regardless of the
direction
in which the car is
traveling.
.. Navigation
Operation
Press [Menu] to display the "Navigation Menu"
screen.
In the "Navigation Menu" screen, the
menu screens for Navigation and settings can
be displayed.
IChange the orientation of the map
J: Touch the touch viewing modes switch to
switch the map display.

4. Setting aDestination
Searching for a map using an
address
From the "Navigation Menu", touch [Find
Address].
Enter the address
•Enter the Country, State, City Name, Street
Name, and House Number
in that order.
•At any point while entering the address, touch
[Done]
to display alist of matching addresses.
•When entry
is complete, amap appears.
•Route guidance
to your destination begins.
[Add to Favorite]:
You can add the point displayed on the map
to your favorites.
You can easily select registered points and
call them up
on the map.
[Map]:
Change the map display for the displayed
point.
Check the map and find adetailed
destination.
[Info]:
Display alist of points of interest
in the
vicinity of the displayed point.
You can search for nearby points of interest
from the list.
Searching for amap using a POI
name
From the "Navigation Menu", touch [Find
POI].
Select the search method.
G) [Around Address]:
Enter an address and find point of
interests (POI) nearby.
CD [Around Cursor]:
Move the cursor on the map and find
POls nearby.
• You can also search for POls near your car's
location, your destination, or along your
guidance route. See the ECLIPSE web manual
for details.

I 5. How to switch the audio source (mode)
ISwitching the audio mode
Press [MENU].
Bluetooth Audio
U l'
• ... .~, .1 ,."
CD
Select the desired audio mode.
•The mode switches to the selected audio mode.
MP3IWMA
,.
-""""'- ~~ ---~
:""" ~<'P\'. ~ .. tl", " .<l .~
1 ... v
"'
<' i/OJ ""'10 .....
DVD
VTR
DivX
iPod (optional)
~
-,
;::;~; ~;~ h I - "lo> ~"':. "".
USB
IStopping the audio mode
~
~
• ' , :. Vmt~
------
I I ,I
--- ----
f I' I
• ,. 'Jfi
Satellite radio (SIRIUS) (optional)
FM radio
HD Radio (optional)
~
• , '''' "fOfF'Wl
t' • 1><
I' f ,
~~ • \ 1, hI ",
Satellite radio (XM) (optional)
-
~ ....,- ~- - 4 "'f-
-->J-~- ~- -----,,- -~~--~
• r ~.
: _"h~
-
.l'<
-----,- --- ----
.- - -- - ~ ~- ---
,'''w J B"J 'I"
•The operation screen will appear.
•Operation screens list
AM radio
IDisplaying operation screens
Press [AV].
• Touch [Audio off) again to restart the broadcast
station reception, song playback, or video
playback from before
the audio mode was
stopped.

6. Removing and inserting discsIHow to remove adisc
~t Press [ ~ ].
IHow to insert adisc
vPress [~ ].
•The display opens and the disc slots become
accessible.
1.1.> Insert the desired disc into the slot.
•The display will open and the disc is ejected.
•Playback will begin.
"'ATTENTION
-----_._.-._--------------'-,-----~
Discs that can be used
An audio disc or DVD video disc bearing one of the
marks below can
be played. When using aDVD±R/
RW (DVD±Recordable/ReWritable) disc, note that
only the disc whose contents were recorded
in the
video mode
can be played.
r£lCOMPACT (Q]Do~@ r£lCOMPACT r£lCOMPACT
LlliO~@ D~G1TALAUDIO LlliO~@ LlliO~@
DIGITAL AUDIO ITEXT I Iji$;·!'·f$ltid IReWritable I

stations can be
the song being
CD [AM]:
The mode switches to the AM (HD) radio
mode.
®[FM]:
The mode switches to the FM (HD) radio
mode.
IListening to HD Radio
If the optional HD Radio tuner unit is connected,
terrestrial digital broadcasts can
be received.
IOperations using the screen
CD [AM]:
The mode switches
to the AM radio
mode.
®[FM]:
The mode switches to the FM radio mode.
®~
CD Preset switches:
Stored broadcast stations can
be
received.
®[AUTO.P]:
Broadcast stations are temporarily stored
in the preset switches automatically if the
touch switches are pressed and held.
@IIATTENTION
When th--e-H-O-R-a-d-io tuner is con-nectec[HD Radio
has reception priority, and "OIGITAL" is displayed on
the screen.
IOperations using the screen
i£~:'V,
~
I' 7. Radio mode operations
IListening to AM/FM radio
I.:.ll!I
- .. ,.'.' ~

IListening to satellite radio
If the optional (XM/ SIRIUS) satellite radio tuner
unit is connected, satellite radio broadcasts can
be received.
CD [XM]:
The mode switches to the XM radio
mode.
®[SIRIUS]:
The mode switches to the SIRIUS radio
mode.
IOperations using the screen
The operation procedure for the XM satellite
radio
is the same as that for the SIRIUS.
(lj-@-®
-
CD Preset switches:
Touch to receive stored channels.
®[BAND]:
Each time this switch
is touched, the
SIRIUS band will be changed
in the order
shown below
..
[SIRIUS1] ~ [SIRIUS2] ~ [SIRIUS3] ~
[SIRIUS4] .. ~ return to [SIRIUS1]
®[Direct]:
Select achannel by inputting the channel
number directly.
@[Category]:
Select the desired category from the
category list screen, and select the
channel you want to listen
to.

I' 8. DISC mode operations
Listening to music (CD, MP31
WMA)
•When adisc is not inserted
Insert adisc.
•It automatically starts playing.
IWatching videos (DivX)
•When adisc is not inserted
Insert aDivX disc.
• It automatically starts playing.
•When adisc is inserted
JTENTION
•The mode switches to the DivX mode and
playback starts.
OJ
[g] "
CD [ II ]:
Pauses playing. It changes into [~]
mark while temporarily stopping. (Touch
the [ ~ ]button to start playback.)
®[List]:
Used to select the desired folder from the
folder list screen, and then select the
video
you want to watch.
(3) [ .... ]/[.~]:
Used to switch folders. Avideo in the
selected folder will
be played.
4)ATTENTION
-=--=:----:::-:-:--;-----:-;--_. -----
•The DivX operation screen can be displayed by
pressing
[AV] or by touching the screen.
•For safety purposes, only
the audio from the DivX
can
be played while the vehicle is being driven.
(Not while parked and without the parking brake
engaged)
-::::::-~---:-;._~---;-~---_._-----_.
Some DivXs may not be played automatically. In this
case, play the DivX from the disc menu stored
in the
DivX.
IOperations using the screen
ATTENTION
Operations using the screen
(MP3/WMA)
•When adisc is inserted
CD [List]:
You can select the desired folder or the
music file you want to listen to and play
it.
® [ .... ]/[.~]:
The folder can be switched. Music files in
the selected folder will be played.
•For CDs, the mode switches to the CD mode
and playback starts.
•For MP3IWMAs, the mode switches
to the MP31
WMA mode and playback starts.
This receiver accepts certain MP3IWMA file
standards, recorded media and formats. Use the
following notes when you write MP3IWMA files on a
disc.
Supported standards:
MPEG Audio
layer 3 (=MPEG1 Audio layer III,
MPEG2 Audio
layer III, MPEG2.5 Audio layer III)
WMA
Ver. 9Standard Decoder Class 3satisfied

ATTENTION
~iTouch [ • ], [ t ], [ .. ], or [ .. ] to select
an item, and then touch [Enter].
t~
~~Touch [Menu] or [Top Menu], and then touch
[ -:. ].
•The menu screen displayed differs depending on
the DVD disc.
•The
DVD operation screen can be displayed by
pressing [AV] or by touching the screen.
•For safety purposes, only the audio from the
DVD
can be played while the vehicle is being driven.
(Not while parked
and without the parking brake
engaged)
IOperating the disc menu
fllTouch [Next].
playing. When touched
in the
status, starts playing frame-by-
•The mode switches to the DVD mode and
playback starts.
ATTENTION
®[.]:
Touch to stop playback.
@[ ... ]:
Fast rewind
@[ ~ ]:
Touch to start playback.
®[~ ]:
Starts fast forward operation. When
touched
in the PAUSE status, starts slow
playing.
•When adisc is inserted
tW """,,,,==-~--::-"---'---~~--r"'"""T'""T""--'-""""""~
Some DVDs may not be played automatically. In this
case, play the
DVD from the disc menu stored in the
DVD.
IWatching videos (DVD)
•When adisc is not inserted
~ Insert a DVD disc.
•It automatically starts playing.
IOperations using the screen

_ 9. Bluetooth Audio Operation
IUsing Bluetooth Audio
The use of Bluetooth wireless communication technology enables aBluetooth-compatible portable
audio player (henceforth "portable device")
to be used as the main unit's audio source. Before using
aBluetooth-compatible portable device with the main unit, please
be sure to perform the Bluetooth
registration and connection setting procedures.
•Bluetooth is aform of short-range wireless technology used
to connect cell phones and personal
computers, etc.
IRegistering aportable device
Portable devices can be registered in the main
unit.Press[MENU].
•Registering using aportable device
'<I'Touch [Allow Connect].
Use the portable device to input the PIN
CODE.
•The default PIN CODE is 1234.
•Operate the portable device only while the
device information screen
is displayed.
When the registration has been completed,
amessage will appear
on the display.
•The portable device is now registered.
•Searching for the portable device to be
registered using the main unit
1;!'Touch [Device Search].
•"Searching..."will appear on the display.
Select the device name of the portable
device
to be registered.
Use the portable device to input the
PIN
CODE.
•The default PIN CODE is 1234.
•Operate
the portable device only while the
device information screen
is displayed.
When the registration has been completed,
amessage will appear
on the display.
•The portable device is now registered.
ATIENTION
If the registration is not successful, amessage will
appear on the display. When this happens, perform
the registration procedure again.

IConnecting the portable device
Aportable device registered in the main unit
can
be connected.
OTouch [Connect].
~P] "
.ATTENTION
If the registration is not successful, amessage will
appear on the display. When this happens, perform
the registration procedure again.
IListening to the portable device
111$- "
"""1:illI
~Mer1u',,,,
®[. ]:
Touch to stop playback.
•Press [~]to restart playback.
(fj)ATTENTION
If the portable device does not start playing, even after
you have touched [
~ j, press the Play button on the
portable device.

~ATTENTION
-:::------c:-- _. -----._----
•Do not disconnect the USB memory during
playback.
•Playable MP3IWMA File Standards
•MP3
Supported standards:
MPEG-1, MPEG-2, and MPEG-2.5
Supported sampling frequencies:
MPEG-1: 32,
44.1
MPEG-2: 16, 22.05, 24
MPEG-2.5:
8, 11.025, 12
Supported bit rates:
MPEG-1 :32
to 320 Kbps
MPEG-2: 8to 160 Kbps
MPEG-2.5: 8
to 160 Kbps
•Supported VBR
(8 to 320K bps)
•Does not support free format.
Supported channel modes:
Monaural, Stereo, Joint Stereo, Dual-Channel
•WMA
Supported standards:
WMA
Ver. 7,8,9
Supported sampling frequencies:
8, 11.025, 12, 22.05, 32, 44.1, 48 (kHz)
Supported bit rates:
8to 320K bps
•Supported VBR (64
to 320K bps)
•Does not support free format.
Supported channel modes:
Monaural, Stereo
IDisconnecting the USB memory
Disconnect the USB memory parallel to the
USB connector.
•The mode switches to the USB mode and
playback starts.
CD [List]:
Select the desired folder from the folder
list screen, and select the music file you
want to listen
to.
C?> [ .... ]/[.~]:
The folder can be switched. Music files in
the selected folder will be played.
IListening to music
Connect the USB memory to the USB
connector.
IOperations using the screen
~
,,".Il
II 10. USB mode operations
This receiver can play amusic file stored in a
USB memory.
