Eclipse Integrated Series SE4000 User manual

(ECLIPSE
,
Integrated Series
Serie Integrated
Serie Integrada
INSTALLATION MANUAL
MANUEL D'INSTALLATION
MANUAL DE INSTALACION
SE4000
SE4600*
SE5000
SE5700*
SE6500
SE6800*
(Ford, Mazda, Nissan)
SE6900
4" 2-way Speakers
Haut-parleurs 4" a2voies
4" Altavoz de 2-Vias
4" x6" Factory Fit Upgrade
4" x
6" Modele ameliore installe d'origine
4" x
6" Reemplazo de fabrica
5-1/4" 3-way Speakers
Haut-parleurs 5-1/4" a3voies
5-1/4" Altavoz de 3-Vias
5" x 7" Factory Fit Upgrade
5" x 7" Modele ameliore installe d'origine
5" x 7" Reemplazo de fabrica
6-1/2" 3-way Speakers
Haut-parleurs 6-1/2" a3voies
6-1/2" Altavoz de 3-Vias
6" x 8" Factory Fit Upgrade
6" x 8" Modele ameliore installe d'origine
6" x 8" Reemplazo de fabrica
6" x 9" 4-Way Speakers
Haut-parleurs
6" x 9" a4voies
6" x 9" Altavoz de 4-Vias
*Does not come with grills, and are designed as afactory replacement.
*Grilles non fournies. Modele de remplacement installe d'origine.
*No viene con parrillas, ysea disenados como un reemplazo de fabrica.

~
.;,
E
E
N
e'
.,.

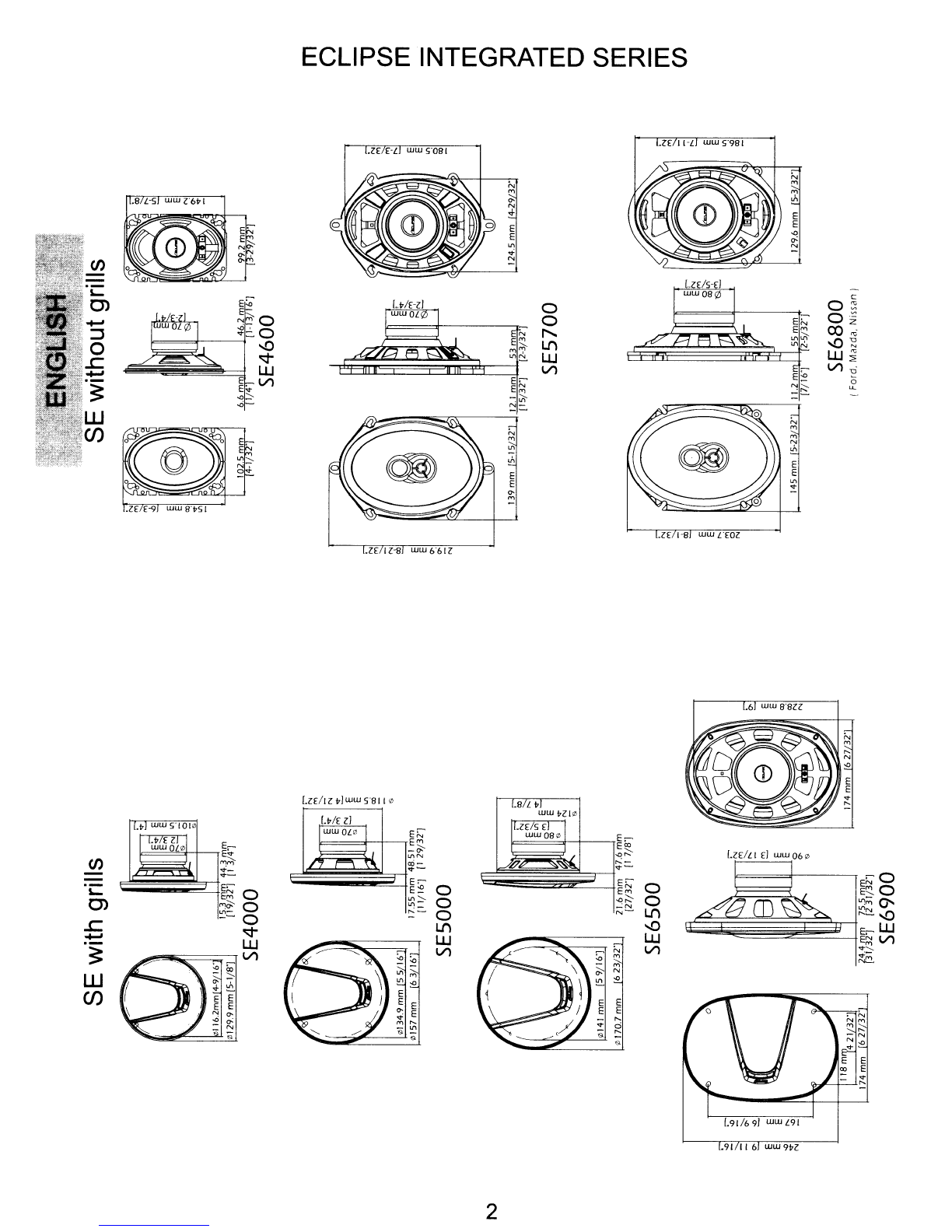

46.2mm
[1-13/16"J
SE4600
15.3
trim' 44.3
mm
[19/32", 113/4")

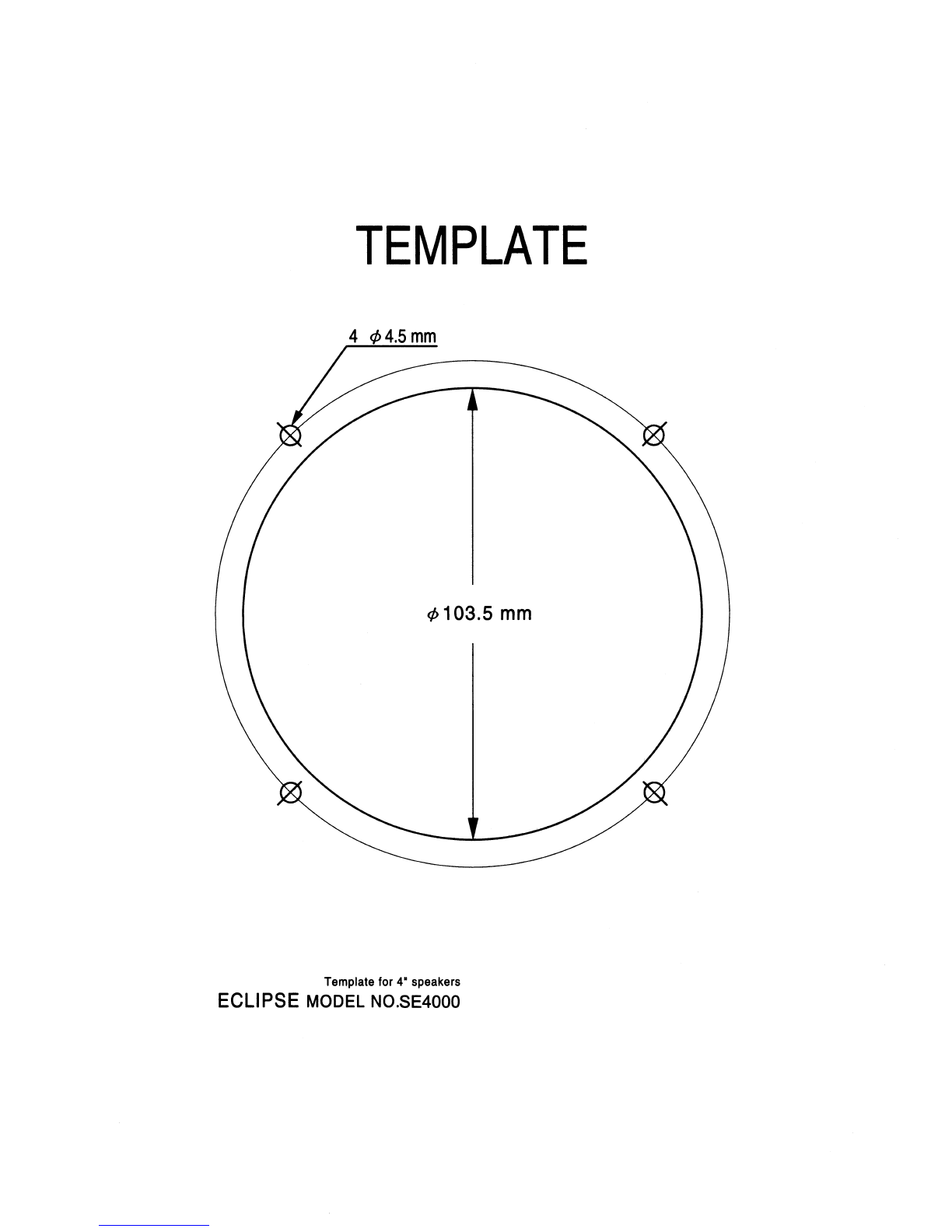

SE4000
SE
with
grills
m
()
r
'"U
(j)
m
z
--I
m
G>
::u
~
m
o
(j)
m
::u
m
(j)
SES700
SE6800
IFord. Mazda, N,ssan J
~
E
E
l>-
e'
N
N
"
N
"
:::-
N
:":.
21.6
mm
.47.6
mm
[27/32")
[J
7/8')

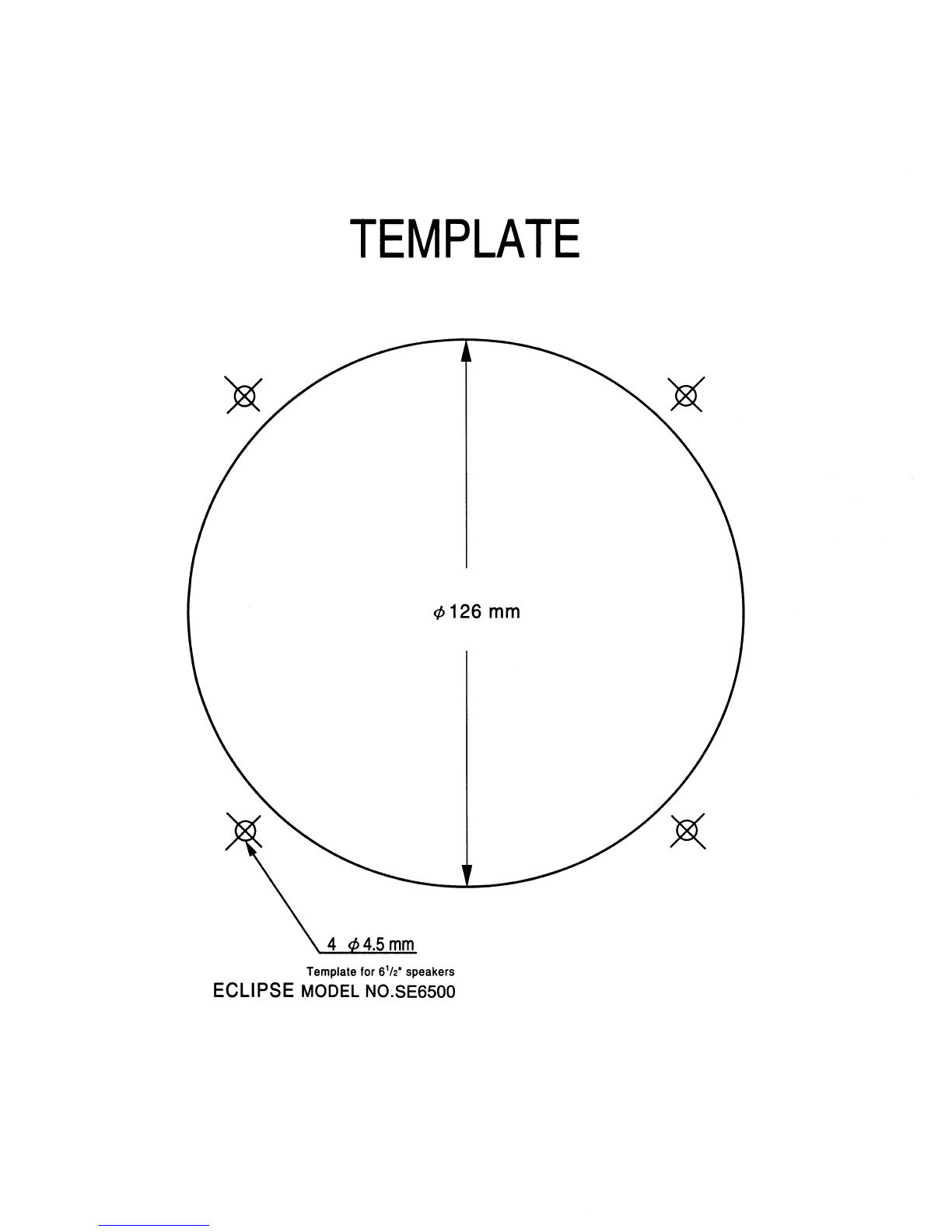

SE6S00
17.55
mm
'48.51
mm
[11/16'J
[129/32')
SESOOO
fN3~!j'
rNm'"2')

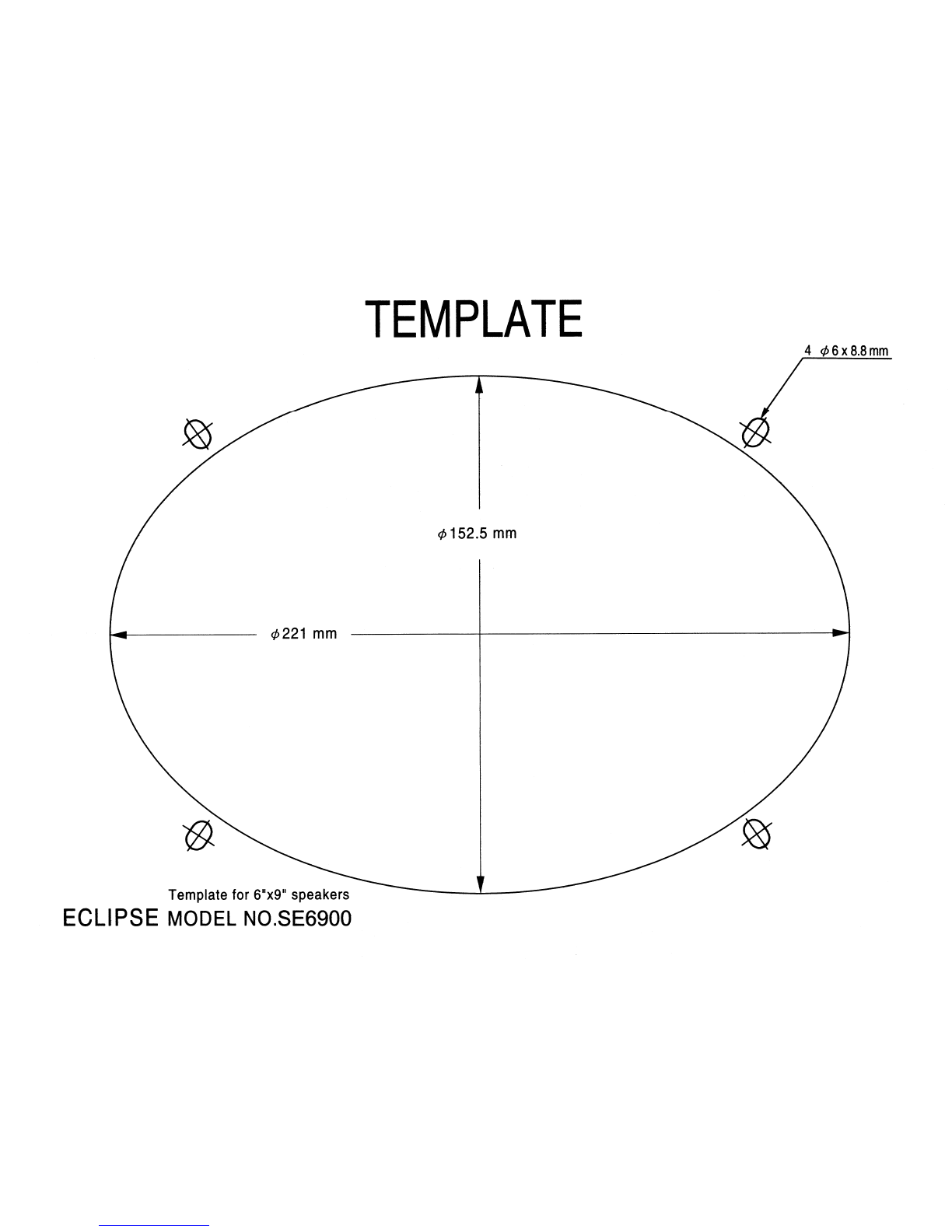

SE6900
E
E
""
.,.
N
N

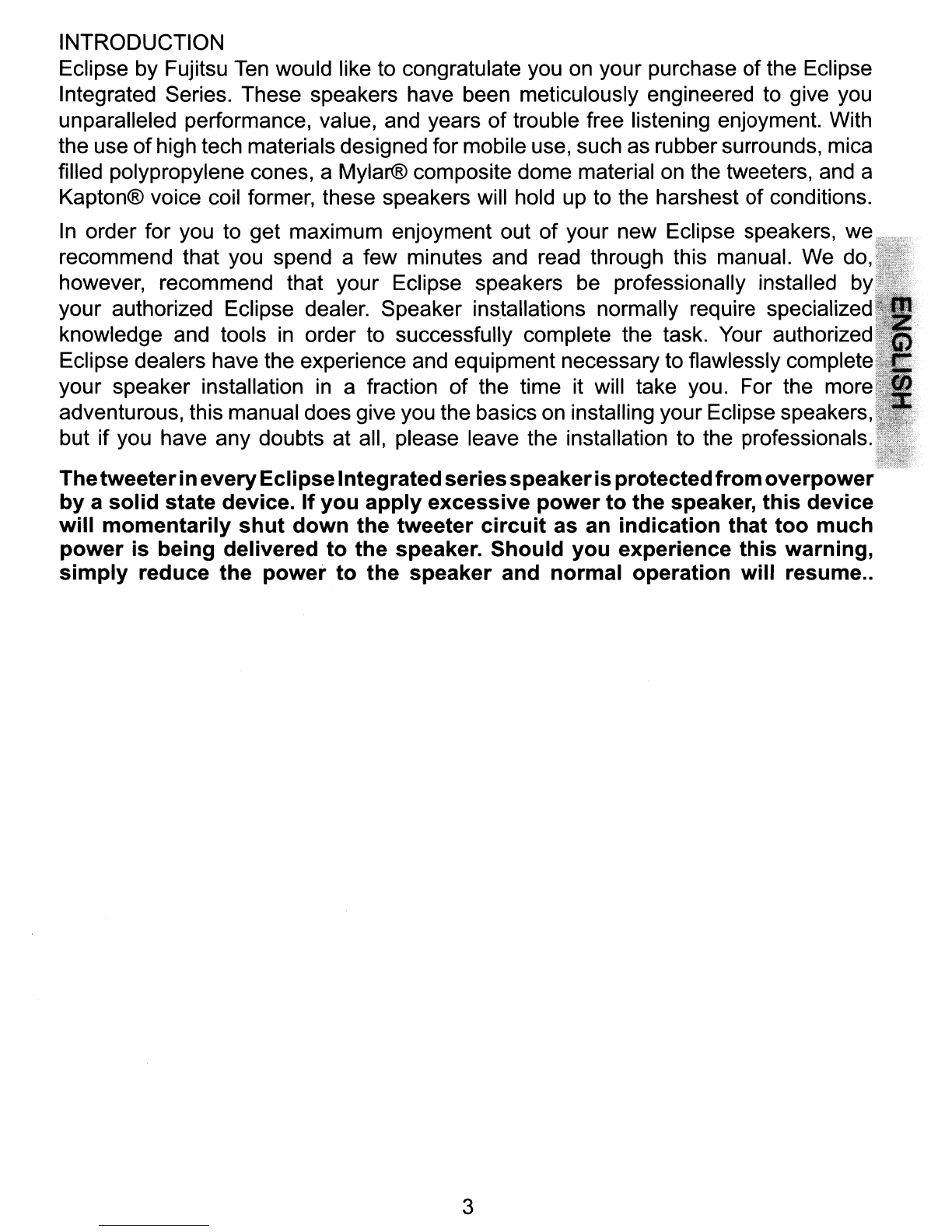

INTRODUCTION
Eclipse by Fujitsu
Ten would like to congratulate you on your purchase of the Eclipse
Integrated Series. These speakers have been meticulously engineered
to give you
unparalleled performance, value, and years of trouble free listening enjoyment. With
the use
of high tech materials designed for mobile use, such as rubber surrounds, mica
filled polypropylene cones, aMylar® composite dome material
on the tweeters, and a
Kapton® voice coil former, these speakers will hold
up to the harshest of conditions.
In order for you to get maximum enjoyment out of your new Eclipse speakers, we
recommend that you spend afew minutes and read through this manual.
We do,
however, recommend that your Eclipse speakers be professionally installed by
your authorized Eclipse dealer. Speaker installations normally require specialized
knowledge and tools
in order to successfully complete the task. Your authorized
Eclipse dealers have the experience and equipment necessary to flawlessly complete
your speaker installation
in afraction of the time it will take you. For the more
adventurous, this manual does give you the basics
on installing your Eclipse speakers,
but if you have any doubts at all, please leave the installation to the professionals.
The tweeter in every EclipseIntegratedseries speaker is protected from overpower
by a solid state device. If you apply excessive power to the speaker, this device
will momentarily shut down the tweeter circuit as an indication that too much
power is being delivered to the speaker. Should you experience this warning,
simply reduce the power to the speaker and normal operation will resume ..
3

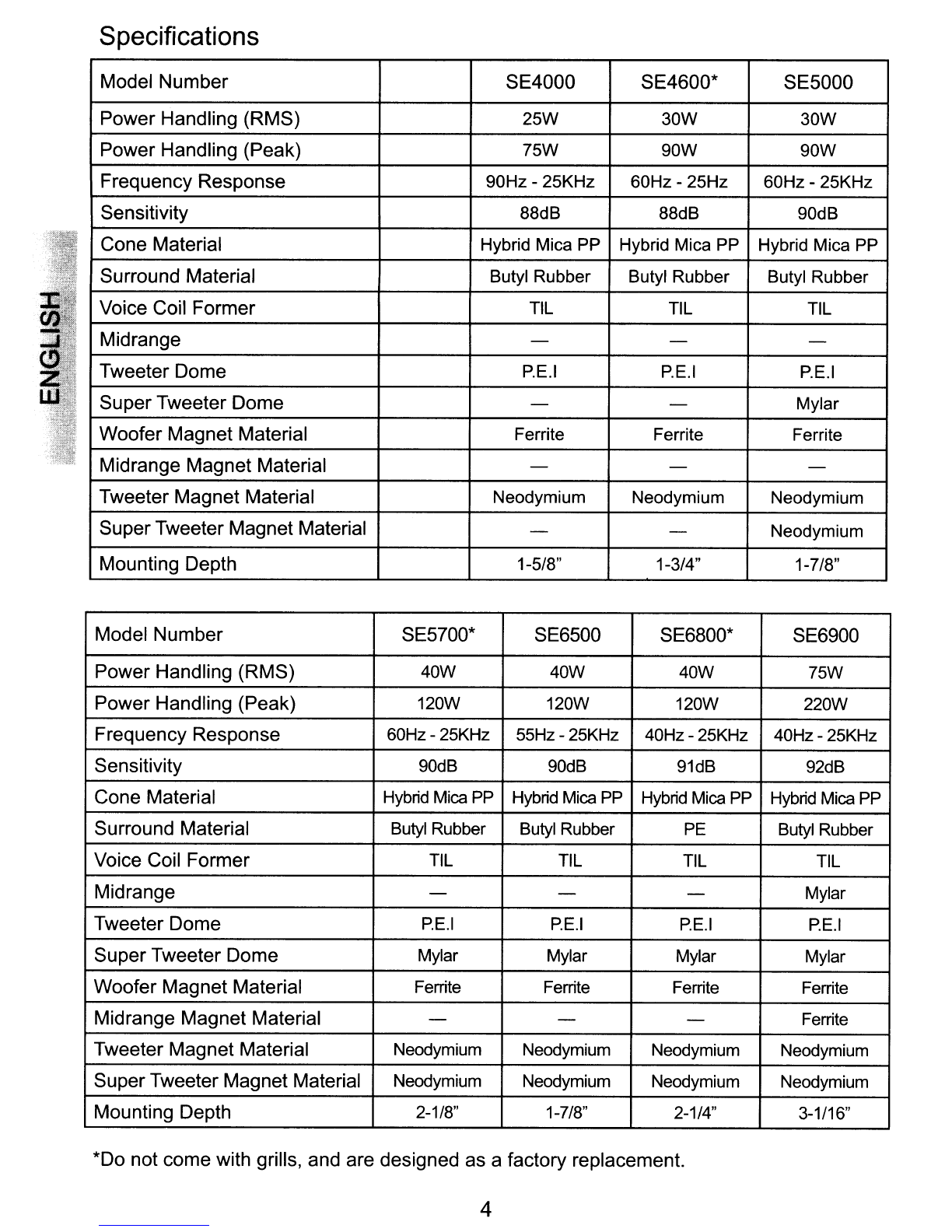

Specifications
Model Number
SE4000
SE4600*
SE5000
Power Handling (RMS)
25W 30W 30W
Power Handling (Peak) 75W 90W
90W
Frequency Response
90Hz -25KHz 60Hz -25Hz 60Hz -25KHz
Sensitivity 88dB 88dB 90dB
Cone Material Hybrid
Mica PP Hybrid
Mica PP Hybrid Mica PP
Surround Material Butyl Rubber Butyl Rubber Butyl Rubber
Voice Coil
Former
TIL TIL TIL
Midrange
-- -
Tweeter Dome
P.E.I P.E.I P.E.I
Super Tweeter Dome
- - Mylar
Woofer Magnet Material Ferrite Ferrite Ferrite
Midrange
Magnet Material ---
Tweeter Magnet Material Neodymium Neodymium Neodymium
Super Tweeter Magnet Material --Neodymium
Mounting Depth 1-5/8" 1-3/4" 1-7/8"
Model
Number SE5700* SE6500 SE6800* SE6900
Power Handling (RMS)
40W 40W
40W
75W
Power Handling (Peak)
120W 120W
120W 220W
Frequency Response
60Hz- 25KHz 55Hz- 25KHz 40Hz- 25KHz 40Hz-25KHz
Sensitivity
90dB 90dB 91dB 92dB
Cone Material
Hybrid Mica PP Hybrid Mica PP Hybrid Mica PP Hybrid Mica PP
Surround Material
Butyl Rubber
Butyl Rubber PE
Butyl Rubber
Voice Coil Former
TIL TIL TIL TIL
Midrange
- - - Mylar
Tweeter Dome
PE.l PE.l PE.l PE.l
Super Tweeter Dome
Mylar Mylar Mylar Mylar
Woofer Magnet Material
Ferrite Ferrite Ferrite Ferrite
Midrange Magnet Material - - -
Ferrite
Tweeter Magnet Material
Neodymium Neodymium Neodymium Neodymium
Super Tweeter Magnet Material
Neodymium Neodymium Neodymium
Neodymium
Mounting Depth
2-1/8" 1-7/8"
2-114"
3-1/16"
*00 not come with grills, and are designed as afactory replacement.
4

WIRING YOUR SPEAKERS
At this point, you will need to look at the instructions to your CD player, tape deck,
or external power amplifier
in order to verify the proper connections. If you are using
the wire supplied with your Eclipse speakers, the wire with the black stripe
is the
negative wire, and should be hooked to the negative output ofthe amplifier. The solid
wire
is the positive wire, and should be hooked to the positive output of the amplifier.
Pay careful attention to this. If you reverse polarity of one speaker, the low frequency
output
of the pair will be greatly reduced. (see diagram below)
••••••••
+
+1 +1
~, I ~ I: ,
".,',
'. !I
REAR DECK MOUNTING
When installing your Eclipse speakers on the rear deck
of your vehicle, you will
follow the same instructions as above as far as choosing agood location. The only
exception
is that the high frequencies from rear deck mounted speakers will reflect
off ofthe rear window. Low frequencies will also
be enhanced from the loading effect
ofthe rear window, making the rear deck an ideal location for your Eclipse speakers.
As far as the actual installation
is concerned, you will follow the same instructions as
Door Mounting With Existing Holes, or Door Mounting Without Existing Holes, with
one exception: some vehicles require the speakers to be bottom loaded. For those
applications, we have supplied all ofthe necessary hardware to complete the task,
along with the diagram below.
, "'
~
o
Bottom Mount
Top Mount 5
