Eco-Smart LR1321-RGBWICU-5M-1024 User manual

Item #1009 485 107
Model #LR1321-RGBWIC-
U-5M-1024
16.4 ft RGBWIC DYNAMIC COLOR
OUTDOOR STRIP LIGHT

Table of Contents ...................................
.................................
2
Safety Information 2
Care and Cleaning .................................4
Warranty ................................................4
Pre-Installation .................................5
...........................................
Installation ........................................6
Operation 9
2
IMPORTANT SAFETY INSTRUCTIONS
Read All Instructions
WARNING: Do not plug into the
WARNING: Do not submerge the
flexible light in liquids or use the
product in the vicinity of standing
water or other liquids.
WARNING: Do not secure this
product with staples, nails, or
other sharp objects that may
damage the insulation.
WARNING: Do not cover this product
as the covering may cause the flexible
light to over heat and either melt or
ignite.
WARNING: Do not use if there is any
damage to the light or cord insulation.
Inspect periodically.
WARNING: Risk of Electric Shock.
When used outdoors, install only to a
covered Class A GFCI receptacle that
has a weatherproof enclosure.
WARNING: When using outdoor portable lighting products, basic safety precautions
should always be followed to reduce the risk of fire, electric shock, and personal
injury, including the following:
• Use only three-wire outdoor extension cords that have three-prong grounding
plugs and grounding receptacles that accept the appliance’s plug.
• Use ground fault circuit interrupter (GFCI) protection on the circuit(s) or outlet(s)
• Use only UL approved outdoor extension cords, such as type SOW, STW, STOW,
SJW, SJOW, SJTW, or SJTOW. This designation is marked on the jacket of the
extension cord. Receptacles are available having built-in GFCI protection and are
able to be used for this measure of safety.
power before all installation being
nished.
when using outdoors.
Class 2 Power Supply
Model: S048C2402000U
Input: 120Vac, 60Hz, Max. 1200mA
Output: 24Vdc, 2A
To comply with the published safety standards, the following must be observed when using
this switching power supply.
Note:
IMPORTANT SAFETY INSTRUCTIONS-SAVE THESE INSTRUCTIONS and DANGER-TO
REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE
INSTRUCTIONS.

Safety Information(continued)
FCC WARNING
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
3
1. For connection to supply not in the U.S.A. use an attachment plug adapter of the proper
conguration for the
Power outlet, if needed. Or, If the shape of the plug does not t the power outlet, use an
attachment plug adaptor
of the proper conguration for the power outlet.
2. Please read the instructions Before using the power supply.
3.This unit is not intended for use by persons(including children) with reduced physical,
sensory or mental capabilities,or
lack if experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.Children should be
supervised to ensure they do not play with the unit.
4. Please Don’t use the charger in the damp environment and High temperature.
5. Don’t operate unit with damaged plug.
6. Don’t disassemble charger. Disassembly may result in a risk of electric shock or re.
7. To reduce the risk of electric shock, unplug the charger from the outlet when not in use.
8. Don’t operate unit if it has been subjected to damage in any way.
9. Never open the equipment. For safety reason, qualied service personnel should only open
the equipment.
10. If one of the following si tuations arises, get the equipment checked by service personnel:
a. Liquid has penetrated into the equipment.
b. The equipment has been exposed to moisture.
c. The equipment has not work well or you can not get it work according to user‘s manual.
d. The equipment has dropped and damaged.
e. If the equipment has obvious sign of breakage
11. The power supply shall be installed according to specication.
FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.

Safety Information(continued)
The device has been evaluated to meet general RF exposure requirement. The device can be
used in portable exposure condition without restriction.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Responsible Party-U.S. Contact Information
Elecwish Inc/Add: 4225 Etiwandaavenue, Suite 1 mira loma, California 91752,
USA/Elecwish.com
Warranty
2-YEARS LIMITED WARRANTY
The manufacturer warrants this lighting fixture against defects in materials and workmanship
for a period of two years from the date of purchase. If within this period the product is found to
be defective in material or workmanship, the product must be returned, with a copy of the bill
of sale as proof of purchase, to the original place of purchase. The manufacturer will, at its
option, repair, replace, or refund the purchase price to the original purchaser or consumer.
This warranty does not cover light bulbs or the fixture becoming damaged due to misuse,
accidental damage, improper handling and/or installation, and specifically excludes liability for
direct, incidental, or consequential damages. As some states do not allow exclusions or
limitation on an implied warranty, so the above exclusions and limitations may not apply. This
warranty gives you specific rights and you may also have other rights that vary from state to
state.
Contact the Customer Service Team at 1-800-910-7164 or visit
www.HomeDepot.com/EcoSmart.
4
Care and Cleaning
□Before attempting to clean the light strip, unplug the adaptor from the power outlet.
□To clean the light strip, use a clean, dry, or slightly damp cloth.
□Do not use any cleaners with chemicals, solvents, or harsh abrasives, as damage
to the strip light may occur.
□Allow the light strip and components to dry thoroughly before plugging the power
adaptor back into the outlet.

5
A
D
Part Description
Strip light
Inline controller
B
A
C
Quantity
1
1
D
Plug-in power supply 1
Remote control
1
E
Mounting clips
8
F
Screws
16
G
End Cap
1
EF G
B
C
16.4' 32.8' 49.2' 65.6'
4H 8H
PowerOn and Select Length

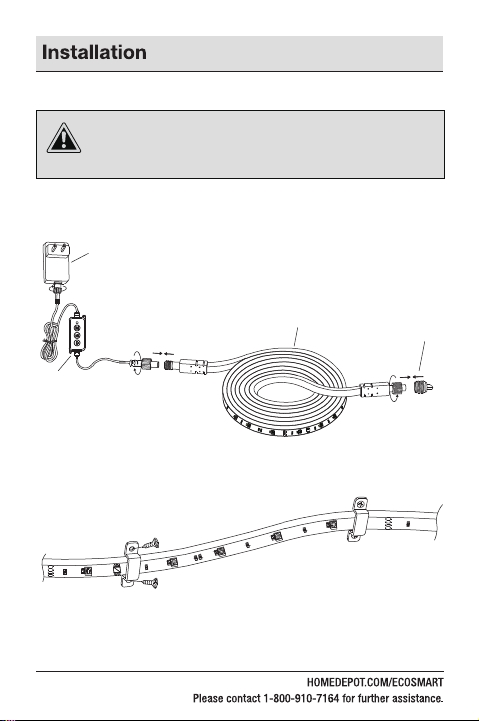

Connect the strip light(A), controller(B), power supply(C) and the end
cap(G); Use the caps to secure all the connection joints tightly
□
Mount the mounting clips with screws and fix the strip light
□
Install the strip light
CAUTION: This LED product is designed to be used only with the
24V DC power supply included with the kit. Do not operate with any
other power supply type. Disconnect power at the source prior to
attempting installation.
6
B
C
A
G

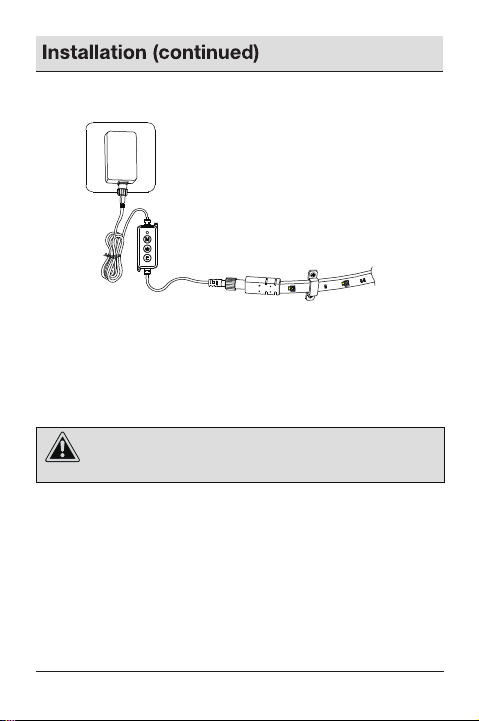

Plug the 24V DC power supply into an appropriate 120V power outlet
□
CAUTION: After connecting an extention, caps must be tightly
secured before the power is connected. The maximum connecting
length is 65.6ft. Do not exceed this limit.
Install the Extension With Additional Strip Light
(Buy Seperately)
1
Ensure all strip lights are unplugged before adding the additional
strip light to the series.
□
Remove the end cap (G) from the first strip light(A) in the series by
turning counterclockwise.
□
Connect the end of first strip light(A) in the series with the extension
strip's head(A1) and use the attached cap to secure it.
□
Attach the end cap (G) to the last extension strip light in the series
and ensure the connection is secure.
□
CONNECTING THE STRIP LIGHTS
7

Use the screws (F) to fix the clips(E) on the desired position
□
Place the combined strip light securely into the mounting clip (E)
□
2MOUNTING THE WHOLE STRIP LIGHTS
3
After fix the strip light, check again if every connection point is well
secured.
□
Plug the power supply into the power source to start your colorful
life.
□
PLUG INTO THE POWER OUTLET TO FINISH THE
INSTALLATION
8
A
G
A1
F
E

CAUTION: The remote control included utilizes a 3V CR2025battery; Donot dispose of batteries
in fire as they may explode or leak. Please dispose of used batteries immediately and safely. Only
replace with the samebattery type. Examine devices and make sure the battery compartment is
correctly secured, e.g. that the screw or other mechanical fastener is tightened. Do not use if
compartment is not secure.
WARNING: KEEP BATTERIES OUT OF THE REACH OF CHILDREN! BATTERIES ARE NOT A TOY! If swallowed,
they can cause severe injury or death within 2 hours. In case of swallowing, call emergency
services immediately. Tell others of the risks associated with button batteries to keep kids safe.

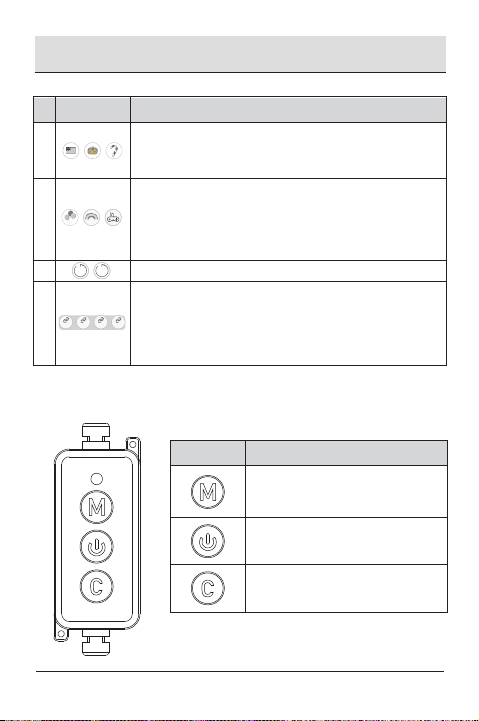

1. Operating the remote
16.4' 32.8' 49.2' 65.6'
4H 8H
Power On and Select Length
2
3
5
7
6
1
4
8
9
Note: Length Selecting:
1. Turn on and select corresponding length when using RGB color light.
2. Press "16.4ft" key when use without additional extention light.
3. White color keeps on all length under whichever length set.
Aim the remote directly at the controller.
Remove the plastic tab from the back of the handheld remote (D).
Ensure the battery contacts are clean prior to battery installation.
Remove batteries from equipment when not in use for an extended
period to time.
9

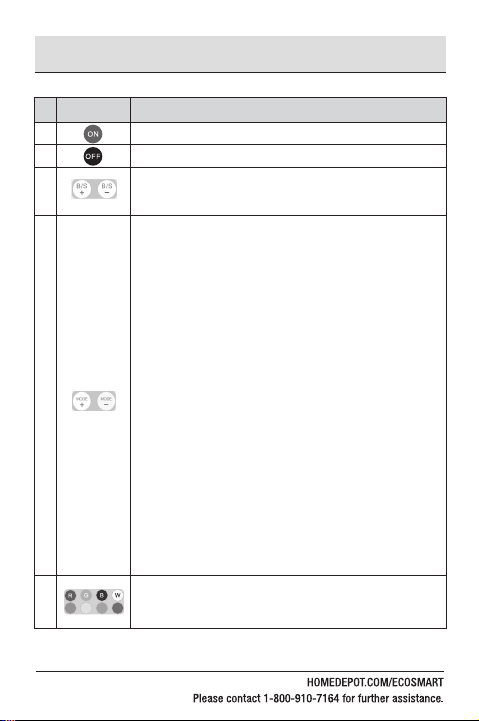

Operation(continued)
1 ON: Press to turn on the light
OFF: Press to turn off the light
Adjustable speed and brightness:
Increase or decrease the 5-level speed of all dynamic modes and
the brightness of all static colors
2
3
4
5
Button Description
Static (solid) color: red, green, blue, white, orange, yellow,
cyan, purple
Dynamic mode :
Mode 1: Color Fading Function. 7 colors fade in random sequence:
red, green, blue, yellow, cyan, purple, white
Mode 2: Constant Tracing Function. <Power side to End>8 colors
trace in certain sequence: red-orange-yellow-green-cyan-blue-
purple-white
Mode 3: Staggering Chasing Function A. <Power side to End>With
no illumination between color intervals. Sequences as: red-dim-
orange-dim-yellow-dim-green-dim-cyan-dim-blue-dim-purple-
dim-white-dim
Mode 4: Color Stacking Function. <Power side to End> Each color
stacks to disappear with sequences as: red-disappear-orange-
disappear-yellow-disappear-green-disappear-cyan-disappear-
blue-disappear-purple-disappear-white-disappear
Mode 5: Staggering Chasing Function B.<Power side to end>
Includes white light between color intervals. Sequences as: red-
white-orange-white-yellow-white-green-white-cyan-white-blue-
white-purple-white
Mode 6: Star Chasing Function. <Power side to end>Color points
chasing with dim intervals. Sequences as red-dim-orange-dim-
yellow-dim-green-dim-cyan-dim-blue-dim-purple-dim-white
Mode 7: Constant Chasing Function A.<Power side to end> 8 color
lines running in fading effect with no intervals. Sequences as: red-
orange-yellow-green-cyan-blue-purple-white
Mode 8: Constant Chasing Function B.<Power side to end> 8 color
lines running end to end with no intervals. Sequences as: red-
orange-yellow-green-cyan-blue-purple-white
10

2. Operating The Controller
16.4' 32.8' 49.2' 65.6'
9
Linking option:
Press 16.4' when without linking additional strip lights
Press 32.8' when linking up to 32.8' strip lights
Press 49.2' when linking up to 49.2' strip lights
Press 65.6' when linking up to 65.6' strip lights
Select corresponding length when using RGB color light.
Operation(continued)
Button Description
Fading, Tracing, Staggering A, Stacking,
Staggering B, Star Chasing, Constant
Chasing A, Constant Chasing B.
On/Off Switch.
Static Color Switch: White, Red, Orange,
Yellow, Green, Cyan, Blue, Purple.
Button Description
6
7
8
Multi-color mode:
1. US Flag: Red, blue and white
2. Pumpkin: Purple and orange
3. Holiday: Red and green
Dynamic mode:
1. Party: 3-color chasing (red, green and blue)
2. Rainbow: 7-color chasing (red, orange, yellow, green, cyan,
blue, purple)
3. Game: 16-color chasing (red, orange, yellow, green, cyan, blue,
purple, white and other 8 combined colors)
Timer: 4 hours and 8 hours
4H 8H
11
