eControls E-Detector Noiseless User manual

Electronic Intelligent Controls, S.L. 08830 Sant Boi de Llobregat Tel.: [phone] www.e-controls.es
C/ Murcia, 35 F Barcelona, Spain Fax: [phone] [e-mail]

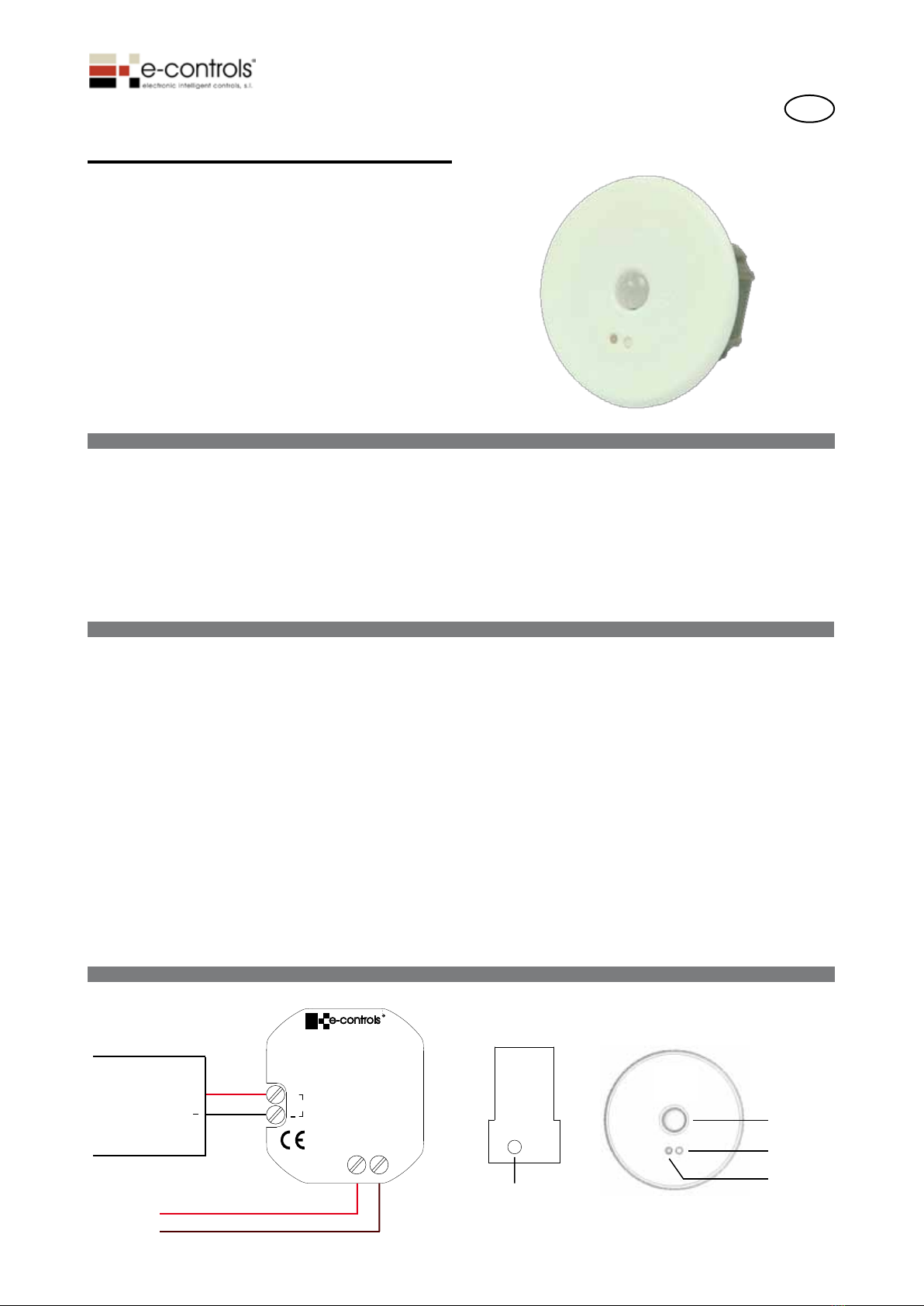

e-Detector Noiseless
Motion sensor with transistor output for ceiling mounting
Product reference: DP.801110-010
e-Detector Noiseless is a motion sensor for ceiling
mounting, used to detect motion through the detection
of heat changes coming from bodies in motion in the
covering area. The device is including an infrared sensor
that detects with high precision any movement in a room
or zone in a building.
The product includes an optocoupled transistor output
that avoids any noise of the traditional mechanical relays,
and has been designed to be connected at a voltage digital
input of a system to monitor the motion detected.
Instruction Sheet
INS1215507000-1
1
e-Detector Noiseless is a motion sensor for celing mounting
used to detect people or bodies in motion in a building.
The device has an infrared motion sensor that detects any
movement with a very high precision and a transistor output
type is used to connect the device to a voltage digital input,
that activates every time a valid movement is detected.
The output becomes active during 5 seconds after a valid
detection. The device has a potentiometer to adjust the
sensitivity of the motion sensor providing a very exible
device installable in any environment.
A red LED indicator in the front cover of the device blinks
shortly when the device is detecting motion. The pushbutton
is used to disable the LED indictor function, avoiding lighting
it when a movement is detected. To do this, press the front
pushbutton between 2 to 5 seconds to enable/disable this
function.
Product description
Mounting instructions
• Do not leave cables peeled or turned around the device.
• Do not connect the device with the hands wet.
• Do not open or drill the device
• Keep the device and cables away from humidity and dust.
• Clean the front cover with a water moisture soft cloth.
Caution:
• Disconnect the device from the power supply before
mounting or moving the sensor.
• The device can’t be installed over shelves, behind curtains,
near heat/cool air handling units and avoid direct sun
radiation over the device.
The device has an enclosure for ush mounting on roof
ceilings.
Mounting instructions:
1. Drill a 65mm diameter hole on the ceiling.
2. Connect wires on the correct terminals:
3. Adjust sensibility detection potentiometer on the side of
the device, to the desired value.
4. Clip the springs and insert the product into the hole,
releasing the springs when placed in the hole.
5. Power up the supply voltage and check the red LED indicator
is switched on during some seconds (warm up time).
• Connect the power supply to the +/ ~ y -/ ~ terminals.
• Connect the transistor output + and - to the digital
input terminals, respecting the polarity.
Wiring diagram and mechanical description
EN
Front view
Motion
sensor
Pushbutton
Motion
indicator
© 2015 e-Controls®
Digital
Input
-/~
+/~
+
12-24V
-/~
+/~
R
e-controlse-controls
IP20
Made in Spain
www.e-controls.es
+
Output
Supply
Input
Ref. DP.801110-010
AC 12-24 V, 46mA
DC 12-24 V, 16mA
Motion detector transistor output
e-Detector Noiseless
Lateral view
Motion
sensitivity
adjustment
WARRANTY VOID
IF BROKEN
Detection
_+

2
The package of this product is considered as industrial packaging; intended for professional use only.
The manufacturer is not responsible of the incorrect installation or use of the products.
Specications are subject to change without notice.
INS1215507000-1
Supply power
Operating voltage. . . . . . . . . . . . . . . 12-24 Vca/Vcc ±20%
Operating nominal current . . . . 16mA@12Vcc, 39mA@12Vca
16mA@24Vcc, 46mA@24Vca
Motion sensor
Technology . . . . . . . . . . . . . . . . . . . . . . . . PIR (Infrared)
Number of pyro elements . . . . . . . . . . . . . . . . . . . . . . 4
Number of detection zones. . . . . . . . . . . . . . . . . . . . 88
Detection angle (X, Y) . . . . . . . . . . . . . . . . . . . . .+/- 50º
Detection range (at 2,5 m from oor). . . . . . . . . . 6 meters
Maximum detection distance . . . . . . . . . . . . . . 10 meters
Detection diagram . . . . . . . . . . . . . . . . . . . . . See table
Mean time for stabilization . . . . . . . . . . . . . . . . . . . 60 s.
Sensitivity adjustment . . . . . . . . . . . . . . . . Potentiometer
Output signal. . . . . . . . . . . . . . . . Transistor (see Output)
Output
Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Optoisolated
Output type. . . . . . . . . . . . . . . . . . . . . . .Open collector
Maximum voltage . . . . . . . . . . . . . . . . . . . . . . . + 75 V
Maximum current . . . . . . . . . . . . . . . . . . . . . . . + 10 mA
Maximum power allowed . . . . . . . . . . . . . . . . .+ 150 mW
Detection pulse time . . . . . . . . . . . . . . . 1 s ON / 1,5 s OFF
Stand-by state (no detection) . . . . . . . . . . . . . . . . .Open
Front panel LED indicator
Colour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Red
On/O . . . . . . . . . . . . . . . . . . Motion detected/Stand-by
Pushbutton
Long push . . . . . . . . . . . . . . . . . LED blink enable/disable
Mechanical installation
Installation . . . . . . . . . . . . . . . Flush mounting on ceiling
Fixation . . . . . . . . . . . . . . . . . . . . . . . . 2 metal springs
Hole diameter . . . . . . . . . . . . . . . . . . . . . . . . . . 65 mm
Max ceiling thickness. . . . . . . . . . . . . . . . . . . . . . 19 mm
Internal height on ceiling . . . . . . . . . . . . . . . . . . . 45 mm
Mechanical features
Dimmensions. . . . . . . . . . . . . . . . . . . . 80x50mm (ØxH)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 g
Colour (front) . . . . . . . . . . . . . . . . . . . . . . . . . RAL 9016
Enclosure material. . . . . . . . . . . . . . . . . . . . . . . . . . . PP
Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . Screw type
Wire section. . . . . . . . . . . . . . 0,5 mm2- 2,5 mm2 (14 AWG)
Temperature
Operating . . . . . . . . . . . . . . . 0ºC to +50ºC (32ºF to 104ºF)
Storage. . . . . . . . . . . . . . . -20ºC to +85ºC (-4ºF to +185ºF)
Humidity (no condensation)
Operating . . . . . . . . . . . . . . . . . . 10% to 90% RH at 50ºC
Storage. . . . . . . . . . . . . . . . . . . . . . . . . 95% RH at 50ºC
Product Family Standards
Automatic electrical controls for household and similar use.
General requirements. . . . . . . . . . . . . . . . . . . EN 60730-1
CE Conformity
Low Voltage Directive . . . . . . . . . . . . . . . . . 2006/95/EC
Electromagntic Compatibility Directive . . . . . . 2004/108/EC
Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .CE
Safety
Standard. . . . . . . . . . . . . . . . . . . . . . . . . . . EN 60730-1
IEC Protection Class . . . . . . . . . . . . . . . . . . . . . . Class III
Environmental protection level . . . . . . . . . . . . . . . . IP20
EMC
Emissions . . . . . . . . . . . . . . . . . . . . . . . . .EN 61000-6-3
Immunity . . . . . . . . . . . . . . . . . . . . . . . . .EN 61000-6-1
NOTES:
1) The device is not intented for use as part of a security
system detector.
2) Installer should adjust the sensibility potentiometer to the
environment where device will be installated, for an optimal
detection of the motion sensor.
e-Detector Noiseless, Motion sensor with optoisolated output, ceiling mounting . . . . . . . . . . . . . . . . . . . . DP.801110-010
Surface mounting enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . AC.000001-000
Features
Product reference
Related products
© 2015 e-Controls®
Motion sensor

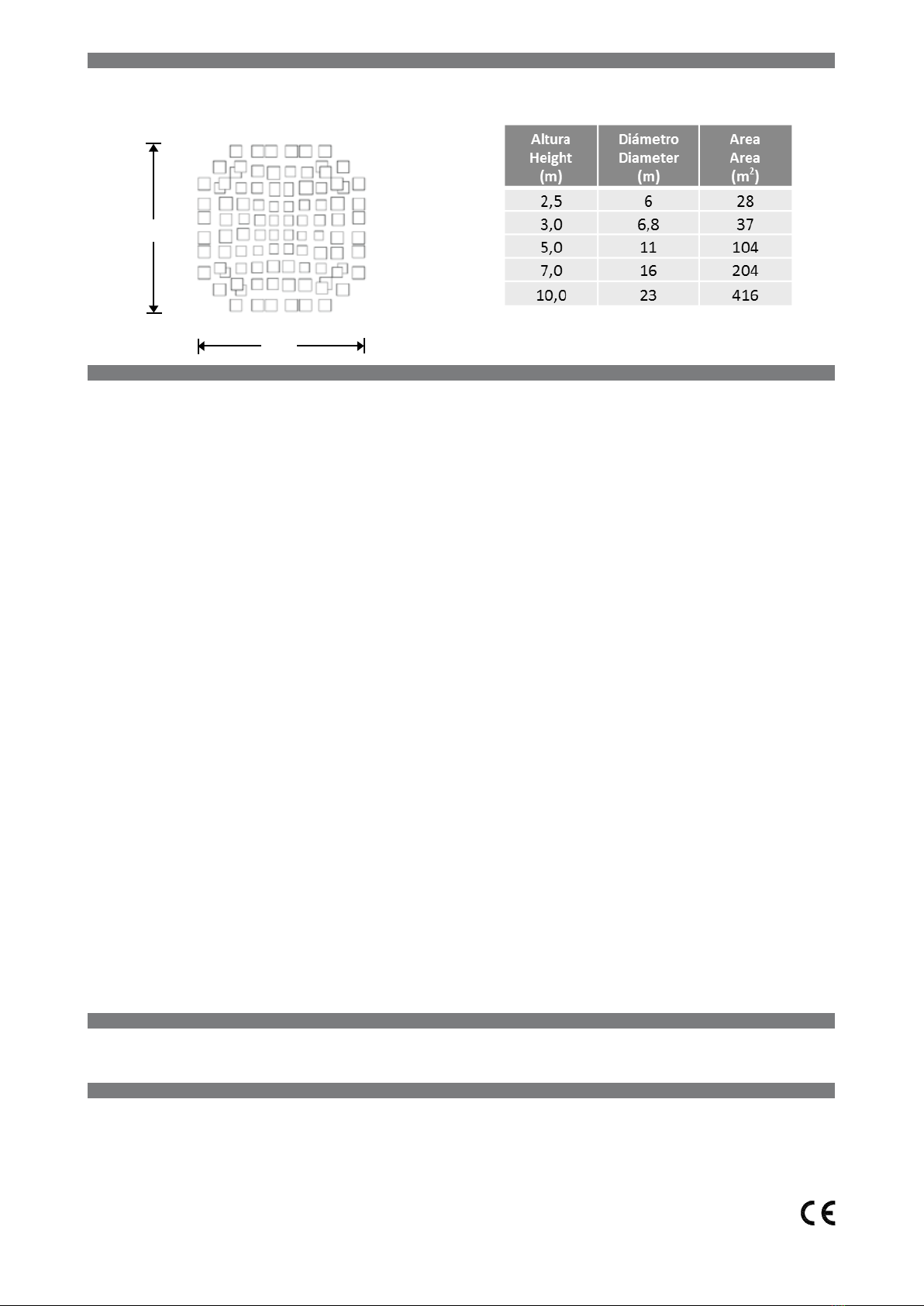

Plan view (installed at 2,5 mts high)
Detection diagram Coverage area table (*)
6 m
6 m (*) At optimal sensitivity conditions
