ECOVACS Deebot N8 Pro User manual

Instruction Manual

2
EN
Live Smart. Enjoy Life.
Should you encounter situations that have not been properly addressed in this Instruction Manual, please contact our
Customer Service Center where a technician will be able to help you with your specic problem or question.
For more information, please visit the ECOVACS ROBOTICS ofcial website: www.ecovacs.com
The company reserves the right to make technological and/or design changes to this product for continuous improvement.
Thank you for choosing DEEBOT!

3EN
Contents
1. Important Safety Instructions ..........................................................................................................................................4
2. Package Contents .............................................................................................................................................................8
3. Operating and Programming..........................................................................................................................................11
4. Maintenance ....................................................................................................................................................................17
5. Indicator Light..................................................................................................................................................................23
6. Troubleshooting...............................................................................................................................................................24
7. Technical Specifications.................................................................................................................................................29

4
EN
1. This Appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the Appliance
by a person responsible for their safety.
2. Children should be supervised to ensure that
they do not play with the Appliance.
3. Clear the area to be cleaned. Remove power
cords and small objects from the oor that
could entangle the Appliance. Tuck rug fringe
under the rug base, and lift items such as
curtains and tablecloths off the oor.
4. If there is a drop off in the cleaning area due
to a step or stairs, you should operate the
Appliance to ensure that it can detect the step
without falling over the edge. It may become
necessary to place a physical barrier at the
edge to keep the unit from falling. Make sure
the physical barrier is not a trip hazard.
5. Only use as described in this manual. Only
use attachments recommended or sold by
the manufacturer.
6. Please make sure your power supply source
voltage matches the power voltage marked
on the Docking Station.
7. For INDOOR household use ONLY. Do not
use the Appliance in outdoor, commercial or
industrial environments.
8. Use only the original rechargeable battery and
Docking Station provided with the Appliance
from the manufacturer. Non-rechargeable
batteries are prohibited.
9. Do not use without dust bin and/or lters in place.
10. Do not operate the Appliance in an area
where there are lit candles or fragile objects.
11. Do not use in extremely hot or cold environments
(below -5˚C/23˚F or above 40˚C/104˚F).
1. Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical Appliance, basic
precautions should always be followed, including
the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE
SAVE THESE INSTRUCTIONS

5EN
12. Keep hair, loose clothing, ngers, and all parts of
body away from any openings and moving parts.
13. Do not operate the Appliance in a room
where an infant or child is sleeping.
14. Do not use Appliance on wet surfaces or
surfaces with standing water.
15. Do not allow the Appliance to pick up large
objects like stones, large pieces of paper or
any item that may clog the Appliance.
16. Do not use Appliance to pick up ammable
or combustible materials such as gasoline,
printer or copier toner, or use in areas where
they may be present.
17. Do not use Appliance to pick up anything that is
burning or smoking, such as cigarettes, matches,
hot ashes, or anything that could cause a re.
18. Do not put objects into the suction intake.
Do not use if the suction intake is blocked.
Keep the intake clear of dust, lint, hair, or
anything that may reduce air ow.
19. Take care not to damage the power cord. Do
not pull on or carry the Appliance or Docking
Station by the power cord, use the power cord
as a handle, close a door on the power cord, or
pull power cord around sharp edges or corners.
Do not run Appliance over the power cord.
Keep power cord away from hot surfaces.
20. If the power cord is damaged, it must be
replaced by the manufacturer or its service
agent in order to avoid a hazard.
21. Do not use the Docking Station if it is
damaged. The power supply is not to be
repaired and not to be used any longer if it is
damaged or defective.
22. Do not use with a damaged power cord or
receptacle. Do not use the Appliance or
Docking Station if it is not working properly,
has been dropped, damaged, left outdoors,
or come in contact with water. It must be
repaired by the manufacturer or its service
agent in order to avoid a hazard.
23. Turn OFF the power switch before cleaning
or maintaining the Appliance.
24. The plug must be removed from the
receptacle before cleaning or maintaining
the Docking Station.
25. Remove the Appliance from the Docking
Station, and turn OFF the power switch to
the Appliance before removing the battery
for disposal of the Appliance.

6
EN
26. The battery must be removed and discarded
according to local laws and regulations before
disposal of the Appliance.
27. Please dispose of used batteries according
to local laws and regulations.
28. Do not incinerate the Appliance even if it
is severely damaged. The batteries can
explode in a re.
29. When not using the Docking Station for a
long period of time, please unplug it.
30. The Appliance must be used in accordance
with the directions in this Instruction Manual.
ECOVACS ROBOTICS cannot be held liable
or responsible for any damages or injuries
caused by improper use.
31. The robot contains batteries that are only
replaceable by skilled persons. To replace the
robot’s battery, please contact Customer Service.
32. If the robot will not be used for a long time,
power OFF the robot for storage and unplug
the Docking Station.
33. WARNING: For the purposes of recharging
the battery, only use the detachable supply
unit CH1822 provided with the Appliance, or
CH1918 sold separately as an accessory.
To satisfy RF exposure requirements, a separation
distance of 20 cm or more should be maintained
between this device and persons during device
operation.
To ensure compliance, operations at closer than
this distance is not recommended. The antenna
used for this transmitter must not be co-located in
conjunction with any other antenna or transmitter.
To disable Wi-Fi module on DEEBOT, power the
robot ON.
Place the robot on the Docking Station making
sure the Charging Contacts on DEEBOT and the
Docking Station Pins make a connection.
Press and hold the AUTO Mode Button on the
robot for 20 seconds until DEEBOT emits 3 beeps.
To enable Wi-Fi module on DEEBOT, power the
robot OFF and then power ON. The Wi- Fi module
is turned on when DEEBOT is restarted.

7EN
Correct Disposal of this Product
This marking indicates that this product should
not be disposed of with other household waste
throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled
waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To
recycle your used device, please use the return
and collection systems or contact the retailer
where the product was purchased. They can safely
recycle this product.
For EU Countries
Class II
Short-circuit-proof safety isolating
transformer
Switch mode power supply
For indoor use only
Direct current
Alternating current
For EU Declaration of Conformity information, visit
https://www.ecovacs.com/global/compliance

8
EN
2. Package Contents/2.1 Package Contents
Robot Instruction Manual Docking Station Side Brushes
Mopping Pad Plate Washable Mopping Pad Disposable Mopping Pads
Note: Figures and illustrations are for reference only and may differ from actual product appearance.
Product design and specications are subject to changes without notice.

9EN

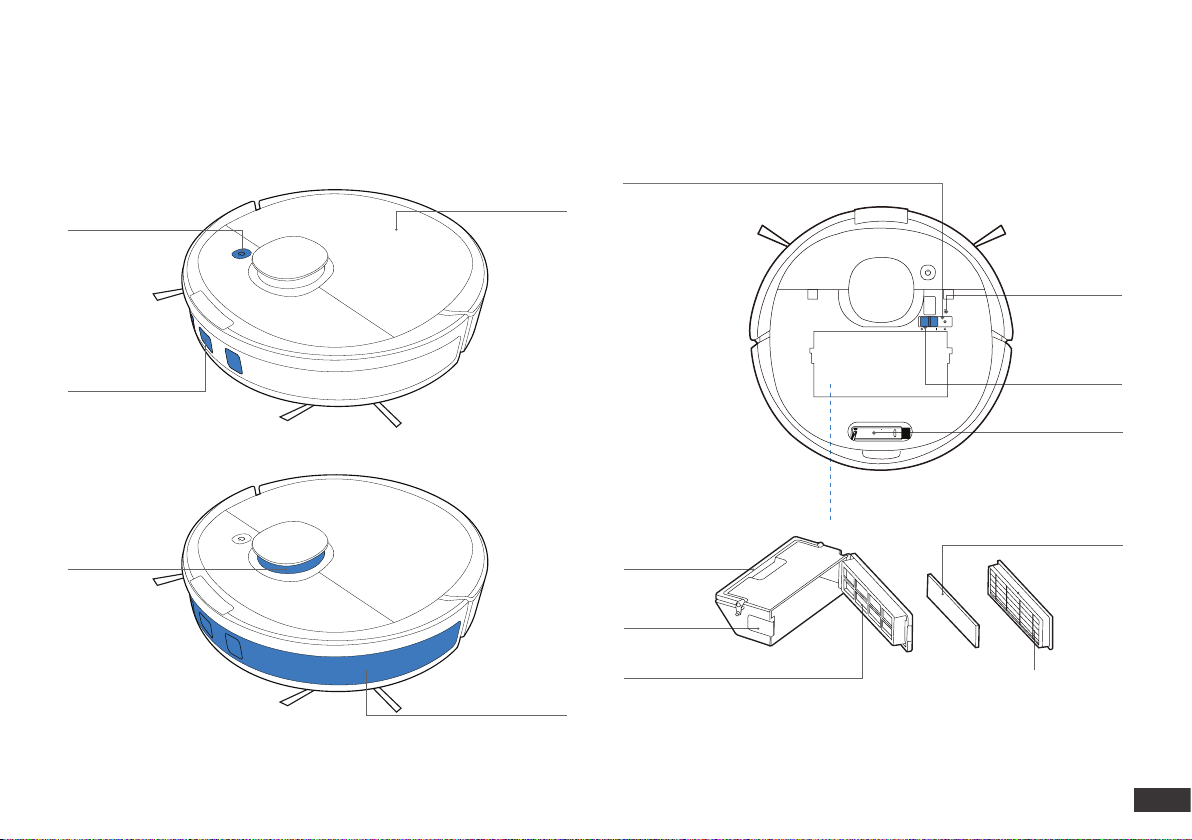

2. Package Contents/2.2 Product Diagram
Robot
AUTO Mode Button
Top Cover
Wi-Fi Status
Indicator
TrueMapping
Distance Sensor
Anti-collision Bumper
RESET Button
Dust Bin Handle
Release Button
Filter Net
Power Switch
Sponge Filter
High Efciency Filter
Multi-function
Cleaning Tool
TrueDetect
3D Sensor

10
EN
Charging Contacts
Anti-drop Sensors
Reservoir
Main Brush
Release Button
Universal Wheel
Side Brushes
Water Outlet
Anti-drop Sensors
Driving Wheels
Main Brush
Carpet Detection
Sensor
Bottom View Docking Station
Docking Station Pins
Power Cord
Reservoir
Water Inlet Cover
Mopping Pad
Water Inlet
Reservoir Release
Button
Mopping Pad Plate

11 EN
3. Operating and Programming/3.1 Notes Before Cleaning
Tidy up the area to be cleaned by putting
furniture, such as chairs, in their proper place.
During the rst use, make sure each room door
is open to help DEEBOT fully explore your house.
It may be necessary to place a physical
barrier at the edge of a drop to stop the
unit from falling over the edge.
Put away objects including
cables, cloths and slippers,
etc. on the oor to improve the
cleaning efciency.
Before using the product on a rug
with tasseled edges, please fold
the rug edges under.
Please do not stand in narrow
spaces, such as hallways, and
make sure not to block the
Detection Sensor.

12
EN

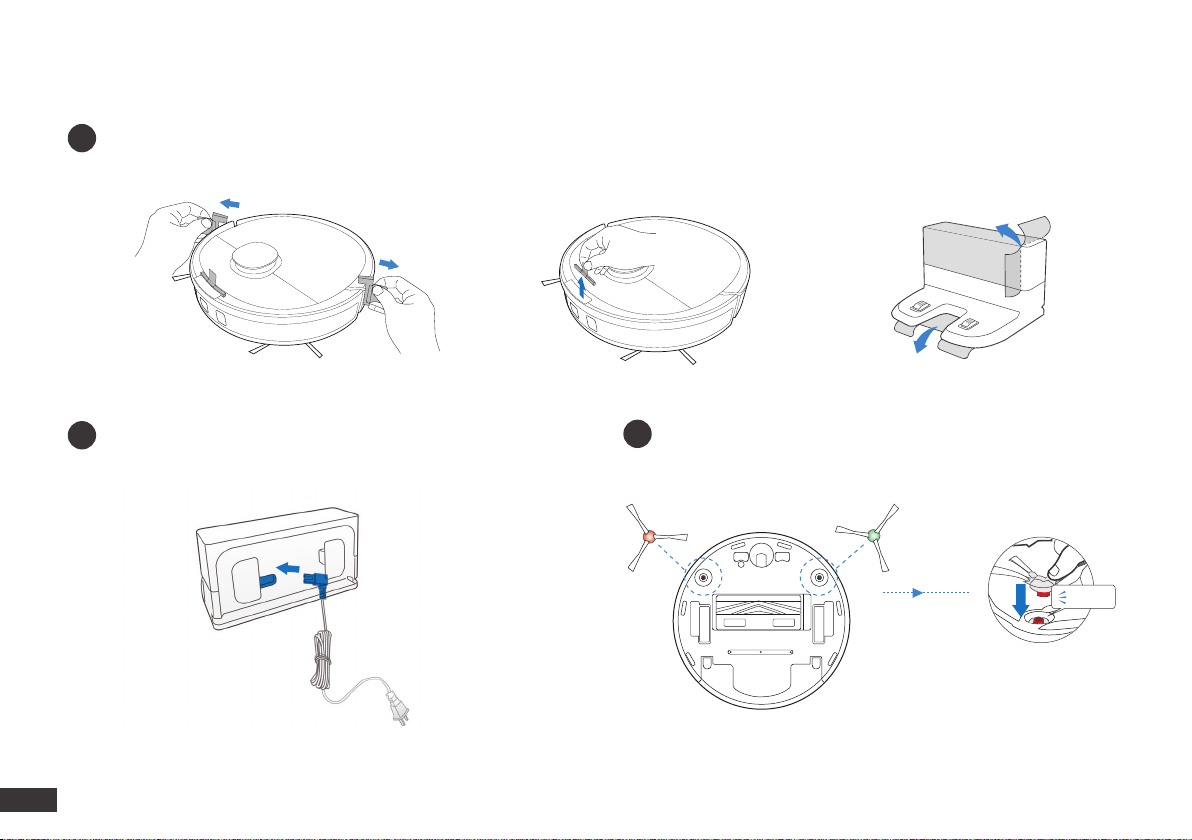

3. Operating and Programming/3.2 Quick Start
1Remove Protective Strips and Films
2Assemble Docking Station 3Install Side Brushes
Click

13 EN

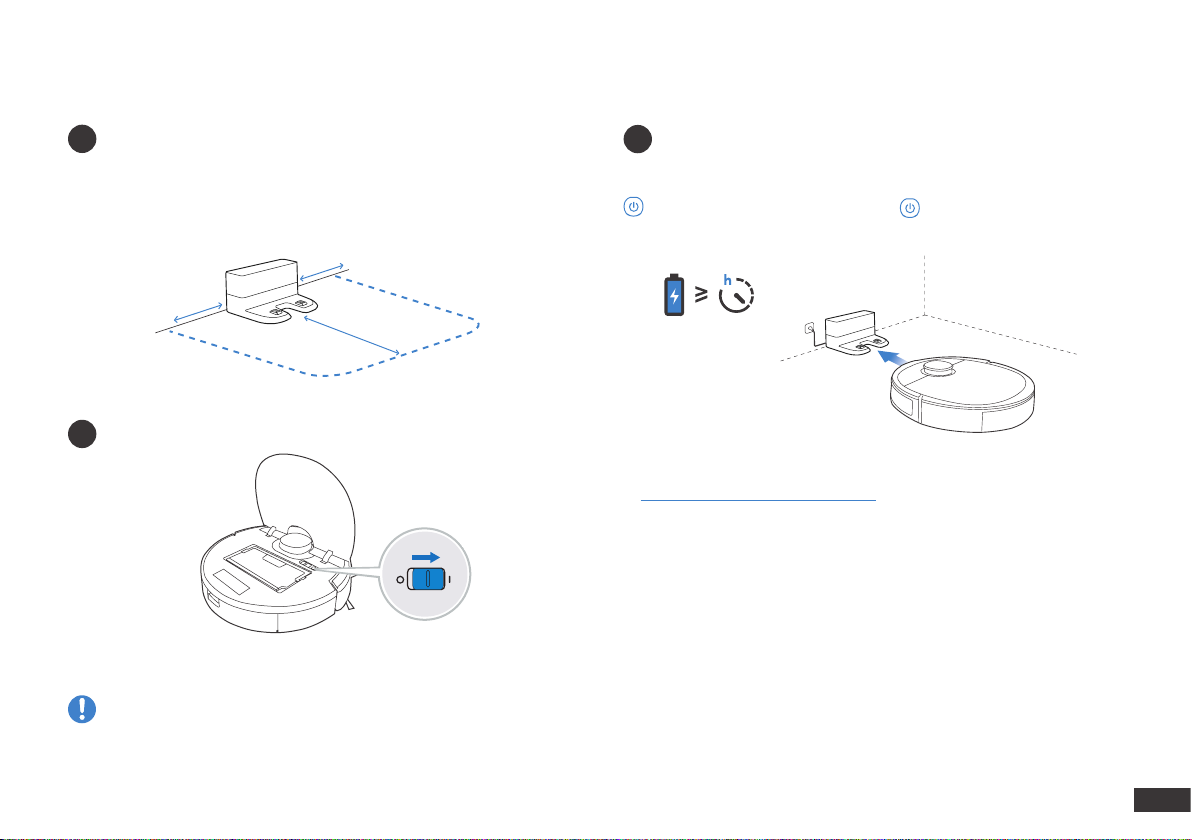

3. Operating and Programming/3.3 Charging DEEBOT
>0.5m (1.64')
>1.5m (4.92')
>0.5m (1.64')
1Docking Station Placement 3Charge DEEBOT
2Power ON
Note: I= ON, O= OFF.
DEEBOT cannot be charged when being powered OFF.
Empty remaining water from the Reservoir and remove the Reservoir
and the Mopping Pad Plate before charging DEEBOT.
ashes when DEEBOT is charging. goes out when DEEBOT is
fully charged.
*You can also purchase an Auto-Empty Station that automatically
empties your DEEBOT's dustbin. Explore more accessories at
https://www.ecovacs.com/global.
4

14
EN
ECOVACS HOME
ECOVACS HOME

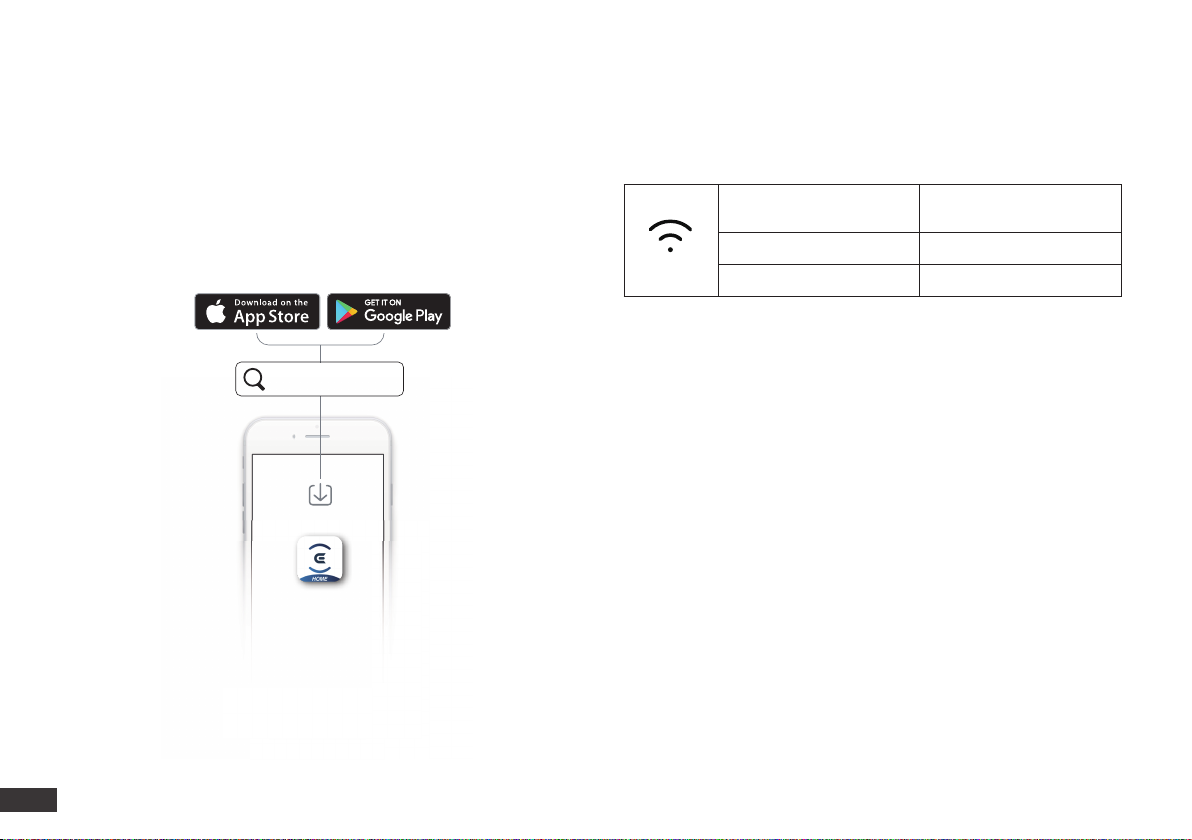

3. Operating and Programming/3.4 ECOVACS HOME App
To enjoy all available features, it is recommended to control your DEEBOT via the ECOVACS HOME app.
Wi-Fi Indicator LightBefore you start, make sure that:
Tips:
If you have any problems during the Wi-Fi setup process, refer to the
Troubleshooting > Wi-Fi Connection section in this manual.
• Your mobile phone is connected to a Wi-Fi network.
• The 2.4GHz band wireless signal is enabled on your router.
• The Wi-Fi indicator light on DEEBOT is slowly ashing.
Slowly flashing Disconnected to Wi-Fi or
waiting for Wi-Fi connection
Rapidly flashing Connecting to Wi-Fi
Solid Connected to Wi-Fi

15 EN
1
3
3. Operating and Programming/3.5 Operating DEEBOT
During the rst cleaning, please supervise DEEBOT and assist it should there be a problem.
Pressing for 3 seconds to send DEEBOT back to the Docking Station.
Start
2Pause Return to Charge
Note: The robot’s Control Panel stops glowing after the robot is
paused for a few minutes. Press the AUTO Mode Button on DEEBOT
to wake up the robot.

16
EN
1 2
3. Operating and Programming/3.6 OZMO Mopping System
Note: To prolong the service life of the reservoir, it is recommended
to use puried water or softened water for OZMO mopping system.
OR
Note: When DEEBOT is mopping, DEEBOT automatically detects
the carpet and keeps away from it. If you need to clean the carpet,
please uninstall the mopping pad plate rst.
Click

17 EN
To keep DEEBOT running at peak performance, perform maintenance tasks and replace parts with the following frequencies:
A multi-function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
Note: ECOVACS manufactures various replacement parts and ttings. Please contact Customer Service for more information on replacement parts.
Robot Part Maintenance Frequency Replacement Frequency
Disposable Mopping Pad After each use Replace after each use
Washable Mopping Pad After each use Every 50 washes
Reservoir/Mopping Pad Plate After each use /
Side Brush Once every 2 weeks Every 3-6 months
Main Brush Once per week Every 6-12 months
Sponge Filter/ High Efciency Filter Once per week Every 3-6 months
TrueDetect 3D Sensor
Universal Wheel
Anti-Drop Sensors
Bumper
Charging Contacts
Docking Station Pins
Once per week /
4. Maintenance/4.1 Regular Maintenance

18
EN
4. Maintenance/4.2 OZMO Mopping System
Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the Docking Station.
1 2 Washable Mopping Pad Disposable Mopping Pad
Clean the water inlet filter on the
bottom of the Reservoir if it is clogged.

19 EN
3
41
2
6
5 7
4. Maintenance/4.3 Dust Bin and Filters

20
EN
4. Maintenance/4.4 Main Brush and Side Brushes
Main Brush Side Brushes
