Congratulations on the purchase of your ECOVACS ROBOTICS DEEBOT!
We hope it brings you many years of satisfaction� We believe that your new robot will help keep your home clean and
give you more quality time to do other things�
Before you go any further, please register your product on the ECOVACS ROBOTICS website at www�ecovacsrobotics�com/
registration/� We also suggest you record your model number, serial number, date of purchase and attach your receipt to this
page for safekeeping�
MODEL # _______________________
SERIAL # _______________________
DATE OF PURCHASE _______/_____/_____
Should you have any problems programming the robot or getting your robot to function properly, please call us before contacting
or returning it to the place of purchase� Call toll free number 1-844-ECOVACS (1-844-326-8227) or 1-330-994-1760 from
outside the United States of America and Canada for assistance�
Thank you for choosing DEEBOT!

3EN
1. Important Safety Instructions...........................................................................................................................................4
2. Package Contents .............................................................................................................................................................8
3. Operating and Programming..........................................................................................................................................11
4. Maintenance.....................................................................................................................................................................17
5. Alarm Sounds ..................................................................................................................................................................22
6. Troubleshooting ..............................................................................................................................................................23
7. Technical Specifications.................................................................................................................................................24
Contents

4
EN
1� Do not allow to be used as a toy� Close
attention is necessary when used by or near
children�
2� Clear the area to be cleaned� Remove power
cords and small objects from the oor that
could entangle the Appliance� Tuck rug fringe
under the rug base, and lift items such as
curtains and tablecloths off the oor.
3� If there is a drop off in the cleaning area due
to a step or stairs, you should operate the
Appliance to ensure that it can detect the step
without falling over the edge� It may become
necessary to place a physical barrier at the
edge to keep the unit from falling� Make sure
the physical barrier is not a trip hazard�
4� Only use as described in this manual� Only
use attachments recommended or sold by the
manufacturer�
5� Please make sure your power supply voltage
matches the power voltage marked on the
Docking Station�
6� Do not handle plug or appliance with wet hands�
7� Nonrechargeable batteries are prohibited�
For battery information, please refer to
Specications section.
8� Do not use without dust bin and/or lters in
place�
9� Do not operate the vacuum in an area where
there are lit candles or fragile objects on the
oor to be cleaned.
10� Do not use and store in extremely hot or
cold environments (below -5˚C /23˚F or
above 40˚C/104˚F). Please charge the robot
in temperature above 0°C/32°F and below
40°C/104°F�
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE.
SAVE THESE INSTRUCTIONS
For Household use only
When using an electrical appliance, basic precautions
should always be followed, including the following:
WARNING:
Read all safety warnings and instructions�
Failure to follow the warnings and instructions may result
in electric shock, re or serious injury.
1. Important Safety Instructions

5EN
11� Keep hair, loose clothing, ngers, and all
parts of body away from any openings and
moving parts�
12� Do not operate the Appliance in a room where
an infant or child is sleeping�
13� For INDOOR use ONLY� Do not use the
Appliance in outdoor, commercial or industrial
environments� Do not use Appliance on wet
surfaces or surfaces with standing water�
14� Do not allow the Appliance to pick up large
objects like stones, large pieces of paper or
any item that may clog the Appliance�
15� Do not use Appliance to pick up ammable
or combustible materials such as gasoline,
printer or copier toner, or use in areas where
they may be present�
16� Do not use Appliance to pick up anything that
is burning or smoking, such as cigarettes,
matches, hot ashes, or anything that could
cause a re.
17� Do not put any object into openings� Do not use
with any opening blocked; keep free of dust, lint,
hair, and anything that may reduce air ow.
18� Take care not to damage the power cord� Do
not pull on or carry the Appliance or Docking
Station by the power cord, use the power
cord as a handle, close a door on the power
cord, or pull power cord around sharp edges
or corners� Do not run Appliance over the
power cord� Keep power cord away from hot
surfaces� Do not unplug by pulling on cord� To
unplug, grasp the plug, not the cord�
19� If the power cord is damaged, it must be
replaced by the manufacturer or its service
agent in order to avoid a hazard�
20� Do not use the Docking Station if it is damaged�
21� Do not use with a damaged power cord or
plug� Do not use the Appliance or Docking
Station if it is not working properly, has been
dropped, damaged, left outdoors, or come in
contact with water� It must be repaired by the
manufacturer or its service agent in order to
avoid a hazard�
22� Turn OFF the power switch before cleaning or
maintaining the Appliance�
1. Important Safety Instructions

6
EN
23� The plug must be removed from the receptacle
before cleaning or maintaining the Docking
Station�
24� Remove the Appliance from the Docking
Station, and turn OFF the power switch to
the Appliance before removing the battery for
disposal of the Appliance�
25� The battery must be removed and discarded
according to local laws and regulations before
disposal of the Appliance�
26� Please dispose of used batteries according to
local laws and regulations�
27� Do not incinerate the Appliance even if it is
severely damaged� The batteries can explode
in a re.
28� When not using the Docking Station for a long
period of time, please unplug it�
29� The Appliance must be used in accordance
with the directions in this Instruction Manual�
ECOVACS ROBOTICS cannot be held liable
or responsible for any damages or injuries
caused by improper use�
30� Prevent unintentional starting� Ensure the
1. Important Safety Instructions
switch is in the off position before connecting
to battery pack, picking up or carrying the
appliance� Carrying the appliance with your
nger on the switch or energizing appliance
that have the switch on invites accidents�
31� When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from
one terminal to another� Shorting the battery
terminals together may cause burns or a re.
32� Under abusive conditions, liquid may be
ejected from the battery; avoid contact� If
contact accidentally occurs, ush with water.
If liquid contacts eyes, additionally seek
medical help� Liquid ejected from the battery
may cause irritation or burns�
33� Do not use a battery pack or appliance that is
damaged or modied. Damaged or modied
batteries may exhibit unpredictable behavior
resulting in re, explosion or risk of injury.
34� Do not expose a battery pack or appliance to
re or excessive temperature. Exposure to

7EN
1. Important Safety Instructions
re or temperature above 130°C may cause
explosion� The temperature of 130°C can be
replaced by the temperature of 265°F�
35� Follow all charging instructions and do
not charge the battery pack or appliance
outside of the temperature range specied
in the instructions� Charging improperly or at
temperatures outside of the specied range
may damage the battery and increase the risk
of re.
36� Have servicing performed by a qualied repair
person using only identical replacement parts�
This will ensure that the safety of the product
is maintained�
37� Do not modify or attempt to repair the
appliance or the battery pack (as applicable)
except as indicated in the instructions for use
and care�
38� Place the cords from other appliances out of
the area to be cleaned�
39� Do not operate the vacuum in a room that has
lit candles on furniture that the vacuum may
accidentally hit or bump into�
40� Do not allow children to sit on the vacuum�
41� Recharge only with the charger specied by
the manufacturer� A charger that is suitable
for one type of battery pack may create a risk
of re when used with another battery pack.
42� Use appliances only with specically designated
battery packs� Use of any other battery packs
may create a risk of injury and re.
43� The robot contains batteries that are only
replaceable by skilled persons� To replace
the robot’s battery, please contact Customer
Service�
44� If the robot will not be used for a long time,
fully charge the robot and power OFF for
storage and unplug the Docking Station�

8
EN
Federal Communications Commission (FCC) Interference
Statement
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules�
These limits are designed to provide reasonable protection
against harmful interference in a residential installation� This
equipment generate, uses and can radiate radio frequency
energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio
communications�
However, there is no guarantee that interference will not
occur in a particular installation� If this equipment does cause
harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one of the
following measures:
Reorient or relocate the receiving antenna�
Increase the separation between the equipment and receiver�
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected�
Consult the dealer or an experienced radio/TV technician for
help�
This device complies with Part 15 of the FCC Rules� Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation�
FCC Caution: Any changes or modifications not expressly
approved by the party responsible for compliance could void
the user’s authority to operate this equipment�
RF exposure warning
This equipment complies with FCC radiation exposure limits
set forth for an uncontrolled environment�
This equipment must be installed and operated in accordance
with provided instructions and the antenna(s) used for this
transmitter must be installed to provide a separation distance
of at least 20 cm from all persons and must not be collocated
or operating in conjunction with any other antenna or
transmitter�
To disable Wi-Fi module on DEEBOT, power the robot ON�
Place the robot on the Docking Station making sure the
Charging Contacts on DEEBOT and the Docking Station Pins
make a connection�
Press and hold the AUTO Mode Button on the robot for 20
seconds until DEEBOT emits 3 beeps�
To enable Wi-Fi module on DEEBOT, power the robot OFF
and then power ON� The Wi- Fi module is turned on when
DEEBOT is restarted�
1. Important Safety Instructions

9EN

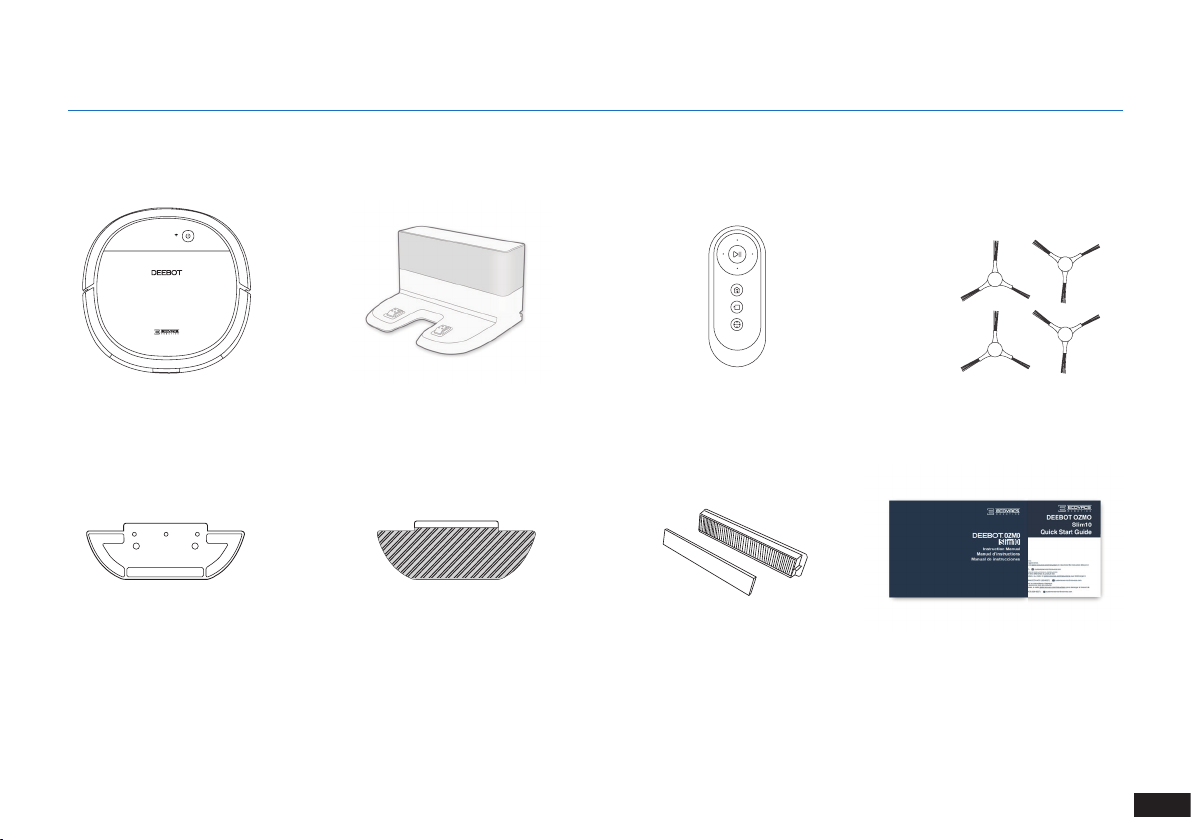

2.1 Package Contents
Robot (4) Side Brushes
Remote Control with
batteries
Docking Station
Washable/Reusable
Microber Cleaning Cloth
Cleaning Cloth Plate Sponge Filter and High-
efciency Filter
Instruction Manual+
Quick Start Guide
2. Package Contents
Note: Figures and illustrations are for reference only and may differ from actual product appearance�
Product design and specications are subject to changes without notice.

10
EN
Anti-Collision Sensors
and Bumper
RESET Button
Multi-function
Cleaning Tool

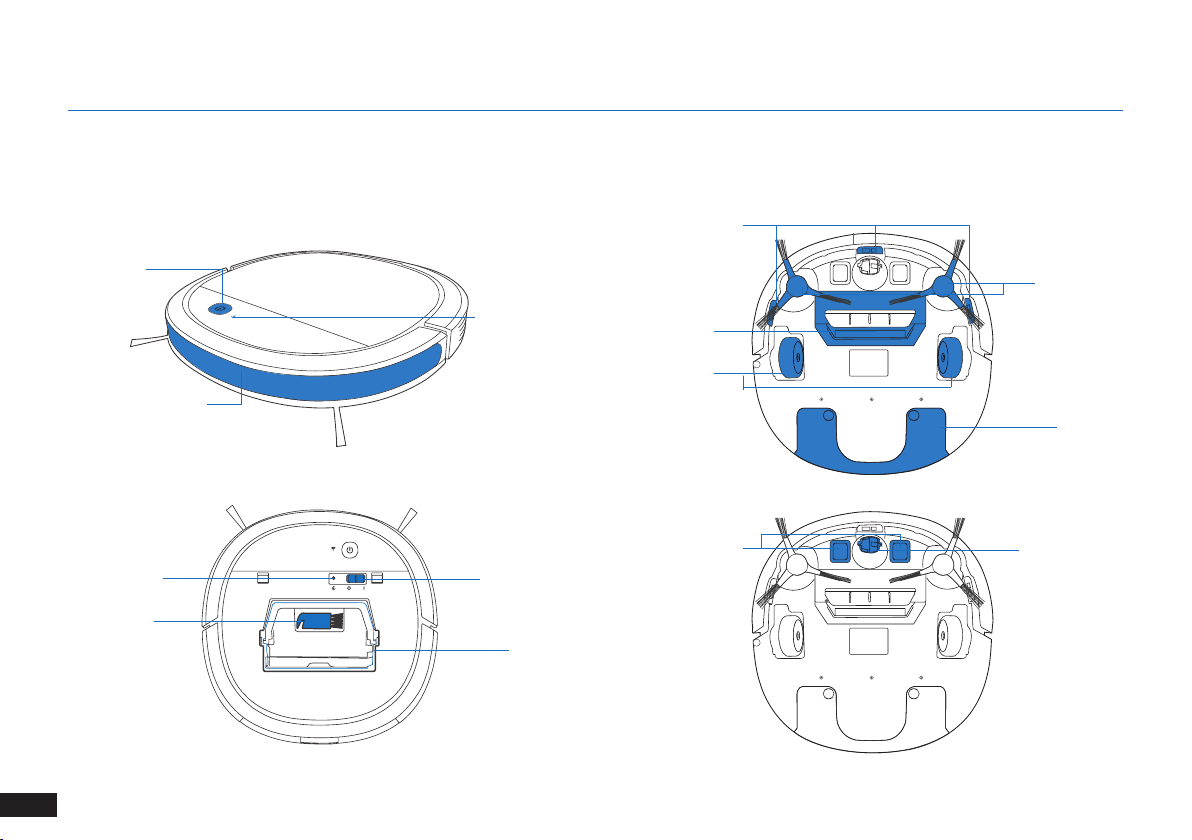

2.3 Product Diagram
Robot
AUTO Mode
Button
Bottom View
Wi-Fi Indicator
Side Brushes
Reservoir
Universal Wheel
Power Switch
Dust Bin
Anti-Drop Sensors
Direct Suction
Option
Driving Wheel
Charging Contacts
2. Package Contents

11 EN
2. Package Contents
Infrared Signal Generator
Docking Station Pins
Water Inlet
Cleaning Cloth
Plate
Washable/Reusable
Microber Cleaning Cloth
START/PAUSE Button
Reservoir
Edge Cleaning Mode
Button
Direction Control Buttons
Spot Cleaning Mode Button
Return to Charger
Mode Button
Docking Station
Advanced Mopping System
Remote Control

12
EN
Before using the product on a rug with tasseled edges, please fold the
rug edges under�
WARNING: Do not use DEEBOT on wet surfaces or surfaces with standing water.
It may be necessary to place a physical barrier at the edge of a drop to
stop the unit from falling over the edge�
Remove power cords and small objects from the oor that the robot
could be obstructed by�
3.1 Notes Before Cleaning
Tidy up the area to be cleaned by putting furniture, such as chairs, in
their proper place�
3. Operating and Programming

13 EN
3. Operating and Programming
1Remove Protection Strip 2Remove Protection Film 3Docking Station Placement
3.2 Preparation
Note: When DEEBOT completes the
cleaning cycle or when battery power gets
low, DEEBOT automatically returns to the
Docking Station to recharge itself�
5Install Side Brushes 5Power ON 6Charge DEEBOT
4

14
EN
OR

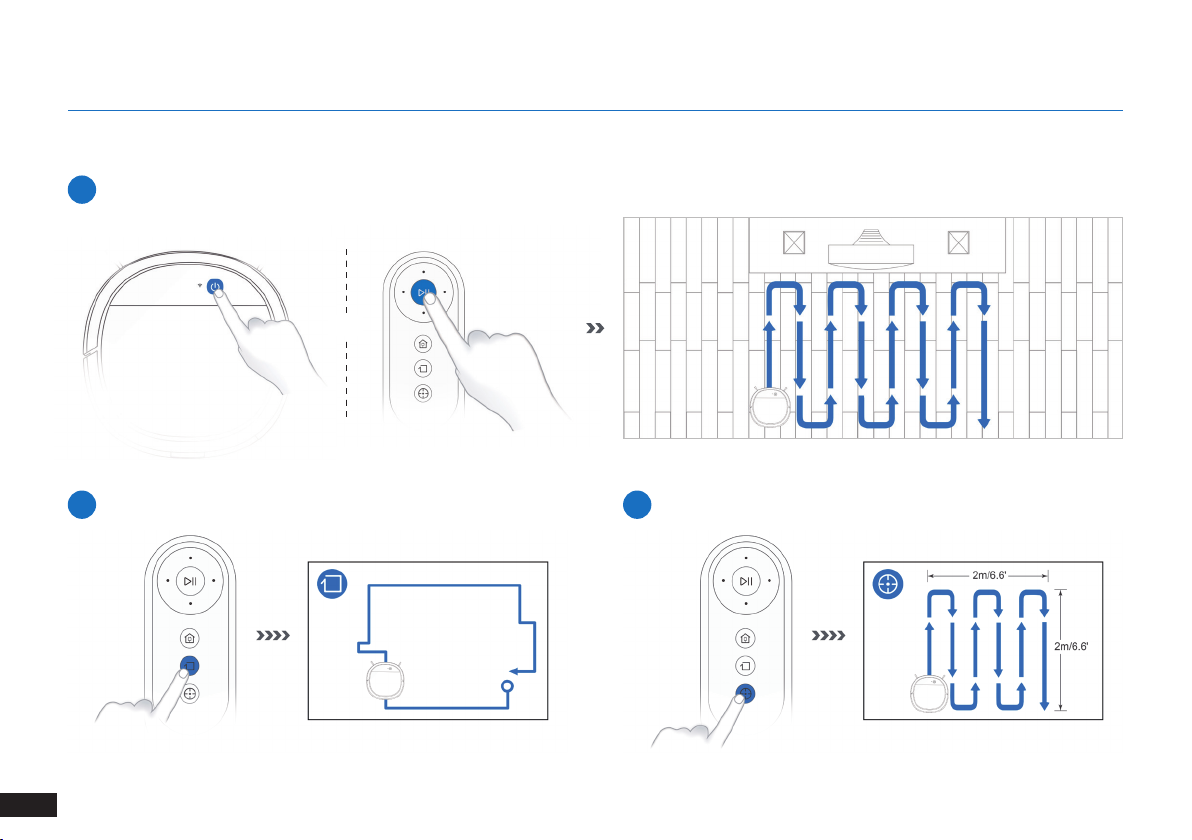

3.3 Selecting Cleaning Mode
1AUTO Cleaning Mode
2Edge Cleaning Mode 3Spot Cleaning Mode
3. Operating and Programming

15 EN
3. Operating and Programming
All the functions mentioned above can be enabled on the App.
Download ECOVACS App to access more features, including MAX
Mode, Scheduled Cleaning, etc.
4Return to Docking Station
iOS 9.0 or later Android 4.0 or later
ECOVACS HOME

16
EN
3.4 Pause, Wake Up, Power Off
1Pause 2Wake Up
Note: The robot’s Control Panel stops glowing after the robot is paused
for a few minutes� Press the AUTO Mode Button on DEEBOT to wake
up the robot�
Press the AUTO button on DEEBOT to wake it up
3Power OFF
Note: When DEEBOT is not working, it is recommended to keep it
switched ON and charging�
OR
OR
3. Operating and Programming

17 EN
3. Operating and Programming

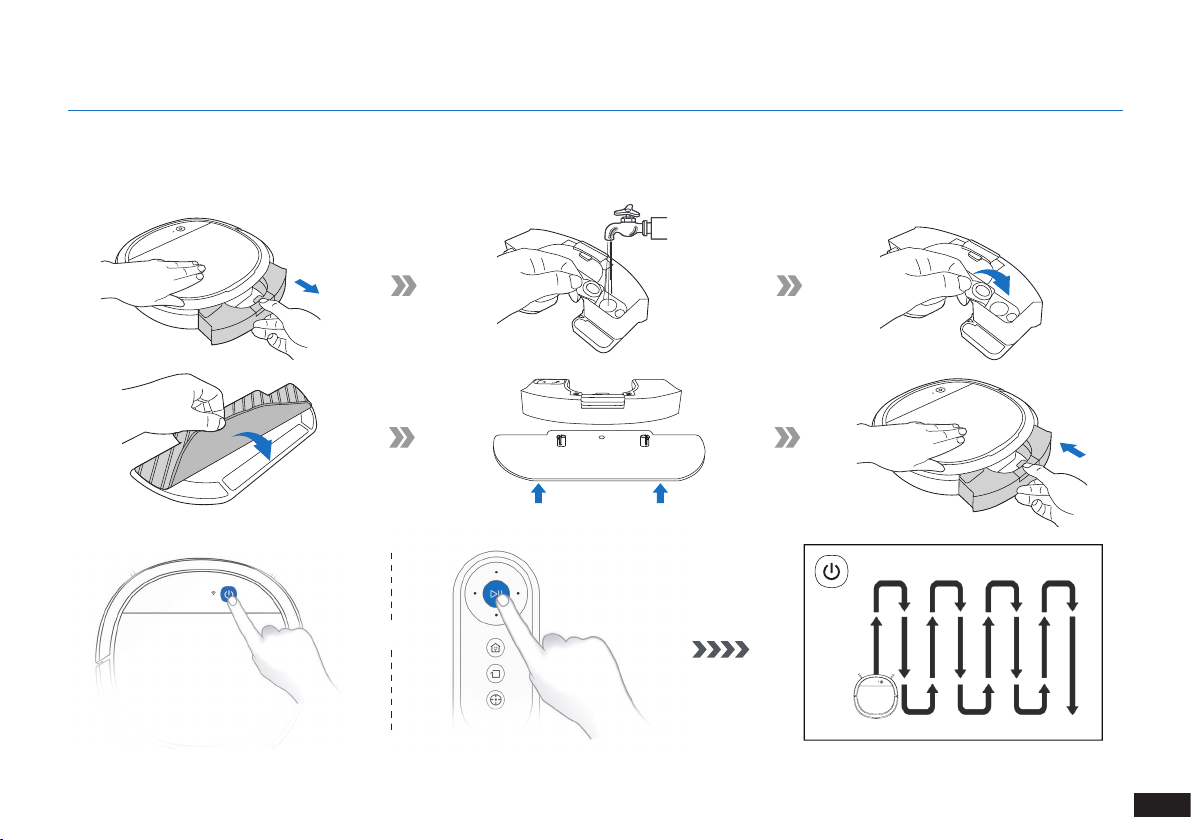

3.5 Optional Mopping System
Note: Empty the Reservoir and remove the Cleaning Cloth Plate before cleaning on carpet�
When using the mopping system, fold area rug edges under themselves so DEEBOT will avoid the rug�
OR
Note: After DEEBOT nishes mopping, empty any remaining water from the Reservoir.

18
EN
Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the Docking Station.

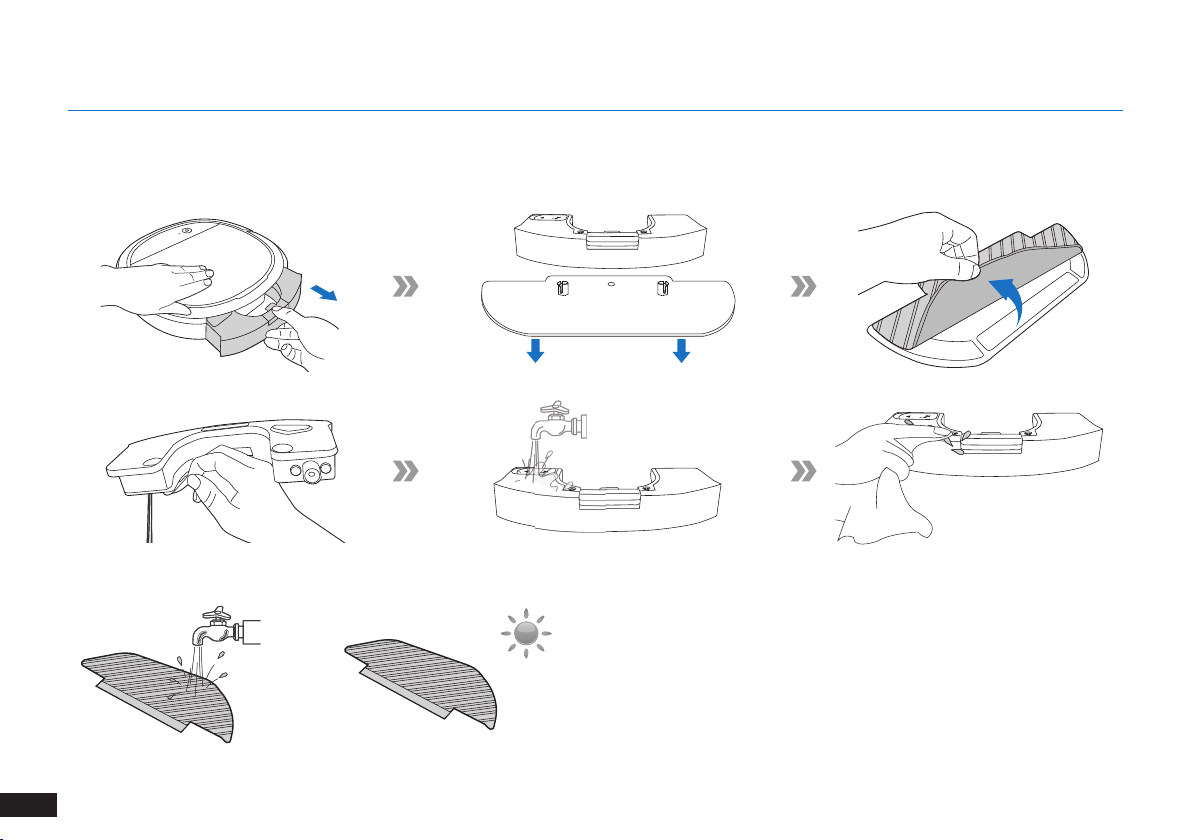

4.1 Optional Mopping System
4. Maintenance

19 EN
4. Maintenance
Dust Bin

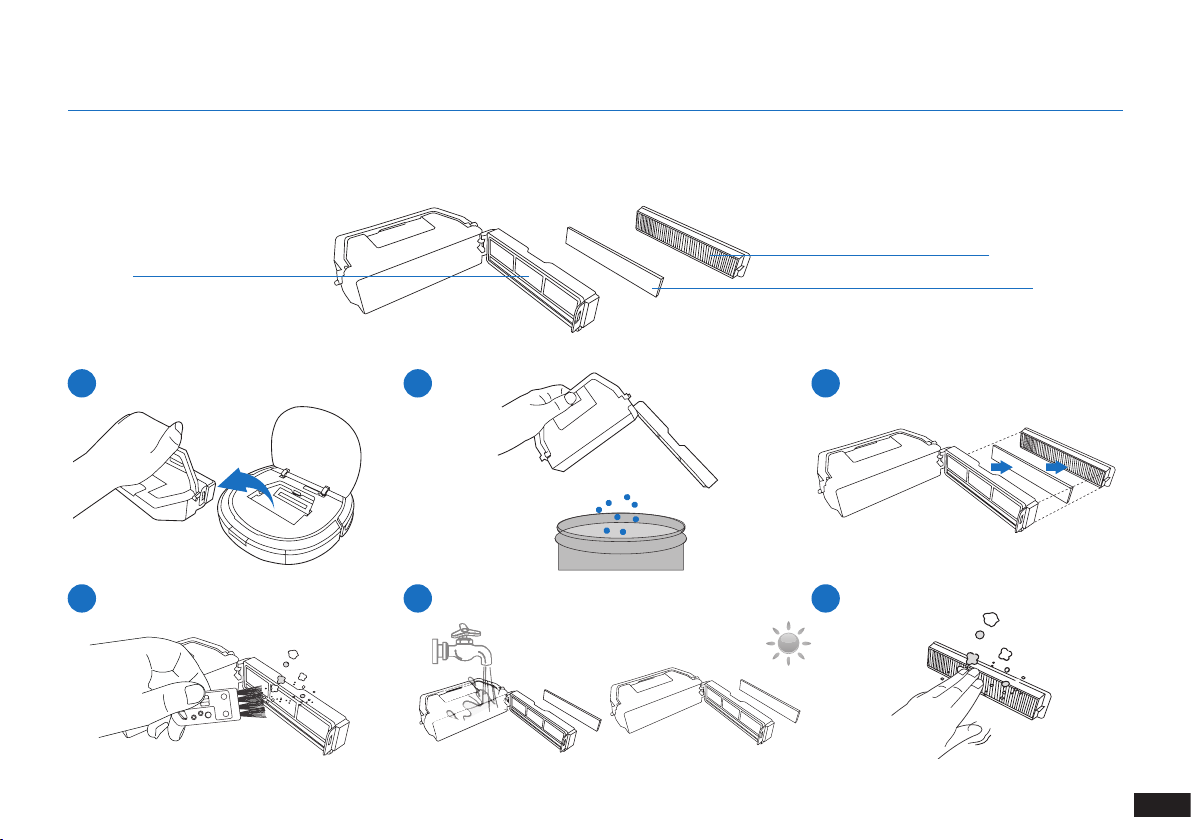

4.2 Dust Bin and Filters
1
4
2
5 6
3
Sponge Filter
High Efciency Filter
Filter Net

20
EN
Direct Suction Option Side Brushes

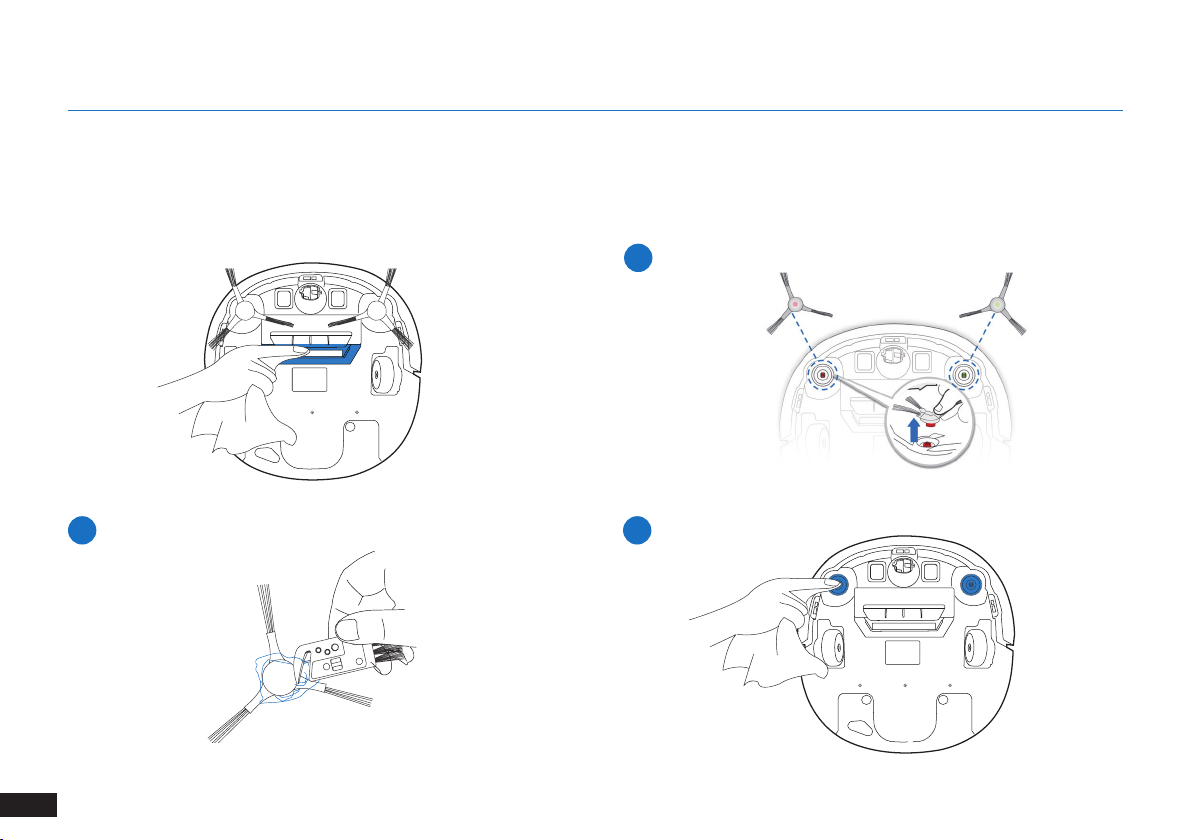

4.3 Direct Suction Option and Side Brushes
Note: A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
1
2 3
4. Maintenance
