Instruction Manual/Manuel d’instructions/
Manual de instrucciones

2
EN
Important Safety Instructions
1. Do not allow to be used as a toy. Close
attention is necessary when used by or near
children.
2. Clear the area to be cleaned. Remove power
cords and small objects from the floor that
could entangle the Appliance. Tuck rug fringe
under the rug base, and lift items such as
curtains and tablecloths off the floor.
3. If there is a drop off in the cleaning area due
to a step or stairs, you should operate the
Appliance to ensure that it can detect the
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE.
SAVE THESE INSTRUCTIONS
For Household use only
When using an electrical appliance, basic
precautions should always be followed, including the
following:
WARNING:
Read all safety warnings and instructions.
Failure to follow the warnings and instructions may result
in electric shock, fire or serious injury.
step without falling over the edge. It may
become necessary to place a physical barrier
at the edge to keep the unit from falling. Make
sure the physical barrier is not a trip hazard.
4. Only use as described in this manual. Only
use attachments recommended or sold by
the manufacturer.
5. Please make sure your power supply voltage
matches the power voltage marked on the
Docking Station.
6. Do not handle plug or appliance with wet hands.
7. Non-rechargeable batteries are prohibited.
8. Do not use without dust bin and/or filters in
place.
9. Do not operate the vacuum in an area where
there are lit candles or fragile objects on the
floor to be cleaned.
10. Do not use and store in extremely hot or
cold environments (below -5˚C /23˚F or
above 40˚C/104˚F). Please charge the robot
in temperature above 0°C/32°F and below
40°C/104°F.
11. Keep hair, loose clothing, fingers, and all
parts of body away from any openings and
moving parts.

3EN
12. Do not operate the Appliance in a room
where an infant or child is sleeping.
13. For INDOOR use ONLY. Do not use
the Appliance in outdoor, commercial
or industrial environments. Do not use
Appliance on wet surfaces or surfaces with
standing water.
14. Do not allow the Appliance to pick up large
objects like stones, large pieces of paper or
any item that may clog the Appliance.
15. Do not use to pick up flammable or
combustible materials such as gasoline,
printer or copier toner, or use in areas where
they may be present.
16. Do not pick up anything that is burning or
smoking, such as cigarettes, matches, hot
ashes, or anything that could cause a fire.
17. Do not put any object into openings. Do not
use with any opening blocked; keep free of
dust, lint, hair, and anything that may reduce
air flow.
18. Take care not to damage the power cord.
Do not pull on or carry the Appliance or
Docking Station by the power cord, use the
power cord as a handle, close a door on the
power cord, or pull power cord around sharp
edges or corners. Do not run Appliance and
Docking station over the power cord. Keep
power cord away from hot surfaces. Do not
unplug by pulling on cord. To unplug, grasp
the plug, not the cord.
19. If the power cord is damaged, it must be
replaced by the manufacturer or its service
agent in order to avoid a hazard.
20. Do not use the Docking Station if it is damaged.
21. Do not use with a damaged power cord or
plug. Do not use the Appliance or Docking
Station if it is not working properly, has been
dropped, damaged, left outdoors, or come
in contact with water. It must be repaired by
the manufacturer or its service agent in order
to avoid a hazard.
22. Turn OFF the power switch before cleaning
or maintaining the Appliance. Turn off all
controls before unplugging. Always turn
off this appliance before connecting or
disconnecting motorized nozzle.
23. The plug must be removed from the
receptacle before cleaning or maintaining
the Docking Station.

4
EN
24. Remove the Appliance from the Docking
Station, and turn OFF the power switch to
the Appliance before removing the battery
for disposal of the Appliance.
25. The battery must be removed and discarded
according to local laws and regulations
before disposal of the Appliance.
26. Please dispose of used batteries according
to local laws and regulations.
27. Do not incinerate the Appliance even if it is severely
damaged. The batteries can explode in a fire.
28. When not using the Docking Station, unplug from
outlet when not in use and before servicing.
29. The Appliance must be used in accordance
with the directions in this Instruction Manual.
ECOVACS ROBOTICS cannot be held liable
or responsible for any damages or injuries
caused by improper use.
30. Prevent unintentional starting. Ensure
the switch is in the off position before
connecting to battery pack, picking up or
carrying the appliance.
31. When battery pack is not in use, keep it
away from other metal objects, like paper
clips, coins, keys, nails, screws or other
small metal objects, that can make a
connection from one terminal to another.
Shorting the battery terminals together may
cause burns or a fire.
32. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water.
If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery
may cause irritation or burns.
33. Do not use a battery pack or appliance that is
damaged or modified. Damaged or modified
batteries may exhibit unpredictable behavior
resulting in fire, explosion or risk of injury.
34. Do not expose a battery pack or appliance
to fire or excessive temperature. Exposure to
fire or temperature above 130°C may cause
explosion. The temperature of 130°C can be
replaced by the temperature of 265°F.
35. Follow all charging instructions and do
not charge the battery pack or appliance
outside of the temperature range specified
in the instructions. Charging improperly or at
temperatures outside of the specified range may
damage the battery and increase the risk of fire.

5EN
36. Have servicing performed by a qualified
repair person using only identical
replacement parts. This will ensure that the
safety of the product is maintained.
37. Do not modify or attempt to repair the
appliance or the battery pack (as applicable)
except as indicated in the instructions for
use and care.
38. Place the cords from other appliances out of
the area to be cleaned.
39. Do not operate the vacuum in a room that
has lit candles on furniture that the vacuum
may accidentally hit or bump into.
40. Do not allow children to sit on the vacuum.
41. Use only as described in this manual.
Use only manufacturer’s recommended
attachments.
42. Recharge only with the charger specified by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of
fire when used with another battery pack.
43. Use appliances only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury and
fire.
44. The robot contains batteries that are only
replaceable by skilled persons. To replace
the robot’s battery, please contact Customer
Service.
45. If the robot will not be used for a long time,
fully charge the robot and power OFF for
storage and unplug the Docking Station.
46. To Reduce The Risk Of Electric Shock – Do
not use on wet surfaces. Do not expose to
rain. Store indoors.
47. To Reduce The Risk Of Injury From Moving
Parts – Unplug Before Servicing.
48. Risk Of Injury. Brush May Start Unexpectedly.
Unplug Before Cleaning or Servicing.
49. To reduce the risk of injury, user must read
instruction manual.
50. To Reduce The Risk Of Electric Shock – Do
not use outdoors or on wet surfaces.
Direct current
Alternating current
This Device Complies with DHHS Radiation Rules,
21CFR Chapter 1, Subchapter J.

6
EN
Federal Communications Commission (FCC)
Interference Statement
NOTE: This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses and can radiate radio frequency energy and,
if not installed and used in accordance with the
instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment
and receiver.
Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV
technician for help.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Caution: Changes or modifications to this unit
not expressly approved by the party responsible
for compliance could void the user's authority to
operate the equipment.
This device contains licence-exempt transmitter(s)/
receiver(s) that comply with Innovation, Science
and Economic Development Canada’s licence-
exempt RSS(s). Operation is subject to the
following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference,

7EN
including interference that may cause undesired
operation of the device.
RF exposure warning
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment.
This equipment must be installed and operated
in accordance with provided instructions and
the antenna(s) used for this transmitter must be
installed to provide a separation distance of at
least 20 cm from all persons and must not be
collocated or operating in conjunction with any
other antenna or transmitter.
MPE caution (for mobile device under Part 15.247
& 15.407 device)
To satisfy FCC&ICRF exposure requirements, a
separation distance of 20cm or moreshould be
maintained between the antenna of this device
and persons during device operation.
To ensure compliance, operations at closer than
this distance is not recommended.
To disable Wi-Fi module on DEEBOT, power the
robot ON. Place the robot on the OMNI Station
making sure the Charging Contacts on DEEBOT
and the Station Pins make a connection.
Press and hold the Recall/Exit Button on the
Station for 30 seconds. And press and hold the
AUTO Mode Button on the robot for 30 seconds.
To enable Wi-Fi module on DEEBOT, power the
robot OFF and then power ON. And unplug the
Station and plug it again.
SAVE THESE INSTRUCTIONS
For INDOOR household use ONLY.
To reduce the risk of electric shock, this docking
station has a polarized plug (one blade is wider
than the other). This plug will fit in a polarized
outlet only one way. If the plug does not fit fully in
the outlet, reverse the plug. If it still does not fit,
contact a qualified electrician to install the proper
outlet. Do not change the plug in any way.
This device contains licence-exempt transmitter(s)/
receiver(s) that comply with Innovation, Science
and Economic Development Canada’s licence-
exempt RSS(s). Operation is subject to the
following two conditions:
(1) This device may not cause interference.

8
EN
(2) This device must accept any interference,
including interference that may cause undesired
operation of the device.
To satisfy FCC&ICRF exposure requirements, a
separation distance of 20cm or more should be
maintained between the antenna of this device
and persons during device operation.
To ensure compliance, operations at closer than
this distance is not recommended.
Device Update
Typically, some devices are updated bi-monthly,
but not always so specific.
Some devices, especially those that went on sale
more than three years ago, will only be updated if
a critical vulnerability is found and fixed.

9EN
Package Contents
Note: Figures and illustrations are for reference only and may differ from actual
product appearance. Product design and specications are subject to changes
without notice.
Product Diagram
Robot
Robot
OMNI Station
Instruction
Manual
Multi-Function
Cleaning Tool
Dual Side
Brushes
Cleaning
Brush
Power Cord
Washable
Mopping Pads
Mopping Pad
Plates
Dust Bag
Top Cover
AUTO Mode Button
AIVI Camera
Camera Indicator Light
Anti-collision
Sensors and
Bumper
TrueMapping
Distance Sensor

10
EN
Wi-Fi Status
Indicator
Microphone
RESET Button
Dust Bin Handle
Release Button
Dust Disposal Port
Filter Net
Sponge Filter
High Efciency Filter
Anti-drop Sensors
Anti-drop Sensors
Floating Main
Brush Release
Button
Universal Wheel
Dual Side Brushes
Driving Wheels
Floating Main
Brush
Carpet Detection
Sensor

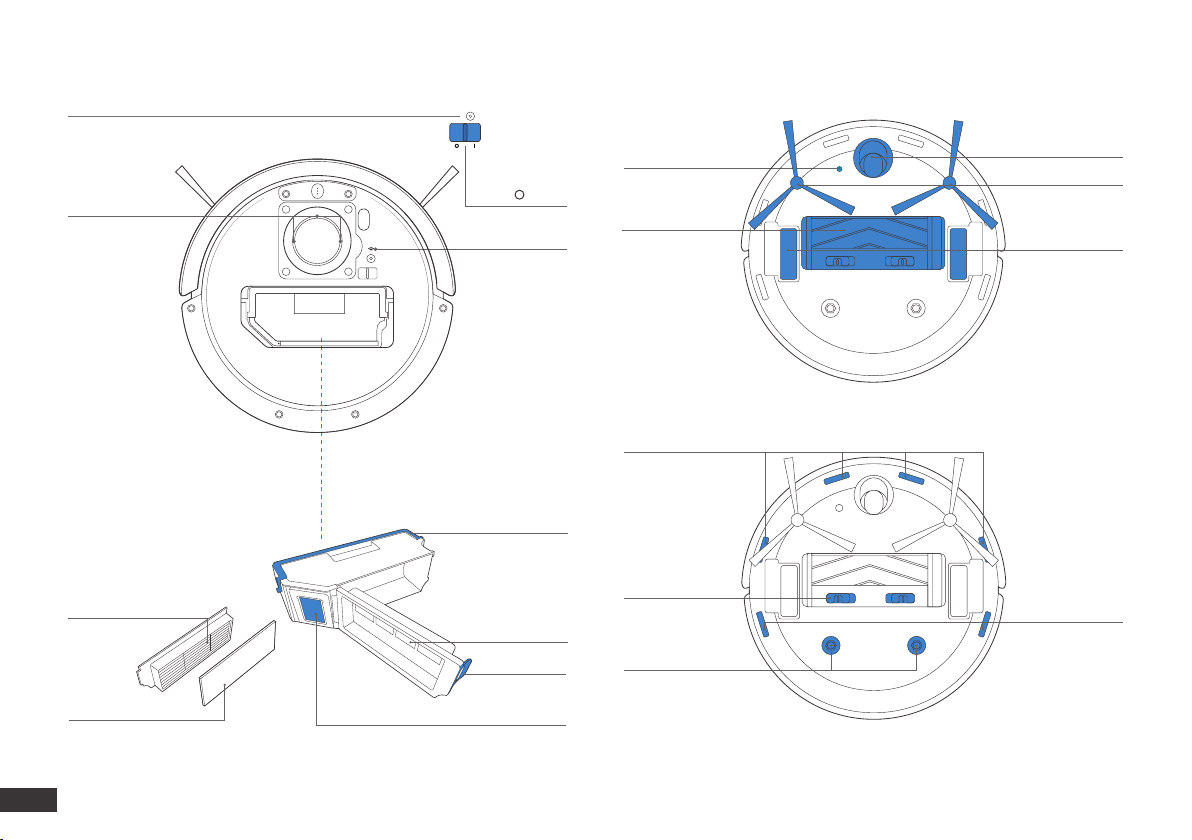

Bottom View
Dust Bin
Mounting Slots
for Mopping Pad
Assembly
Power Switch
"I"=ON
" "=OFF

11 EN
Mopping Pad Assembly
Washable Mopping Pads
Mopping Pad Plates
Charging Contacts
OMNI Station
Dirty Water Tank
Top Cover
Clean Water Tank
Water Inlet
Control Panel
Self-cleaning Button
Cleaning Sink
Dust Collection
Cabin
Pop-up Button
(Below the Dust
Collection Cabin )
Start/Pause Button
Accessory
Storage Box
Recall/Exit Button
Control Panel Button
Filter

12
EN
Dust BagAccessory Storage Box
Dust Bag Handle
Cleaning Brush

13 EN
Sensors
Name Functional Description
TrueMapping Distance Sensor
With Laser Ranging-measuring the distance between DEEBOT and surroundings through
the time difference of reection, it can map according to the objects around while DEEBOT
is moving. Detection of 10m
AIVI Camera
With AI Camera’s surrounding image collection, it can realize the video recording and
meanwhile assist in drawing the 3D map. Through the interaction with the MIC, it can realize
the Remote Voice Call. FOV (Diagonal) 148.3
Microphone Vibrating the diaphragm through air by human voice, it can realize Voice Recording and ask
DEEBOT to complete the assigned work by Voice Control. Effective wake of 8m
Anti-drop Sensor
With Infrared Ranging-detecting the distance between the bottom of DEEBOT and ground
by Infrared Sensor at the bottom, DEEBOT will not move forward when there are stairs in
front or the identied distance exceeds the preset one, realizing the Anti-drop. The trigger
distance is 60nm
Carpet Detection Sensor
The difference in energy of the ultrasonic echo signal on different surfaces is used to identify
the oor material and help DEEBOT to adjust the cleaning strategy automatically. Drive
frequency 290kHZ

14
EN
Tidy up the area to be cleaned by putting furniture, such as chairs, in their
proper place.
Make sure areas to be cleaned are well illuminated so AIVI Camera works
properly. Remove power cords and small objects from the oor to ensure
cleaning efciency.
During the rst use, make sure each room door is open to help DEEBOT fully explore
your house.
It may be necessary to place a physical barrier at the edge of a drop to stop the
unit from falling over the edge.
Put away objects including cables, cloths and slippers, etc. on
the oor to improve the cleaning efciency.
Before using the product on a rug with tasseled edges, please
fold the rug edges under.
Please do not stand in narrow spaces, such as hallways, and
make sure not to block the AIVI Camera.
Clean the AIVI Camera and TrueMapping Distance Sensor with
a clean cloth, and avoid using any detergent or cleaning spray.
Notes Before Cleaning

15 EN
ECOVACS HOME App
To enjoy all available features, it is recommended to control your DEEBOT via
the ECOVACS HOME app.
Make sure the colors of Dual Side Brushes are consistent with those of
mounting slots.
Before using DEEBOT, please remove all protective films or
protective strips on DEEBOT and OMNI Station.
Wi-Fi Indicator Light
Before you start, make sure that:
Install the Dual Side Brushes
• Your mobile phone is connected to a Wi-Fi network.
• The 2.4GHz or 2.4/5 GHz band wireless signal is enabled on your router.
• The Wi-Fi indicator light on DEEBOT is slowly ashing.
Slowly flashing Disconnected to Wi-Fi or
waiting for Wi-Fi connection
Rapidly flashing Connecting to Wi-Fi
Solid Connected to Wi-Fi
Quick Start
Click
Wi-Fi Connection
Before Wi-Fi setup, make sure DEEBOT, mobile phone, and Wi-Fi network
meet the following requirements.
DEEBOT and Mobile Phone Requirements
• DEEBOT is fully charged and the power switch of DEEBOT is turned on.
• Wi-Fi status light slowly ashes.
• Turn off mobile phone’s cellular data (you can turn it back on after setup).
Wi-Fi Network Requirements
• You are using a 2.4GHz or 2.4/5 GHz mixed network.
• Your router supports 802.11b/g/n and IPv4 protocol.
• Do not use a VPN (Virtual Private Network) or Proxy Server.
• Do not use a hidden network.
• WPA and WPA2 using TKIP, PSK, AES/CCMP encryption.
• WEP EAP (Enterprise Authentication Protocol) is not supported.
• Use Wi-Fi channels 1-11 in North America and channels 1-13 outside North
America (refer to local regulatory agency).
• If you are using a network extender/repeater, the network name (SSID) and
password are the same as your primary network.
Please be aware that the realization of intelligent functions such as remote
startup, voice interaction, 2D/3D map display and control settings, and
personalized cleaning (depending on different products) requires users to
download and use ECOVACS HOME App, which is constantly updated. You
need to agree to our Privacy Policy and User Agreement before we can process
some of your basic and necessary information and enable you to operate the
product.If you do not agree with our Privacy Policy and User Agreement, some
of the aforementioned intelligent functions cannot be realized through ECOVACS
HOME App, but you can still use the basic functions of this product for manual
operation.

16
EN
Keep the area around the Station clear of objects and reective object surfaces.
Charging DEEBOT
1
2

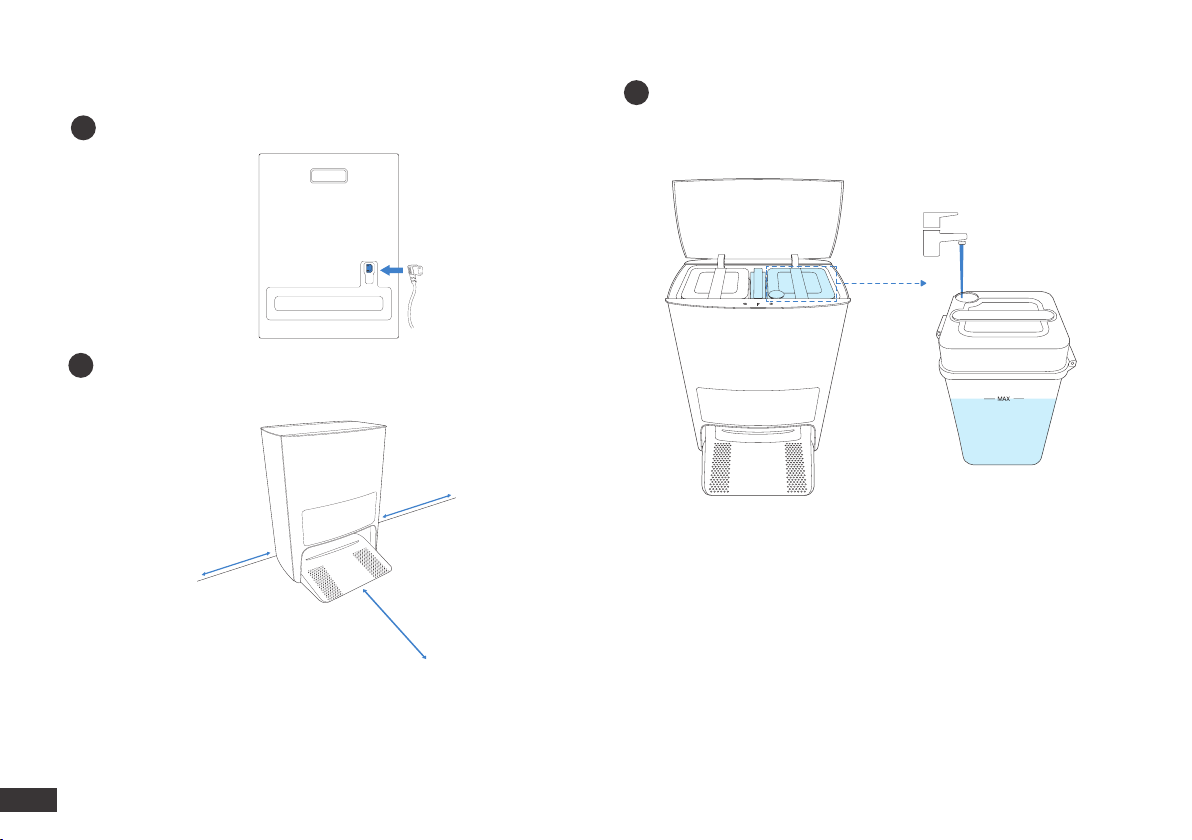

Assemble OMNI Station
OMNI Station Placement
> 0.5m (1.64’)
> 0.5m (1.64’)
> 1.5m (4.92’)
* If there are reective objects such as mirrors and reective skirting lines near
the Station, the bottom 14cm of that should be covered.
Do not place the Station under direct sunlight.
It is recommended to place the Station on the hard oor to experience
complete functions of the robot.
3Add Water to Clean Water Tank
Note: It is recommended to use ECOVACS DEEBOT Cleaning Solution (sold
separately). Using other cleanig solution may cause DEEBOT slipping, water
tank block and other problems.

17 EN
DEEBOT cannot be charged when being powered OFF.

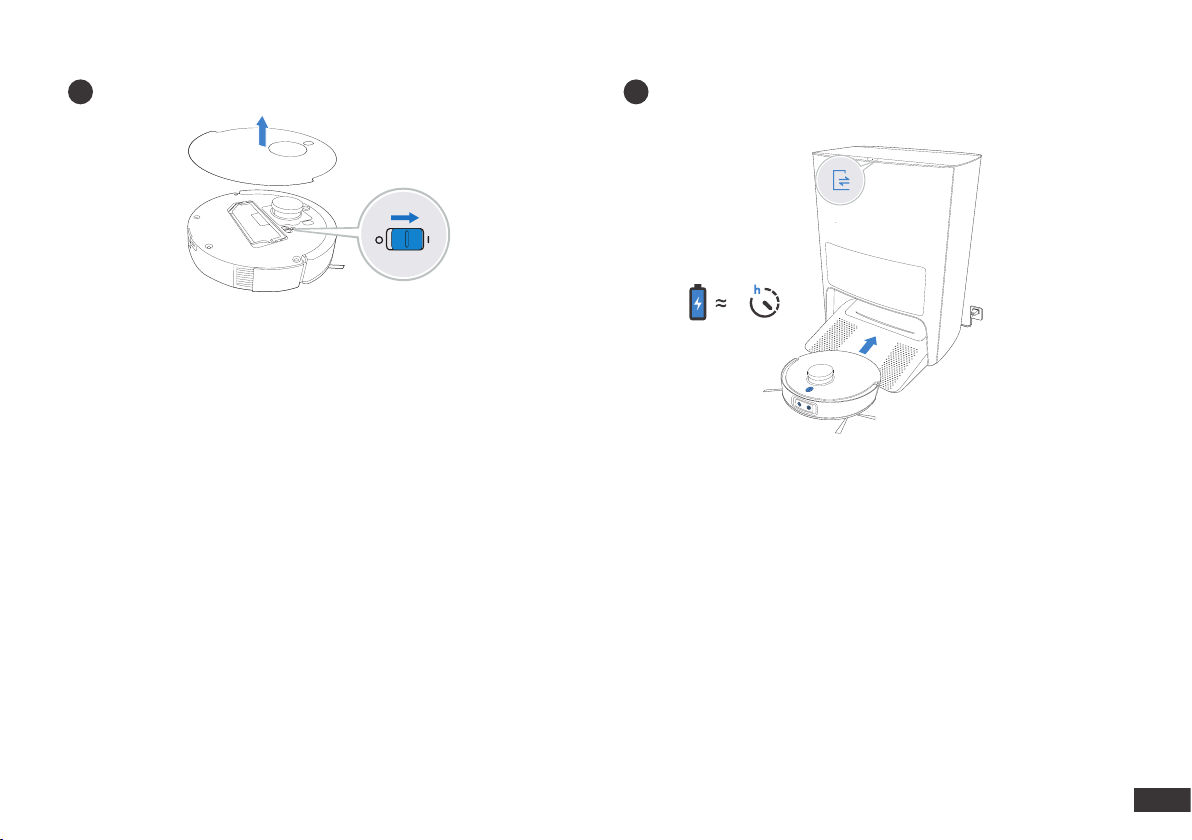

5
4Charge DEEBOT
Power ON
Note: I = ON, O = OFF.
6.5
It is recommended that DEEBOT start cleaning from the Station. Do not move
the Station while cleaning.

18
EN
1
When creating a map for the first time, please follow DEEBOT to help
eliminate some minor issues.
For example, DEEBOT may get stuck under the furniture. Please refer to
the following solutions:
1
Raise the furniture if possible;
Cover the bottom of the furniture;
Set up Virtual Boundary via the App.
Start
Operating DEEBOT
Tap on DEEBOT or on the OMNI Station to start
2Pause/Wake Up
Note: The indicator light will go out after the robot is paused for a few minutes.
Press the AUTO Mode Button on DEEBOT to wake up the robot.
Note:
1. For the rst-time cleaning, please ensure that DEEBOT is fully charged.
2. It is not recommended to assemble Mopping Pad Plates for the rst time
cleaning.
Tap on DEEBOT or on the OMNI Station to pause.
3
Tap for 3 seconds to recall DEEBOT to the OMNI Station.
Back to Station
Note: When DEEBOT is not working, it is recommended to keep it switched ON
and charging.

19 EN
1
2

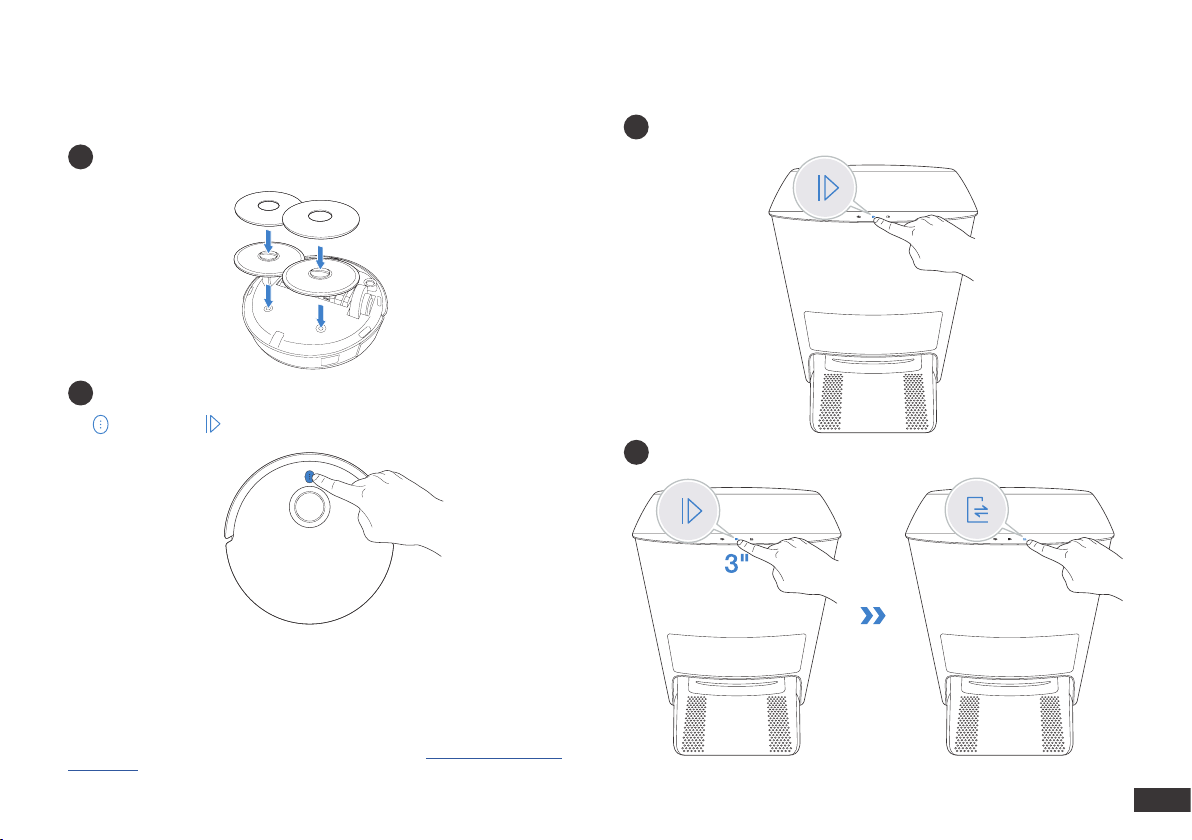

Attach the Mopping Pads and Mopping Pad Plates.
Mop
Note:
1. To prolong the service life of the reservoir, do not frequently remove washable
mopping pads.
2. Do not use a rag or any other object to scratch the Moping Pad Plates.
3. When the ECOVACS HOME App prompts that the mops need to be
replaced, please replace them in time.
Explore more accessories at ECOVACS HOME App or at https://www.ecovacs.
com/global.
Do not use the mopping function on the carpet.
Mopping
Tap on DEEBOT or on the OMNI Station to start mopping
1
2
Start/Pause DEEBOT
Recall DEEBOT
OMNI Station
