ECOVACS DEEBOT 601 User manual

Instruction Manual
Bedienungsanleitung
Manual de instrucciones
Manuel d'instructions
Manuale d'uso

Congratulations on the purchase of your ECOVACS ROBOTICS DEEBOT! We hope it brings you many years of
satisfaction. We trust the purchase of your new robot will help keep your home clean and provide you more quality time
to do other things.
Live Smart. Enjoy Life.
Should you encounter situations that have not been properly addressed in this Instruction Manual, please contact our
Customer Service Center where a technician can address your specic problem or question.
For more information, please visit the ECOVACS ROBOTICS ofcial website: www.ecovacs.com
The Company reserves the right to make technological and/or design changes to this product for continuous improvement.
Thank you for choosing DEEBOT!
Instruction Manual ........................................................................................................... 2
EN
Bedienungsanleitung .................................................................................................... 24
DE
Manual de instrucciones .............................................................................................. 48
ES
Manuel d'instructions .................................................................................................... 72
FR
Manuale d'uso ................................................................................................................ 96
IT
EU-Declaration of conformity..................................................................................................119

3
EN
1. Important Safety Instructions...........................................................................................................................................4
2. Package Contents .............................................................................................................................................................9
3. Operating and Programming..........................................................................................................................................12
4. Maintenance.....................................................................................................................................................................17
5. Indicator Light and Alarm Sounds.................................................................................................................................21
6. Troubleshooting ..............................................................................................................................................................22
7. Technical Specications.................................................................................................................................................24
Contents

4
EN
1. This Appliance can be used by children
aged from 8 years and above and
persons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning use of
the Appliance in a safe way and understand
the hazards involved. Children shall not
play with the Appliance. Cleaning and user
maintenance shall not be made by children
without supervision.
2. Clear the area to be cleaned. Remove
power cords and small objects from the oor
that could entangle the Appliance. Tuck rug
fringe under the rug base, and lift items such
as curtains and tablecloths off the oor.
3. If there is a drop off in the cleaning area
due to a step or stairs, you should operate
the Appliance to ensure that it can detect
the step without falling over the edge. It
may become necessary to place a physical
barrier at the edge to keep the unit from
falling. Make sure the physical barrier is not
a trip hazard.
4. Only use as described in this manual. Only
use attachments recommended or sold by
the manufacturer.
5. Please make sure your power supply
voltage matches the power voltage marked
on the Charging Dock.
6. For INDOOR household use ONLY. Do not
use the Appliance in outdoor, commercial or
industrial environments.
7. Non-rechargeable batteries are prohibited.
For battery information, please refer to
Specications section.
8. Do not use without dust bin and/or lters in
place.
When using an electrical appliance, basic
precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE.
SAVE THESE INSTRUCTIONS
1. Important Safety Instructions

5
EN
9. Do not operate the Appliance in an area
where there are lit candles or fragile objects.
10. Do not use in extremely hot or cold
environments (below -5˚C/23˚F or above
40˚C/104˚F).
11. Keep hair, loose clothing, fingers, and all
parts of body away from any openings and
moving parts.
12. Do not operate the Appliance in a room
where an infant or child is sleeping.
13. Do not use Appliance on wet surfaces or
surfaces with standing water.
14. Do not allow the Appliance to pick up large
objects like stones, large pieces of paper or
any item that may clog the Appliance.
15. Do not use Appliance to pick up ammable
or combustible materials such as gasoline,
printer or copier toner, or use in areas where
they may be present.
16. Do not use Appliance to pick up anything
that is burning or smoking, such as
cigarettes, matches, hot ashes, or anything
that could cause a re.
17. Do not put objects into the suction intake. Do
not use if the suction intake is blocked. Keep
the intake clear of dust, lint, hair, or anything
that may reduce air ow.
18. Take care not to damage the power cord.
Do not pull on or carry the Appliance or
Charging Dock by the power cord, use the
power cord as a handle, close a door on the
power cord, or pull power cord around sharp
edges or corners. Do not run Appliance over
the power cord. Keep power cord away from
hot surfaces.
19. If the power cord is damaged, it must be
replaced by the manufacturer or its service
agent in order to avoid a hazard.
20. Do not use the Charging Dock if it is
damaged.
21. Do not use with a damaged power cord or
receptacle. Do not use the Appliance or
Charging Dock if it is not working properly,
has been dropped, damaged, left outdoors,
1. Important Safety Instructions

6
EN
or come in contact with water. It must be
repaired by the manufacturer or its service
agent in order to avoid a hazard.
22. Turn OFF the power switch before cleaning
or maintaining the Appliance.
23. The plug must be removed from the
receptacle before cleaning or maintaining
the Charging Dock.
24. Remove the Appliance from the Charging
Dock, and turn OFF the power switch to the
Appliance before removing the battery for
disposal of the Appliance.
25. The battery must be removed and discarded
according to local laws and regulations
before disposal of the Appliance.
26. Please dispose of used batteries according
to local laws and regulations.
27. Do not incinerate the Appliance even if it
is severely damaged. The batteries can
explode in a re.
28. When not using the Charging Dock for a
long period of time, please unplug it.
1. Important Safety Instructions
29. The Appliance must be used in accordance
with the directions in this Instruction Manual.
ECOVACS ROBOTICS cannot be held liable
or responsible for any damages or injuries
caused by improper use.
30. The robot contains batteries that are only
replaceable by skilled persons. To replace
or remove the battery, please contact
Customer Service.
31. If the robot will not be used for a long time,
fully charge the robot and power OFF for
storage and unplug the Charging Dock.
32.WARNING: For the purposes of
recharging the battery, only use the
detachable supply unit YJS015F-1900600G
provided with this appliance.
33. The Remote Control pre-installs two non-
rechargeable AAA batteries. To replace the
battery of the Remote Control, please turn
over the Remote Control, press and remove
its Battery Cover. Remove the batteries,
and insert the new batteries with the correct

7
EN
1. Important Safety Instructions
polarity. Reassemble the Battery Cover.
34. Non-rechargeable batteries are not to be
recharged.
35. Different types of batteries or new and used
batteries are not to be mixed.
36. Batteries of the Remote Control are to be
inserted with the correct polarity.
37. Exhausted batteries are to be removed from
the Appliance and safely disposed of.
38. If the Remote Control is to be stored unused
for a long period, the batteries should be
removed.
39. The supply terminals are not to be short-
circuited.
Correct Disposal of this Product
This marking indicates that this product should
not be disposed of with other household
waste throughout the EU. To prevent possible
harm to the environment or human health
from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse
of material resources. To recycle your used
device, please use the return and collection
systems or contact the retailer where the
product was purchased. They can safely
recycle this product.
For EU Countries

8
EN
Charging Dock + Power Adapter

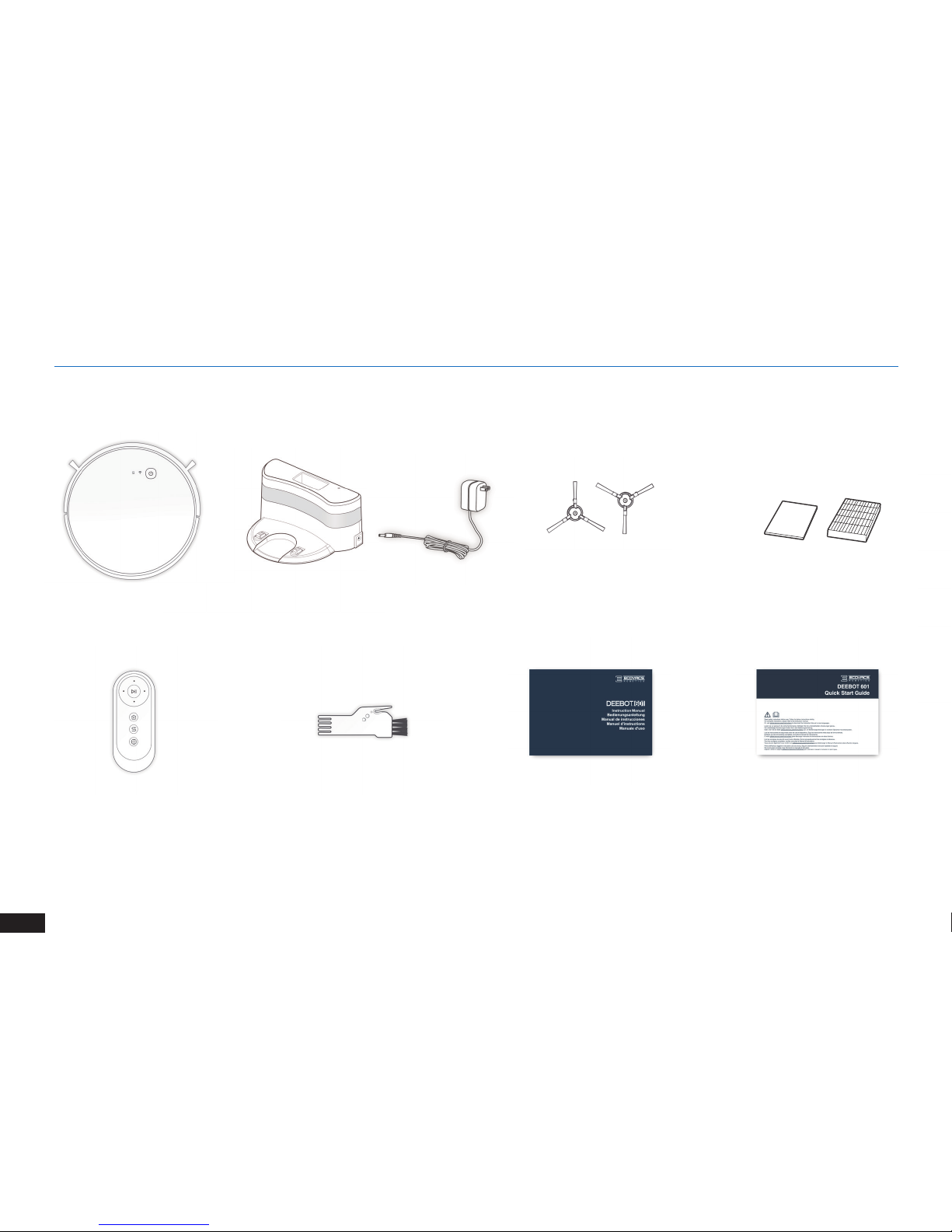

2.1 Package Contents
Robot Sponge Filter and High
Efciency Filer
(4) Side Brushes
Multi-Function Cleaning
Tool
Remote Control with
Batteries Instruction Manual Quick Start Guide
Note: Figures and illustrations are for reference only and may differ from actual product appearance.
Product design and specications are subject to changes without notice.
2. Package Contents

9
EN
2. Package Contents
Anti-Collision Sensors and
Bumper

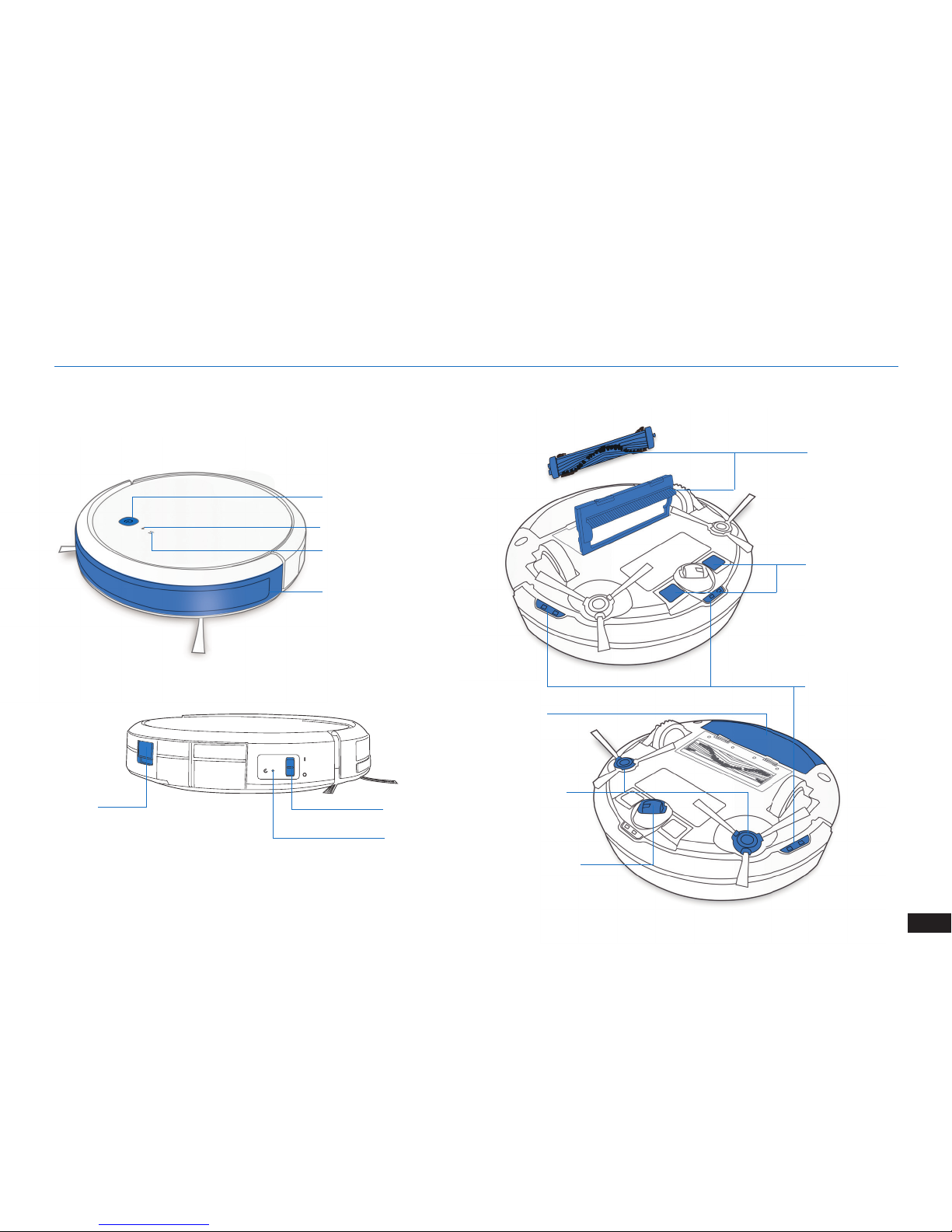

2.3 Product Diagram
Robot
AUTO Mode Button
Wi-Fi Indicator
Cleaning Mode Switch
Indicator
Power Switch
Reset Button
Dust Bin
Release Button
Anti-Drop Sensors
Main Brush Option
Dust Bin
Charging Contacts
Universal Wheel
Side Brushes
Bottom View

10
EN
2. Package Contents
Power Indicator Light
Power Adapter
Power Adapter Port
START/PAUSE Button
Cleaning Mode Switch
Button
Charging Dock Pins
Direction Control Buttons
Spot Cleaning Mode Button
Return to Charger
Mode Button
Charging Dock Remote Control

11
EN

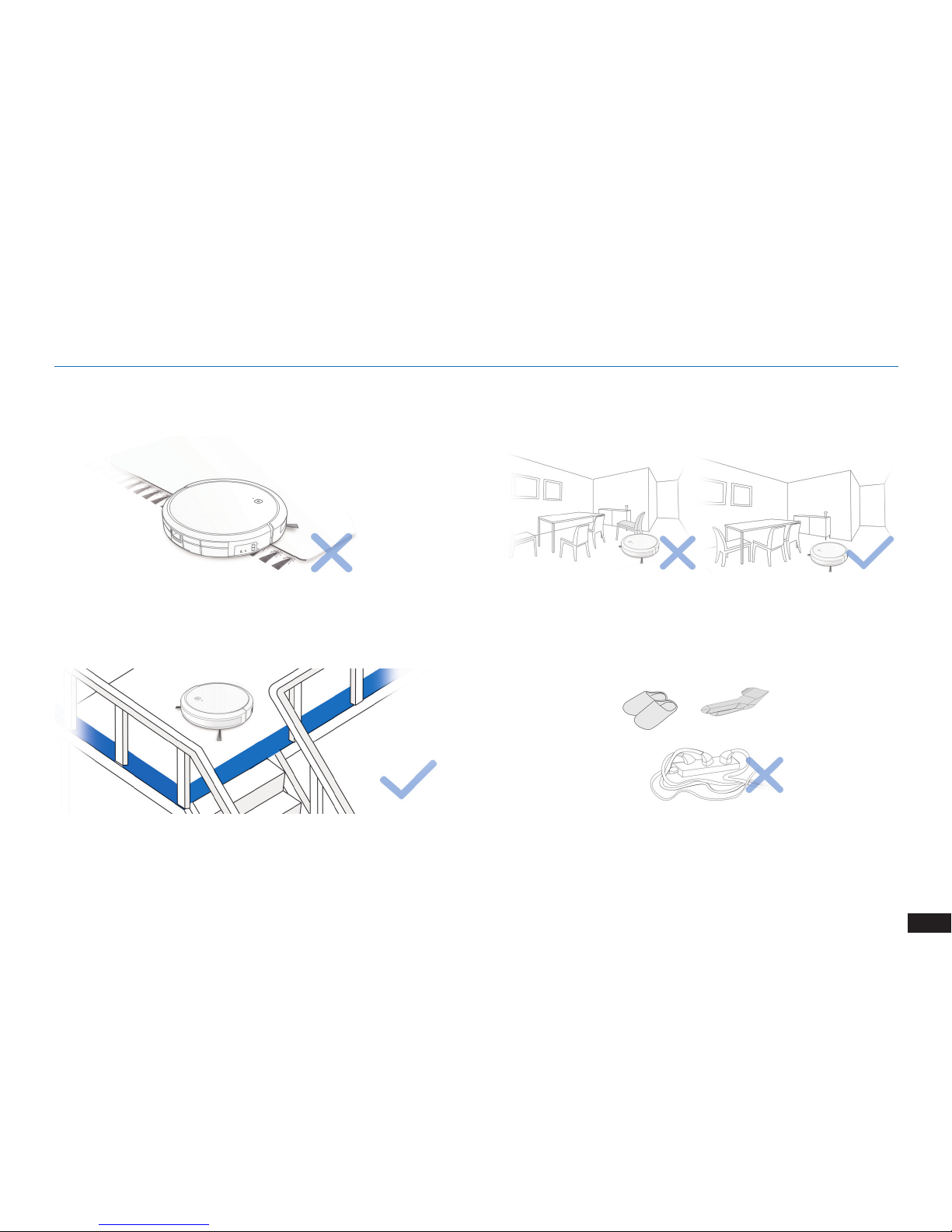

Before using the product on a rug with tasseled edges, please fold the
rug edges under.
WARNING: Do not use DEEBOT on wet surfaces or surfaces with standing water.
It may be necessary to place a physical barrier at the edge of a drop to
stop the unit from falling over the edge.
Remove power cords and small objects from the oor that the robot
could be obstructed by.
3.1 Notes Before Cleaning
Tidy up the area to be cleaned by putting furniture, such as chairs, in
their proper place.
3. Operating and Programming

12
EN

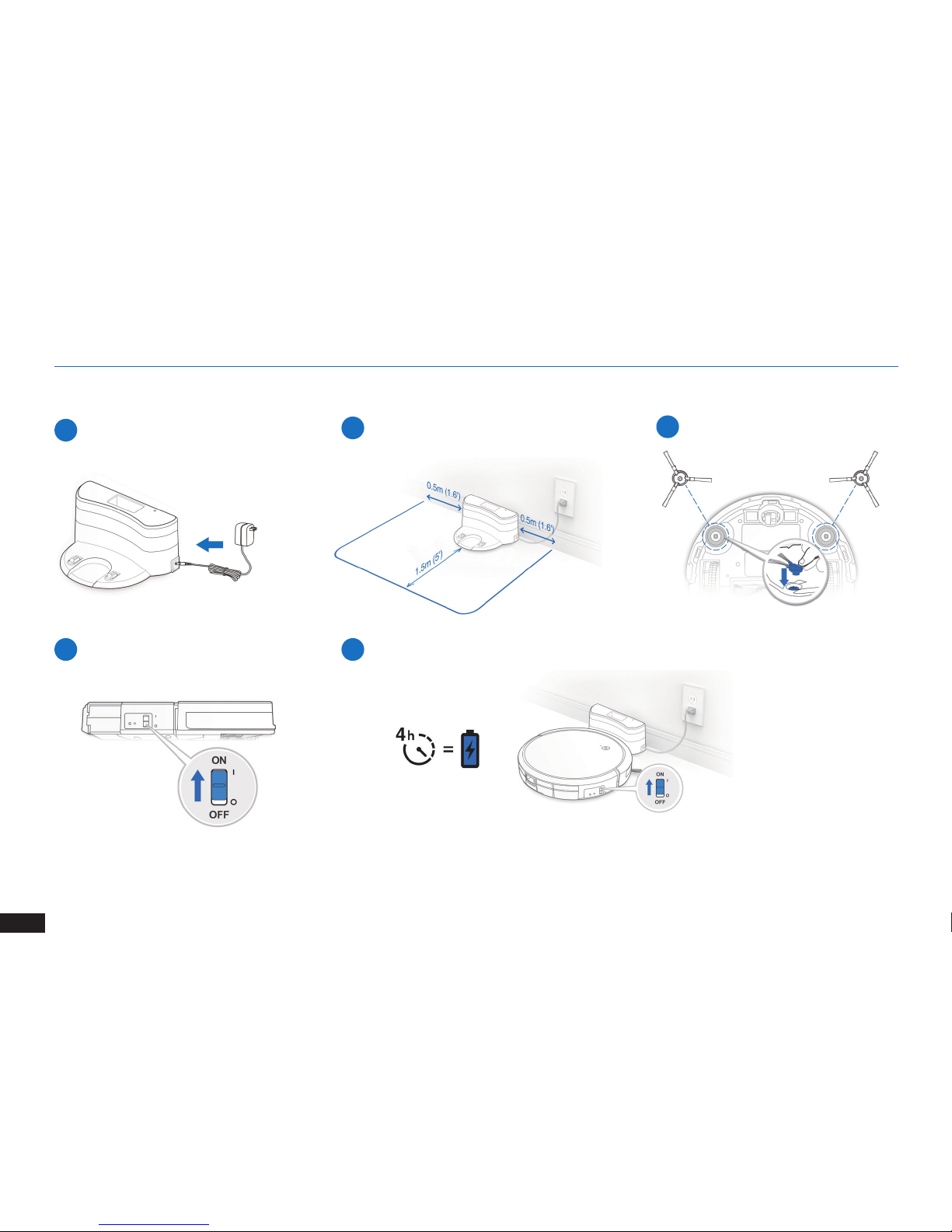

1Plug in Adapter 2Charging Dock Placement 3Install Side Brushes
4Power ON
3.2 Preparation
Note: When DEEBOT completes the cleaning cycle or when battery power gets
low, DEEBOT automatically returns to the Charging Dock to recharge itself.
5Charge DEEBOT
3. Operating and Programming

13
EN
3. Operating and Programming
3Install Side Brushes
OR

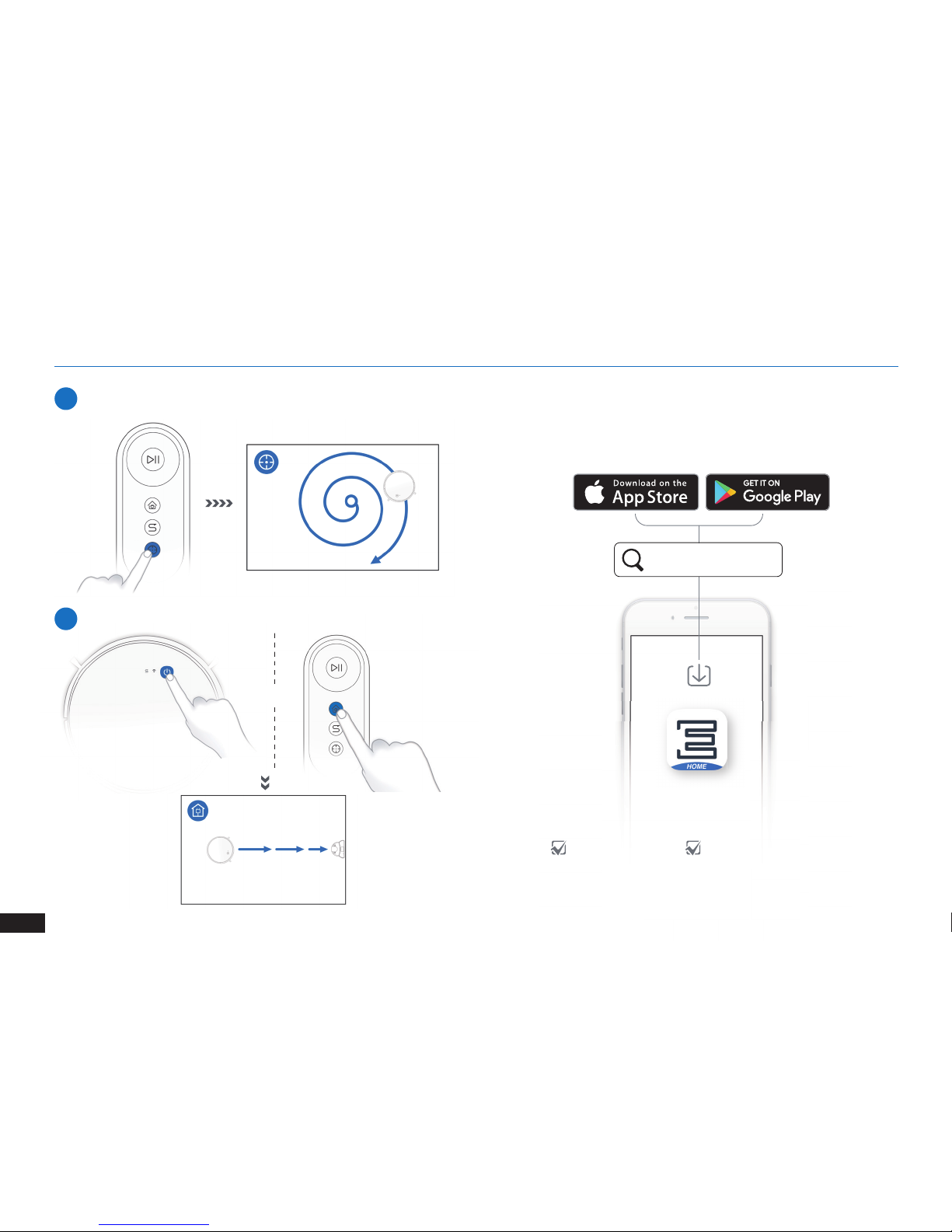

3.3 Selecting Cleaning Mode
1AUTO Cleaning Mode
ARandom Cleaning Pattern (optimized for carpets) will be selected by
default.
To switch to a Programmed Cleaning Pattern (optimized for hard oors)
or switch between these two patterns, perform the following action:
OR
x2
Note: Cleaning pattern cannot be switched until DEEBOT is paused or charging. DEEBOT will start a new cleaning cycle once cleaning pattern is
switched. will light up once Programmed Cleaning Pattern is enabled.

14
EN
All the functions mentioned above can be enabled on the App.
Download ECOVACS App to access more features, including Edge
Cleaning, Scheduled Cleaning, etc.
iOS 9.0 or later Android 4.0 or later
2
OR
2Spot Cleaning Mode (Less than 3 minutes)
3Return to Charging Dock
≥3s
3. Operating and Programming
ECOVACS HOME

15
EN
3. Operating and Programming
3.4 Pause, Wake Up, Power Off
1Pause 2Wake Up
Note: The robot’s Control Panel stops glowing after the robot is paused
for a few minutes. Press the AUTO Mode Button on DEEBOT to wake
up the robot.
Press the AUTO button on DEEBOT to wake it up
3Power OFF
Note: When DEEBOT is not working, it is recommended to keep it
switched ON and charging.
OR
OR

16
EN

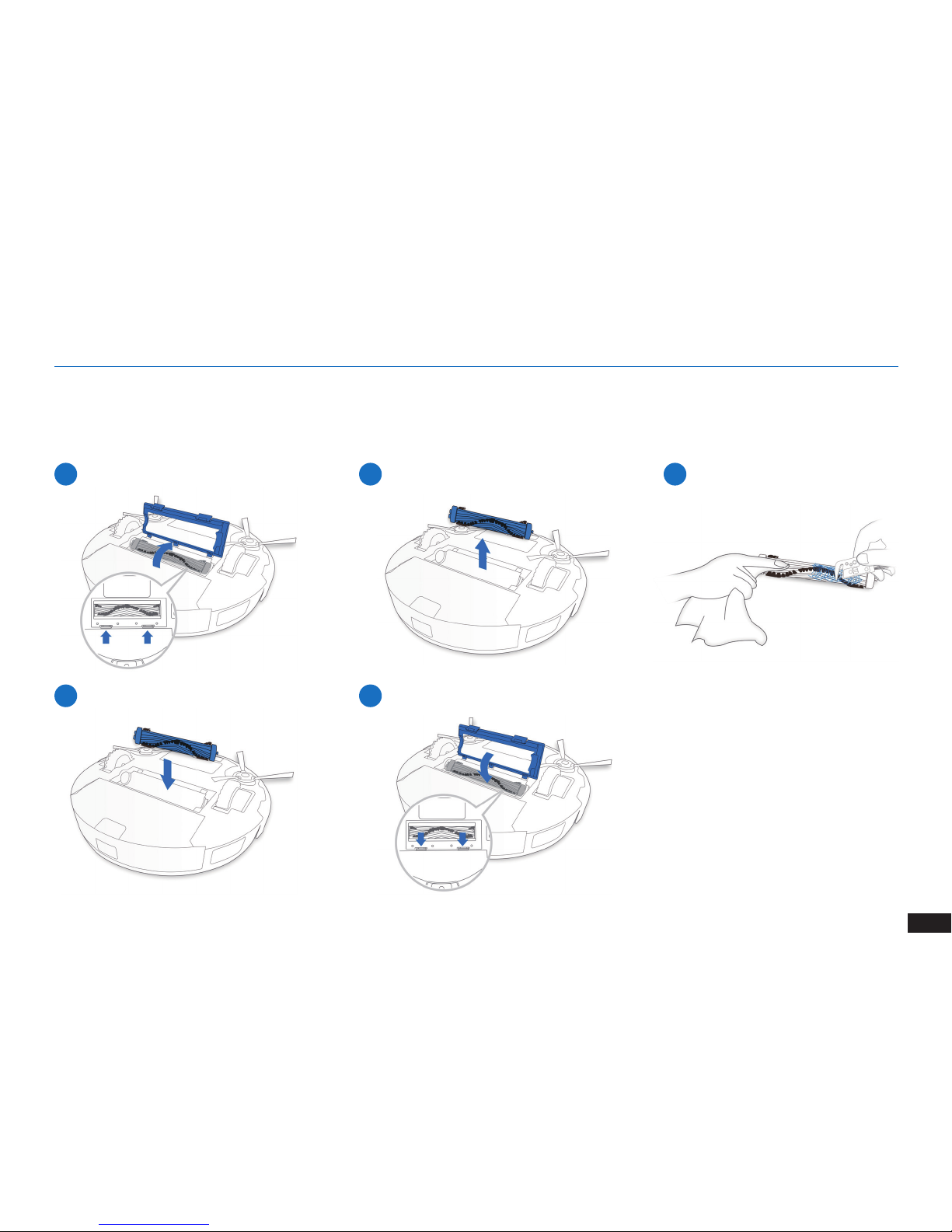

Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the Charging Dock.
Dust Bin

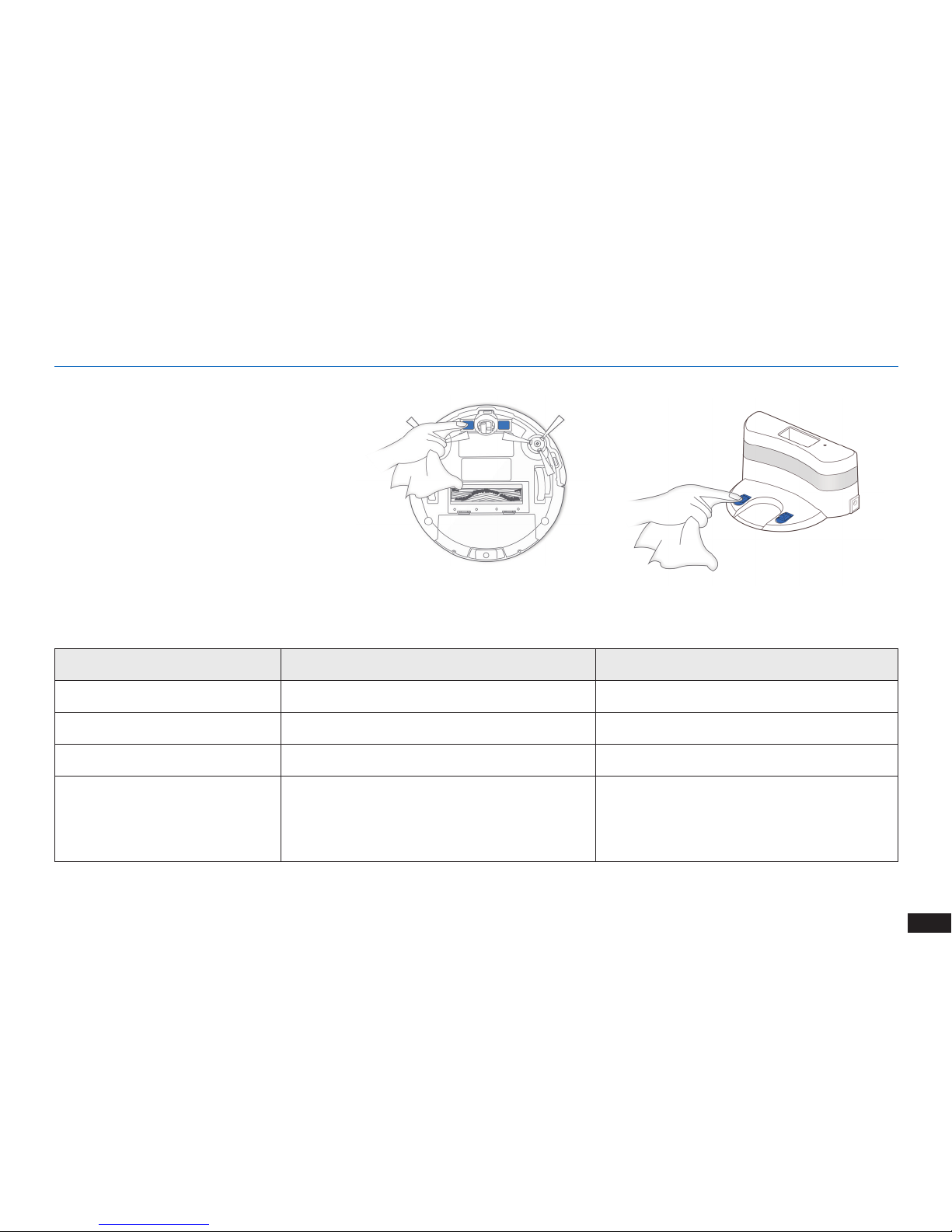

4.1 Dust Bin and Filters 1
2
3
Filter Net
Sponge Filter
High Efciency Filter
Dust Bin
Dust Bin Release Button
Dust Bin Cover
4. Maintenance

17
EN
4. Maintenance
Main Brush
4.2 Main Brush and Side Brushes
Note: A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
1
4
2
5
3

18
EN
4.3 Other Components
Side Brushes
1 2 3
4. Maintenance

19
EN
4. Maintenance
Note: Before cleaning the robot’s Charging Contacts
and Charging Dock Pins, turn the robot OFF and
unplug the Charging Dock.
4.4 Regular Maintenance
To keep DEEBOT running at peak performance, perform maintenance tasks and replace parts with the following frequencies:
A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
Note: ECOVACS manufactures various replacement parts and ttings. Please contact Customer Service for more information on replacement parts.
Robot Part Maintenance Frequency Replacement Frequency
Side Brush Once every 2 weeks Every 3-6 months
Main Brush Once per week Every 6-12 months
Sponge Filter/ High Efciency Filter Once per week Every 3-6 months
Universal Wheel
Anti-Drop Sensors
Bumper
Charging Contacts
Charging Dock Pins
Once per week /

20
EN
5. Indicator Light and Alarm Sounds
Indicator Light
Alarm Sounds
DEEBOT will tell you something is wrong with an alarm indicator light and sounds. More detailed support is available through the ECOVACS App and
online website.
Scenario Indicator Light
The robot is cleaning AUTO Mode Button glows a solid WHITE
The robot is charging AUTO Mode Button ashes WHITE
The robot has low battery AUTO Mode Button glows a solid RED
The robot has a problem AUTO Mode Button ashes RED
Programmed Cleaning Pattern is enabled Cleaning Mode Switch Indicator lights up
Alarm Sound Problems Solution
One Beep Main Brush or Side Brush is tangled. Clean Main Brush or Side Brush as mentioned in
Section 4 Maintenance.
Two Beeps Anti-Drop Sensor Malfunction Use a cleaning cloth to wipe the Anti-Drop Sensor
clean.
Three Beeps Dust Bin is not properly installed. Make sure the Dust Bin has been installed; if it has,
take it out and put it back in properly.
Continuous Beeps The Robot is suspended or the Driving Wheels are
tangled.
Put the Robot back on the ground or gently pat the
bumper and clean the Driving Wheel as mentioned in
Section 4 Maintenance.
