Congratulations on the purchase of your ECOVACS ROBOTICS WINBOT! We hope it brings you many years of satisfaction. We trust the purchase
of your new robot will help keep your home clean and provide you more quality time to do other things.
Live Smart. Enjoy Life.
Should you encounter situations that have not been properly addressed in this Instruction Manual, please contact our Customer Service Center
where a technician can address your specific problem or question.
For more information, please visit the ECOVACS ROBOTICS official website: www.ecovacs.com
The company reserves the right to make technological and/or design changes to this product for continuous improvement.
Thank you for choosing WINBOT!
Instruction Manual .............................................................................................................3
Bedienungsanleitung.......................................................................................................22
Manual de instrucciones.................................................................................................43
Manuel d'instructions......................................................................................................65
Manuale d'uso...................................................................................................................87
Руководство по эксплуатации........................................................................109
EN
DE
ES
FR
IT
RU

3EN
1. Important Safety Instructions...................................................................................................................................4
2. Package Contents ...................................................................................................................................................8
3. Operating WINBOT ...............................................................................................................................................10
4. Maintenance ..........................................................................................................................................................15
5. Status Indicator Light and Sounds ........................................................................................................................18
6. Troubleshooting.....................................................................................................................................................19
7. Technical Specifications .........................................................................................................................................21
Contents

4
EN
1. Important Safety Instructions
1. This appliance can be used by persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved. Children
shall not play with the appliance. The appliance
is not to be used if it has been dropped, if there
are visible signs of damage or if it is leaking.
Keep the appliance out of reach of children
when it is energized.
2. Do not use the Appliance in extremely hot or
cold environments (below 0˚C/32˚F or above
40˚C/104˚F, above 65% humidity). The Appliance
can be used to clean outside windows if it is
properly tethered to the Safety Pod, winds are
calm, and it is not raining or snowing.
3. Please ensure the Appliance is plugged in
while it is cleaning. The Appliance has a Back-
Up Battery that charges during use. The Back-
Up Battery powers the Appliance if it becomes
unplugged or the electricity fails.
4. Do not leave the Appliance unattended when
it is plugged in.
5. For household use ONLY. Do not use
the Appliance in commercial or industrial
environments.
6. Do not use the Appliance on cracked glass.
7. Only use accessories recommended or
supplied by the manufacturer. Only use the
Power Adapter supplied by the manufacturer.
8. Please make sure your power supply voltage
matches the power voltage marked on the
Power Adapter.
9. Do not use the Appliance on a framed window
with a frame smaller than 5mm (0.2 inches).
10. Do not use the Appliance on wet or greasy
windows.
11. Store the Appliance away from heat and
flammable materials.
When using an electrical appliance, basic
precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE.
SAVE THESE INSTRUCTIONS

5EN
1. Important Safety Instructions
12. Do not use the Appliance if it does not firmly
attach to the glass or has visible signs of
damage.
13. To reduce the risk of electrical shock, do not
put the Appliance in water or other liquid. Do
not place or store Appliance where it can fall
or be pulled into a tub or sink.
14. Do not touch power plug or the Appliance
with wet hands.
15. Do not charge the Appliance in extremely hot
or cold environments, or it may affect battery
life span.
16. When charging the Appliance, do not place
it on other electrical appliances and keep it
away from fire and liquid.
17. Take care not to damage the power cord.
Do not pull on or carry the Appliance by the
power cord, use the power cord as a handle,
close a window on the power cord, or put
heavy weights on the power cord. Keep
power cord away from hot surfaces.
18. Do not use with a damaged power cord or
receptacle. Do not use the Appliance if it is
not working properly, has been dropped,
damaged, or come in contact with water. It
must be repaired by the manufacturer or its
service agent in order to avoid a hazard.
19. If the supply cord is damaged, it must be
replaced by the manufacturer or its service
agent in order to avoid a hazard.
20. The plug must be removed from the
receptacle before cleaning or maintaining the
Appliance. Do not unplug the Power Adapter
by pulling on the power cord.
21. The Back-Up Battery must be replaced by the
manufacturer or its service agent in order to
avoid a hazard.
22. The Back-Up Battery must be removed
and discarded according to local laws and
regulations before disposal of the Appliance.
23. The Appliance must be disconnected from
the receptacle before removing the battery
for disposal of the Appliance.
24. Please dispose of used batteries according to
local laws and regulations.
25. Do not incinerate the Appliance even if it is

6
EN
severely damaged. The battery can explode
in a fire.
26. The Appliance must be used in accordance
with the directions in this Instruction Manual.
The company cannot be held liable or
responsible for any damages or injuries
caused by improper use.
27.WARNING: For the purposes of recharging
the battery, only use the detachable supply unit
EA10952 provided with this Appliance.
28. The robot contains batteries that are only
replaceable by skilled persons.
29. The Remote Control requires two non-
rechargeable AAA R03 batteries. To replace
the battery of the Remote Control, please turn
over the Remote Control, press and remove
its Battery Cover. Remove the batteries, and
insert the new batteries with the correct
polarity. Reassemble the Battery Cover.
30. Non-rechargeable batteries are not to be
recharged.
31. Different types of batteries or new and used
batteries are not to be mixed.
32. Batteries of the Remote Control are to be
inserted with the correct polarity.
33. Exhausted batteries are to be removed from
the Appliance and safely disposed of.
34. If the Remote Control is to be stored unused
for a long period, the batteries should be
removed.
35. The supply terminals are not to be short-
circuited.
36. The plug and the Power Adapter must be
used indoor.
1. Important Safety Instructions

7EN
To satisfy RF exposure requirements, a separation
distance of 20 cm or more should be maintained
between this device and persons during device
operation.
To ensure compliance, operations at closer
than this distance is not recommended. The
antenna used for this transmitter must not be co-
located in conjunction with any other antenna or
transmitter.

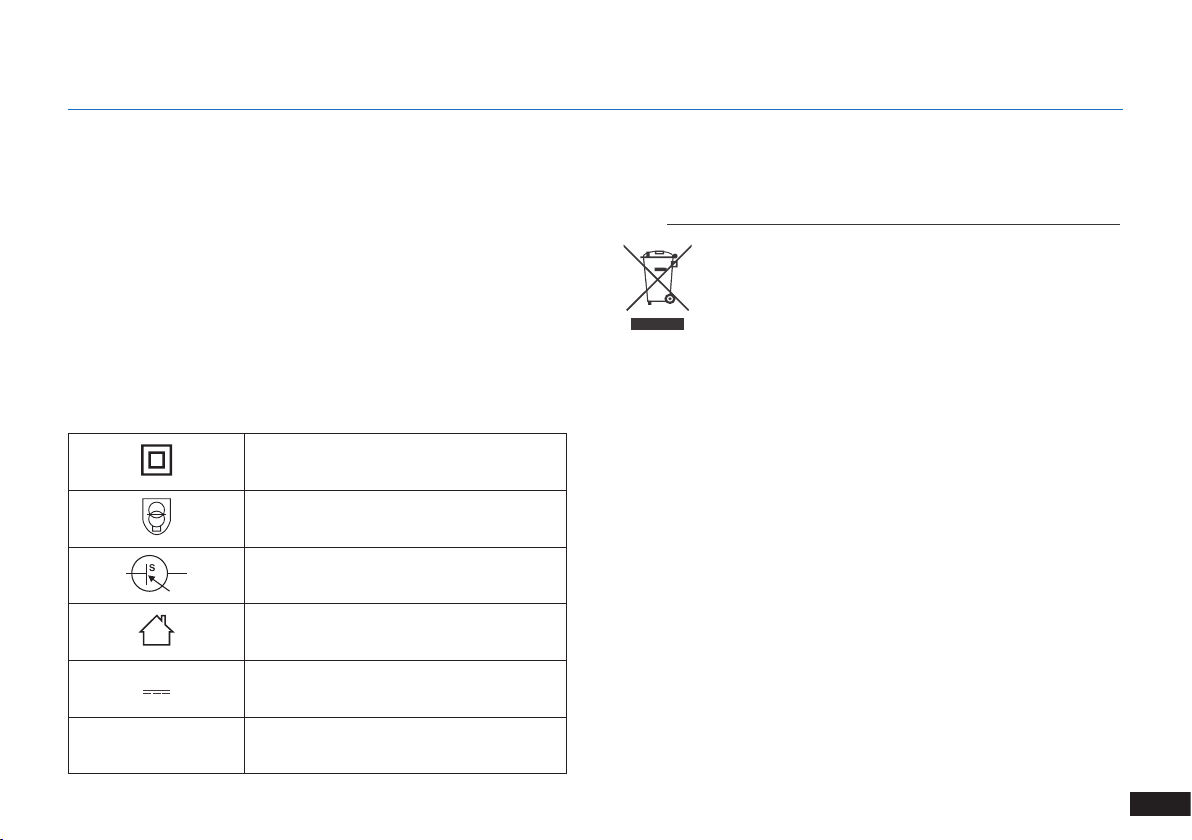

Class II
Short-circuit-proof safety isolating
transformer
Switch mode power supply
For indoor use only
Direct current
~Alternating current
Correct Disposal of this Product
This marking indicates that this product should
not be disposed of with other household
waste throughout the EU. To prevent possible
harm to the environment or human health
from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of
material resources. To recycle your used device,
please use the return and collection systems
or contact the retailer where the product was
purchased. They can safely recycle this product.
For EU Countries
For EU Declaration of Conformity information,
visit https://www.ecovacs.com/global/compliance
1. Important Safety Instructions

8
EN

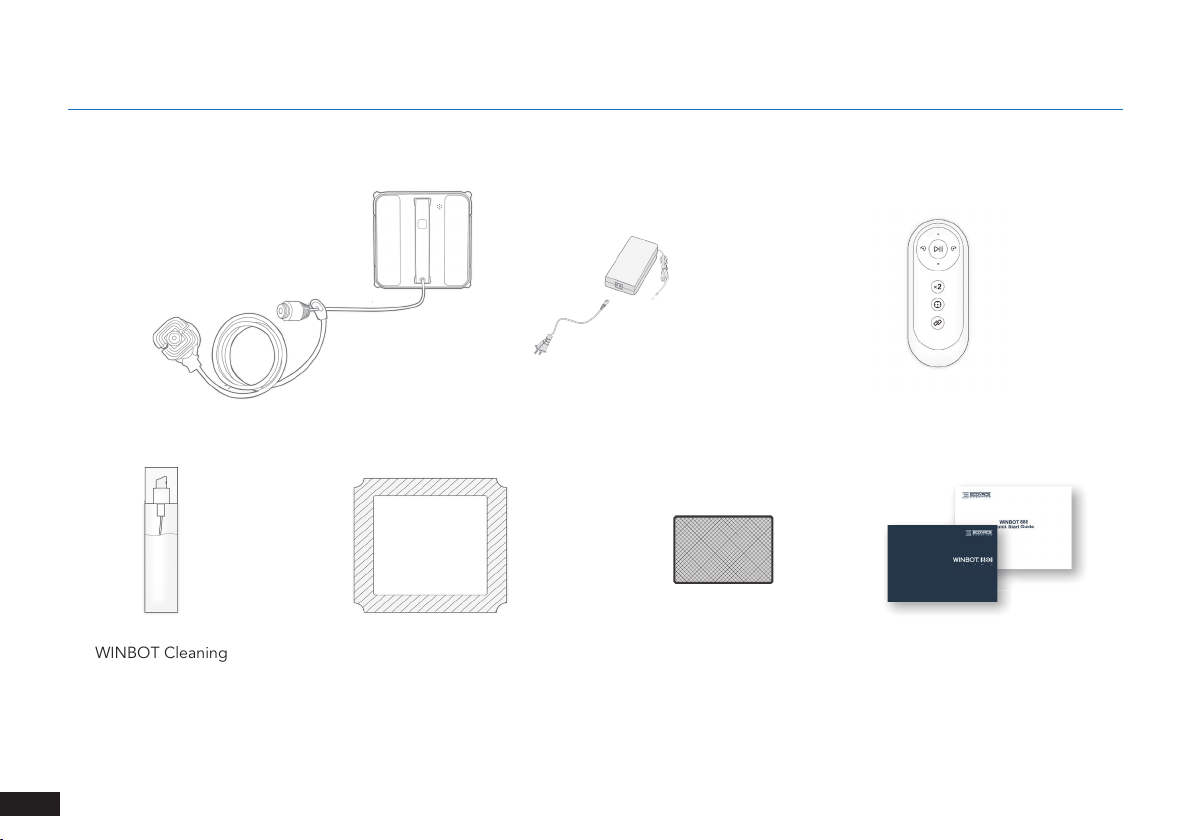

2.1 Package Contents
WINBOT Power Adapter Remote Control +
Batteries
Instruction Manual +
Quick Start Guide
Cleaning Pads
WINBOT Cleaning
Solution Finishing Cloth
2. Package Contents and Technical Specifications
Note: Figures and illustrations are for reference only and may differ from actual product appearance.
Product design and specifications are subject to change without notice.

9EN
2.2 Product Diagram
WINBOT
2. Package Contents and Technical Specifications
Bumper Rail
Edge Detection
Sensors
Power Switch
Bottom Status
Indicator Light
Suction Sensor
Edge Detection
Sensors
Status Indicator Light/
START/PAUSE Button
Squeegee
Fan
Driving Treads
Note:
To change batteries in Remote Control, pull off the battery cover of
Remote Control, take out the old batteries, insert batteries with correct
polarity, and slide the battery cover on the back, ensuring it clicks
closed.
Remote Control
Direction Control
Buttons
Deep Cleaning Mode
Button
Spot Cleaning
Mode Button
START/PAUSE Button
Remote Control
Pairing Button

10
EN

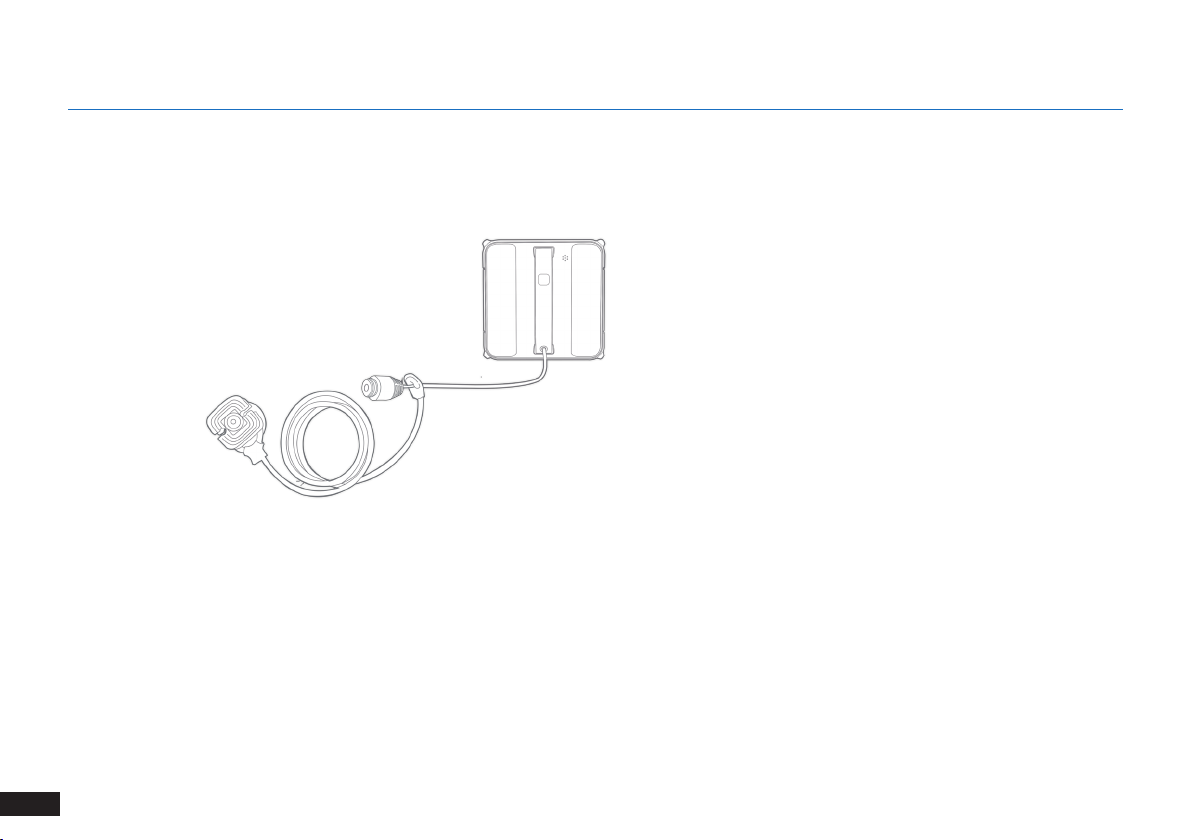

3.1 Notes Before Cleaning
3. Operating WINBOT
Make sure Safety Pod and tether have been connected with WINBOT before using. (Connected by default. Do not take
them down at random.)
Note: Do not use WINBOT on a framed window with a frame narrower than 3 mm(0.1”).

11 EN

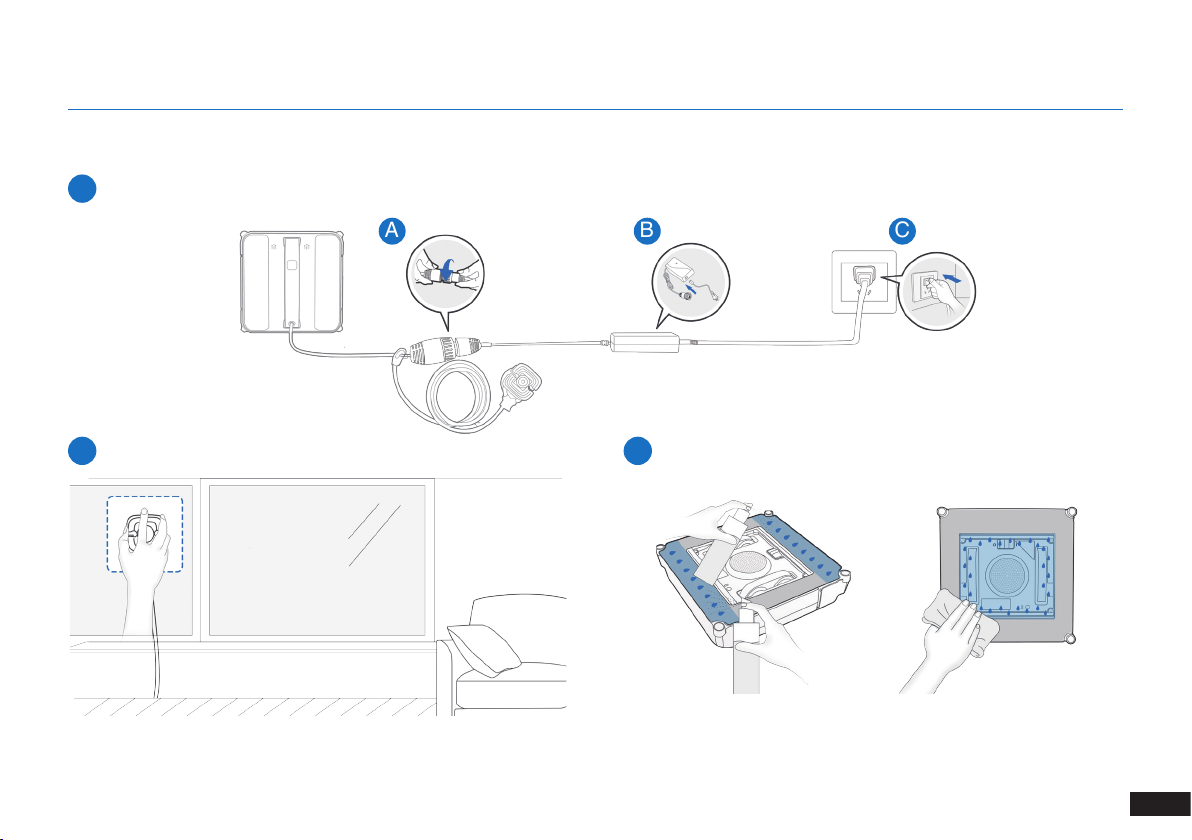

3.2 Quick Start
1Connect WINBOT Power Cord, Power Adapter and Plug
2Attach the Safety Pod 3Spray Cleaning Solution
To make the safety Pod firmly attached on the glass, please use a
dry cloth to clean the Safety Pod bottom and an area where will be
attached the safety pod on the glass.
Note: Do not over-spray Cleaning Solution as doing so may cause the
driving treads to slip.
3. Operating WINBOT
A B C

12
EN
a. AUTO Cleaning Mode
b. Deep Cleaning ModeNote:
Keep objects away from WINBOT’s Fan to avoid blockage.
Place WINBOT on the window at least 10cm (4”) from window corners
or other obstacles.
Clean an area to place WINBOT firstly if the glass with much dirty and
dust.

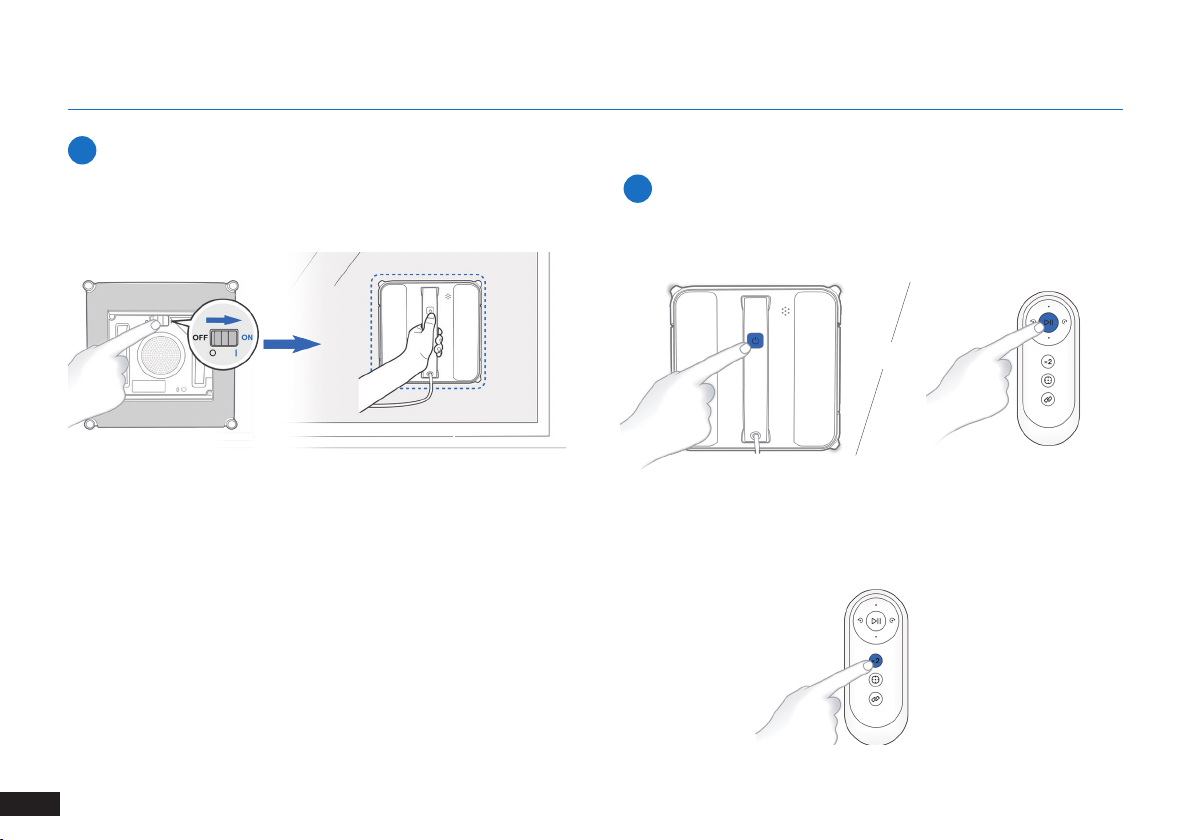

3.3 Operating During Working
1Select Cleaning Mode
4Start
Turn on Power Switch. Press Start/Pause Button. Attach the WINBOT
on the glass when hearing the fan working. WINBOT starts after it has
attached successfully to the glass.
This is the most commonly used mode and is most suitable for regular
cleaning.
This mode can be used for a better cleaning performance as WINBOT
cleans in two directions separately.
OR
3. Operating WINBOT

13 EN

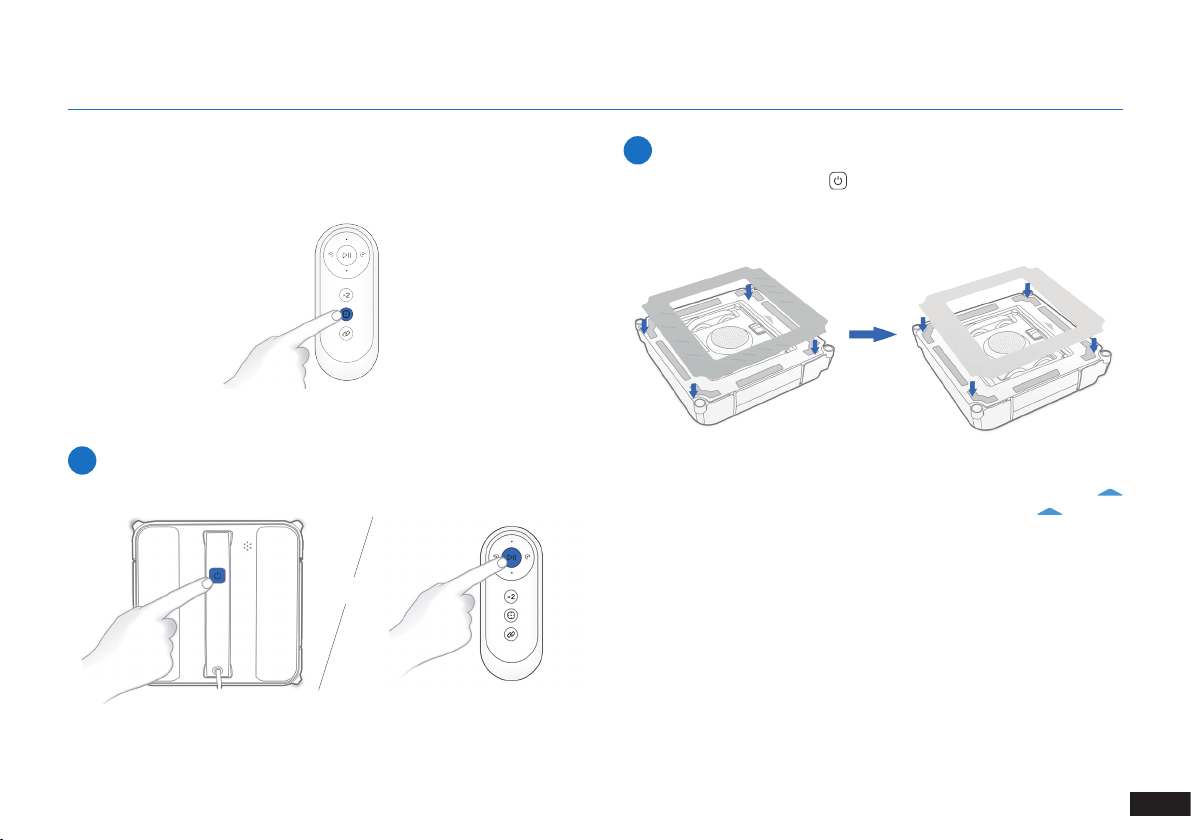

2Pause
3Replace the Cleaning Pad
c. Spot Cleaning Mode
This mode can be used for an area with concentrated dirt and dust. Pause WINBOT and press on WINBOT for 5 seconds to take
WINBOT down. Remove the dirty Cleaning Pad from the WINBOT and
place a clean new one on it.
Note: The Direction Control Buttons on the Remote Control cannot be
used until WINBOT is paused.
Note: The gray microfiber side faces out. Make sure the side with
is attached to WINBOT Cleaning Pad Plate with the same .
Make sure the Cleaning Pad correctly attached. Do not cover the
Squeegee or Edge Detection Sensors.
OR
3. Operating WINBOT

14
EN
3. Operating WINBOT

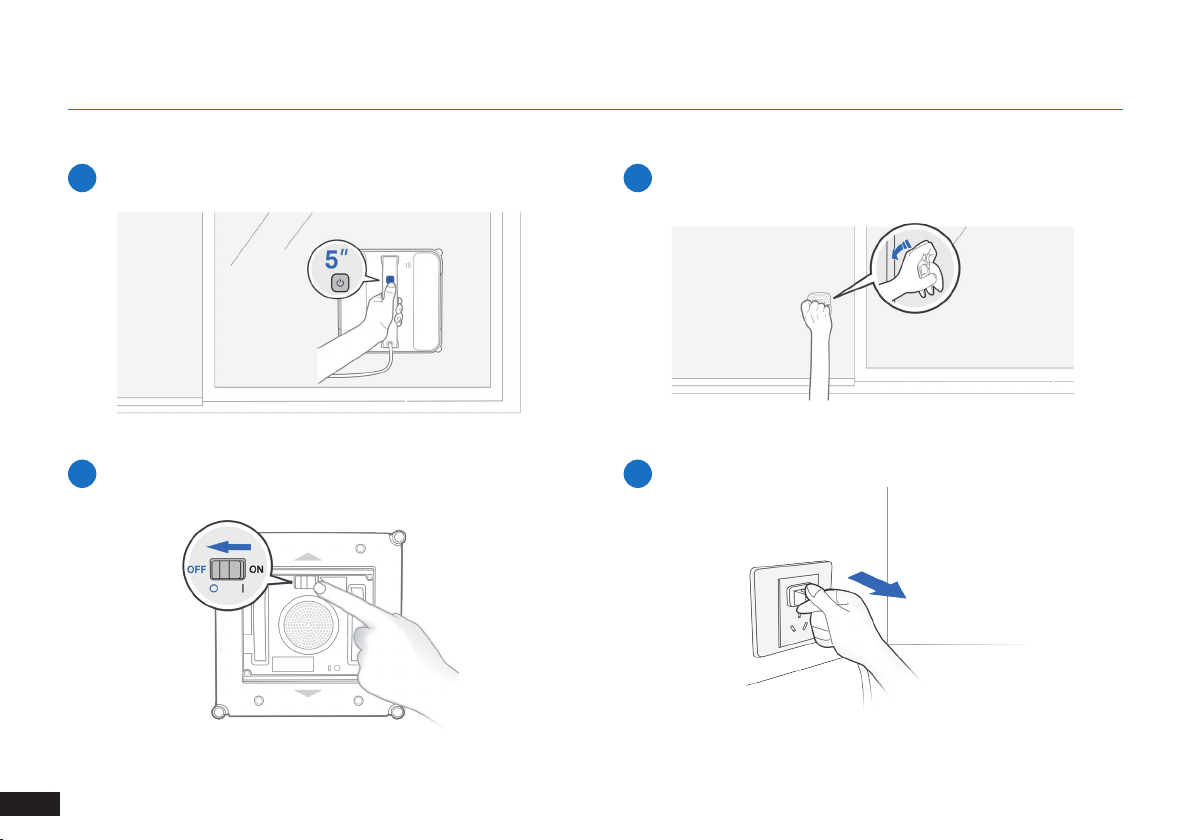

1Remove WINBOT 3Remove Safety Pod
2Power Off 4Unplug WINBOT
3.4 Finish Work

15 EN

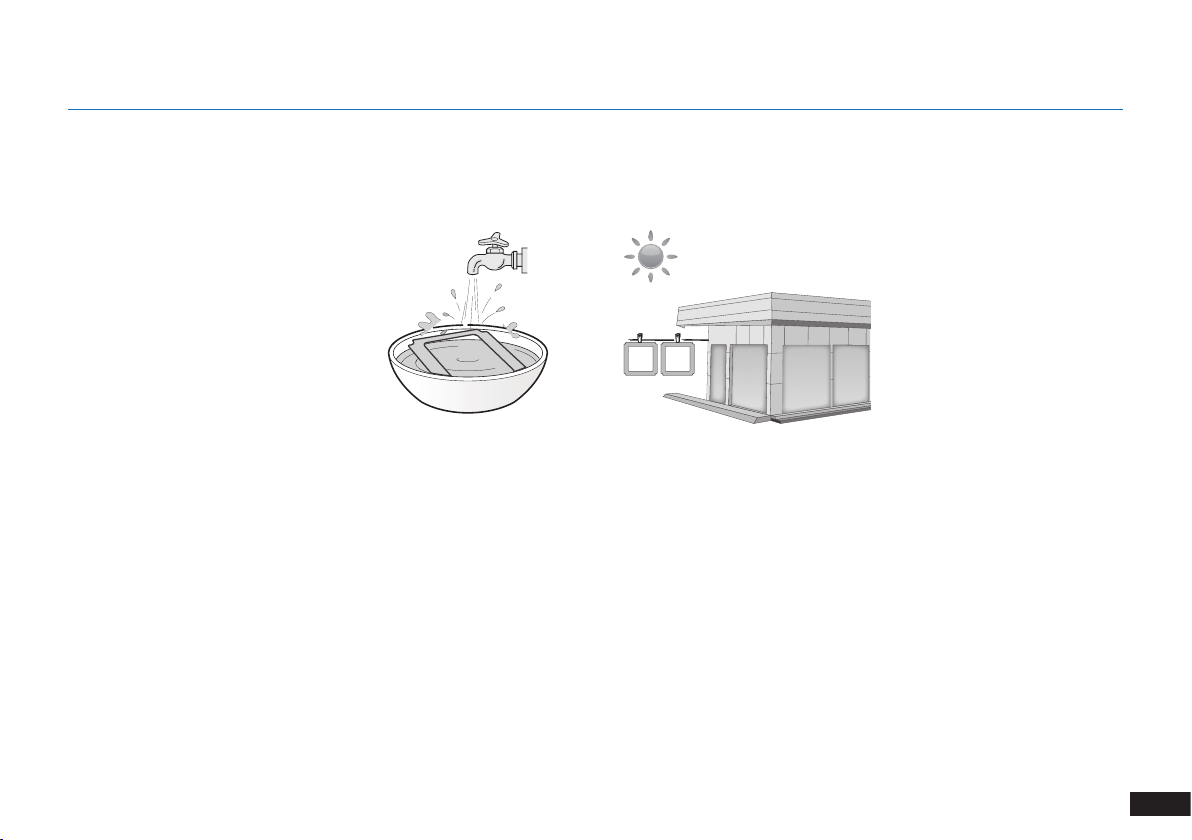

4.1 Cleaning Pad
Note:
Wash with mild detergent.
Do NOT use a wet Cleaning Pad on WINBOT or it may slip on the window.
Washing the Cleaning Pad regularly can extend its service life.
If the Cleaning Pad becomes worn or no longer fits exactly within the fastener area, replace it with a new one to achieve optimal cleaning performance.
4. Maintenance

16
EN
4. Maintenance
Edge Detection Sensors
Squeegees

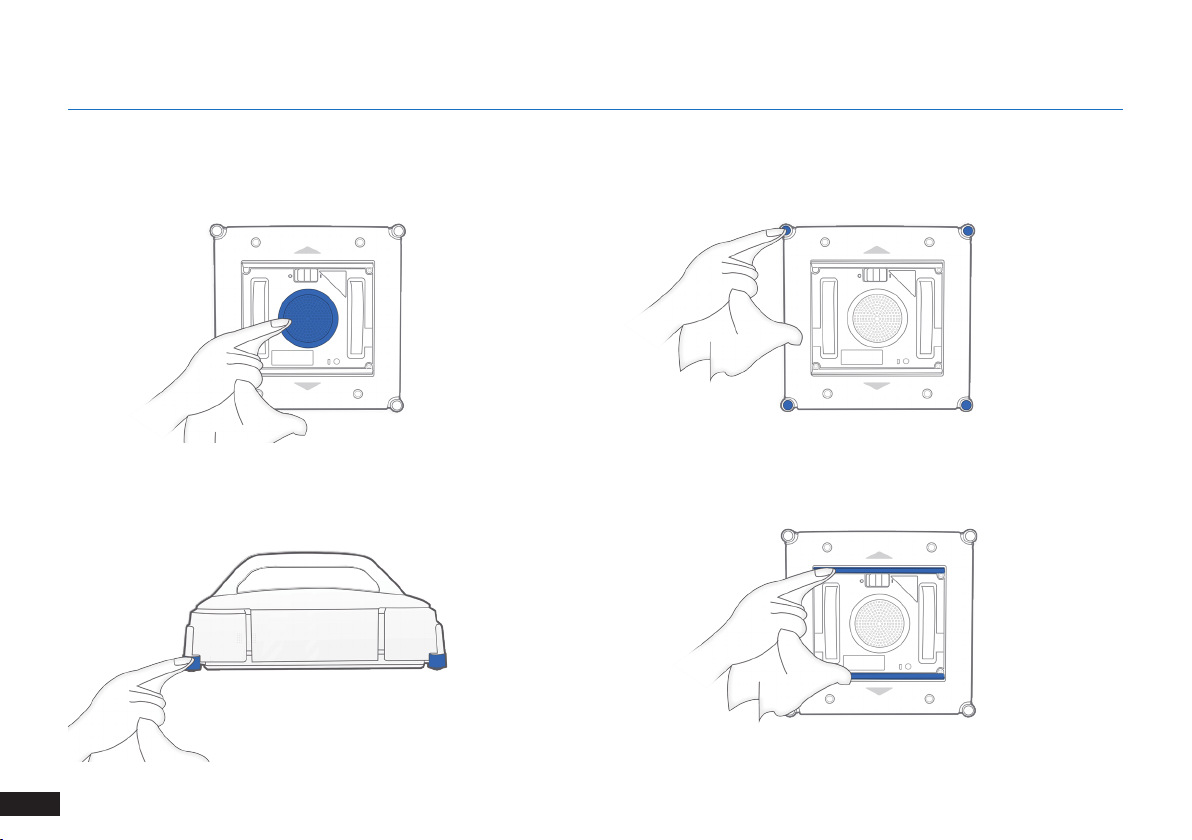

4.2 Fan, Side Rollers, Edge Detection Sensors and Squeegees
Fan
Side Rollers

17 EN
4. Maintenance

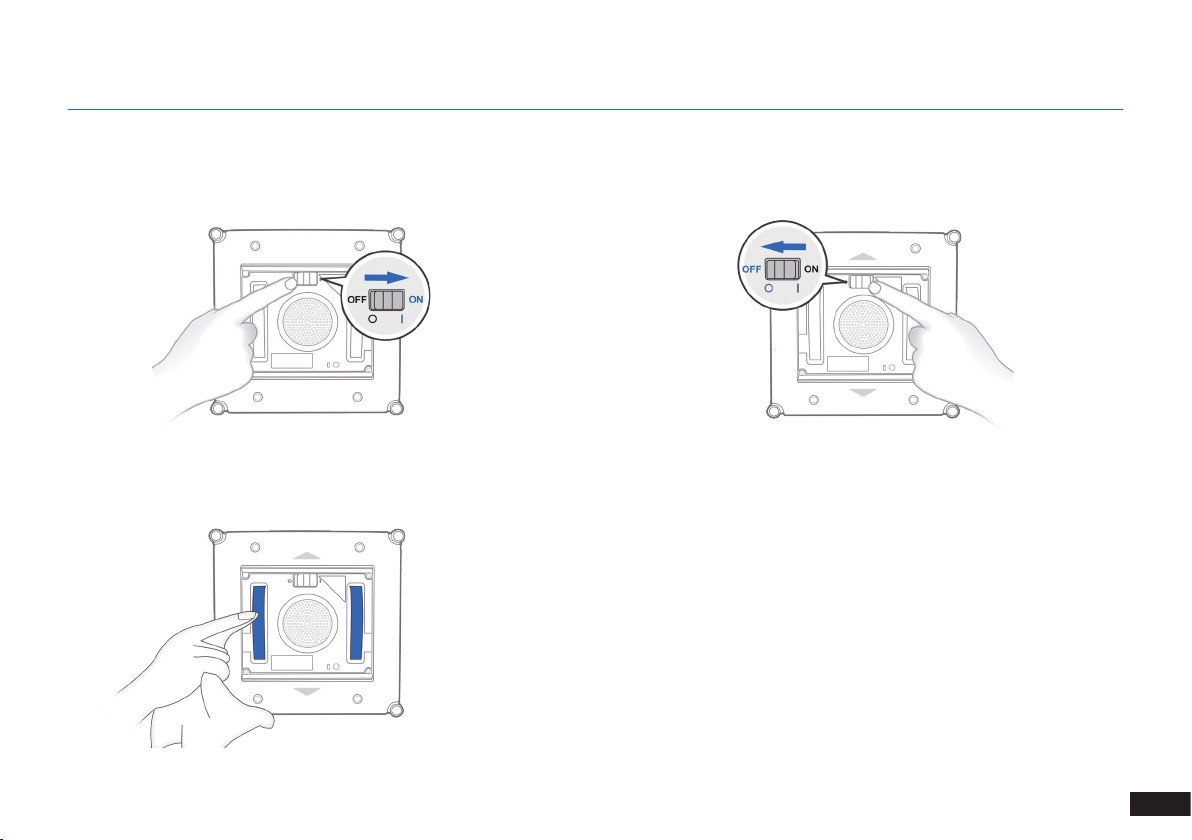

4.3 Driving Treads
1
Step
2
Step
3
Step
Note:
Inspect the Driving Treads by using the Direction Control Buttons on
the Remote Control. Stop the Driving Treads if you see dirt on them.

18
EN
5. Status Indicator Light
Status Indicator Light flashes BLUE slowly. This is normal. WINBOT is paused or charging.
Status Indicator Light stops glowing BLUE. This is normal. WINBOT is coming to sleep mode. Press to make it
up.
Status Indicator Light glows a continuous BLUE. This is normal. WINBOT has successfully adhered itself to the glass
and is ready to clean.
Status Indicator Light flashes RED. WINBOT has a problem. Please refer to section 6, Troubleshooting, for
details.
Status Indicator Light glows a continuous RED WINBOT has low battery, please take it down.
WINBOT emits beeps.
WINBOT beeps in following situations:
WINBOT is powered on.
WINBOT finishes cleaning.
WINBOT has a problem.

19 EN
6. Troubleshooting
NO. Malfunction Possible Causes Solutions
1
Remote Control
cannot control
WINBOT.
Remote Control is not paired with
WINBOT (WINBOT comes with a
paired Remote Control. If Remote
Control becomes unpaired or has been
exchanged, it can be paired again).
Within 5 seconds of powering ON WINBOT, press and hold on
WINBOT and on the Remote Control at the same time. Pairing is
complete when WINBOT beeps and flashes RED and GREEN.
2
WINBOT moves in
an irregular pattern
during cleaning.
There is too much dirt and debris on the
glass.
A. Spray additional Cleaning Solution on the Cleaning Pad.
B. Clean the Driving Treads as described in section 4.
C. Replace the Cleaning Pad and restart the cleaning cycle.
D. Use the Remote Control to control the cleaning by pressing
Direction Buttons.
E. Clean the window by hand first and use WINBOT for regular
cleaning after that.
* WINBOT is intended to be used for maintenance cleaning on
common windows. The product is NOT designed to replace heavy
duty or first time cleaning.
The Cleaning Pad is too dirty.
The Cleaning Pad is too wet.
The Driving Treads are too dirty.
The Driving Treads are worn. Please check the surface of the driving treads, see if there is any
heavy wear, crack or breakage. If so, please contact customer service.
3WINBOT don’t
move.
The Cleaning Pad is attached Please check the surface of the driving treads, see if there is any
heavy wear, crack or breakage. If so, please contact customer service.
There is a gap on the surface of the glass. Hold the Safety Tether or WINBOT Power Cord. Meanwhile, press
Direction Buttons on the Remote Control to let the WINBOT leave
the gap or barrier.
The cleaning pad plate is blocked due to
small obstacles on the glass.
4WINBOT move hard
or in circle. The driving treads are stuck.
Check if there is any dust or debris on the Driving Treads. If so, please
clean the Driving Treads as described in section 4. Start WINBOT
again. If problem persists, please contact customer service.

20
EN
6. Troubleshooting
NO. Malfunction Possible Causes Solutions
5
WINBOT is hanging
around or moves in
an irregular pattern
during cleaning.
The bumper rail is stuck. Take WINBOT down from the window. Check if the bumper rail is
stuck. Clean the bumper rail and restart WINBOT. If problem persists,
please contact customer service.
The bumper rail is broken.
6
WINBOT is hanging
around or moves in
an irregular pattern
during cleaning.
Edge Detection Sensor signal abnormity.
A. Remove the Cleaning Pad and re-attach it making sure it will not
cover or affect the Edge Detection Sensors.
B. Clean the Edge Detection Sensors as described in section 4.
C. If the problem persists, please contact Customer Service.
Fan malfunction. A. Clean the Fan as described in section 4.
B. If the problem persists, please contact Customer Service.
7
WINBOT stops
moving after
adhered to the
glass.
WINBOT is too near to the edge of the
glass or obstacles.
Use the Direction Control buttons on the Remote Control to move
WINBOT away from the problem area and at least 10cm/4” from
window corners and obstacles. Restart WINBOT. Or Remove
WINBOT from the window and put it at least 10cm/4” from window
corners and obstacles. Restart WINBOT.
8
WINBOT is stuck
and cannot move,
be controlled by the
Remote Control.
It is stuck by obstacles.
Fix the safety pod and tether firmly. Hold WINBOT power cord and
meanwhile, use
the Direction Control Buttons to move
WINBOT away from the stuck area. If the problem persists, please
contact Customer Service.
