ECR International 550003792 Instruction manual

Domestic Hot Water Module
# 550003792
INSTALLATION, OPERATION
& MAINTENANCE MANUAL
ECR International Inc.
2201 Dwyer Avenue, Utica, NY 13501
Tel. [phone]
www.ecrinternational.com
PN 240012960 REV. F [09/15/2020]

2PN 240012960 REV. F [09/15/2020]
Hot Water Can Scald!
Water heated to temperature for clothes washing,
dish washing and other sanitizing needs can scald and
cause permanent injury.
Children, elderly, and inrm or physically handicapped
persons are more likely to be permanently injured by
hot water. Never leave them unattended in bathtub or
shower. Never allow small children to use a hot water
tap or draw their own bath.
If anyone using hot water in the building ts the
above description, or if state laws or local codes
require certain water temperatures at hot water taps,
you must take special precautions:
• Use lowest possible temperature setting.
• Install some type of tempering device, such as
an automatic mixing valve, at hot water tap or
water heater. Automatic mixing valve must be
selected and installed according to manufacturer's
recommendations and instructions.
Water passing out of drain valves may be extremely
hot. To avoid injury:
• Make sure all connections are tight.
• Direct water ow away from any person.
DANGER
!
Water
Temperature
Seng
1st Degree Burn
Exposure Time For
An Adult
2nd and 3rd Degree
Burn Exposure Time
For An Adult
120° F 1 minute 5 minutes
130° F 5 seconds 30 seconds
140° F 2 seconds 5 seconds
150° F 1 second 1.5 seconds
160° F Instantaneous 0.5 seconds
Note: Warning for Infants, Children, and
the Elderly: Great care must be taken when
exposing the aforementioned groups to warm
or hot water as they can be badly burned in
exposure times less than half of the time for an
adult.
FOR YOUR SAFETY READ BEFORE INSTALLATION AND OPERATION
CAUTION
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
!!
WARNING
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
!
DANGER
Indicates a hazardous situation which, if not avoided,
WILL result in death or serious injury.
!
This is the safety alert symbol. Symbol alerts
you to potential personal injury hazards. Obey all
safety messages following this symbol to avoid
possible injury or death.
Become familiar with symbols identifying potential hazards.
Installation shall be completed by qualied agency.
IMPORTANT SAFETY INFORMATION
CAUTION
Laceration, burn hazard. Metal edges and parts
may have sharp edges and/or may be hot. Use
appropriate personal protection equipment to include
safety glasses and gloves when installing or servicing
this boiler. Failure to follow these instructions could
result in minor or moderate injury.
!!
NOTICE
Used to address practices not related to personal
injury.
WARNING
Fire, explosion, asphyxiation and electrical shock
hazard. Improper installation could result in death or
serious injury. Read this manual and understand all
requirements before beginning installation.
!
WARNING
Do not tamper with or use this kit for any purpose
other than its intended use. Failure to follow these
instructions could result in death or serious injury.
Use only manufacturer recommended parts and
accessories.
!

3PN 240012960 REV. F [09/15/2020]
WARNING
Burn and scald hazard. Components shall be
installed by qualied service agency in accordance
with manufacturer's instructions and all applicable
codes and requirements of authority having
jurisdiction. Verify Boiler is o and cooled before
component installation. Failure to follow these
instructions could result in death or serious injury.
!
WARNING
Electrical shock hazard. Turn OFF electrical power
supply at service panel before making electrical
connections. Failure to do so could result in death
or serious injury.
!
IMPORTANT SAFETY INFORMATION
• This installation, operation and maintenance manual,
hereinafter the manual, is an integral part of the
product and must be kept by the end user.
• Carefully read the warnings in this manual because
they provide safety information necessary for
installation, use and maintenance.
• The manufacturer is not liable for damage to humans,
animals or things caused by incorrect installation,
use, poor maintenance and failure to follow the
instructions in this manual.
• This appliance must be used only for the purpose for
which it was expressly intended. Any other use is to
be considered inappropriate and therefore hazardous.
• Make sure the manual always accompanies the
appliance should it be sold to a new owner and/or
installer.
• The installation and maintenance shall be performed
by qualied technical personnel, in compliance
with applicable laws and in accordance with the
instructions contained in this manual.
• Qualied technical personnel means persons with
specic technical skills in the eld of heating systems
for civil use, for the production of domestic hot water
and related components.
• In case of failure and/or malfunction switch o the
appliance, avoiding any attempt to repair and/or
intervene directly. Contact a qualied technician.
• Any repair of the appliance shall be carried out by
qualied personnel using only original spare parts.
Failure to do so may impair the operation and safety
of the device.
• Before carrying out any cleaning or maintenance,
turn o the appliance at the power supply by
operating the circuit breaker, and from the water
supply using the appropriate stopcocks.
• To ensure the appliance functions eciently it is
advisable to have annual maintenance performed by
a qualied technician.
• Check the contents after removing the packaging.
• The device shall not be exposed to the weather.
• Data contained in this document is provided for
information only. The manufacturer reserves the right
to modify it at any time without notice.

4PN 240012960 REV. F [09/15/2020]
CONTENTS
Important Safety Information .........................................................................................................2-3
Specications ..................................................................................................................................5
Main Components ............................................................................................................................7
Installation......................................................................................................................................7
Hydraulic Connections.......................................................................................................................9
Electrical Connections.....................................................................................................................12
Start Up........................................................................................................................................12
Operation and Use..........................................................................................................................13
User Interface.................................................................................................................................15
Mechanical Drawings ......................................................................................................................18
Internal Wiring...............................................................................................................................19
Maintenance..................................................................................................................................19
Spare Parts List .............................................................................................................................21
Troubleshooting .............................................................................................................................22
Warranty .......................................................................................................................... 23

5PN 240012960 REV. F [09/15/2020]
SPECIFICATIONS
The Domestic Hot Water (DHW) module is an appliance for the production of hot water for domestic use using the heat
produced by a boiler.
The main components of the DHW module are a two way valve, a brazed plate heat exchanger, a circulator (electric
pump), a ow meter, a temperature sensor and an electronic control regulator (REC). The boiler must include low limit
capability to continuously maintain boiler water temperature. The module is mounted on a wall near the boiler.
Product Range
DHW MODULE
550003792
Rated Thermal
Btu/h (kW)
228,000 (67)
15 " (381 mm)
3.74 " (95 mm) 3.74 " (95 mm)
4.33" (110 mm)
3/4 NPT 3/4 NPT
3/4 NPT 3/4 NPT
3.74 " (95 mm) 3.74 " (95 mm)
4.33" (110 mm )
11.81 " (300 mm)
12 " (305 mm)
7.87 " (200 mm)
7.87 " (200 mm)

6PN 240012960 REV. F [09/15/2020]
Domestic Hot Water Flow Rates
Three
Pass Boiler
Model Firing Rate Heating
Capacity
DHW
Flow
Rate at
77°F Rise
DHW
Flow
Rate at
70°F Rise
DHW
Flow
Rate at
60°F Rise
DHW
Flow
Rate at
50°F Rise
[gph] [Btu/h] [Btu/h] [gpm] [gpm] [gpm] [gpm]
4075 0.75 105,000 92,000 2.25 2.48 2.89 3.47
4095 0.95 133,000 114,000 2.85 3.14 3.66 4.39
4110 1.10 154,000 132,000 3.20 3.52 4.11 4.93
5100 1.00 140,000 123,000 3.00 3.30 3.85 4.62
5115 1.15 161,000 139,000 3.50 3.85 4.49 5.39
5135 1.35 189,000 161,000 3.95 4.35 5.07 6.08
6130 1.30 182,000 160,000 4.05 4.46 5.20 6.24
6145 1.45 203,000 176,000 4.50 4.95 5.78 6.93
6165 1.65 231,000 198,000 4.90 5.39 6.29 7.55
7165 1.65 231,000 202,000 5.00 5.50 6.42 7.70
7180 1.80 252,000 217,000 5.35 5.89 6.87 8.24
7190 1.90 266,000 228,000 5.75 6.33 7.38 8.86
Technical Specications
Transfer Fluid Water
Maximum glycol
percentage*
40%
Maximum uid temperature 194°F / 90° C
Maximum Operating
pressure:
43.5 psi (3 bar) Boiler Water
145 psi (10 bar) Domestic
Water
Exchanger rated power 228,000 Btu/h (67 kW)
Two way valve dierential
pressure**
∆p 13 psi (0.9 bar)
Power supply voltage 115 Vac ± 10%, 1 ph, <2 A
Frequency 60 Hz
Power Consumption 96 W
Fuse (Dimensions mm) 250V-4A Fast (5x20)
Protection level IP 20
Pump Wilo Star 21U15-130
Actuator 24 V stepper
Sensor NTC 10 kΩ
Flow switch (trip ow rate) 0.53 ± 0.05 gpm (2± 0.2 l/min)
DHW ow regulator*** 3.2 gpm (12 l/min)
Transportation/Storage
Temperature
-4 to 158 °F (-20 to 70 °C)
Operating Temperature
(indoor)
36 to 113 °F (2 to 45 °C)
* Antifreeze solution with up to 40% of inhibited propylene
glycol. DHW capacity may fall as much as 10% or more as
concentration of antifreeze is increased.
** Maximum dierential pressure at which no signicant
leakage is detected.
*** Supplied in the package is a 5.3 gpm (20 l/min) ow
regulator that can be mounted in place of the factory
installed 3.2 gpm (12 l/min) ow regulator.
This single wall heat exchanger complies with the 1990
National Standard Plumbing Code provided both of the
following are true:
A. The boiler water, including additives, is practically non
toxic, having a toxicity rating or class of 1 as listed in
Clinical Toxicology of Commercial Products, 5th edition.
B. The pressure of the boiler water is limited to a maximum
of 30 psi by an approved safety or relief valve.
Materials
Components Brass EN 12165 CW617N-DW
Connection pipes Copper
Frame Galvanized steel
Insulation PPE
Heat Exchanger Brazed stainless steel
Total Weight 28.5 lb ( 13 kg)

7PN 240012960 REV. F [09/15/2020]
1 CH Inlet
2 CH Outlet
3 DHW Inlet
4 DHW Outlet
5 Two Way Valve
6 Temperature Sensor T1
7 Electronic Control Regulator (REC)
8 Plate Heat Exchanger
9 Stepper Motor
10 Wilo Pump Star 21U15-130
11 DHW Flow Meter
12 Steel Frame
13 DHW Flow Sensor
14 DHW Flow Regulator
15 Pipe Adapter Unions (4)
16 Drain Tap
17 Air Vent
Hazards!
• Before proceeding with the installation check for damage and the integrity of the appliance: in case of damage DO
NOT proceed with the installation.
• The appliance is designed for indoor installations, therefore it cannot be installed outside in environments directly
exposed to the elements.
• Outdoor installation can cause malfunction and hazards.
• The appliance shall not be exposed to dripping water or humidity, direct sunlight, weather, heat sources or strong
electromagnetic elds. This appliance cannot be used in areas at risk of explosion or re.
• Always avoid direct contact with live or potentially dangerous parts during installation and maintenance.
• The appliance must be connected to an independent circuit breaker. Turn o the power supply before working on
the appliance. Do not use devices with timed automatic reset, or that can be rearmed by accident.
• Use suitable automatic protection devices, depending on the electrical characteristics of the area in which the
appliance is installed and the current regulations.
• The earth connection must always be made before connecting the power. If you need to remove the appliance,
the earth connection must always be disconnected after disconnecting the power cables. Check that the building
earthing is properly executed in compliance with the current regulations.
• The electrical installation must be performed by a legally qualied technician.
• Water temperatures over 50°C (122°F) can cause severe burns. During installation, start up and maintenance of
the appliance, take the necessary precautions so that these temperatures cannot put anyone in danger.
WARNING
Burn, Scald, Electrical Shock Hazards! Failure to follow the instructions listed below could result in death or
serious injury.
!
MAIN COMPONENTS
INSTALLATION
15
17
16

8PN 240012960 REV. F [09/15/2020]
• DHW kit shall be installed on a wall that is vertically plumb.
• The appliance can be installed in the vertical position (with CH Inlet at the top and CH Outlet at the bottom),
horizontal left (with the CH Inlet on the left) and horizontal right (with the CH Inlet on the right).
• The pump axis shall always be in a horizontal position.
• The direction of the water ow shall comply with the indications on the labels found on the appliance frame.
• Be sure the wall or panel can carry the weight of the DHW kit and all associated piping.
• The kit may be mounted on a combustible wall. The water piping shall be a minimum of 1” away from any
combustible materials.
• For stud type walls, verify there are studs available in the desired location. Use appropriate fasteners for the wood
or metal stud type in use and for the weight capacity.
• For masonry walls, use appropriate type of anchors for material and weight capacity.
• Do not attempt to support the system with anchors driven into sheetrock only.
Mounting
Water Quality
• If the CH water (i.e. boiler water) is very hard or full of impurities, it must be adequately ltered and treated,
otherwise damage and/or malfunction could be caused. Recommended water quality is:
o Hardness Less than 8.8 grains per gallon (150 mg/L)
o Acidity level 7-8 pH
o Sediments Particle size less than 50 micron
• If the water quality is outside these ranges, consult a local water treatment specialist for recommendations.
• If the water is treated, do not use petroleum based products or products containing mineral oil or hydrocarbons in
order to avoid likely damage to parts made from rubber compounds (o-rings).
Preparation
• Remove the appliance from the packaging checking the integrity of the product.
• Remove the insulating cover.
• Proceed with the installation.
Minimum Installation Distances
To facilitate maintenance operations on the appliance it is necessary to install it with adequate space. Place the appliance
and x it using good practice, with adequate xings (not supplied).
When installed inside a cabinet or utility room, provide adequate distance between the device and the door.
3.94" (100 mm) 3.94" (100 mm)
12.60" (320 mm)

9PN 240012960 REV. F [09/15/2020]
HYDRAULIC CONNECTIONS
• Clean the pipes of any debris, rust, incrustations, lime scale, welding slag and any other contaminants. The
hydraulic circuit must be clean.
• The appliance includes four (4) G3/4 ISO 228-1 X 3/4" NPT pipe thread adapters and four (4) gaskets provided
loose in a parts bag.
• Use the furnished adapters and gaskets to convert the four (4) G3/4 ISO 228-1 straight thread ttings on the frame
of the appliance to ¾” NPT. The adapters will serve as pipe unions for easy connection and to facilitate future
service.
• Make sure to use the gaskets on the G3/4 ISO 228-1 straight thread connections when installing the ¾” NPT
adapters. Otherwise it will leak.
NOTICE
Do not install 3/4" NPT pipe ttings directly on the G3/4 ISO 228-1 ISO connections. Use the furnished adapters.
• When making the water connections, take care not to overtighten the threaded ttings. Over time this could cause
bursting with hydraulic leakage and damage to things and/or persons.
• Make sure that all ttings are watertight.
• To allow for future maintenance operations without having to drain the CH and DHW circuits, it is manufacturer
recommended to install eld supplied manual stopcocks (shown) and/or DHW service valves (not shown).
• Refer to all local codes and jurisdictional requirements for installation of anti-scald valves, relief valves and/or
domestic hot water expansion tanks.
• The two-way valve in the DHW module is closed when there is no call for domestic hot water, thus preventing
reverse CH ow through the DHW loop.
G3/4 ISO 228-1 Straight Thread
Optional Stopcocks (eld supplied)
3/4" NPT Adapter
DHW Circuit:
• Piping for the domestic water in and out should be adequately sized for the desired ow rates at each xture.
• The appliance includes a 3.2 gpm ow regulator factory installed in the DHW inlet to restrict DHW ow. This
prevents excessive DHW ow rates that would be beyond the capability of the appliance.
• The 3.2 gpm ow regulator is recommended for use with boilers with Heating Capacities up to 132,000 Btu per
hour.
• For larger boilers with higher Heating Capacities, and thus greater ability to produce hot water, a 5.3 gpm ow
regulator is furnished loose in the parts bag.
• Instructions to remove and replace the ow regulator can be found in the Maintenance Section.
• For very large boilers, the installer may choose to remove the ow regulator altogether.
NOTICE
When the system requires the domestic hot water circuit to have a device which prevents water expansion towards the
mains (non-return valve, meter, pressure reducer, etc.) it is necessary to install an expansion tank downstream of the
device.

10 PN 240012960 REV. F [09/15/2020]

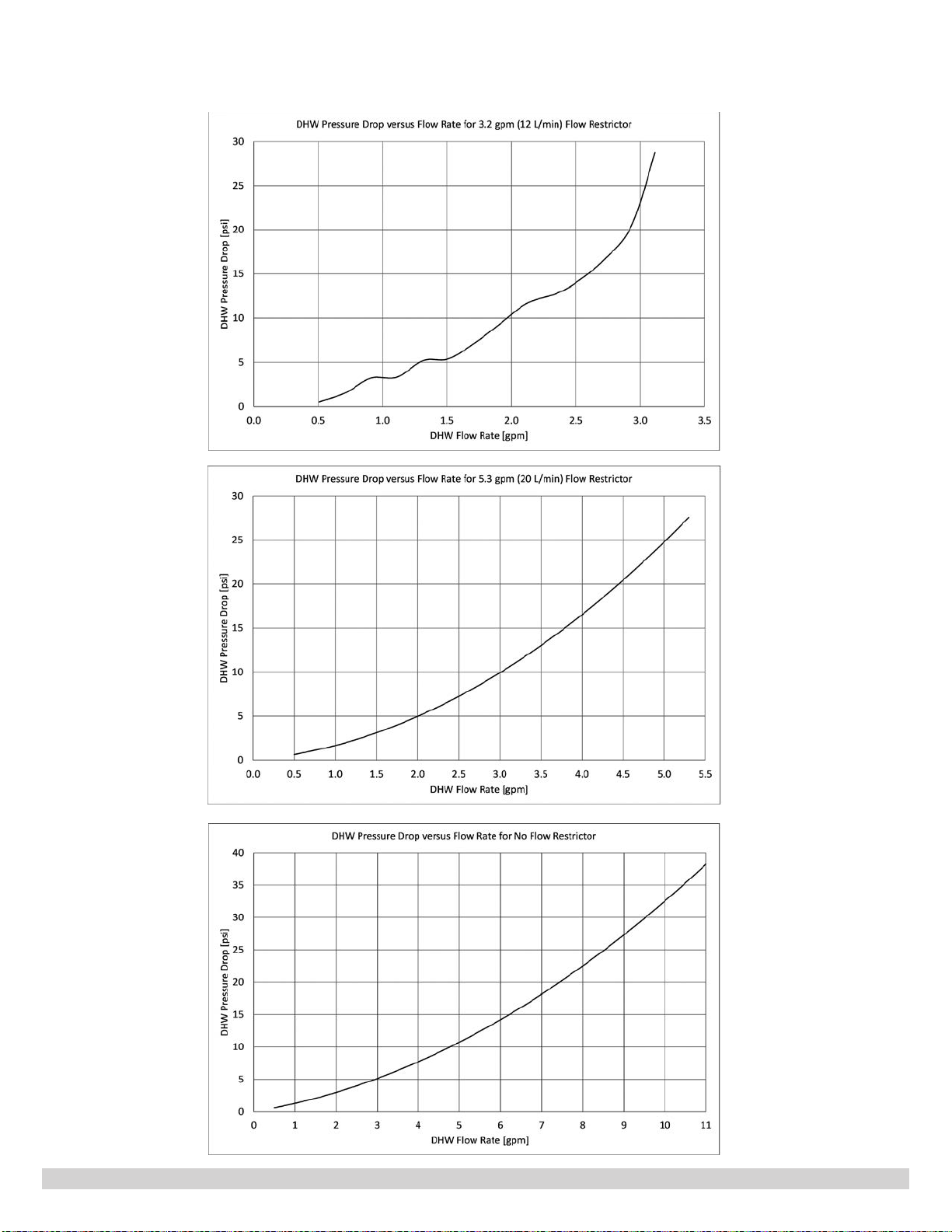

Charts below show the pressure drop through the DHW circuit of the DHW module.

11 PN 240012960 REV. F [09/15/2020]
CH Circuit
• Piping diameter shall not be reduced from the DHW module’s provided 3/4" connection size.
• Piping to and from the boiler should be kept as short as possible with minimum number of restrictions such as
elbows in order to maximize CH ow and DHW output.
• Increasing CH pipe diameter to boiler to 1" may be benecial in reducing pressure drop in the connecting piping,
further increasing CH ow. This could be helpful if the DHW module is far away from the boiler.
• To simplify air purging, a purge valve may be installed in the CH circuit. In order to purge air the DHW module must
be powered and have domestic water owing in order to open the two way valve and allow CH ow to purge air out
of the at plate heat exchanger.

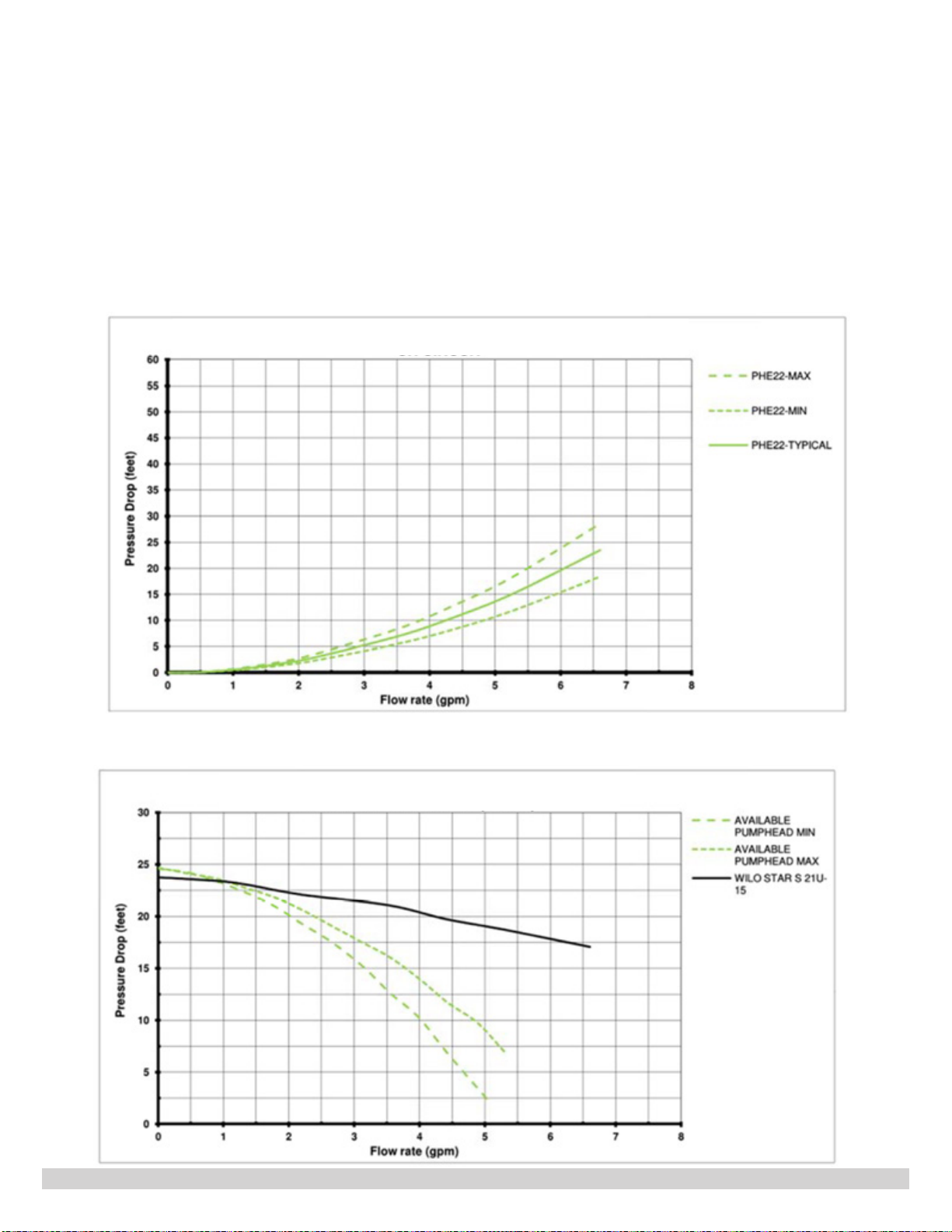

• Charts below show the pressure drop through the CH circuit of the DHW module, and the remaining available pump
head for connecting piping after accounting for that pressure drop.
CH Circuit Pressure Drop versus Flow Rate Through
DHW Module
PHE22-MAX represents the pressure drop with the motor at minimum stroke tolerance.
PHE22-MIN represents the pressure drop with the motor at maximum stroke tolerance.
CH Circuit Available Pump Head for
Connecting Piping

12 PN 240012960 REV. F [09/15/2020]
ELECTRICAL CONNECTIONS
• Electrical wiring shall conform to the requirements of the authority having jurisdiction, or in the absence of such
requirements, to the National Electrical Code ANSI/NFPA 70 (United States) or Canadian National Electrical Code
CSA C22 (Canada).
• Power supply is 115 volts, 60 hertz, single phase, less than 2 amps.
• The DHW module is supplied with a power cord with a standard 15 amp 125 volt plug.
• The power cord is 31.5 inches in length.
• The DHW module may be connected to the same branch circuit as the associated boiler per National Electrical Code
Section 422.12
• If any of the original wiring supplied with the DHW module is replaced, it must be replaced with like wire, size, and
type of insulation or equivalent.
START UP
Before starting the DHW module visually inspect the tightness of the water connections and the electrical wiring. On
completion of the checks turn on the power to the appliance and check for any error indications. In the case of an error
indication, cancel the error indicator, as describedin the USER INTERFACE section of this manual. Fill boiler and CH circuit
of the DHW module with water. Initiate DHW ow through the module in order to open the motorized two way valve and
allow CH ow from the boiler to purge air out of the at plate heat exchanger. Check for and repair any leaks. If desired,
change the display from Fahrenheit (factory conguration) to Celsius per the USER INTERFACE instructions in this manual.
Fit the insulation cover and secure with the four (4) furnished screws and washers as shown below. The screws and
washers are shipped in a plastic bag taped to the underside of the insulation cover.
15A 124V Plug NEMA 5-15P
2 pole 3 wire Grounding

13 PN 240012960 REV. F [09/15/2020]
E = Plate Heat Exchanger T1 = DHW Temperature Sensor
V = Motorized Two Way Valve F = DHW Flow Meter
P = Wilo Star 21U15-130 Pump R = DHW Flow Regulator
B = Boiler
CH INLET
CH
OUTLET
OPERATION AND USE
The DHW Module shall be piped to a boiler that incorporates a low limit control to maintain boiler water temperature. Limit
settings may be varied to meet the requirements of the installation. The low limit setting shall be at least 10°F (5.5 °C)
below the high limit setting for proper operation.
The DHW module is specically designed to control the temperature of the DHW when a DHW request is detected by the
ow meter (F), which sends an electrical signal to the REC in order to switch on the pump (P) and control the two way
valve (V). The desired DHW temperature setpoint is programmed by the user within the range 108-140°F (42-60°C).
DHW temperature is measured by the temperature sensor T1 and it is continuously checked by the REC and kept inside
the control band range +/- 5.4°F (+/- 3°C) of set point by action of the two way valve (V) .
The maximum DHW ow rate is controlled by a ow regulator (R). The DHW module is factory equipped with a 3.2 gpm
(12 l/min) ow regulator installed in the DHW inlet. A 5.3 gpm (20 l/min) ow regulator is provided loose in the parts bag.
The pump P is solely controlled by the ow meter (F): pump switched on in the presence of domestic ow and switched
o in the absence of domestic ow.

14 PN 240012960 REV. F [09/15/2020]
Temperature Regulation
The set point temperature T1 of the DHW uid at the heat exchanger outlet is factory set to the default value of 122 °F
(50°C). The REC is equipped with trimmer P1, accessible by removing the rubber plug located on the front cover, with
which the temperature T1 can be adjusted to a value dierent from the factory setting.
The set value T1 is displayed.

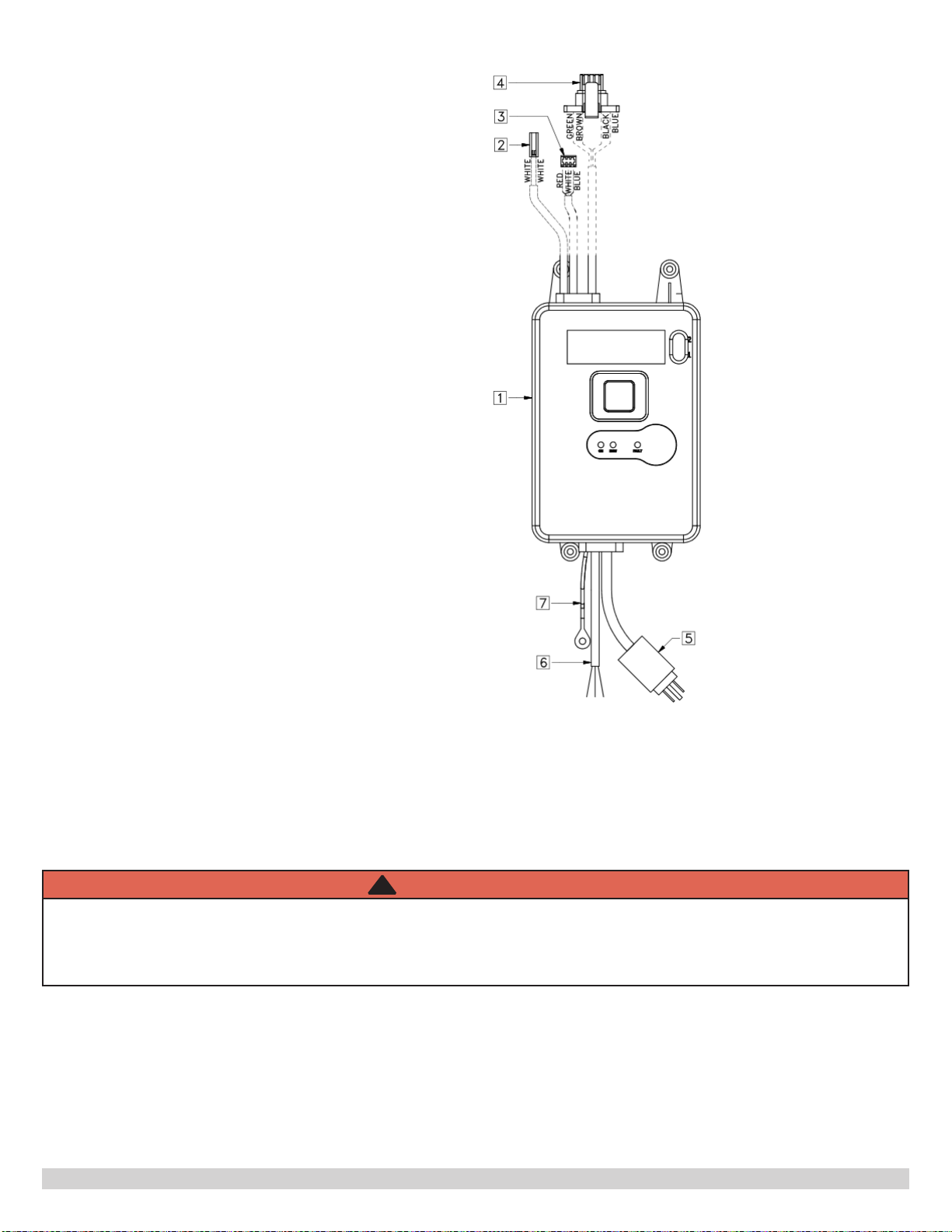

Electronic Control Regulator REC
The REC controls all the functions to manage the DHW module and produce domestic hot water.
Functions and Features
Activate pump anti-blocking daily
Activate two way valve anti-blocking daily
Temperature set range 108 -140°F (42 - 60°C)
Control band: T1 Temperature ± 5.4°F (± 3°C )
Regulator automatic operations
At power up the REC checks the electrical wiring integrity and continues:
• With blocking the DHW MODULE, in the event of a temperature sensor fault.
• With resetting the two way valve.
Resetting the two way valve
With this function, the REC makes the stepper motor perform full-stroke in backward position.
Two Way Valve Anti-Block
With this function, the REC performs a complete valve operation cycle at 24 hour intervals.
The REC rst makes the stepper motor perform a full-stroke forward and then a full-stroke backward.
Pump anti-block
With this function the REC powers the pump for 5 seconds at 24 hour intervals.

15 PN 240012960 REV. F [09/15/2020]
USER INTERFACE
The user interface integrated in the REC consists of the following devices:
• LCD Display
Shows programmed DHW set-point temperature T1 and fault codes. The display can be either degrees Fahrenheit
(display shows three digits) or Celsius (display shows two digits). The factory setting is Fahrenheit. See Dip Switch
section below (dip switch 4) to change display settings.
• Indicator LEDs
LEDs on either xed or ashing, indicate various operations or fault.
ON - xed green, 115 Vac power present, Fahrenheit Display
ON - ashing green, 115 Vac power present, Celsius Display
DHW - xed yellow, domestic hot water request
DHW - ashing yellow, dip switch 5 set incorrectly, see Dip Switch section below
FAULT - ashing red, fault code
• DHW Temperature T1 Set Point Trimmer
This allows the temperature of the DHW uid to be set in the range between 108-140 °F (42-60°C). Remove
the rubber plug near the upper right of the REC cover. Using a small screwdriver, rotate trimmer P1 clockwise to
increase T1 or counter-clockwise to decrease T1. The set point DHW temperature T1 is shown in the display. NOTE:
Trimmer P2 is not used and has no eect.
Fahrenheit Display Celsius Display

16 PN 240012960 REV. F [09/15/2020]
• Dip Switches
The dip switches are located on the control board inside the REC. The factory conguration is: switches 1-5 in the
OFF position and switch 6 in the ON position. Switch 4 toggles the display between Fahrenheit and Celsius. All other
switches must remain in their factory conguration.
To access the dip switches on the REC control board:
1. Turn o power supply to DHW module.
2. Remove cover from the REC. NOTE: the LCD display in the REC cover is connected to the REC control board with
a short cable. Be careful not to stretch or damage the cable.
• Dip Switch 1-2-3
These switches enable REC rmware and must be left in the factory conguration.
Combination OFF-OFF-OFF (code 30) is the only rmware available in the REC.

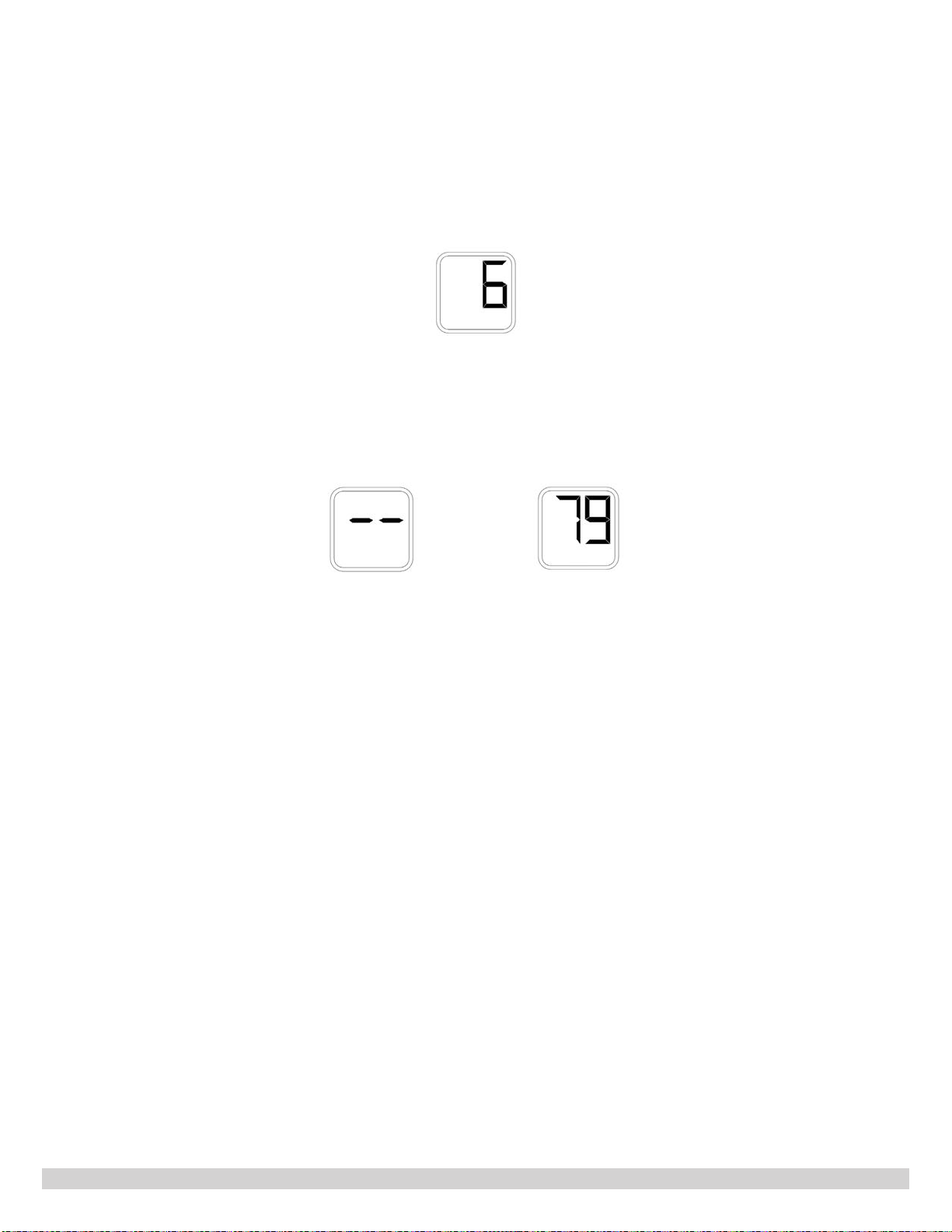

At power up the REC, after the initial operations, shows the code -5 for 1 sec and the code 30 ashing for a few
seconds.
If a dierent dip switches combination is chosen, at power up the REC, after the initial operations, shows two
horizontal lines “- -“ ashing for few seconds and then the rmware fault code 79 with the fault led ashing.
• Dip Switch 4
Dip switch 4 enables the LCD temperature display to toggle between Fahrenheit (°F) and Celsius (°C). Dip switch 4
is factory set to the OFF position for Fahrenheit display. Set dip switch 4 to the ON position for Celsius display.
• Dip Switch 5 FUNCTION NOT USED IN THIS MODULE
Dip switch 5 enables a preheating function that is not applicable to this DHW module design. It will cause the pump
to run periodically when there's no DHW request, wasting energy and running the pump for no reason. When this
function is activated, the yellow LED ashes. If the yellow LED is ashing, restore dip switch 5 to the OFF position.
• Dip Switch 6 FUNCTION NOT USED IN THIS MODULE
Dip switch 6 sets the REC to receive the DHW ow signal from either a ow turbine (ON) or ow detector (OFF). Dip
switch 6 must be left in the factory conguration (ON) because this DHW module uses a ow turbine. If dip switch 6
is OFF, the DHW module will not recognize a DHW request and will not work.
POWER CODE FIRMWARE CODE

17 PN 240012960 REV. F [09/15/2020]
Fault Codes
The FAULT led indicates the following faults
• Temperature Sensor T1 Fault, code 6 on the LCD display
If the T1 sensor fails it immediately interrupts the domestic hot water supply. The fault is indicated by blinking
FAULT led and shown on the LCD display with the blinking code 6.
The normal operating condition is automatically enabled by restoring the correct functionality of the sensor.
• Wrong conguration of the REC rmware, code 79 on the LCD display
If the dip switches 1-2-3 are in the wrong position (the factory conguration is OFF-OFF-OFF) the module will not
work. At power up the REC, after the initial operations, shows two horizontal lines "--" ashing for a few seconds
then the rmware fault code 79 with the FAULT led ashing.
The normal operating condition is automatically enabled by restoring the correct dip switch conguration.
Pump
The DHW Module is equipped with a Wilo Star 21U15-130 pump, UL marked.

18 PN 240012960 REV. F [09/15/2020]
MECHANICAL DRAWINGS
4.33" (110 mm)
3.74" (95 mm) 3.74" (95 mm)
3.94" (100 mm)
7.87" (200 mm)
DHW OUTLET
CH INLET
1.26" (32 mm) 1.26" (32 mm)
9.29" (236 mm)
3.34" (85 mm)
11.65" (296 mm)
7.87" (200 mm)
3.94" (100 mm)
CH OUTLET
DHW INLET
3.74" (95 mm) 4.33" (110 mm) 3.74" (95 mm)
0.39 (
⦰
10)
0.39 (
⦰
10)

19 PN 240012960 REV. F [09/15/2020]
INTERNAL WIRING
1Electronic Regulator
2Temperature Sensor
3Flow Sensor
4Two-Way Valve Motor
5Power Supply
6Pump
7Earth
MAINTENANCE
• Maintenance and troubleshooting shall be performed by qualied technical personnel.
• Regular maintenance ensures better eciency and helps to save energy.
• Use original spare parts for ecient operation and safety of the appliance.
• Flushing and descaling of DHW side should be conducted based on domestic water quality and performance.
Pre-maintenance Precautions:
• Disconnect unit from mains power supply by unplugging the unit or using the circuit breaker.
• Make sure the power supply can not be accidentally switched on during maintenance.
• Make sure all parts of the appliance are cold.
• Close the manual stopcocks and/or DHW service valves, if provided.
• Remove the insulating cover.
• Proceed by emptying the unit, avoid letting any water drip on the ow sensor, stepper motor and on the REC.
WARNING
Burn, Scald, Electrical Shock Hazards! Some parts of the appliance can have high surface temperatures
(194 °F (90 °C )) and/or be connected to the main voltage. Before carrying out any maintenance or
replacing parts proceed as described below. Failure to follow the instructions listed below could result in
death or serious injury.
!
YELLOW/GREEN
BLUE
BROWN

20 PN 240012960 REV. F [09/15/2020]
Replacing the Heat Exchanger
- Remove the heat exchanger A by unscrewing the two xing socket head screw VF.
- Proceed by replacing the heat exchanger and o-rings.
- Place the plate heat exchanger with the arrows of rst corrugated plate towards the top.
- Screw 2 screws VF -torque: 31 ± 4.5 inch-pounds (torque: 3.5 ± 0.5 Nm).
Two Way Valve Cartridge Replacement
- Remove clip C from the stepper motor and pull out the stepper motor M.
- Unscrew and then remove the cartridge CV.
- Insert new cartridge CV and tighten completely - torque: 106 ± 9 inch-pounds (12 ± 1 Nm).
- Insert stepper motor M and insert clip C with correct orientation.
Replacing the Stepper Motor
- Disconnect the motor cable by gently pressing the tab on the connector and pulling it out.
- Remove xing clip C and subsequently stepping motor M.
- Position the new motor M.
- Insert clip C with correct orientation.
- Reconnect the connector.
Replacing the Flow Meter Cartridge
- Remove ow sensor SF.
- Unscrew and remove the ow meter cartridge CF.
- Insert new ow meter cartridge CF and tighten completely - torque: 106 ± 9 inch-pounds (12 ± 1 Nm).
- Insert the ow sensor SF take care to position it correctly (see gure).
Replacing the Flow Sensor
- Remove the ow sensor SF.
- Disconnect the ow sensor cable by pulling out the Lumberg connector.
- Insert the new ow sensor SF taking care to position it correctly (see gure).
- Reconnect the cable.
Replacing the Temperature Sensor
- Disconnect the temperature sensor cable.
- Unscrew and then remove the temperature sensor ST.
- Insert the new sensor and tighten completely - torque: 106 ± 9 inch-pounds (12 ± 1 Nm).
Cleaning the Filter
- Unscrew the 2 nuts D1 and remove the connecting pipe T1.
- Remove the lter F.
- Wash the lter F taking care to remove any deposits.
- Insert the clean lter F.
- Reconnect the pipe T1 previously removed.
- Tighten the 2 nuts D1 - torque: 133 ± 18 inch-pounds (15 ± 2 Nm).
Replacing the Filter and Domestic By-pass
- Unscrew the 2 nuts D1 and remove the connecting pipe T1.
- Remove the lter F and dispose of it properly.
- Remove ow sensor SF,
- Unscrew ow meter cartridge CF 1.5 turns.
- Remove the by-pass BS by means of the thin brass tube.
- Insert the new by-pass BS and lter F.
- Tighten ow meter cartridge CF - torque 106 ± 9 inch pounds (12 ± 1 Nm).
- Insert the ow sensor SF and take care to position it correctly (see gure).
- Reconnect the pipe T1 previously removed.
- Tighten the 2 nuts D1 -torque: 133 ± 18 inch-pounds (15 ± 2 Nm).
Replacing the Flow Regulator
- Unscrew the 2 nuts D1 and remove the connecting pipe T1.
- Remove the ow regulator FR and dispose of it properly.
- Insert the new ow regulator FR
- Reconnect the pipe T1 previously removed.
- Tighten the 2 nuts D1 - torque: 133 ± 18 inch-pounds (15 ± 2 Nm).
MAINTENANCE
