Edision HD Modulator 3in1 Quad User manual

User’s Guide
Quad
Digital Quad HD Modulator to 2 x DVB-T, DVB-C or ISDB-T MPEG4

2
CONTENTS
►INTRODUCTION .......................................... 3
►FEATURES ................................................... 4
►TECHNICAL SPECIFICATIONS................... 4
►RF SPECIFICATIONS .................................. 5
►CONNECTIΟΝ & OPERATION .................... 6
►PACKAGE INCLUDES.................................. 7
►FRONT PANEL..............................................8
►MAIN MENU ..........................................9 - 10
► CONFIGURATION EXTRACTION (CFG) 11 - 13
►CONFIGURATION IMPORT (CFG) ............ 13
►FAST PRE-CONFIG FUNCTION /
50 ID’S SELECTABLE................................. 14
►TROUBLESHOOTING................................ 15
►INSTALLATION EXAMPLE ........................ 16
The CE certificate of the product is available on our webpage, by visiting this link:
https://www.edision.gr/en/support

3
►INTRODUCTION
Digital quad-channel FULL HIGH DEFINITION modulator. HD signal input from up to four (4) HD sources
(Terrestrial & Satellite TV receivers, Cameras, DVD’s, DVR’s, Digital Signage etc) can be converted to two
(2) channels FULL HIGH DEFINITION 1080p, Digital Terrestrial DVB-T, ISDB-T or Cable DVB-C MPEG4
signal output, in VHF/UHF band. Produces excellent quality signal output, combined with reliable, easy and
fast conguration with the Pre- Cong Function and stable operation in any installation scheme.
HD Modulator 3in1 Quad

4
►TECHNICAL SPECIFICATIONS
Processor
Memory
HD Input
USB Type
Power Consumption
Video Encoder
Aspect Ratio
Resolution
Audio encoder
4 x 200MHZ 32Bits RISC
4 x DDRII 16bit 512Mbits (Embedded) & NOR Flash 32Mbit
4 x HD v1.4a
4 x USB 2.0 HOST, Supports Fat32
20W maximum, 100-240V AC to DC power supply unit 12V 3A
MPEG1, MPEG2 MP@HL, MPEG4 SP@L3 to
ASP@L5, MPEG4 AVC [email protected], [email protected]
16:9 wide screen, 4:3 letter box, 4:3 pan scan
Up to 1080p@30FPS
MPEGI L1/2, MPEGII LII, AAC LC, HE-AAC v1/v2 (2-CH)
►FEATURES
• INPUT signal: 4 Χ HD
• OUTPUT signal: 2 X Digital Terrestrial DVB-T,
ISDB-T or Cable DVB-C MPEG4
• High Video Resolution up to 1080p
• Frequency Range
DVB-T: VHF (CH.5-12) & UHF (CH.21-69)
ISDB-T: VHF (CH.7-13) & UHF (CH.14-69)
DVB-C: 47-862 MHz
• MER more than 35dB
• Adjustable RF Output Level / Default 90dbμV
• Fast Pre-Cong Function / 50 ID’s Selectable
• Backup Cong File by USB
• Software Upgrade by Service Port
• Ports: 4 X HD IN, RF OUT, 4 X USB, DC 12V,
SERVICE PORT, GROUND
• Four (4) X 4-digit LED Displays
• Low Power Consumption

5
►RF SPECIFICATIONS
Frequency Range
Output Frequency Range
Impendance
FEC
Guard Interval
Constellation
RF Output level
Bandwidth
FFT
Reed Solomon
Symbol Rate
MER
DVB-T, ISDB-T or DVB-C / VHF & UHF band
DVB-T: VHF (CH.5-12) & UHF (CH.21-69)
Option 1: Change preset Channels from the screen
Option 2: Change preset Channels with USB Cong
ISDB-T: VHF (CH.7-13) & UHF (CH.14-69)
Option 1: Change preset Channels from the screen
Option 2: Change preset Channels with USB Cong
DVB-C: 47-862 MHz
Option 1: Change the frequency in steps of 10KHz from the screen
Option 2: Change frequency in steps of 1KHz with USB Cong
50Ω
1/2, 2/3, 3/4, 5/6, 7/8
1/4, 1/8, 1/16, 1/32
QPSK, 16QAM, 64QAM
2 x 90dBμV, adjustable attenuation 0 ... -14dB, adjustable gain 0 ... +6dB
DVB-T: 7MHZ, 8MHZ ISDB-T: 6MHZ DVB-C: 7MHZ, 8MHZ
2K, 4Κ, 8K
202, 188, T=8
6MHZ = Up to 2x8000 MBPS, 7MHZ = Up to 2x9000 MBPS, 8MHZ = Up to 2x10000 MBPS
>35dB, at maximum RF level output.

6
►CONNECTIΟΝ & OPERATION

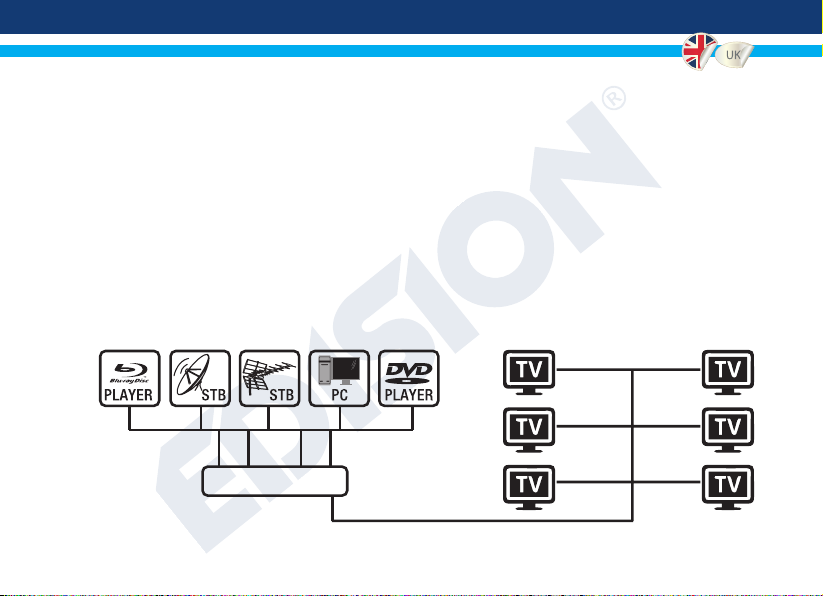

1. Connect up to 4 HDMI Cables from up to 4 HD source devices to the respective HD Modulator HD inputs
( HD IN 1, 2, 3, 4) .
2. Connect an RF Cable from RF OUT to the RF Network.
3. Connect the power supply to the HD Modulator.
4. Select conguration signals from the MENU TV STANDARD (STAN) between DVB-T, DVB-C or ISDB-T
5. Select the desired RF Channel outputs from the modulator display 1 and 3.
6. If there are more than one Quad-HD Modulator units in the same installation, select ID for each output channel.
The ID selection is made for each quad modulator unit in its own 4 displays, separately in each display.
7. Proceed with channel scanning on your TV/STB

7
KEY LOCK
Press the key lock and when the green led lights up the
keypad is locked. Press once again to unlock.
HD SIGNAL
Connect the HDMI cable to HD ΙΝ and when the green led lights up, the signal is active.
MENU
/OK
LOCK
►PACKAGE INCLUDES
1. HD Modulator 3in1 Quad
2. Power Adapter
3. Mounting screws
4. User Manual
MENU
/OK
LOCK
4x
DVB-T or ISDB-T Mode DVB-C Mode

8
►HD MODULATOR 3in1 QUAD FRONT PANEL

9
►MAIN MENU
Press Menu/OK to enter the MENU. Navigate through the MENU by using the buttons
“Left” / “Right” in each modulator display separately (MOD1, MOD2, MOD3, MOD4)
MOD1 & MOD2 in pair, produce one COFDM DVB-T, ISDB-T or QAM DVB-C MUX which
includes 2 TV channels. e.g. TV-1 & TV-2
MOD3 & MOD4 in pair, produce another COFDM DVB-T, ISDB-T or QAM DVB-C MUX
which includes 2 TV channels. e.g. TV-3 & TV-4
IMPORTANT:
1. The Menu selections for: CHANNEL, FREQUENCY, QAM, RF LEVEL, FACTORY
DEFAULTS, TV STANDARD are made only from Modulator Display MOD1 &
MOD3 and automatically adjust their pair units Modulator Display MOD2 & MOD4,
respectively.
2. Each HD source input is addressed to its HD Modulator.
HD IN 1 = mod 1 (conguration Display)
HD IN 2 = mod 2 (conguration Display)
HD IN 3 = mod 3 (conguration Display)
HD IN 4 = mod 4 (conguration Display)
3. Each HD Modulator has its own USB port, for CFG (Cong File) function.
USB 1 = mod 1 (conguration Display)
USB 2 = mod 2 (conguration Display)
USB 3 = mod 3 (conguration Display)
USB 4 = mod 4 (conguration Display)

10

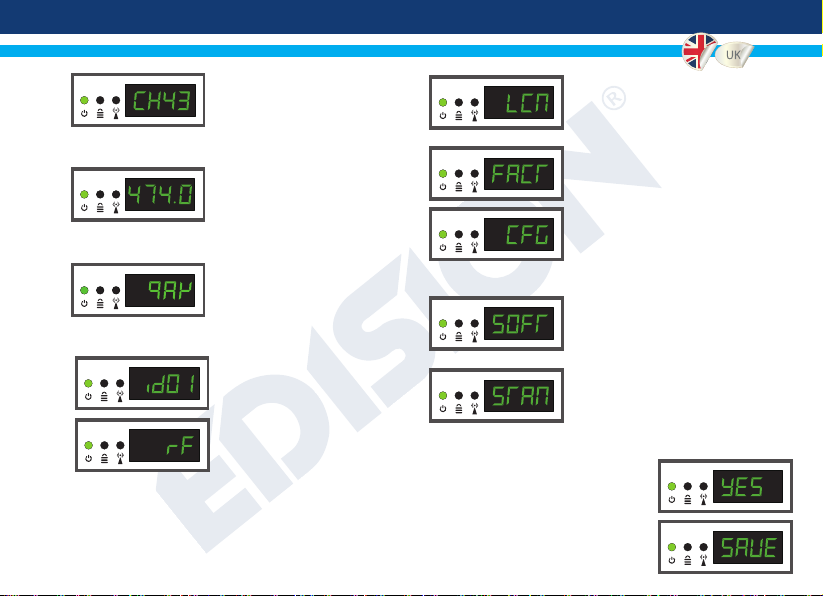

CH: Shows the selected RF output
chan nel in the DVB-T or ISDB-T
terrestrial sig nal modulation
selection. Use the “Up”, “Down”
keys to change the selection
FR:Shows the selected RF
output fre quency on the DVB-C
modulation cable signal. With the
«Up», «Down» keys you change
the selection.
QAM: Shows the QAM in the
DVB-C modulation. Use the
“Up”, “Down” keys to change
the 16QAM, 32QAM, 64QAM,
128QAM or 256QAM selection.
ID: Shows the current ID. Use
the keys Up & Down to set the
desired ID.
RF: Shows the RF output level.
Use the keys Up & Down to
adjust to the desired RF level.
LCN: Shows the current LCN type.
Use the keys Up & Down to set
the desired LCN type.
FACT: Factory defaults. Press
key UP to restore factory defaults.
CFG: Conguration le extraction.
Press key UP to extract the
current conguration to the USB
storage device.
SOFT: Shows the SW version.
Use the key Up & Down to
display the current SW version.
STAN: Shows the TV STANDARD
mod ulation signals. Use the
“Up”, “Down” keys to change
the DVB-T, DVB-C, or ISDB-T
selection.
To save the selected conguration press once the MENU/OK key and conrm with YES or NO
by pressing the LEFT and RIGHT keys and press MENU/OK key once again. The conguration
is being saved, please DO NOT power off the unit! This procedure must be made separately, in
each one of the 4 MODULATOR displays (MOD1, MOD2, MOD3, MOD4).

11
►CONFIGURATION EXTRACTION (CFG)
For an advanced conguration of the HD modulator QUAD, you must extract the congu-
ration le one by one for each MODULATOR (MOD1, MOD2, MOD3, MOD4) separately,
to a USB drive, modify it and import it again in the respective HD modulator. To extract
the conguration le named jedi_cong.txt*, you must connect a USB drive** to the USB
slot, enter the Main Menu, select CFG and press key UP to extract
the le to the USB drive. When the message SUCC appears, the
process has been successfully completed.
*IMPORTANT: Τhe conguration le jedi_cong.txt should not be renamed!
**IMPORTANT: Use only FAT32 partitions! In any other case, the message FAIL
will indicate that the process has not been completed.

12
Conguration le details (jedi_cong.txt)
<attribute>value<attribute> Description: Allowed values
<constellation>2<\constellation> Constellation: 0 QPSK, 1 16QAM, 2 64QAM
DVB-T or ISDB-T MODΕ <channel>43<\channel> RF channel: DVB-T 05-12 & 21-69 ISDB-T 07-13 & 14-69
DVB-C MODE <frequency>474000<\frequency> RF Output Frequency: DVB-C 47-862 MHz
DVB-C MODE <qam>4<\qam> DVB-C QAM 0=16QAM, 1=32QAM, 2=64QAM, 3=128QAM, 4=256QAM
DVB-C MODE <symbolrate>6900000<\symbolrate> DVB-C Symbolrate Width: 200 up to 6960000 KHz
<bandwidth>8000<\bandwidth> Channel Bandwidth: 6000, 7000, 8000 KHz
<FEC>2<\FEC> FEC: 0: 1/2, 1: 2/3, 2: 3/4, 3: 5/6, 4: 7/8
<FFT>1<\FFT> FFT: 0: 2K, 1: 8K, 2: 4K
<GI>0<\GI> Guard Interval: 0: 1/32, 1: 1/16, 2: 1/8, 3: 1/4
<Name>TV-1<\Name> Channel Name: Max 12 characters
<RF_Level>0<\RF_Level> RF Level: 6,4,2,0,-2,-4,-6,-8,-10,-12,-14
<LCN_Type>1<\LCN_Type> LCN Type: 0: ITC(Norway), 1: Italy
<LCN>1<\LCN> LCN: 1 to 999
<TSID>1<\TSID> Transport Stream ID: 1 to 65534
<ONID>1<\ONID> Original Network ID: 1 to 65534
<NetworkID>1<\NetworkID> Network ID: 1 to 65534

13
►CONFIGURATION IMPORT (CFG)
To import the conguration le jedi_cong.txt, to each MODULATOR (MOD1, MOD2,
MOD3, MOD4) separately, you must save the conguration le one by one in the root
directory* of a USB drive, insert the drive to the respective USB1, USB2, USB3 or USB4
slot and connect the PSU power to your HD Modulator. When you see this message CFG, press the MENU/OK
button to conrm the import process. When the process is completed, the unit will reboot with the new conguration!
*IMPORTANT: Use only FAT32 partitions. In any other case, the conguration le will not be read and the
device will reboot normally!
<audio_bitrate>3<\audio_bitrate> Audio Bitrate: 0=64kbps, 1=96kbps, 2=128kbps,
3=192kbps, 4=256kbps, 5=320kbps, 6=384kbps
<PCR_GAP>0<\PCR_GAP> PCR Gap: Audio/Video sync max +-5
<audio_format>0<\audio_format> Audio format: 0 MPEG2 L2, 1 AAC MPEG2
<videopid>1002<\videopid> Video PID: 1 to 8000
<audiopid>1001<\audiopid> Audio PID: 1 to 8000
<pmtpid>1003<\pmtpid> PMT PID: 1 to 8000
<serviceID>1000<\serviceID> Service ID: 1 to 9999
<video_bitrate>12500<\video_bitrate> Video Bitrate:
6MHZ = from 0 to 8000 (per Modulator, total 2 x 8000)
7MHZ = from 0 to 9000 (per Modulator, total 2 x 9000)
8MHZ = from 0 to 10000 (per Modulator, total 2 x 10000)
Netname>EDISION<\Netname> Network Name, Max 12 characters
<TV_Standard>0<\TV_Standard> 0 DVB-T, 1 DVB-C, 2 ISDB-T

14
►FAST PRE-CONFIG FUNCTION / 50 IDS SELECTABLE
This feature enables the user to operate the unit hassle free by automatically setting the appropriate broadcasting table
information [ID] to provide a more convenient installation, easy to adjust anytime with no tools required*! This feature is
important when there are more than one HD modulators operating within the same TV coaxial distribution network. Τhe user
should change each unit’s broadcasting table information [ID] to be able for the end user devices to receive the channel.
The HD Modulator 3in1 QUAD is pre-congured with the following IDs.
HD 1 / mod 1 = ID-01 / TV-1 HD 2 / mod 2 = ID-02 / TV-2
HD 3 / mod 3 = ID-03 / TV-3 HD 4 / mod 4 = ID-04 / TV-4
*IMPORTANT: In order to change the Channel Name, you have to use the CFG function to extract, edit
and load the modied conguration le.
Example of 7* different ID’s:
*IMPORTANT: 7 sample ID congurations, out of 50 installed in the HD Μodulator 3in1 QUAD.
ID01 ID02 ID03 ID04 ID05 ID06 ID07
Name TV-1 TV-2 TV-3 TV-4 TV-5 TV-6 TV-7
LCN 1 2 3 4 5 6 7
TSID 1 2 3 4 5 6 7
ONID 1 2 3 4 5 6 7
NetworkID 1 2 3 4 5 6 7
Videopid 2101 2102 2103 2104 2105 2106 2107
audiopid 2201 2202 2203 2204 2205 2206 2207
pmtpID 2301 2302 2303 2304 2305 2306 2307
serviceID 2401 2402 2403 2404 2405 2406 2407

15
►TROUBLESHOOTING
The device does not boot
• Make sure the power supply is connected
• Check power supply voltage
I cannot export conguration le
• Make sure your USB drive is working
• Make sure that the le system is FAT32
I get “No signal” message on the screen
• Please check your HD cable or the HD source device
• Make sure that the HD signal complies with the supported standards
The channel number on the list does not appear properly
• Make sure you have selected correct LCN type
• Make sure you have no conicting LCN numbers
The video of the modulator appears to be from another modulator
• Make sure your Fast Pre-Cong ID does not conict with another unit
The sound is not synchronized with the video
• Please adjust the PCR gap each time until you get the perfect A/V sync
For more queries or advanced troubleshooting,
please contact our technical support at [email protected]
The CE certificate of the product is available on our webpage, by visiting this link: https://www.edision.gr/en/support

www.edision.gr
EDISION HELLAS LTD • FARMAKEIKA - 57001 N. RISIO • THESSALONIKI - GREECE
