Edision HD Modulator 3in1 User manual

User’s Guide
Digital single HD Modulator to DVB-C, DVB-T or ISDB-T MPEG4

2
CONTENTS
►INTRODUCTION .......................................... 3
►FEATURES ................................................... 4
►TECHNICAL SPECIFICATIONS................... 4
►RF SPECIFICATIONS .................................. 5
►CONNECTIΟΝ & OPERATION .................... 6
►PACKAGE INCLUDES.................................. 7
►DISPLAY ....................................................... 7
►MAIN MENU ................................................. 8
►
CONFIGURATION EXTRACTION (CFG)
....9-10
►CONFIGURATION IMPORT (CFG) ............ 10
►FAST PRE-CONFIG FUNCTION /
50 ID’S SELECTABLE................................. 11
►TROUBLESHOOTING................................ 12
►INSTALLATION EXAMPLE ........................ 13
The CE certificate of the product is available on our webpage, by visiting this link:
https://www.edision.gr/en/support

3
►INTRODUCTION
Digital, 3in1 Single Channel FULL HIGH DEFINITION MPEG4 modulator with 3 SELECTA-
BLE modulation SIGNALS (DVB-C, DVB-T & ISDB-T). With input from any HDMI source
(Terrestrial & Satellite decoders, cameras, DVD, DVR etc.) it modulates and produces
selectable output by choosing one out of THREE (3) signals: DVB-C, DVB-T & ISDB-T,
depending on the installation signal, with simple adjustment using the 6 buttons and the
4-digit LED display. It offers High Output Resolution up to 1080p @ 30FPS and excellent
image quality. Easy and fast PLUG & PLAY installation plus rapid adjustment with the Fast
Pre-Cong function among 50 selectable IDs for absolute exibility of conguration, accord-
ing to three installation signals (DVB-C, DVB-T & ISDB-T) and the number of modulators in
the installation.
HD Modulator 3in1

4
►TECHNICAL SPECIFICATIONS
Processor
Memory
HDMI Input
USB Type
Power Consumption
Video Encoder
Aspect Ratio
Resolution
Audio encoder
200MHZ 32Bits RISC
DDRII 16bit 512Mbits (Embedded) & NOR Flash 32Mbit
HD v1.4a
USB 2.0 HOST, Fat32 support
10W max, 100-240V AC to DC adapter 5V 2A
MPEG1, MPEG2 MP@HL, MPEG4 SP@L3 to
ASP@L5, MPEG4 AVC [email protected], [email protected]
16:9 wide screen, 4:3 letter box, 4:3 pan scan
Up to 1080p@30FPS
MPEGI L1/2, MPEGII LII, AAC LC, HE-AAC v1/v2 (2-CH)
►FEATURES
• INPUT signal: HD IN
• OUTPUT signal: Cable DVB-C, Digital Terrestrial
DVB-T MPEG4 or ISDB-T MPEG4
• High Video Resolution up to 1080p@30FPS
• Frequency Range
DVB-C: 47-862 MHz
DVB-T: VHF (CH.5-12) & UHF (CH.21-69)
ISDB-T:VHF (CH.7-13) & UHF (CH.14-69)
• MER more than 35dB
• Adjustable RF Output Level / Default 90dbµV
• Fast Pre-Cong Function /
50 ID’s Selectable
• Backup Cong File via USB
• Software Upgrade via USB
• Ports: HD IN, RF OUT, USB,
DC 5V, GROUND
• 4-digit LED Display
• Low Power Consumption
• External Power Supply 5V 2A
• Black color

5
►RF SPECIFICATIONS
Frequency Range
Output Frequency Range:
Impendance
FEC
Guard Interval
Constellation
RF Output level
Bandwidth
DVB-C QAM
FFT
Reed Solomon
Symbol Rate
MER
DVB-C, DVB-T or ISDB-T
DVB-C: 47-862 MHz
Option 1: Change the frequency in steps of 10KHz from the screen
Option 2: Change frequency in steps of 1KHz with USB Cong
DVB-T: VHF (CH.5-12) & UHF (CH.21-69)
Option 1: Change preset Channels from the screen
Option 2: Change preset Channels with USB Cong
ISDB-T: VHF (CH.7-13) & UHF (CH.14-69)
Option 1: Change preset Channels from the screen
Option 2: Change preset Channels with USB Cong
50Ω
1/2, 2/3, 3/4, 5/6, 7/8
1/4, 1/8, 1/16, 1/32
QPSK, 16QAM, 64QAM
90dBμV, adjustable attenuation 0 ~ -14dB, adjustable gain 0 ~ + 6dB
DVB-C: 7MHZ, 8MHZ DVB-T: 7MHZ, 8MHZ ISDB-T: 6MHZ
16QAM, 32QAM, 64QAM, 128QAM, 256QAM
2K, 8K
202, 188, T=8
Up to 31.668 MBPS
> 35dB, at maximum RF output level

6

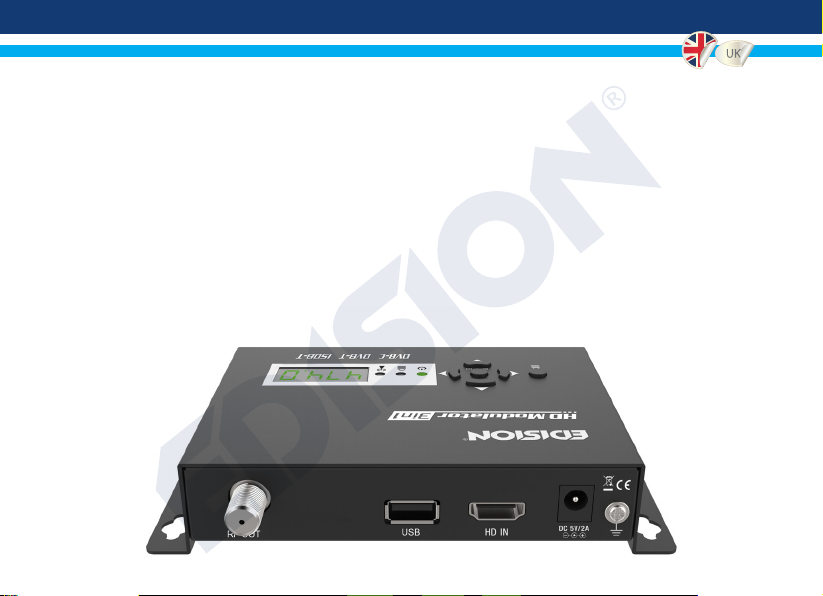

►CONNECTIΟΝ & OPERATION
1. Connect an HDMI cable from HDMI source device to the “HD in” of HD Modulator.
2. Connect an RF coaxial cable to the “RF OUT” output for signal distribution to the RF
network.
3. Connect the power adapter to the HD Modulator.
4. Select conguration signals from the MENU TV STANDARD (STAN) between
DVB-C, DVB-T or ISDB-T
5. Select an output frequency or channel.
6. If you have more than one HD Modulator in the same installation, select a different ID
for each modulator.
7. Proceed with channel scanning on your TV/STB.

7
►PACKAGE INCLUDES & DISPLAY
1. HD Modulator
2. Power Adapter
3. Fastening screws
4. User Manual
KEY LOCK
Press the lock key once, and when the green led lights up, the keypad is locked. Press once again
to unlock.
HD SIGNAL
Connect the HDMI cable to the HD IN and, when the green led
lights up, the signal is active.
4x

8
►MAIN MENU
To enter the main menu options, press once the Menu/OK key and use the Left or Right
keys to navigate within the main menu.
To save the selected conguration press once the MENU/OK key and conrm with YES or NO by
pressing the LEFT and RIGHT keys and press MENU/OK key once again. The conguration is being
saved, please do not power off!
FR: Shows the selected RF output fre-
quency on the DVB-C modulation cable
signal. With the «Up», «Down» keys you
change the selection.
CH: Shows the selected RF output chan-
nel in the DVB-T or ISDB-T terrestrial sig-
nal modulation selection. Use the “Up”,
“Down” keys to change the selection.
QAM: Shows the QAM in the DVB-C
modulation. Use the “Up”, “Down” keys
to change the 16QAM, 32QAM, 64QAM,
128QAM or 256QAM selection.
ID: Shows the current ID. Use the “Up”,
“Down” keys to change the selection
RF: Shows the RF output level. Use the
“Up”, “Down” keys to change the se-
lection.
LCN: Shows the current LCN type. With
the “Up”, “Down” keys you can change
the selection.
FACT: Factory settings. You can press the
“Up” button, to select them.
CFG: Export current conguration le.
You can press the “Up” key, to save it
to USB stick.
SOFT:
Current software version. You
can press the “Up”, “Down” key to
display it.
STAN: Shows the TV STANDARD mod-
ulation signals. Use the “Up”, “Down”
keys to change the DVB-C, DVB-T or
ISDB-T selection.

9

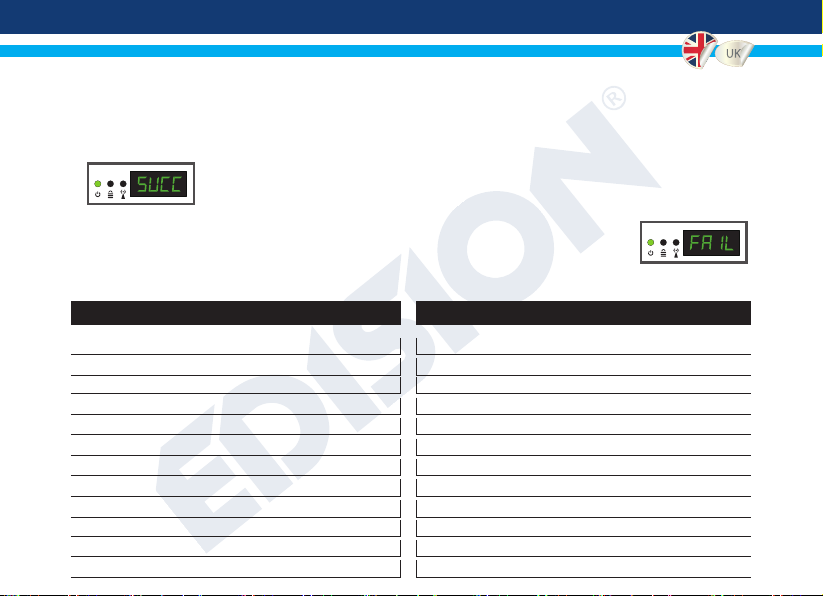

►CONFIGURATION EXTRACTION (CFG)
For an advanced conguration of the HD modulator, you must extract the conguration le to a
USB drive, modify it and import it again in the HD modulator. To extract the conguration le named
jedi_cong.txt*, you must connect a USB drive** to the USB slot, enter the Main Menu, select
CFG and press key UP to extract the le to the USB drive. When the message
SUCC appears, the process has been successfully completed.
*IMPORTANT:
The name of the conguration le jedi_cong.txt should not be changed!
**IMPORTANT: Use only FAT32 type. In any other case, the FAIL message will
indicate the failure of the process.
Conguration le details (jedi_cong.txt)
<attribute>value<attribute> Description: Allowed values
<constellation>2<\constellation> Constellation: 0 QPSK, 1 16QAM, 2 64QAM
DVB-T or ISDB-T MODΕ
<channel>43<\channel>
RF Output Channel: DVB-T 05-12 & 21-69 ISDB-T 07-13 & 14-69
DVB-C MODE <frequency>474000<\frequency>
RF Output Frequency: DVB-C 47-862 MHz
DVB-C MODE <qam>4<\qam>
DVB-C QAM 0=16QAM, 1=32QAM, 2=64QAM, 3=128QAM, 4=256QAM
DVB-C MODE <symbolrate>6900000<\symbolrate> DVB-C Symbolrate Width: 200 up to 6960000 KHz
<bandwidth>8000<\bandwidth> Channel Bandwidth:
6000, 7000 or 8000 KHz
<FEC>2<\FEC> FEC: 0 , 1 , 2 , 3 , 4
<FFT>1<\FFT> FFT: 0 2Κ, 1 8Κ
<GI>0<\GI> Guard Interval: 0 , 1 , 2 , 3
<Name>TV-1<\Name> Channel Name: Max 12 characters
<RF_Level>0<\RF_Level>
RF Output Level: 6,4,2,0,-2,-4,-6,-8,-10,-12,-14
<LCN_Type>1<\LCN_Type> LCN Type: 0 ITC, 1 Italy

10

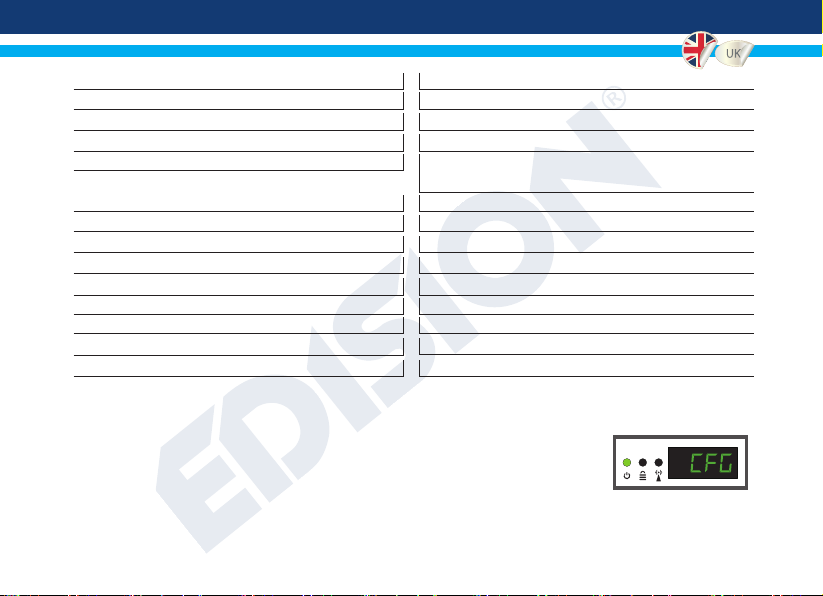

►CONFIGURATION IMPORT (CFG)
To import the conguration le jedi_cong.txt, you must save the le within
the root directory* of a USB drive, insert the drive to the USB slot and power
cycle your HD Modulator. When you see this message CFG, press the MENU/
OK button to conrm the import process. When the process is completed, the
unit will reboot with the new conguration!
*IMPORTANT: Use only FAT32 partitions. In any other case, the conguration le will not be read and the
device will reboot normally!
<LCN>1<\LCN> LCN: 1 up to 999
<TSID>1<\TSID> Transport Stream ID: 1 up to 65534
<ONID>1<\ONID> Original Network ID: 1 up to 65534
<NetworkID>1<\NetworkID> Network ID: 1 up to 65534
<audio_bitrate>3<\audio_bitrate> Audio Bitrate: 0=64kbps, 1=96kbps, 2=128kbps,
3=192kbps, 4=256kbps, 5=320kbps
<PCR_GAP>0<\PCR_GAP>
PCR Gap: Audio/Video sync max +-5
<audio_format>0<\audio_format> Audio format: 0 MPEG2 L2, 1 AAC MPEG2
<videopid>1002<\videopid> Video PID: 1 up to 8000
<audiopid>1001<\audiopid> Audio PID: 1 up to 8000
<pmtpid>1003<\pmtpid> PMT PID: 1 up to 8000
<serviceID>1000<\serviceID> Service ID: 1 up to 9999
<video_bitrate>18000<\video_bitrate> Video Bitrate: 0 up to 27000
<Netname>EDISION<\Netname> Signal Name, Max 10 characters allowed
<TV_Standard>2<\TV_Standard> TV Standard: 0 DVB-T, 1 ISDB-T, 2 DVB-C

11
►FAST PRE-CONFIG FUNCTION / 50 ID’S SELECTABLE
This feature allows the user to congure easy and fast all the signal parameters of the unit,
selecting from the 50 ready and installed IDs*. This function is necessary and important
when we have more than one HD Modulator in the same installation. The user must select
an ID to change the parameters, so that the nal devices can be tuned to the signal from
the HD Modulators.
*IMPORTANT: In order to change the Channel Name, you have to use the CFG function to extract, edit
and load the modied conguration le to the HD Modulator.
Example of 7* different ID’s:
*IMPORTANT: 7 sample ID congurations, out of 50 installed in the HD modulator.
ID01 ID02 ID03 ID04 ID05 ID06 ID07
Name TV-1 TV-2 TV-3 TV-4 TV-5 TV-6 TV-7
LCN 1 2 3 4 5 6 7
TSID 1 2 3 4 5 6 7
ONID 1 2 3 4 5 6 7
NetworkID 1 2 3 4 5 6 7
Videopid 2101 2102 2103 2104 2105 2106 2107
audiopid 2201 2202 2203 2204 2205 2206 2207
pmtpID 2301 2302 2303 2304 2305 2306 2307
serviceID 2401 2402 2403 2404 2405 2406 2407

12
►TROUBLESHOOTING
The device does not boot
• Make sure the power supply is connected
• Check power supply voltage
I cannot export conguration le
• Make sure your USB drive is working
• Make sure that the le system is FAT32
I get “No signal” message on the screen
• Please check your HDMI cable or the HDMI source device
• Make sure that the HDMI signal complies with the supported standards
The channel number on the list does not appear properly
• Make sure you have selected correct LCN type
• Make sure you have no conicting LCN numbers
The video of the modulator appears to be from another modulator
• Make sure your Fast Pre-Cong ID does not conict with another unit
The sound is not synchronized with the video
• Please adjust the PCR gap each time until you get the perfect A/V sync
For more queries or advanced troubleshooting, please contact our technical support

13
STB STB STB STB
4 WAY RF SPLITTER
MODULATOR 1
id01
MODULATOR 2
id02
MODULATOR 3
id03
MODULATOR 4
id04
MENU
/
OK
ISDB-TDVB-C DVB-T
MENU
/
OK
ISDB-TDVB-C DVB-T
MENU
/
OK
ISDB-TDVB-C DVB-T
MENU
/
OK
ISDB-TDVB-C DVB-T

www.edision.gr
EDISION HELLAS LTD • FARMAKEIKA - 57001 N. RISIO • THESSALONIKI - GREECE
