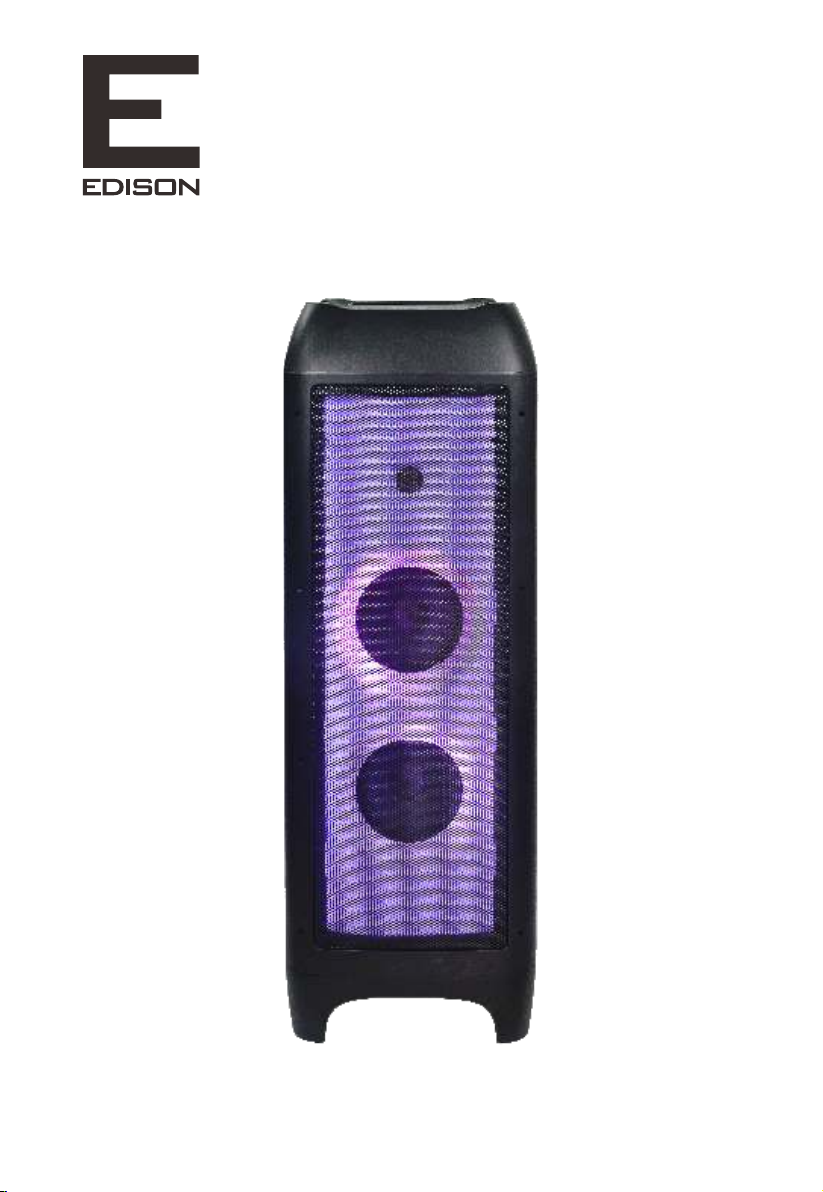

Edison PARTYBOX 1200 User manual

PARTYBOX 1200
Quick Start Guide

2
INDEX
1 --------------------------------------------------------------------------------------------CAUTION
2 What’s in the box----------------------------------------------------------------------------------
3 Overview--------------------------------------------------------------------------------------------
3.1 Top panel--------------------------------------------------------------------------------------
3.2 DJ pad------------------------------------------------------------------------------------------
3.3 Back panel------------------------------------------------------------------------------------
4 Power on--------------------------------------------------------------------------------------------
5 Connections----------------------------------------------------------------------------------------
5.1 Bluetooth--------------------------------------------------------------------------------------
5.2 USB---------------------------------------------------------------------------------------------
5.3 LINE IN----------------------------------------------------------------------------------------
6 Mixing sound with microphone/guitar (not provided)-------------------------------------
7 TWS (true wireless stereo) mode-------------------------------------------------------------
8 Remote Control------------------------------------------------------------------------------------
9 LED Dislplay behavior---------------------------------------------------------------------------
10 Specifications------------------------------------------------------------------------------------
11 ----------------------------------------------------------------------------------------------Caution
3
4
4
4
4
5
4
5
5
5
5
6
6
6
7
7
8

3
WARNING: SHOCK HAZARD - DO NOT OPEN
AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product's enclosure that
may be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the appliance.
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the
third prong are provided for your safety. If the
provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.
10) Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11) Only use attachments/accessories specified by
the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
1
13) Unplug this apparatus during lightning storms
or when unused for long periods of time.
14) Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been
damaged in any way, such as power-supply
cord or plug is damaged, liquid has been
spilled or objects have fallen into the
apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally,
or has been dropped.
CAUTION
To prevent electric shock hazard, do not connect
to mains power supply while grille is removed.
minimum distances 10cm around the apparatus
for sufficient ventilation;the ventilation should
not be impeded by covering the ventilation
openings with items, such as newspapers,
table-cloths, curtains, etc.;no naked flame
sources, such as lighted candles, should be
placed on the apparatus;attention should be
drawn to the environmental aspects of battery
disposal;the use of apparatus in moderate
climates.the apparatus shall not be exposed to
dripping or splashing and that no objects filled
with liquids, such as vases, shall be placed on
the apparatus.Where the MAINS plug or an
appliance coupler is used as the disconnect
device, the disconnect device shall remain
readily operable.Batteries (battery pack or
batteries installed) shall not be exposed to
excessive heat such as sunshine, fire or the like.
“To reduce the risk of fire or electric shock, do
not expose this apparatus to rain or moisture”
Caution Marking and rating plate was located at
rear enclosure of the apparatus.
CAUTION
Danger of explosion if battery is incorrectly
replaced.
Replace only with the same or equivalent type.
CAUTION

4
2 What’s in the box
3 Overview
DISCONNECT
STANDBYSOURCE
M. VOL+M. VOL-
ECHO+ECHO-
X.BASSBASS+BASS-
LED MODETREB+TREB-
REPEAT
BT
CH-
CH+
TU- TU+
AUTO
3.1 Top panel
+
-
TWS
LIGHT SHOW
DJ MODE
1
2
3
4
5
6
7
8
9
1) LED DISPLAY
Display speaker status. ●
2) STANDBY/LIGHT SHOW
● Press to Light Show mode, LED1,LED2,LED3,
LED4,OFF
● Press and hold for 1 second to Standby on
or off.
3)
Press to play the next track. ●
4) /TWS:
Press to play or pause the music. ●
Press and hold for 1 second to TWS ●
(true wireless stereo) mode on or off.
5)
Press to play the previous track ●
STANDBY
6)
DJ control keys ●
7) SOURCE
Press to change the source between ●
USB, LINE, BT ,FM
8) DJ MODE / MENU
Press once to MIC.VOL(guiter, ●
microphone,Wireless microphone).
Press twice to MIC.ECHO. ●
Press three times to X BASS on or off. ●
Press once and hold for 1 second to DJ1 ●
(DRUM)
Press twice and hold for 1 second to DJ2 ●
(Keyboard)
Press three times and hold for 1 second ●
to DJ3 (Piano)
Press Four times and hold for 1 second ●
to DJ4 (DJ EFFECTS)
Press Five times and hold for 1 second ●
to DJ OFF.
9) + /-
• Press to decrease or increase the
volume level.
• After pressing MENU, press +/- to adjust
M.Vol, M.ECHO, X.BASS ON or OFF
3.2 DJ pad
Drums Keyboard
Press MENU and hold for 2 seconds to Enter
color control mode.
Press repeatedly to select a sound effect
(DJ1/DJ2/DJ3/DJ4).
Sound effects
Piano DJ effects

5
3.3 Back panel
1 2 345 6 78 9
5V 200mA
MIC GUITAR POWER
ON
OFF
LINE OUT
AC 100-240V~,
50/60Hz
POWER
1) FM ANTENNA
● Connect to FM antenna
2) LINE OUT
● Connect to the analog audio input jacks of
another analog device through RCA audio cable.
3) MIC
● Connect to a microphone (not provided).
4) GUITAR
Connect to a guitar (not provided). ●
5) LINE IN
Connect to the analog audio output jacks of ●
an analog device through RCA audio cable.
6 ) POWER
● Power light
7 ) USB
Connect to a USB storage device. ●
Charge an external USB device ●
8 ) POWER SWITCH
● Switch power to turn the unit on or off.
9) AC INPUT
● AC 100-240V~, 50/60Hz.
4 Power on
5
Connections
10m (33ft)
2
DEVICES
PARTYBOX 1200
Bluetooth
Bluetooth
5.1 Bluetooth
5.3 LINE IN
2
1
LINE IN
5.2 USB

6
6
Mixing sound with microphone/
guitar (not provided)
Plug in a mic to activate Karaoke mode.
7
TWS (true wireless stereo)
mode
10m (33ft)
TWS TWS
1) Turn on 2 speakers and select both INPUT
modes as Bluetooth
2) Press " " key on speaker set for 2
seconds and "T.ON " will be displayed.
When the display light is “BT” or a tone is
heard from another device, the TWS is
established.
3) Turn on the Bluetooth feature on your
mobile phone to search for Bluetooth
devices and select “PARTYBOX 1200" from
the search result. Select OK or YES to pair
this unit with your mobile phone and a
steady blue light will indicate a successful
connection. Once connected you can play
music from your mobile phone.
4) Press " " key on the speaker unit for 2
seconds . Turn off the TWS features when
"T.OF" is displayed.
8
Remote Control
DISCONNECT
STANDBYSOURCE
M. VOL+
M. VOL-
ECHO+ECHO-
X.BASSBASS+BASS-
Light ShowTREB+TREB-
REPEAT
BT
CH-
CH+
TU- TU+
AUTO
1
2
3
4
5
6
7
8
9
10
11
24
23
22
21
17
16
15
14
13
12
18
19
20
1) SOURCE
Press to change the source between
USB, LINE,BT ,FM.
2) 0~9 NUMERIC KEYS
These keys are used to play a track
directly in USB source mode.
Eg:To play 12th track in the USB playlist
press the numeric
key"1" followed by"2".
3) BT
Press to enter Bluetooth pairing mode.
4) /CH-
Play the next song by pressing
" /CH-" at USB/BT input mode.
Choose next channel by pressing
" /CH+" at FM input mode.
5) /TU-
Fast rewind a song by pressing
" /TU-" at USB input mode.
Choose tunning channel by pressing
" /TU-" at FM input mode.
6) /CH+
Play the previous song by pressing
" /CH+" at USB/BT input mode.
Choose previous channel by pressing
" /CH+" at FM input mode.

7
7) MIC VOL-
To decrease the MIC volume.
8) VOL-
To decrease the volume.
9) BASS-
To decrease the bass effect.
10) TREB-
To decrease the Treble effect.
11) ECHO-
To decrease the echo effect
12) ECHO+
To the echo effectincrease
13) REPEAT
Choose repeat mode by pressing
"REPEAT" at USB input mode.
14) TREB+
To the Treble effect.increase
15) LED SHOW
To change the light mode between
LED1,LED2,LED3,LED4,OFF
16) BASS+
To the bass effect.increase
17) X.BASS
Press this key to turn ON/OFF the extra bass
effect.
18) VOL+
To the volume.increase
19) MIC VOL+
To the MIC volume.increase
20) MUTE
Press this key to MUTE/UNMUTE the speaker
volume.
21) /TU+
Fast forward song by pressing " /TU+" at USB
input mode.
Choose tunning channel by pressing " /TU+"
at FM input mode.
22) /AUTO
●Play / pause in USB/BT mode.
●In FM mode press for the full automatic search.
23) DISCONNECT
Press to disconnect and pair with a new device.
24) STANDBY
Stand by ON/OFF key.
10 Specifications
• AC power input: 100-240V ~ 50/60Hz
• Power consumption: 150W
• Standby power consumption: <1W
• USB output: 5V 200mA
• Speaker drivers: 1 x12" Sub woofer + 2 x 6.5"
Mid-range + 1 x Compression driver
• Speaker impedance: Sub woofer 3ohm / Midrange
3ohm x2 / Compression driver 6 ohm
• Total output power: 400W
• Frequency response: 30Hz -20kHz(-6dB)
• Signal-to-noise (S/N) ratio: 80 dBA
• Bluetooth version: 5.0
• Bluetooth transmitter frequency range:
2402-2480MHz
• Bluetooth maximum transmitter power:
15dBm (EIRP)
• Bluetooth transmitter modulation: GFSK, π/4
DQPSK all paker types
• Bluetooth range: Approx. 10m (33feet)
• USB file format: .mp3, .wma, .wav
• Dimensions (W x H x D):
360 x 1010 x 340 mm / 14.2 x 39.8 x 13.4in
• Net weight: 25 kg / 55 lbs
9 LED Display behavior
Off Power off
Green(Constant) Power on
Red (Constant) Standby
BT (Constant) Connected
BT(Flashing)
X.OF
X.ON
Off
LED1,LED2,LED3,LED4
Off
DJ1 DRUMS
Unconnected
BT
X.BASS
TWS
LED
MODE
DJ
MODE
T.OF
T.ON
DJ2
DJ3
DJ4
KEYBOARD
PIANO
DJ EFFECT
Off
On
Off
Off
On
Off
On

8
11
• The apparatus shall not be exposed to dripping
or splashing and that no objects filled with liquids,
such as vases, shall be placed on the apparatus.
Minimum distances 10 cm around the apparatus •
for sufficient ventilation.
The ventilation should not be impeded by •
covering the ventilation openings with items,such
as newspapers, table-cloths, curtains, etc.
No naked flame sources, such as lighted candles, •
should be placed on the apparatus.
When the mains plug or an appliance coupler is •
used as the disconnect device,the disconnect
device shall remain readily operable.
To be completely disconnected the power input,
the mains plug of apparatus shall be
disconnected from the mains completely.
CAUTION
This unit contains no user serviceable parts inside.
Do not attempt to repair the unit yourself.
Please refer servicing to a qualified service personnel.
• The main plug of apparatus should not be
obstructed or should be easily accessed during
intended use.
The use of apparatus in tropical climates.•
Attention should be drawn to the environmental •
aspects of battery disposal.
Batteries shall not be exposed to excessive heat •
such as sunshine, fire or the like.
Excessive sound pressure from earphones and •
headphones can cause hearing loss.
FCC warning:
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
FCC warning:
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
FCC warning:
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm between the radiator & your body.
