Focal IC RNS 165 User manual

IC RNS 165 ®
Manuel d' utilisation / User Manual/ Gebrauchsanl e. itung / Man uale d'uso / Manual de uso /
Manual de utiliza<;:ao / Handleid i ng / PyKOBOAC T BO no 3KCn,waTal.\"1"1 /
Fran<;:a1s . page 5
English : page 8
ii! m-¥iffi I Af-§- ~~Ai ; nm~aJJe ; <"~' J:l~
·~·
FOCAL
LISTEN BEYOND

IC RNS 165 ®
Manuel d ' utilisation / User manual
Verifiez en ligne les compatibilites
et les consignes d'installation mises a jour.
Check Online Updated Compatibility list
and installation manual
www.focal-inside.com
II

IC RNS 165 ~
Manue l d'ut i lisation / User manua l II
IC RNS 165
Woofer
165 mm
Diametre bobine 25mm
Membrane Fibre de verre DFS
Moteur
85mm
Impedance nominale 40
Tweeter
Tweeter a dome inverse en aluminium/magnesium
Filtre
6 dB/oct
Puissance max. 120W
Puissance nom. 60W
Sensibil ite (2,83 V/ 1 m) 91 dB
Reponse en frequence 60 Hz - 20 kHz
Accessoires Livre avec accessoires
de montage, vis, suppo rts.
IC RNS 165
Woofer
165mm
Voice coil diameter
25mm
Cone
DSF glass fibre
Magnet
85mm
Nominal impedance
40
Tweeter
Al uminum/magnesium inverted dome tweeter
Crossover
6dB/oct
Max. power
120W
Norn . power
60W
Sensitivity (2.83V/1m)
9l dB
Frequency response
60Hz - 20kHz
Accessories Supplied with mounting accesso ri es, screws, brackets .

IC RNS 165 ®
Manuel d ' utilisation
•

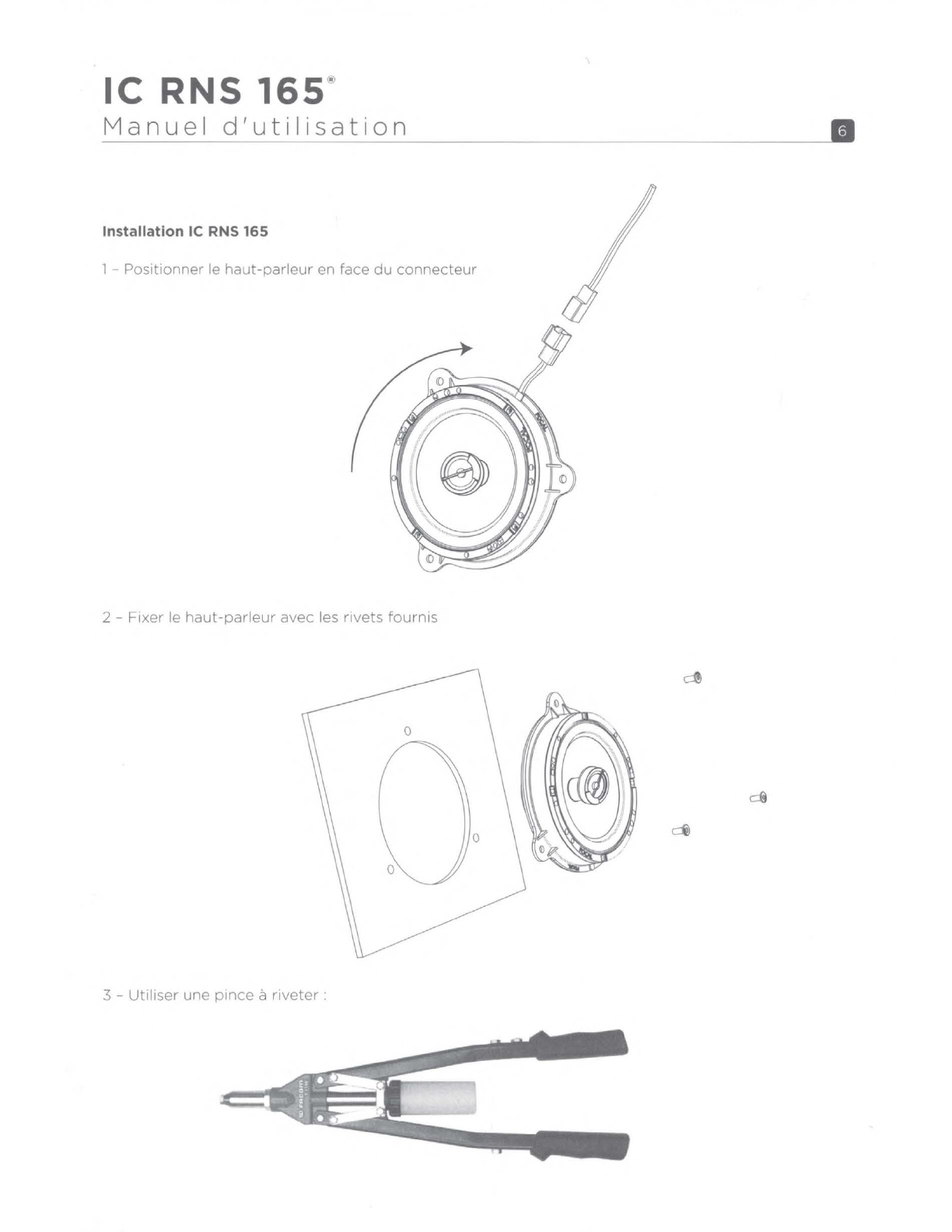

Installation IC RNS 165
1- Positionner le haut-parleur en face du connecteur
2 - Fixer le haut-parleur avec les rivets fournis
3 - Utiliser une pince a riveter :

IC RNS 165 .
Manuel d'utilisation
4 - Connecter
5 - Orientation du tweeter
Le systeme de rotation du tweeter permet d'opt1m1ser facilement
la reproduction des aigus, quel que soit l'emplacement des haut-
parleurs coaxiaux. Le reglage s'effectue en tournant le tweeter
jusqu'a ce que la barrette se positionne dans l'axe de vos oreilles.
(Cf. croquis)
Differents essa1s seront a effectuer afin :
• d'obtenir le reglage vous convenant parfa1tement
• d'optim1ser la scene sonore

IC RNS 165 '"

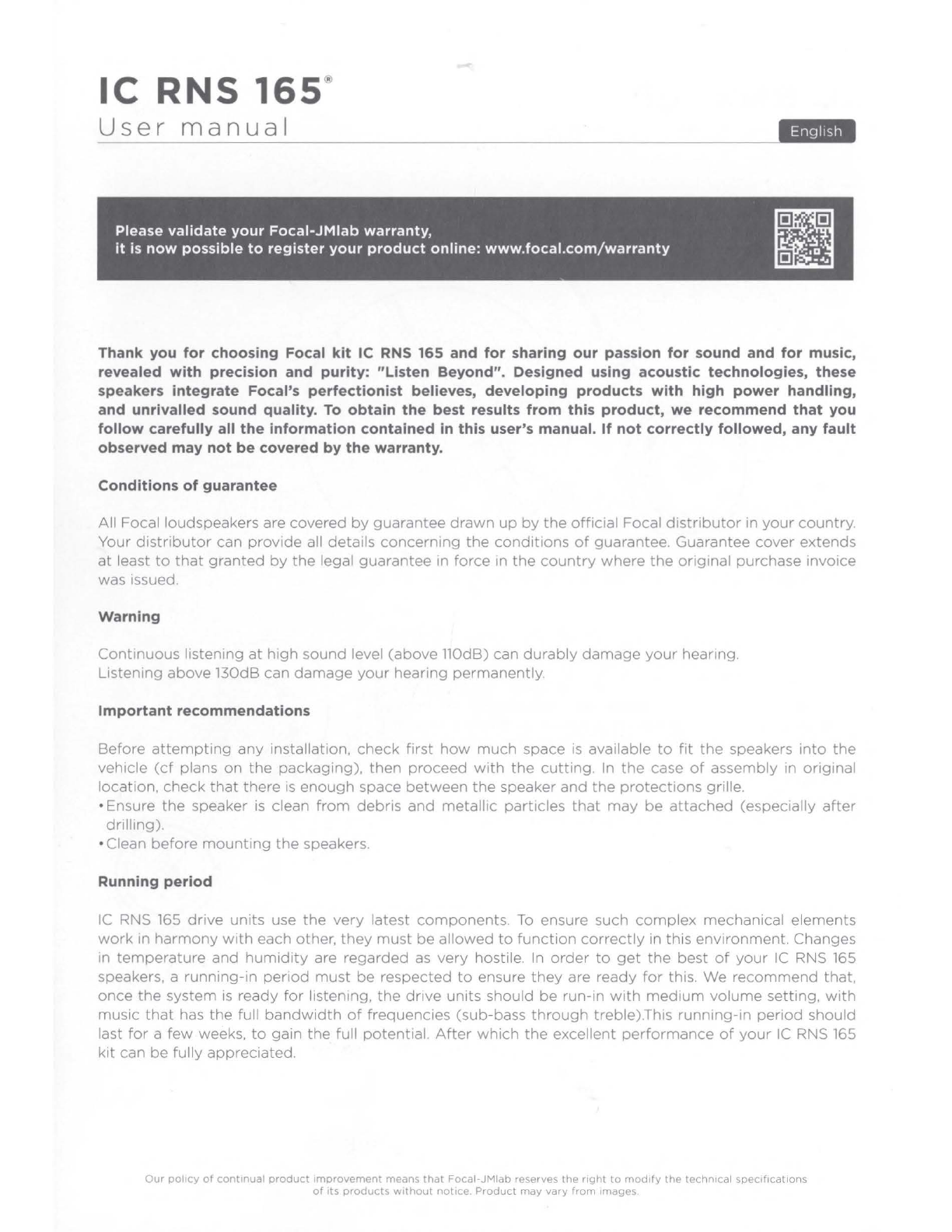

User manual
la ■ MMM
Please validate your Focal-JMlab warranty, ~
it is now possible to register your product online: www.focal.com/warranty ~
Thank you for choosing Focal kit IC RNS 165 and for sharing our passion for sound and for music,
revealed with precision and purity: "Listen Beyond". Designed using acoustic technologies, these
speakers integrate Focal's perfectionist believes, developing products with high power handling,
and unrivalled sound quality. To obtain the best results from this product, we recommend that you
follow carefully all the information contained in this user's manual. If not correctly followed, any fault
observed may not be covered by the warranty.
Conditions of guarantee
All Focal loudspeakers are covered by guarantee drawn up by the official Focal distributor in your country.
Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends
at least to that granted by the legal guarantee in force In the country where the original purchase invoice
was issued.
Warning
Continuous listening at high sound level (above llOdB) can durably damage your hearing.
Listening above 130dB can damage your hearing permanently.
Important recommendations
Before attempting any installation, check first how much space is available to fit the speakers into the
vehicle (cf plans on the packaging), then proceed with the cutting. In the case of assembly in original
location, check that there is enough space between the speaker and the protections grille.
•Ensure the speaker is clean from debris and metallic particles that may be attached (especially after
drilling).
•Clean before mounting the speakers.
Running period
IC RNS 165 drive units use the very latest components. To ensure such complex mechanical elements
work In harmony with each other, they must be allowed to function correctly in this environment. Changes
in temperature and humidity are regarded as very hostile. In order to get the best of your IC RNS 165
speakers, a running-in period must be respected to ensure they are ready for this. We recommend that.
once the system is ready for listening, the drive units should be run-in with medium volume setting, with
music that has the full bandwidth of frequencies (sub-bass through treble).This running-in period should
last for a few weeks, to gain the full potential. After which the excellent performance of your IC RNS 165
kit can be fully appreciated.
Our poltcy of continual product improvement means that Focal-JMlab reserves the right to modify the technical spec,f,cat,ons
of ,ts products without notice. Product may vary from images

IC RNS 165 ®
User manual
IC RNS 165 installation
1- Place the Speakers terminal in front of the OEM connector
2 - Fix the speaker using the included rivets
3 - Use a rivet fixing tool:

IC RNS 165 ®
User m a nual

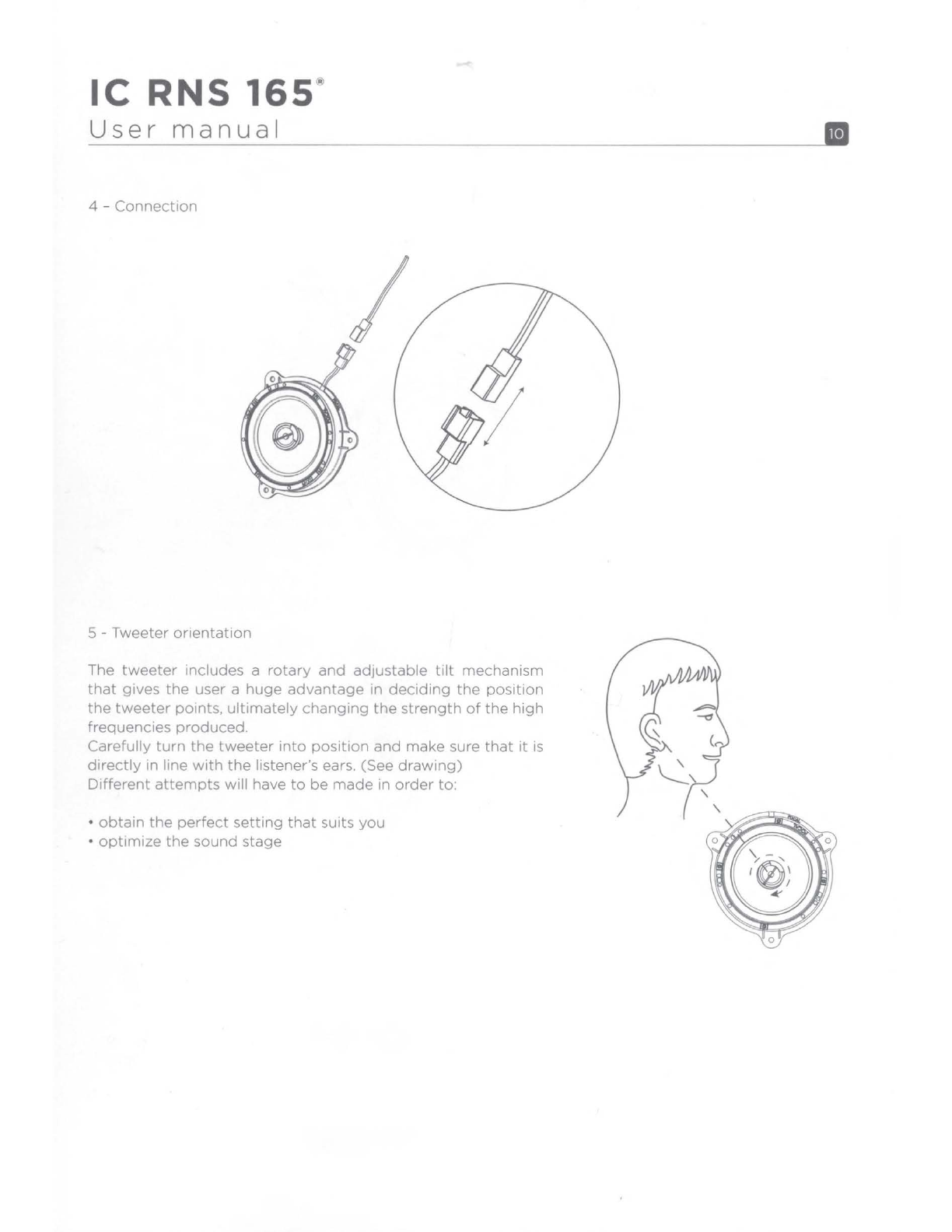

4 - Connection
5 - Tweeter orientation
The tweeter includes a rotary and adjustable tilt mechanism
that gives the user a huge advantage in deciding the position
the tweeter points, ultimately changing the strength of the high
frequencies produced.
Carefully turn the tweeter into position and make sure that it is
directly in line with the listener's ears. (See drawing)
Different attempts will have to be made in order to:
• obtain the perfect setting that suits you
• optimize the sound stage
II

IC RNS 165 ®
-
CD
-
@)
-
®
-
CD
•
Elimination correcte de ce produit.
Ce marquage 1nd1que que ce produ1t ne doit pas etre elimine avec les autres dechets menagers
au sein de l'UE. Par mesure de prevention pour l'environnement et pour la sante humaine, veuillez
le recycler de maniere responsable, pour favoriser la reutilisation des ressources materielles. Pour
retourner votre appareil use, veulllez utiliser les systemes de retour et de collecte ou contactez
le detaillant chez lequel le produit a ete achete. Celu1-c1 pourra proceder au recyclage du produit
en toute securite.
Correct elimination of this product.
This marking indicates that within the EU this product should not be disposed of with other
household wastes. To prevent any risk to the environment or human health, please recycle them
responsibly to encourage the reuse of material resources. To return your used device, please
use the return and collection systems available, or contact the retailer where you purchased the
product. They can recycle this product safely.
OrdnungsgemaRe Entsorgung des Produkts.
D1ese Kennzeichnung weist darauf hin, dass dieses Produkt innerhalb der EU nicht mit anderen
Haushaltsabfallen entsorgt werden darf.
Als PraventivmaBnahme fur die Umwelt und die menschliche Gesundheit muss auf eine
verantwortungsbewusste Wiederverwertung zur Forderung der Wiederverwendung van
materiellen Ressourcen geachtet werden. Fur die ROckgabe van Gebrauchtgeraten verwenden
S1e b1tte zur VerfOgung stehende ROckgabe- und Recyclingsysteme oder wenden Sie sich an
den Handler, be1 dem Sie das Produkt erworben haben. Letzterer kann das Gerat sicher dem
Wertstoffkreislauf zufOhren.
Eliminaci6n correcta de este producto.
Este sfmbolo 1nd1ca que este producto no debe eliminarse con el resto de residuos domesticos
dentro de la UE. Con el objetivo de proteger el medioambiente y la salud publica, recicle de forma
responsable para favorecer la reut1l1zac16n de las recursos materiales. Para devolver su aparato
usado, util1ce las s1stemas de devoluci6n y recog1da o p6ngase en contacto con el vendedor del
producto. Este podra proceder al rec1claje del producto de forma totalmente segura.
Corretto smaltimento di questo prodotto.
Questa marcatura indica che, nell'UE, questo prodotto non deve essere smaltito ins1eme agli altri
rifiuti domestici. A titolo prevent1vo per l'amb1ente e la salute, deve essere riciclato in modo
responsabile per favorire ii riutilizzo delle risorse material1. Per mandare ind1etro l'apparecchio
usato, si prega di utilizzare ii s1stema di reso e raccolta o di contattare ii rivend1tore da cui e stato
acqu1stato ii prodotto, ii quale potra procedere a ric1clare ii prodotto in totale sicurezza.

Registrieren Sie 1hr Produkt online, um lhre Focal-JMlab-Garantie zu bestatigen:
www.focaI.com/wa rra nty
Per validare la garanzia Focal-JMlab adesso e possibile registrare ii prodotto on-line su:
www.focal.com/warranty
Para validar la garantia Focal -JMab, ahora tambien puede registrar su producto en linea:
www.focal.com/warranty
Para validar a garantia Focal-JMlab, agora e passive! registar um produto online:
www.focal.com/warranty
Voor garantie validatie Focal -JMlab, Het is nu mogelijk om het product online te registreren:
www.focal.com/warranty
Ansi nOATBep)l(AeHMSI rapaHTl,11,1 Focal-JMlab, enepb npOAYKT MO>KHO 3aperncrp111poeaTb Ha caihe
www.focal.com/warranty
il-=f 10~ P-J*@l~mllitl¥lr~~f;i~. fiFocal-JMlab~~~~io 1&,H~-tfAJ~.:L-tf~i.:i:flfrr~:
www.focal.com/wa rra nty
Focal-JMlab2.I 7H~EI f¥-lt~~~ !i?-1"5H, op::-11 ~A~0IEoJIA1 ::i:,1¾2.I -§2.~~ x1~ ~~.S:. 7~:;ttL-lc~ :
www.focal.com/warranty
Focal-JMlabO)~fil~~'.th,i:9 ~ ti: ti, JJ[tE, ~~O);;t" -Y '5-1 -Y~@!Rt.foJ~l§ti:fJ:. IJ *G tc.:
www.focal.com/warranty
•~ uali..ll Focal-JMlab 0~ J:!w y4".)I
. .j te. u.i 'i'il ~ &:..... t._ .., ·-J\ &....
- ~-.JA~ fa-' .-.- . ~u .
www.focal.com/warranty

·~·
FOCAL
LISTEN BEYOND
Focal-JMlab· -BP 374 -108, rue de l'Avenir - 42353 La Talaudiere cedex -France - www.focal.com
Tel. [phone] -Fax [phone] -SCAA-190118/1 -CODO1601

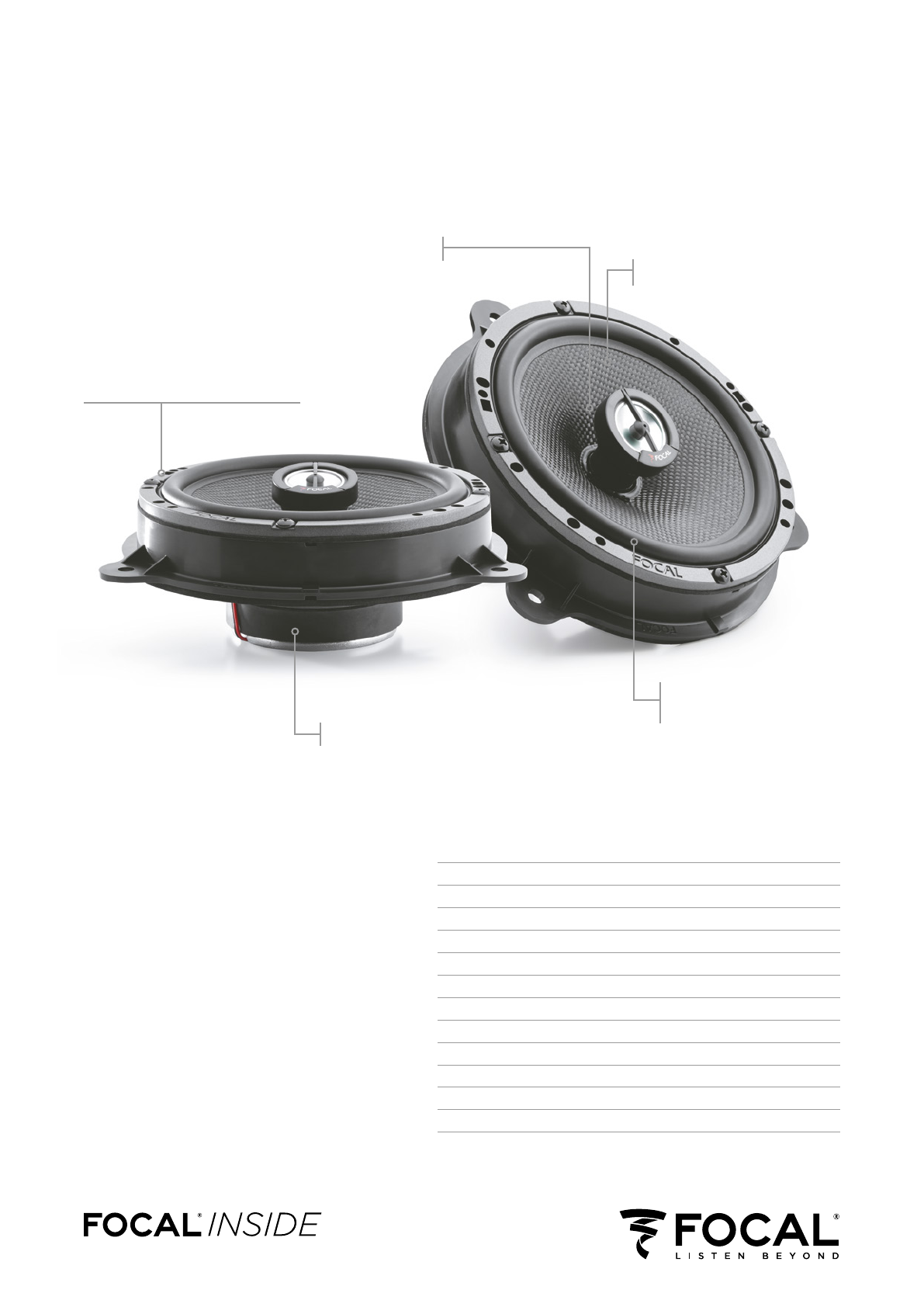

Fiberglass structure cone
Dynamic Bass
Key points
• High sensitivity (Direct headunit using)
• High dynamique
• Rotative tweeter
Integrated crossover
Easy connection
Butyl surround
Perfect reliability
Processed aluminum inverted dome tweeter
Orientation in the driver direction
ABS Basket with 20% of fiberglass
Non magnetic, non resonant
Focal®is a trademark of Focal-JMLab®- www.focal.com - SCAA190319/1
IC RNS 165
Product Data Sheet
Type 2-way coaxial kit
Woofer 61/2" (165mm)
Voice-coil diameter 1" (25mm)
Voice-coil height 07/ 1 6 (11mm)
Magnet 31/13 (85mm)
Tweeter Aluminum inverted dome tweeter
Integrated crossover 6dB/oct
Max. power 120W
Nom. power 60W RMS
Sensitivity (2,83 V/1 m) 92dB
Frequency response 60Hz – 20kHz
Original connector
Accessories Rivets

Woofer Nominal power 60W
Maximum power 120W
Sensitivity
(2,83V/1m)
92 dB
Cone Braided glass fiber®
Surround Butyl
Nom. impedance 4
DC resistance 3.5
VC diameter 25mm 1"
VC height 11mm 05/16"
Former Kapton
Layers 2
Wire Copper
Inductance
Xmax 2.5mm 01/16"
Magnet d x h 85mm x 15mm 31/3 x0 9/16"
Magnet weight 0.35kg 0.66lb
Flux density 1.3T
Gap height 5.5mm 03/16"
Net weight 850g 1.87lb
Fs 79.28Hz
Vas 7.44I
Qts 0.92
Qes 1.04
Qms 7.94
Re 3.54 Ohms
Sd 1373cm
Cas 6.04 E-08mN
Mas 66.75kgm
Ras 4187.53 Ohmsac
Cms 3.22E-04 m/N
Mms 12.5g
Rms 0.784kgs
Ces 596.52mF
Les 6.76mH
Res 26.72 Ohms
BI 4.58NA
SPL 87.93dB/W/m
SPECIFICATIONS
165
85
141
66
26
6
155


Log Frequency - Hz












dB SPL











Ohms
Focal®is a trademark of Focal-JMLab®- www.focal.com - SCAA190319/1
IC RNS 165
Technical Sheet
FREQUENCY RESPONSE/IMPEDANCE
MECHANICAL DRAWING
PARAMETERS
