XL-505H,505E,507E/CP-505,505E,507
SERVICE MANUAL
No. S7752XL505HE/
CONTENTS Page
SAFETY PRECAUTION FOR SERVICE MANUAL .......................................................................................................... 2
IMPORTANT SERVICE NOTES (XL-505E FOR UK/XL-507E ONLY)............................................................................. 3
SPECIFICATIONS ............................................................................................................................................................ 3
NAMES OF PARTS .......................................................................................................................................................... 4
OPERATION MANUAL..................................................................................................................................................... 6
DISASSEMBLY................................................................................................................................................................. 7
REMOVING AND REINSTALLING THE MAIN PARTS.................................................................................................... 8
ADJUSTMENT.................................................................................................................................................................. 9
BLOCK DIAGRAM .......................................................................................................................................................... 16
SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD............................................................................................ 20
VOLTAGE ....................................................................................................................................................................... 26
NOTES ON SCHEMATIC DIAGRAM ............................................................................................................................. 27
TYPE OF TRANSISTOR AND LED ................................................................................................................................ 27
WAVEFORMS OF CD CIRCUIT..................................................................................................................................... 28
TROUBLESHOOTING (CD SECTION) .......................................................................................................................... 29
FUNCTION TABLE OF IC .............................................................................................................................................. 34
LCD SEGMENT .............................................................................................................................................................. 41
REPLACEMENT PARTS LIST/EXPLODED VIEW
PACKING OF METHOD (XL-505E FOR UK/XL-507E ONLY)
XL-505H
XL-505E
XL-507E
CP-505
CP-505E
CP-507
XL-505H and CP-505 constitute XL-505H.
XL-505E and CP-505E constitute XL-505E.
XL-507E and CP-507 constitute XL-507E.
• In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be
used.
SHARP CORPORATION
• Note for users in UK
Recording and playback of any material may require consent
which SHARP is unable to give. Please refer particularly to the
provisions of Copyright Act 1956, the Dramatic and Musical
Performers Protection Act 1956, the Performers Protection Acts
1963 and 1972 and to any subsequent statutory enactments and
orders.
Illustration: XL-505H/CP-505

XL-505H,505E,507E/CP-505,505E,507
– 2 –
SAFETY PRECAUTION FOR
SERVICE MANUAL
Precaution to be taken when replacing and servicing the
Laser Pickup.
The AEL (Accessible Emission Level) of Laser Power Output
forthismodelisspecifiedtobelowerthanClassIRequirements.
However, the following precautions must be observed during
servicing to protect your eyes against exposure to the Laser
beam
(1) When the cabinet has been removed, the power is turned
on without a compact disc, and the Pickup is on a position
outerthanthelead-inposition,theLaserwilllightforseveral
seconds to detect a disc. Do not look into the Pickup Lens.
(2) The Laser Power Output of the Pickup inside the unit and
replacementservicepartshavealreadybeenadjustedprior
to shipping.
(3) No adjustment to the Laser Power should be attempted
when replacing or servicing the Pickup.
(4) Under no circumstances look directly into the Pickup Lens
at any time.
(5)CAUTION-Useofcontrols oradjustments, orperformance
of procedures other than those specified herein may result
in hazardous radiation exposure.
LASER KLASSE 1
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO
BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.
VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD. STIRRA
EJ IN I STRALEN OCH BETRAKTA EJ STRALEN MED OPTISKA INSTRUMENT.
ADVERSEL-USYNLIG LASERSTRALING VED ABNING. SE IKKE IND I
STRALEN-HELLER IKKE MED OPTISKE INSTRUMENTER.
VARO! AVATTAESSA OLET ALTTIINA NAKYMATON LASERSATEILYLLE.
ALA TUIJOTA SATEESEEN ALAKA KATSO SITA OPTISEN LAITTEEN LAPI.
VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD.
STIRRA EJ IN I STRALEN OCH BETRAKTA EJ STRALEN GENOM OPTISKT
INSTRUMENT.
ADVERSEL-USYNLIG LASERSTRALING NAR DEKSEL APNES. STIRR IKKE
INN I STRALEN ELLER SE DIREKTE MED OPTISKE INSTRUMENTER.
VAROITUS! LAITTEEN KÄYTTÄMINEN MUULLA KUIN
TÄSSÄ
KÄYTTÖOHJEESSA MAINITULLA TAVALLA SAATTAA
ALTISTAA KÄYTTÄJÄN TURVALLISUUSLUOKAN 1
YLITTÄVÄLLE NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE.
VARNING - OM APPARATEN ANVÄNDS PÅ ANNAT SÄTT
ÄN I DENNA BRUKSANVISNING SPECIFICERAS. KAN
ANVÄNDAREN UTSÄTTAS FÖR OSYNLIG
LASERSTRÅLNING, SOM ÖVERSKRIDER GRÄNSEN
FÖR LASERKLASS 1.
(XL-505H)
(XL-505E/507E)

– 3 –
XL-505H,505E,507E/CP-505,505E,507
Cassette deck section
Frequency response: 50 - 14,000 Hz (Normal tape)
Signal/noise ratio: 55 dB
(XL-505H/505E)
Signal/noise ratio: 50 dB
(XL-507E)
Wow and flutter: 0.3 % (DIN 45 511)
(XL-505H/505E)
Wow and flutter: 0.25 % (WRMS)
(XL-507E)
Type: Full range speaker system
Speakers: 10 cm (4") full-range speaker
Rated input power: 5 W
Maximum input power: 10 W
Impedance: 4 ohms
Dimensions: Width; 145 mm (5-3/4")
(CP-505/507) Height; 240 mm (9-1/2")
Depth; 183 mm (7-1/4")
Dimensions: Width; 145 mm (5-3/4")
(CP-505E) Height; 240 mm (9-1/2")
Depth; 133 mm (5-1/4")
Weight: 1.1 kg (2.4 lbs.)/each
(CP-505/507)
Weight: 1.0 kg (2.2 lbs.)/each
(CP-505E)
General
Power source: AC 230 V, 50 Hz
Power consumption: 52 W
Dimensions: Width; 160 mm (6-5/16")
Height; 240 mm (9-1/2")
Depth; 250 mm (9-7/8")
Weight: 2.6 kg (5.7 lbs.)
Amplifier section
Output power: PMPO; 28 W (total)
(XL-505H/505E) MPO; 14 W (7 W + 7 W) (DIN 45 324)
RMS; 10 W (5 W + 5 W) (DIN 45 324)
Output power: MPO; 14 W (7 W + 7 W) (10 % T.H.D.)
(XL-507E) RMS; 10 W (5 W + 5 W) (10 % T.H.D.)
Output terminals: Speakers; 4 ohms
Headphones; 16-50 ohms
(recommended; 32 ohms)
Tuner section
Frequency range: FM; 87.5 - 108 MHz
AM; 522 - 1,620 kHz
Compact disc player section
Type: Compact disc player
Signal readout: Non-contact, 3-beam semi-conductor
laser pickup
D/A Converter: 1-bit D/A converter
Filter: 8-times oversampling digital filter
Frequency response: 20 - 20,000 Hz
Wow and flutter: Unmeasurable
(less than 0.001% W.peak)
SPECIFICATIONS
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.
Beforereturningthe unitto thecustomer aftercompletion ofa
repairoradjustment itisnecessaryfor thefollowingwithstand
voltage test to be applied to ensure the unit is safe for the
customer to use.
Setting of Withstanding Voltage Tester and set.
Set name set value
Withstanding Voltage Tester
Test voltage 4,240 VPEAK
3,000 VRMS
Set time 6 secs
Set current(Cutoff current) 4 mA
Unit
Judgment
OK: The “GOOD” lamp lights.
NG: The “NG” lamp lights and the buzzor sounds.
SHORT-CIRCUIT
AC POWER
SUPPLY CORD
CONNECT THE PROBE
TO GND TERMINAL
OF PHONO TERMINAL
PROBE
AC
UNIT
WITHSTANDING
VOLTAGE TESTER
+
-
OUT
OF CHASSIS
SCREW
IMPORTANT SERVICE NOTES (XL-505E FOR UK/XL-507E ONLY)
Specifications for this model are subject to change without
prior notice.
XL-505H/505E/507E
CP-505/505E/507

XL-505H,505E,507E/CP-505,505E,507
– 4 –
NAMES OF PARTS
Front Panel
1. Function/Band/Track Number Indicator
2. Volume Indicator
3. Timer Indicator
4. Record Indicator
5. Sleep Indicator
6. Repeat Indicator
7. Play Indicator
8. Extra Bass/Equalizer Indicator
9. Random Indicator
10. Memory Indicator
11. FM Stereo Mode Indicator
12. FM Stereo Indicator
13. CD Compartment
14. On/Stand-by Switch
15. Remote Control Sensor
16. Record Pause/Beat Cancel Button
17. Memory/Set Button
18. (CD) Track Down/Review Button
(TAPE) Rewind Button
(TUNER) Preset Down Button
19. Headphones Socket
20. CD Eject Button
21. Function Selector Button
22. Band Selector Button
23. Extra Bass/Equalizer Mode Button
24. Volume Up/Down Buttons
25. (CD) Play/Pause Button
(TAPE) Play Button
(TUNER) Tuning Up Button
26. (CD/TAPE) Stop Button
(TUNER) Clear Button
27. (CD) Track Up/Cue Button
(TAPE) Fast Forward Button
(TUNER) Preset Up Button
28. Cassette Compartment
Rear Panel
1. AC Power Input Socket
2. FM/AM Loop Aerial Socket
3. Speaker Terminals
XL-505H/505E/507E
VOL
EQ
RANDOM MEMORY ST
REC SLEEP
kHz
MHz
2345
678 91011
12
13
1
20
22
15
16
17
18
19
23
24
25
26
27
14 21
28
2
3
1

– 5 –
XL-505H,505E,507E/CP-505,505E,507
Speaker Section
1. Full-Range Speaker
2. Bass Reflex Duct
3. Speaker Wire
Remote Control
1. Remote Control Transmitter LED
2. On/Stand-by Button
3. (CD) Repeat/Random Button
4. (CD/TUNER) Memory/Set Button
5. (CD/TUNER) Clear Button
6. Timer/Set Button
7. Sleep Button
8. (CD/TAPE) Stop Button
9. (CD) Play/Pause Button
(TAPE) Play Button
10. (CD) Track Up/Cue Button
(TAPE) Fast Forward Button
(TUNER) Preset Up Button
11. (CD) Track Down/Review Button
(TAPE) Rewind Button
(TUNER) Preset Down Button
12. Tuning Up/Down Buttons
13. Timer Button
14. Timer Up/Down Buttons
15. Function Selector Button
16. Band Selector Button
17. Extra Bass/Equalizer Mode Button
18. Volume Up/Down Buttons
CP-505/505E/507
XL-505H/505E/507E
1
23
ON/
STAND-BY
/RANDOM
TIMER/
SET
PRESET
MEMORY/
SET TUNING
TIMER
VOLUME
CLEAR
SLEEP
FUNCTION BAND
X-BASS/
EQUALIZER
TIMER
1
2
3
4
5
6
8
12
13
11
10
9
17
14
15 18
16
7

XL-505H,505E,507E/CP-505,505E,507
– 6 –
OPERATION MANUAL
SETTING THE CLOCK
1
Press the ON/STAND-BY switch to enter the stand-by mode.
2
Press the MEMORY/SET button.
3
Press the PRESET ( or ) button to select the time display mode. "0:00" →The 24-hour display will appear. (0:00 - 23:59) "AM 12:00" →The 12-hour display will appear. (AM 12:00 - PM 11:59)
Note that this can only be set when the unit is first installed or it has been reset (see page 14).
4
Press the MEMORY/SET button.
5
Press the PRESET ( or ) button to adjust the hour.
Press the PRESET button once to advance the time by 1 hour. Hold it down to advance continuously. When the 12-hour display is selected, "AM" will change auto- matically to "PM".
6
Press the MEMORY/SET button.
7
Press the PRESET ( or ) button to adjust the minutes.
Press the PRESET button once to advance the time by 1 minute. Hold it down to change the time in 5 minute intervals. The hour setting will not advance even if minutes advance from "59" to "00".
8
Press the MEMORY/SET button.
The clock starts operating from "0" seconds. (Seconds are not displayed.)
Note:
In the event of a power failure or when the AC power lead is disconnected, the clock display will go out. When the AC power supply is restored, the clock display will flash on and off to indicate the time when the power failure occurred or when the AC power lead was disconnected.
ON/ STAND-BY
ON/ STAND-BY
MEMORY/ SET
MEMORY/ SET
PRESET ( / )
PRESET ( / )
AM 12:000:00
2
3
4 5 6 7 8
If this happens, follow the procedure below to change the clock time.
To change the clock time: 1
Press the ON/STAND-BY switch to enter the stand-by mode.
2
Perform steps 4 - 8 above.
To change the time display mode:
1
Perform steps 1 - 3 in the section "RESETTING THE MICRO- COMPUTER", on page 14.
2
Perform steps 1 - 8 above.
In this example, the clock is set for the 24-hour (0:00) system.
PREPARATION FOR USE
15
15
Notes concerning use:
Replace the batteries if control distance decreases or operation becomes erratic. Periodically clean the transmitter LED on the remote control and the sensor on the main unit with a soft cloth. Exposing the sensor on the main unit to strong light may in- terfere with operation. Change the lighting or the direction of the unit. Keep the remote control away from moisture, excessive heat, shock, and vibrations.
0.2 m - 6 m (8" - 20')
RESETTING THE MICROCOMPUTER
Reset the microcomputer under the following conditions:
To erase all of the stored memory contents (clock and timer settings, tuner and CD presets). If the display is not correct. If the operation is not correct.
1
Press the ON/STAND-BY switch to enter the stand-by mode.
2
Unplug the AC power lead from the AC INPUT socket on this unit.
3
Whilst pressing down the MEMORY/SET button and the X- BASS/EQUALIZER button, plug the AC power lead into the AC INPUT socket on this unit.
1
2,3
3
3
Caution:
The operation explained above will erase all data stored in memory, such as clock and timer settings, tuner and CD pres- ets.

– 7 –
XL-505H,505E,507E/CP-505,505E,507
1 Top Cabinet 1. Screw...................(A1) x4 7-1
2. Socket..................(A2) x3
3. Screw...................(A3) x1
2 Side Panel 1. Screw...................(B1) x7 7-1
(Left/Right)
3 Back Board 1. Screw...................(C1) x2 7-1
4 Front Panel 1. Screw...................(D1) x9 7-2
2. Socket..................(D2) x2
5 Main PWB/ 1. Screw...................(E1) x1 7-2
Display PWB/ 2. Socket..................(E2) x3
CD Servo PWB
6 Power Supply PWB 1. Screw...................(F1) x4 7-2
7 Tape Mechanism 1. Screw...................(G1) x4 7-3
8 CD Mechanism 1. Screw...................(H1) x3 7-4
DISASSEMBLY
Caution on Disassembly
Follow the below-mentioned notes when disassembling
the unit and reassembling it, to keep it safe and ensure
excellent performance:
1. Take cassette tape and compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit.
3.Takeoffnylonbandsorwireholderswheretheyneedbe
removed when disassembling the unit. After servicing
theunit, besureto rearrangethe leadswhere theywere
before disassembling.
4. Take suffcient care on static electricity of integrated
circuits and other circuits when servicing.
Figure 7-2
Figure 7-3
STEP REMOVAL PROCEDURE FIGURE
Figure 7-1
XL-505H/505E/507E
STEP REMOVAL PROCEDURE FIGURE
1 Speaker 1. Net....................... (A1) x1 7-5
2. Screw .................. (A2) x4
CP-505/505E/507
(A1)x1
ø3x10mm
(A1)x1
ø3x10mm
(B1)x2
ø3x10mm (C1)x2
ø3x10mm
(B1)x2
ø3x10mm
(B1)x3
ø3x10mm
(A1)x2
ø3x10mm
(A2)x2
(A2)x1
CD
Mechanism
(A3)x1
ø3x10mm
Swicth
PWB
Top Cabinet
Top
Cabinet
Side Panel
Front
Panel
Rear Panel
(D1)x6
ø3x10mm
(E1)x1
ø3x10mm
(D1)x1
ø3x10mm
CD Servo PWB
Main PWB
Power Supply
PWB
Power
Transformer
Front Panel
Display PWB
(F1)x3
ø4x8mm
(F1)x1
ø3x10mm
(D1)x2
ø3x10mm
(D2)x1
(E2)x1
(D2)x1
(E2)x2 CD Servo
PWB
Main
PWB
Tape MechanismOpen
(G1)x4
ø3x10mm
Front Panel
CD Mechanism
(H1)x3
ø2.6x10mm
Top Cabinet
(A2)x4
ø4x15mm
Net
(A1x1)
Speaker
Speaker Box
Screw
driver
Direction of handle
XL-505H/505E/507E
Figure 7-4
CP-505/505E/507
Figure 7-5

XL-505H,505E,507E/CP-505,505E,507
– 8 –
Figure 8
How to remove the pickup (See Fig. 8)
1. Remove the mechanism cover, paying attention to the
pawls (A1) x 4 pcs.
2. Remove the screws (A2) x 2 pcs., to remove the shaft (A3)
x 1 pc.
3. Remove the stop washer (A4) x 1 pc., to remove the gear
(A5) x 1 pc.
4. Remove the pickup.
Note:
After removing the optical pickup connector wrap the front
end of connector in conductive aluminium foil so as to
prevent damage of optical pickup by static electricity.
REMOVING AND REINSTALLING THE MAIN PARTS
CD MECHANISM SECTION
Perform steps 1 and 8 of the disassembly method to remove
the CD mechanism.
Pickup Unit
( A2 ) x2
ø2.6 x6mm
( A1 ) x2
CD Mechanism
Shaft
( A3 ) x1
Gear
( A5 ) x1
StopWasher
( A4 ) x1
Mechanism Cover ( A1 ) x2

– 9 –
XL-505H,505E,507E/CP-505,505E,507
MECHANISM SECTION
• Driving Force Check
Torque Meter Specified Value
Play: TW-2412 Over 80 g
• Torque Check
Torque Meter
Play: TW-2111 30 to 70 g. cm
Fast forward: TW-2231 50 to 140 g.cm
Rewind: TW-2231 50 to 140 g.cm
Specified
Value
Adjusting
Point Instrument Connection
Test Tape
MTT-111 In Motor 3,000 ±Headphones
90 Hz
ADJUSTMENT
Specified Value
• Tape Speed
fL: Low-range frequency
fH: High-renge frequency
IF 450 kHz 1,620 kHz T351 *1
Band — 522 kHz (fL): T306 *2
Coverage 1.1 ±0.1 V
Tracking 990 kHz 990 kHz (fL): T302 *1
Test Stage Frequency Frequency
Display Setting/
Adjusting
Parts
Instrument
Connection
Adjusting
Parts Instrument Connection
Display
Frequency
98.00 MHz 98.00 MHz VR351*1 Input: CNP301
(25 dBµV) Output: Speaker
Terminal
Figure 9-1 ADJUSTMENT POINT
TUNER SECTION
TAPE MECHANISM
M901
Motor
Volume in motor
• FM RF
Signal generator: 1 kHz, 75 kHz dev., FM modulated
Band — 87.50 MHz (fL): L303 *1
Coverage 3.4 ±0.1 V
RF 98.00 MHz 98.00 MHz L302 *2
(10~30 dB)
Test Stage Frequency Frequency
Display Setting/
Adjusting
Parts
Instrument
Connection
*1. Input: Antenna, Output: TP301
*2. Input: Antenna, Output: Speaker Terminal
• Detection
Signal generator: 10.7 MHz, FM sweep generator
IF 10.7 MHz 98.00 MHz T304(Turn Input: Pin 1 of
the core of IC301
T304 fully Output: TP302
counter-
clockwise.
Test
Stage Frequency Frequency
Display Setting/
Adjusting
Parts
Instrument
Connection
*1. Input: Antenna, Output: Speaker Terminal
*2. Input: Input is not connected, Output: TP301
• Setting the Test Mode
KeepingtheBANDbuttonandMEMORYbuttonpressed,turn
on POWER. Then, the frequency is initially set in the memory
as shown in Table. Call it with the , button to use it
for adjustment and check of tuner circuit.
Preset No. FM Preset No. AM
1 87.50 MHz 6 522 kHz
2 108.00 MHz 7 1,620 kHz
3 98.00 MHz 8 603 kHz
4 90.00 MHz 9 1,404 kHz
5 106.00 MHz 10 990 kHz
11~40
• FM Mute Level
Signal generator: 1 kHz, 40 kHz dev., FM modulated
Adjust so that an output signal appears.
Figure 9-2 ADJUSTMENT POINTS
CNP301
ANTENNA
MAIN PWB
L302
IC301
1
T302
TP301
TP302
T304
FM IF
AM IF
AM
TRACKING
T306 AM BAND
COVERAGE
FM MUTE
LEVEL
T351
VR351
L303
FM BAND
COVERAGE
FM RF
• AM IF/RF
Signal generator: 400 Hz, 30%, AM modulated

XL-505H,505E,507E/CP-505,505E,507
– 10 –
Figure 10-1 Figure 10-2
1. This CD unit need adjustment as follow.
CD SECTION
Figure 10-3
CD Test Mode Adjustment Part Value/Adjusting Method Instrument Connection
Step 1 VR803 (Focus Offset) DC + 40 mV (FEL>RFO) FEI (R826) and VRO
(1-Pin of TP801)
Step 4 VR802 (Tracking Error Balance) *1 (See Fig. 10-1) TSO (3-Pin of TP801)
and VRO (1 Pin of TP801)
*1: Adjust to obtaiin vertically symmetrical waveform (Fig. 10-1) with respect toreference DC level. The reference level is VRO
(Approx DC 2.1V).
2. This CD unit have the following automatic adjustment function. Automatic adjustment item.
2-1: Focus Servo Gain (Fig. 10-2)
Focus Gain Adjustment is performed when disc is changed.
2-2: Tracking Servo Gain (Fig. 10-3)
Tracking Gain Adjustment is performed when disc is changed and disc is playbacked.
TSO
VRO 1SYMMETRICAL
UP AND DOWN
FET
FSO
1
2
TSO
TS2O
1
2
Figure 10-4 ADJUSTMENT POINTS
VR802 VR803 TP801
TRACKING
ERROR
BALANCE
FOCUS
OFFSET T
S
O
N
CV
R
O
321
321
CD SERVO PWB

– 11 –
XL-505H,505E,507E/CP-505,505E,507
TEST MODE
TheTestModefor thismicrocomputerhas twovariations,namely "regularTestMode" foradjustmentandmeasurementand"self-
diagnosis Test Mode" for self-judgment in final inspection of products.
1. Entering the Test Mode
To enter the each Test Mode, press the POWER key, holding down the following two keys in the regular standby mode (power
off state). In this case only the main unit keys are valid. The Test Mode is not set even when the remote controller POWER
key is turned on.
[Regular Test Mode]
1. CD Test Mode (TEST 1)
2. Tuner Test Mode (TEST 3)
3. Electronic volume Test Mode (TEST 4)
4. Timer Test Mode (TEST 5)
5. LCD Test Mode (TEST 6)
[Self-diagnosis Test Mode]
1. Key input diagnosis TEST Mode (TESTA)
2. CD Test Mode (TEST 1)
1. Step 1 Mode
When the CD Test Mode is set, the following display lights, and the CD pickup slides to the innermost periphery.
After lighting for 1.5 sec
When the following operation key is pressed in this state, the following operation is performed.
"POWER" ................The Test Mode is set to off, power is turned off, and the mode is changed to the regular standby mode.
"FF/FWD" ................After the pickup returns once to the innermost periphery, the pickup slides to the external periphery while
.................................this key is held down.
"REW/REV" .............After the pickup returns once to the innermost periphery, the pickup slides to the internal periphery while
.................................this key is held down. However, input is invalid if PU-IN is on.
"PLAY".....................Shift to Step 2
"STOP" ....................Invalid
* In case of mode entry the pickup is moved to the internal periphery. At this time entry of any key other than POWER key is
disabled until shift of pickup to the internal periphery is completed. If PU-IN SW ON cannot be detected while waiting for 10
seconds, the slide motor is stopped, the following error is displayed, and entry of any key other than POWER key is disabled.

XL-505H,505E,507E/CP-505,505E,507
– 12 –
2. Step 2 Mode
When the PLAY key is pressed in the mode above, the laser lighting is turned on. In this state the laser is only turned on,
and other operations are not performed.
When the following operation key is pressed in this state, the following operation is performed.
"POWER" ................The Test Mode is set to off, power is turned off, and the mode is changed to the regular standby mode.
"FF/FWD" ................While this key is held down, the pickup slides to the external periphery.
"REW/REV" .............While this key is held down, the pickup slides to the internal periphery. However, if PU-IN is on, entry is
.................................invalid.
"PLAY".....................Shift to Step 3
"STOP" ....................Return to Step 1
3. Step 3 Mode
Whilethelaserislighting,thefocusservoisturnedon,andfocussearchisperformed. Iffocusingfailureoccurs,focussearch
is repeated until focusing is attained.
When the following operation keys are pressed in this state, the following operations are performed.
"POWER" ................The Test Mode is set to off, power is turned off, and the mode is changed to the regular standby mode.
"FF/FWD" ................While this key is held down, the pickup slides to the external periphery.
"REW/REV" .............While this key is held down, the pickup slides to the internal periphery. However, if PU-IN is on, entry is
.................................invalid.
"PLAY".....................If focusing has been attained, the process proceeds to Step 4. Unless focusing has been attained,
.................................reception is inhibited.
"STOP" ....................Return to Step 1
4. Step 4 Mode
The disc is rotated and CLV is locked while the tracking servo is off.
The time display indicates always "0:00".
When the following operation keys are pressed in this state, thefollowing operations are performed.
"POWER" ................The Test Mode is set to off, power is turned off, and the mode is changed to the regular standby mode.
"FF/FWD" ................While this key is held down, the pickup slides to the external periphery.
"REW/REV" .............While this key is pressed, the pickup slides to the internal periphery. However, if PU-IN is on, entry is
.................................invalid.
"PLAY".....................Shift to Step 5
"STOP" ....................Return to Step 1

– 13 –
XL-505H,505E,507E/CP-505,505E,507
5. Step 5 Mode
The tracking servo is turned on, groove is traced, mute is set to off, and playback is started. Even when the outermost
periphery of disc is reached in playback mode, it does not stop. The LCD display indicates playback lapse time as in case
of regular CD playback.
When the following operation keys are pressed in this state, the following operations are performed.
"POWER" ................The Test Mode is set to off, power is turned off, and the mode is changed to the regular standby mode.
"FF/FWD" ................While this key is held down, the pickup slides to the external periphery.
"REW/REV" .............While this key is held down, the pickup slides to the internal periphery. However, if PU-IN is on, entry is
.................................invalid.
"PLAY".....................Invalid
"STOP" ....................Return to Step 1
Other cautions
• While the CD lid OPEN is detected, entry into any step later than Step 2 is disabled. If CD lid OPEN is detected in any step
higher than Step 2, return to Step 1 is done.
• TOC IL is not performed in the Test Mode.
• The key operation, excepting that specified above, is the same as that of regular operation (CD). Only the FUNCTION key
is input-inhibited.
• Syncro REC with REC key input is also invalid in this mode.
3. Tuner Test Mode (TEST 3)
1. Outline of tuner (radio) Test Mode
The tuner Test Mode is intended to store adjustment/measurement frequency in the preset memory CH without frequency
adjustment by the adjusting personnel when the tuner is adjusted in the production line.
2. Details of tuner Test Mode
When power is turned on with the POWER key while the MEMORY/SET key and BAND key are held down together in
POWER OFF state, the frequency for adjustment/measurement of specific destination specified by the AREA terminal is
preset-stored in the preset memory CH (the frequency to be preset-stored for specific destination is explained in the Item
C). When the tuner Test Mode is started up, it is started with FM. FM is FM STEREO only.
WhentheREWkeyispressedwhilethepresetmemoryCHis1CH,thehighestCHisfoundasincaseofregularmode. When
the FF key is pressed while the preset memory CH is highest CH, 1CH is found.
The RADIO (TUNER) BAND key (or TUNER/BAND key on the remote controller) is valid.
Asincaseofregularmode,selectionofband,FMMONO/STEREOmodeisenabledbypressingtheRADIO(TUNER)BAND
(or TUNER/BAND ) key.
Exiting the tuner Test Mode, When the destruction data is stored in the memory in the tuner Test Mode, AC supply is
interrupted in the Test Mode and the AC supply is recovered, all the memory is cleared with the destruction data in case of
start-up.
(Countermeasures so that the Test Mode memory does not remain when AC supply is restored after power supply failure
occurredonceintheTestMode.) ThememoryisnotclearedwhenACsupplyisturnedoffafterPOWEROFFandFUNCTION
selection. In case of exit from the tuner Test Mode through the backup mode upon occurrence of power failure
the frequency data stored in the preset memory for adjustment/measurement is erased. (As a result the preset
memory CH becomes empty.)
The display indication is the same as that in case of regular operation.
The following display lights for one second when the tuner TEST mode is turned on
B

XL-505H,505E,507E/CP-505,505E,507
– 14 –
Test Mode operation specification
3. Preset frequencies for various destinations (random preset memory)
BAND (CH)
1 FM 87.5MHz
2 FM 108.0MHz
3 FM 98.0MHz
4 FM 90.0MHz
5 FM 106.0MHz
6 AM 522 kHz
7 AM 1620 kHz
8 AM 990 kHz
9 AM 603 kHz
10 AM 1404 kHz
• The unit used in the table above is Hz. K represents 1,000 times, and M represents 1,000,000 times.
• The hatched data shown in the table are not stored in the memory.
• FM is stereo mode.
Note: Keys which are effective in Test Mode
• Main unit keys: VOLUME UP/DOWN, BAND, TUNING UP, POWER, MEMORY, CLEAR,
PRESET UP/DOWN
• Remote controller keys: VOL UP/DOWN, BAND, TUNING UP/DOWN, POWER, MEMORY, CLEAR, PRESET UP/DOWN

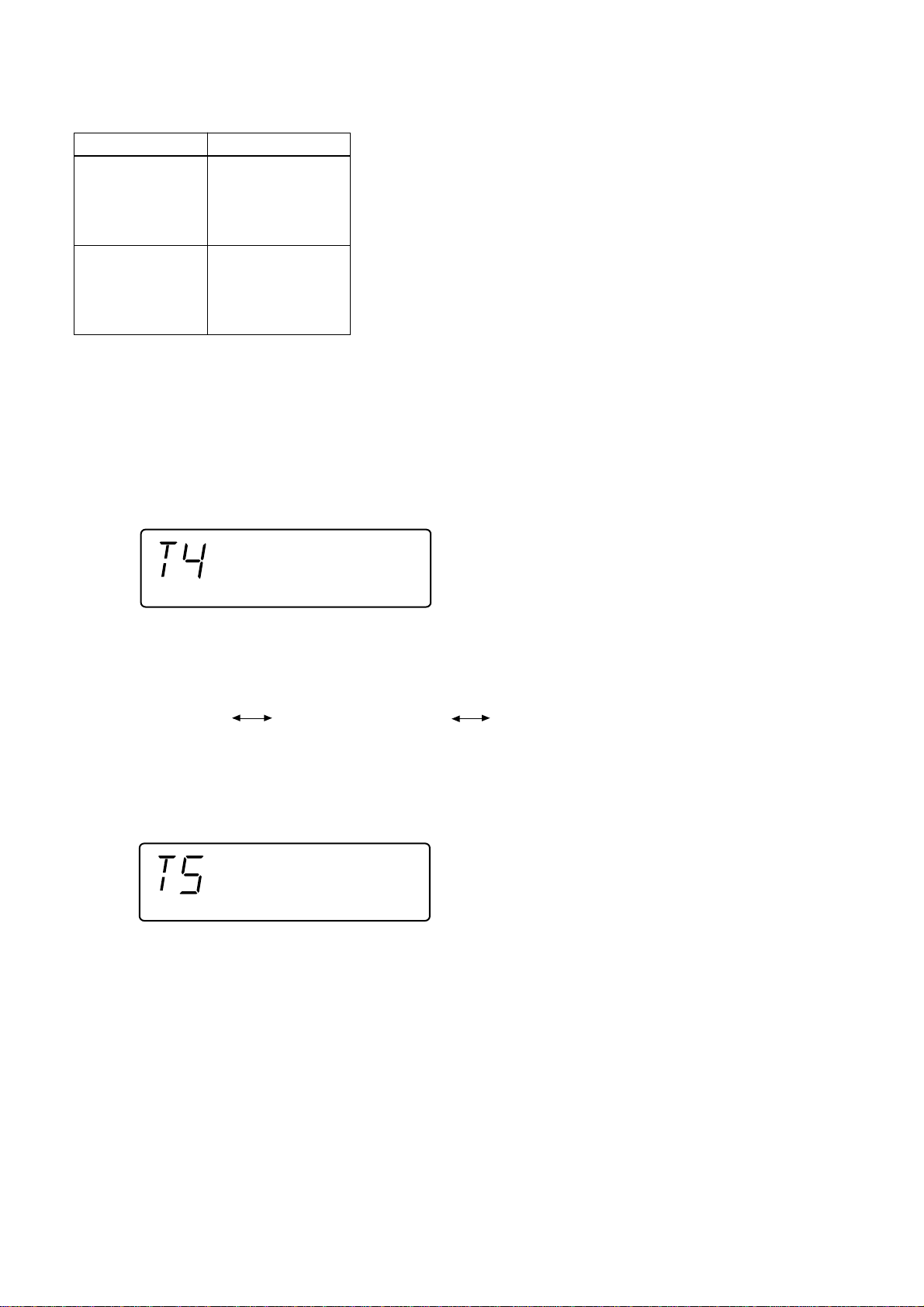

4. Electronic volume Test Mode (TEST 4)
After the Test Mode is set, the following display lights for one second.
When this mode has been set, -14dB (STEP17) is set, the preset equalizer is set to FLAT (EQ-3), the SRS mode is set to OFF,
and the start-up function is set to Tape.
1. The display is the same as that indicated in case of regular operation excepting when Test Mode is set.
2.ThevolumecontrolwiththeVolumeUP/DOWNkeyisonlythefollowing3steps,differingfromthevolumecontrolintheregular
operation mode.
Volume — ∞(STEP 0) Volume — 14dB (STEP 17) Volume — 0 (STEP 24)
3. The preset equalizer and SRS are switched if key operation is performed.
5. Timer Test Mode (TEST 5)
When the Test Mode is set, the following display lights for one second.
The current time and timer time are set in the following procedure, and timer playback is performed.
1.Thepresenttimeissetto1:00,thetimerissettoONtime1:02,OFFtime1:12,FunctionissettoTape,VolumeissettoSTEP8.
One minute is counted in increments of second, and timer playback is performed. One step of Fade-in/out in this mode is
performed for 0.5 sec.
The display is the same as that appears in the regular timer operation.
2.Aftercompletionoftimerplaybacktest"TEST-5"indication(whichappearswhenthemodeisset)appearsagainandStandby
state is set. PLAY key entry is waited. If an entry is detected, the SLEEP timer is set to 2 minutes, and Function is set to Tape,
so that playback is started at once. Volume is set to STEP8, and 10 seconds are counted down in decrements of second. One
step of Fade-out is 0.5 sec.
The display is the same as that appears in the regular sleep playback mode.
3. After completion of SLEEP test, the Test Mode is turned off, and regular standby mode is set, so that the Test Mode ends.

– 15 –
XL-505H,505E,507E/CP-505,505E,507
6. LCD Test Mode (TEST 6)
When the LCD Test Mode is set, all the LCD segments light.
7. Key input diagnosis Test Mode (TEST A)
When the Test Mode is set, the following display appears.
In this Test Mode checking as to whether all the main unit keys can be detected is performed. Accordingly, when this mode
is set, checking is performed so as to examine whether the POWER key was pressed last after all the following keys were
pressed. If the result is OK, the following OK is displayed. If any one of keys was not pressed, an error is indicated. When the
POWER key is pressed, exit from the mode is made irrespective of whether the termination is normal or abnormal, and the
standby mode is set.
All the models using this microcomputer do not have the same keys. The entry of the following keys is detected depending on
the combination of simultaneously pressed keys when this mode is set. Key pressing order is not fixed. Pressing of all keys
must be detected.
1. In case of "PLAY" + "REC PAUSE"
Since the model does not have RDS and SRS, all the keys to be detected are the following 11 keys.
PLAY, VOL , VOL , BAND, G-EQ, FUNCTION, MEMORY/SET, REC PAUSE, REW/REV, FF/FWD, STOP
OK/NG indication of test result must be as follows.
<
<
NG indication
OK indication

XL-505H,505E,507E/CP-505,505E,507
– 16 –
Figure 16 BLOCK DIAGRAM (1/4)
1
4
9
10
11
12
13
14
15
17
19
21
23
25 31 32 34 35 36 37 38 39 40 41 45 46 47 48
51
52
53
54
55
56
57
62
5
321
987654321
18 17 16 15 14 13 12 11 10
28 29 30 31 32 33 34 35 36
19 20 21 22 23 24 25 26 27
8
7
6
5
4
3
2
1
88 77 66
55
443322
11
7
6
5
4
3
2
1
7766
55
443322
11
6
5
4
3
2
1
6
5
4
3
2
1
6
5
4
3
2
19
10
11
12
13
14
15161718192021222324
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39 40 41 42 43 44 45 46 47 48
8
7
6
5
4
3
2
1
FSO
M+12V
µ-CON +5V
~
~
~
~~
~
IX0189AW
IC701
~
PU-IN
BUS3
~
~~~
~
7493
SEG26
SEG7
COM0
COM3
DI CE
LCD
LCD701
LID-SW
BIAS
B-CAN
REC
MOT
SOL
FW701
LED704-LED712
SW718
SW710-SW714
SW702-SW707
KEY
RX701
RESET
Q701
SWITCHING
Q702
Q703
SWTCHING
A 12V
LED+B
P CONT
SWITCHING
SWITCHING
Q707
Q706
(S+6.2VLINE)
SL–
SL+
TR+
TR–
TS2O
IC804
CD STB
DMEO
SP+
SP–
FO+
FO–
GAIN4
LEVEL
SHIFT
LEVEL
SHIFT
LEVEL
SHIFT LEVEL SHIFT
VCC
++ –– –– ++
––
++ ––
++
STAND
-BY
T.S.D
GND
Reg5V
VCC
GND
GAIN1
NC
NC
+
–
+
–
–
+
–
+
+–
–
+–
+
ACTUATOR
TR–
FO–
FO+
TR+
C4A
C2A C3A
VR1A
VCC
LD
MON
GND
E
A
B
F
C
1/2VCC
BI801
CNS801
TR–
GND
FO–
FO+
TR+
BI802
CNS802
1/2VCC
+5V
C
F
B
A
E
1/2V
+5V
+
–
+
–
M
M
M801
SLED
M802
SPINDLE
SW801
PU-IN
BI803
CNP803 CNS803
GND
PU-IN
SL–
SL+
SP–
SP+
Q801
SWTCHING
+5V
IC801
BLANCE
VR802
ERROR
TRACKING
FOCUS
OFFSET
VR803
CD+5V
FMSO
Q704 Q705
PD
VR
LD
SD R-MUTE
TPO
REMOCON CLE
RESET
REMOCON
SYS STOP
TR–
TR+
FO+
FO–
GND
PD
VR
LD
GND
PU-INSL–
SL+
SP–
SP+
X702
DFCT
FMSO
FMSM
FMSP
THLD
TS2O
TS2N
TS2P
TS1N
TS1P
TSO
TEL1
TEL2
TSN
RFT
RFN
TPI
TNI
TNO
FNI
FPI
LDO
MDI
GND
VCC
SEL
DMEO
DMEN
DMEP
OSCI
COSC
FSO
FSN
FHLD
FEL1
FEL2
FEI
FEN
SBAD
FEO
FEP
DFIN
RFRP
2VRO
VRO
RFI
RFO
F.P
BUCK CEE CD RES STEREO SYS STOP CD+B
P-CONT
P-MUTE RESET
CAM SW
POWER
KEY1
VREF
MMOD
XO
XI
VSS
OSC1
OSC2
VLC3
X701
PD
LDO

– 17 –
XL-505H,505E,507E/CP-505,505E,507
Figure 17 BLOCK DIAGRAM (2/4)
321
7
12
13
14
15
16
17
18
19
21
2526272830323334363740
41
42
43
44
47
48
49
50
51
52
53
54
58
59
65 67 77 78 79 80
6
2
1
9
8
7
6
5
4
3
2
1
9
8
7
6
5
4
15
14
13
12
11
10
3
2
1
7654321
7654321
7654321
C
US
F
SET
8
03
TEST POINT
TP801
DIGITAL
X801
PDCNT
VDDA
GNDA
RFI
RFRP
VREF
SBAD
TEOF
TESH
FEI
FKIC
FCSI
SEL
2VREF
CCE
RST
BUCK
BUS3
BUS2
BUS1
BUS0
GNDD
VDDD
GNDA
RO
LO
GNDA
GNDX
XO
XI
VDDX
TESTX
GNDD
DA CONV
OUT
PLL
STATUS
AUDIO OUT
CLV SERVO
TMAX DET
STATUS
CODE
SUB
CLOCK
EFM
CORRECT
RAM
Q DATA INTERFACE
CD BUS
16K RAM
ADRESS
A/D CONVERTOR
SERVO
STATUS
GENERATOR
TIMING
FOCUS
TRACKING
SERVO
CONTROL
CD+5V
FMFB
TGUH1
DMPC
DMFC
FMON
TKIC
TGUL
TEL1 TEL2
GNDD
VDDD
D-GND
CD+5V
FW702
SW701
CD EJECT
5V
(S+6.2V)
REGULATOR
Q861
TO MAIN PWB
CNS603
M 12V
D GND
VDI
DI
CE
CL
DO
VCE
VCL
CNS602
REC
R-MUTE
P CONT
P MUTE
S+6.2V
A GND
M GND
A 12V
SD
BIAS
B-CAN
FM ST
CD+B
L-CH
R-CH
SWTCHING
µ-CON5V
Q906
TAPE MOTOR
DRIVER SWTCHING
Q905
M-12V
Q902
SWTCHING
SWTCHING
SOLENOID
DRIVER
CNP901
CNS901
BI901
SW902
CAM
PREVENTION
RECORD
SW901
PH901 FW901
–
+
SOLENOID
M
M901
TAPE
BUS0
BUS1
BUS2
BUS3
BUCK
CCE
RESET
G-GND
A-GND
CD R-CH
CD L-CH
Q904
P.F
CAM SW
Q901
Q903
VRO TSO
SOL901
MOT
SOL
RUN PLS
IC802
PU IN

XL-505H,505E,507E/CP-505,505E,507
– 18 –
Figure 18 BLOCK DIAGRAM (3/4)
AM ANT.
T302 FM MUTE LEVEL
VR351
AM OSC OUT
SWITCHING
R-MUTE
X351
AM OSC.
T306
CF351
T351
AM IF
CF352
+5V
AM MIX OUT
FM IF DET./
FM MPX./AM IF
IC303
LA1832
(AM/FM) MO/ST
L-CH OUT
R-CH OUT
MPX VCO
MPX IN
FM/AM OUT
AM RF IN
AM OSC
OUT
AM OSC
IN
AM MIX OUT
FM IF IN
SD
GND
AM IF IN
STEREO
FM DET VCC
IF OUT
PHASE
PHASE
Q351
AM IF IN
VD303
L302
IC301
TA7358AP
FM FRONT END
PLL CONTROLLER
LC72131
AUDIO
+12V
VOLTAGE
REGULATOR
ZD351
ANTENNA
CNP301
AM LOOP
FM
BF301
FM+B
FM IF
T304
CF302
VT
L303
VD302
FM OSC
RF AMP.
IC302
VT
D GND
X352
4.5MHz
X OUT
X IN
AOUT
DO
CL
DI
CE
FM
FM
FM IN
AM IN
MO/ST IF REQ IF IN
VSS
AUDIO +
1
VOLTAGE
REGULATOR
FM+B
+5V
A-GND
Q360
VT
FM RF
Q305
BIAS OSC.
SWITCHING
NF
ALC
L-IN
L-OUT
REC
RECORD/PLAYBAK
HEAD
R-CH
L-CH
ERASE HEAD
BEAT CANCEL
SWITCHING
B-CAN
REC
SWITCHING
Q172
SWITCHING
Q171
REC
REC MUTE
A-12V
SWITCHING
R-CH
L-CH
R-OUT
IC102
150K
150K
MUTE
NF
R-IN
Q152
SWITCHING
Q151
L151
Q153
IC101
BA3126N
AUDIO +12V
SWITCHING
Q101-Q104 Q105
Q106
Q107
A-12V
REC BIAS
CONT
Q154
Q155
REC SW
P/B SW
CONT
P/B SW
REC SW
+
–
–
+
ALC
23
12 4
56789
10 12
13
14
15
16
1718
21
24
3
2
1
8
79
43 56
1
11
10
9
7
6
5
431
12
15
16
20
21
22
9
8
7
6
5
4
3
2
8
10
2
7
12
6 11
9
5
31
1

– 19 –
XL-505H,505E,507E/CP-505,505E,507
Figure 19 BLOCK DIAGRAM (4/4)
R-MUTE
AUDIO +12V
SD
STEREO
IC601
TAPE
VDD
RVROUT
LVROUT
Vref
RVref
LVref
LTEST
RTEST
AUDIO +12V
AUDIO PROCESSOR
LC75394E
IC401
G-EQ CONTROL
VOL CONTROL
FUNCTION CONTROL
VOLTAGE
REGULATOR
J601
HEADPHONES
AC SOCKET
230V,50Hz
POWER
TRANSFORMER
T651
T.F
CNP651
F651
T2.5A
L 250V
D651-D654
F653
T800mA
L 250V
BIAS B-CAN REC CD+B P MUTE CD L CD R A-GND M-GND D+5V M 12V
D-GND PRE DI
CL CQCK TUN DO TUN CE DI COIN
TO CD SERVO PWB
CNP602 CNP603
VOLTAGE
REGULATOR
MECH +12V
AUDIO +12V
VOLTAGE
REGULATOR
Q604
Q605
CD+6.2V
P-CONT F652
T1.25A
L 250V
VCC
STAND-BY
R-IN
MUTE Q601
Q602
+
–
SO601
SPEKER TERMINAL
R-CH X-BASS/GRAPHIC EQUALIZER
RINVIN2
RVRIN
RTOUT
RF3C3 RF3C2 RF3C1 RF2C3
L-CH X-BASS/GRAPHIC EQUALIZER
LSELO
VSS
NC
NC
RSELO
CD L
CD
TUNER
RF2C2 RF2C1
R3
L3
CD R
TUN L
TUN R
TAPE RTAPE L
REC RREC L
TAPE L TAPE R
CL
TUNER
DODI
CD+B
L1
L2
R2
R1
CL
D1
CE
NC
NC
AVSS
VSS
LINVIN2
LTOUT
LVRIN
L-IN
GND
L-CH OUT
R-CH OUT
Q609
Q603
Q608
Q606
Q607
R-MUTE A 12V
P CONT
FM ST
SD
PRE CL PRE CE
LF2C1 LF2C2 LF2C3 LF3C1 LF3C2 LF3C3
CE
58
55
54
59
63
56
50
57
2
12 1
987654
151413121110
321 987654321
8
14 35
10
1
3
74
2
30
19
17 32
11
28
23
24
25
31
29
27
26
22
20
18
5251 53
6061
62
45
44
43
42
4140
75
4
689

XL-505H,505E,507E/CP-505,505E,507
– 20 –
Figure 20 SCHEMATIC DIAGRAM (1/4)
A
B
C
D
E
F
G
H
123456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 27.
AM BAND
COVERAGE
FM BAND
COVERAGE
FM RF
1
+B
+B
+B +B
+B
+B
+B
+B
+B
+B
321
+B
+B
+B +B
+B
+B
+B
+B
+B
+B
8
7
6
5
4
3
2
1
8
7
6
5
4
3
2
1
3
2
1
9
8
7
6
5
4
3
2
9
7
6
2
10
8
12
11
5
1
3
11
10
98
7
6
5
4321
1213
14
15
1617
18
19
20
21
22
123 4
56789
10 11 12
1314
1516
17
18
1920
21
2223
24
9
4
37
568
12
FM MPX./ AM IF
FM IF DET./
PLL (TUNER)
HEAD SELECTOR
AMP.
EQUALIZER
REC./P.B.
ANTENNA
FM
AM LOOP
AM ANT.
AM
TRACKING
AM OSC.
LEVEL
FM MUTE SWITCHING
VOLTAGE
REGULATOR
AM IF
3
2
1
RF AMP.
3
2
1
FM IF
BAND PASS FILTER
ERASE HEAD
RECORD/PLAYBACK
HEAD
R-CH
L-CH
SWITCHING
SWITCHING
SWITCHING SWITCHING
SWITCHING
SWITCHING
BEAT CANCEL
SWITCHING
0V
10.8V
(0V) 32
1
BEAT CANCEL
SWITCHING
BEAT CANCEL
BIAS OSC.
SWITCHING
SWITCHING
REC MUTE
SWITCHING
REC MUTE
(10.8V) 10.8V
(0.14V)
0V
(0.15V)
0V
(0.8V)
0.3V
(0.8V)
0.3V
(0.15V)0V
11.4V
(0V)
0.3V
(0V)
4.7V
32 1
3
2
1
32
1
REC SW
P/B SW
P/B SW
CONT
REC SW
+
–
–
+
ALC
MUTE
150K
150K
VSS
X OUT
AOUT
AIN
PD
FM
MO/ST
IF REQ IF IN
SW
NC
AM IN
FM IN
VDD
DO
MW
FM
CL DI CE
NC
X IN
32 1
AM OSC OUT
FM IF IN
AM OSC IN
AM MIX OUT
REG FM AFC
AM RF IN
SD
STEREO
VSM
AM LOW CUT
FM/AM OUT
MPX VCO
MPX IN
MO/ST
R-CH OUT
L-CH OUT
VCC
IF OUT
PHASE
(AM/FM)
PHASE
FM DET
GND
AM IF IN
(CH)
(CH)
FM FRONT END
(ML)
(CH)
(UJ)
(UJ)
(CH)
(UJ)
(CH)
(CH)
FM+B
(ML)
TAPE L
TAPE R
REC R
REC L
VT
TP301
(UJ)
CE
DO
CL
DI
MAIN PWB-A1
IC101
BA3126N
R101
1K
VR351
10K(B)
R352
1K
BF301
Q172
KRC102 M
Q155
KTC3199 GR
C115
0.0022
C129
4.7/25
R121
4.7K
Q101
KTC3199 GR
C113
4.7/25
CNS101
CNP101
C373 0.018
R307
47
R110
3.9K
R138
330
C121
82P
CNP301
VD301-1
KV1236Z2
VD301-2
KV1236Z23F
R376
10K
C310
0.001
R120 180
R119
180
R112
2.2K
R111
2.2K
C360
0.022
C349
0.022
C333
0.022
R387
5.6K
C374
0.018
C371
1/50
D104
1SS133
R114
3.3K
R132
4.7K
Q106
KTC3199 GR
R155
56
R157
150
R156
150
R103
120
R137
4.7K
R136 10K
D105
1SS133
D106
1SS133
Q171
KRA102 M
R139
2.7K
R140
10K
C101
470P
C102
470P
R102
1K
Q107
KRC104 M
R104
120
R153
10K
R113 3.3K
R154
10K
C118 0.022
R141 330
R106
150K
R134
100K
C126 22/16
R133
1K
R131
4.7K
Q105
KTC3199 GR
R127
3.9K
R129
3.3K
R105
150K
C109
0.015/50
R107
10K R109
3.9K
C119 0.01
C107
47/16 C111
10/16
C112
10/16
C110
0.015/50
R108
10K
IC102
BA3311L
R130
3.3K
R135
680K
C125
100/25
R128
3.9K
C120
0.01
D102 1SS133
D101
1SS133
C105
270P
C104
330P
C123 2.2/50
C124
47/16
C108
47/16
C106
270P
C103
330P
C152
0.001
C151
180P
R160
5.6K
R159
5.6K
Q154
KTC3199 GR
C156
0.022
C153
0.0039
C154
0.027
R151
47K R152 100K
Q153
KRC104 M
C155 47/16
Q152
KTA1266 GR
Q151
2SC2001 K
L151
330µH
R116
15K
C114
4.7/25
R126
5.6K
C130
4.7/25
R123
4.7K
R124
4.7K
R122
4.7K
R117
22K
R118
22K
Q103
KTC3199 GR
Q104
KTC3199 GR
Q102
KTC3199 GR
C117
10/16 R125
100K
C116
0.0022
R115
15K
C122
82P
R320
33
R321
22
C337
0.022
C376 220P
C377 220P
C378 220P C379 220P R371
1K
R372
1K
R373
1K
R374
1K
C370
1/50
C383 0.022
C386
330P
R386
330
R393
1K
R351 5.6K
R392
390
R391
390
R395
47K
X351
Q351
KRC104 M
R361
12K
X352
4.5MHz
C384
0.001
C382
15P
C381
12P
L351
100µH
R377
5.6K
R359
1.8K
C380 1/50
C392
0.001
IC302
LC72131
R365
10K
R360
4.7K
R382
330 R381
10K
C393
1/50
R380
1.5K
R379
2.2K
C394
47/16
C385
0.01
C387 0.022
C397
0.022
R384
5.6K
R383
5.6K
R385
5.6K
C391
47/16
Q360
KTA1266 GR
L353
1mH
R358
8.2K
IC303
LA1832
CF351
C364
10/16
C356 0.001
R363
3.3K
R364
3.3K
R362
12K
C395
0.022
C396
100/10
ZD351
UZ5.1BSB
L352
100µH
C357
2.2/50
C358
1/50
C398
100/10
C352 10/16
R355
3.3K
R353
270
C355
22P
C399 0.022 C354 0.022
C353
0.022
C350
0.022
C344
33P
C351 0.022
CF352
T351
R357
470K
R356 1K
R350
2.7K
TP302
C372
1/50
C368 1/50
C367
1/50
C362 3.3/50
C369 56P
C366 0.001 C365 0.022
C363
0.022
C361 0.022
C343
33P
CF302
C342
0.022
R310
4.7K
C314 22P
C316
10/16
C317 0.022
R308 10K
VD302 KDV147C
R309
820
R305
680
C315
100P
R304
47K
Q305
2SC535 C
R301
22
L303
R303 33K
R302 100K
L302
D305
1SS133
C304 0.01
C306 6.8P
C303
0.001
C313 3.3P
R306
10
C311
15P
C312
33P
C309 0.001 C308 0.022 C307 0.0047 C305 0.0047
VD303 KDV147C
C318
4.7P
T304
IC301
TA7358AP
C319
18P
C331
0.047 C332
0.022
C330
8.2P
R319
100K
C336
470P
C335
18P
C334
18P
R336
4.7K
T302
R324
100K
R323
68K
T306
D302
1SS133
D301
1SS133
