EFEN E3-DMM-5T-2 User manual

Multifunction metering device
70830-0010 E3-DMM-5T-2
Operation manual

2EFEN GmbH · Technical changes reserved· Released: March 2020
Information regarding operational safety of the device is marked with the following symbols. All information
and recommendations marked with those symbols must be strictly obeyed.
Electric shock risk
Potentially dangerous situation that can lead to operator’s hazard or damage to the device
Information regarding construction, functioning and operation of the analyzer
Important information, useful tip
Practical guideline, solution to the problem
An example of usage or function

3
EFEN GmbH · Technical changes reserved· Released: March 2020
Contents
Introduction ...................................................................................................................... 4
Technical data .................................................................................................................... 4
Assembly .......................................................................................................................... 6
Safety precautions ........................................................................................................ 6
Assembly diagrams ....................................................................................................... 9
Multifunction meter panel ................................................................................................ 12
Operating panel ............................................................................................................ 12
Description of display elements ..................................................................................... 13
Indicator mode –network parameters display ................................................................ 15
Configuration ............................................................................................................... 21
Entering PIN number .............................................................................................. 23
Communication parameters ................................................................................... 23
Communication ................................................................................................................ 32
Connection method ...................................................................................................... 32
Read / Write of parameters through RS485 .................................................................. 32
List of registers with measurement results .................................................................... 32
List of registers with meter configuration ...................................................................... 37

4EFEN GmbH · Technical changes reserved· Released: March 2020
Introduction
E3-DMM-5T-2 is a multifunction, universal metering device used for overall monitoring of one- or three-phase power
supply line parameters. The analyzer enables the user to make high-precision measurements of all crucial network
parameters, such as: voltage and phase currents, phase-to-phase voltage, active power, reactive power, apparent po-
wer, power factor. In addition, the analyzer ensures full, four-quadrant metering (both imported and exported to the
network) and analyzes the distribution of harmonics of voltage and current up to 63rd harmonic inclusive.
Technical data
Meter circuit
Network 1P2W - one-phase, two-wire
3P3W – three-phase, three-wire
3P4W - three-phase, four-wire
Current sensing
Nominal current In0.25 – 5 (6) A
(real value of measured current will depend on the size of applied
current transformers)
Overload capacity (continuous) 120% In
Power consumption ≤0,5 VA/phase
Voltage measurement
Measuring range 58 – 230 V AC (phase voltage L-N)
100 – 400 V AC (phase-to-phase voltage L-L)
Frequency 45~55 Hz
Overload capacity (continuous) 120 % Un
Working conditions
Total power consumption typical ≤ 2 VA
temporary ≤ 15 VA
Working temperature -25°C~55°C
Storage temperature -40°C~70°C
Relative humidity 0~95% (without condensation of steam and aggressive gases)
Pollution class 2
Enclosure flammability UL94-V0
Protection standard Front – IP54
Rear – IP20
Enclosure dimensions 96 x 96 x 62 mm
Mounting hole dimensions 92 x 92 mm
Panel thickness 1-5 mm
Communication
Impulse outputs (not available
in standard version)
2
Port RS-485 Communication port in accordance with Modbus RTU interface.
Transmission rate: 2400/4800/9600/19200/38400 bps
Parity: no, even, odd
Stop bits: 1, 2

5
EFEN GmbH · Technical changes reserved· Released: March 2020
Multifunction meter operation E3-DMM-5T-2
Technical data
Parameter Displayed value Accuracy
Voltage 0~9999,9 kV 0,2 %
Current 0~9999,9 kA 0,2 %
Power factor -1~+1 1 %
Frequency 45~65 Hz 0,2 %
Active power 0~3600 MW 0,5 %
Reactive power 0~3600 MVAr 1 %
Apparent power 0~3600 MVA 1 %
Active energy 0~9999999,9 kWh Class 0.5S (IEC62053-22)
Reactive energy 0~9999999,9 kVArh 2 %
Phase angle 2 %
Current distortion factor
(overall or individual
from the 2nd – 63rd
harmonic)
0~100% 2 %
Voltage distortion factor
(overall or individual
from the 2nd – 63rd
harmonic)
0~100% 2 %

6EFEN GmbH · Technical changes reserved· Released: March 2020
Multifunction meter operation E3-DMM-5T-2
Assembly
Safety precautions
The analyzer must be installed and connected by qualified
personnel. All available safety requirements must be taken
into consideration.
Supply voltage
E3-DMM-5T-2 multifunction meter is powered through potential terminals V1,
V2, V3, N and doesn’t require auxiliary power supply.
It is recommended to protect power supply and voltage circuits of the
meter using 1A fuse link.
Measurement voltage
Maximum value of measurement voltage cannot exceed 280 V AC (phase
voltage between terminals L-N) or 500 V AC (phase-to-phase voltage between
terminals L-L). When maximum value of measurement voltage is exceeded, it
may lead to damage to the device.
Measurement current
The multifunction meter can be applied for direct measurements of current
with application of current transformers with the secondary current of 5 A.
If measurement current exceeds 6 A, it may lead to damage to the device.
Environmental conditions
The device can be operated at the temperature from -25°C to +55°C and air
humidity lower than 90%. Exceeding those limiting parameters may lead to
improper operation and damage to multifunction meter.

7
EFEN GmbH · Technical changes reserved· Released: March 2020
You must make a hole 92x92mm in the panel, thickness of the material the panel was made of cannot exceed 5 mm.
Multifunction meter is adapted for mounting in E3 system frames, e.g. 36422-0010.
Multifunction meter must be inserted from the front of the panel, when all wires are disconnected, and must be
pressed to the surface of the panel. Having assembled the multifunction meter on the panel, you can proceed to
connecting the wires. Distribution of terminals scheme is presented in Fig. 2.

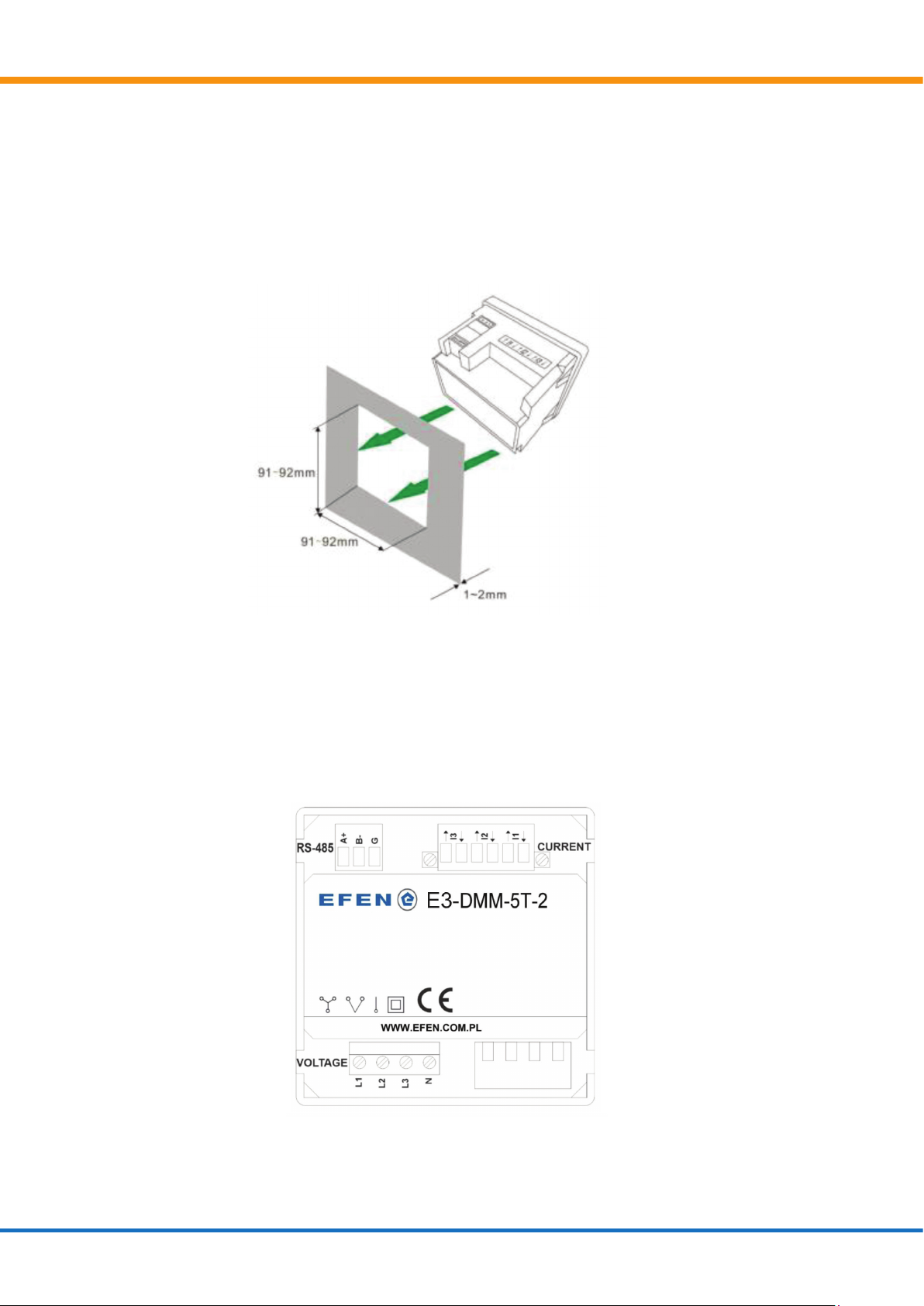

Fig. 1. Multifunction meter assembly method
Fig. 2. View of multifunction meter from the side of terminal strips

8EFEN GmbH · Technical changes reserved· Released: March 2020
Multifunction meter operation E3-DMM-5T-2
Assembly
Safety precautions
Terminal
block
Terminal Function Notes
VOLTAGE
L1
Voltage
measurement circuit
Meter power supply
The method of connecting voltage terminals to the
measured system must be adapted to the type of
measured system, in accordance with diagrams in
Fig.3 - Fig.7.
L3
L3 Voltage circuits of the meter must be protected with
1A time-delay fuse link
N
CURRENT
I1 
I1 
Current
measurement circuit
Current measurement circuit can be used for con-
nection of current transformers with secondary
current of 5A and power of min. 0,5 VA.
I2 
I2 
Current input of the meter marked with this symbol
, must be connected to terminal S1 of current
transformer. Current input of the meter marked with
this symbol , must be connected to terminal S2 of
current transformer.
I3 
I3 
To prevent occurrence of high potentials on trans-
former terminals, all S2 terminals of transformers
should be connected grounded.
PULSE P1+
COM
P2+
Impulse outputs
(not available in
standard version)
Passive impulse outputs (open collector), in accordance with
Class A IEC 62053-31
P1 – Programmable impulse outputs (function and number of
impulses)
P2 – Energy consumption indication (3200 imp/kWh)
COM – common outputs ground P1 and P2.
Maximum load of a single impulse output:
Voltage ≤ 30 V
Current ≤20 mA
RS485
A+
Communication
interface RS485
It is recommended to use screened wires dedicated
for RS485 communication.
Terminating resistors of 120 Ωmust be connected
at the ends of the bus.
Up to 32 E3-DMM-5T-2 meters can be connected to
one limb of the RS485 bus.
B-
G

9
EFEN GmbH · Technical changes reserved· Released: March 2020
Multifunction meter operation E3-DMM-5T-2
Assembly
Connections diagrams

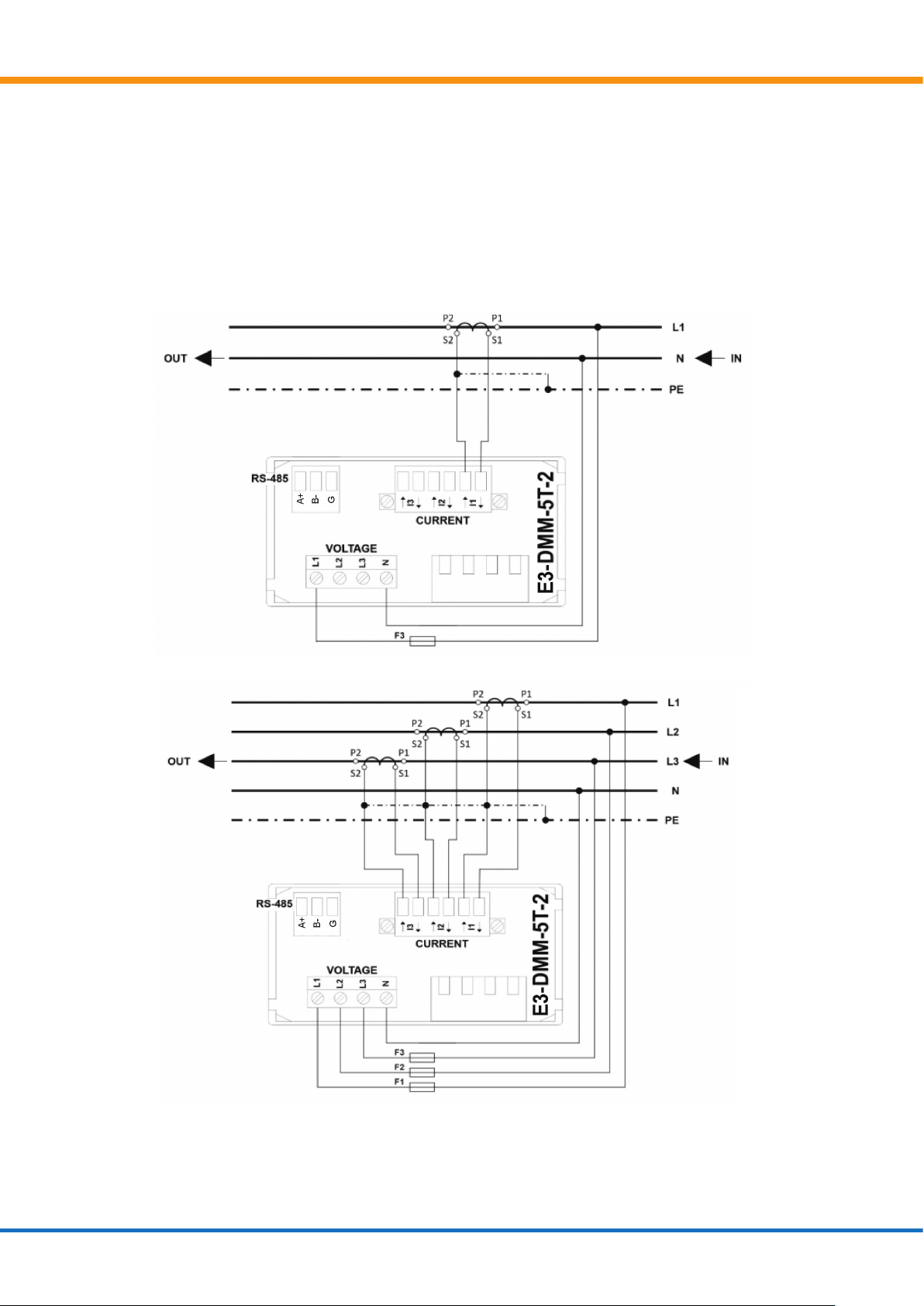

Fig. 3. 1P2W circuit – 1-phase, 2-wire system, semi-indirect-measurement
Fig. 4. 3P4W system – 3-phase, 4-wire system, semi-indirect-measurement

10 EFEN GmbH · Technical changes reserved· Released: March 2020
Multifunction meter operation E3-DMM-5T-2
Assembly
Connections diagrams
Fig. 5. 3P3W system – 3-phase, 3-wire system, semi-indirect-measurement
Fig. 6. 3P4W system –3-phase, 4-wire system, indirect measurement

11
EFEN GmbH · Technical changes reserved· Released: March 2020
Multifunction meter operation E3-DMM-5T-2
Assembly
Connections diagrams

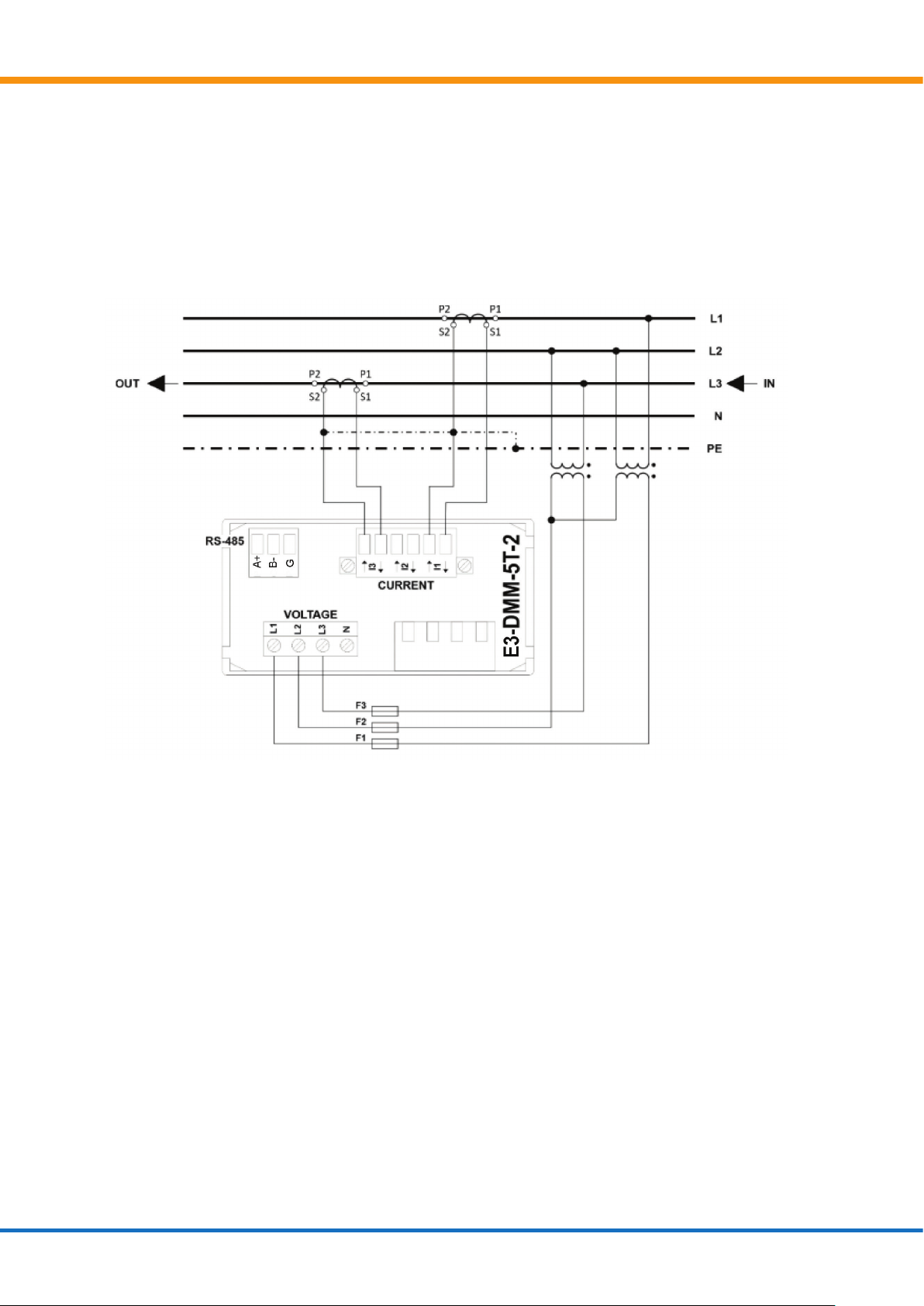

Fig. 7. 3P3W system –3-phase, 3-wire system, indirect measurement

12 EFEN GmbH · Technical changes reserved· Released: March 2020
Multifunction meter operation E3-DMM-5T-2
Multifunction meter operation
Operating panel
E3-DMM-5T-2 operating panel consists of 2 parts - multifunction LCD display providing convenient parameters
reading and five keys that enable the change of displayed parameters and module configuration.

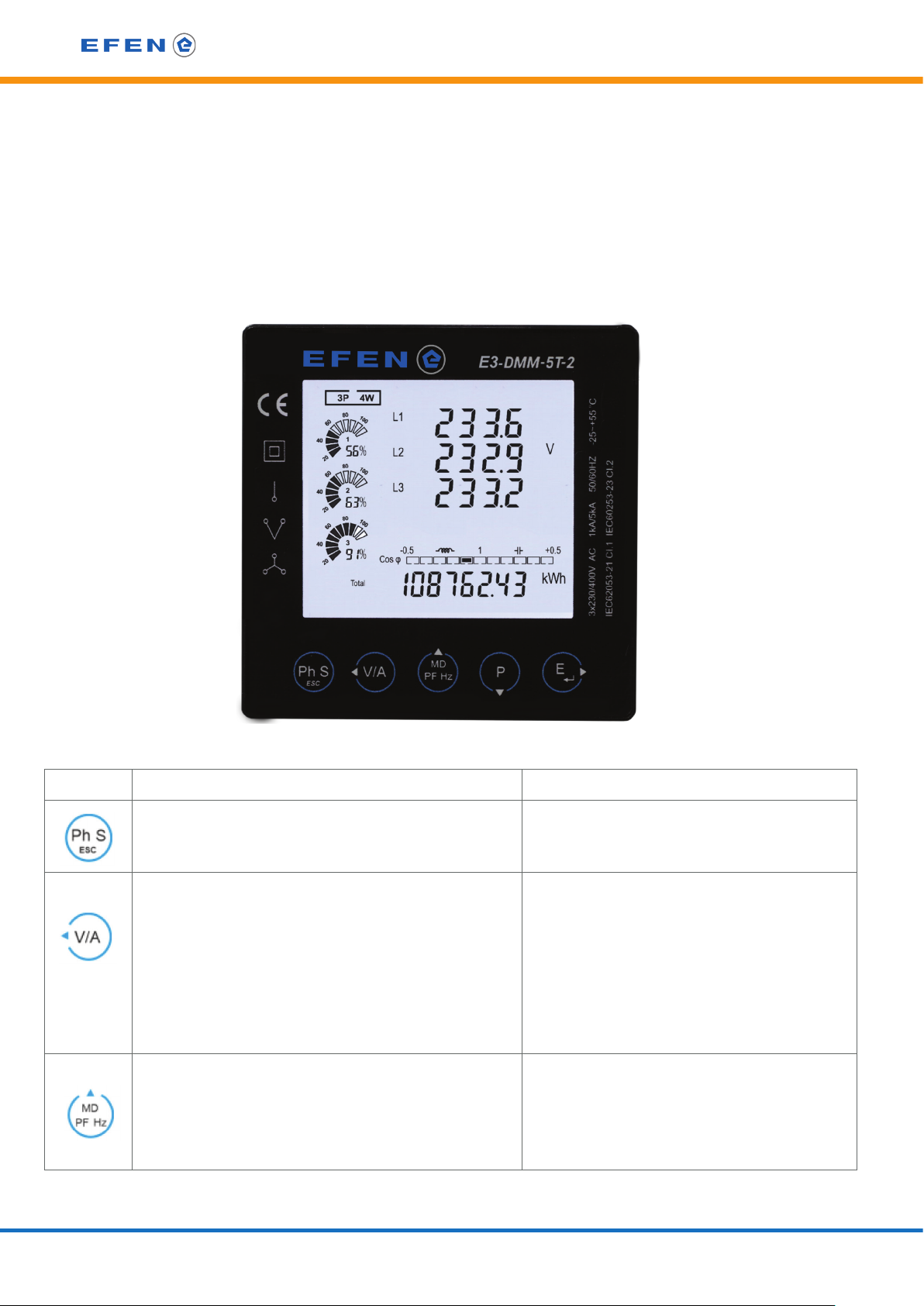

Fig. 8. View of multifunction meter front panel

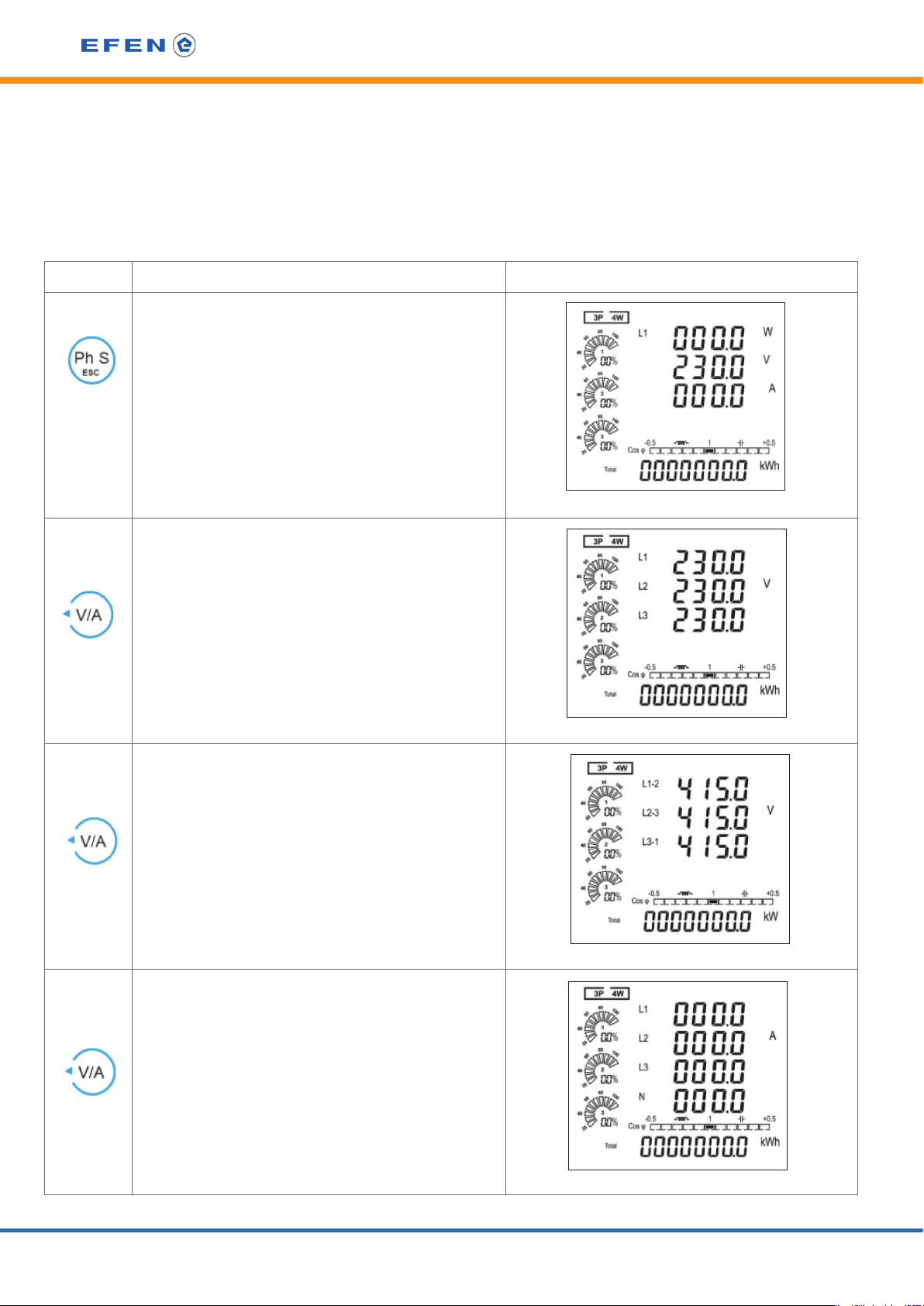

Key Short pressing Long pressing (2 seconds)
• Voltage, current, active power, active and reactive
energy for the respective phases;
• In configuration mode return to previous menu ESC.

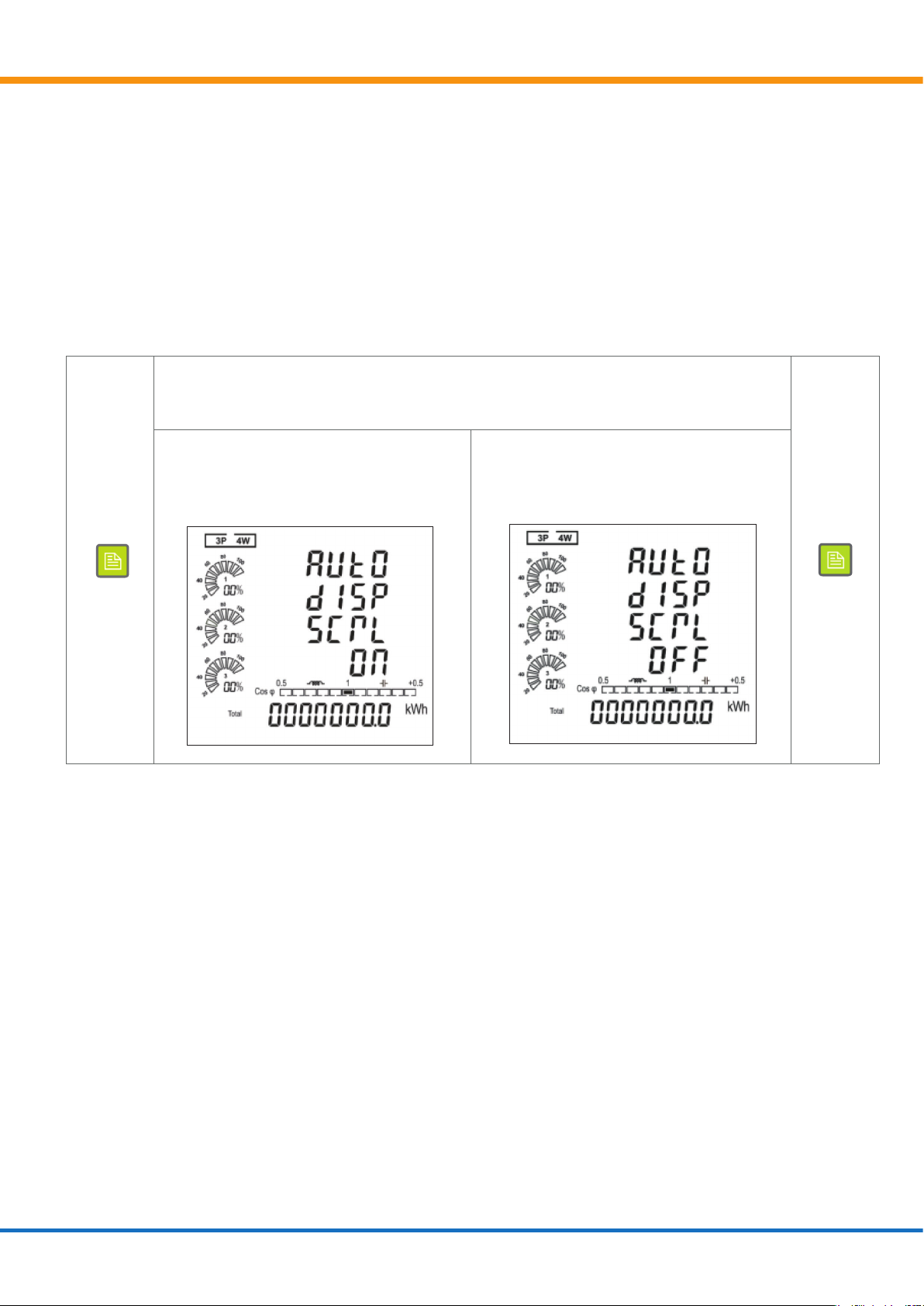

• Turn on / off the mode of automatic
change of measured values display.
• Phase voltages;
• Phase-to-phase voltages;
• Phase currents;
• Harmonics (total) of voltage and current divided
into phases;
• Phase sequence
• In configuration mode or value selection mode –
Key Left.
• Voltage harmonics (from 1 to 63), change
of displayed harmonics through keys Up or
Down.
• Frequency and total power factor;
• Power factor divided into phases;
• Maximum and medium current consumption;
• In configuration mode or value selection mode –
Key Up (increase of value).
• Current harmonics (from 1 to 63), change
of displayed harmonics through keys Up or
Down.

13
EFEN GmbH · Technical changes reserved· Released: March 2020

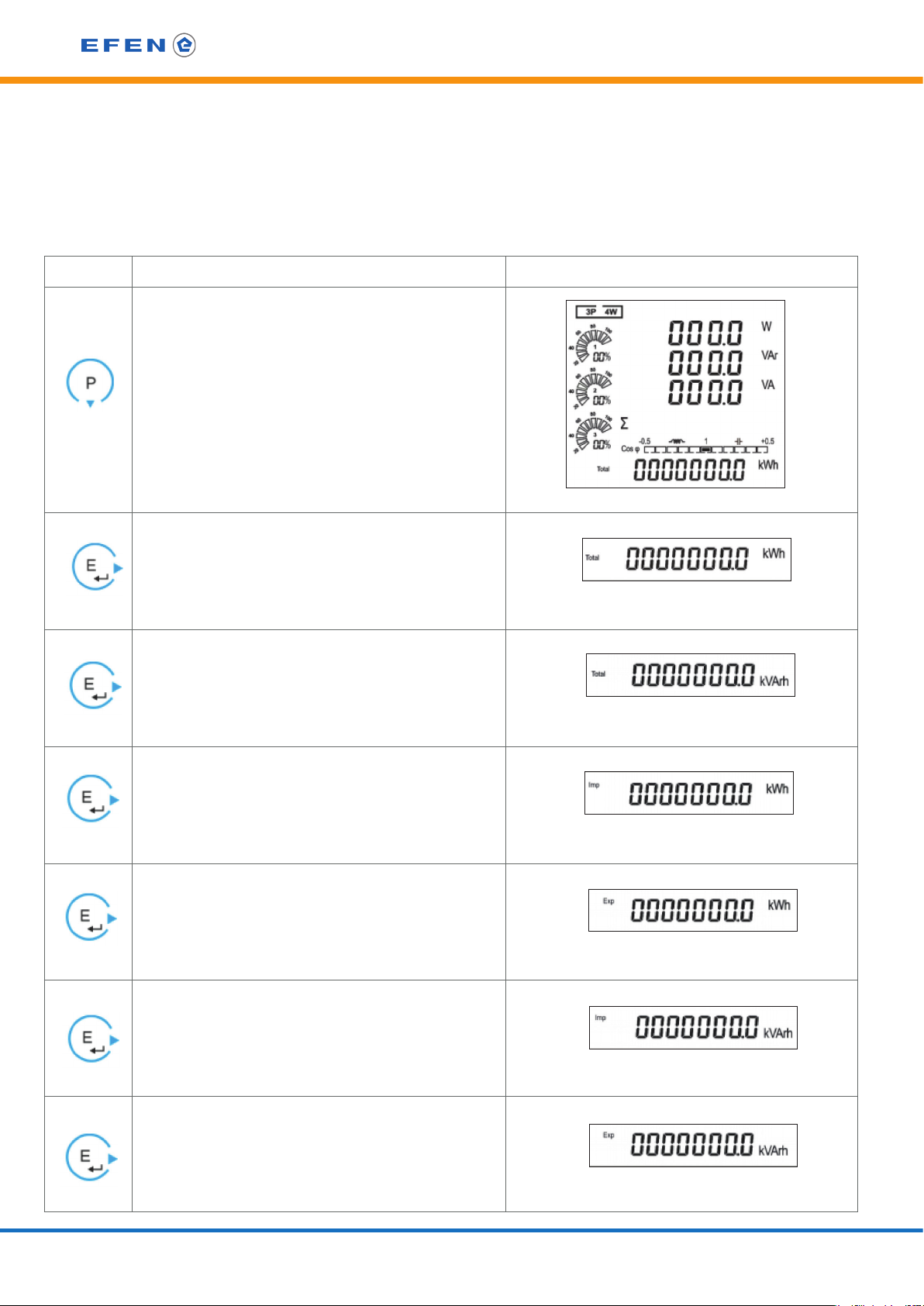

Key Short pressing Long pressing (2 seconds)
• Active power divided into phases;
• Reactive power divided into phases;
• Apparent power divided into phases;
• Total active, reactive and apparent power;
• In configuration mode or value selection mode
– Key Down (decrease of value).
• Device working time.
• Total active energy;
• Total reactive energy;
• Imported active energy;
• Imported reactive energy;
• Exported active energy;
• Exported reactive energy;
• In configuration mode or value selection mode
– Key Right.
• Entering configuration mode;
• Confirmation of parameter value.
Multifunction meter operation E3-DMM-5T-2
Multifunction meter operation
Operating panel
Fig. 9. Display description
Description of display elements

14 EFEN GmbH · Technical changes reserved· Released: March 2020
Number Description
1 Indicator of the selected system type:
• 1P2W – 1-phase, 2-wire system,
• 3P3W – 3-phase, 3-wire system,
• 3P4W – 3-phase, 4-wire system,
2 Bargraph indicating power consumption on individual phases
3DMD – display of demand indication
4AVG – display of mean value of all phases
5 Power display indicator:
 • P– active,
 • Q– passive,
 • S– apparent.
6 Indication of impulse outputs functioning
7 Value display:
 • MIN – minimum,
 • MAX – maximum.
8 Measured values indicator
9 RS-485 communication indicator
10 Shows units of displayed measured values
11 Indicators:
 • PF – power factor,
 • THD % - percentage content of harmonics,
• Hz – frequency.
12 Graphic indicator of power factor
13 Energy consumption indicator with given unit
14 Shows type of energy displayed in the field 13:
 • TOTAL – total energy consumption,
 • IMP – imported energy,
 • EXP – exported energy.
Multifunction meter operation E3-DMM-5T-2
Multifunction meter operation
Operating panel

15
EFEN GmbH · Technical changes reserved· Released: March 2020
Multifunction meter operation E3-DMM-5T-2
Multifunction meter operation
Indicator mode –network parameters display
The choice of displayed measured value is made by short or long pressing of the respective keys on the front side of
the multifunction meter. List of views with keys that activate them is presented in the following table.
Multifunction meter can permanently display a selected view with measured va-
lues or automatically switch views in accordance with the determined cycle. Fast
change between those views is available after long pressing of the ESC key.
Automatic display switch ON Automatic display switch OFF

16 EFEN GmbH · Technical changes reserved· Released: March 2020
Key Function Panel view
Display of voltage, current, active power and
active or reactive energy parameters divided into
separate phases.
View available after pressing ESC. Switching
between the consecutive phases and the view of
active or reactive energy can be done by further
pressing of ESC.
Fig. 10
Phase voltage
Fig. 11
Phase-to-phase voltages
Fig. 12
Phase currents and neutral wire current
Fig. 13
Multifunction meter operation E3-DMM-5T-2
Multifunction meter operation
Indicator mode –network parameters display

17
EFEN GmbH · Technical changes reserved· Released: March 2020
Key Function Panel view
Total content of voltage harmonics divided
into phases
Fig. 14
Total content of current harmonics divided
into phases
Fig. 15
Phase sequence indicator (measured in relati-
on to voltage and current terminals)
Fig. 16
Selected voltage harmonics
Press the key for two seconds and then select
the number of the harmonic using keys Up or
Down.
Fig. 17
Multifunction meter operation E3-DMM-5T-2
Multifunction meter operation
Indicator mode –network parameters display

18 EFEN GmbH · Technical changes reserved· Released: March 2020
Key Function Panel view
Total power factor and frequency
Fig. 18
Power factor for the respective phases
Fig. 19
Maximum current demand
Fig. 20
Maximum power demand
Fig. 21
Multifunction meter operation E3-DMM-5T-2
Multifunction meter operation
Indicator mode –network parameters display

19
EFEN GmbH · Technical changes reserved· Released: March 2020
Key Function Panel view
Selected current harmonic
Press the key for two seconds and then select
the number of the harmonic using keys Up or
Down.
Fig. 22
Active power dived into phases
Fig. 23
Reactive power dived into phases
Fig. 24
Apparent power dived into phases
Fig. 25
Multifunction meter operation E3-DMM-5T-2
Multifunction meter operation
Indicator mode –network parameters display

20 EFEN GmbH · Technical changes reserved· Released: March 2020
Key Function Panel view
Total active, reactive and apparent power
Fig. 26
Total active energy
Fig. 27
Total reactive energy
Fig. 28
Imported active energy
Fig. 29
Exported active energy
Fig. 30
Imported reactive energy
Fig. 31
Exported reactive energy
Fig. 32
Multifunction meter operation E3-DMM-5T-2
Multifunction meter operation
Indicator mode –network parameters display
