Ego Power+ HPW3200 User manual

OPERATOR'S MANUAL
56-VOLT LITHIUM-ION
PRESSURE WASHER
MODEL NUMBER HPW3200/HPW3200-FC
WARNING: To reduce the risk of injury, the user must read and understand the
Operator’s Manual before using this product. Save these instructions for future reference.
PRESSURE WASHER
Español p. 89
Français p. 43

56-VOLT LITHIUM-ION PRESSURE WASHER — HPW3200/HPW3200-FC2
READ ALL INSTRUCTIONS!
READ & UNDERSTAND
OPERATOR'S MANUAL
TABLE OF CONTENTS
Safety Symbols ..........................................3
Symbols ...............................................4
Safety Instructions for Pressure Washer ....................5-6
Introduction ............................................7
Specifications ...........................................8
Accessories ............................................9
Description .........................................10-14
Assembly ..........................................15-24
Operation ..........................................25-30
Maintenance ........................................31-36
Troubleshooting .....................................37-39
EGO Limited Warranty .................................40-41

56-VOLT LITHIUM-ION PRESSURE WASHER — HPW3200/HPW3200-FC 3
SAFETY SYMBOLS
The purpose of safety symbols is to attract your attention to possible dangers. The safety
symbols and the explanations with them deserve your careful attention and understanding.
The symbol warnings do not, by themselves, eliminate any danger. The instructions and
warnings they give are no substitutes for proper accident prevention measures.
WARNING: Be sure to read and understand all safety instructions in this
Operator’s Manual, including all safety alert symbols such as “DANGER”, “WARNING”,
and “CAUTION” before using this machine. Failure to follow all instructions listed below
may result in electric shock, fire, and/or serious personal injury.
The definitions below describe the level of severity for each signal word. Please read
the manual and pay attention to these symbols.
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
DANGER DANGER indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING WARNING indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION CAUTION, used with the safety alert symbol, indicates a hazardous
situation which, if not avoided, will result in minor or moderate injury.
DAMAGE PREVENTION AND INFORMATION MESSAGES
These inform the user of important information and/or instructions that could lead
to equipment or other property damage if they are not followed. Each message is
preceded by the word “NOTICE”, as in the example below:
NOTICE: Equipment and/or property damage may result if these instructions are not
followed.

56-VOLT LITHIUM-ION PRESSURE WASHER — HPW3200/HPW3200-FC4
SYMBOLS
This page depicts and describes symbols that may appear on this product. Read,
understand, and follow all instructions on the product before attempting to assemble
and operate.
Safety Alert Precautions that involve your safety.
Read &
Understand
Operator's
Manual
To reduce the risk of injury, user must read
and understand the operator’s manual before
using this product.
Do not connect
to the potable
water mains.
Product is not intended to be connected to
the potable water mains.
IP...
Ingress
Protection (IP)
Rating
Classifies the degree of protection provided
by an enclosure, for electrical equipment.
°F Degrees
Fahrenheit Temperature
°C Degrees Celsius Temperature
lbs Pounds Weight
kg Kilogram Weight
PSI Pounds per
Square Inch Pressure
MPa Megapascal Pressure
GPM Gallons per
Minute Flow rate
L/min Liters per Minute Flow rate

56-VOLT LITHIUM-ION PRESSURE WASHER — HPW3200/HPW3200-FC 5
SAFETY INSTRUCTIONS FOR PRESSURE WASHER
WARNING: Risk of injury. Do not direct discharge stream at persons.
WARNING: When using this product basic precautions should always be
followed, including the following:
◾Read all the instructions before using the product.
◾To reduce the risk of injury, close supervision is necessary when a product is used
near children.
◾Know how to stop the product and bleed pressure quickly. Be thoroughly familiar
with the controls.
◾Stay alert – watch what you are doing.
◾Do not operate the product when fatigued or under the influence of alcohol or
drugs.
◾Keep operating area clear of all persons.
◾Do not use the pressure washer in bad weather conditions, especially when there
is a risk of lightning. This decreases the risk of being struck by lightning.
◾Do not connect to the potable water mains. Product is not intended to be
connected to the potable water mains.
◾Do not overreach or stand on unstable support. Keep good footing and balance at
all times.
◾Follow the maintenance instructions specified in the manual.
◾Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to battery pack, picking up or carrying the appliance. Carrying the
appliance with your finger on the switch or energizing appliance that has the
switch on invites accidents.
◾Disconnect the battery pack from the appliance before making any adjustments,
changing accessories, or storing appliance. Such preventive safety measures
reduce the risk of starting the appliance accidentally.
◾Recharge only with the charger specified by the manufacturer. A charger that is
suitable for one type of battery pack may create a risk of fire when used with
another battery pack.
◾Use the appliance only with specifically designated battery packs. Use of any
other battery packs may create a risk of injury and fire.

56-VOLT LITHIUM-ION PRESSURE WASHER — HPW3200/HPW3200-FC6
◾When battery pack is not in use, keep it away from other metal objects, like paper
clips, coins, keys, nails, screws or other small metal objects, that can make a
connection from one terminal to another. Shorting the battery terminals together
may cause burns or a fire.
◾Under abusive conditions, liquid may be ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water. If liquid contacts eyes, additionally
seek medical help. Liquid ejected from the battery may cause irritation or burns.
◾Do not use a battery pack or appliance that is damaged or modified. Damaged or
modified batteries may exhibit unpredictable behavior resulting in fire, explosion
or risk of injury.
◾Do not expose a battery pack or appliance to fire or excessive temperature.
Exposure to fire or temperature above 265°F (130°C) may cause explosion.
◾Follow all charging instructions and do not charge the battery pack or appliance
outside of the temperature range specified in the instructions. Charging
improperly or at temperatures outside of the specified range may damage the
battery and increase the risk of fire.
◾Have servicing performed by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the product is maintained.
◾Do not modify or attempt to repair the appliance or the battery pack (as
applicable) except as indicated in the instructions for use and care.
◾Use only with the battery packs and chargers listed below:
BATTERY PACK CHARGER
BA1400, BA1400-FC, BA2800, BA2800-FC,
BA4200, BA4200-FC, BA1400T, BA1400T-FC,
BA2242T, BA2242T-FC, BA2800T, BA2800T-FC,
BA3360T, BA3360T-FC, BA4200T, BA4200T-FC,
BA4480T, BA4480T-FC, BA5600T, BA5600T-FC,
BA6720T, BA6720T-FC
CH2100, CH2100-FC,
CH3200, CH3200-FC,
CH5500, CH5500-FC,
CH2800D, CH2800D-FC,
CH7000, CH7000-FC
SAVE THESE INSTRUCTIONS! Refer to them frequently and use them to instruct others
who may use this appliance. If you loan this appliance to someone else, also loan these
instructions to them to prevent misuse of the product and possible injury.

56-VOLT LITHIUM-ION PRESSURE WASHER — HPW3200/HPW3200-FC 7
INTRODUCTION
Congratulations on your selection of the 56V Lithium-ion Pressure Washer. It has been
designed, engineered and manufactured to give you the best possible dependability
and performance.
Should you experience any problem you cannot easily remedy, please contact EGO
customer service center 1-855-EGO-5656.
This manual contains important information on to the safe assembly, operation and
maintenance of your product. Read it carefully before using the product. Keep this
manual handy so you can refer to it at any time.
SERIAL NUMBER _____________________ DATE OF PURCHASE _________________
YOU SHOULD RECORD BOTH SERIAL NUMBER AND DATE OF PURCHASE AND KEEP IN A SAFE
PLACE FOR FUTURE REFERENCE.

56-VOLT LITHIUM-ION PRESSURE WASHER — HPW3200/HPW3200-FC8
SPECIFICATIONS
Voltage 56 V
Maximum Rated Pressure 3200 PSI (22 MPa)
Maximum Rated Flow
(with quick connect lance and stainless steel
wand connected)
1.2 GPM (4.5 L/min)
Maximum Rated Flow
(with only short pressure gun connected) 2.0 GPM (7.5 L/min)
Ingress Protection Rating IPX5* (Protection from water jets)
Recommended Operating Temperature 41°F – 104°F (5°C – 40°C)
Recommended Storage Temperature -4°F – 158°F (-20°C – 70°C)
Weight (without battery pack) 36.2 lbs. (16.4 kg)
* NOTE: IPX5 rating is valid when the battery compartment is properly closed.

56-VOLT LITHIUM-ION PRESSURE WASHER — HPW3200/HPW3200-FC 9
ACCESSORIES
WARNING: Use only identical accessories listed below. Use of accessories that
do not meet the original equipment specifications may lead to improper performance
and compromised safety.
PART NAME MODEL NUMBER
0° Nozzle ANZ3200
Nozzle Kit
(Includes one of each: Turbo nozzle, 15° nozzle, 25° nozzle,
40° nozzle, Rinse nozzle)
ANK3200
For more information about the latest accessories, please visit:
www.egopowerplus.com.

56-VOLT LITHIUM-ION PRESSURE WASHER — HPW3200/HPW3200-FC10
DESCRIPTION
KNOW YOUR PRESSURE WASHER (Fig. 1)
1
1316
14
15
4
17
5
3
8
7
6
9
10
11
12
12
1. Telescopic Handle
2. Handle Lock Button
3. Upper Holder Bracket
4. Wheel (x2)
5. Lower Holder Bracket
6. Water Inlet Port
7. Water Outlet Port
8. Speed Button
9. Speed Indicator
10. Power Button
11. Battery Pack Compartment
12. Nozzles Storage
13. Battery Pack Compartment Cover
14. Electric Contacts
15. Ejection Mechanism
16. Battery-Release Button
17. Hose Holder Strap

56-VOLT LITHIUM-ION PRESSURE WASHER — HPW3200/HPW3200-FC 11
1a 19
20
23
24
22
21
33 34
32
38
25 37
30
31
26 27 28 29
18
35
36
18. Stainless Steel Wand
19. Quick Connect Lance
20. High-pressure Hose
21. Siphon Hose
22. Quick-Coupler Set (x2)
23. Foam Cannon
24. Filter
25. Nozzle Cleaning Needle
26. Rinse Nozzle
27. 40° Nozzle
28. 25° Nozzle
29. 15° Nozzle
30. Turbo Nozzle
31. Short Pressure Gun
32. Battery Cover
33. 5-LED Fuel Gauge
34. Speed Indicator
35. Speed Button
36. Gun Handle
37. Trigger
38. Lock-off Button

56-VOLT LITHIUM-ION PRESSURE WASHER — HPW3200/HPW3200-FC12
WARNING: The safe use of this product requires an understanding of the
information on the product and in this instruction manual, as well as knowledge of
the project you are attempting. Before use of this product, familiarize yourself with all
operating features and safety rules.
Telescopic Handle
Pull out the telescopic handle by pressing the telescopic handle lock button to roll the
pressure washer to desired place easily.
Handle Lock Button
Press the lock button to pull out or press down the telescopic handle, and release the
lock button to lock the telescopic handle in one of three positions.
Wheels
The wheels are used to quickly roll the pressure washer.
Water Inlet Port
With connected siphon hose, this port is used for water inflow.
Water Outlet Port
With connected pressure hose, this port is used for water outflow.
Siphon Hose
Provides path for water inflow.
High-pressure Hose
Provides path for water outflow.
Hose Holder Strap
Secures the pressure hose when it is stored behind the telescopic handle pole.
Short Pressure Gun
Hold the gun to spay out water. Provides high flow and low pressure for rinsing
applications.

56-VOLT LITHIUM-ION PRESSURE WASHER — HPW3200/HPW3200-FC 13
Upper/Lower Holder Bracket
Provides support for the short pressure gun, quick connect lance, and stainless steel
wand when they are not used.
Quick Connect Lance
Required to connect the stainless steel wand to the short pressure gun. Also serves as
an auxiliary handle.
Stainless Steel Wand
Required to connect most of the nozzles.
Nozzles
Used to spray water at various flow rates, angles, and shapes for different applications.
Foam Cannon
Add detergent into the foam cannon to perform deep cleaning. Please follow
concentration recommendations for specific foaming detergent.
Nozzle Cleaning Needle
Used to clear the nozzle blockage.
Quick-Coupler Set (x2)
Factory-installed onto the water outlet port, pressure hose, and short pressure gun for
quick connection/disconnection.
Filter
Filters the water before it flows into the siphon hose.
Battery Cover
Protects the coin cell (button cell) battery inside and can be opened for replacement of
the battery.
Trigger
Turns the water spraying on and off.

56-VOLT LITHIUM-ION PRESSURE WASHER — HPW3200/HPW3200-FC14
Lock-off Button
Helps to prevent accidental activation of the trigger. Press the unlock side of the button
before the trigger can be activated.
Battery Pack Compartment
Accommodates two battery packs.
Battery-Release Button
Press to release the battery pack from the pressure washer.
PEAK POWER™
This technology combines the power of up to two EGO 56V ARC Lithium™batteries for
longer run time and efficient power draw.
OPERATOR PANEL
Power Button
Powers the pressure washer ON and OFF.
Speed Button
Allows the operator to select the desirable speed.
Speed Indicator
Displays one green light, two green lights, three green lights to indicate the pressure
washer running at low, high, or TURBO speed respectively.
5-LED Fuel Gauge
Indicates the battery-charge level. When two battery packs are installed, it indicates the
level of the one with the higher charge.

56-VOLT LITHIUM-ION PRESSURE WASHER — HPW3200/HPW3200-FC 15
ASSEMBLY
WARNING: If any parts are damaged or missing, do not operate this product
until the parts are replaced. Use of this product with damaged or missing parts could
result in serious personal injury.
WARNING: Do not attempt to modify this product or create accessories not
recommended for use with this product. Any such alteration or modification is misuse
and could result in a hazardous condition leading to possible serious personal injury.
WARNING: To prevent accidental starting that could cause serious personal
injury, always remove the battery pack(s) from the product when assembling parts.
UNPACKING
This product requires assembly.
◾Carefully remove the product and any accessories from the box. Make sure that
all items listed in the “PACKING LIST” are included.
◾Inspect the product carefully to make sure no breakage or damage occurred
during shipping.
◾Do not discard the packing material until you have carefully inspected and
satisfactorily operated the product.
◾If any parts are damaged or missing, please return the product to the place of
purchase.

56-VOLT LITHIUM-ION PRESSURE WASHER — HPW3200/HPW3200-FC16
PACKING LIST
PART NAME QUANTITY
Pressure Washer Unit 1
High-pressure Hose 1
Siphon Hose 1
Short Pressure Gun 1
Quick Connect Lance 1
Stainless Steel Wand 1
Quick-Coupler Set
(Factory-installed onto the water outlet port, high-pressure hose, and
short pressure gun)
2
Foam Cannon 1
Filter 1
Nozzle Cleaning Needle 1
Nozzles 15° Nozzle 1
25° Nozzle 1
40° Nozzle 1
Turbo nozzle 1
Rinse Nozzle 1
Holder Bracket Assembly Upper Holder Bracket 1
Lower Holder Bracket 1
Screw 4
Operator’s Manual 1

56-VOLT LITHIUM-ION PRESSURE WASHER — HPW3200/HPW3200-FC 17

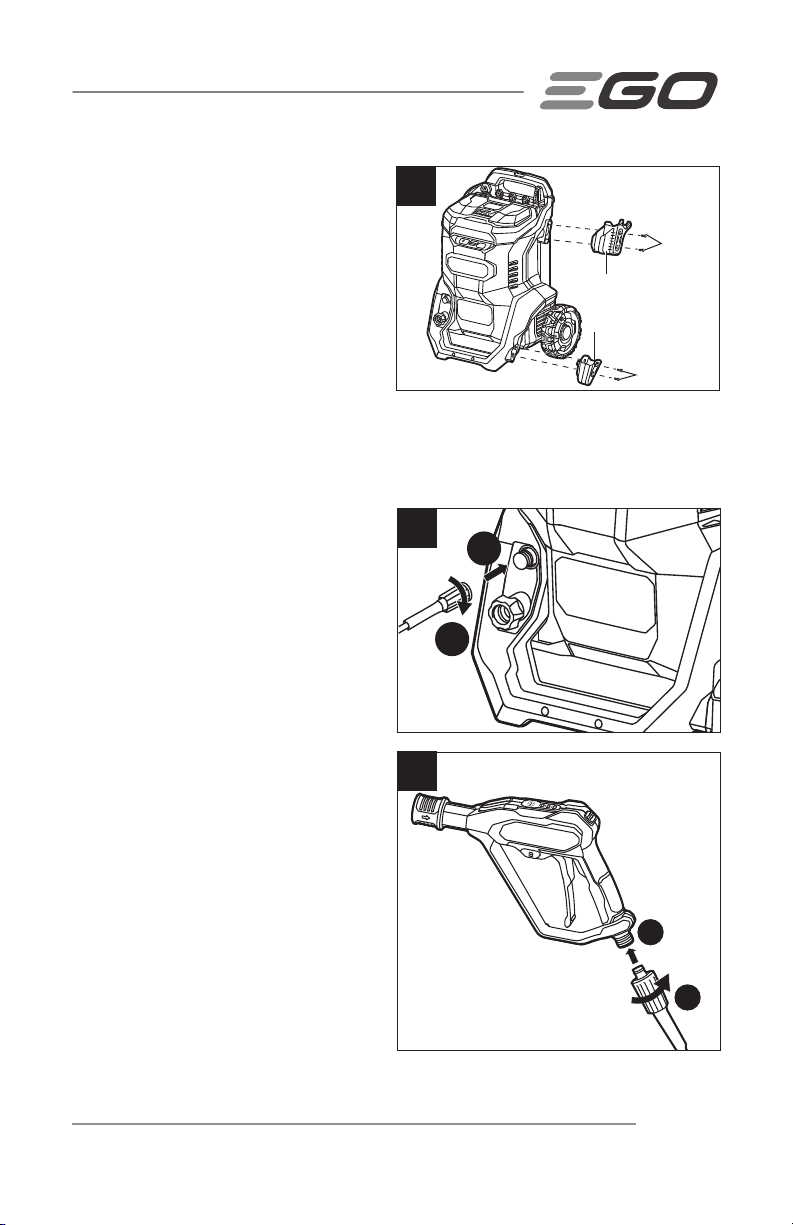

INSTALLING THE HOLDER
BRACKET ASSEMBLY (Fig. 2)
Required Tool (not provided): Phillips
head screwdriver.
1. With the wide opening facing up,
align the holes of the upper holder
bracket with the holes on the upper
side of the pressure washer.
2. Thread two screws into the holes,
then tighten them securely.
3. Install the lower holder bracket following above steps in the similar fashion.
CONNECTING THE HIGH-
PRESSURE HOSE (Fig. 3 – Fig. 5)
You may connect the high-pressure hose
by one of the following ways:
◾Connect the high-pressure hose to
the water outlet port and the gun
directly through thread joints (Fig. 3a
and 3b);
◾Connect the high-pressure hose to
the water outlet port and the gun
using two quick-coupler sets to
achieve easily installation/removal.
NOTE: The quick-coupler sets have
been installed onto the water outlet port,
high-pressure hose, gun at the factory.
You could ignore steps 1 and 2, and only
follow them when replacing the quick-
coupler sets.
a
b
3a
a
b
3b
2
Screws
Screws
Upper Holder Bracket
Lower Holder Bracket

56-VOLT LITHIUM-ION PRESSURE WASHER — HPW3200/HPW3200-FC18

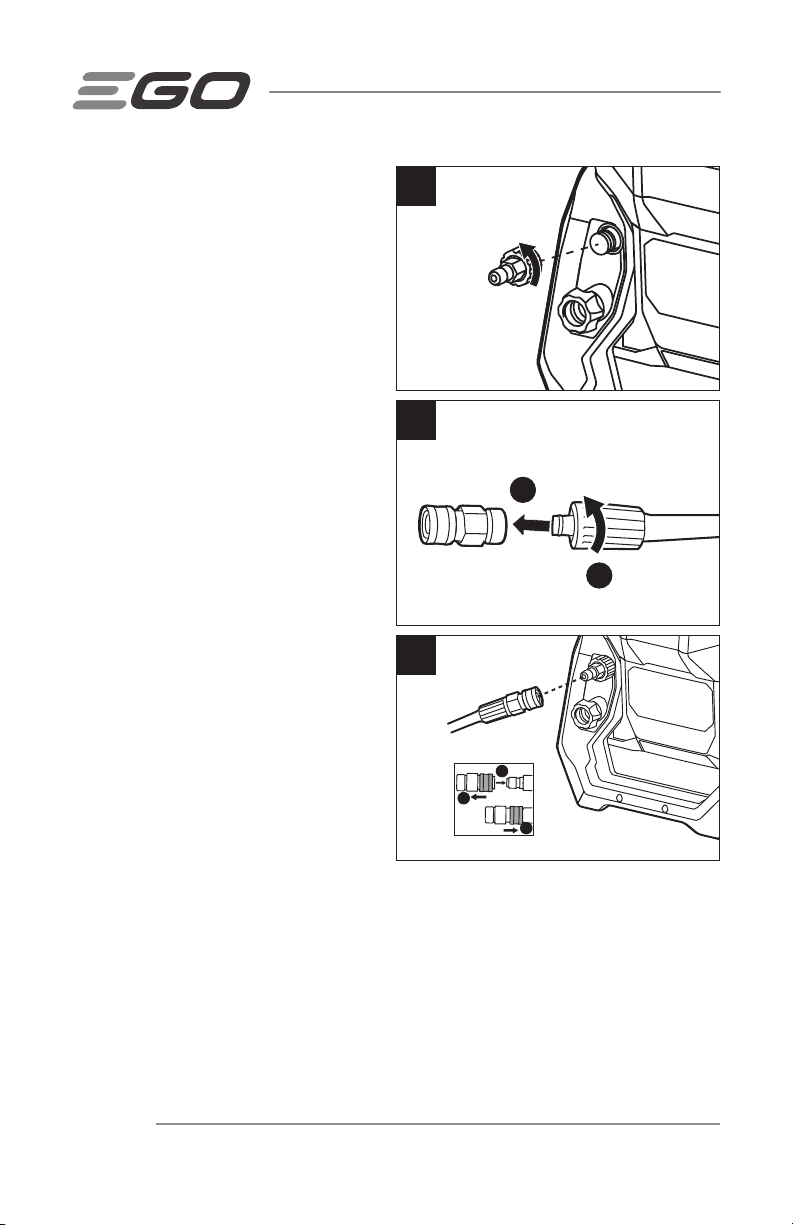

1. Tightly screw the internal threaded
part of the quick-coupler onto the
water outlet port (Fig. 4a).
2. Install one end of the high-pressure
hose onto the external threaded part
of the quick-coupler set, and then
tightly secure them (Fig. 4b).
3. Pull back the collar of the quick-
coupler end of the high-pressure
hose, and then attach it onto the
water outlet port until you hear a
“click” (Fig. 4c).
To disconnect, pull back the collar
of the quick-coupler to pull the
high-pressure hose from the water
outlet port.
a
b
4b
a
c
b
4c
4a

56-VOLT LITHIUM-ION PRESSURE WASHER — HPW3200/HPW3200-FC 19
Follow above steps to install the quick-
coupler set onto the other end of the high-
pressure hose and the threaded end of
the gun, then connect the high-pressure
hose and the gun (Fig. 5).
a
b
5b
a
c
b
5c
5a

56-VOLT LITHIUM-ION PRESSURE WASHER — HPW3200/HPW3200-FC20

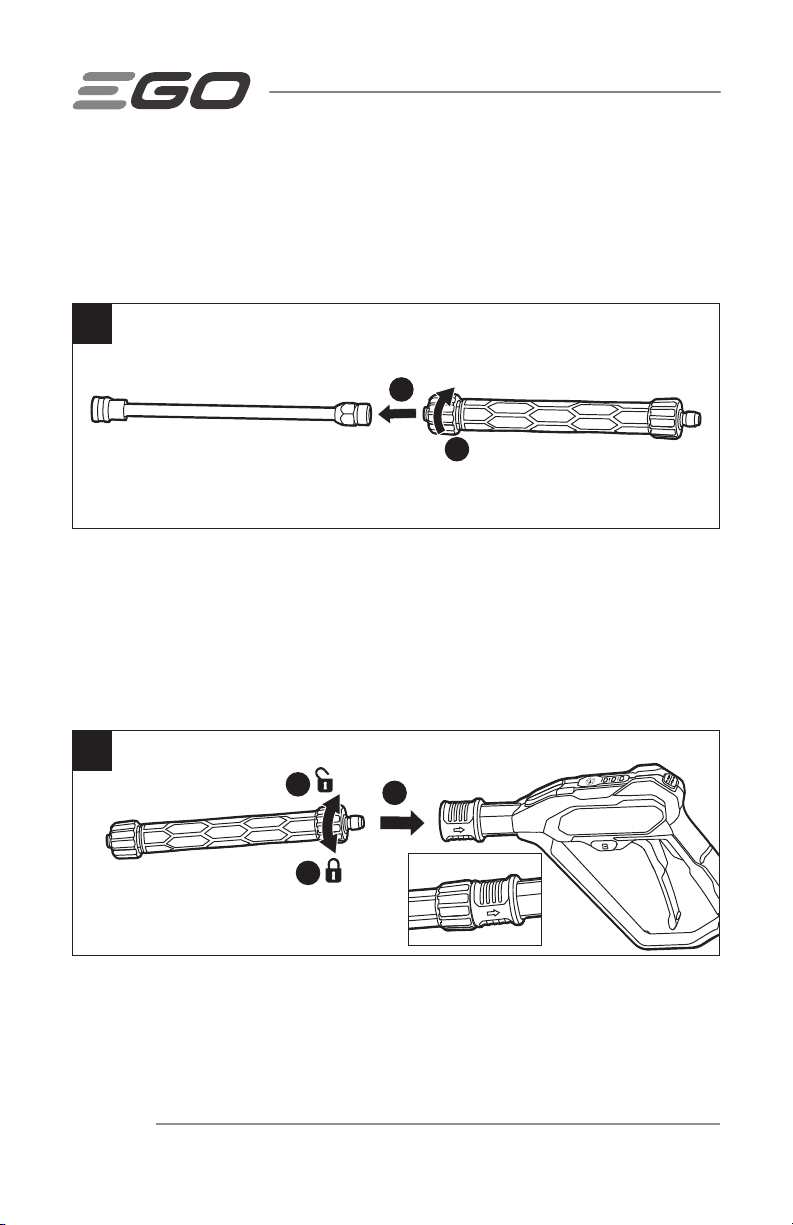

CONNECTING THE QUICK CONNECT LANCE AND STAINLESS STEEL
WAND (Fig. 6)
1. To connect the wand to the lance, install the external threaded end of the wand
onto the internal threaded end of the lance, and then screw them together tightly
(Fig. 6a).
a
b
6a
2. To connect the lance to the gun (Fig. 6b):
a. Screw the knob on the lance to fully expose its connection joint.
b. Insert the lance into the quick-coupler of the gun until you hear a “click”.
The outer ring of the quick-coupler will move forward automatically, which
indicates the connection is established properly.
c. Screw the knob on the lance to tighten the connection.
a
c
b
6b
To disconnect,
1. Screw the wand from the lance and then pull it out.
2. Screw the knob on the lance to loosen the connection, then pull back the outer
ring of the quick-coupler of the gun to pull out the lance.
