V-TUF RAPID MSH User manual

RAPID MSH
Please read this manual before using the RAPID MSH
ELECTRIC INDUSTRIAL
MOBILE STAINLESS STEEL
HOT WATER PRESURE WASHER

2
Contents
CONTENTS
Page
Important Safety Instructions
General Points & Information
Safety Norms & Usage
Technical Data
Identication Data
Installation
Cold & Hot Water Use
Important Advice
Transport / Lifting / Storing

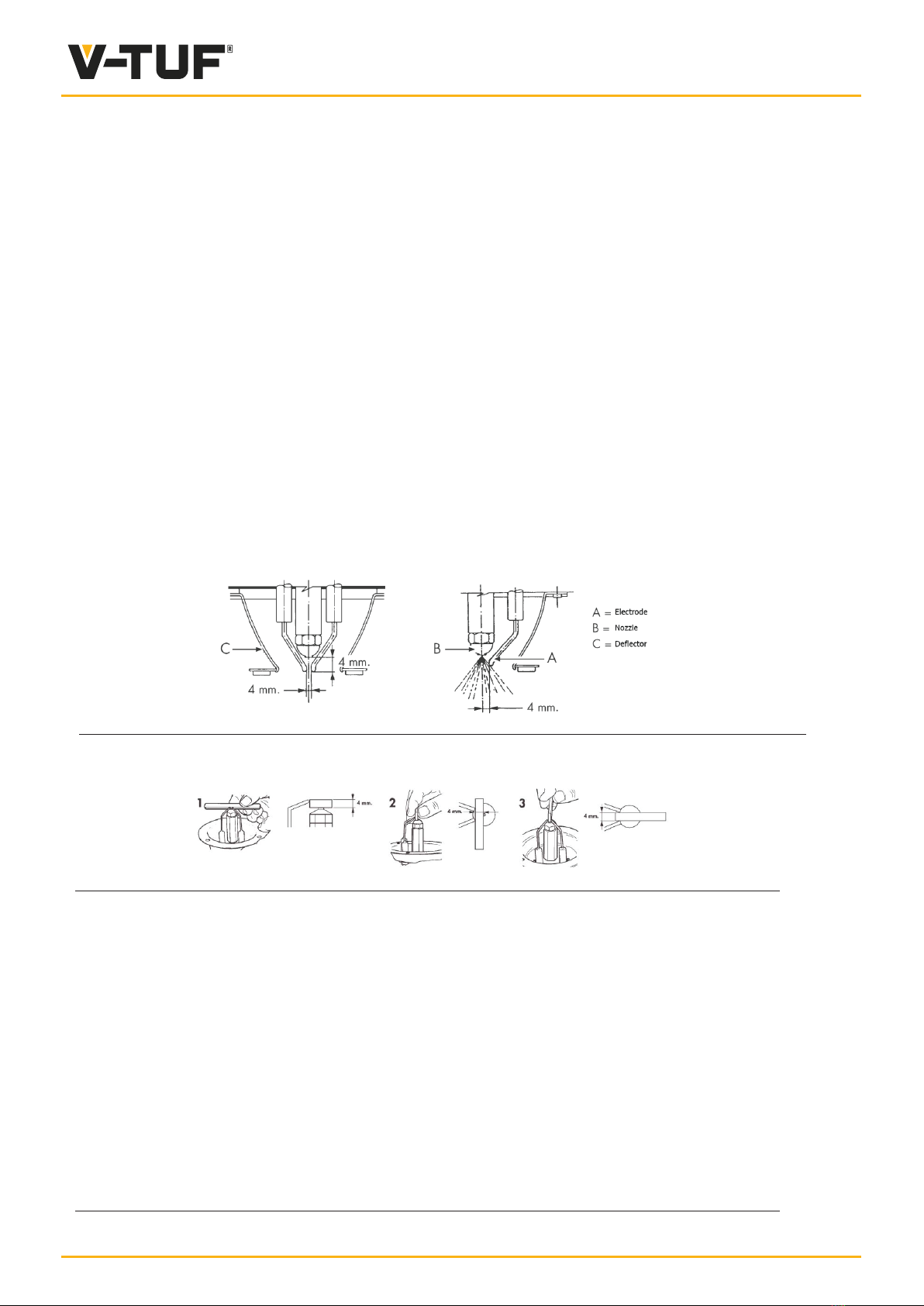

Regulation of Start Electrodes
Troubleshooting

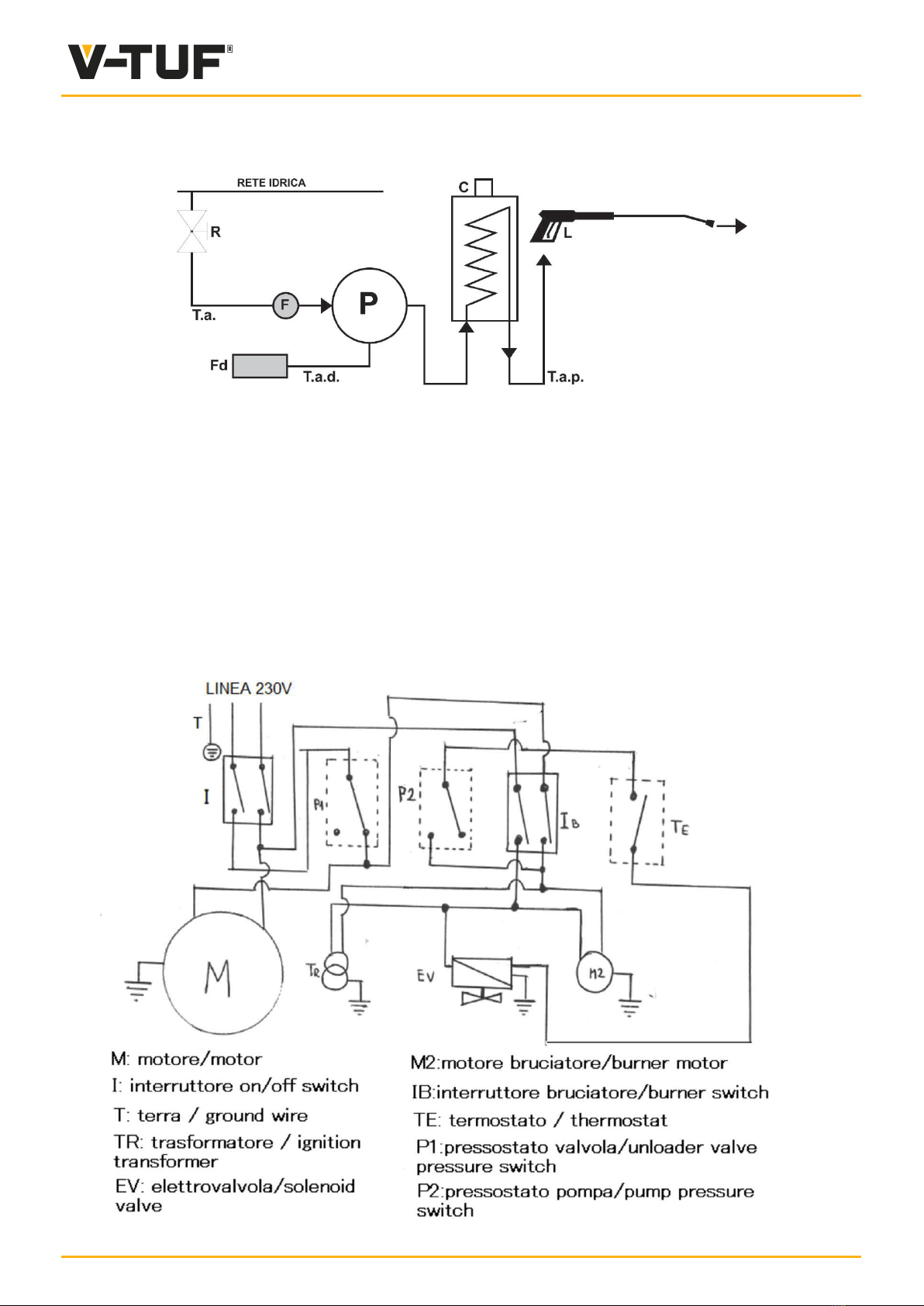

Electric Diagrams
Functionality
Frame Parts Diagram & Parts List
Boiler Parts Diagram & Parts List
Electric Box Parts List
Accessories Parts Diagram & Parts List
Pump & Motor Parts Diagram & Parts List
Notes
3
4
6-9
9
10
11
12
13
14
15
16-18
19
20
21
22-24
25
26
27-30
31

Important Safety Instructions
This book has important information for the use and safe operation of this machine.
Read and understand all warnings before you start working.
IDENTIFICATION LABEL
Before using this machine, make sure that it is provided with the identification
Labels – see page 10. In case the identification Label is missing, do not use the
machine and consult your dealer immediately.
The Identification Label with the technical specifications is fixed to the Chassis on
the rear of the electrical enclosure inside the cabinet
Check that your mains voltage is the same as shown on the identification label.
WHEN USING THIS MACHINE, PLEASE FOLLOW THESE BASIC
PRECAUTIONS
1. Read and understand all the instructions before using the machine.
2. Please note: the machine needs to be plugged into the correct voltage electric supply.
3. The boiler is fired by diesel or HVO FUEL (reduces greenhouse gas emissions by up to 90%). Please
make sure the fuel tank is at lease half full before operation. Do not run the machine out of diesel.
4. Do not use petrol in this machine.
5. Know how to stop the machine and release pressure quickly, be familiar with all the controls.
6. The jet must not be directed at persons, animals, live electrical equipment or the appliance itself.
7. Do not direct the jet against yourself or others in order to clean clothes or footwear.
8. Disconnect from the electrical power supply before carrying out user maintenance.
9. High pressure cleaners must not be used by children or untrained personnel.
10. High pressure hoses, fittings and couplings are important for the safety of the appliance. Use only
hoses, fittings and couplings recommended by the V-TUF.
11. Always wear suitable eye, face and body protection.
12. Do not operate the machine when fatigued or under the influence of alcohol or drugs.
13. Keep operating area clear of all persons.
14. Do not overreach or stand on any unstable ground, keep good footing and balance at all times.
15. Follow the maintenance instructions specified in the manual.
16. Read carefully instructions concerning grounding (Earthing) and extension cables.
17. To prevent fire hazard, do not use with or near inflammable substances such as:
petrol, solvents or thinners.
This manual should be considered a permanent part of the machine and
should remain with
it if ownership is transferred.
3

4
Save These Instructions in a Safe Place
General Points
Instruction Manual
Please check that the manual is in good condition and that all of the pages are clearly legible. Should
the manual be damaged, or missing any pages, please return it immediately to your re-seller who will
provide you with a replacement copy. Alternatively, you can download this document as a pdf from
the website at v-tuf.com and search for this Rapid-MSH Industrial Stainless Hot Water Pressure Washer.
Conservation of the Manual
This manual should be retained for the full working life of the machine. In case of loss or damage, please
request a copy from V-TUF, quoting type of machine, matriculation number and the year of manufacture.
Trial before shipment
The machine has been tested at the manufacturer’s factory by a V-TUF technician to check that all
of the components are functioning correctly according to the machine’s specifications.
-
Guarantee Terms
The machine is under guarantee according to agreed contractual terms which constitute an integral part
of the order or the rules in force, in all cases, for a maximum period equivalent to twelve (12) months
from the date of dispatch from the factory. The guarantee covers exclusively breakages which could be
due to defective mechanics or assembly. The guarantee does not cover parts subject to wear and tear.
The guarantee is considered forfeit in the following cases:
1. Improper use of the machine, failure to observe the rules of use,
2. Use of non-original parts, those not sold directly by the manufacturer or an authorised re-seller,
3. Modifications made to the machine, or repairs made to the machine by anyone not specifically
authorised by the manufacturer or by the re-seller.
Packaging
The packing materials and any parts replaced during maintenance should be collected and sent to a
specialist waste disposal firm (wood, plastic, metal etc.) and not left within the reach of children or
animals.
Delivery
The transport will be carried out by qualified companies, in respect to regulations in force and legislation
relative to weight and length. The merchandise travels under the full responsibility of the transporter and
the user; in the event of an accident, or late delivery, the manufacturer accepts no liability.
Checks
Upon receipt of the goods, check the condition that they are in. Should they appear damaged, avoid any
type of installation and immediately advise the transporter and the supplier.
To ascertain the condition of the parcel, proceed to unpack the goods and check that the delivery is
complete (check the correspondence with the delivery note), ascertain whether the machine has arrived in
generally good condition, free of breakages or dents. In the event of missing or damaged items,
immediately advise the re-seller and / or the manufacturer after having reported these when signing the
transporter’s delivery note.

Personal identifying data
An exact description of the model, serial number and installed accessories will aid a quick and efficient
response on the part of the manufacturer or help centre. Always provide the type, model of machine
and its serial number each time you contact the help centre. To help you remember, we suggest that
you place the relevant machine details in the panel below:
Model Serial N°
Year of manufacture
Type of pump
Type of motor
Prior to use, please carefully read the instructions, paying particular attention to
"IMPORTANT RECOMMENDATIONS", "SECURITY NORMS" and "PRECAUTIONS".
It is forbidden to remove or tamper with the protective parts of the machine.
It is forbidden to use inflammable, explosive or toxic substances.
It is obligatory to use appropriate protective equipment.
It is obligatory to keep the machine clean and in good working order, in particular the controls, the
connections and the technical data panel.
For your safety, and that of those around you, and for the continued working of the machine, do
not use parts other than those prescribed by the constructor.
Before using the high pressure cleaner, always try to ensure that any potential hazardous
conditions have been removed or eliminated from the area of usage.
The high pressure cleaner should be used with clean water. Unfiltered water and/or corrosive
chemicals will cause damage to the machine.
IMPORTANT RECOMMENDATIONS
The ordinary use of this machine does not require particularly specialised training, as long as the
user has sufficient competence and training to carry it out, knowledge of this manual and is aware
of general safety procedures.
Follow the instructions with great care for your safety and that of others, to safeguard your machine
and protect the environment.
5

SECURITY NORMS
FOUR SYMBOLS TO REMEMBER
Your machine is supplied with electronic apparatus, the use of which requires the observation of the
following safety criteria.
General danger
Ranger of severe damage to the machine
Danger to people
Safeguarding the environment
When using the machine outdoors, do not use when it is raining
Do not attempt any kind of maintenance whilst the plug is connected to any sort of
power supply.
Take care not to spray the machine with the water jet as this could lead to short-circuit
Should you need to use an extension lead with the power supply, make sure that the
connection between the extension lead and the power lead is secure and stable and
conforms to standard safety norms. The plug and the socket should be waterproof.
Keep the machine out of reach of children or unauthorised personnel.
It is strictly forbidden for the user to operate the machine in any way in bare feet.
Do not use the machine if any of its components are defective.
Do not use the machine if there are people in your way.
Do not direct the water flow near sources of electricity.
6

Do not place your hands ahead of the lance; high pressure nozzles can be extremely
dangerous when used inappropriately.
If the machine should be used in service stations, supply stations or other potentially
dangerous locations, please ensure that the appropriate safety procedures are
observed.
Do not touch the engine, the chimney the boiler or other internal parts when the
machine is on, or immediately after it has been turned off as you may risk burning or
scalding.
Should you need to clean the engine, this procedure should be carried out in places
where, to safeguard the environment, an adequate oil separator is installed.
Re-filling of petrol should only be undertaken when the machine is turned off
Should you need to clean the motor, this procedure should be carried out in places
Do not use combustible materials other than those advised by the constructor.
Once you have finished working, and after the machine has stopped, release the
residual pressure in the tube and pump by squeezing the pistol lever.
It is strongly forbidden to carry out any operation with the machine if you are not
wearing the appropriate safety equipment (protective glasses, gloves, overalls etc) as
per established safety norms.
During winter, and in the event of frost, it is advisable to use anti-freeze or to empty
out the water from the internal circuits by closing the tap from the water supply and
activating the machine until all of the water is expelled.
Should the machine remain inactive for extended periods of time, it is possible that
calcium deposits can form in the valves which can then cause problems when trying to
re-start the machine. Should this happen, pay particular attention to any strange or
unexpected noises emanating from the machine, in which case you should consult your
local technical services.
IMPROPER USE
By improper use, we mean using the machine for uses which it was not specifically designed for,
such as:
Washing of objects or vehicles which have come into contact with inflammable or noxious
dust, gas or liquids, or substances which can cause dangerous reactions when in contact
withwater.
Use of the machine in places where there is a danger of explosions, or a significant risk of
fire.
Use of the machine for the cleaning of animals, of any size.
Use of the machine by anyone under the age of 16 years.
Use of the machine in the rain or during thunderstorms.
Use of the machine for the washing of any equipment supplied by an electric current.
Use of the machine by anyone unauthorised personnel, or anyone untrained to do so.
7

8
ERRONEOUS USE
By erroneous use, we mean the use of our machine without respect for the guidelines contained in
the instruction and maintenance manual. Lack of respect for these guidelines can represent a risk
of injury to both the operator and those persons nearby as well as a risk of serious damage to the
machine itself.
Erroneous use, therefore, can constitute: unsecured connections (including those of accessories
supplied as optional extras), not using original spare parts, repairs undertaken by unauthorised or
unqualified personnel, use of the machine for purposes it was not designed for (see improper use),
lack of proper maintenance and use of the electrical power supply cable or the high pressure tube
to drag or haul the machine around.
PRECAUTIONS
Before activating the high pressure cleaner, make certain that the water supply is correct (min. 1
Bar – Max 8Bar); dry use can provoke serious damage to the machine’s waterproofing systems.
To safeguard the security of the operator and of the machine, avoid making modifications to the
machine without the written consent of the manufacturer.
If you notice any damage to the machine, refrain from any and all work with the machine, and
immediately inform the re-seller or an authorised technician.
During use, avoid covering the machine: if you consider it necessary to protect the machine, do it
in such a way as to allow air to circulate freely in order to cool the motor.
In the event of a long pause / break during work / using the machine (more than 15 minutes), turn
off the machine and release the residual pressure.
The maintenance of this machine requires the use of a qualified person who, as well as having
knowledge of this instruction manual, should be equally familiar with general safety guidelines as
well as those measures specific to this machine.
For matters of repair, maintenance and tuning, we always recommend that you refer to a re-seller
or authorised technician.
ATTENTION:

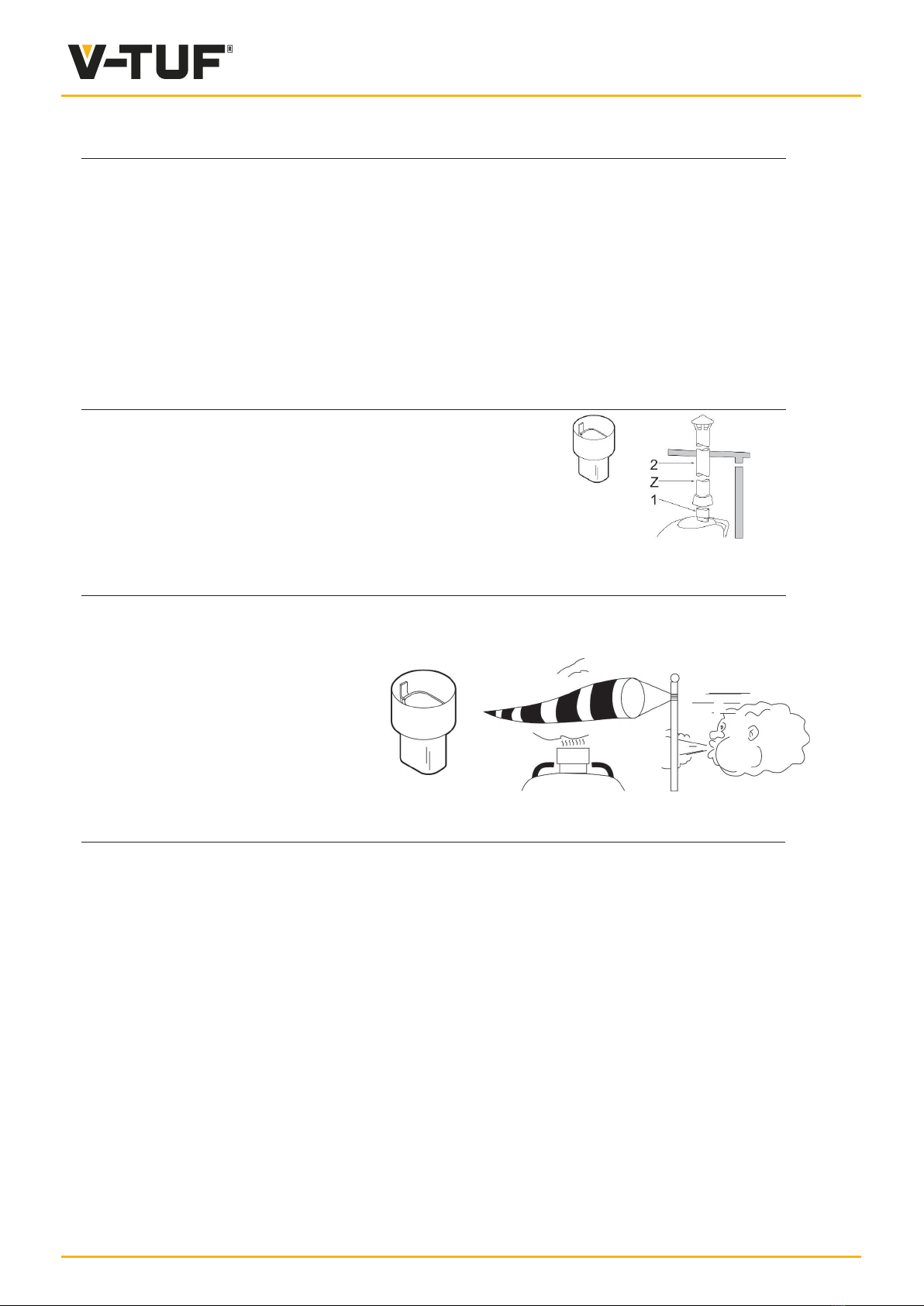

The diameter (z) of the chimney (2) must not be less
than that of the adaptor (1). It is advised to take steps
to install a chimney to expel the machine fumes, as
shown in the diagram.
ATTENTION:
Where the machine is to be used in areas subject to wind or strong air currents, you should attach the
chimney adaptor, our order code RAPIDMSH240C. This simple precaution will help avoid serious damage to
the machine.
This simple precaution will help avoid serious damage to the machine.
Usage in areas subject to winds or strong air currents

9
ATTENTION:
Never under-estimate these warnings, use of the machine in an inappropriate manner, can lead to
serious damage and injury to the operator and any surrounding personal. Don’t take risks!
ATTENTION:
The manufacturer cannot be held responsible for any eventual damage or injury to people, animals
or property resulting from improper or unreasonable use, or usage in any way not conforming to the
instructions contained in this manual.
WATER FLOW(LITRES PER MINUTE):
TECHNICAL DATA:
Industrial Specication - MSH
MAX PUMP PRESSURE:
MAX WORKING PRESSURE:
MOTOR POWER @ 2800RPM
CHEMICAL FEATURE
RUN SYSTEM PROTECTION
WATER TEMPERATURE
POWER SUPPLY (VOLTAGE)
WEIGHT
DIMENSIONS (L X W X H) CM
RAPID MOBILE MODEL MSH240V
9
130 Bar
110 Bar
2.4KW (3.2HP)
L.Press.
Auto Stop/Start
0-150˚C
240v
110kg
100 x 67 x 72cm
Features:
• Powered by standard electric supply.
• Heats Water to 90oC on full pressure and up to 150oC on steam stage. The burner is fired by diesel or
HVO* fuel (reducing greenhouse gas emissions by up to 90%)
• Adjustable water flow, adjustable pressure, and adjustable temperature to suit all cleaning conditions and
surfaces.
• 304 Stainless Steel cover & chassis with bumper bars.
• Special 4-wheel design for ease of transport over uneven or soggy terrain
• Easy to Use / Easy to Transport.
• Low centre of gravity – helps prevent toppling when transported.
• Will suck water - Pump Can draw from Water Butt/IBC.
• Boiler Protection Against Low Water Pressure.
• Energy Efficient Boiler.
• Simple Adjustable Temperature Control & Switch.
• Double Pass Heat Exchanger Guarantees Hotter Water with Less Fuel Usage.
• Fully Protected Electrics from Water Ingress.
Now Has V-TUF Super Series Pump
Comes complete with Quick Release 10m Hose & Lance & Vario Nozzle Kit.

10
* What is HVO fuel?
HVO fuel is one of the cleanest fuels on the market. It’s a second-generation, synthetic, advanced
renewable diesel alternative that eliminates up to 90% of net CO2 and significantly reduces nitrogen oxide
(NOx), particulate matter (PM) and carbon monoxide (CO) emissions.
As a paraffinic, renewable fuel, HVO can be used as a drop-in alternative to fossil diesel, meeting EN 15940
standards and Fuel Quality Directive 2009/30/EC Annex II. There’s no need to modify existing infrastructure
– you can simply top up and go.
IDENTIFICATION DATA
The position of the identification data of the machine
1) Identification of the machine according to EU directives.
2) Pump model.
ATTENTION:
Check that your RAPID-MSH high pressure washer has been provided with these identification details, if they
have not been provided please inform your local dealer immediately.
Machines which have not been provided with these details MUST NOT BE USED, and should be considered
anonymous and potentially dangerous.
It is obligatory that you ensure that the data label is always attached to the machine and clearly legible.
In case of damage, loss or illegibility, you should submit a written request to the manufacturer who will
then provide you with a new one.
1 YEAR WARRANTY
REGISTER YOUR MACHINE ONLINE
www.v-tuf.com/register-your-v-tuf-product
SERIAL
NUMBER: 2020021808
MODEL: XXXXX

11
Attach the lance to the high-pressure hose (1) and the other end to the output connection (Water outlet).
Fit the sheath (B) in order to protect the hydraulic connection and to avoid the risk of scalding by contact.
The high pressure pump is supplied already full of lubricating oil. Attach a water tube (not supplied) to the
entry connection (Water inlet) and the other end to the tap of the water source (4) which must be able to
provide a minimum flow rate equal to that of the pump.
Check that the electric supply socket has the appropriate characteristics and differential protection, and
conforms to safety standards in force, then insert the plug into the power socket.
Wherever possible, avoid the use of extension cables with the electrical supply cable. If an electric
extension is required, please use the correct specification such as EXTENSION LEAD ' Motor Saver' - 30M
240VOLT 2.5mm (13AMP) - I10.1630
ATTENTION:
The electrical power supply should be provided by a magneto thermic switch adequate to the power of the
machine.
Also, there should always be installed a high sensitivity differential switch with a cut-off threshold of
Idn=0.030 A.
It is necessary that the machine is earthed in such a way as to guarantee a contact voltage of no more than
25V.
Operation of the machine should be carried out in such a way that damage cannot be caused to people or
property and, wherever possible, away from paths of transit.
Fuel filler
Fuel filter
Pressure
Adjustment Water inlet
Water outlet
Water filter

12
HOT WATER USE
Check that the diesel tank is full (1); if it is not, refill it using exclusively automotive diesel.
Repeat points 1 and 2 as per cold water use.
Check that the thermostat (tr) is positioned at 0°C, start the boiler by means of the appropriate switch (br)
which will cause the relevant light to illuminate (b), wait for 30 seconds so that the diesel pump can refill,
turn the knob of the thermostat (tr) to the required temperature (upon reaching the desired temperature,
the burner will cut off automatically to then restart upon any lowering of temperature. Squeeze the pistol
lever (3) to obtain water flow to the lance, adjust the lance nozzle accordingly to control the outflow (4) and
then start your job.
To close down the machine, turn the thermostat (tr) to zero, keep the pistol open (3) and allow the water to
cool, turn off the boiler (br) turn off the water supply (2), turn off the motor and pump (in), then squeeze
the pistol lever (3) until the residual water pressure has been expelled.
ATTENTION:
In case of lack of diesel the burner will stop burning, either turn the burner off immediately or fill the fuel
tank back up with diesel.
ATTENTION:
This Machine is NOT equipped with a safety device to protect it from insufficient water supply. It is the
user’s responsibility to ensure that the water supply is consistent.
ATTENTION:
The machine is equipped with TS system which will stop the machine immediately after water pistol is
released. The machine will start up again once the pistol is pulled again.
ATTENTION:
Release pressure out of system once finished using the machine. This will prolong the life of the
machine.
USE WITH CHEMICAL PRODUCTS
With the machine shut down, act the device (adjustable head) placed on the lance end to obtain the suction
and the distribution of the product; pull the gun trigger to obtain the detergent distribution and start the
work.

13
ATTENTION
During operation of the machine, it is obligatory to use the appropriate personal safety equipment.
During operation, please pay close attention to the information quoted on the chemical product labels
regarding safety and the proper percentages to be used when diluting chemicals.
Fill the detergent tank (5) with the product you intend to use for your work and insert the detergent hose
suction.
Repeat actions 1, 2 and 3 as per cold water use.
During operation, the detergent will be sucked up and automatically mixed with the water.
Practical Advice
Avoid soaking with water the surface you then wish to treat with detergent because, in doing so, you can
place a film of water over the area you wish to treat, resulting in poor cleaning results. Instead, whilst
holding the nozzle pointing towards the ground, wait until the detergent exits the nozzle. When the
detergent exits the nozzle, approach the surface you wish to treat, start from the bottom with overlapping
strips until you reach the top of the area, sprinkling the whole are with detergent. This system is known to
avoid dripping of detergent onto dry surfaces, the residue of which could remain even after rinsing.
In order to avoid the formation of deposits or crusts, at the end of operation it is advisable to pass clean
water through the pump for a few seconds.
Important Advice
To safeguard the environment, we advise that only authorised detergents are used, that the
recommendations of use and dosage are observed on the product labels, that detergent is used sparingly
and remember that use of inappropriate detergent, as well as damaging the environment can damage the
hot water cleaner as well as the objects being cleaned.
USE DETERGENTS WHICH ARE OVER 90% BIODEGRADEABLE.
Before sprinkling detergent over varnished areas with delicate colours, make sure that the surfaces to be
treated are not hot, that the detergent has not dried and that the concentration of water / detergent is
correct.
IMPORTANT: Rinse well.
Upon completion of operation, shut down the machine then squeeze the pistol lever until the residual water
pressure has been expelled.

14
LUBRICATION OF THE PUMP
For the models 100.12 and 150.15 we recommend:
PL500 Lube – OIL CAPACITY 0.42 kg
You should change the oil after the first 50 hours of use, and after each subsequent 500 hours of operation.
TRANSPORT – LIFTING – SHIFTING
ATTENTION:
Whenever the machine needs to be transported, it should be securely fixed with straps, cables or
other suitable equipment in order to avoid accidental movement which could cause damage to people
or property as well as to the machine itself.
ATTENTION:
Should the machine need to be lifted, it should be hooked or coupled by means of strips, or suitable
lifting equipment which will safeguard the machine’s integrity. Make certain that the lifting
equipment used has superior capacity to the weight and volume of the machine; the use of
equipment conforming to current applicable safety standards is recommended.
ATTENTION:
It is strictly forbidden to remain under or in the immediate vicinity of the machine while it is being
lifted or elevated.
Do not trust crushed or bent chains or straps, always use thick working gloves.
Chain or strap fixtures should always be welded in place.
Check that the attachment is sufficiently robust to sustain the weight.
ATTENTION:
Should the machine need to be shifted manually from one place to another, you should ensure that
the power plug has been detached from the electric current, then using the appropriate grip and
taking care not to make any sudden movements which could compromise your safety, or that of the
integrity of the machine itself, proceed with the moving.
Remember that you must not drag or haul / move the machine by its electrical power supply cable
or by the high pressure hose. Use the handles built on the machine.
N. B.
For all further things which have not been specified, please abide by general norms for the prevention
of injuries.

15
STORAGE
Park the machine on a flat surface. If the machine is not going to be used for an extended period of
time, empty the water circuits and the fuel tank then cover the machine and store it in a place
protected from atmospheric extremes.
SCRAP AND DISPOSAL
Should you decide to scrap the machine, we recommend that you render it inoperative using the
following procedure: remove from the machine the electrical power supply cable and water supply
tubes; cut the power supply cable and tubes; remove the lance and pistol, cut all of the electrical
cables, break the pump and the motor, destroy the identification data label of the machine and also
those of the pump and motor group.
Please remember that the chemical products contained inside the machines tubing should be
removed in advance; if necessary any containers used for this purpose should be recycled or
disposed of as per current laws in force.
PACKAGING
The packaging materials should be gathered together and sent to a company specialising in the
disposal of refuse (wood, plastic, metal etc.) and not left within reach of children or animals.
REGULATION OF THE STARTER ELECTRODES
For optimum machine performance, it is necessary to check that the starter electrodes are always a
rranged in the correct way, as indicated in the diagram.
Checking the height in relation to the level of the head of the fuel nozzle.
Resting the control bar on the head of the diesel nozzle, as indicated in the diagram, check that the two
electrodes do not go beyond the main wire.
ATTENTION:
This work should be undertaken by an authorized technician.
The starter electrodes should be replaced after every 400 hours of operation.
Checking the distance between the electrodes. Resting the control bar on the head of the diesel nozzle, as
indicated in the diagram, check that the two electrodes are both in contact with the surface of the control
bar.
Checking the distance between the electrodes and the centre of the head of the diesel nozzle. Resting the
control bar on the head of the diesel nozzle, and keeping its internal surfaces in the centre, as shown in the
diagram, check that the two electrodes are in contact with the external surface of the control bar.
It is recommended that you always check with your re-seller, nearest help centre or qualified and
authorized technician regarding maintenance details, repairs and / or adjustments. The manufacturer does
not accept any responsibility or liability for any damages caused by use of the machine with parts which are
not perfectly regulated, or with parts which are damaged or worn out.
Cleaning of the hot water high pressure cleaner
Wash only with neutral products and water: then dry carefully so that you eliminate any collections of water.
The plastic parts can be cleaned with a normal wash. Should any traces of dirt remain, it is recommended
that you use specific products, carefully observing the usage instructions.
ATTENTION:
Do not use products containing solvents, methanol or hydrocarbons.

16
Troubleshooting
The pump turns but does not
reach the required pressure
The pump is sucking in air. Check that the piping is watertight.
Run the pump connected to the
water supply but without the high-
pressure hose connected until you
get a strong water stream, then
switch off machine and reconnect.
Worn out valves Replace the valves
Worn out valve seat Replace the valve seat
Worn out or inadequate water
nozzle
Replace the water nozzle
Worn out gaskets Replace the gaskets
Dirty water filter Clean the water filter
Irregular fluctuations in
pressure
Worn out suction and/or delivery
valves
Replace the valves
Presence of foreign bodies in the
valves which can affect their
performance
Check and clean
Air being sucked in Check the piping
Worn out gaskets Replace the gaskets
Drop on pressure Worn out suction and/or delivery
valves
Replace the valves
Presence of foreign bodies in the
valves which can affect their
performance
Check and clean
Air being sucked in Check the piping
Worn out gaskets Replace the gaskets
Pressure in order on gauge,
loss of pressure
Worn out water nozzle. Replace the nozzle
Crust deposits in the circuit Check and clean; we advise
contacting one of our technicians.

17
The boiler is producing
excessive amounts of fumes
Presence of water in the fuel
tank.
Empty the fuel tank, and refill with
clean fuel.
The fuel pump pressure is not
correct
Restore the correct pressure,
turning the appropriate screw in
order to reach approximately 10
Bar.
The starter electrodes are not
positioned correctly.
Check the distance of the
electrodes.
The fuel nozzle is dirty Clean the fuel nozzle
The fuel nozzle is worn out Replace the fuel nozzle
The boiler coil is blocked Clean the boiler coil
The fuel pump is dirty Clean the fuel pump
The fuel electrovalve is not
working.
Replace the fuel electrovalve.
The boiler switches itself off. The fuel level is low. Refill the fuel tank.
The filter on the fuel suction tube
is dirty.
Clean the fuel filter.
Presence of water in the fuel
tank.
Empty the fuel tank, and refill with
clean fuel.
The pressure switch is not
working.
Replace the pressure switch.
The starter transformer is broken. Replace the starter transformer.
The starter electrodes are not
positioned correctly.
Reposition the starter electrodes
into the correct position.
The fuel nozzle is dirty. Clean the fuel nozzle.
The fuel nozzle is worn out. Replace the fuel nozzle.
The fuel pump is damaged. Replace the fuel pump.
The fuel electrovalve is damaged. Replace the fuel electrovalve.
Presence of water in the
pump oil
Worn out pump seals Replace the oil seal.
High percentage of humidity on
the air.
Change the oil twice as often as is
normally prescribed.
Excessive noise Air is being sucked in.
Dirty water filter
Insufficient water supply.
Check the seals in the tubing.
Clean the water filter.
Check that the machine has a
water supply superior to the flow
rate of the pump.
The springs on the suction and/or
delivery valves are worn out or
broken.
Replace the valves.
Foreign bodies in the suction
and/or delivery valves.
Check and clean the valves.
Worn out ball bearings. Replace the ball bearings.
The temperature of the water
being pumped is excessive.
Lower the temperature of the
water being pumped.

18
Water discharge from
the pump head.
Worn out gaskets. Replace the gaskets.
Worn out pistons. Replace the pistons.
OR piston plug is worn out. Replace the OR piston plug.
Oil discharge from between
the pump body and the
pump head.
Worn out oil seals. Replace the oil seals.
Excessive vibrations. Worn out or dirty valves. Replace the valves.
The electric motor does not
start.
There is no electric current.
The magnetothermic switch is
released.
Check that the plug is securely
inserted into the socket and that
there is current present.
Open the electric control panel and
check the magnetothermic switch.
Insufficient water
temperature.
Thermostat not positioned to
required temperature.
Position the thermostat to the
required temperature.
The thermostat is broken. Replace the thermostat.
Water scale build-up in the hot
water circuit.
Clean.
Soot build-
blocking the boiler.
Clean.
The water nozzle is worn out. Replace the water nozzle.

19
R
T.a.
F
Fd
T.a.d.
P
t.m.
c
t.a.p.
l
=
=
=
=
=
=
=
=
=
=
Water Tap
Water Suction Tube
F = Filter
Detergent Filter
Detergent Suction Tube
Water Pump
Delivery Tube
Boiler
High Pressure Water Outlet Tube
Lanc
HYDRAULIC DIAGRAM
ELECTRIC WIRING DIAGRAM

20
Functionality:
The high pressure water cleaner has an input for an On/Off switch for the machine, a switch to select
between hot or cold water operation, a “diesel pressure switch” input to manage the lack of diesel, and an
input for the water temperature thermostat and 2 inputs for the pressure switches PTP and PDV.
Pump head pressure switch – This is the burner safety – the burner will shut down if a pressure less than 40
bar is detected.
Valve pressure switch – This is the auto stop/start of the pump motor unit when the trigger is
closed/opened.
Diesel pump is a diaphragm unit which can cope with a lack of fuel. If the burner stops working due to a
lack of fuel, please switch OFF the BURNER ON-OFF switch.
3 outputs for the running of the Fuel pump, Fan motor and the burner / ventilator
Running
Connecting to the electric current, the current light in the rocker switch illuminates.
Pressing the ON/OFF button to On will start the machine which will run accordingly:
STATE1
PTP->NO (0 Bar)
PDV ->NC (0 Bar)
High pressure water cleaner “closed down”
STATE 2
Pistol (lance) open
High pressure water cleaner “in operation”
PTP->NC (200 Bar)
PDV->NO (200 Bar)
MOT=ON
BV= On after 1 second (*)
EVG= On after 3 seconds (**)
STATE 3
Pistol (lance) closed
PTP->NO (0 Bar)
PDV->NO (200 Bar)
EVG= OFF (**)
BV= Off after 14 seconds (*)
MOT= Off after 14 seconds
S_TSI= On after 14 seconds
To restore the TSI system, it is necessary to verify the conditions of state 1 (pistol/lance open) followed by
state 2 etc…
The machine also manages the lack of fuel (PPG), 14 seconds after detection the EVG (**) and the BV (*)
will switch off. 1 second later the relevant warning light (S_GAS) will illuminate and the system will be
blocked.
To restore it, you must shut the machine down and turn it on again.
The machine is also supplied with a time-out feature so that if the machine is not used for 40 minutes, it
shuts itself down and the machine is blocked (shown by the TSI light illuminating). To restore normal
operation, it is necessary to turn the machine off and start it up again.
Finally , the machine is equipped with a particular algorithm for recognising water leaks so that if it should
detect 10 consecutive drips in less than 3 seconds, the machine will shut down and the TSI light will
illuminate. To restore operation it is necessary to turn the machine off and start it up again.
(**) EVG works only in hot water mode, with the water temperature thermostat.
(*) BV works only in hot water mode, independently of the water temperature thermostat.
