EHongLight The Amazing B eye-7 User manual

The Amazing
ZOOM and Rotation
7
KEEP
THIS MANUAL FOR FUTURE NEEDS
1 / 12
The Amazing
B eye-7
ZOOM and Rotation
7
pcs 15W 4-in-1
User Manual
THIS MANUAL FOR FUTURE NEEDS
THIS MANUAL FOR FUTURE NEEDS

2 / 12
1. Unpacking
Thank you for choosing our products. For your own safety, please read this manual
before installing the device. This manual covers the important information on
installation and applications. Please install and operate the fixture with following
instructions. Meanwhile, please keep this manual well for future needs.
It is made of a new type of high temperature strength of engineering plastics and
cast aluminum casing with nice outlook. The fixture is designed and manufactured
strictly following CE standards, complying with international standard DMX512
protocol. It’s available independently controlled and linkable with each other for
operation. And it is applicable for large-scale live performances, theater, studio,
nightclubs and discos.
4-IN-1 LEDs(RGBW) which features high brightness and stability. Please carefully
unpack it when you receive the fixture and check whether it is damaged during the
transportation. And please check whether the following items are included inside the
box:
Moving Head---------One Signal Cable----One
Hanging Bracket--------Two Power Cable----One
Safety Cable---------one User Manual----One

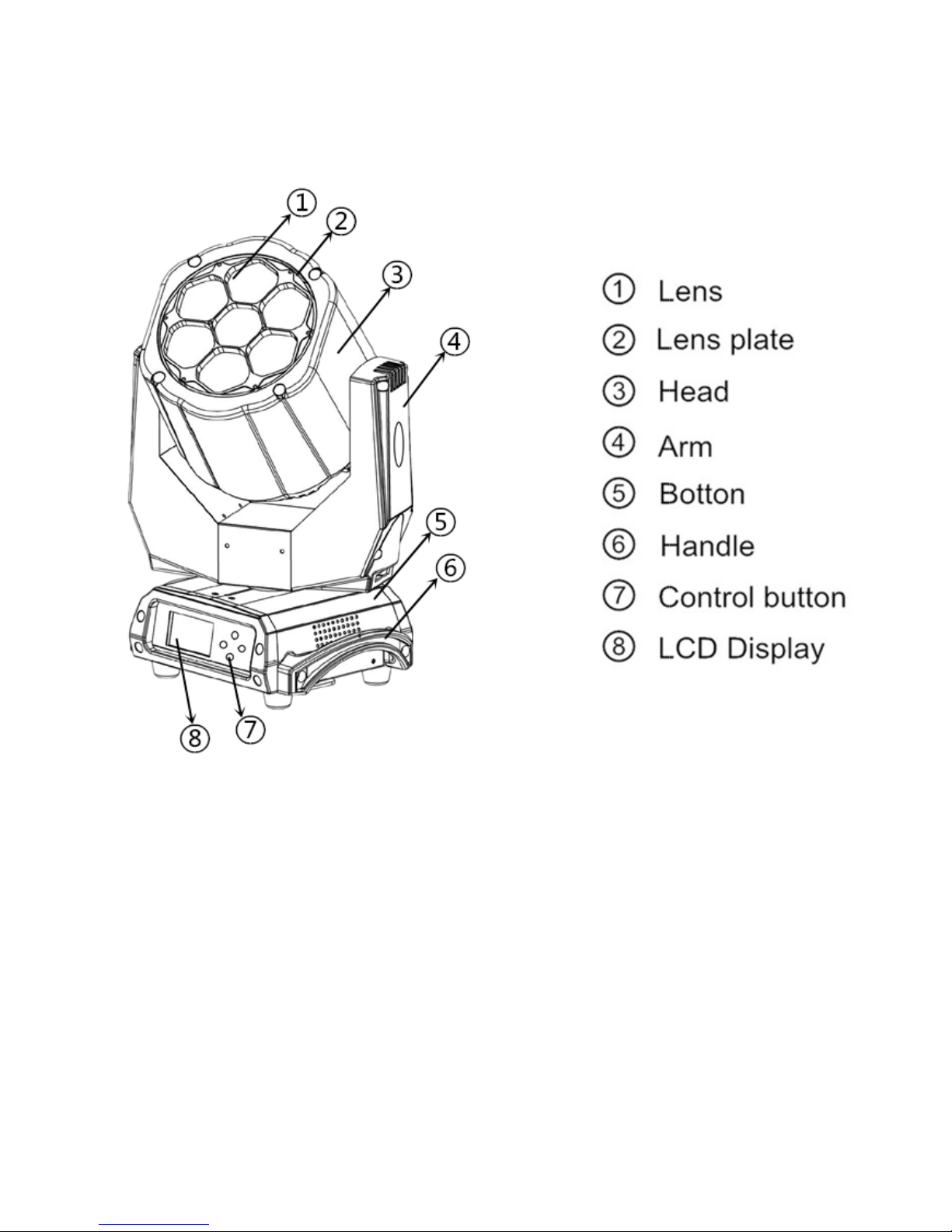

2. Product Introduction
3 / 12

4 / 12
3. Safety Instructions
This device has left the factory in perfect condition. In order to maintain this
condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this user manual.
If the device has been exposed to temperature changes due to environmental
changes, do not switch it on immediately. The arising condensation could damage
the device. Leave the device switched off until it has reached room temperature.
This device falls under protection-class I. Therefore it is essential that the device be
earthed.
The electric connection must carry out by qualified person.
The device shall only be used with rate voltage and frequency.
Make sure that the available voltage is not higher than stated at the end of this
manual.
Make sure the power cord is never crimped or damaged by sharp edges. If this
would be the case, replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning
it. Only handle the power cord by the plug. Never pull out the plug by tugging the
power cord.
During initial start-up some smoke or smell may arise. This is a normal process and
does not necessarily mean that the device is defective, it should decrease gradually.
Please don't project the beam onto combustible substances.
Fixtures cannot be installed on combustible substances, keep more than 50cm
distance with wall for smooth air flow, so there should be no shelter for fans and
ventilation for heat radiation.
If the external flexible cable or cord of this luminaire is damaged, it shall
be exclusively replaced by the manufacturer or his service agent or a similar
qualified person in order to avoid a hazard.

5 / 12
4. Operation Instructions
-The moving head is for wash effect for on-site decoration purpose.
-Don’t turn on the fixture if it’s been through severe temperature difference like after
transportation because it might damage the light due to the environment changes.
So make sure to operate the fixture until it is in normal temperature.
-This light should be keep away from strong shaking during any transportation or
movement.
-Don’t pull up the light by only the head, or it might cause damages to the
mechanical parts.
-Don’t expose the fixture in overheat, moisture or environment with too much dust
when installing it. And don’t lay any power cables on the floor. Or it might cause
electronic shock to the people.
-Make sure the installation place is in good safety condition before installing the
fixture.
-Make sure to put the safety chain and check whether the screws are screwed
properly when installing the fixture.
-Make sure the lens are in good condition. It’s recommended to replace the units if
there are any damages or severe scratch.
-Make sure the fixture is operated by qualified personnel who knows the fixture
before using.
-Keep the original packages if any second shipment is needed.
-Don’t try to change the fixtures without any instruction by the manufacturer or the
appointed repairing agencies.
-It is not in warranty range if there are any malfunctions from not following the user
manual to operate or any illegal operation, like shock short circuit, electronic shock,
lamp broke, etc.
5. Mounting and Installation
Cautions: For added protection mount the fixtures in areas outside walking paths,
seating areas, or in areas were the fixture might be reached by unauthorized
personnel.
Before mounting the fixture to any surface, make sure that the installation area can
hold a minimum point load of 10 times the device’s weight.
Fixture installation must always be secured with a secondary safety attachment,
such as an appropriate safety cable.

Never stand directly below the device when mounting, removing, or servicing the
fixture
from a periodic safety inspection of all installation material and the fixture. If
you lack these
qualifications, do not attempt the installation yourself. Improper
installation can result in bodily injury.
Be sure to complete all rigging and installation procedures before connecting the
main power cord to the appropriate wall outlet.
Clamp Mounting: The
LED Moving head
assembly that integrates the bottom of the base, the included “Omega Bracket,” and
the safety cable rigging point in one unit (see the illustration below). When mounting
this fixture to truss be sure to
omega bracket using a M10 screw fitted through the center hole of the “omega
bracket”. As an added safety measure be sure to attached at least one properly
rated safety cable to the fixture using on of t
in the base assembly
Regardless of the rigging option you choose for your
secure your fixture with a safety cable. The fixture provides a built
a safety cable on
the hanging bracket as illustrated above. Be sure to only use the
designated rigging point for the safety cable and never secure a safety cable to a
carrying handle.
6 / 12
Never stand directly below the device when mounting, removing, or servicing the
from a periodic safety inspection of all installation material and the fixture. If
qualifications, do not attempt the installation yourself. Improper
installation can result in bodily injury.
Be sure to complete all rigging and installation procedures before connecting the
main power cord to the appropriate wall outlet.
LED Moving head provides a unique mounting bracket
assembly that integrates the bottom of the base, the included “Omega Bracket,” and
the safety cable rigging point in one unit (see the illustration below). When mounting
secure an appropriately rated clamp to the included
omega bracket using a M10 screw fitted through the center hole of the “omega
bracket”. As an added safety measure be sure to attached at least one properly
rated safety cable to the fixture using on of the safety cable rigging point integrated
Regardless of the rigging option you choose for your
B eye 7
, always be sure to
secure your fixture with a safety cable. The fixture provides a built
the hanging bracket as illustrated above. Be sure to only use the
designated rigging point for the safety cable and never secure a safety cable to a
Never stand directly below the device when mounting, removing, or servicing the
from a periodic safety inspection of all installation material and the fixture. If
qualifications, do not attempt the installation yourself. Improper
Be sure to complete all rigging and installation procedures before connecting the
provides a unique mounting bracket
assembly that integrates the bottom of the base, the included “Omega Bracket,” and
the safety cable rigging point in one unit (see the illustration below). When mounting
secure an appropriately rated clamp to the included
omega bracket using a M10 screw fitted through the center hole of the “omega
bracket”. As an added safety measure be sure to attached at least one properly
he safety cable rigging point integrated
, always be sure to
secure your fixture with a safety cable. The fixture provides a built
-in rigging point for
the hanging bracket as illustrated above. Be sure to only use the
designated rigging point for the safety cable and never secure a safety cable to a

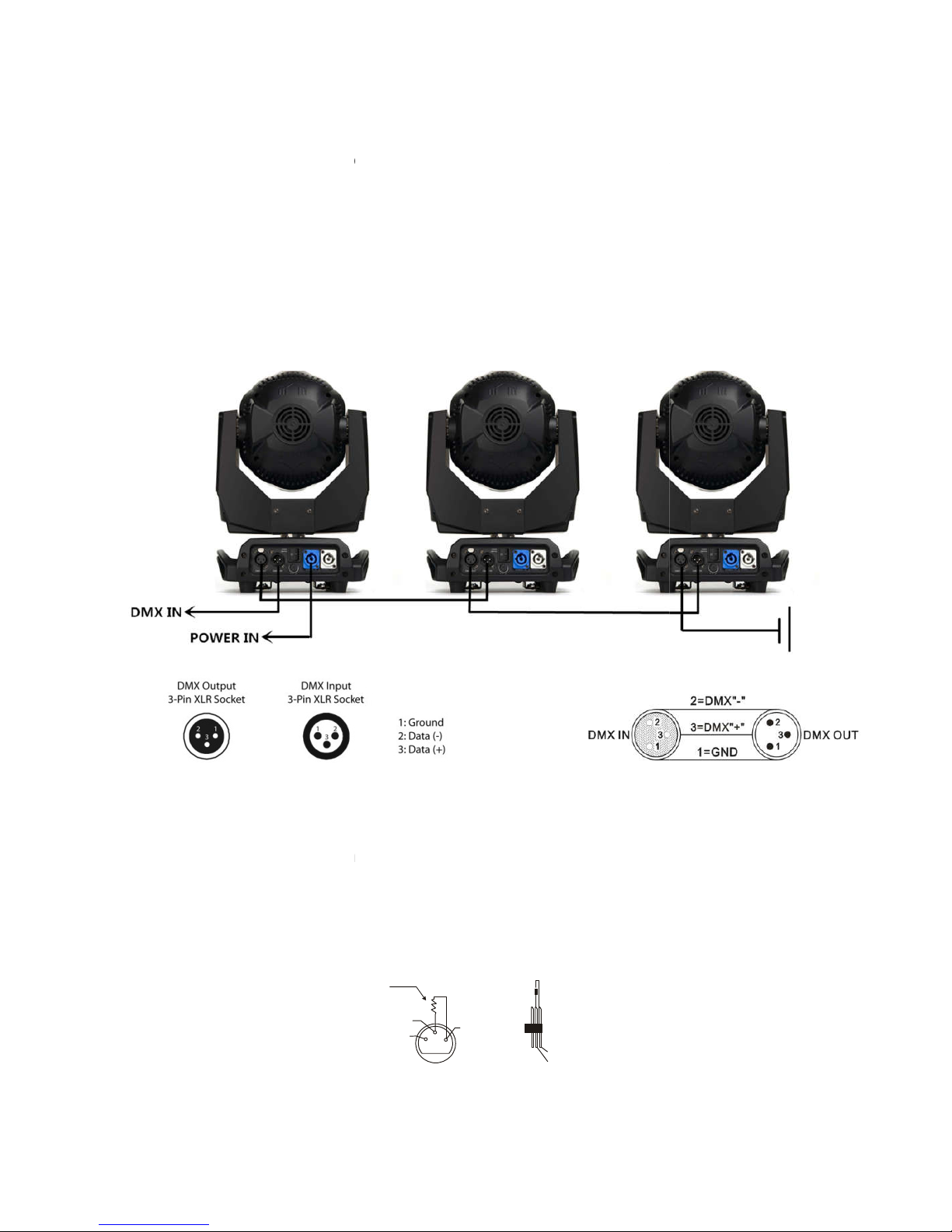

6. DMX-
512 control connections
Connect the provided
XLR cable to the female 3
and the other side to the male 3
multiple
Moving heads be connected
should be two core, screened
refer to the diagram below.
DMX-
512 connection with DMX terminator
For installations where the DMX cable has to run a long distance or is in an
electrically noisy environment, such as in a discotheque, it is recommended to use a
DMX terminator. This helps in preventing corruption of the digital control signal by
electrica
l noise. The DMX terminator is simply an XLR plug with a 120 Ω resistor
connected between pins 2 and 3,which is then plugged into the output XLR socket of
the last fixture in the chain. Please see illustrations below.
7 / 12
512 control connections
XLR cable to the female 3
-
pin XLR output of your controller
and the other side to the male 3
-
pin XLR input of the moving head. You can chain
together through serial linking. The cable needed
should be two core, screened cable with XLR input and output connectors. Please
512 connection with DMX terminator
For installations where the DMX cable has to run a long distance or is in an
electrically noisy environment, such as in a discotheque, it is recommended to use a
DMX terminator. This helps in preventing corruption of the digital control signal by
l noise. The DMX terminator is simply an XLR plug with a 120 Ω resistor
connected between pins 2 and 3,which is then plugged into the output XLR socket of
the last fixture in the chain. Please see illustrations below.
1
2
3
PIN 3
PIN 2
120 Ω
pin XLR output of your controller
pin XLR input of the moving head. You can chain
together through serial linking. The cable needed
cable with XLR input and output connectors. Please
For installations where the DMX cable has to run a long distance or is in an
electrically noisy environment, such as in a discotheque, it is recommended to use a
DMX terminator. This helps in preventing corruption of the digital control signal by
l noise. The DMX terminator is simply an XLR plug with a 120 Ω resistor
connected between pins 2 and 3,which is then plugged into the output XLR socket of

8 / 12
7. DMX Channels
20 channels model
Channe
l
Function
DMX
value
Function details
1 Pan 0~255 Pan
2 Pan fine 0~255 Pan fine
3 Tilt 0~255 Tilt
4 Tilt fine 0~255 Tilt fine
5 Dimmer 0~255 0-100 % dimmer from dark to bright
6 Strobe
0~3 Strobe off, Leds off
3~103 Strobe from slow to fast, Leds on
104~10
7
Strobe off, Leds on
108~20
7
Quick Shake strobe, Leds on
208~21
2
Strobe off, Leds on
213~25
1
Strobe with the same step from slow to fast
252~25
5
Strobe off, Leds on
7 Red 0~255 Red 0-100% dimmer from dark to bright
8 Green 0~255 Green 0-100% dimmer from dark to bright
9 Blue 0~255 Blue 0-100% dimmer from dark to bright
10 White 0~255 White 0-100% dimmer from dark to bright
11 Marco color 0~255 Marco color effect
12 ZOOM 0~255 ZOOM
13 Lens rotation
0~127 Lens rotation
128~19
0
Lens anticlockwise rotate from fast to slow
191~19
2
Lens stop rotation
193~25
5
Lens clockwise rotate from slow to fast
14 Shape choice 0~255 Choose the shape
15 Shape speed 0~255 Shape effect speed and direction control
16 Shape Red 0~255 Shape effect Red dimmer
17 Shape Green 0~255 Shape effect Green dimmer
18 Shape Blue 0~255 Shape effect Blue dimmer
19 Shape white 0~255 Shape effect White dimmer
20 Reset
0~25 No function
26~76 Zoom and lens rotation motor reset in 5
seconds
77~127
Pan and Tilt motor reset in 5 seconds
128~25
5
All motors reset in 5 seconds

9 / 12
48 channels model
Channe
l
Function
DMX
value
Function details
1 Pan 0~255 Pan
2 Pan fine 0~255 Pan fine
3 Tilt 0~255 Tilt
4 Tilt fine 0~255 Tilt fine
5 Dimmer 0~255 0-100 % dimmer from dark to bright
6 Strobe
0~3 Strobe off, Leds off
3~103 Strobe from slow to fast, Leds on
104~10
7
Strobe off, Leds on
108~20
7
Quick Shake strobe, Leds on
208~21
2
Strobe off, Leds on
213~25
1
Strobe with the same step from slow to fast
252~25
5
Strobe off, Leds on
7 Red 0~255 Red 0-100% dimmer from dark to bright
8 Green 0~255 Green 0-100% dimmer from dark to bright
9 Blue 0~255 Blue 0-100% dimmer from dark to bright
10 White 0~255 White 0-100% dimmer from dark to bright
11 Marco color 0~255 Marco color effect
12 ZOOM 0~255 ZOOM
13 Lens rotation
0~127 Lens rotation
128~19
0
Lens anticlockwise rotate from fast to slow
191~19
2
Lens stop rotation
193~25
5
Lens clockwise rotate from slow to fast
14 Shape choice 0~255 Choose the shape
15 Shape speed 0~255 Shape effect speed and direction control
16 Shape Red 0~255 Shape effect Red dimmer
17 Shape Green 0~255 Shape effect Green dimmer
18 Shape Blue 0~255 Shape effect Blue dimmer
19 Shape white 0~255 Shape effect White dimmer
20 Reset
0~25 No function
26~76 Zoom and lens rotation motor reset in 5
seconds
77~127
Pan and Tilt motor reset in 5 seconds
128~25
5
All motors reset in 5 seconds
21 Led 1 Red 0-255 Led 1 Red 0-100% dimmer from dark to bright
22 Led 1 Green 0-255 Led 1 Green 0-100% dimmer from dark to
bright
23 Led 1 Blue 0-255 Led 1 Blue 0-100% dimmer from dark to
bright
24 Led 1 White 0-255 Led 1 White 0-100% dimmer from dark to
bright
…… …… ……. …………….
……. …… ……. ……………….
45 Led 7 Red 0-255 Led 7 Red 0-100% dimmer from dark to bright
46 Led 7 Green 0-255 Led 7 Green 0-100% dimmer from dark to
bright
47 Led 7 Blue 0-255 Led 7 Blue 0-100% dimmer from dark to
bright
48 Led7 White 0-255 Led 7 White 0-100% dimmer from dark to
bright
9/12

10 / 12

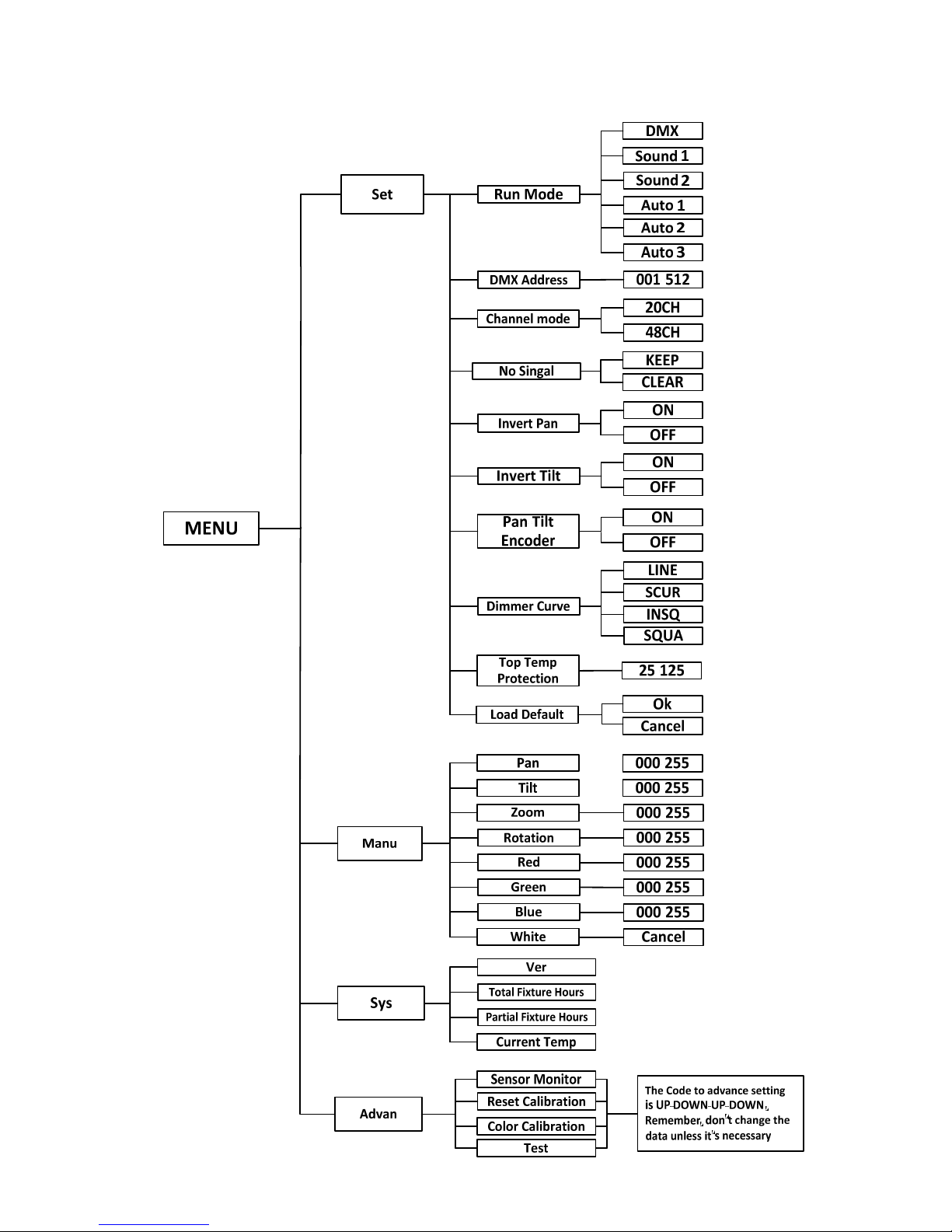

8. Menu Map

11 / 12
9. Key Features
Voltage: AC100～240V, 50 / 60Hz
Power: 145 W
LED Source: 7x15W high power RGBW 4 in 1 LEDs
Zoom: 4-60°
Strobe: 0-20Hz
Control Mode: DMX512, Auto, Sound-actived, Master-slave
DMX Channels: 20 / 48 Channels selectable
Dimmer: 0-100% linear dimmer
Pan: 540°+16bit fine
Tilt: 270°+16bit fine
Display: LCD screen
IP: IP20
N.W: 7.3 kgs
G.W: 9.0 kgs
Packing size (1pc/ctn): 370x 290x 455 mm
Special Points.
1. Each LED can be controlled individually. With unique honeycomb designed lens
2. The front lens can rotate without limitation in forward and reverse direction to
create amazing effects
3. Display screen can be turned upside down with 180° to fit the installation in
different place
4. Can be used as beam, wash or effect light use (Kaleido effects)
5. The scanning position can be memory, it will be automatically reset without
expected movement after rotation.

12 / 12
10. Maintenance and Cleaning
The following points have to be considered during the inspection:
1. All screws for installing the devices or parts of the device have to be tightly
connected and must not be corroded.
2. There must not be any deformations on the housing, color lenses, fixations and
installation spots (ceiling, suspension, trussing).
3. Mechanically moved parts must not show any traces of wearing and must not
rotate with unbalances.
4. The electric power supply cables must not show any damage, material fatigue or
sediments.
Further instructions depending on the installation spot and usage have to be
adhered by a skilled installer and any safety problems have to be removed.
In order to make the lights in good condition and extend the life time, we suggest a
regular cleaning to the lights.
1) Clean the inside and outside lens each week to avoid the weakness of the lights
due to accumulation of dust.
2) Clean the fan each week.
3) A detailed electric check by approved electrical engineer each three month,
make sure that the circuit contacts are in good condition, prevent the poor contact
of circuit from overheating.
We recommend a frequent cleaning of the device. Please use a dry, lint-free cloth.
Never use alcohol or solvents.There are no serviceable parts inside the device.
Please refer to the instructions under “Installation instructions”.
Should you need any spare parts, please order genuine parts from your local dealer
熠鸿灯光 版权所有
EHongLight
© All rights reserved.
