USER MANUAL

USER MANUAL
CONTENTS
Manual released for Software Version 1.0.0.5 from 11/24/2017
This Manual is released on 12/8/2017
Introduction .........................................................1
Safety Instructions.............................................1
Delivery Contents ..............................................3
Fixture Dimensions............................................3
Installations..........................................................4
Installation on the floor .....................................4
Installation hanging...........................................4
Safety attachment..............................................4
Omega Bracket..................................................5
Connections .........................................................6
Mains & DMX ....................................................6
DMX..................................................................7
Wireless DMX....................................................7
Operations ...........................................................8
Menu control ....................................................8
Menu map........................................................9
Software updates............................................13
DMX Modes ....................................................13
Standard Mode ...........................................14
Advanced Mode...........................................14
Easy Mode...................................................15
RGBW Mode................................................15
Services..............................................................16
Trouble Shooting.............................................16
Maintenance...................................................16
Appendix...............................................................I
Specifications.....................................................I

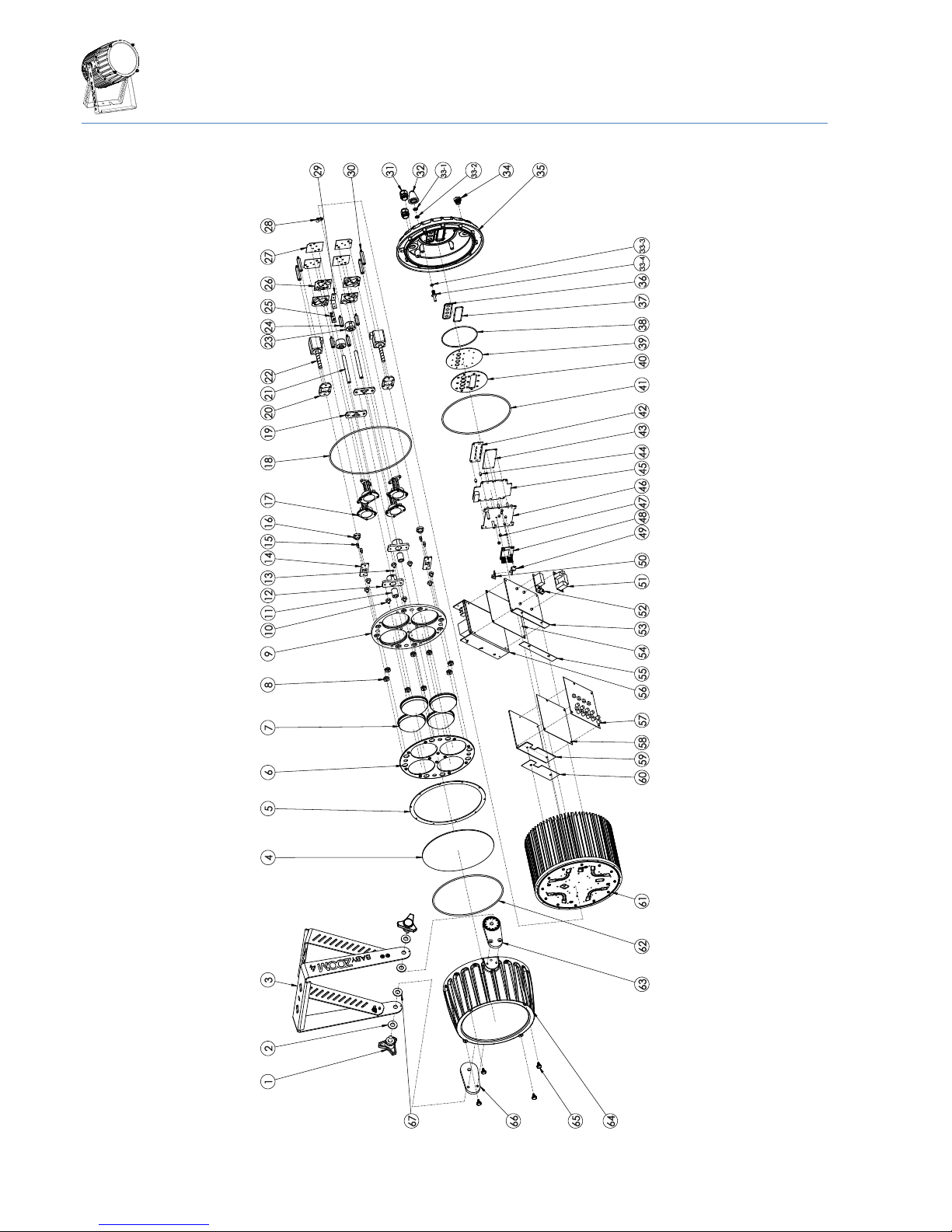

Exploded drawing.............................................II
Spareparts.......................................................III
eventCON® ....................................................IV
Colourwheel table............................................VI
Shutter Channel Table.....................................VII
Special control channel ..................................VIII
Dimmer Curves................................................ IX

Introduction Safety Instructions
1
Introduction
Thank you for your purchase and usage of the Ehrgeiz BabyZoom 4.
You have chosen a reliable product with outstanding features like the unique eventCON® connector system. The device is easy to
use and is made of high quality components.
Every Ehrgeiz Product is checked before shipping to secure you are able to receive a great product without compromise. This is not a
toy. Our ambitious aim is to get you a reliable working tool.
Safety Instructions
In General
In order to maintain the condition and to ensure a safe operation, it is important for all users to follow the safety instructions and
warning notes written in this manual.
Do not operate the fixture with missing or damaged covers, shields or any optical component.
Please consider that unauthorized modifications to the device are forbidden due to safety reasons.
If the device is operated in any way that’s not described in this manual, the product may suffer damage and the guarantee will
become void. Furthermore, misuse may lead to dangers like short-circuit, burns, electric shock, burns due to ultraviolet radiation,
lamp explosion, crash, etc.
IP67 protection rating
The fixture is protected against dust (first digit 6) and against Immersion, up to 1m depth tested for 30 minutes (second digit 7).
Prevention from electrical shock
Make sure to ground (earth) the fixture electrically. (It’s essential to connect the yellow/green conductor to earth)
Main Connection
Do not apply any AC mains power to the fixture at any other voltage than that specified.
Never let the eventCON® cable come into contact with other cables. Treat the eventCON® cable and all connections with the mains
with particular caution.
Make sure the eventCON® cable is never crimped or damaged by sharp edges.
Rigging
Check that all external covers and rigging hardware are securely fastened.
When choosing the installation-location, please make sure that the fixture is not exposed to extreme heat. There should not be any
cables lying around. You endanger your own and the safety of others.
Make sure that the area below the installation place is cordoned off when rigging, de-rigging or servicing the fixture.
If suspending from a rigging structure, fasten the fixture to a rigging clamp with an M10 bolt screwed into the threaded hole in the
center of the bracket of the fixture.
Make sure all fixtures are operated and installed by qualified personnel with the relevant national certifications.
Install as described in this manual a secondary attachment such as a safety wire that is approved by an official body.

Introduction Safety Instructions
2
Positioning:
The fixture must be positioned at least 0.2m minimum distance to illuminate objects.
Keep all inflammable materials at least 0.2m from this fixture.
Allow to place the fixture on an inflammable surface.
The maximum ambient temperature of 45°C may not be exceeded.
The exterior of this fixture can reach a very high temperature during operation. Avoid contact by persons and materials.
Maintenance:
This fixture is for professional use only. It is not for household use.
Always unplug the mains for any maintenance.
Risk of eye injury:
Do not stare directly into the light when it is switched on. Do not look at LEDs with magnifying glasses, telescopes, binoculars, or
similar optical instruments that may concentrate the light output.

Introduction Delivery Contents
3
Delivery Contents
You received your BabyZoom 4 with the following content
-BabyZoom 4 4x60W Osram LED Beamlight with 6 –40° beam angle
-eventCON® Input cable Input cable with Neutrik XLR and Schuko merging to Eventcon
-Diffusor Screws Set of 4 Screws

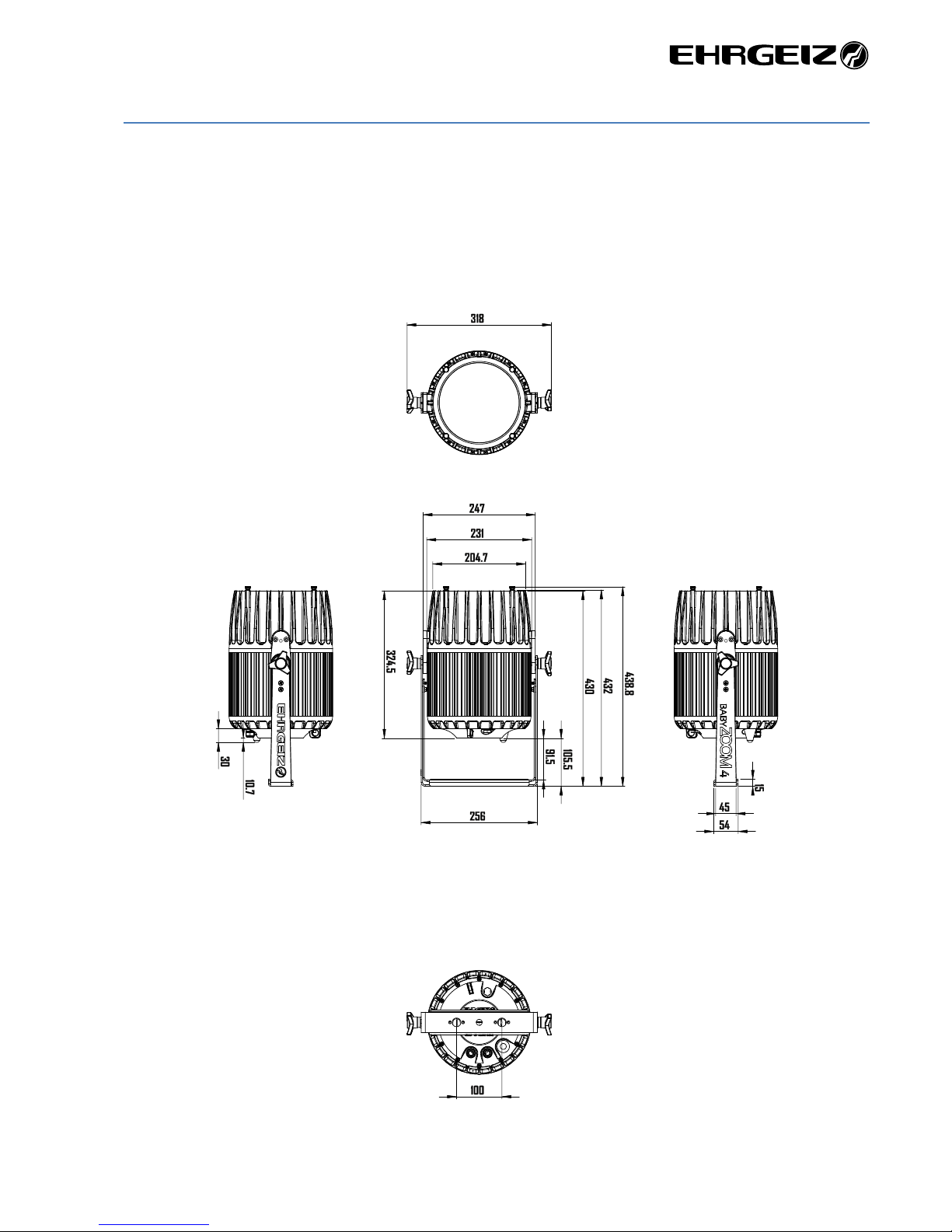

Fixture Dimensions
Dimensions in mm

Installations Installation on the floor
4
Installations
Your BabyZoom 4 can be installed in every kind of following positions. Please see the explanations and rely to the instructions for a
safe operation and secure handling.
Installation on the floor
You could place the BabyZoom 4 on the floor. Please make sure the surface is
plane and the reliability of the floor is sufficient.
Installation hanging
You can attach the BabyZoom 4 to a Truss or Pipe facing down or to the side.
Safety attachment
Please attach the Safety rope to the dedicated
eyelet integrated into the housing.
Safety

Installations Omega Bracket
5

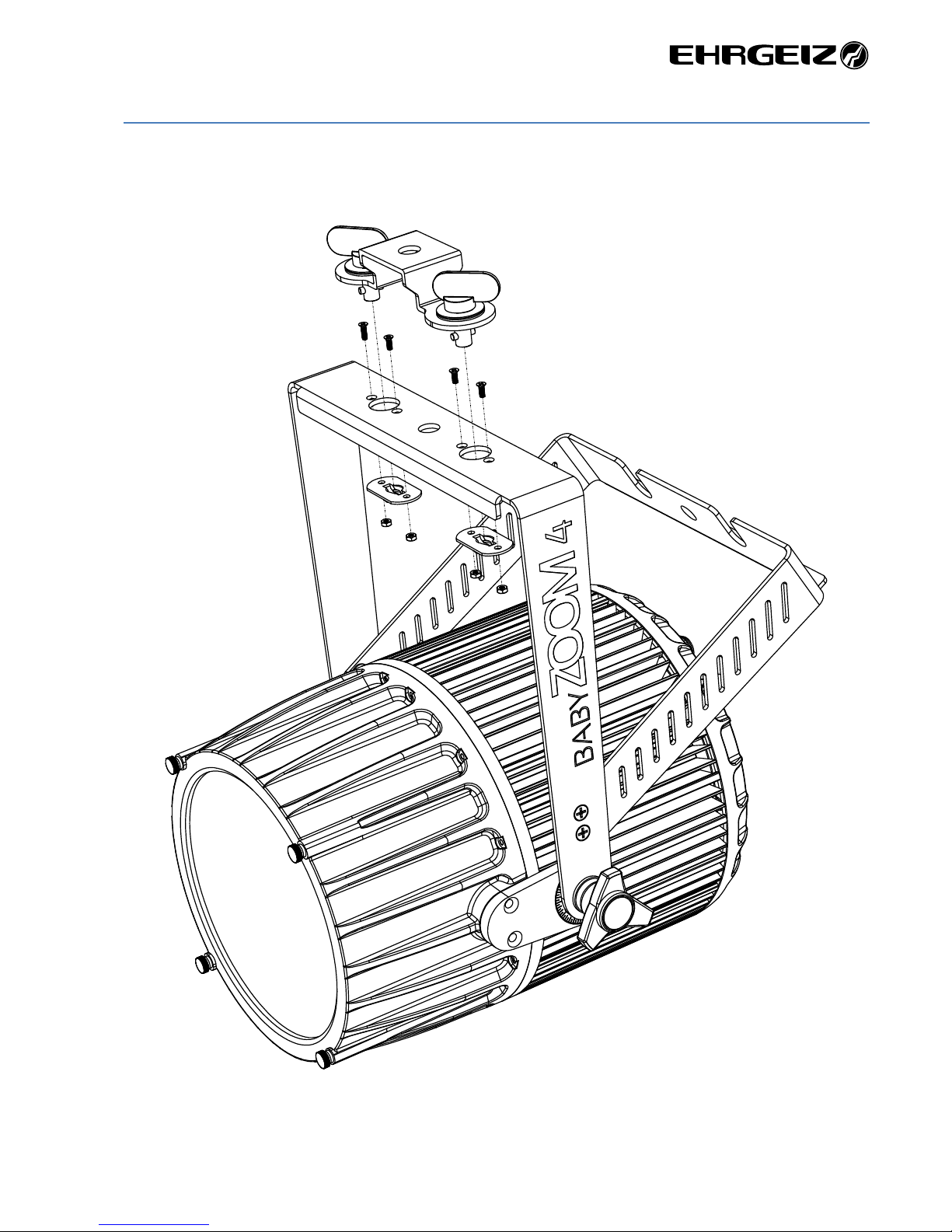

Omega Bracket
There are optional Omega Bracket fittings available for your BabyZoom 4. Attach them with the screws onto the suspension:

Connections Mains & DMX
6
Connections
Mains & DMX
The eventCON® system is an innovative VDE certified connection system for professional use. It offers one connection for Power
supply as well as the DMX signal. You will only be in need for one cable. You are able to loop through to the next device, while the
BabyZoom 4 offers you an input and output.
The connection of the Power supply has to be done by qualified staff only. Do not connect the BabyZoom 4 if you are not able to
survey the consequences.
Do not try to connect another type of plug than an original eventCON®. Do not use any force to connect the eventCON® plug. You
could use the outlet for connecting additional devices. The internal power wiring is done with a cable cross section of 1.5mm².
The eventCON® System offers a big range of optional cables and mergers. For further information see Chapter eventCON® on
Appendix page IV
output
input

Connections DMX
7
DMX
We recommend the use of High quality XLR connectors like original NEUTRIK. Please use real DMX cable with a surge impedance of
110 Ω.
Please notice that the USITT DMX Standard does allow to use a max of 32 DMX fixtures in one line. You should terminate the signal
by a 120 Ω resistor.
In the Standard mode the BabyZoom 4 uses 11 DMX channels.
Connect the devices and increase the value of the DMX channel by 11 from one device to another
Wireless DMX
The device is equipped with a Wireless DMX Input from Wireless Solution Made in Sweden (W-DMX ™).
To establish a connection simply use the “Link” Option in the BabyZoom 4 Menu and set your transmitter to the Link Mode.
After both devices are linked you will be able to control the device via Wireless DMX, as long as the W-DMX Mode is turned on in the
Menu.
Controller
DMX Address 1
DMX Address 12
DMX Address 23

Operations Menu control
8
Operations
Menu control
Your BabyZoom 4 has an easy to read and setup OLED display and Menu. It is programmed with a lot of built in functions as well as
DMX Modes for different applications. Please notice that the display will flip automatically while you turn the fixture (Can be
disabled in the menu).
The Menu of the BabyZoom 4 is mainly intuitive. You will find a menu map on the following pages. The four buttons are used to
scroll the values, select a setting or hop back in the menu structure:
Menu Go back in the menu structure or leave a value as it is
Enter Go forward in the menu structure or confirm the selected value
UP/DOWN Scroll up / down in the menu structure or scroll the selected value
display
Input buttons

Operations Menu map
9
Menu map
DMX
Address
1-502
►Choose your DMX address
Mode
Standard*
►11 Chanels with Standard Functions
Advanced
►17 Chanels with 16 bit for Colour, Dimmer, Zoom
Easy
►3 Chanels with Colour Wheel
RGBW
►5 Chanels with RGBW & Dimmer
Wireless DMX
Enable
On
►Enable the Wireless DMX Receiver
Off*
Link
Link
►Set the Wireless DMX Receiver to Link Status
Unlink*
Remote DMX
Addr.
On*
►Enable change of the DMX Startaddress via DMX
Off
Reset via DMX
On*
►Enable the Reset via DMX
Off
No DMX
Shutter
Closed*
►Choose behavior in Case of DMX loss
Hold
Play Program1
DMX Live
DMX Refresh
rate
xxx Hz
►Display the received DMX values
Color Wheel
0-255
Red
0-255
Green
0-255
Blue
0-255
White
0-255
Shutter
0-255
Dimmer
0-255
CTO
0-255
Zoom
0-255
Control
0-255
Remote DMX
Addr.
0-255

Operations Menu map
10
Personality
Dimmer Curve
Linear*
►Choose the Dimmer Curve
Theatrical
Square Law
Inverse Square
Dimmer
Speed
Fast*
►Choose how fast the Dimmer is reacting
Smooth
Zoom Speed
Fast*
►Choose the Speed of the Zoom
Normal
Slow
PWM Rate
Setting
600 Hz
►Set the PWM rate of the light output
1200 Hz*
2000 Hz
2400 Hz
6000 Hz
Display Setting
On / Off
On* / Off
►Shut off the Display
Shut-off time
Off*
►Set how fast the Display output is shut off
1 minute
5 minute
60 minute
No signal flash
On*
►Choose if the display is blinking if there is no DMX input
Off
Flip Display
Auto*
►Choose the alignment of the display
Auto means display is aligned automatically
Off
On
Temperature
Unit
Celsius *
►Choose the unit the temperature is displayed
Fahrenheit
Lock
*Off
►Enable the Menu Lock
On
Set password
****
****
►Choose a passphrase
Boot mode
Select Mode
Auto Boot
Mode*
►Select in which mode the device starts up
Auto Boot Mode will start device in last status
DMX Mode
Static Mode
Program Play
DMX High
Priority
On* / Off
►If set on, device will always react to DMX

Operations Menu map
11
Stand-Alone
Test Sequence
Dynamic*
Run / Cancel*
►Run a Test sequence incl. Zoom
Static
Run / Cancel*
►Run a Test sequence without Zoom
Master / Slave
Alone*
►device runs Static or Program alone
Master
►device sends the signal for further devices for stand alone
Slave
Slave 1*
►choose slave number
e.g. If you choose slave 1, device will play program 1 sent by
master
Slave 2
Slave 3
Static Mode
Color Wheel
0-255
►Set the values for static light output
Red
0-255
Green
0-255
Blue
0-255
White
0-255
Shutter
0-255
Dimmer
0-255
CTO
0-255
Zoom
0-255
Control
0-255
Reset All
Yes
►Reset the values of static to default
No
Program Edit
Program 1
Prog1 Max Steps
Select Step
01-30
►select amount of steps
Capture DMX
Yes / Cancel
►capture DMX input to be
saved as selected step
Hold Time
000-999
►set hold time of step
Fade Time
000-999
►set fade time of step
Program 2
(See above)
►see above
Program 3
(See above)
►see above
Reset Program
Reset Program 1
►reset the program to default values
Reset Program 2
Reset Program 3
Reset All
►reset all programs to default values
Program Play
Program 1
No* / Yes
►play the program
Program 2
Program 3
Program All
►play all 3 programs one after the other

Operations Menu map
12
Service
Reset
Fixture Reset
Reset /
Cancel*
►Reset the internal processor
Zoom Reset
Reset /
Cancel*
►Reset the Zoom motor
Calibration
Enable /
Disable
►disable colour calibration for higher light output
Factory Default
Load
No*/Yes
►set all settings to factory default
[does not reset the internal programs]
Information
Fixture time
Resettable
xxx Hours
►show resettable hours
Total
xxx Hours
►show total device hours
Clear
Resettable
Clear / Cancel
►clear resettable time
Fixture Temp.
Head LED
Actual
xxx C / F
►show the actual temperature of the led board
Max
xxx C / F
►show the maximum temperature of the led board
Reset Max
Reset /
Cancel*
►reset the maximum temperature of the led board
Base Driver
(See above)
(See above)
►see above
Firmware
version
x.x.x.x
►display the firmware version
Serial Number
xxxxxxxxxx
►display the serial number of the device
Product ID
BabyZoom 4
►display the Product ID

Operations Software updates
13
Software updates
Your BabyZoom 4 can be updated via the DMX connection, so no need to open it.
If you experience an issue which could probably be solved by a Firmware Update, please contact your Ehrgeiz Dealer for further
instructions.
DMX Modes
You can set up your BabyZoom 4 in 4 different DMX Modes:
Standard Mode
Page 14; Uses 11 DMX channels
Advanced Mode
Page 14; Uses 17 DMX channels
Easy Mode
Page 15; Uses 3 DMX channels
RGBW Mode
Page 15; Uses 5 DMX channels

Operations DMX Modes
14
Standard Mode
CH
Function
1
Colour Wheel (see Colour Wheel chart / Appendix Page VI)
2
Red
3
Green
4
Blue
5
White
6
Shutter (see Shutter effects chart / Appendix Page VII)
7
Dimmer
8
CTO
9
Zoom
10
Control (see Special Control channel / Appendix Page VII)
11
Remote DMX Address
Advanced Mode
CH
Function
1
Colour Wheel (see Colour Wheel chart / Appendix Page VI)
2
Red
3
Red fine
4
Green
5
Green fine
6
Blue
7
Blue fine
8
White
9
White fine
10
Shutter (see Shutter effects chart / Appendix Page VII)
11
Dimmer
12
Dimmer fine
13
CTO
14
Zoom
15
Zoom fine
16
Control (see Special Control channel / Appendix Page VII)
17
Remote DMX Address

Operations DMX Modes
15
Easy Mode
CH
Function
1
Colour Wheel (see Colour Wheel chart / Appendix Page VI)
2
Dimmer
3
Zoom
RGBW Mode
CH
Function
1
Red
2
Green
3
Blue
4
White
5
Zoom

Services Trouble Shooting
16
Services
Trouble Shooting
Problem
Causes
Solutions
No Display / Not switched on
No power to fixture
Check AC mains power and connections
Inspect connections and cables. Correct poor connections. Repair or replace
damaged cables
Check the power supply voltage.
Fixture does not respond to
DMX correctly.
Incorrect fixture DMX addressing
Check the fixture is assign to correct DMX address (See Page 9)
Incorrect DMX mode
Check fixture is set to correct DMX mode (See Page 13)
Fault on data link
check for the data link is correctly linked from the DMX source if all cables are
in good condition
Other device on DMX link defective.
Unplug eventCON® IN and OUT connectors and connect them directly
together to bypass one fixture at a time until normal operation is regained
Data transmission lines should be terminated.
Insert termination plug in OUTPUT of the last fixture on the link.
Device is set to Wireless DMX input
Disable the W-DMX input via Menu
LC-Display works but no light
outputs can be generated.
Faulty DMX link
Run built-in test mode or static control mode to verify if LEDs are illuminated
Broken parts / wires / LEDs
Have fixtures serviced by an Ehrgeiz service technician
Maintenance
There are no serviceable Part inside your BabyZoom 4. If problems occur, contact your Ehrgeiz dealer or a qualified Ehrgeiz Service
technician.
Use a slightly moist and smooth cloth to clean the device. Do not use any aggressive detergents.
We are sure you will have a sophisticated experience with your BabyZoom 4.

Appendix Specifications
I
Appendix
Specifications
Light source
•4 x 60 W Osram® RGBW LEDs
•average service life: 20.000 hours
Optical system
•6°-40° beam angle
•ConsistentColor™ Zoom Optics
Functions
•High resolution dimmer 0-100%
•Selectable dimmer curves
•Strobe with variable speed (max. 20Hz )
•Pre-programmed random strobe & pulse effects
•RGBW, 8 or 16 bit color mixing
•SteadyColorTM Dimming
•Seamless CTO
•Virtual color wheel with 39 colors including whites (2700K / 3200K / 4200K / 5600K /
7200K / 8000K)
Thermal
•Maximum ambient temperature: 45°C
•Over-temperature protection
•Convection cooling
Control and programming
•Setting & addressing: 2x 16 characters
•OLED display & 4 buttons
•Protocol: USITT DMX-512
•Control channels: 3,5,10,16
•4 DMX protocol modes
•3-editable programs, each up to 25 steps
•Stand-alone mode
•Sound active mode
•Wireless DMX
•Firmware update via Update cable
•DMX In/Out: eventCON®
•Power In/Out: eventCON®
Electrical Specification
•Electronic switching power supply with auto-sensing
•Input voltage: 100-240V AC, 50/60 Hz
•Max. power consumption: 200 Watt
Mechanical Specification
•IP67 rating
•Height: 304 mm (11.1“)
•Width: 238mm (7.2“)
•Depth: 238 mm (7.2“)
•Weight: 10.0 kg (22.04 lbs)
Rigging
•Centered Ø12mm hole in bracket
•One attachment point for safety wire
•Preparation for one omega bracket
Included accessories
•Cable Merger eventcon/Schuko + XLR-3

Appendix Exploded drawing
II
Exploded drawing
