EINHELL Expert TE-VC 1925 SA User manual

Art.-Nr.: 23.423.56 I.-Nr.: 11012
Original operating instructions
Wet and Dry Vacuum Cleaner
TE-VC 1925 SA
Anleitung_RT_VC_1525_SA_SPK7:_ 01.06.2010 8:06 Uhr Seite 1

2
1
7
4
12
13
14
5
8
12
15
9
11
6
17
29
18
10
3
9
23
29
6
22
26
17
14
25
27
24
21
27
20
21
19
16
Anleitung_RT_VC_1525_SA_SPK7:_ 01.06.2010 8:06 Uhr Seite 2

3
7
6
5
31
28
28
10
13
30
9
8
13
28
13
4
13
12
30
32
31
28
30 31
30
28
31,30,13
30 28
30
Anleitung_RT_VC_1525_SA_SPK7:_ 01.06.2010 8:06 Uhr Seite 3

4
13
10
12
12
10
1514
1.
2.
24
11
32
13
16
31
28 30
25
Anleitung_RT_VC_1525_SA_SPK7:_ 01.06.2010 8:07 Uhr Seite 4

Important!
When using equipment, a few safety precautions
must be observed to avoid injuries and damage.
Please read the complete operating manual with due
care. Keep this manual in a safe place, so that the
information is available at all times. If you give the
equipment to any other person, give them these
operating instructions as well.
We accept no liability for damage or accidents which
arise due to non-observance of these instructions
and the safety information.
1. Safety information
Important: Read the operating instructions before
assembling and using the appliance for the first
time.
Check that the mains voltage is the same as the
mains voltage specified on the rating plate.
Pull out the power plug in the following
circumstances: Whenever the appliance is not in
use, before opening the appliance and before all
cleaning and maintenance work.
Never clean the appliance with solvents.
Never pull the plug out of the socket by pulling the
cable.
Never leave the appliance unattended when
operational.
Keep away from children.
Take care to ensure that the power cable does
not get damaged by being run over, crushed,
pulled or suchlike.
Do not use the machine if the power cable is in a
less than perfect condition.
If the power cable has to be replaced, the
replacement must comply with the design
specifications of the manufacturer. Power cable:
H 05 VV - F 3 x 1.5 mm2
Never vacuum the following: Burning matches,
smoldering ash and cigarette butts, combustible,
caustic, inflammable or explosive substances,
vapor or liquids.
This appliance is not suitable for vacuuming dust
which can be harmful to health.
Store the appliance in a dry indoor location.
Never use the appliance if it is damaged.
Only allow the appliance to be serviced by an
authorized after sales service outlet.
Only use the appliance to carry out work for which
has been designed.
Take extra care when cleaning steps.
Use only genuine accessories and spare parts.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Children should
be supervised to ensure that they do not play with
the appliance.
2. Layout and items supplied
(Fig. 1-4/15)
1. Handle
2. Hook for cable store
3. Power cable
4. Automatic socket-outlet for electric tools
5. Head
6. Handle
7. ON/OFF/Automatic switch
8. Suction hose connection
9. Flexible suction hose
10. Tank
11. Water drain screw
12. Castors
13. Wheels
14. Dual purpose nozzle
15. Accessory compartment
16. Accessory holder
17. Suction tube
18. Locking hook
19. Blow connector
20. Filter cage
21. Safety float valve
22. Electric tool adapter
23. Crevice nozzle
24. Pleated filter with cover
25. Foam filter
26. Upholstery nozzle
27. Dirt bag
28. Axle for fitting the wheels
29. Air regulator
30. 4 x Washers for fitting the wheels
31. 2 x Split pins for fitting the wheels
32. 2 x Covers for fitting the wheels
5
GB
Anleitung_RT_VC_1525_SA_SPK7:_ 01.06.2010 8:07 Uhr Seite 9

3. Intended use
The wet and dry vacuum cleaner is designed for wet
and dry vacuuming using the appropriate filter. The
appliance is not suitable for the vacuuming of
combustible, explosive or harmful substances.
The machine is to be used only for its prescribed
purpose. Any other use is deemed to be a case of
misuse. The user / operator and not the manufacturer
will be liable for any damage or injuries of any kind
caused as a result of this.
Please note that our equipment has not been
designed for use in commercial, trade or industrial
applications. Our warranty will be voided if the
machine is used in commercial, trade or industrial
businesses or for equivalent purposes.
4. Technical data
zH05~V:egatlovsniaM
sttaw008:tupnirewoP
Max. power consumption of the automatic socket-
sttaw0051:teltuo
Max. total power consumption: 2300 watts
l52:emulovreniatnoC
gk7,9:thgieW
5. Before starting
Important!
Before you connect the appliance to the mains
supply make sure that the data on the rating plate
are identical to the mains data.
The appliance may only be connected to a shock-
proof socket.
5.1 Assembling the appliance
5.1 Appliance assembly

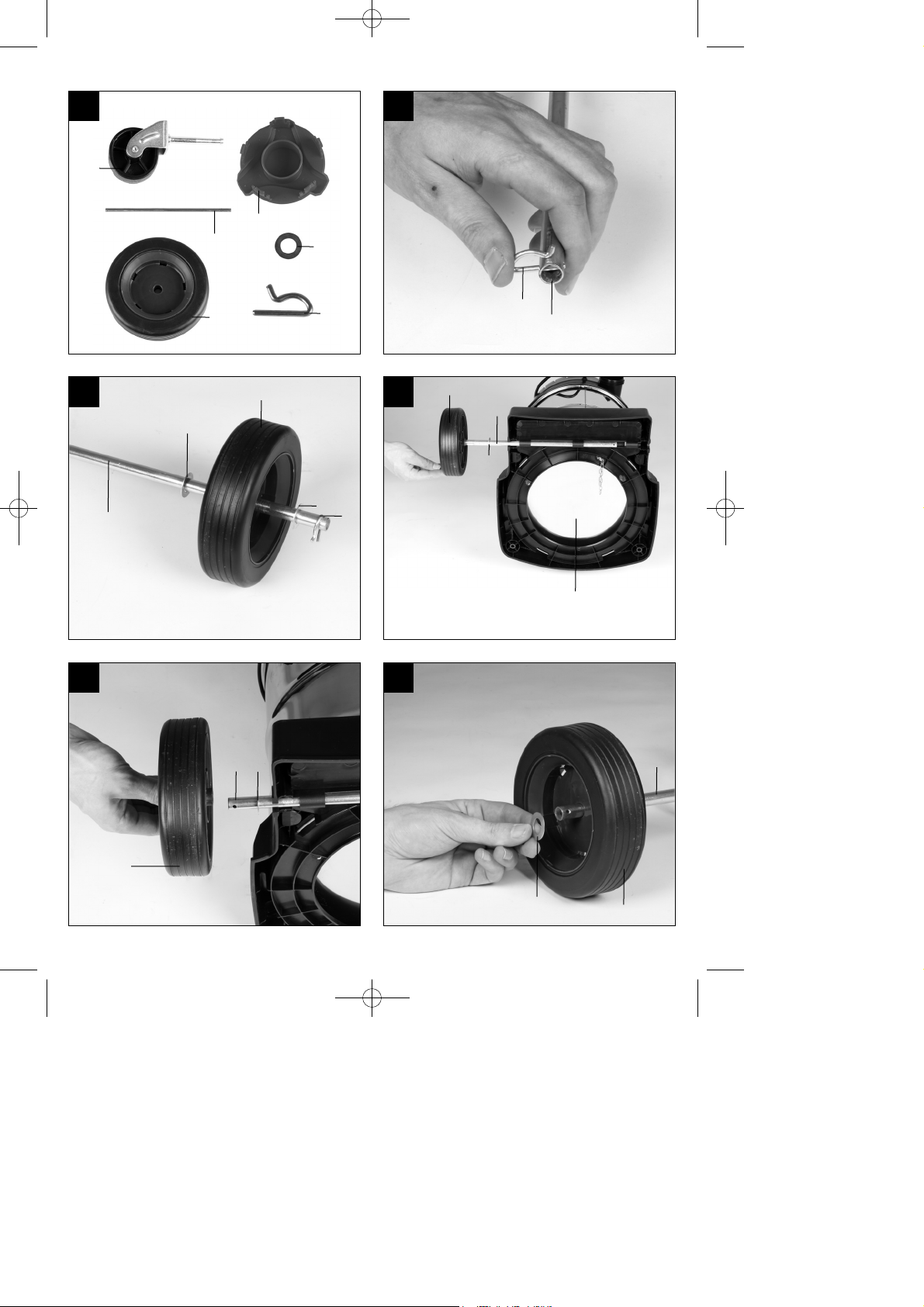

Fitting the wheels (Fig. 4-11/13)
Place a split pin for fitting the wheels (31) through the
appropriate hole in the axle (28) and fit a washer (30)
and a wheel (13) to the axle (28) (Fig. 5-6). Now
slide the axle (28) through the guides provided for it
on the underside of the tank (10) (Fig. 7). Fit the
second wheel (13) to the empty end of the axle (28)
and secure it with the other washer (30) and the split
pin (31) (Fig. 8-10). Push the covers (32) on to the
outside of the wheels (13) so that the detents
engage on the covers (32) for the wheel (13). (Fig.
11).
Fitting the castors (Fig. 12/12)
Fit the castors (12) into the appropriate mountings on
the underside of the tank (10). Push the castors (12)
firmly into the mounting until they engage with a
clicking noise (Fig. 12).
Fitting the appliance head (Fig. 5/14-15)
The appliance head (5) is fastened to the container
(10) by the locking hook (18). To remove the
appliance head (5), open the locking hook (18) and
remove the appliance head (5). When fitting the
appliance head (5), make sure that the locking hook
(18) locks into place correctly.
5.2 Fitting the filter
Important!
Never use the wet and dry vacuum cleaner without a
filter.
Check that the filter is securely fitted at all times.
Fitting the foam filter (Fig. 14/25)
For wet vacuuming, slip the supplied foam filter (25)
over the filter basket (Fig. 2/20). The pleated filter (24)
already fitted upon delivery is not suitable for wet
vacuuming.
Fitting the pleated filter (Fig. 15/24)
For dry-vacuuming, slip the pleated filter (Fig. 3/24)
over the filter basket (Fig. 2/20). The pleated filter (24)
is suitable for dry-vacuuming only.
5.3 Fitting the suction hose (Fig. 1-3)
Connect the suction hose (9) to the corresponding
connector on the wet and dry vacuum cleaner,
depending on the application required.
Vacuuming
Connect the suction hose (9) to the suction hose
connector (8).
Blowing
Connect the suction hose (9) to the blow connector
(19).
Air regulator (Fig. 3/29)
The air regulator (29) can be fitted between the
suction hose (9) and the suction tube (17). The
suction power of the nozzle can be infinitely adjusted
using the air regulator (29).
When wet vacuuming, make selective use of the air
regulator to suck in air as well as liquids. This will help
6
GB
Anleitung_RT_VC_1525_SA_SPK7:_ 01.06.2010 8:07 Uhr Seite 10
220-240

to take some strain off the equipment when
vacuuming liquids.
5.4 Suction nozzles
Dual-purpose nozzle (Fig. 3)
The dual-purpose nozzle (14) is for vacuuming solids
and liquids over medium to large areas.
Crevice nozzle (Fig. 3/)
The crevice nozzle (23) is designed for vacuuming
solids and liquids in corners, edges and other areas
that are difficult to access.
Upholstery nozzle (Fig. 3)
The upholstery nozzle (26) is specially designed for
vacuuming solids on upholstery and carpets.
6. Operation
6.1 ON/OFF switch (Fig. 2/7)
Switch position 0:
Switch position I:
Switch position AUTO: Automatic mode
6.2 Dry vacuuming
Use the pleated filter (24) for dry vacuuming (see
point 5.2).
Always ensure that the filters are perfectly secure.
6.3 Wet vacuuming
For wet-vacuuming, use the foam filter (25) (see point
5.2).
Check that the filter is securely fitted at all times.
Water drain screw (Fig. 1/11)
To make the tank (10) easier to empty after wet
vacuuming, it is fitted with a water drain screw (11).
Open the water drain screw (11) by turning it anti-
clockwise and drain the liquid.
Important!
When wet vacuuming, the floating safety switch (21)
closes when the maximum tank level is reached. In
doing so, the suction noise of the equipment will
change and become louder.
You must then switch off the equipment and empty
the tank.
Important!
The wet and dry vacuum cleaner is not suitable for
the vacuuming of combustible liquids.
For wet vacuuming, use only the supplied foam filter.
6.4 Automatic mode
Connect the power cable on your electric tool to the
automatic socket-outlet (4) and connect the suction
hose (9) to the extractor connector on your electric
tool. Check that the connections are secure and air-
tight.
You can use the supplied electric tool adaptor (22) to
connect the suction hose (9) to the electric tool. To do
so, fit it between the suction hose and the extractor
port on the electric tool.
Set the switch (7) on the wet and dry vacuum cleaner
to position AUTO, automatic mode. The moment you
switch on the electric tool, the wet and dry vacuum
cleaner switches on as well. When you switch off the
electric tool, the wet and dry vacuum cleaner
switches off as well after a pre-set delay.
6.5 Blowing
Connect the suction hose (9) to the blow connector
(19) on the wet and dry vacuum cleaner.
7. Cleaning, maintenance and ordering
of spare parts
Important!
Always pull out the mains power plug before starting
any cleaning work.
7.1 Cleaning
Keep all safety devices, air vents and the motor
housing free of dirt and dust as far as possible.
We recommend that you clean the appliance
immediately after you use it.
7.2 Cleaning the appliance head (5)
Clean the appliance regularly with a damp cloth and
some soft soap. Do not use cleaning agents or
solvents; these may be aggressive to the plastic parts
in the appliance.
7.3 Cleaning the container (10)
The container can be cleaned with a damp cloth and
some soft soap or under running water, depending on
the amount of dirt.
7.4 Cleaning the filters
Cleaning the pleated filter (24)
Clean the pleated filter (24) regularly by carefully
patting it and cleaning it with a fine brush or hand
brush.
7
GB
Normal operation
Off
Anleitung_RT_VC_1525_SA_SPK7:_ 01.06.2010 8:07 Uhr Seite 11

Cleaning the foam filter (25)
Clean the foam filter (25) with a little soft soap under
running water and allow it to air-dry.
7.5 Maintenance
At regular intervals and before each use, check that
the filters in the wet and dry vacuum cleaner are
securely fitted.
7.6 Ordering replacement parts
Please quote the following data when ordering
replacement parts:
Type of machine
Article number of the machine
Identification number of the machine
Replacement part number of the part required
For our latest prices and information please go to
www.einhell.com.au
8. Disposal and recycling
The unit is supplied in packaging to prevent its being
damaged in transit. This packaging is raw material
and can therefore be reused or can be returned to
the raw material system.
The unit and its accessories are made of various
types of material, such as metal and plastic.
Defective components must be disposed of as
special waste. Ask your dealer or your local council.
8
GB
Anleitung_RT_VC_1525_SA_SPK7:_ 01.06.2010 8:07 Uhr Seite 12

The guarantee provided in this Guarantee Certificate is given by Einhell Australia Pty Limited
ACN 134 632 858 of 6/166 Wellington Street, Collingwood, Victoria (Telephone number 1300 922 271)
GUARANTEE CERTIFICATE
EINHELL AUSTRALIA PTY LTD
6/166 Wellington Street
Collingwood VIC 3066
Australia
Phone: [phone]
Dear Customer,
All of our products undergo strict quality checks. In the unlikely event that your device develops a fault, please
contact our service department at the address shown on this guarantee certificate. Of course, if you would
prefer to call us then we are also happy to offer our assistance under the service number printed below.
Please note the following terms under which claims under the Einhell Express Guarantee can be made:
1. The benefits conferred by the Einhell Express Guarantee are in addition to all rights and remedies which
you may be entitled to under the Australian Consumer Law, and anyother statutory rights you may have
under other applicable laws. This Einhell Express Guarantee does not exclude, restrict or modify any
We do not charge you for the Einhell Express Guarantee.
2. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for amajor failure and for compensation for any other reasonably
foreseeableloss or damage. You are also entitled to have the goods repaired or replaced if the goods
fail to be of acceptable quality and the failure does not amount to a major failure.
3. The Einhell Express Guarantee only covers problems caused by material or manufacturing defects, and
our liabilityunder the Einhell Express Guarantee is limited, at our discretion, to the rectification of these
defects or replacement of the product. Please note that the product has not been designed for use in
commercial, trade or industrial applications. Consequently, the Einhell Express Guarantee will not apply
if the product is used in commercial, trade or industrial applications or for other equivalent activities.
4. The following are also excluded from the Einhell Express Guarantee: compensation for transport
damage, damage caused by failure to comply with the installation/assemblyinstructions or damage
caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to
the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the
product or use of non-approved tools or accessories), failure to comply with the maintenance and safety
regulations, ingress of foreign bodies into the product (e.g. sand, stones or dust), effects of force or
external influences (e.g. damage caused by the product being dropped) and normal wear resulting from
proper operation of the product. The Einhell Express Guarantee will also not applyif any attempt is made
5. The Einhell Express Guarantee is valid for a period of 2 years starting from the purchase date of the
product. Claims made under the Einhell Express Guarantee should be submitted before the end of this
guarantee period and within two weeks of the defect being noticed. No claims under the Einhell Express
Guarantee will be accepted if submitted after the end of this guarantee period. The original guarantee
period remains applicable to the device even if repairs are carried out or parts are replaced. In such
cases, the work performed or parts fitted will not result in an extension of the guarantee period for the
Einhell Express Guarantee, and the Einhell Express Guarantee will notapply for the work performed or
6. To make a claim under the Einhell Express Guarantee, please send the relevant product postage-free to
the address shown below and enclose either the original or a copy of your sales receipt or another dated
proof of purchase. It would help us if you could describe the nature of the problem in as much detail as
possible. If the defect is covered by the Einhell Express Guarantee, yourproduct will be repaired
immediatelyand returned to you,or we will send you a newdevice (at our election).
Any costs incurred by you in making a claim under this Einhell Express Guarantee, unless specified
otherwise in this guarantee certificate, must be borne by you.
Of course, we are also happyto offer a chargeable repair service for any defects which are not covered by the
scope of the Einhell Express Guarantee or for products which are no longer covered by the Einhell Express
Guarantee. To take advantage of this service, please send the product to our service address.
such rights or remedies.
to tamper with the product.
parts fitted. This also applies when an on-site service is used.
(Einhell Express Guarantee).

EH 02/2013 (01)
